OREI HD-401MR 4x1 Multiviewer Switch
Key Features:
-
HDMI 1.3 & HDCP 1.2 Compliant – Supports legacy HDMI standards for wide device compatibility
-
Supports Resolutions up to 1080p@60Hz – Delivers crisp Full HD video quality across all modes
-
4 HDMI Inputs, 1 HDMI Output – Connect up to four source devices to a single display
-
Quad, Full Screen & Dual Display Modes – Multiple viewing layouts for real-time monitoring
-
Switching via Remote Control or Front Panel Buttons – Flexible and intuitive user control
-
Real-Time Multi-Source Viewing – View all four HDMI sources simultaneously on one screen
-
Plug & Play Setup – No drivers or complex configuration needed
-
Compact, Durable Metal Housing – Designed for stable operation and extended lifespan
-
Wall-Mountable Design – Easy installation for control rooms, surveillance, and more
-
Ideal for Monitoring Applications – Use with DVD players, cameras, computers, and more
-
Seamless Mode Switching – Instantly toggle between modes without signal loss
-
Reliable Signal Stability – Designed for continuous operation in demanding environments

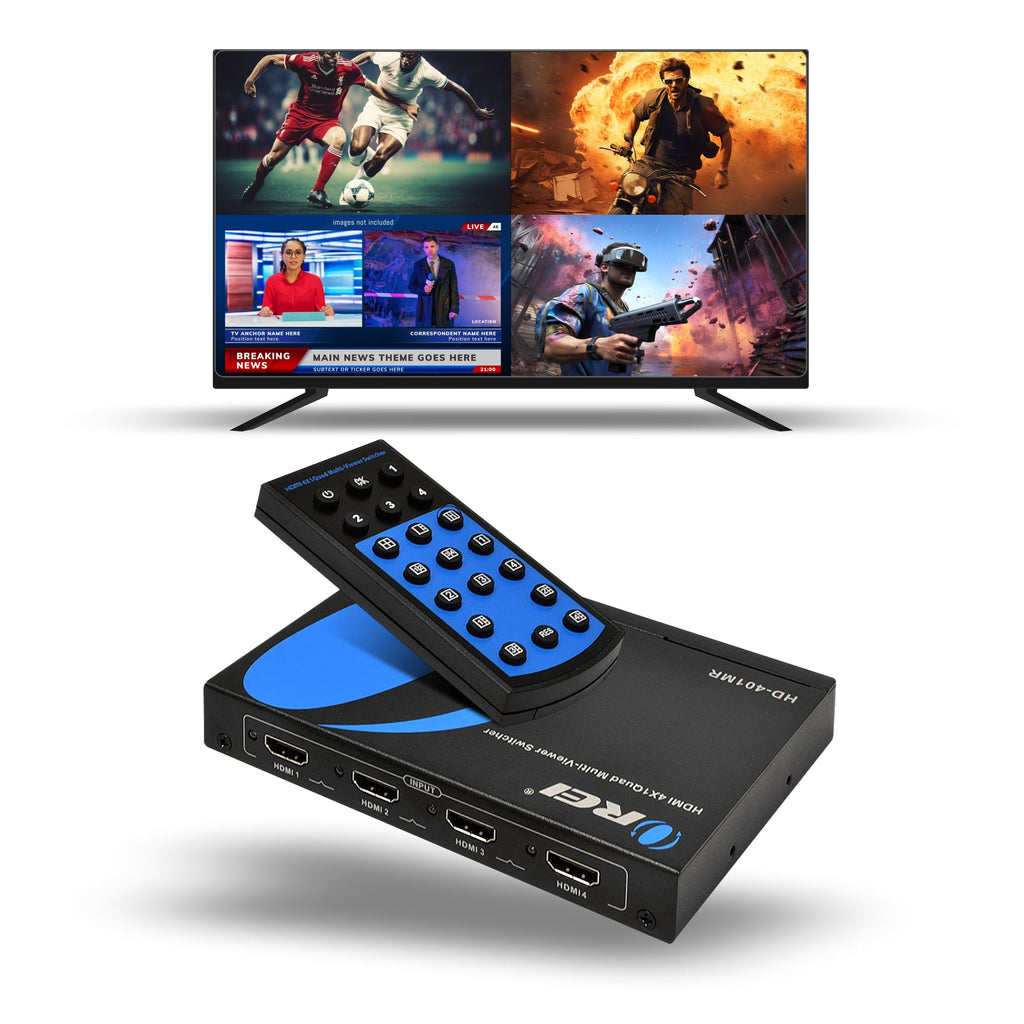

HD-401MR is a versatile HDMI 4x1 Quad Multiviewer Switcher, offering four HDMI inputs and one HDMI output to display video from multiple sources on a single screen. It supports quad-view, full-screen, and dual-view modes, allowing you to monitor all connected devices simultaneously or focus on one source as needed. With support for resolutions up to 1080p@60Hz and user-friendly controls via remote or front panel buttons, it is ideal for surveillance systems, broadcasting control rooms, conference presentations, and more. Its plug-and-play setup, metal construction, and wall-mountable design make it a practical solution for both commercial and professional environments.
[shortdes]
- 4 Inputs - 1 output HDMI Multiviewer switch
- Video resolution up to 1080p@60Hz
- Supports 5 display mode
- Compliance: HDMI 1.3 - HDCP 1.2
[/shortdes] [tab]
AUDIO AND VIDEO
| Inputs: |
4×HDMI Type A [19-pin female] |
| Output Ports: |
1×HDMI Type A [19-pin female] |
| Video Bandwidth: |
4.5Gbps |
| Video Resolution: |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Color Space: |
RGB YCbCr4:4:4 |
| HDMI Audio Formats: |
PCM |
COMMUNICATION AND CONTROL
| HDMI Compliance |
HDMI 1.3 |
| HDCP Compliance |
HDCP 1.2 |
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
No |
| USB KVM: |
No |
| PoC: |
No |
| IR Control: |
Yes |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
No |
POWER
| Power Supply: |
DC 12V/2A |
| Power Consumption: |
<10W |
CONTROL
ENVIRONMENTAL
| Operating Temperature: |
0C~40℃ |
| Storage Temperature: |
-20-60℃ |
DIMENSIONS & WEIGHT
| Height: |
21.20 mm |
| Width: |
178.50 mm |
| Depth: |
104.74 mm |
| Weight: |
340g |
REGULATORY
| Safety and Emission |
CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × HD-401MR 4x1 HDMI Quad multiviewer |
| 1 × Remote Control |
| 1 × User Manual |
| 1 × Power Adapter |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
