OREI HD-102: HDMI Splitter 1 input 2 output 1080p with EDID
Key Features:
- HDMI 1.4 & HDCP 1.4 Compliant – Ensures compatibility with a wide range of displays and source devices.
- Full HD Video Support – Supports video resolutions up to 4K@30Hz and 1080p@60Hz for clear, high-definition output.
- 2.97Gbps Video Bandwidth – Provides stable signal transmission without degradation.

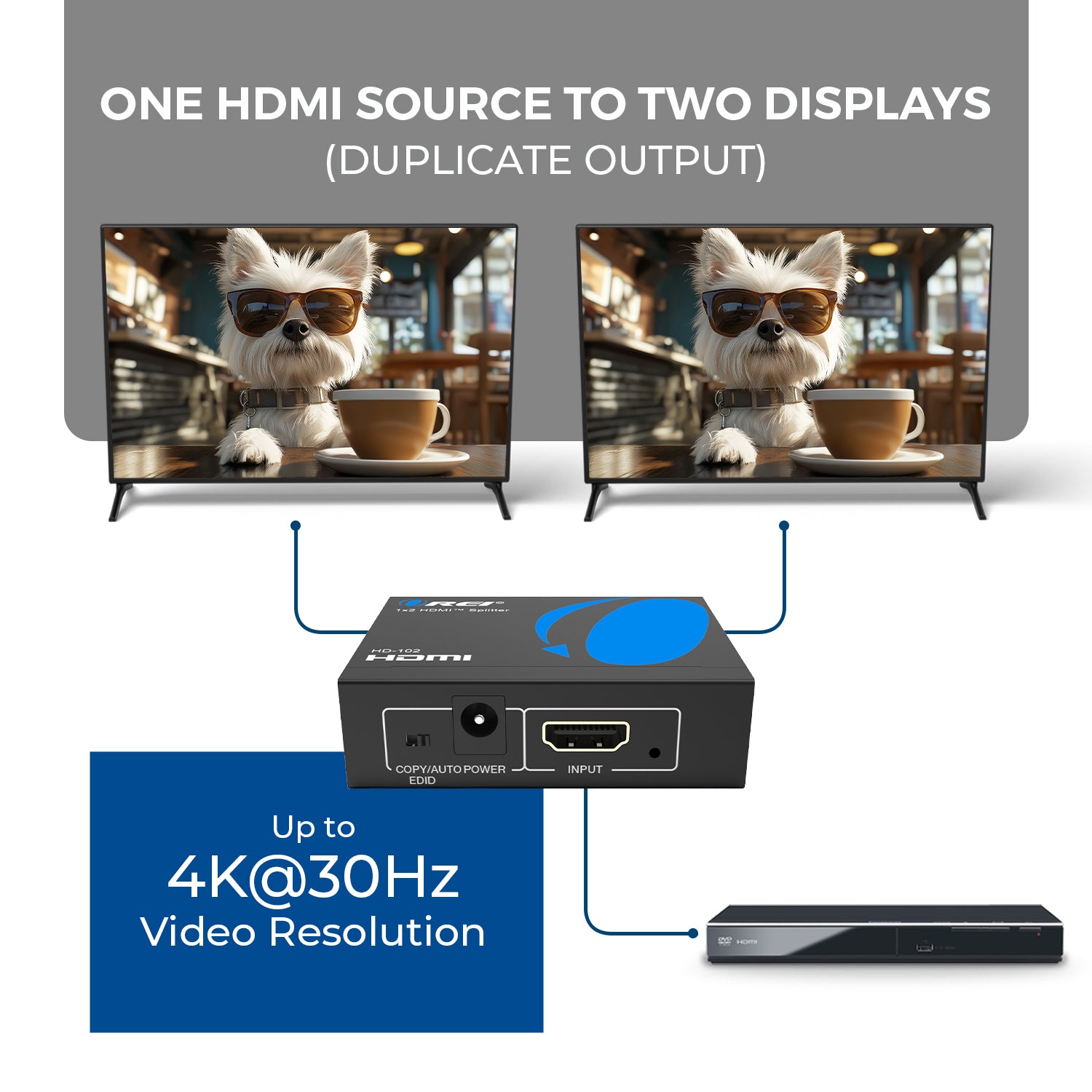

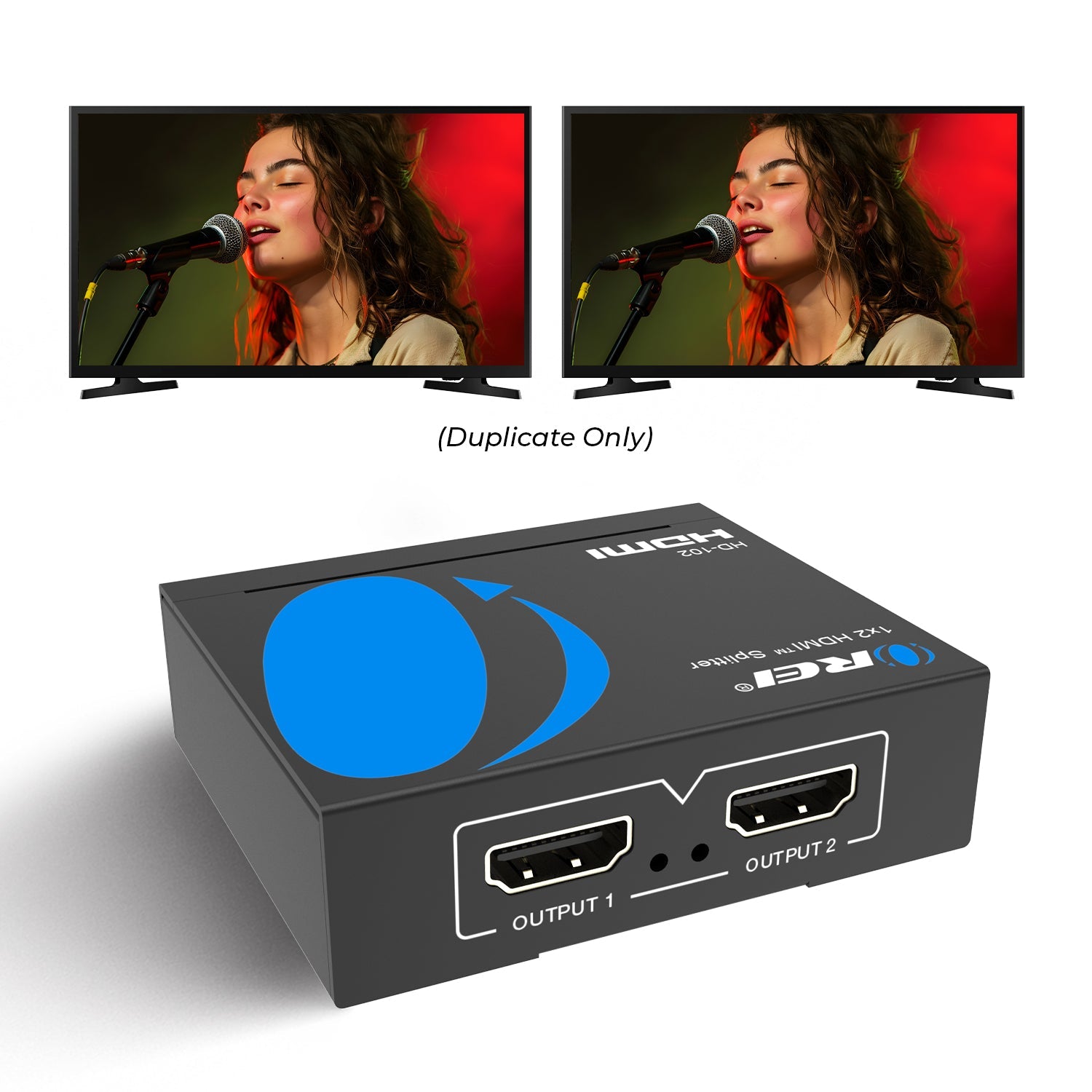

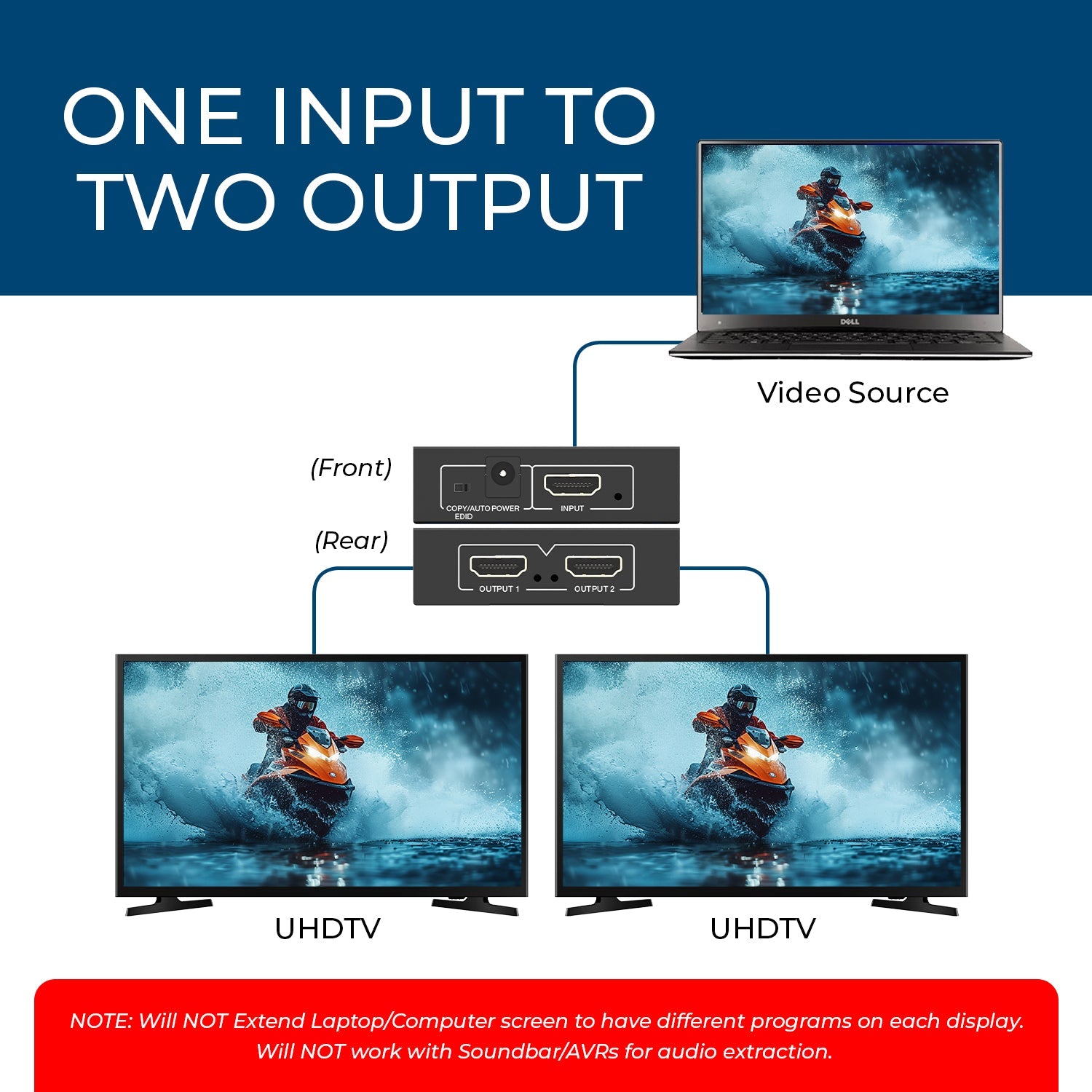

- Dual HDMI Output – Splits one HDMI input to two outputs simultaneously for mirrored display.
- Advanced Audio Format Support – Compatible with DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, and DSD audio formats.
- EDID Management – Features COPY and AUTO modes to optimize communication between source and display devices.
-
Compact Design – Sleek and space-saving form factor suitable for home or professional environments
The OREI HD-102 is a compact HDMI splitter that duplicates a single HDMI input to two displays simultaneously. It supports Full HD resolutions up to 4K@30Hz and 1080p@60Hz with a bandwidth of 2.97Gbps and complies with HDMI 1.4 and HDCP 1.4 standards.
Compatible with advanced audio formats like DTS-HD, Dolby TrueHD, and LPCM 7.1, it also features EDID management with AUTO and COPY modes for optimized performance. With its plug-and-play design, the HD-102 is ideal for both home and commercial AV setups.
[shortdes]
- Split audio/video signals to 2 displays
- HDMI 1.4a & HDCP 1.4 compliant
- EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] |

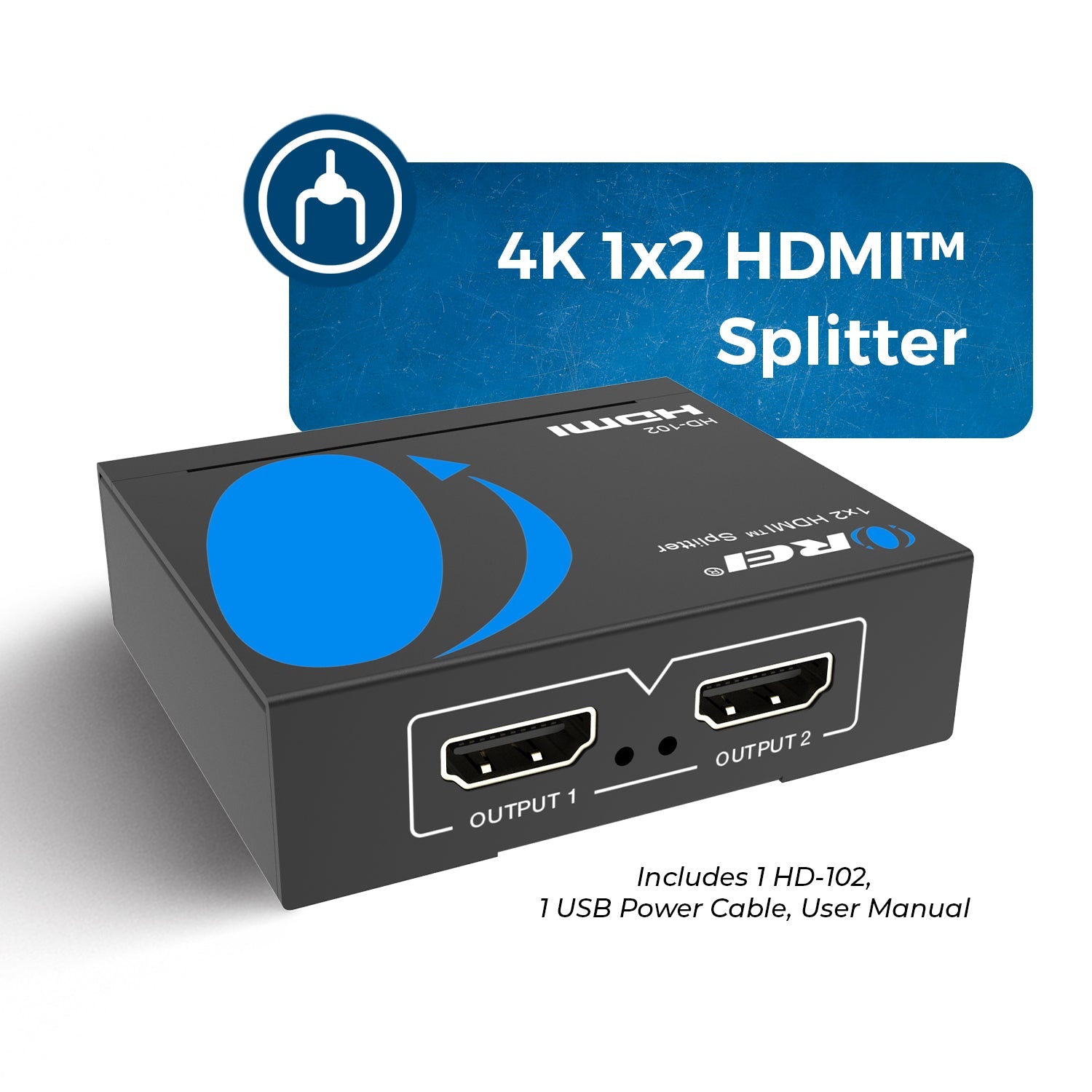

PACKAGE CONTENTS
| 1x HD-102 |
| 1x USB cable |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 1080P@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 2.97Gbps |
| Video Resolutions: | Up to 1080P@60Hz |
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | No |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | No / No / No |
| MST Support (Extended Display): | No |
AUDIO SUPPORT
| HDMI Audio Formats: |
DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby-AC3/DSD
|
COMPLIANCES
| HDMI Compliance | HDMI 1.4a |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |

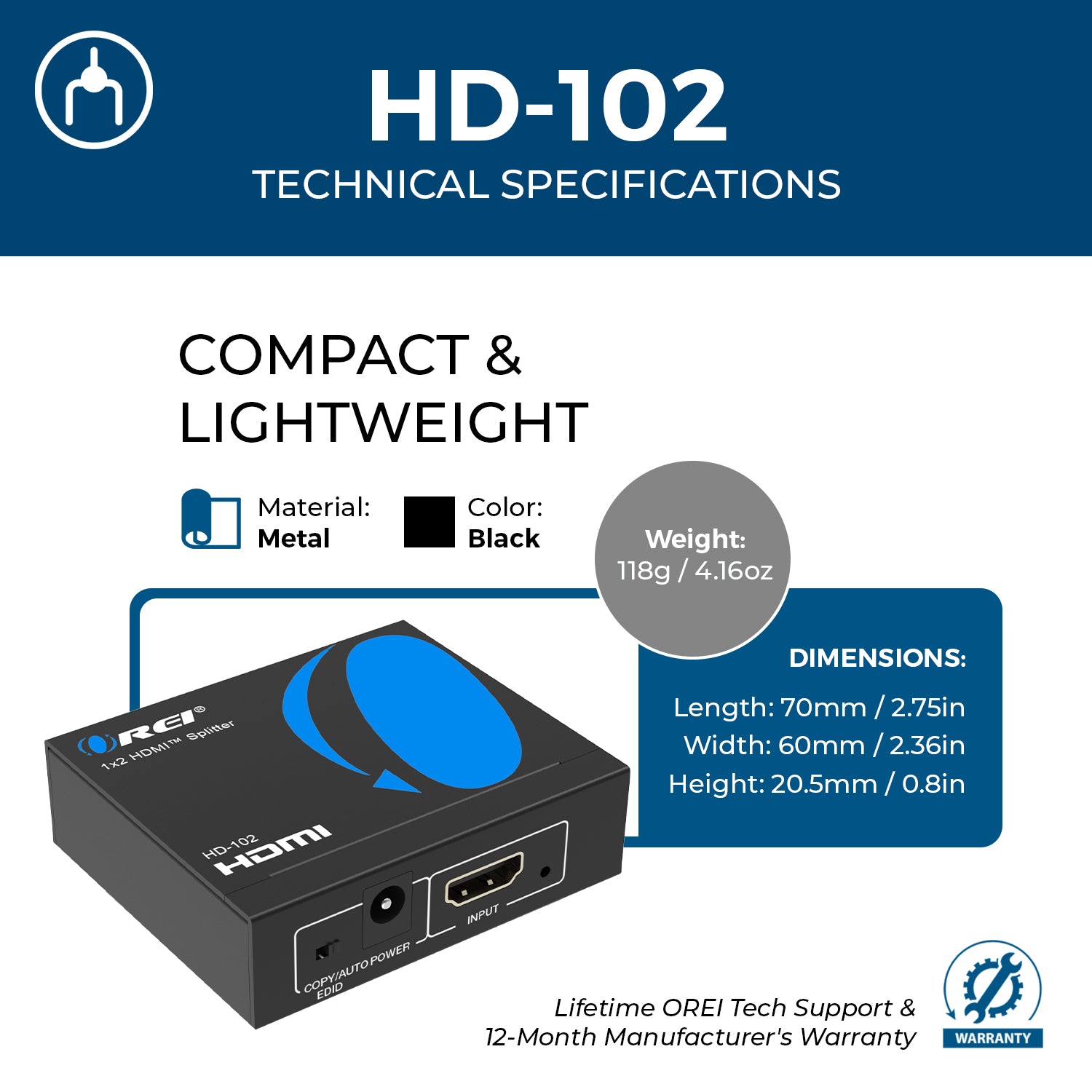

DIMENSIONS & WEIGHT
| Length: | 70mm / 2.76in | |
| Width: | 60mm / 2.36in | |
| Height: | 20mm / 0.79in | |
| Weight: | 125g / 4.41oz |
PROPERTIES
| Color: | Black |
| Housing: |
Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20 ~ 90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
