Description

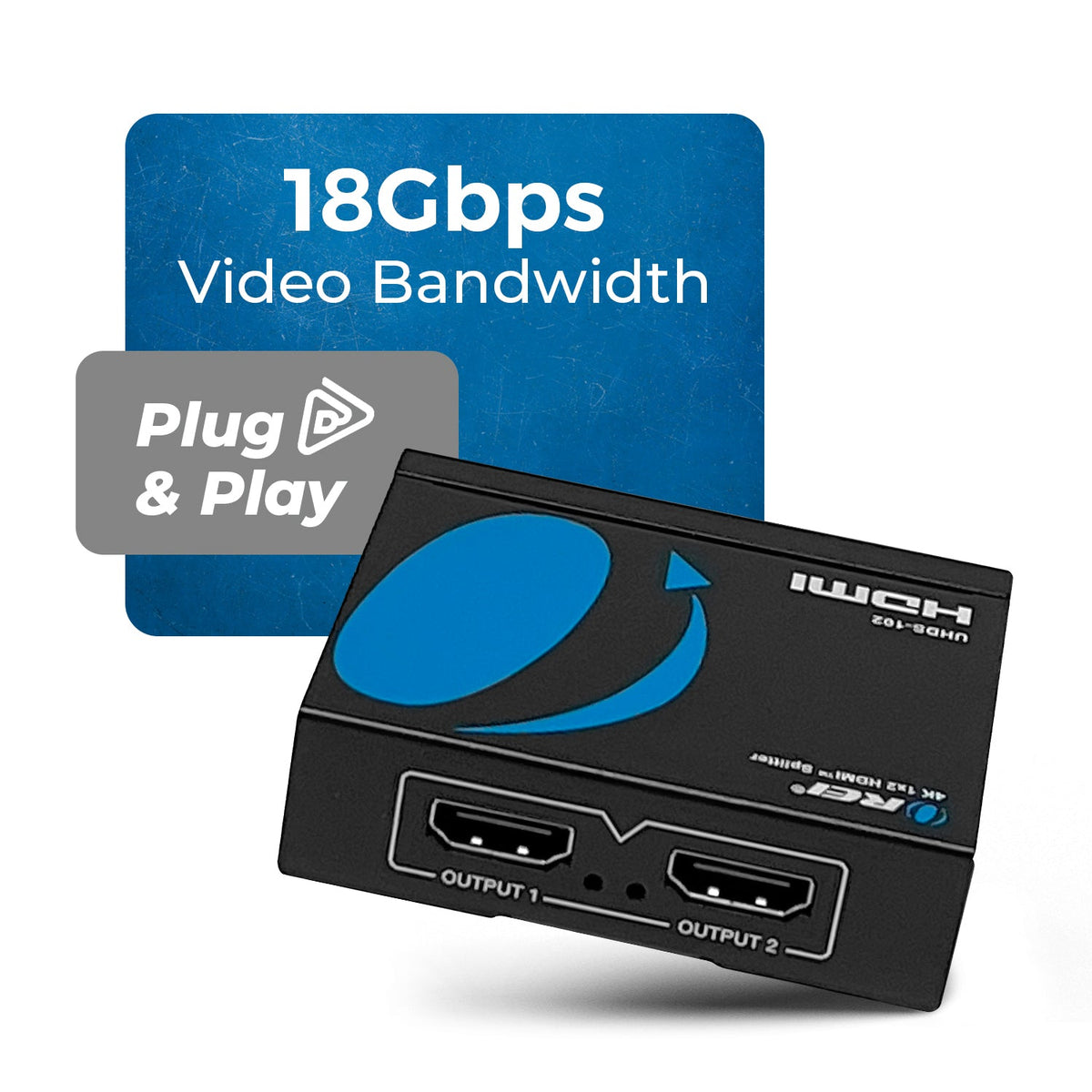

OREI UHDS -102: 4K HDMI Splitter 1-In-2-Out with EDID control
Key Features:
- HDCP 2.3 Compliant – Works with the latest content protection standards.
- 4K@60Hz and 18Gbps Bandwidth – Provides clear, high-resolution video and audio signals.
- HDR10+, Dolby Vision, and HLG Support – Enhances image quality with superior contrast and color.
- High-Definition Audio – Supports PCM, Dolby TrueHD, and DTS-HD Master Audio up to 7.1 channels.
- CEC Pass-through on Output 1 – Enables control between connected devices.
- EDID Management – Offers two presets for optimal device compatibility.
- Compact Metal Design – Saves space and fits neatly into any setup.

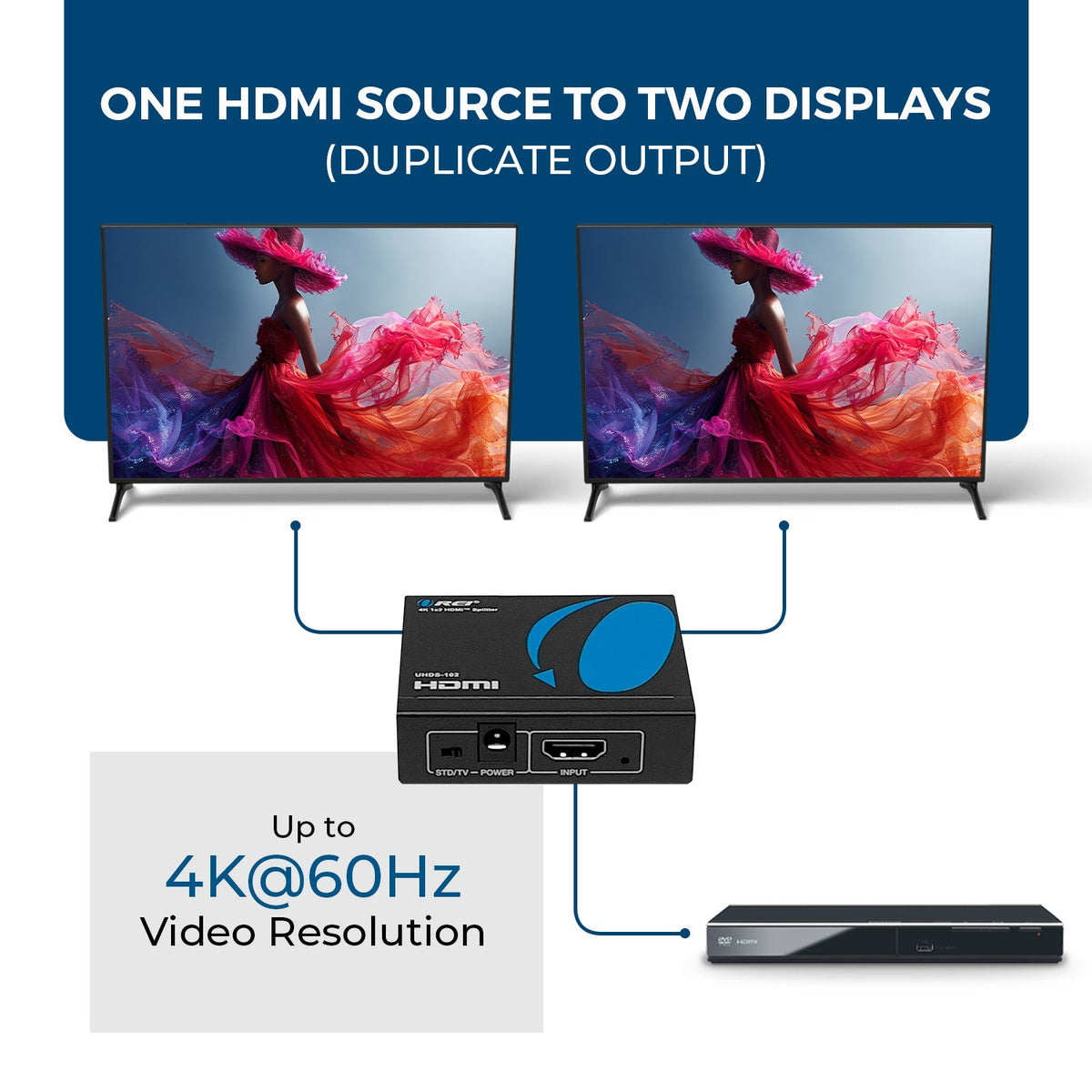

The UHDS-102 is a compact 1x2 HDMI splitter that duplicates a single HDMI source to two displays simultaneously. It supports HDMI 2.0b, and HDCP 2.3 standards, ensuring compatibility with modern AV equipment. With 4K@60Hz resolution and 18Gbps bandwidth, it delivers crisp, uncompressed video and supports HDR10+, Dolby Vision, and HLG for vibrant visuals. High-quality audio formats including PCM, Dolby TrueHD, and DTS-HD Master Audio up to 7.1 channels are supported. The unit features CEC control between the input and output 1, along with simple EDID management for seamless integration. Its durable, space-saving design makes it ideal for both home and commercial installations.
[shortdes]

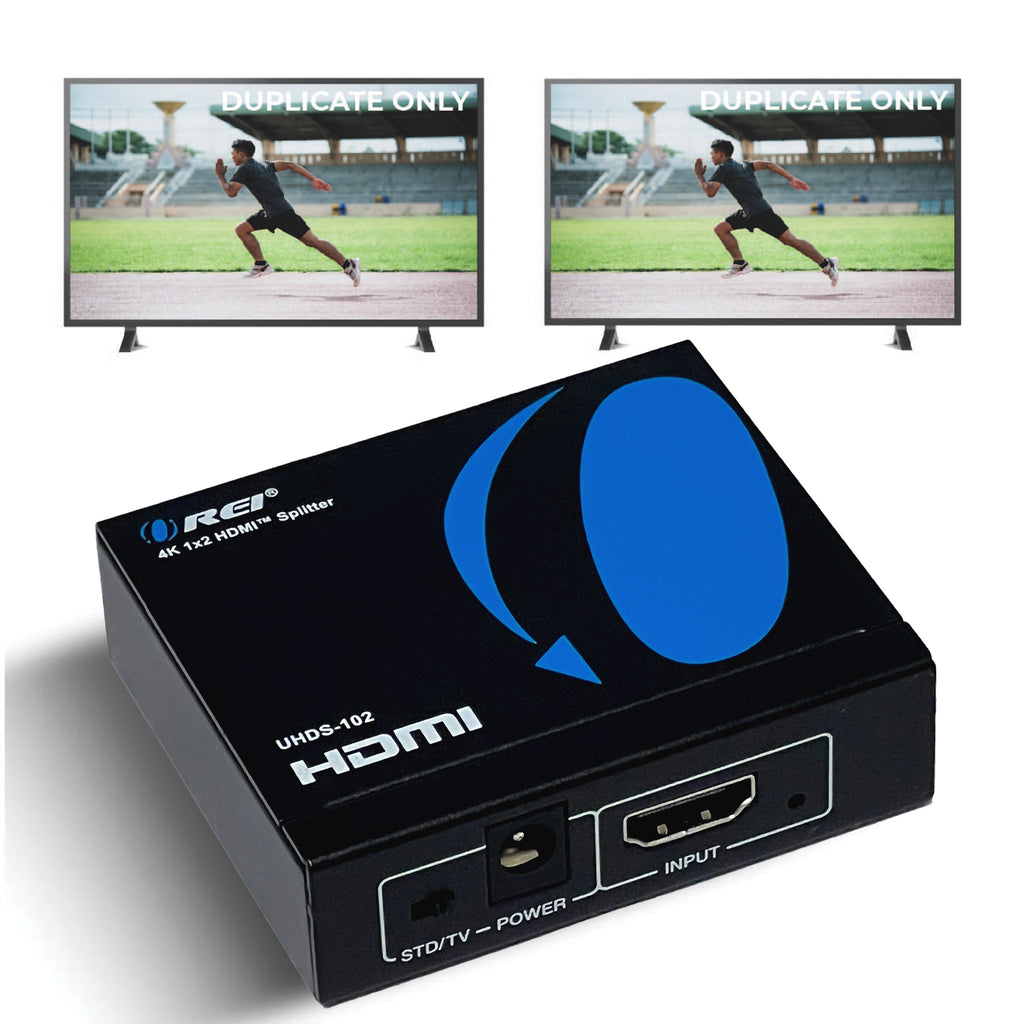

- Mirror content to 2 displays
- Resolutions up to 4K@60Hz and 2K@60Hz
- EDID management
[/shortdes]
[tab]

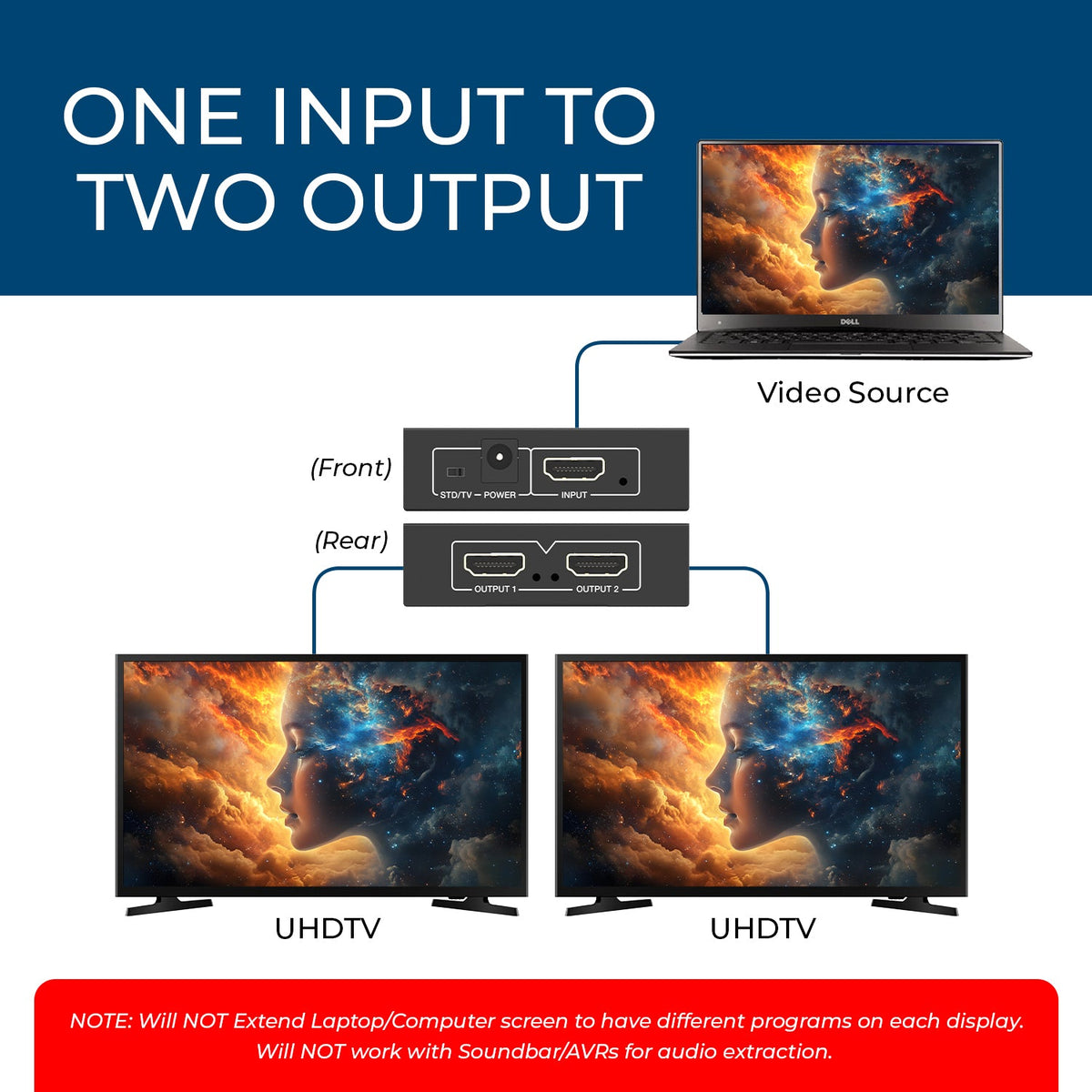

CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] |

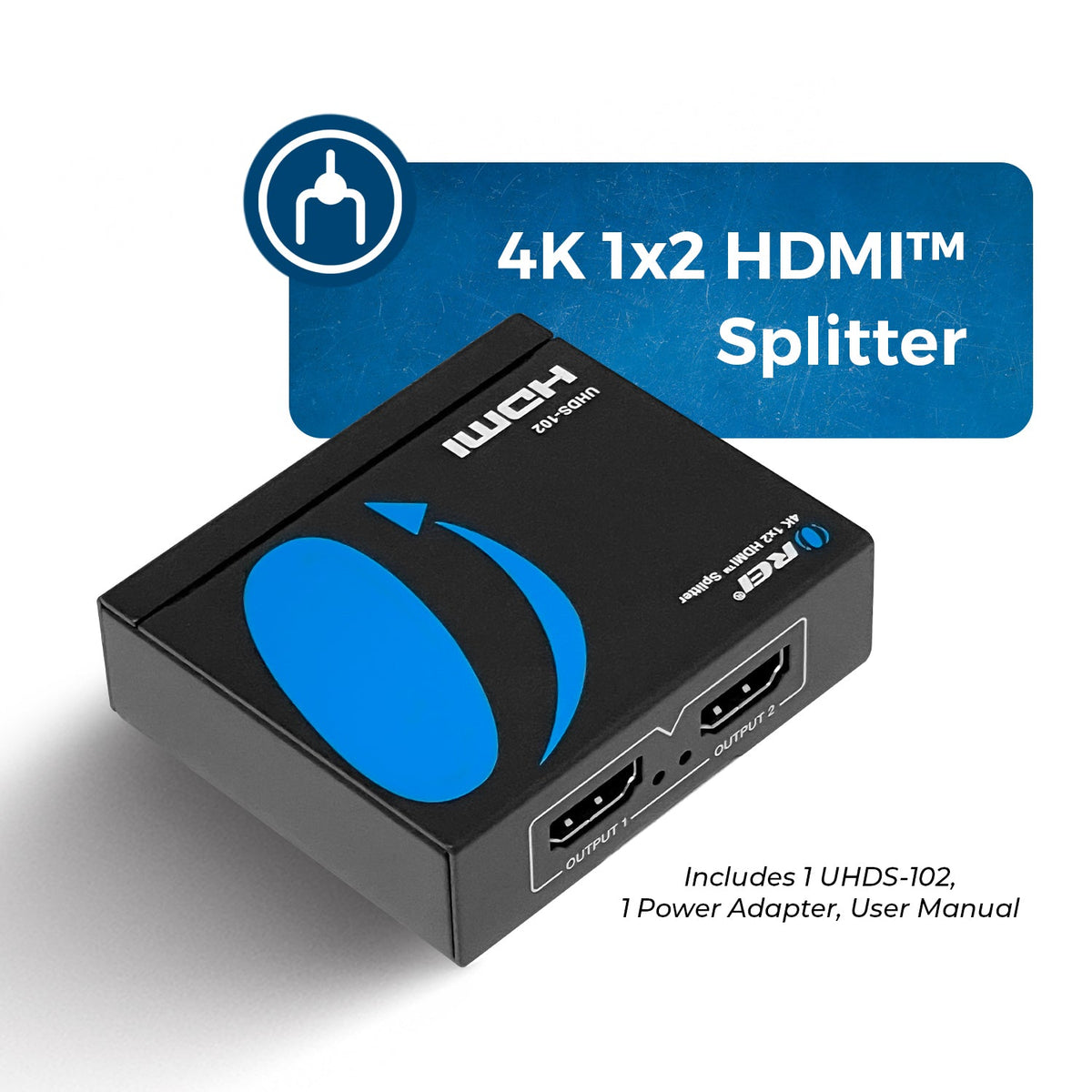

PACKAGE CONTENTS
| 1x UHDS-102 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Maximum Resolution: | 4K@60Hz |
| Input Resolution: |
4096x2160p60/59.94/50/30/29.97/25/24/23.98Hz, 3840x2160p60/59.94/50/30/29.97/25/24/23.98Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 1920x1080i120/100/60/59.94/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x1050p60Hz 1440x960p72/60/50Hz, 1440x900p85/75Hz 1440x576i50/25Hz, 1440x480i60/30Hz 1400x1050p75/60Hz, 1400x788p60Hz 1366x768p60/50/30/25/24Hz, 1360x768p60Hz 1280x1024p96/85/75/60Hz, 1280x960p85/75/60Hz 1280x800p120/85/75Hz, 1280x768p120/85/75/60Hz 1280x720p120/100/60/59.94/50/30/25/24Hz, 1176x664p50/60Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60/Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p70/85Hz 720x576p100/50Hz, 720x576i50Hz 720x480p120/60/59.94Hz, 720x480i59.94Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
| Output Resolution: |
4096x2160p60/59.94/50/30/29.97/25/24/23.98Hz, 3840x2160p60/59.94/50/30/29.97/25/24/23.98Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 1920x1080i120/100/60/59.94/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x1050p60Hz 1440x960p72/60/50Hz, 1440x900p85/75Hz 1440x576i50/25Hz, 1440x480i60/30Hz 1400x1050p75/60Hz, 1400x788p60Hz 1366x768p60/50/30/25/24Hz, 1360x768p60Hz 1280x1024p96/85/75/60Hz, 1280x960p85/75/60Hz 1280x800p120/85/75Hz, 1280x768p120/85/75/60Hz 1280x720p120/100/60/59.94/50/30/25/24Hz, 1176x664p50/60Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60/Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p70/85Hz 720x576p100/50Hz, 720x576i50Hz 720x480p120/60/59.94Hz, 720x480i59.94Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | No |
| Audio Extraction: | No |
| CEC: | Yes |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 100mm / 3.93in | |
| Width: | 56mm / 2.2in | |
| Height: | 16mm / 0.62in | |
| Weight: | 165g / 5.82oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: | 20% ~ 80% relative humidity, non-condensing |
| Storage Humidity: | 10% ~ 90% relative humidity, non-condensing |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
