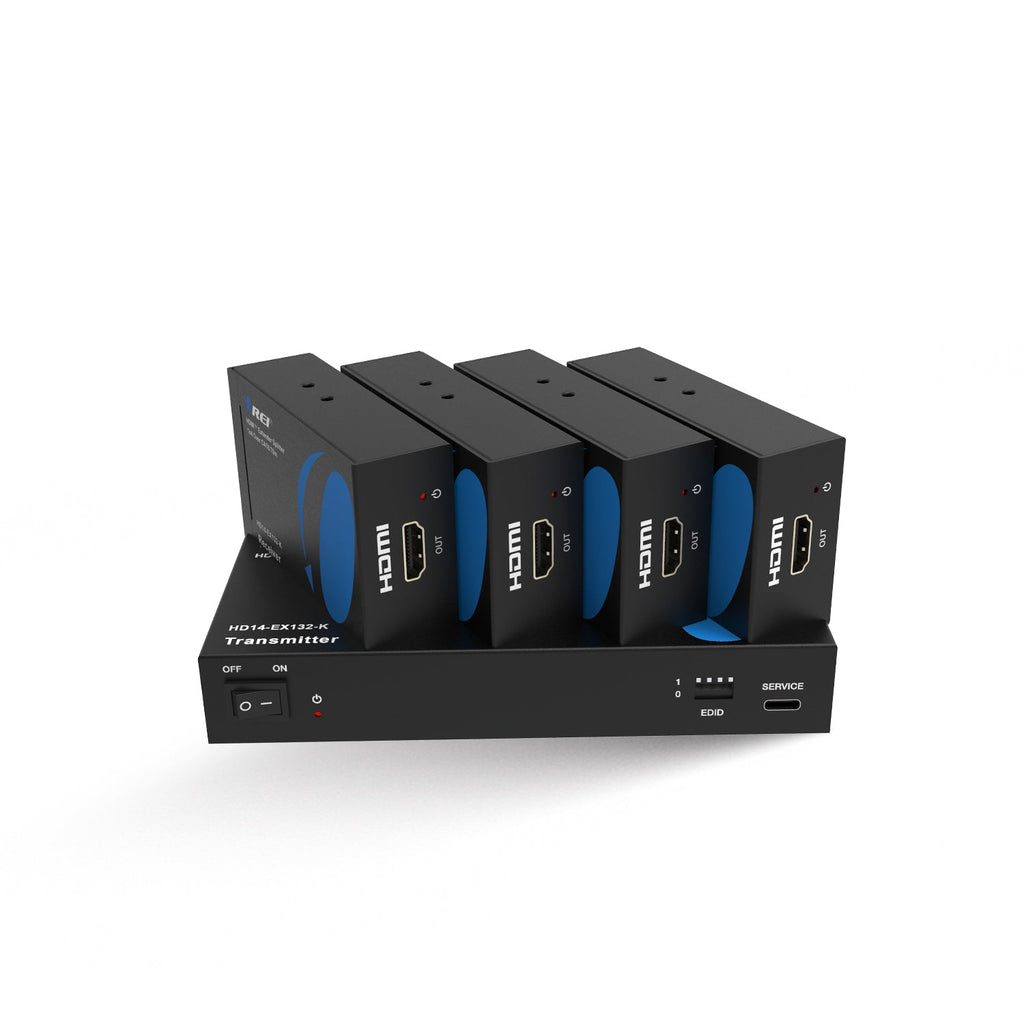

OREI HD14-EX132-K: HDMI™ Extender Splitter (Loop) - 230ft (cat6)
Key Features:
HD14-EX132-K is a high-performance HDMI extender splitter designed to transmit a single HDMI source to four remote displays over long distances using CAT6/7 cables. Supporting video resolutions up to 1080p@60Hz and compliant with HDCP 1.4, it delivers 4.95Gbps video bandwidth while maintaining reliable signal integrity.

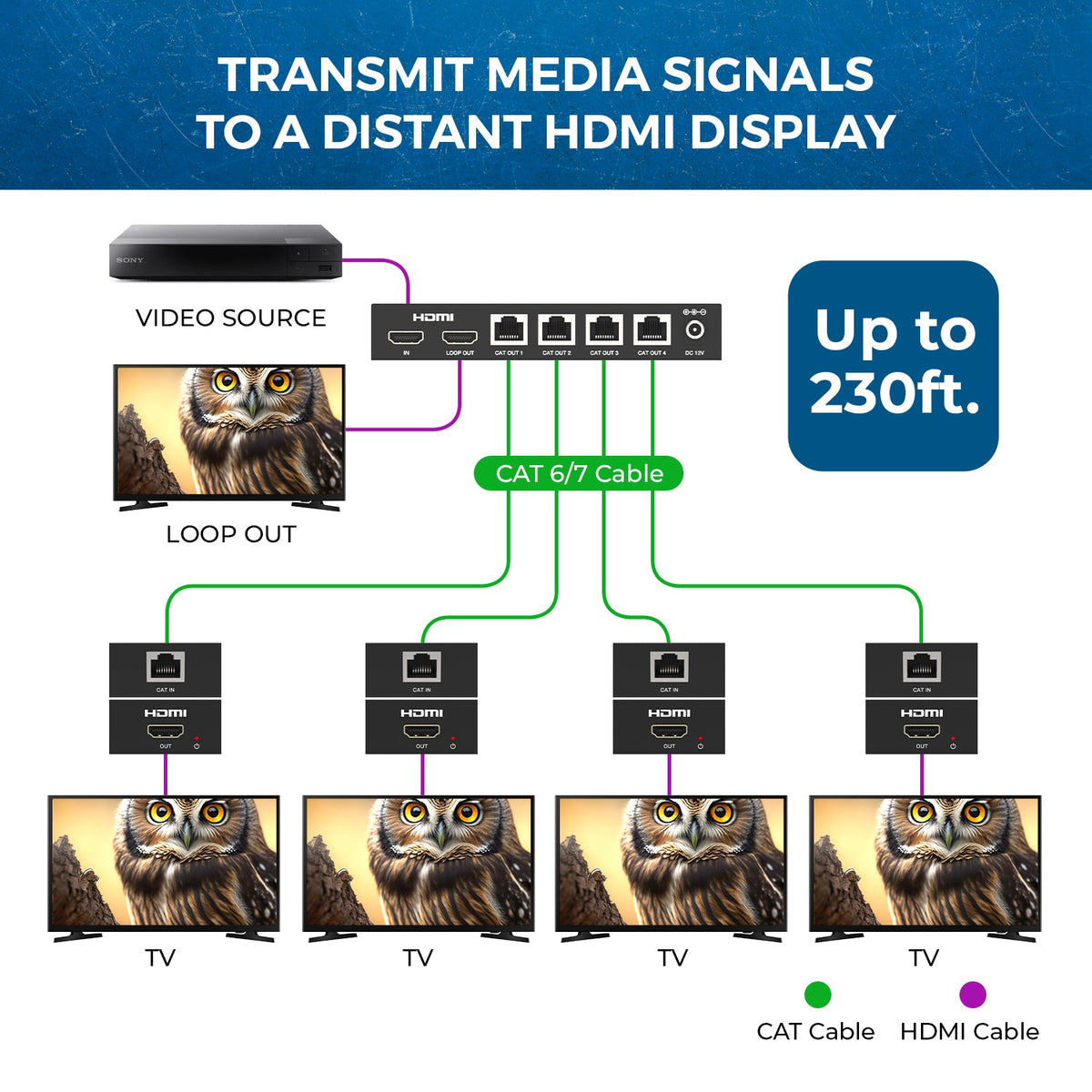

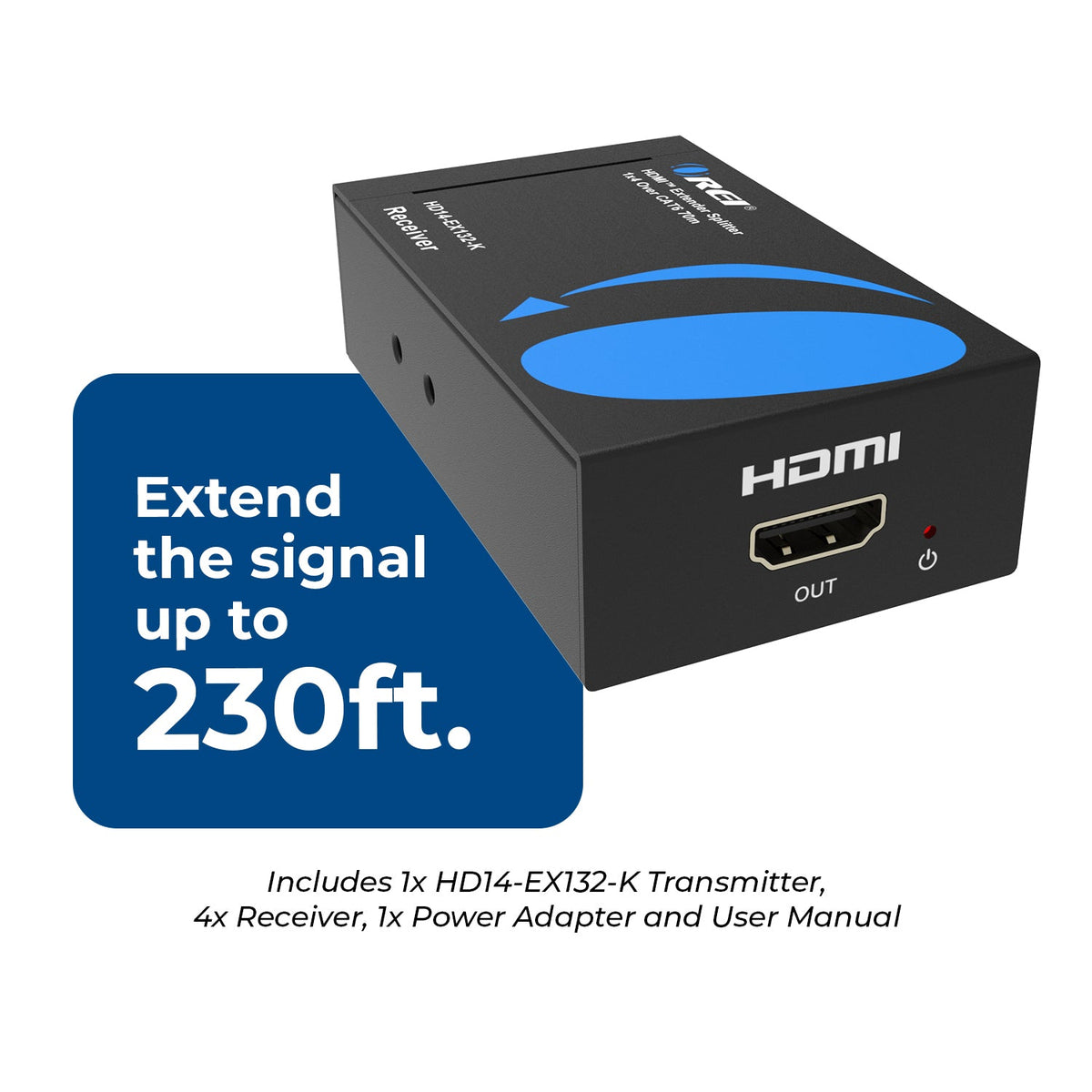

The system can extend HDMI signals up to 230 feet (70 meters) to four receiver endpoints, while also offering a local HDMI loop-out on the transmitter for a nearby display.
It supports high-quality multichannel audio formats, including LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.

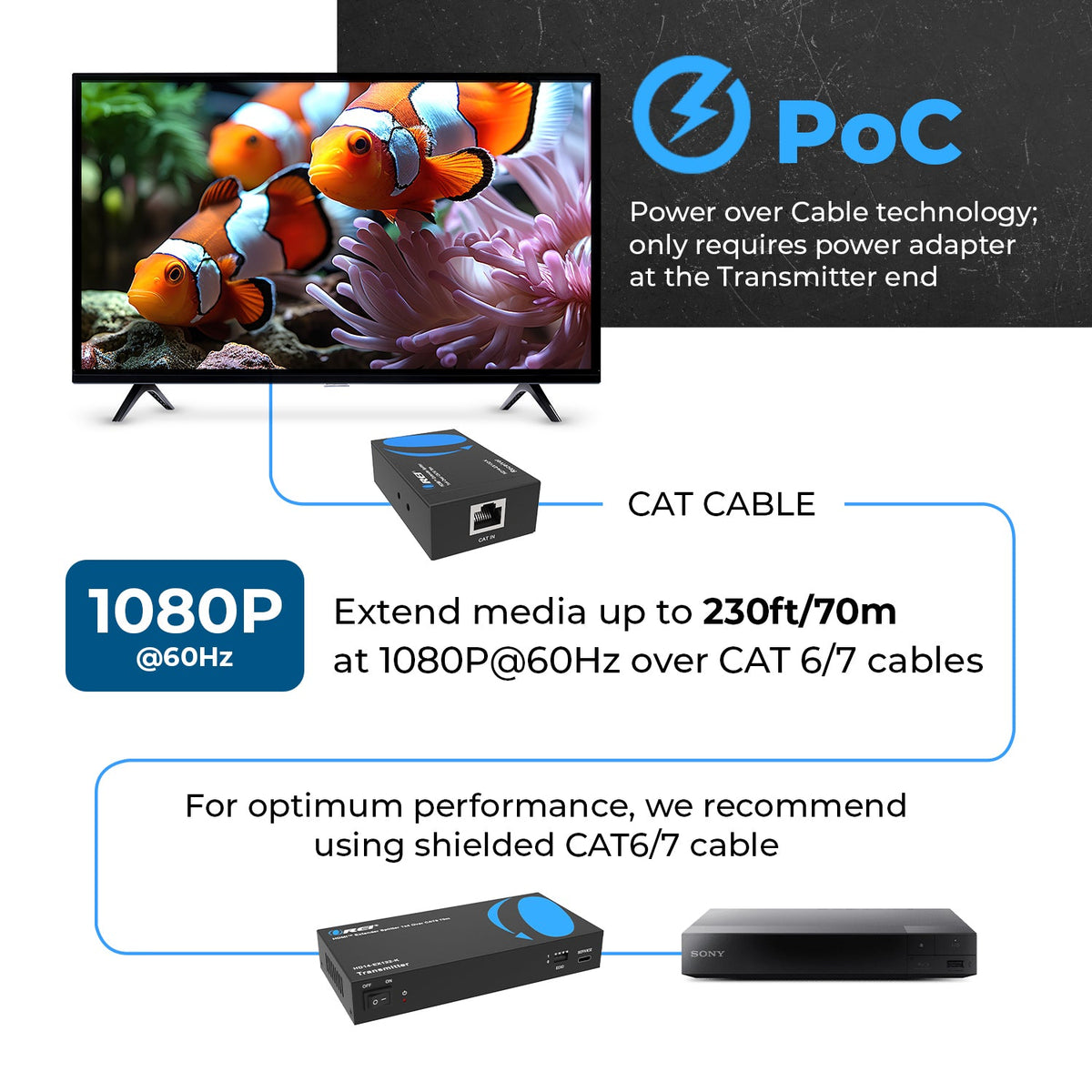

With integrated Power over Cable (PoC) functionality, the kit operates with a single power supply connected to the transmitter, eliminating the need for additional power adapters at each receiver.
Its compact design ensures flexible deployment in residential media rooms, exhibition centers, and small-scale commercial AV applications.
[shortdes]

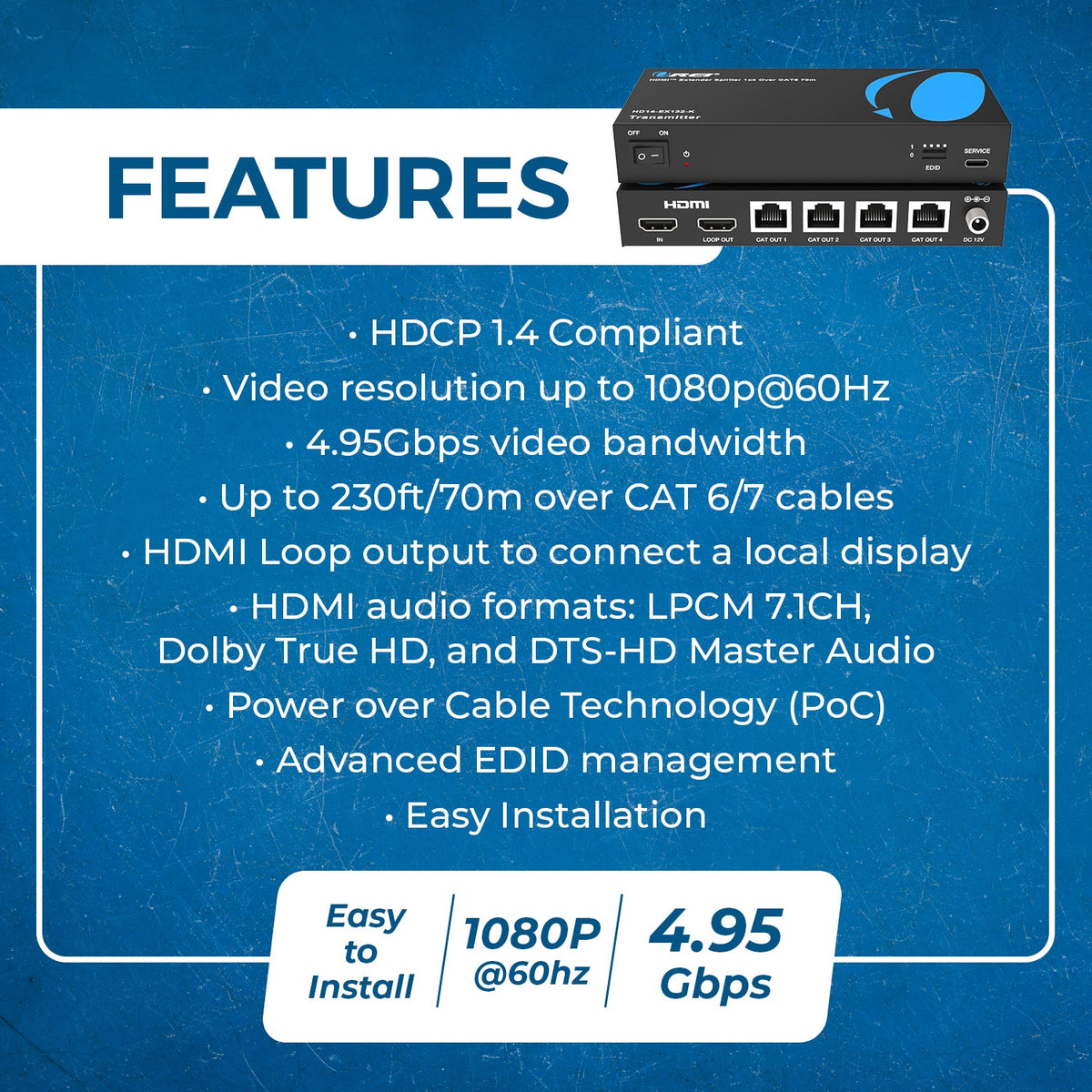

- HDCP 1.4 Compliant
- Video resolution up to 1080p@60Hz
- 4.95Gbps video bandwidth
[/shortdes] [tab]
AUDIO AND VIDEO
| Transmitter: |
INPUT PORTS: |
1x HDMI |
|
OUTPUT PORTS: |
4x RJ45 |
| Receiver: |
INPUT PORTS: |
1x RJ45 |
|
OUTPUT PORTS: |
1x HDMI |
COMPLIANCES
| HDMI Compliance: |
HDMI 1.3 |
| HDCP Compliance: |
HDCP 1.2 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080p@60Hz: |
Full HD resolution 1080p@60Hz up to 40 meters via CAT6 cable |
VIDEO OUTPUT
| Video Bandwidth: |
4.5Gbps |
| Video Resolutions: |
480i@60Hz, 480p@60hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Color Space: |
RGB YCbCr |
| Color Depth: |
8bit*3 |
ADDITIONAL FEATURES
| ARC/eARC: |
No |
| CEC : |
No |
| Transmission Technology : |
Ethernet |
| IR Control: |
No |
| PoC (Power over Cable): |
Yes |
| RS-232: |
No |
| USB Standard: |
No |
| USB-C DP Alt Mode: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
No |

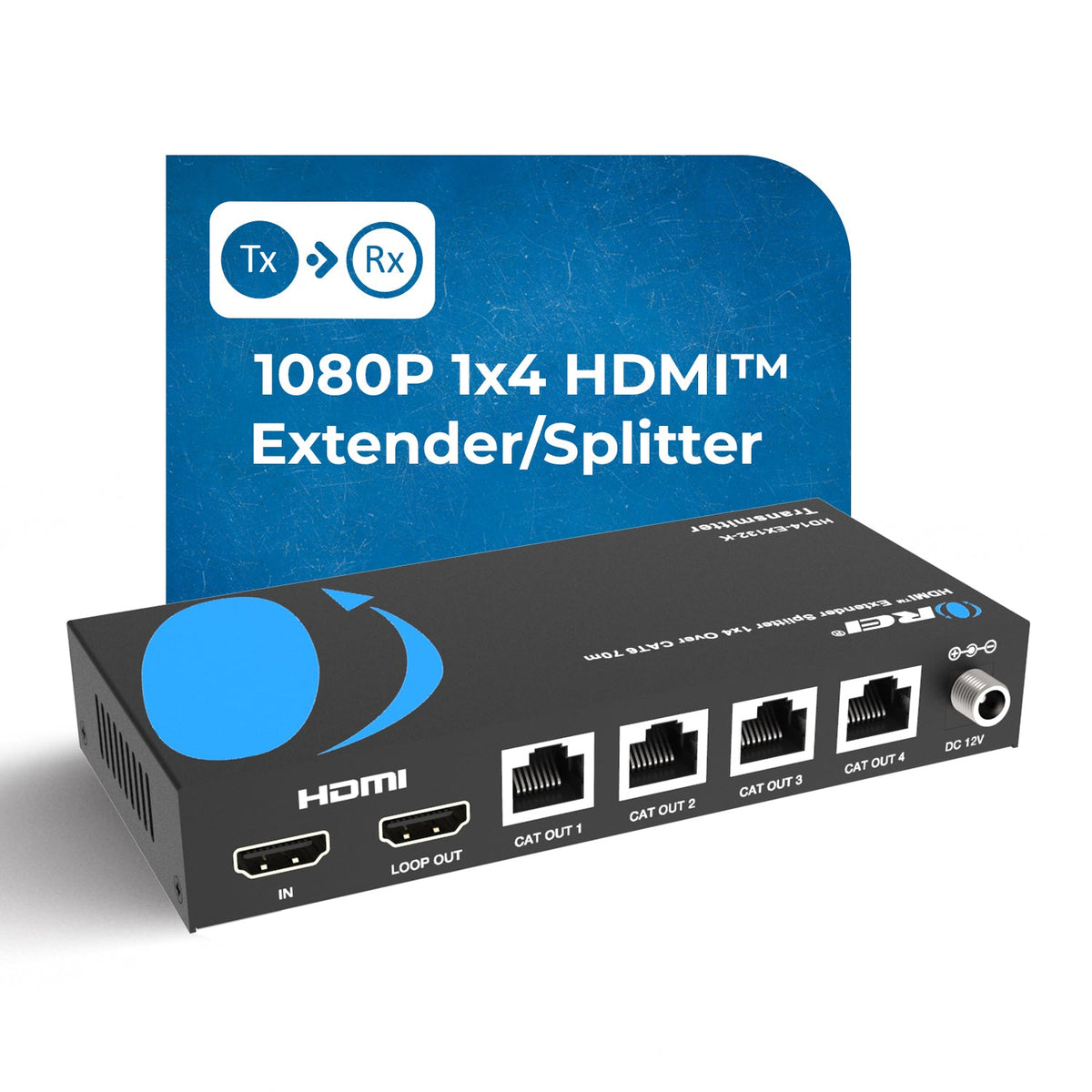

LOOP-OUT/LOCAL PORT
| Has loop out port: |
Yes |
| Number of Loop out ports: |
1 |
SWITCHES
| EDID Management: |
Yes |
| EQ Dip Switches: |
No |
| ARC: |
No |
AUDIO OUTPUT
| HDMI Audio Formats: |
Dolby, DTS |
| SPDIF/Optical Audio Formats: |
Dolby, DTS |
| L/R Audio Formats: |
NO L/R AUDIO |
SIGNALS
| TMDS Signals: |
3V |
| DDC Signals: |
5V |
PERFORMANCE & INTERFACE
| Transmission Type: |
Over CAT6 cable |
| Transfer Method: |
Uncompressed transmission |
| Latency: |
Zero Latency |
| Transmission Distance: |
131 Feet |
| Maximun Pixel Clock: |
148MHz |
DIMENSIONS & WEIGHT
| Transmitter: |
Height: |
23.9mm |
|
Width: |
95.9mm |
|
Depth: |
190mm |
|
Weight: |
430g |
| Receiver: |
Height: |
22.6mm |
|
Width: |
66.6mm |
|
Depth: |
71.6mm |
|
Weight: |
80g |
PROTECTION
| Electrostatic Protection of the whole Machine: |
IEC61000-4-2 |
RJ-45 CONNECTOR Type
POWER
| Power Consumption (Max): |
<15W |
|
|
|
|
| Power Supply: |
DC5V/3A |
|
|
|
|
PHYSICAL PROPERTIES
| Color: |
Black |
| Housing: |
Metal |
| Processing Technology: |
Uncompressed Transmission Technology |
| Finishing: |
Grit Blast |
| Operation Temperature: |
32~104°F / 0~40°C |
| Storage Temperature: |
-4~140°F / -20~60°C |
| Operating Humidity: |
20%~80% relative humidity, non-condensing |
| Storage Humidity: |
10%~90% relative humidity, non-condensing |
PACKAGE CONTENTS
| 1 x HDMI Transmitter |
| 4 x HDMI Receiver |
| 1 x DC5V/3A |
| 4 x DC5V/1A |
| 1 x IR blaster extension cable |
| 4 x IR receiver extension cable |
| 1 x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
