OREI 1 in 8 out HDMI Splitter 4K@30Hz with Advanced EDID Management, HDR & Dolby Vision
Key Features:
-
HDMI 1.4 and HDCP 1.4 compliant – Ensures compatibility with legacy HDMI sources and displays.
-
Resolutions up to 4K@30Hz and 1080p@60Hz – Provides clear, high-definition output across eight displays.
-
10.2Gbps bandwidth – Delivers smooth video and audio transmission.
-
HDR, and Dolby Vision support – Enables high dynamic range video formats for vibrant picture quality.
-
Advanced audio format compatibility – Supports DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, and DSD.
-
EDID management – Allows seamless communication between connected devices for stable operation.
-
3D video support – Compatible with full HD 3D video at 1080p resolution.
-
Compact design with plug-and-play setup – Simplifies installation in any home or commercial environment.

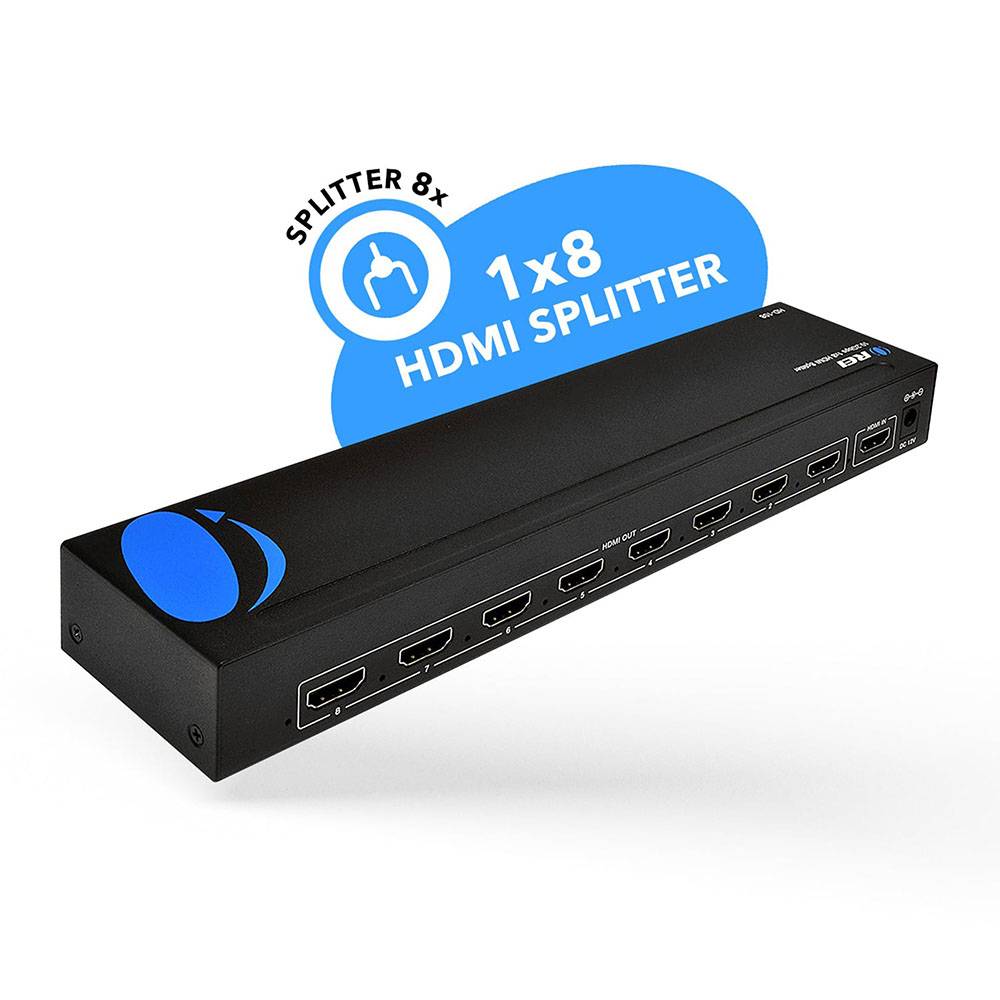

The HD-108 is an 8-port HDMI splitter designed to distribute one HDMI input to eight displays simultaneously. It is HDMI 1.4 and HDCP 1.4 compliant, supporting video resolutions up to 4K@30Hz and 1080p@60Hz with a bandwidth of 10.2Gbps.
This splitter supports HDR, and Dolby Vision pass-through for enhanced video quality, and is compatible with advanced audio formats including DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, and DSD.
Built-in EDID management ensures reliable communication between source and displays, while 3D support enhances compatibility. Its compact, plug-and-play design makes it ideal for both residential and commercial AV installations.
[shortdes]
- 1 in 8 out HDMI Splitter
- Video resolutions up to 4K@30Hz
- Advanced EDID management, HDR10+ & Dolby vision support
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
| OUTPUT: |
8 × HDMI [Type A, 19-pin female] |
|
PACKAGE CONTENTS
| 1x HD-108 |
| 1x Power adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
10.2Gbps |
| Video Resolutions: |
Up to 4K@30Hz
|
ADDITIONAL FEATURES
| EDID Management: |
Yes |
| Video Downscaling: |
No |
| Audio Extraction: |
No |
| CEC: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
Yes / Yes / Yes |
| MST Support (Extended Display): |
No |
AUDIO SUPPORT
| HDMI Audio Formats: |
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
COMPLIANCES
| HDMI Compliance |
HDMI 1.4 |
| HDCP Compliance |
HDCP 1.4 |
POWER
| Power Consumption: |
3.36W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/1A |
|
DIMENSIONS & WEIGHT
| Length:
|
251mm / 9.88in |
|
| Width: |
60mm / 2.36in |
|
| Height:
|
30mm / 1.18in |
|
| Weight:
|
350g / 12.35oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operating Temperature: |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: |
-20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: |
20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: HD-108
