OREI EX-400C: HDMI Balun upto 400 ft
Key Features:

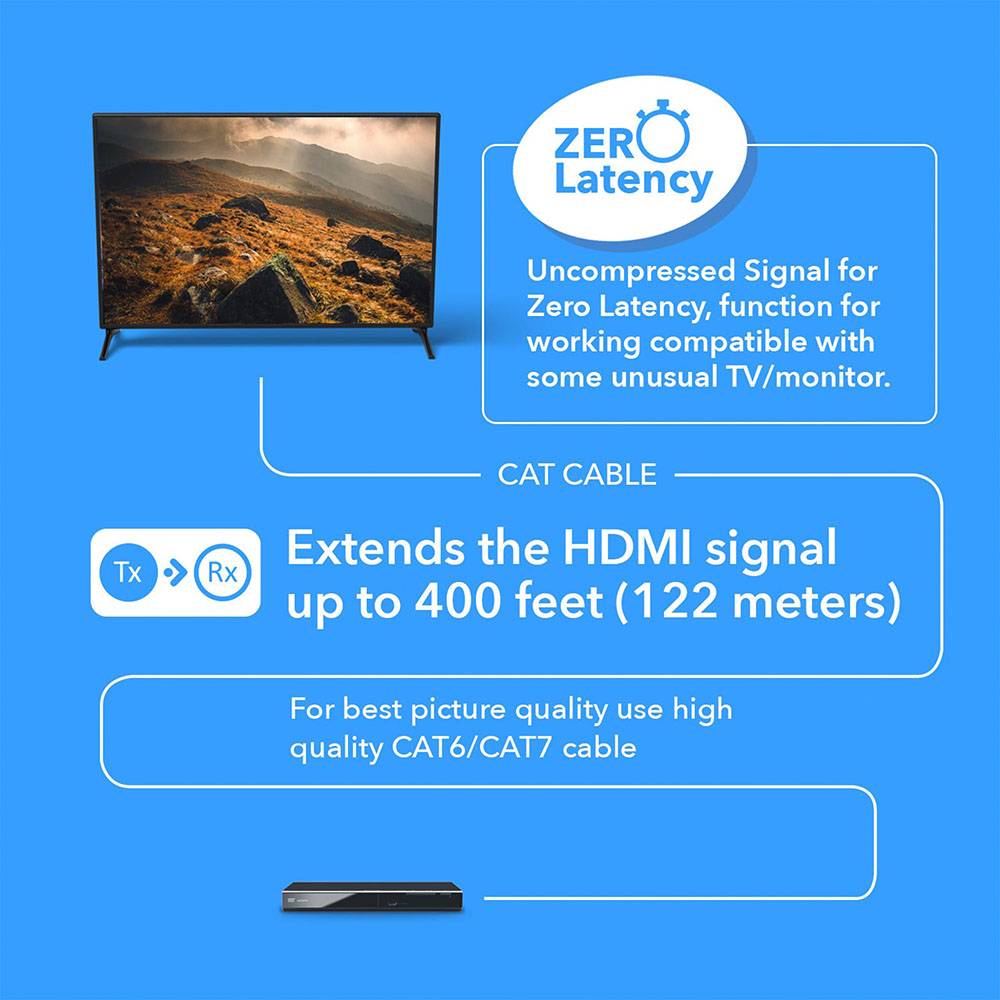

- Extend Full HD upto 1080p 60Hz Signal upto 400 Feet via High quality CAT6/CAT7 Cable or 250 Feet Via Cat5e Cable
-
Supports HDMI 1.3/1.4, HDCP 1.4
- Uncompressed Signal for Zero Latency
- Function for working compatible with some unusual TV/monitor
- Supports 3D andLPCM,Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master audio, Essentially all available audio options are supported
- Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more
- Plug & Play Setup without any Software Installation
Extend Full HD upto 1080p 60Hz Signal upto 400 Feet via High quality CAT6/CAT7 Cable or 250 Feet Via Cat5e Cable, Supports HDMI 1.3b, HDCP 1.2, 3D Uncompressed Signal for Zero Latency,function for working compatible with some unusual TV/monitor. Works with all HDMI 1.3 and 1.4: Supports 3D andLPCM,Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master audio, Essentially all available audio options are supported.
Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more Plug & Play Setup without any Software Installation.
[shortdes]

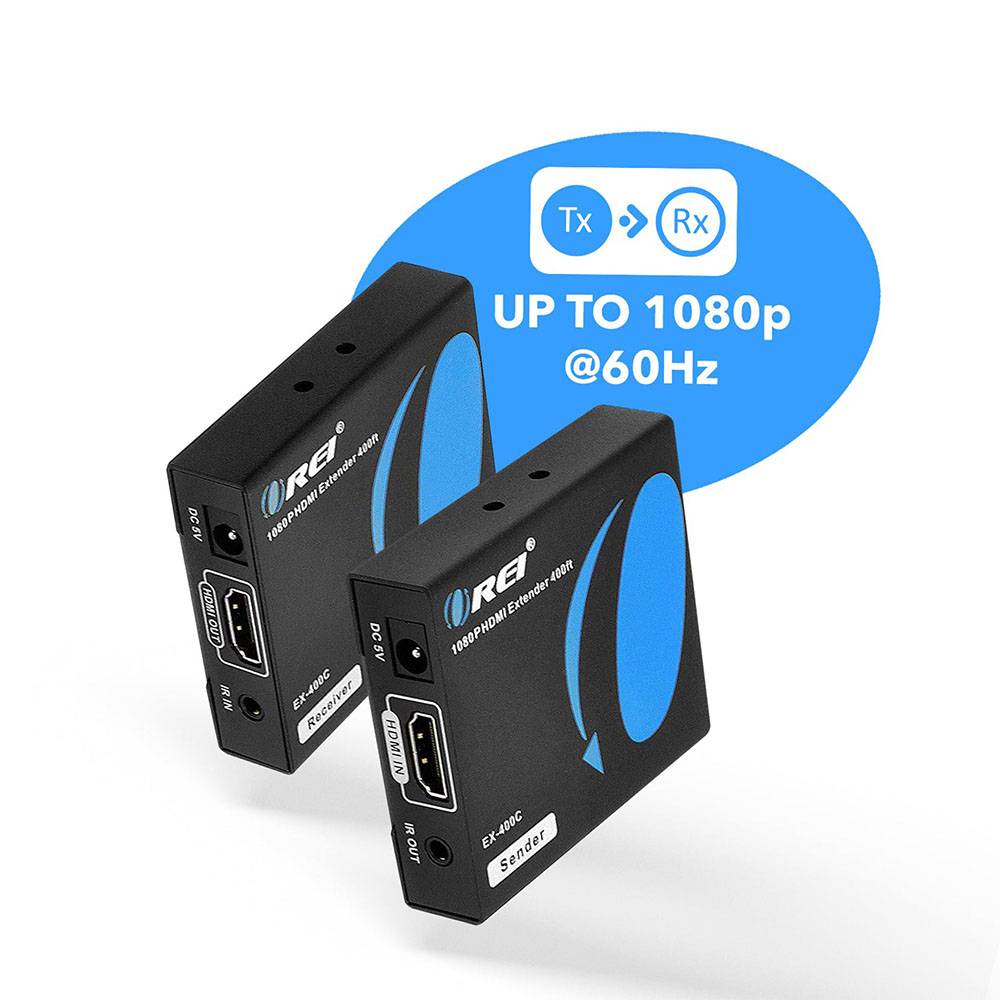

- Supports 1080p@60Hz up to 400 feet
- Uncompressed zero latency video signals

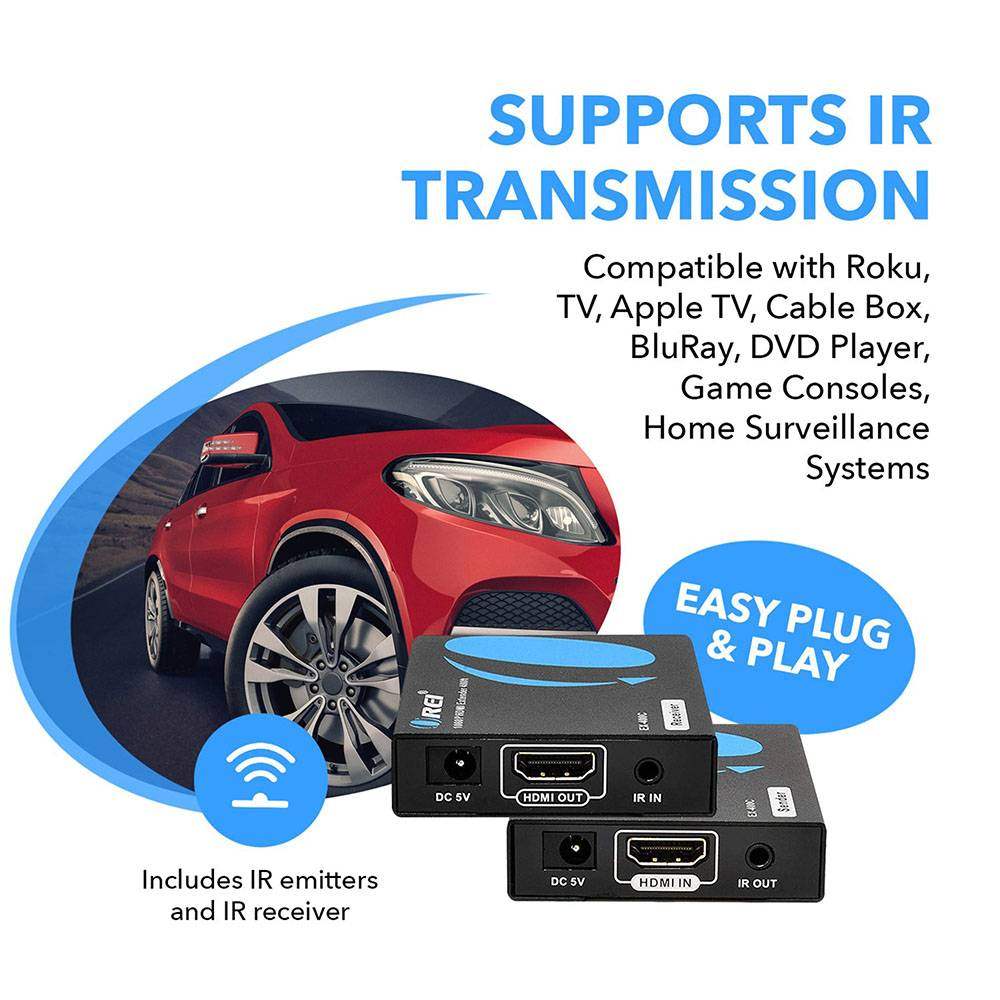

- Supports IR Remote Control
[/shortdes] [tab]

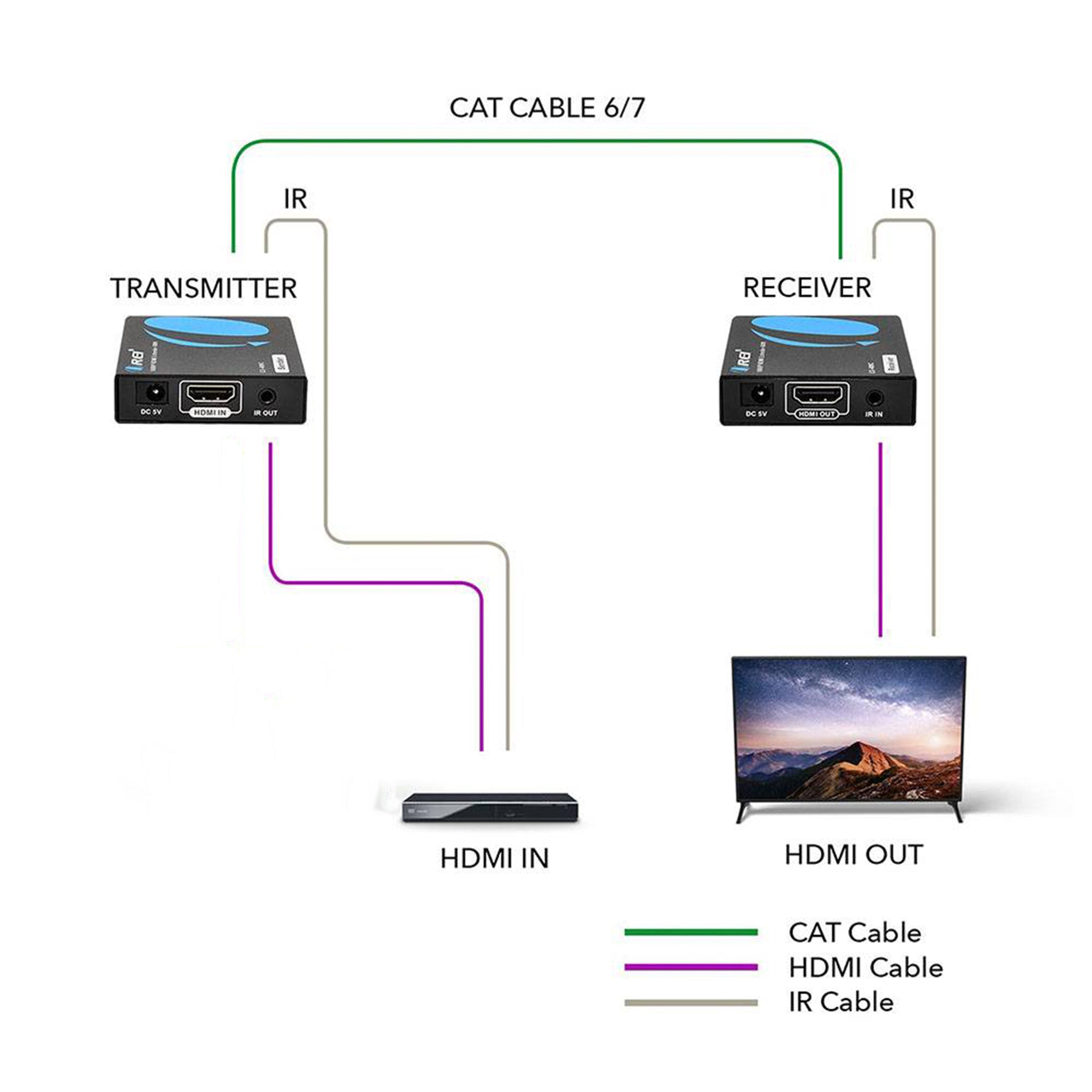

AUDIO AND VIDEO
| Transmitter: |
INPUT PORTS: |
1x HDMI |
|
OUTPUT PORTS: |
1x RJ45 |
| Receiver: |
INPUT PORTS: |
1x RJ45 |
|
OUTPUT PORTS: |
1x HDMI |
COMPLIANCES
| HDMI Compliance: |
HDMI 1.3 |
| HDCP Compliance: |
HDCP I.4 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080p@60Hz: |
262 Feet Over CAT5, 328 Feet Over CAT5E and 393 Feet Over CAT6 |
VIDEO OUTPUT
| Video Bandwidth: |
4.95Gbps |
| Video Resolutions: |
720x576@50Hz, 720x480@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1680x1050@60Hz |
| Color Space: |
24bit |
| Color Depth: |
8bit |
ADDITIONAL FEATURES
| ARC/eARC: |
No / No |
| CEC: |
No |
| Transmission Technology: |
Ethernet |
| IR Control: |
Uni-directional |
| PoC (Power over Cable): |
No |
| RS-232: |
No |
| USB Standard: |
No |
| USB-C DP Alt Mode: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
No / No / No |
LOOP-OUT/LOCAL PORT
SWITCHES
| EDID Management: |
No |
| EQ Dip Switches: |
No |
| ARC: |
No |
AUDIO OUTPUT
| HDMI Audio Formats: |
Stereo L/R Audio |
| SPDIF/Optical Audio Formats: |
No SPDIF Audio |
| L/R Audio Formats: |
No L/R Audio Port |
SIGNALS
| TMDS Signals: |
0.5 ~ 1.5Vp-p(TMDS) |
| DDC Signals: |
5Vp-p(TTL) |
PERFORMANCE & INTERFACE
| Transmission Type: |
Over CAT5 cable |
| Transfer Method: |
Uncompressed transmission Over CAT5e |
| Latency: |
Zero Latency |
| Transmission Distance: |
262 Feet Over CAT5, 328 Feet Over CAT5E and 393 Feet Over CAT6 |

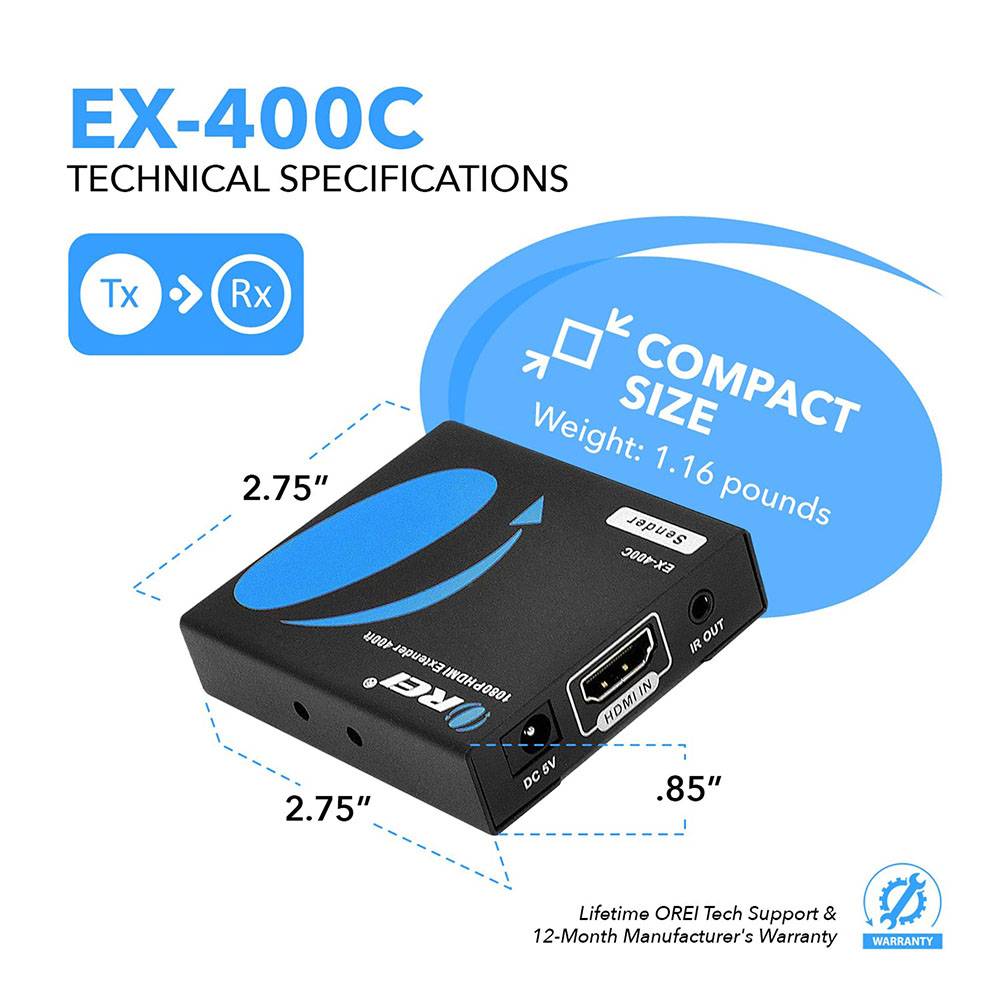

DIMENSIONS & WEIGHT
| Transmitter: |
Height: |
16.10mm |
|
Width: |
58.8mm |
|
Depth: |
69.57mm |
|
Weight: |
70g |
| Receiver: |
Height: |
16.10mm |
|
Width: |
58.8mm |
|
Depth: |
69.57mm |
|
Weight: |
70g |
PROTECTION
| Operation Temperature: |
0～50℃ |
| Storage temperature: |
-10 ~ 70°C |
| Relative Humidity: |
0 ~ 90% |
| Electrostatic Protection of the whole Machine: |
1a contact discharge level 3, 1b air discharge level 3, implementation of the standard: IEC61000-4-2 |
RJ-45 CONNECTOR Type
POWER
| Power Consumption (Max): |
Transmitter: |
2W |
|
|
|
|
Receiver: |
<2W |
| Power Supply |
Input: |
110-220V |
|
|
|
|
Output: |
DC5V 1A |

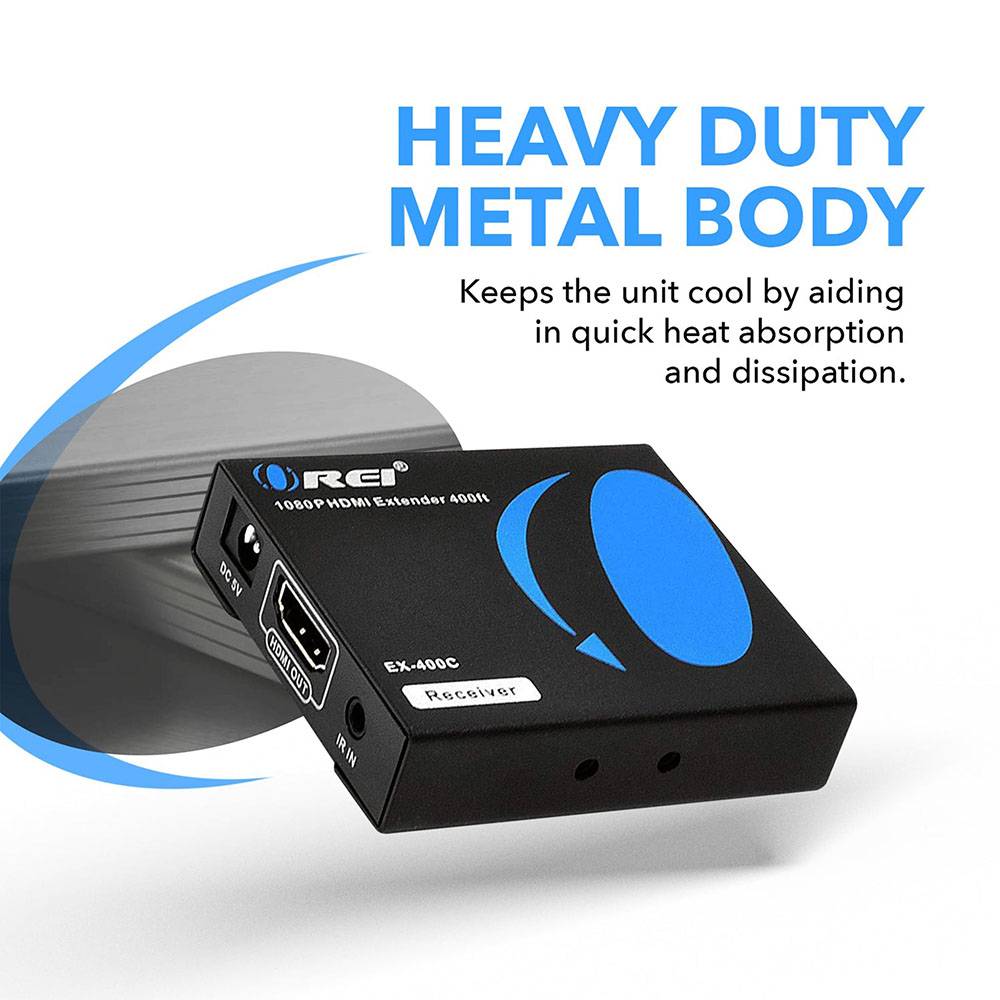

PHYSICAL PROPERTIES
| Color: |
Black |
| Processing Technology: |
Aluminum |
| Finishing: |
Grit blast |

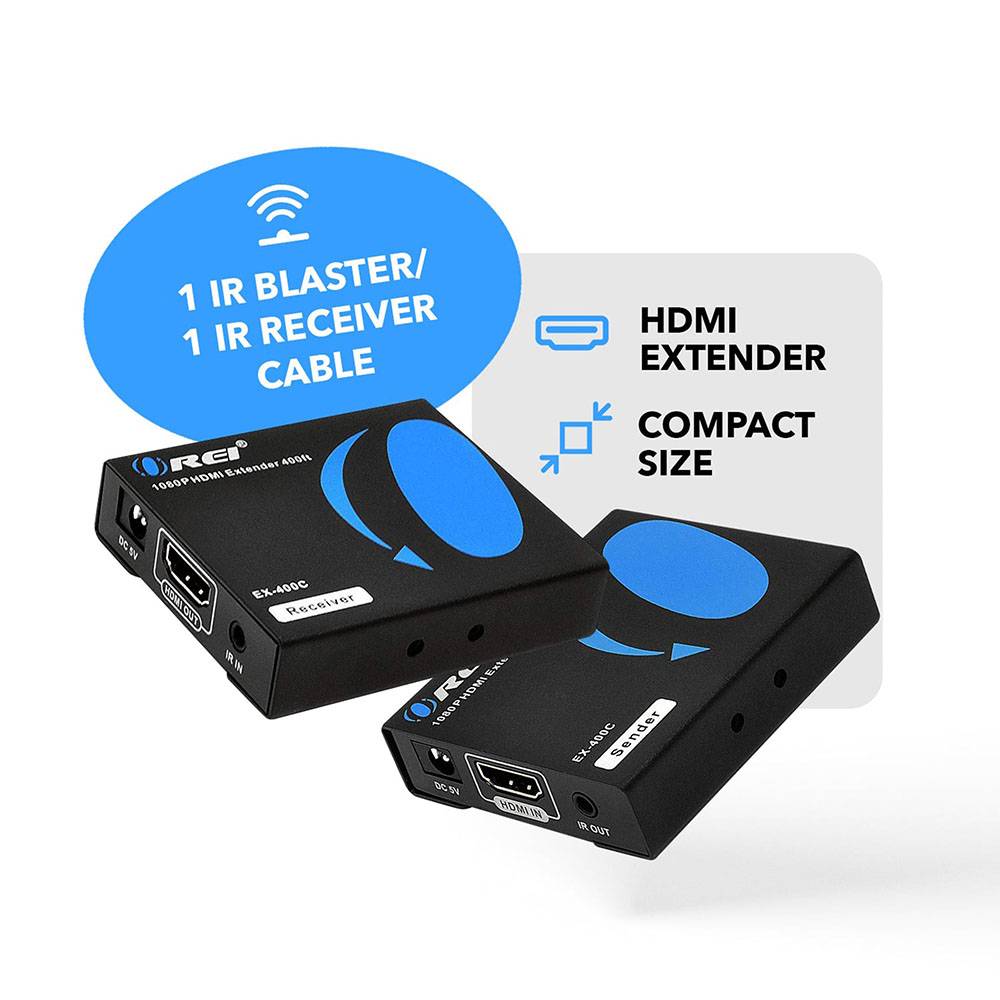

PACKAGE CONTENTS
| 1x HDMI Transmitter |
| 1x HDMI Receiver |
| 1x IR Blaster Extension Cable |
| 1x IR Receiver Extension Cable |
| 1x User Manual |
| 2x Power Supply |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
