Extend full 1080p signal up to 330 feet (in line of sight) wirelessly. Perfect to send wireless HDMI signal to additional TVs around the house. Transmission distance is reduced with obstructions such as walls, floors and other wireless interference.
Less than 300ms Latency time - great for home applications such a media players, cables boxes and other HDMI sources. This is not designed for gaming and real-time application use.
Point to point wireless connection along with HDMI loop-out on transmitter to connect to the local TV and supports resolutions up to 1080p: HDMI 480i 60Hz, 480p 60Hz, 576i 60Hz, 576 50Hz, 720p 50/60Hz, 1080i 50/60Hz, 1080p 50/60Hz

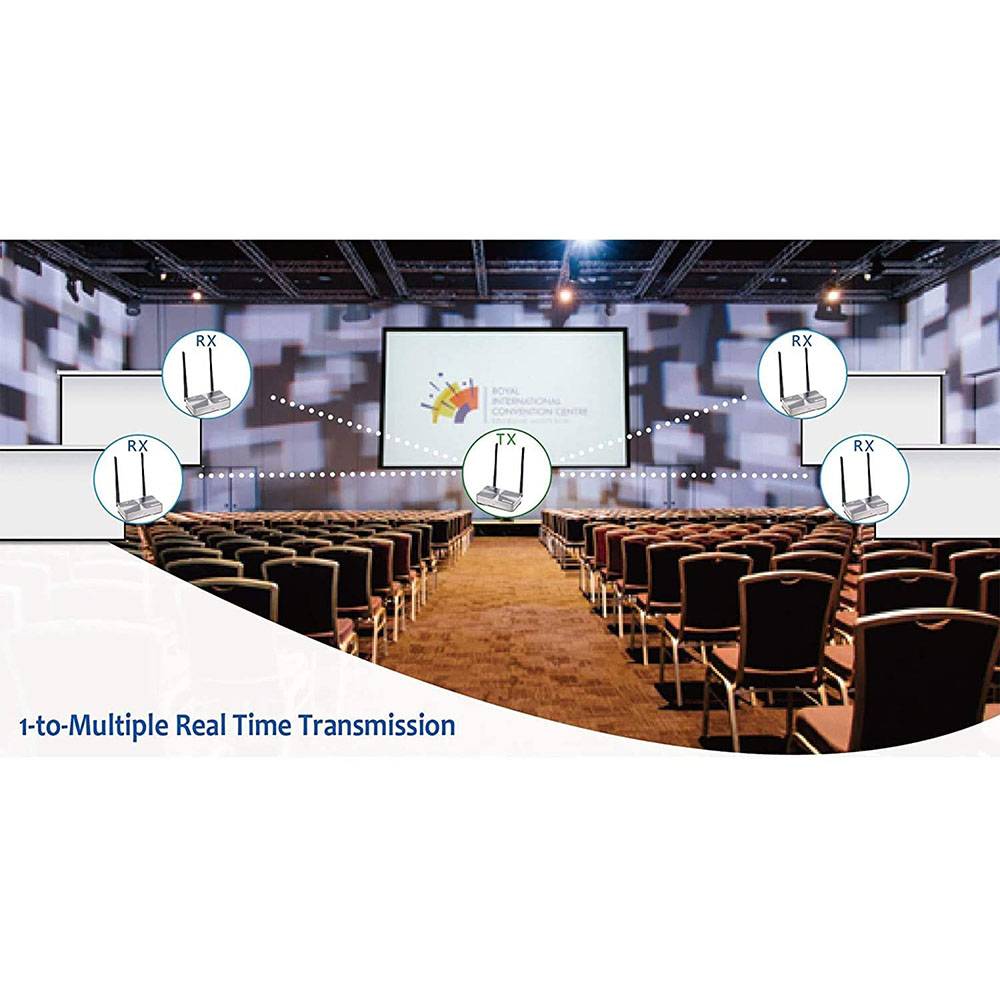

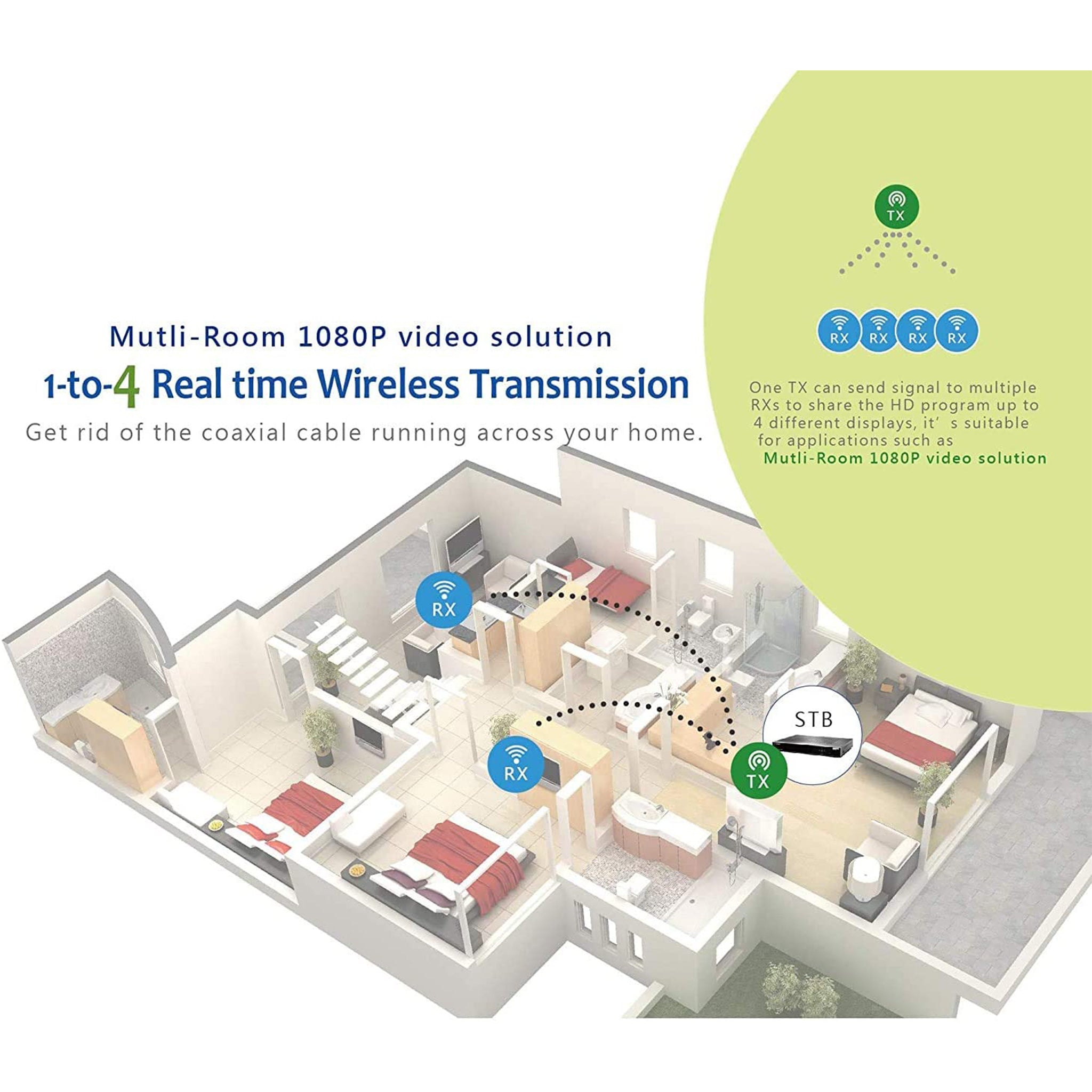

Plug & play setup without any software installation. Full band IR transmission and ability to extend (up to 3) extra receivers (sold separately) - to simultaneously connect multiple displays wirelessly to a single HDMI source.
Few sample applications:

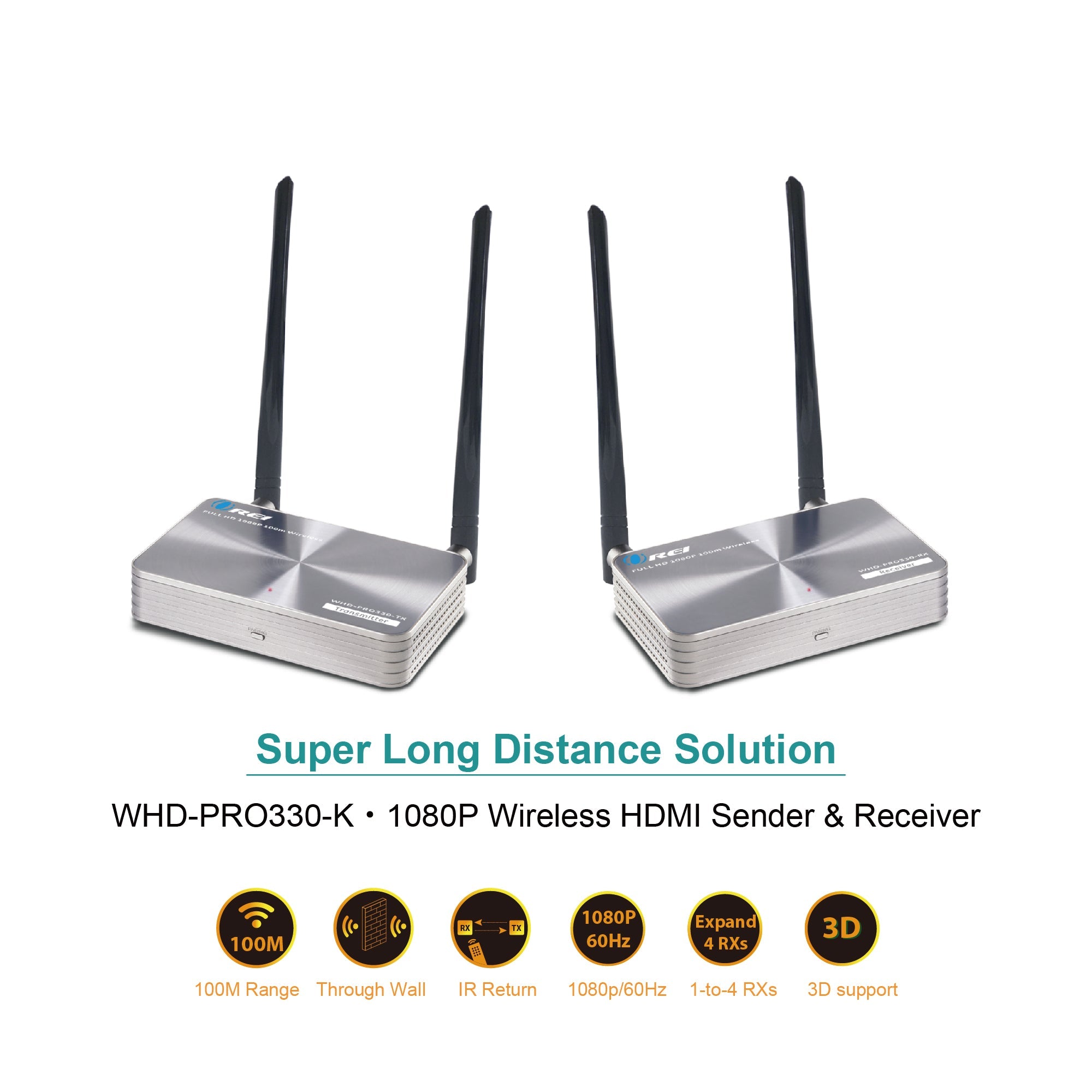

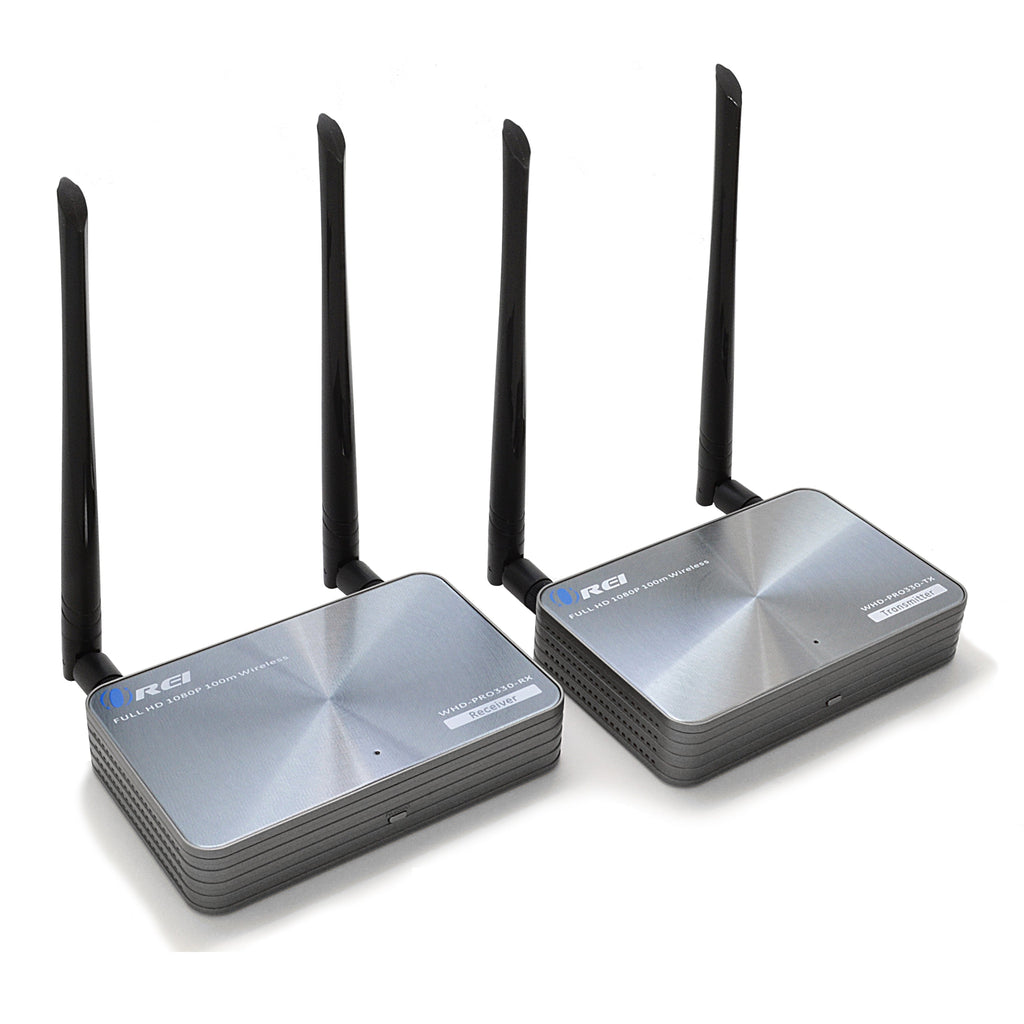

This OREI WHD-PRO-330-K HDMI wireless extender enables you to transmit and extend HDMI signal up to 100 meters wirelessly. We remastered it with strong anti-interference ability by running at 5G operation frequency. It supports up to 1080p signal extension and point to point wireless connection including: HDMI 480I 60Hz, 480p 60Hz, 576I 60Hz, 576 50Hz, 720p 50/60Hz, 1080I 50/60Hz, 1080p 50/60Hz. Only 300ms of delay-latency time!
Perfect for streaming this HDMI wireless extender is ideal to stream content from laptop, PC, cable, Netflix, YouTube, PS4 to HDTV/projector and it features IR support with full band IR Return 30 60 kHz. It is really a very good solution for meeting, conference, home entertainment and multi-media education.
Note: The maximum distance of 330 feet is for in line of sight use with no other wireless or physical obstructions. The transmission distance is reduced with physical obstructions such as walls, floors and even with wireless interference from wireless routers or even microwave ovens.
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
HDMI Input Type A 19-pin Female
OUTPUT PORTS:
HDMI Output Type A 19-pin Female
Receiver:
INPUT PORTS:
IR In
OUTPUT PORTS:
HDMI Output Type A 19-pin Female
COMPLIANCES & PROTOCOLS
HDMI Compliance
HDMI 1.3a
HDCP Compliance
HDCP 2
EXTENDING DISTANCE
1080p@60Hz:
330 Feet
VIDEO OUTPUT
Video Bandwidth:
148.5MHZ
Video Resolutions:
1080P/60Hz
Color Space:
RGB/YUV4:4:4
Color Depth:
8bit
IR Controller:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO OUTPUT
HDMI Audio Formats:
PCM2.1/Dolby5.1
SIGNALS
TMDS Signals:
Yes
DDC Signals:
Yes
WIRELESS PERFORMANCE & INTERFACE
Transmission Type:
Wireless
Latency:
Less than 300ms
Transmission Distance:
100M/ 300 Feet (L.O.S)
Maximun Pixel Clock:
12M(H.264)
DIMENSIONS & WEIGHT
Transmitter:
Height:
26.5mm
Width:
130mm
Depth:
83.5mm
Weight:
136g
Receiver:
Height:
26.5mm
Width:
130mm
Depth:
83.5mm
Weight:
136g
PROTECTION
Operation Temperature:
0~45℃
Storage temperature:
-10~60℃
Relative Humidity:
10%~80%
ESD Protection:
4K/8K
Electrostatic Protection of the whole Machine:
OVP/OCP
POWER
Power Consumption (Max):
Transmitter:
5W
Receiver:
5W
Power Supply:
Input:
100~240V
Output:
5V1A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Plastic
Finishing:
Matte
PACKAGE CONTENTS
1x HDMI Transmitter
1x HDMI Receiver
1x IR receiver Probe
1x IR emitter Probe
2x DC 5V/1A power adaptor (Micro USB type)
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
- Please try replacing your current HDMI cables with High-Quality HDMI cables.
- Please make sure that you dont have any other wireless devices such as wifi router nearby this extender. If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

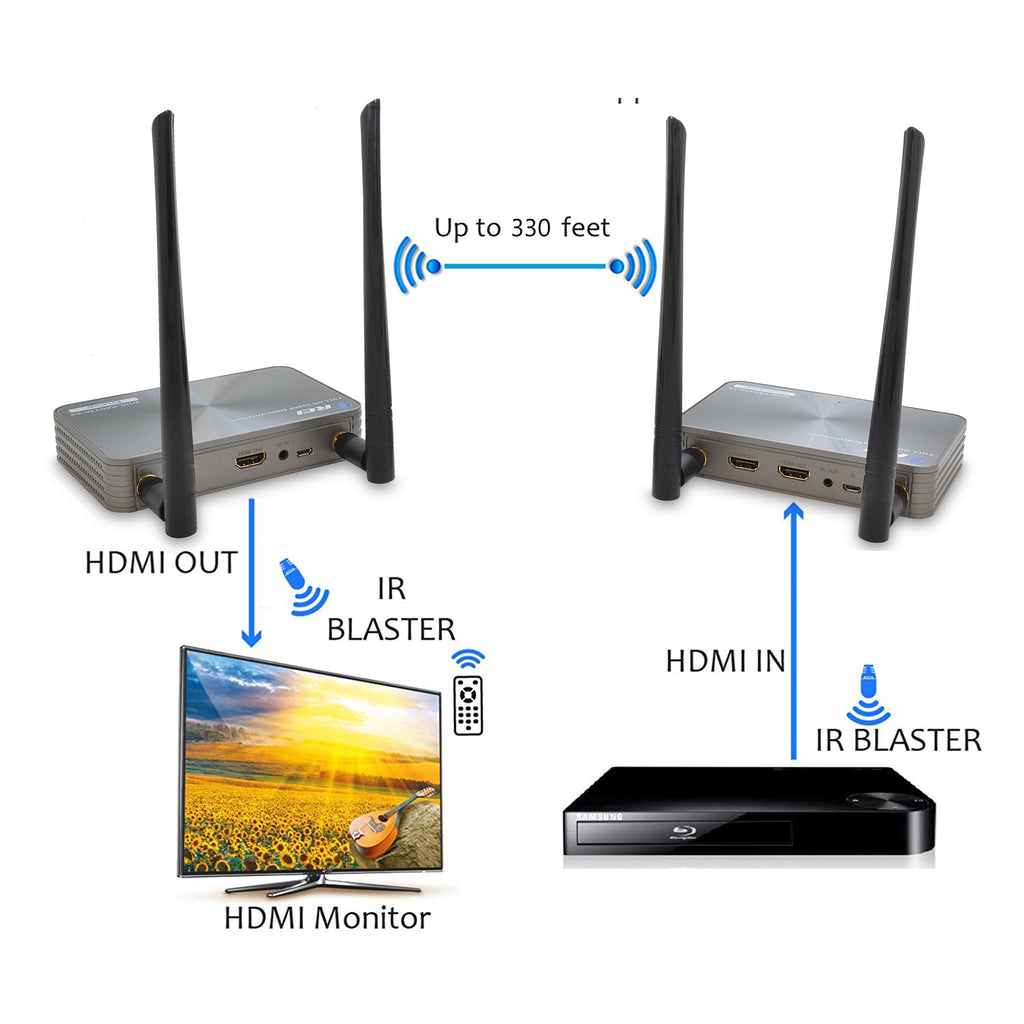

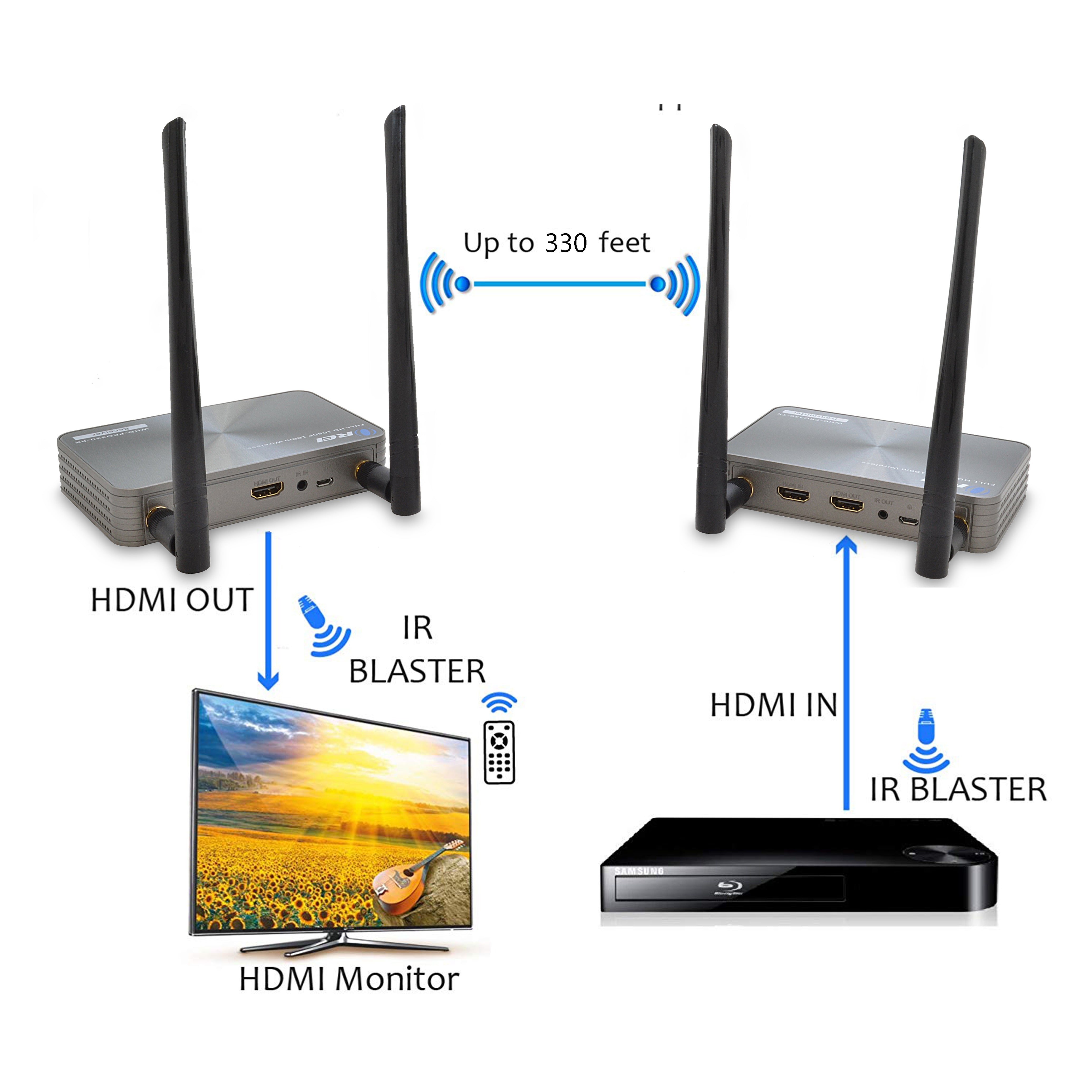

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Supports 1080p up to 330 feet line of sight long distance transmission wirelessly
Less than 300ms latency
Supports IR Remote Control
