Wireless 1080p HDMI Transmission up to 330 feet in line of sight.
Less than 300ms latency, ideal for movies and streaming (not for gaming).
HDMI loop-out for local TV connection while transmitting wirelessly.
Supports multiple resolutions including 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p at 50/60Hz.
Plug & play setup with no software or drivers required.

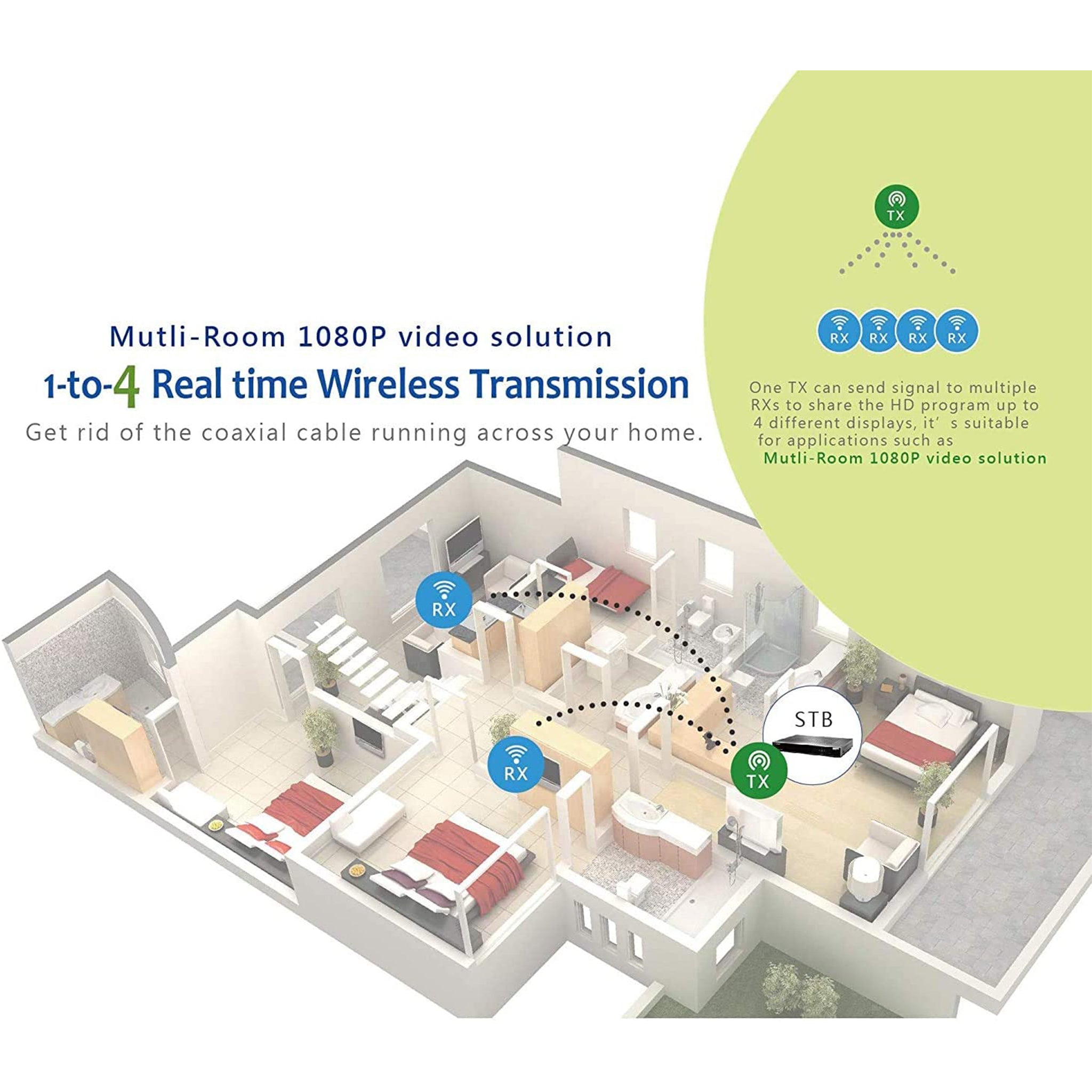

Expandable to multiple displays with up to three additional receivers (sold separately).
Full-band IR transmission for remote control of HDMI source.
Stable point-to-point wireless connection for seamless streaming.
Universal compatibility with media players, cable boxes, Blu-ray players, and more.
Compact and sleek design for easy integration into any home setup.
Perfect for home use, streaming to multiple TVs without messy cables.

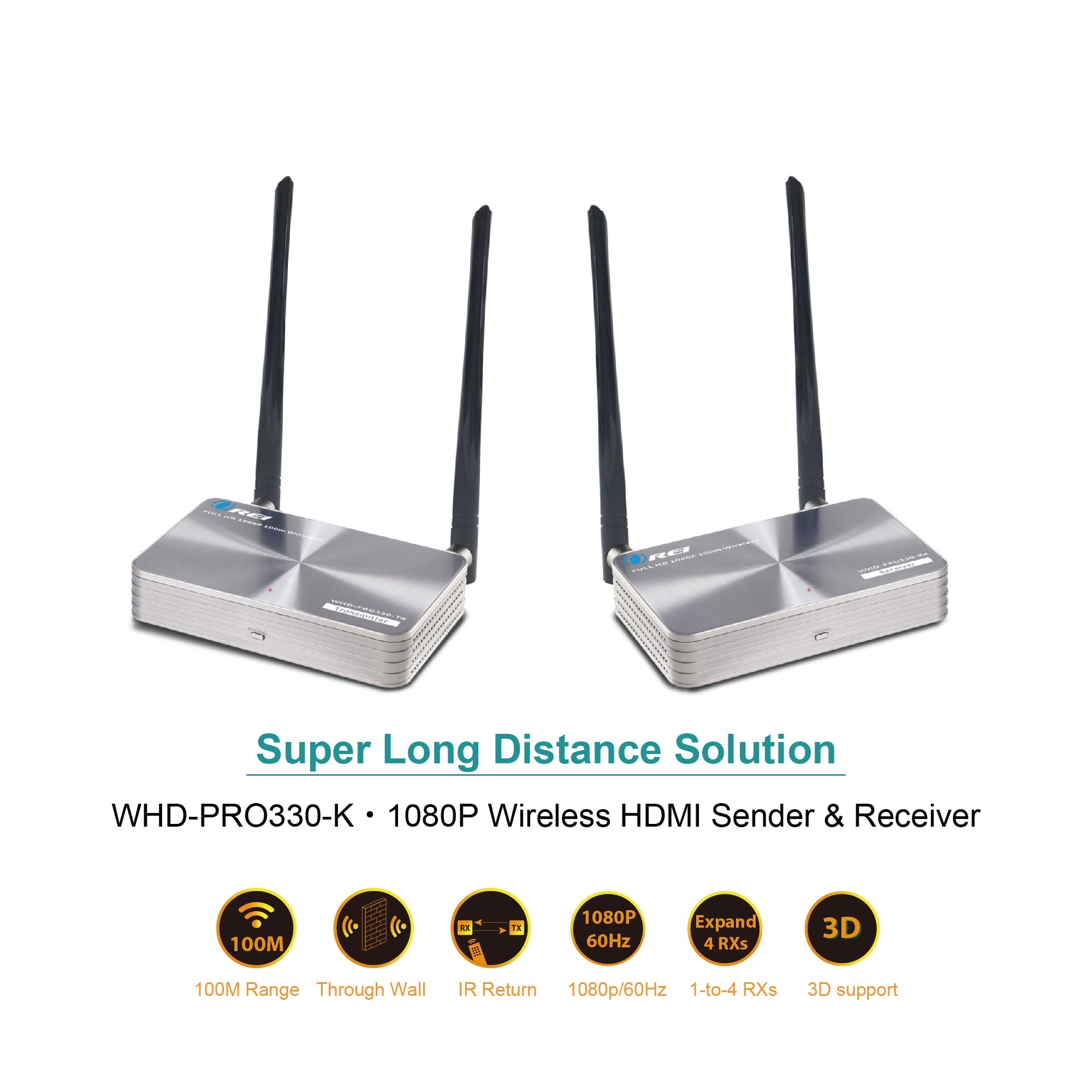

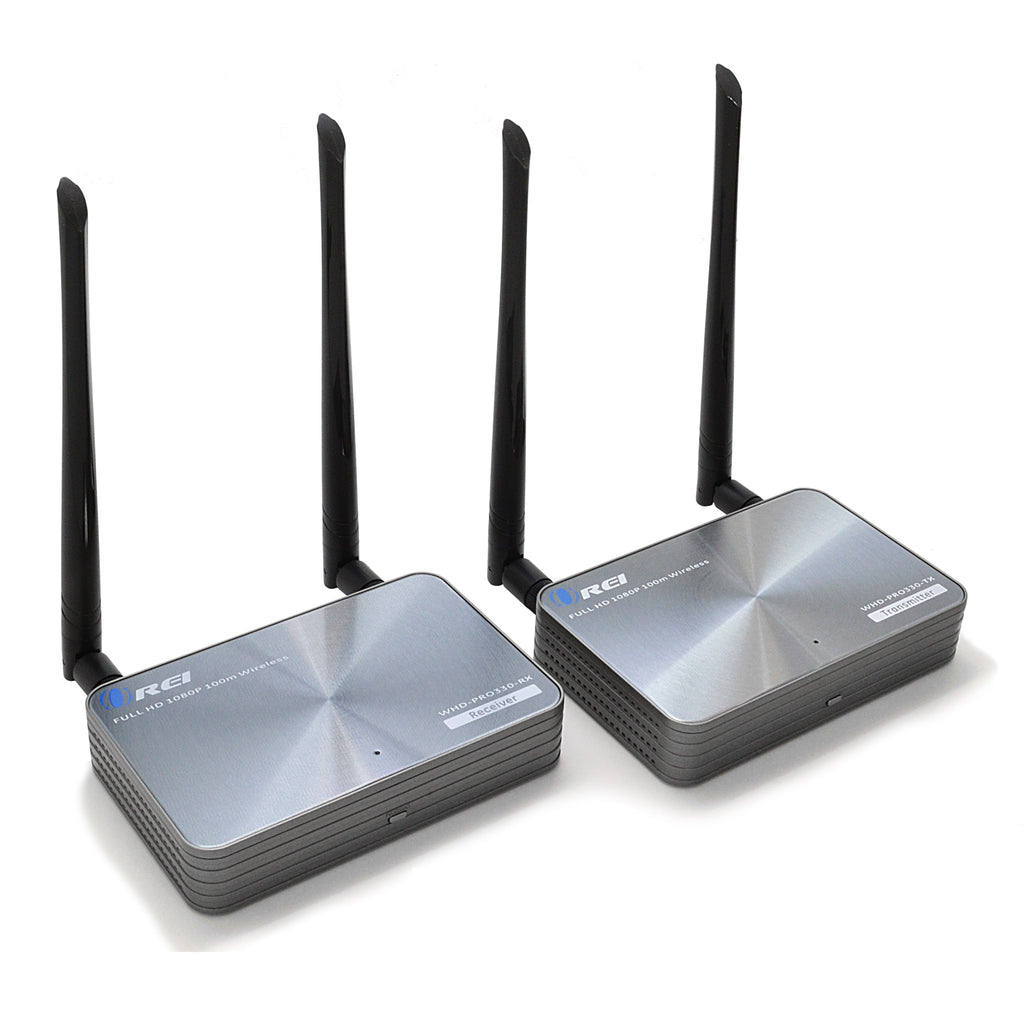

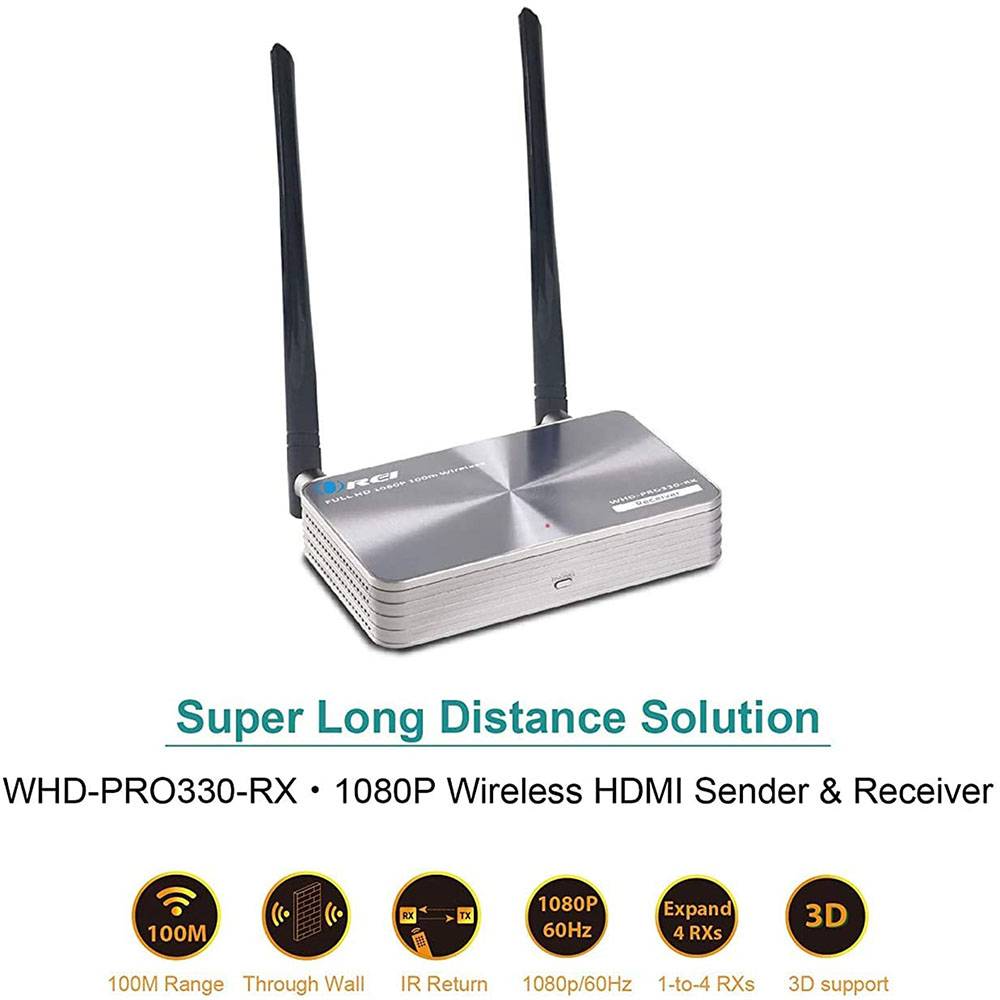

The OREI WHD-PRO-330-K HDMI Wireless Extender allows seamless wireless transmission of HDMI signals up to 100 meters (330 feet) in line of sight, delivering 1080p HD quality with only 300ms latency. Operating on a 5G frequency, it offers strong anti-interference capabilities, ensuring stable and reliable performance. Supporting multiple resolutions, including 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p at 50/60Hz, this extender is perfect for streaming content from laptops, PCs, cable boxes, Netflix, YouTube, and gaming consoles like PS4 to HDTVs or projectors. Equipped with full-band IR return (30-60 kHz), it allows remote control functionality for added convenience. Ideal for home entertainment, meetings, conferences, and multimedia education, this plug-and-play solution ensures effortless setup and high-quality video transmission. Note that the 330-foot range applies to direct line-of-sight, with physical obstructions and wireless interference potentially reducing transmission distance.
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
HDMI Input Type A 19-pin Female
OUTPUT PORTS:
HDMI Output Type A 19-pin Female
Receiver:
INPUT PORTS:
IR In
OUTPUT PORTS:
HDMI Output Type A 19-pin Female
COMPLIANCES & PROTOCOLS
HDMI Compliance
HDMI 1.3a
HDCP Compliance
HDCP 2
EXTENDING DISTANCE
1080p@60Hz:
330 Feet
VIDEO OUTPUT
Video Bandwidth:
148.5MHZ
Video Resolutions:
1080P/60Hz
Color Space:
RGB/YUV4:4:4
Color Depth:
8bit
IR Controller:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO OUTPUT
HDMI Audio Formats:
PCM2.1/Dolby5.1
SIGNALS
TMDS Signals:
Yes
DDC Signals:
Yes
WIRELESS PERFORMANCE & INTERFACE
Transmission Type:
Wireless
Latency:
Less than 300ms
Transmission Distance:
100M/ 300 Feet (L.O.S)
Maximun Pixel Clock:
12M(H.264)
DIMENSIONS & WEIGHT
Transmitter:
Height:
26.5mm
Width:
130mm
Depth:
83.5mm
Weight:
136g
Receiver:
Height:
26.5mm
Width:
130mm
Depth:
83.5mm
Weight:
136g
PROTECTION
Operation Temperature:
0~45℃
Storage temperature:
-10~60℃
Relative Humidity:
10%~80%
ESD Protection:
4K/8K
Electrostatic Protection of the whole Machine:
OVP/OCP
POWER
Power Consumption (Max):
Transmitter:
5W
Receiver:
5W
Power Supply:
Input:
100~240V
Output:
5V1A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Plastic
Finishing:
Matte
PACKAGE CONTENTS
1x HDMI Transmitter
1x HDMI Receiver
1x IR receiver Probe
1x IR emitter Probe
2x DC 5V/1A power adaptor (Micro USB type)
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
- Please try replacing your current HDMI cables with High-Quality HDMI cables.
- Please make sure that you dont have any other wireless devices such as wifi router nearby this extender. If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

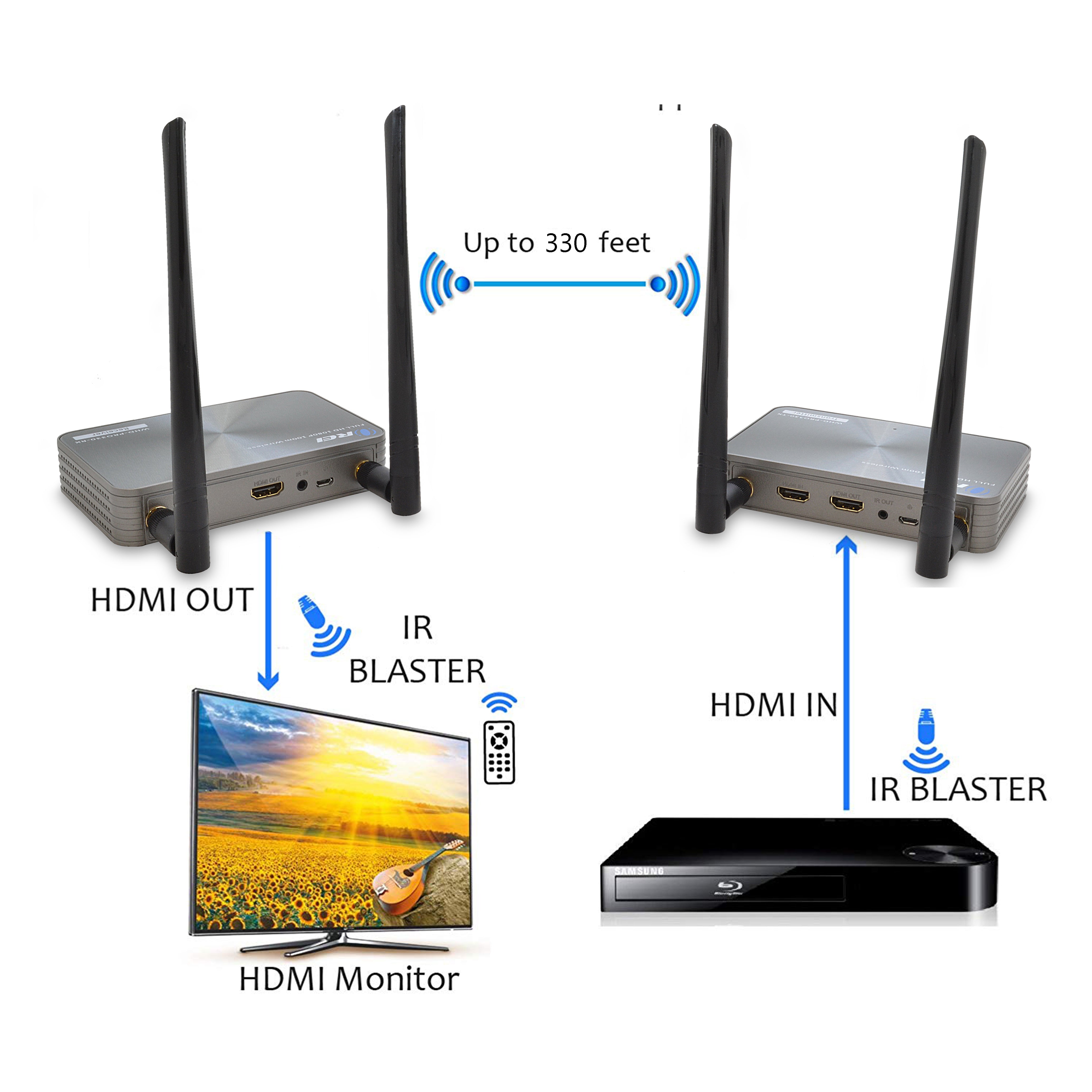

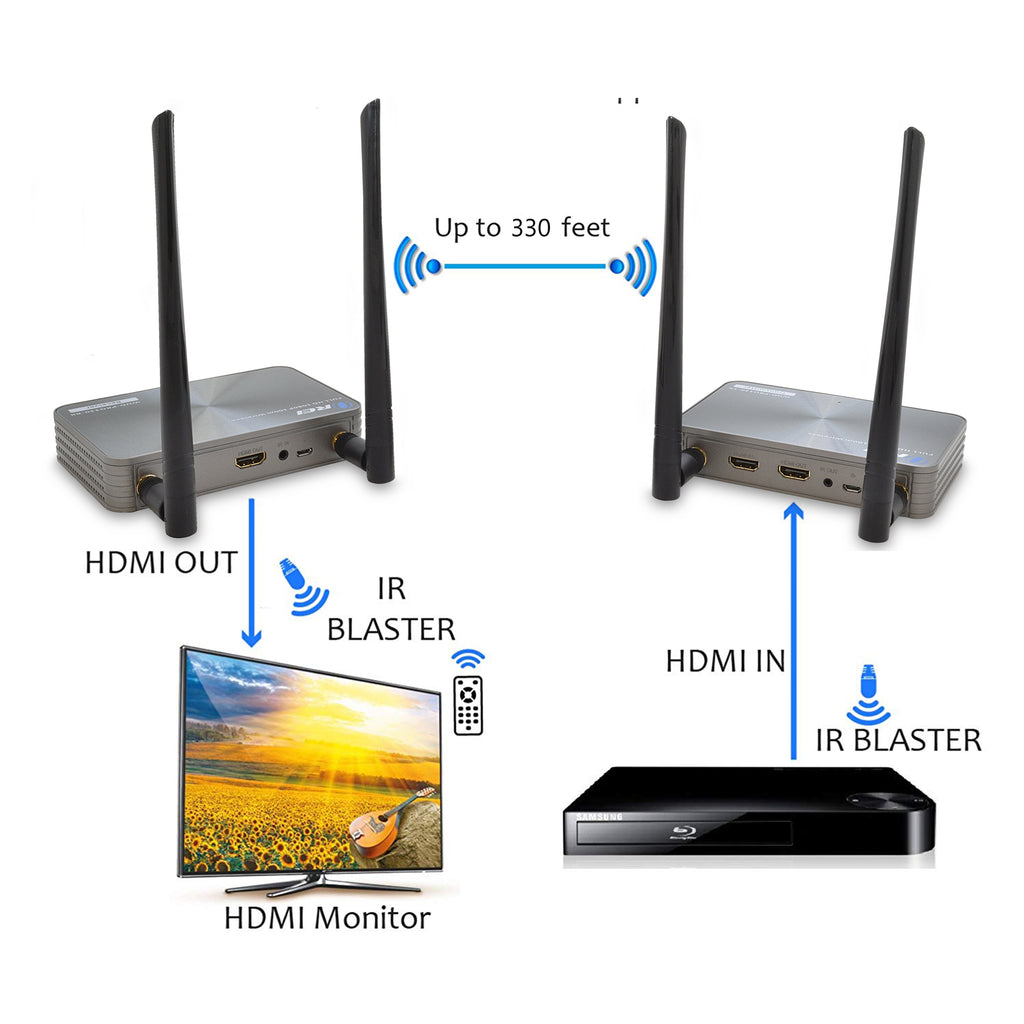

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
If you are having any trouble with locating the correct replacement, part number, or assistance with diagnosis please do not hesitate to reach out to us.
