Description
OREI UHD12-IPC230-K 4K HDMI Extender Splitter up to 230Ft
Key Features:
Compliant with HDMI 2.0 and HDCP 2.2 – Ensures compatibility with modern HDMI sources and encrypted content for seamless AV performance.
Supports Audio Formats – Compatible with LPCM, DTS-HD, DTS-Audio, and Dolby Digital 5.1 for immersive and high-fidelity sound.
Zero-Latency Transmission – Delivers real-time AV performance, making it ideal for interactive or live monitoring applications.
1 HDMI Input to 2 Network Outputs – Simultaneously split and extend a single HDMI input signal to two IP-based outputs for parallel display.
4K@60Hz Resolution Support – Handles ultra-high-definition video with stunning clarity and color accuracy.

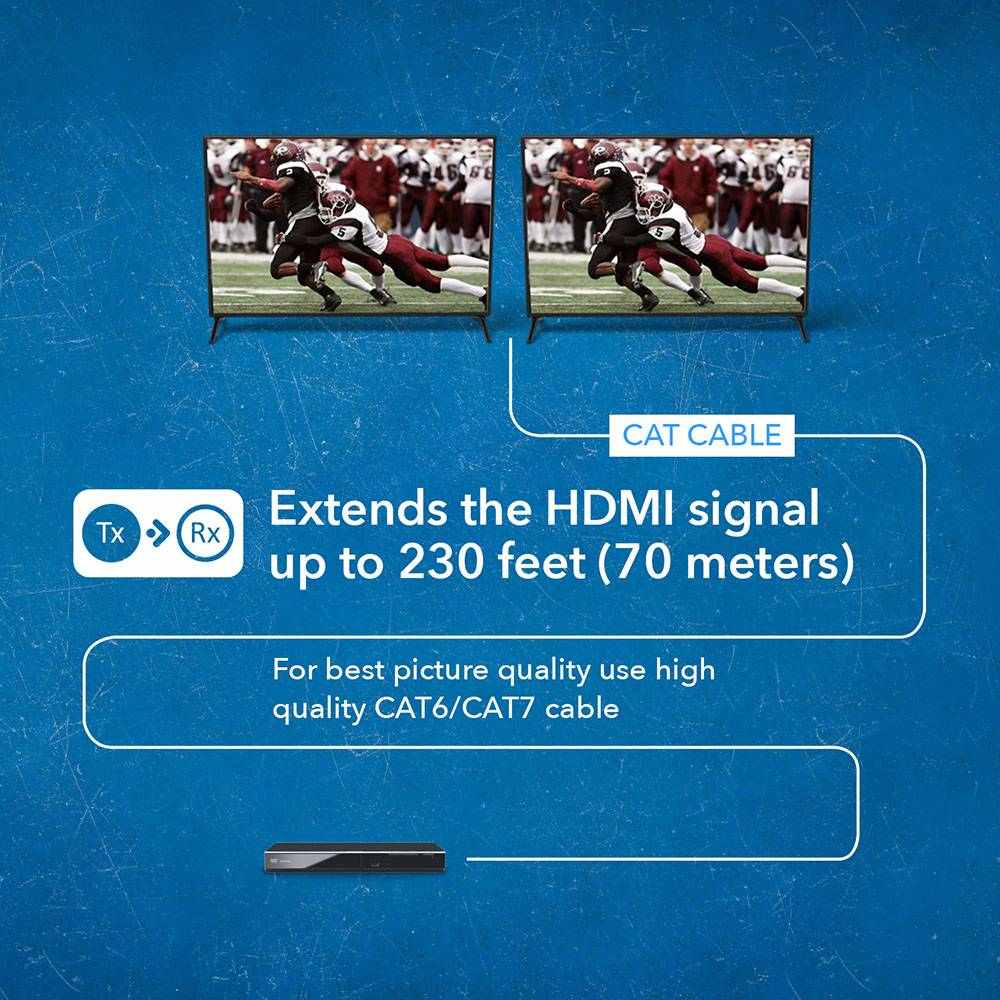

Long-Distance Extension up to 70 Meters – Transmits HDMI signals over Cat6/6A/7 cables up to 230 feet with no compromise in quality.
Bi-Directional IR Passback Support – Enables remote control of source or display devices from either end.
HDMI Loop-Out on Transmitter – Allows for local display connection without interrupting signal extension to remote receivers.
Digital Audio Extraction via S/PDIF – Receiver supports optical audio output, allowing separate audio routing for sound systems.
EDID Passthrough and Manual Configuration – Automatically reads connected display EDID or allows manual EDID setting for optimized compatibility.
RS-232 Command Control – Provides integration with third-party automation and control systems.
Enhanced Protection Design – Built-in surge, lightning, and ESD protection ensures reliable operation in demanding environments.
Rack-Mountable – Includes rack ears for easy installation in professional AV cabinets or equipment racks.

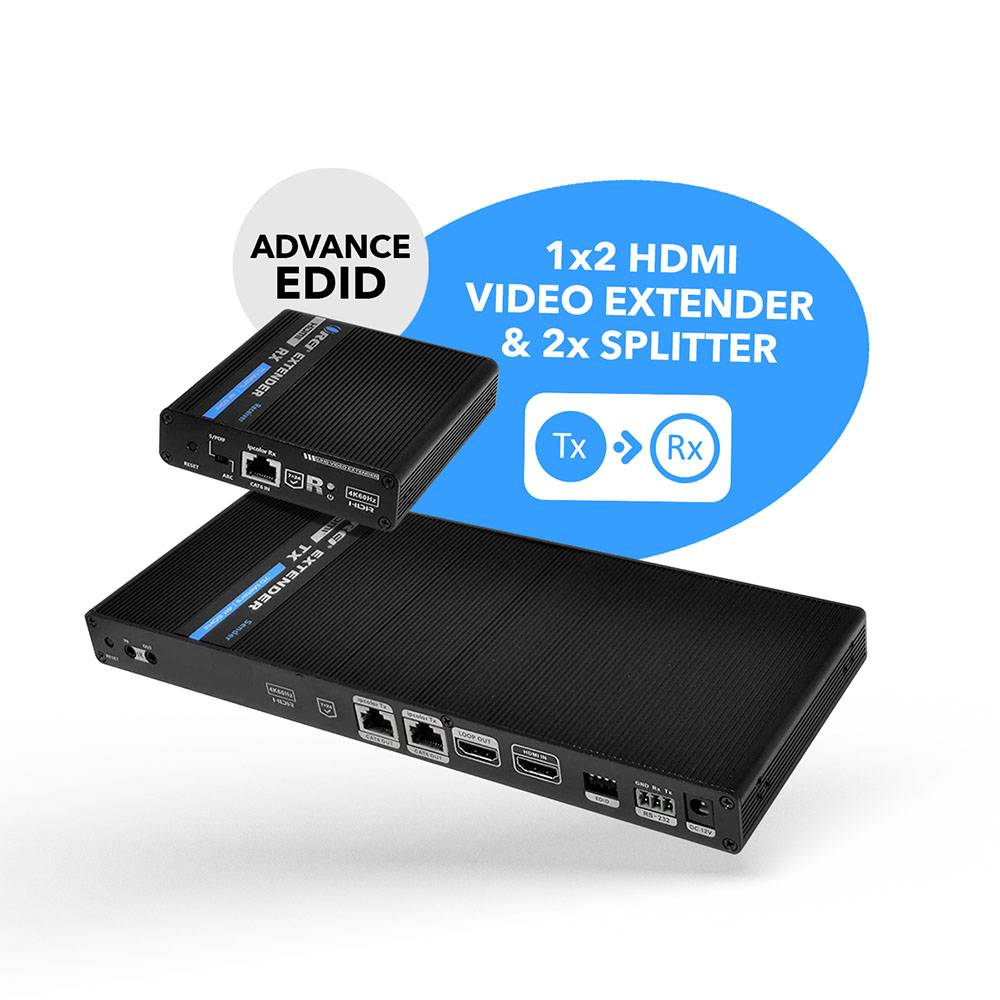

The UHD12-IPC230-Kis a 1x2 HDMI Extender Splitter Kit that combines signal distribution and long-distance extension in one compact unit. It splits one HDMI source into two synchronized network outputs and extends them up to 70 meters over Cat6 or higher Ethernet cables, supporting 4K@60Hz resolution with zero latency.
Ideal for applications such as broadcast studios, classrooms, transportation hubs, or digital signage networks, this kit includes advanced features like HDMI loop-out, bi-directional IR passback, and optical S/PDIF audio output from the receiver. For complete control, it offers RS-232 connectivity and EDID management options.
With rack-mountable design and robust electrical protection, the UHD-IPSP2-K is engineered for professional AV environments that demand reliability, scalability, and exceptional performance.
[shortdes]

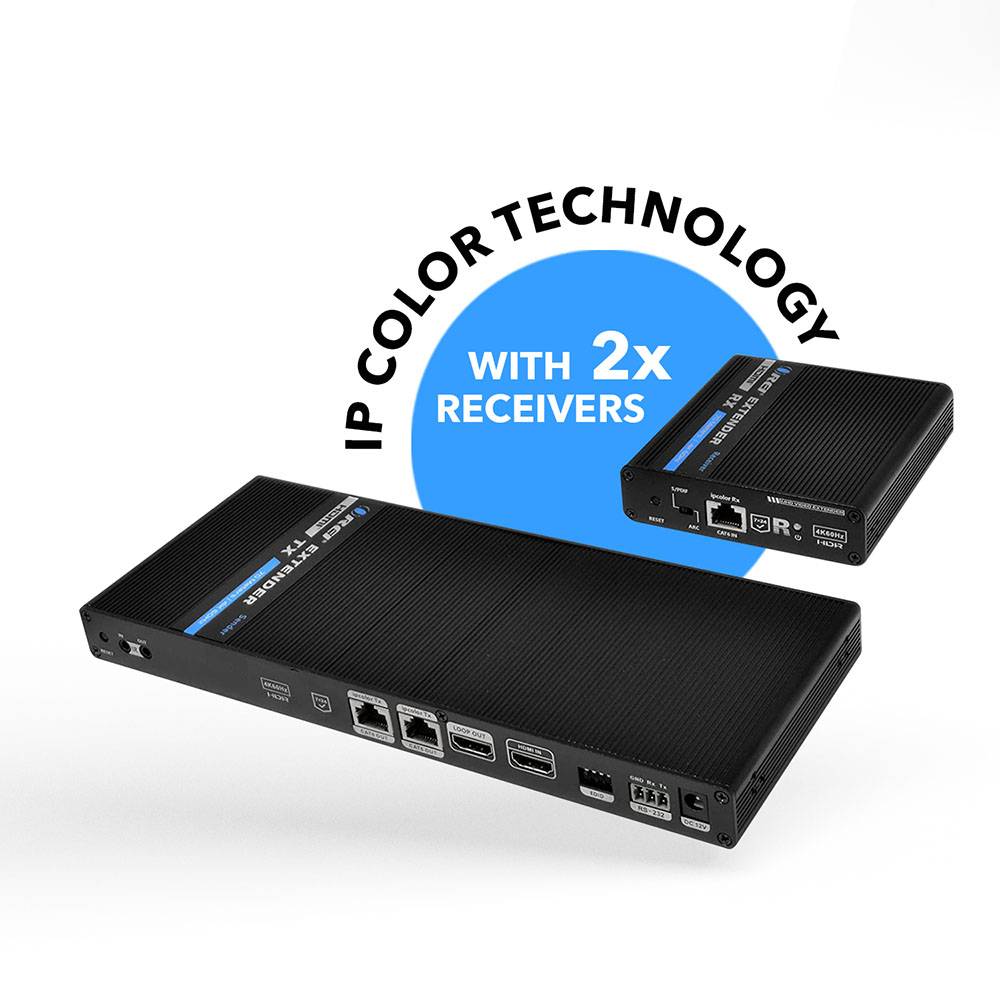

Supports ipcolor technology
Supports 18Gbps video bandwidth
Supports RS-232 Control & Advance EDID
[/shortdes]
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT :
1x HDMI INPUT
OUTPUT :
2x RJ45 OUTPUT
1x HDMI OUTPUT
Receiver:
INPUT :
1x RJ45 INTPUT
OUTPUT :
1x HDMI OUTPUT
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
Transmission Protocol:
Ipcolor
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
Up to 230 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@60Hz
Color Space:
RGB YCbCr4::4:4 YCbCr4::4:2 YCbCr4::2:0
Color Depth:
8bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
Yes
USB KVM Function:
No
PoC Function:
No
IR Controller:
Bi-Directional IR
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
SWITCHES
EDID Management:
Supports Advance EDID Management Control
ARC:
Supports ARC from the TV (receiver end)
S/PDIF:
Supports from the source device
AUDIO OUTPUT
HDMI Audio Formats:
LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
SPDIF/Optical Audio Formats:
Up to 5.1Ch
SIGNALS
TMDS Signals:
0.7~1.2Vp-p
DDC Signals:
5Vp-p

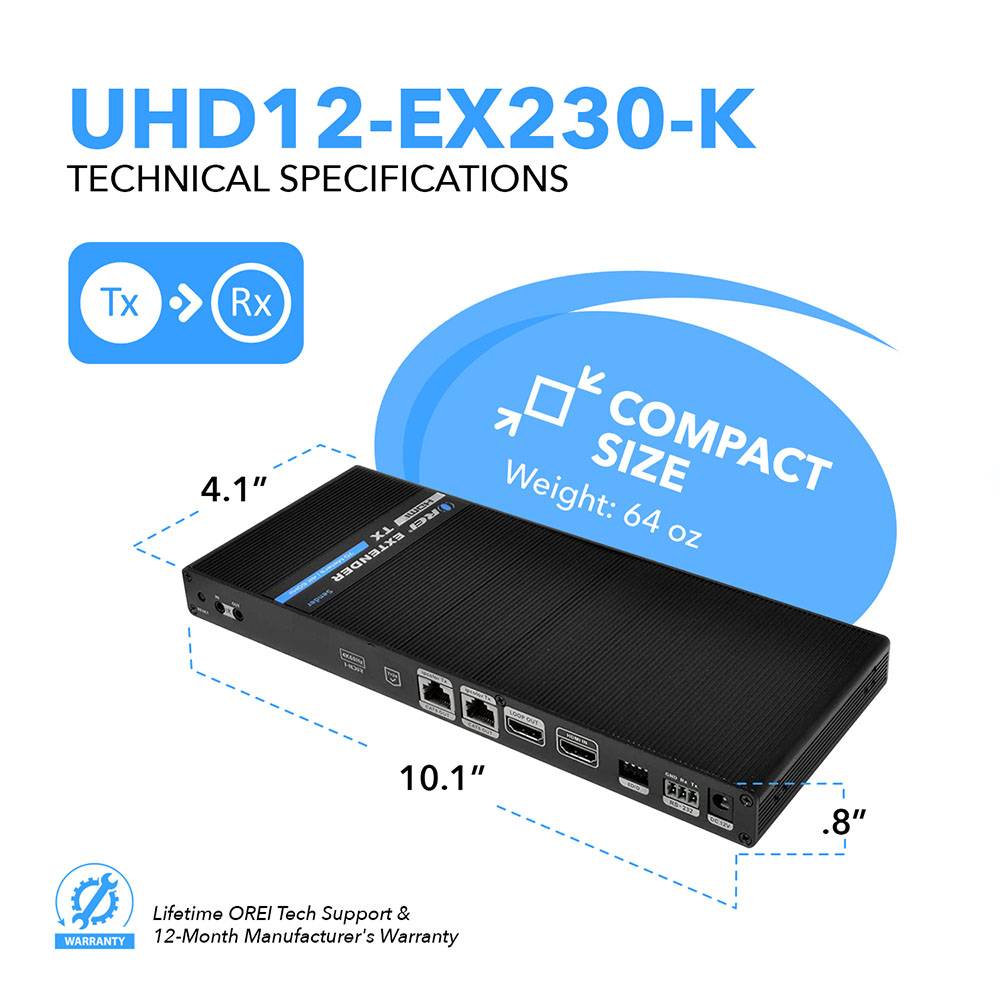

DIMENSIONS & WEIGHT
Transmitter:
Height:
23.5mm
Width:
104mm
Depth:
264mm
Weight:
640g
Receiver:
Height:
26.2mm
Width:
99mm
Depth:
106mm
Weight:
210g
PROTECTION
ESD Protection:
1a Contact discharge level 3, 1b Air discharge level 3, implementation of the standard: IEC61000-4-2
Electrostatic Protection of the whole Machine:
IEC61000-4-2
Lightning Protection:
Yes
Surge Protection:
Yes
RJ-45 CONNECTOR Type
8P8C connector
POWER
Power Consumption (Max)
Transmitter:
9W
Receiver:
4W
Power Supply
Input:
DC 12V/2A
Output:
DC 5V/2A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Aluminium Alloy Material + Crystal Panel
Processing Technology:
Ipcolor transmission technology
Finishing:
Grit blast
Operation Temperature:
-20~60℃
Storage Temperature:
-30~70℃
Operating Humidity:
0~90% RH (Non-condensing)
PACKAGE CONTENTS
1x HDMI Transmitter
2x HDMI Receivers
1x DC 12V/2A Power Adapter
2x DC 5V/2A Power Adapter
1x Terminal Block (RS-232)
1x IR Blaster Extension Cable
2x IR Receiver Extension Cable
12x Mounting Brackets
24x Screw
WARRANTY
1 - Year Manufacturer's Warranty
