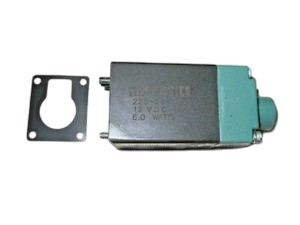

225-284 NUMATICS/AVENTICS SOLENOID MK8 SERIES 12VDC, STANDARD PLUG-IN NEW
Roll over image to zoom in Click on image to zoom
225-284 NUMATICS/AVENTICS SOLENOID MK8 SERIES 12VDC, STANDARD PLUG-IN NEW

225-284 NUMATICS/AVENTICS SOLENOID MK8 SERIES 12VDC, STANDARD PLUG-IN NEW

Short Circuit SolutionSKU: 225-284
Price:
$79.96

Shipping calculated at checkout

Stock:
Only 1 unit left

Description

180-Day Warranty!

Part Type: SOLENOID

Part Number: 225-284

Location: 2F2

NUMATICS/AVENTICS MARK 8 SERIES VALVES HAVE A PLUG-IN BASE OR MANIFOLD, A PLUG-IN SOLENOID AND AN OPTIONAL PLUG-IN SANDWICH SPEED CONTROL. THE UNIT TO BASE ELECTRICAL PLUG PERMITS INSTANT VALVE UNIT REPLACEMENT WITHOUT DISCONNECTING PIPING OR WIRING.

STANDARD SPECIFICATIONS:

  • CV: 0.8 TO 1.0
  • PORT SIZES: 1/8, 1/4 NPTF & G
  • 5 PORTED, 2 AND 3 POSITION, 4-WAY, SPOOL & SLEEVE
  • FLOW CAPACITY: 37 TO 46 SCFM @ 80 PSIG / 790 TO 985 NI/M @ 6 BAR
  • OPERATING PRESSURE RANGE: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
  • PILOT PRESSURE RANGE: 20 TO 115 PSIG / 1.5 TO 8 BAR
  • TEMPERATURE RANGE (AMBIENT): -10?F TO +115?F / -23?C TO +46?
