HD18-EX165-K: 1x8 HDMI Extender Splitter over CAT6 up to 165 feet(70m)
Key Features:
-
HDMI 1.4 & HDCP 1.4 Compliant – Compatible with a wide range of source and display devices.
-
Supports Resolutions up to 4K@30Hz and 1080p@60Hz – Delivers crisp, high-definition video.
-
10.2Gbps Video Bandwidth – Enables stable transmission of HD content.
-
Extends Signal up to 165 Feet – Transmits video over CAT6/7 cables at long distances.
-
Supports LPCM 7.1, Dolby TrueHD & DTS-HD MA – Handles uncompressed and compressed audio formats.
-
Unidirectional IR Control – Allows source control from the receiver end.
-

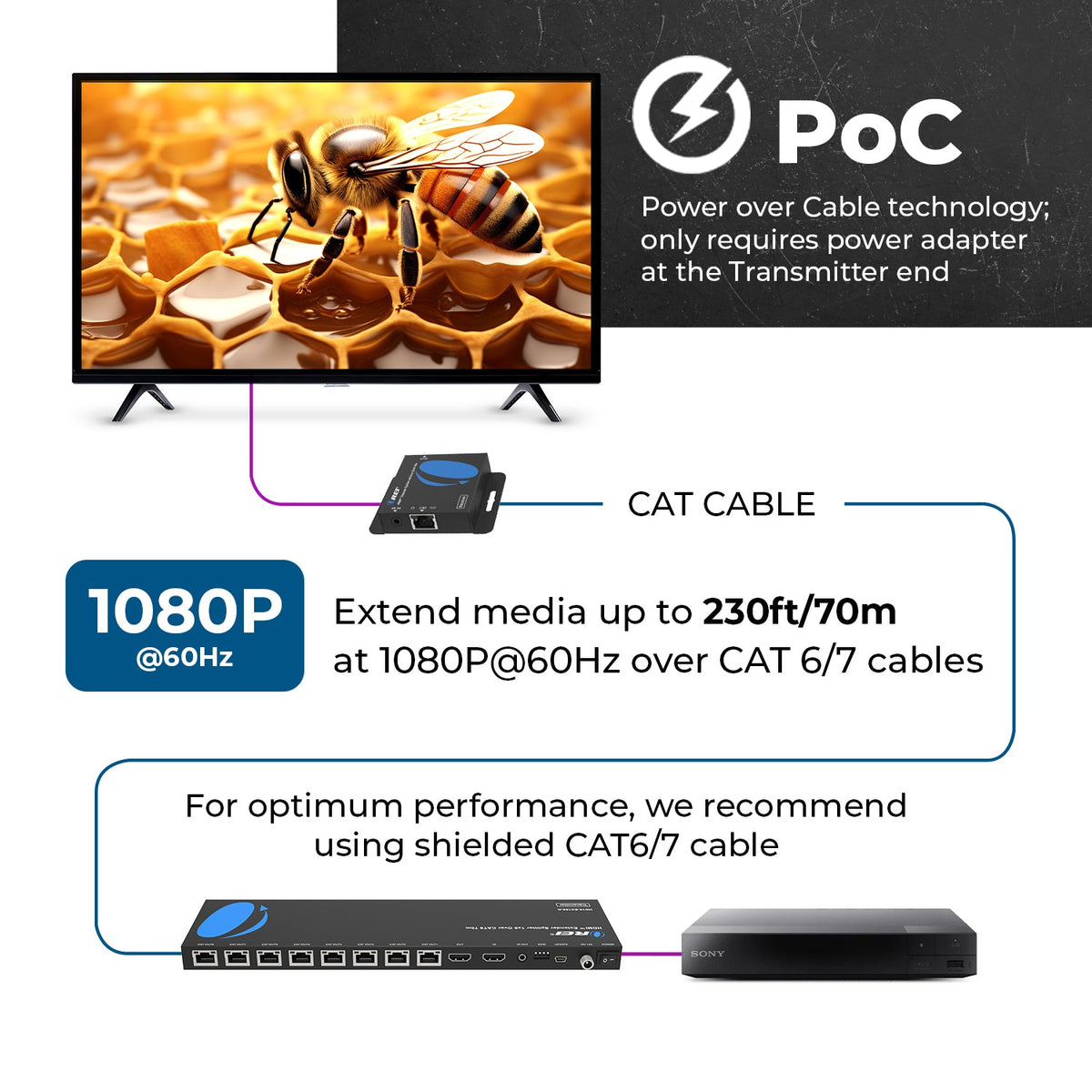

Power over Cable (PoC) – Only one power adapter is required at the transmitter.
-
HDMI Loop Out – Lets you connect a local display for preview or monitoring.
-
Advanced EDID Management – Ensures compatibility and optimal signal handshake.
-
Metal Build with Plug-and-Play Setup – Durable and easy to install in any environment.

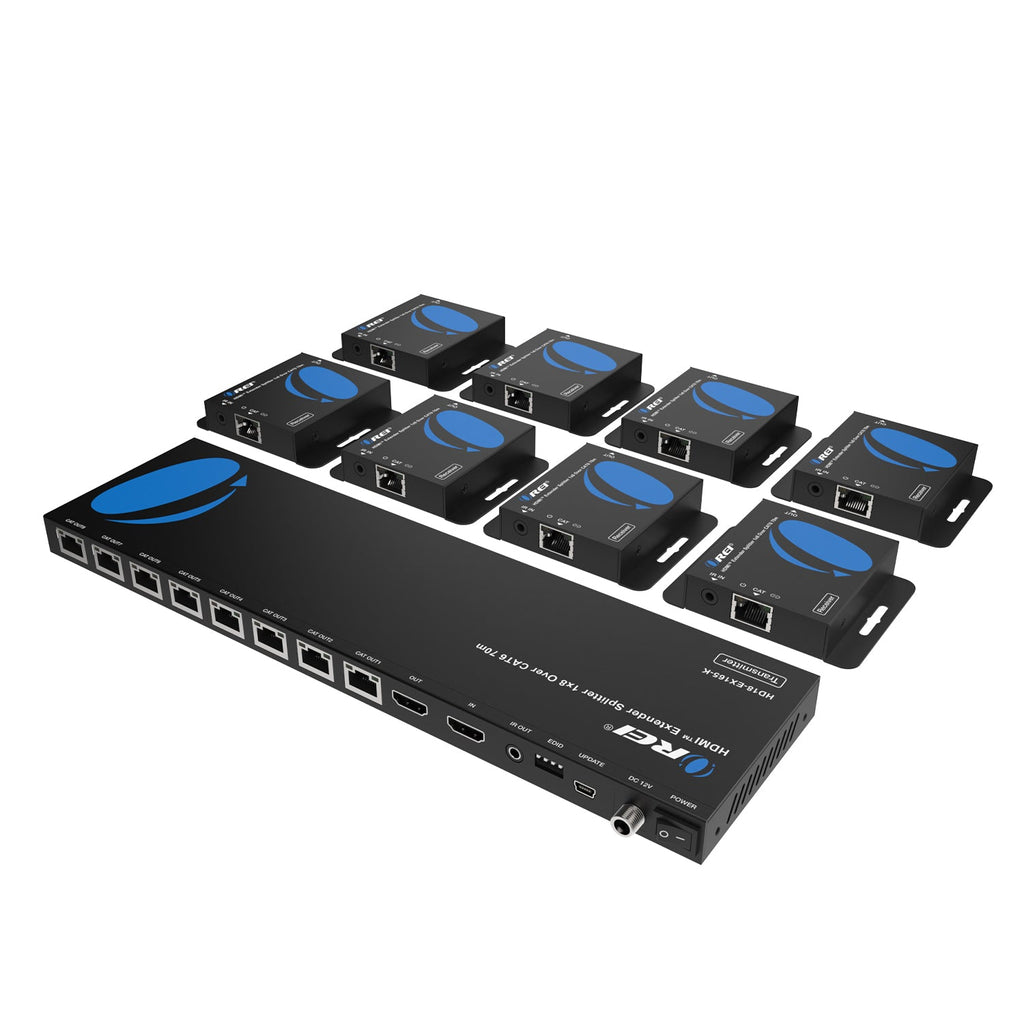

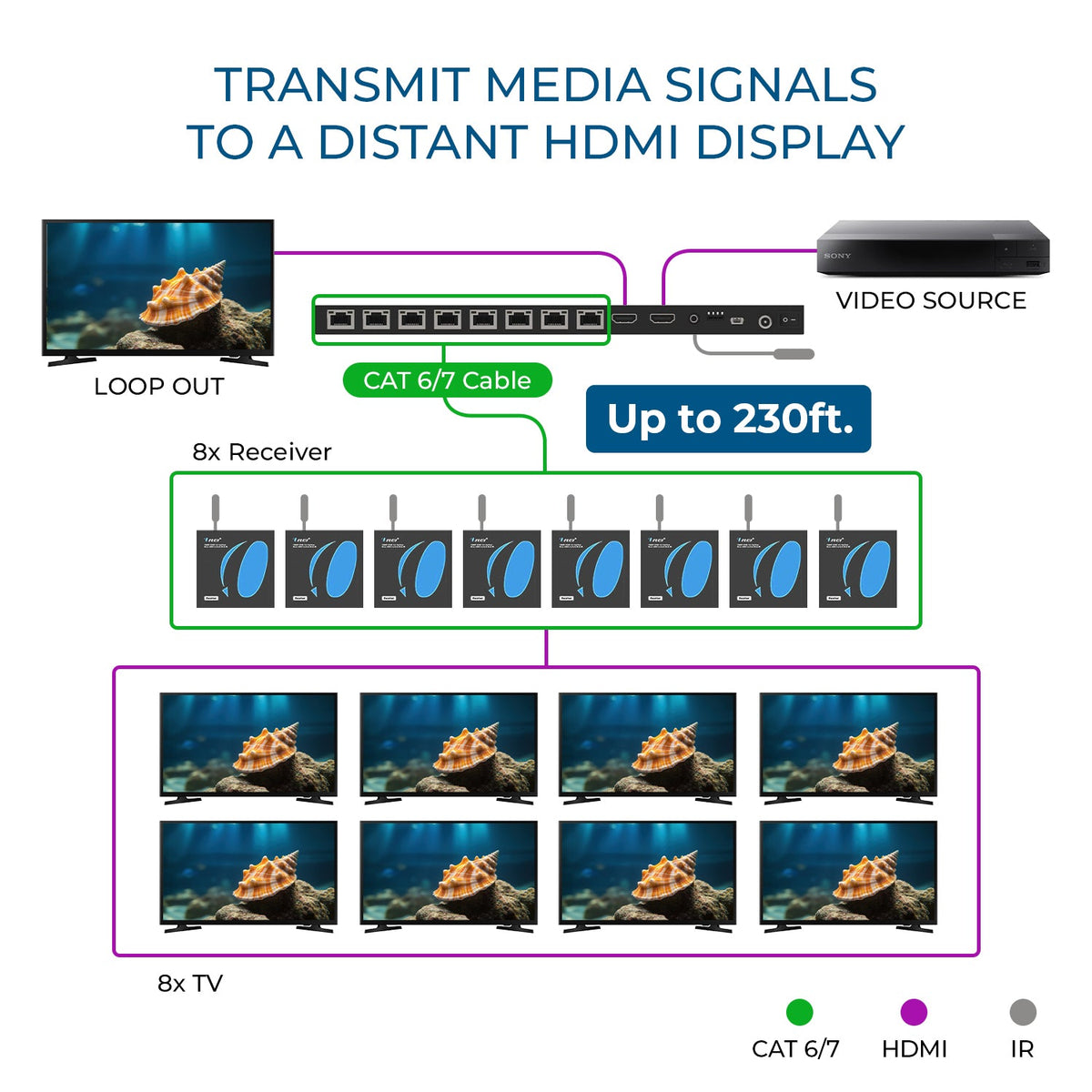

The HD18-EX165-K is an HDMI Extender Splitter that distributes a single HDMI source to up to eight distant displays. Supporting resolutions up to 4K@30Hz and 1080p@60Hz, it transmits over CAT6/7 cables with reliable video signal performance up to 165 feet.
Fully compliant with HDMI 1.4 and HDCP 1.4, it offers a total bandwidth of 10.2Gbps and supports premium audio formats including LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio.The Transmitter includes an HDMI loop out for connecting a local display and features Power over Cable (PoC) support, requiring only one power adapter.
The system also supports unidirectional IR control from the receiver to the source device. Designed with advanced EDID management and a durable metal chassis, it ensures simple installation and stable operation for residential and commercial AV applications.
[shortdes]
- 1x8 Extender Splitter over CAT6
- Video reoslutions up to 4K@30Hz and 1080p@60Hz
- Unidirectional IR control
[/shortdes]
[tab]
CONNECTIVITY

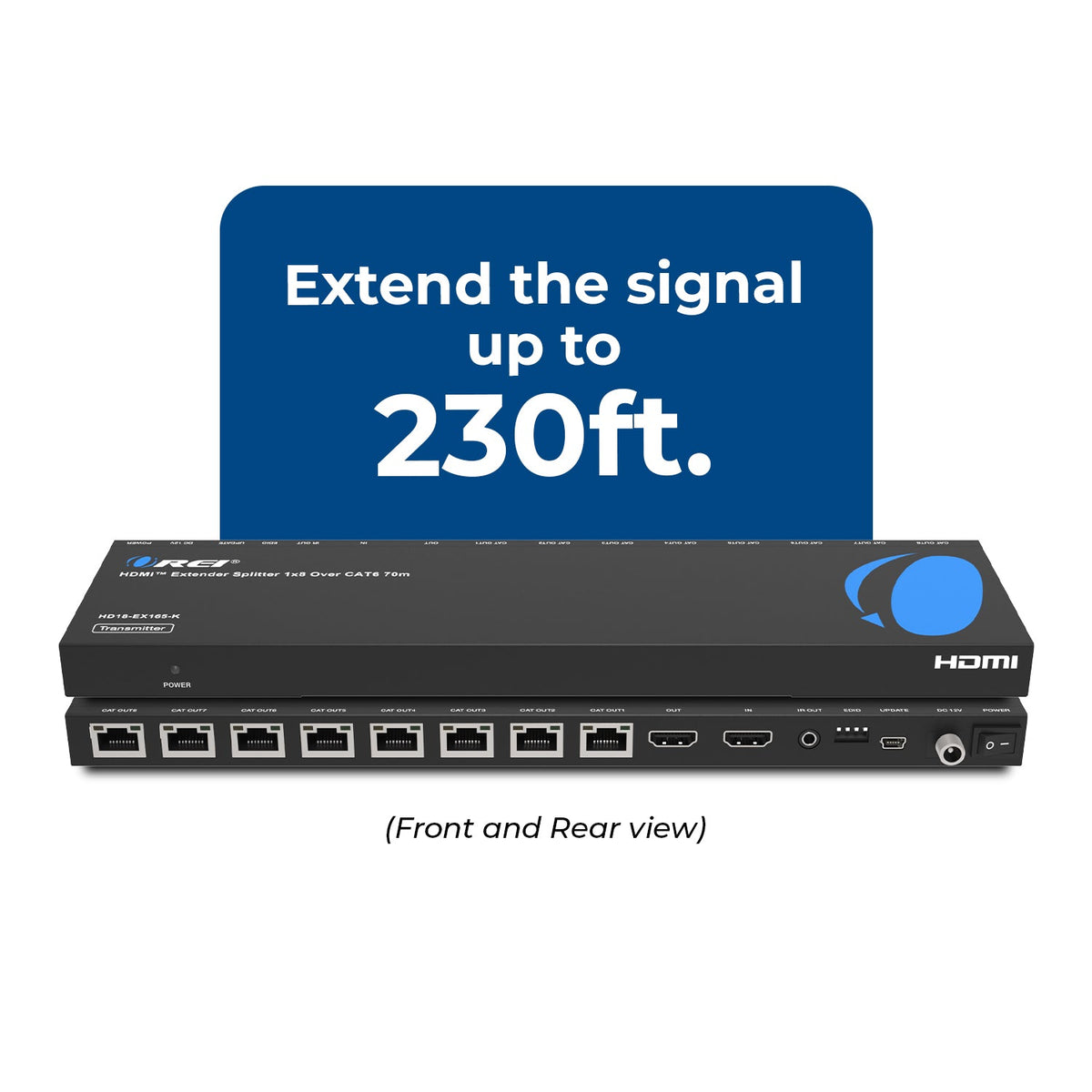

| Transmitter: |
INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
OUTPUT: |
1 × HDMI [Type A, 19-pin female] |
|
|
8 x CAT [RJ45, 8-pin female]
|
|
CONTROL: |
1 × IR OUT [3.5mm Stereo Mini-jack] |
|
|
1 x SERVICE [Micro USB, Update port] |
| Receiver: |
INPUT: |
1 x CAT [RJ45, 8-pin female]
|
|
OUTPUT: |
1 × HDMI [Type A, 19-pin female] |
|
CONTROL: |
1 x IR IN [3.5mm Stereo Mini-jack] |
|
|
|

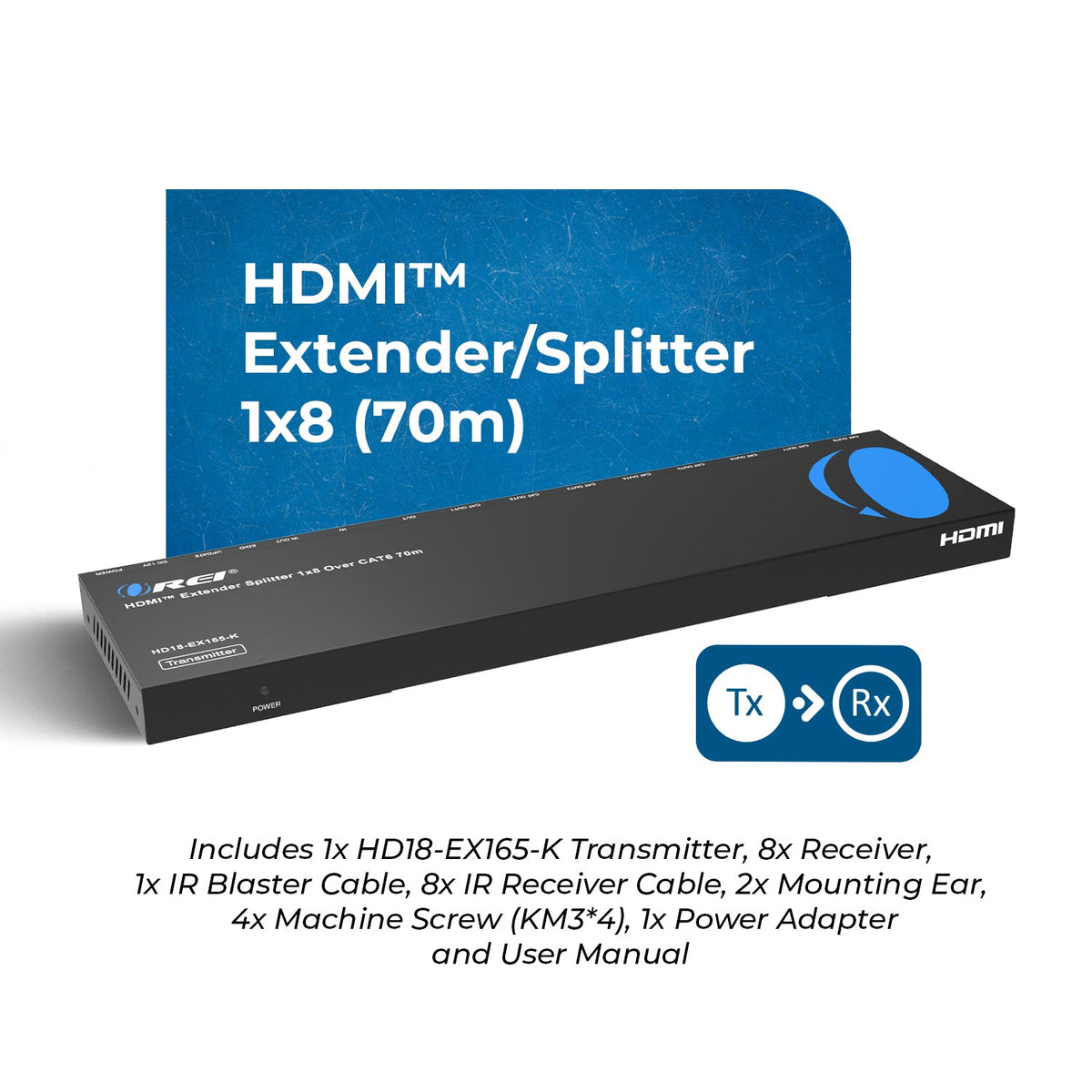

PACKAGE CONTENTS
| 1x Transmitter |
| 8x Receivers |
| 1x IR Blaster cable |
| 8x IR Receiver cable |
| 2x Mounting ear |
| 8x Machine Screw (KM3*4) |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@30HZ: |
130 Feet |
| 1080P@60Hz: |
230 Feet |
VIDEO OUTPUT
| Video Bandwidth: |
10.2Gbps |
| Video Resolutions: |
Up to 4K@30Hz |
ADDITIONAL FEATURES
| ARC/eARC: |
❌ |
| CEC : |
❌ |
| Transmission Technology : |
Ethernet |
| IR Control: |
Yes, Uni-directional |
| PoC (Power over Cable): |
✅ |
| RS-232: |
❌ |
| USB Standard: |
❌ |
| USB-C DP Alt Mode: |
❌ |
| HDR10 / HDR10+ / Dolby Vision: |
✅/ ❌/ ✅
|
LOOP-OUT/LOCAL PORT
| Has loop out port: |
Yes |
| Number of Loop out ports: |
1 |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 7.1, Dolby True HD, and DTS-HD Master Audio
|
COMPLIANCES
| HDMI Compliance |
HDMI 1.4 |
| HDCP Compliance |
HDCP 1.4 |
POWER
| Power Consumption: |
19.2W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/2.5A |
|

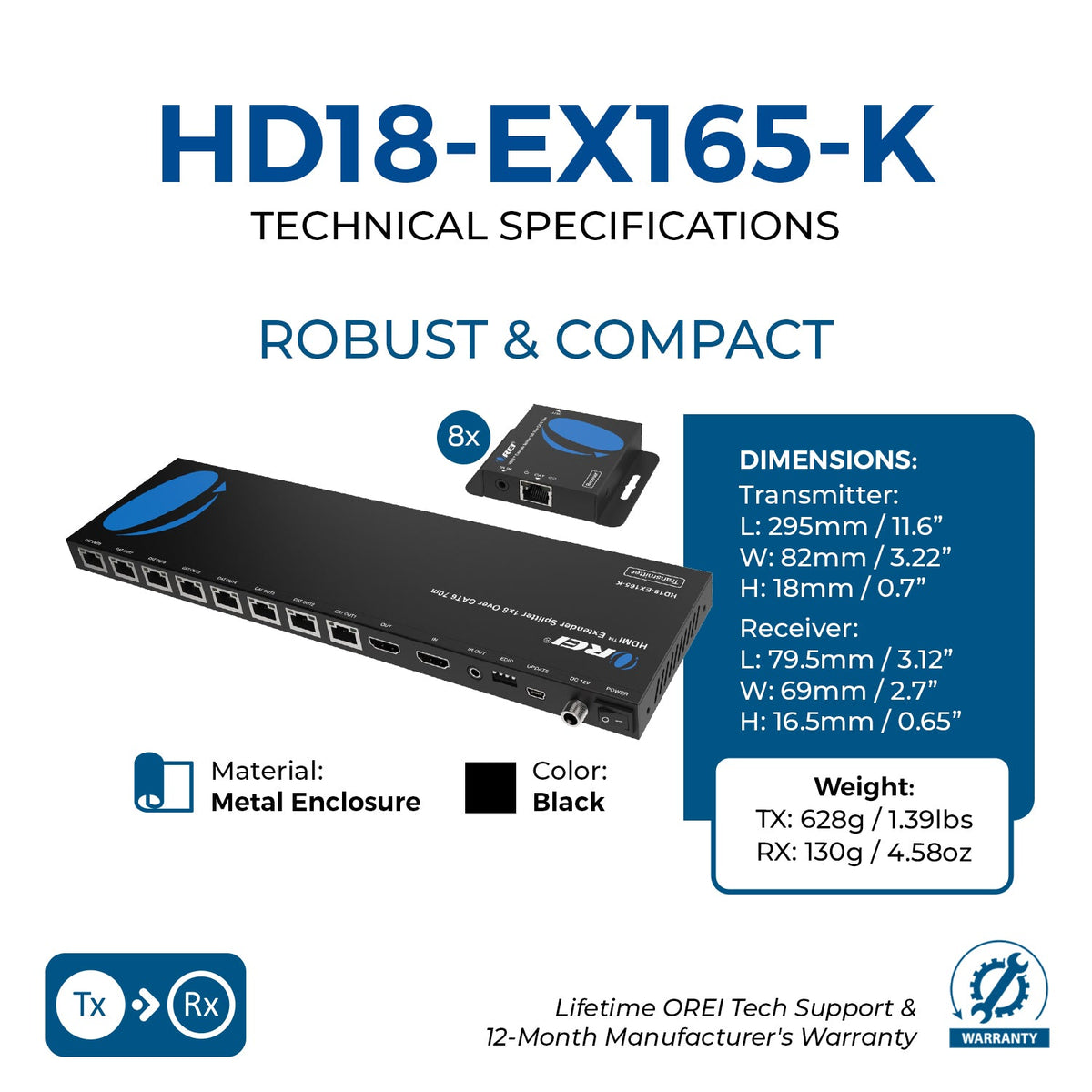

DIMENSIONS & WEIGHT
| Transmitter: |
Length: |
295mm / 11.61in |
|
Width: |
82mm / 3.23in |
|
Height: |
18mm / 0.71in |
|
Weight: |
628g / 1.38lbs |
| Receiver: |
Length: |
79.5mm / 3.13in |
|
Width: |
69mm / 2.72in |
|
Height: |
16.5mm / 0.65in |
|
Weight: |
130g / 4.59oz |
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operation Temperature: |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: |
-20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: |
20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
