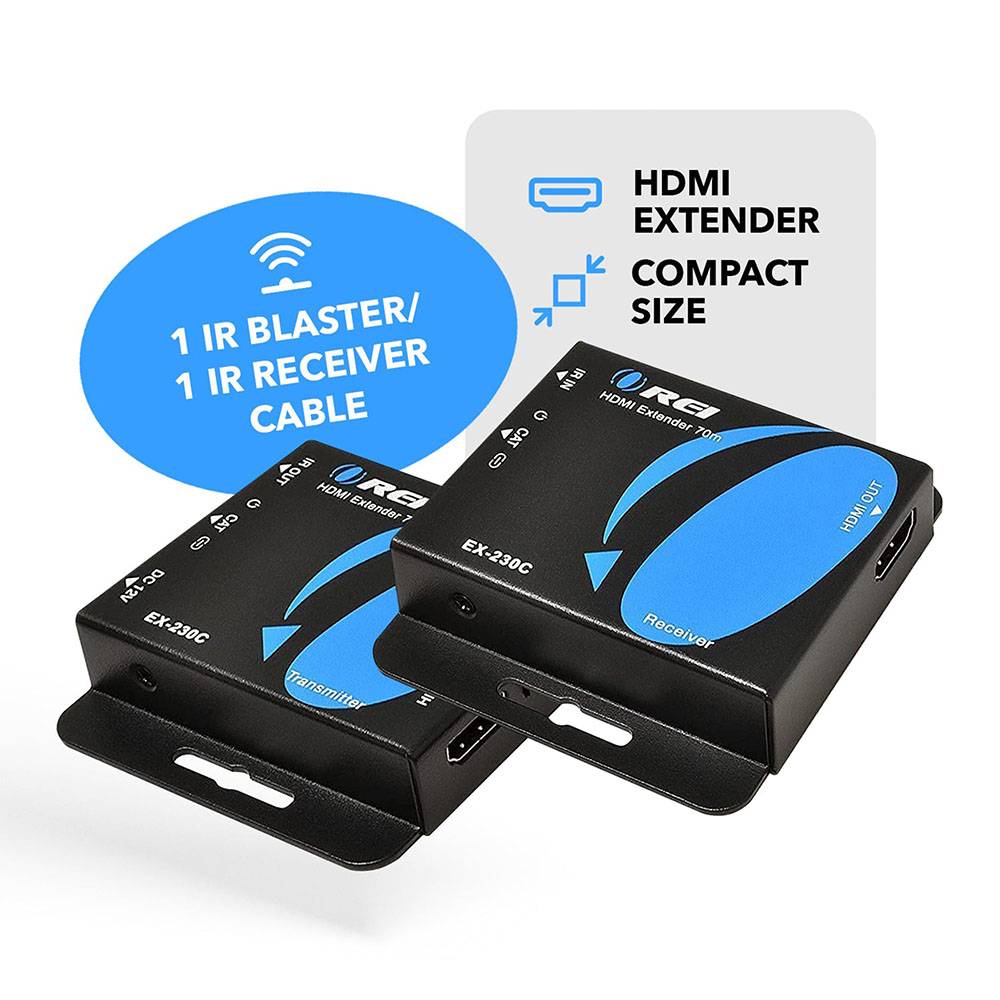

OREI 4K HDMI Extender with HDMI Loop Output, Uni- directional IR & Power over Cable (EX-230C)
Key Features:
-
HDMI 1.4, HDCP 1.4 & DVI 1.0 Compliant – Compatible with legacy and modern devices, ensuring broad system integration and secure content transmission.
-
Supports Up to 4K@30Hz (YUV 4:4:4) – Delivers crisp, high-resolution video for demanding AV applications.
-
Long-Distance Transmission over CAT6/5e –
• CAT6: Up to 230ft (70m) for 1080p, 131ft (40m) for 4K@30Hz
• CAT5e: Up to 197ft (60m) for 1080p, 115ft (35m) for 4K@30Hz
-
HDMI Loop-Out with Cascading Support – Enables local monitoring and the ability to cascade to additional extenders for larger installations.
-
EDID Copying from Receiver or Loop-Out Display – Facilitates compatibility and optimized display settings by duplicating EDID from the connected screens.
-
One-Way Power over Cable (PoC) – Powers the receiver unit directly from the transmitter using a single CAT cable, reducing power supply clutter.
-
One-Way IR Signal Transmission – Allows remote control of the source device from the display location.
-
Compact Plug-and-Play Design – Streamlined housing and hassle-free setup make it ideal for professional or home AV installations.
This HDMI Extender with Loop-Out is a reliable solution for extending uncompressed high-definition video, audio, and IR signals over a single CAT5e/6 cable. It supports transmission distances of up to 230 feet (70 meters) at 1080p and 131 feet (40 meters) at 4K@30Hz when using CAT6. Designed to meet HDMI 1.4, HDCP 1.4, and DVI 1.0 standards, it ensures compatibility across a wide range of source and display devices. The built-in HDMI loop-out allows local display and cascading to additional extenders for expanded installations. The EDID copy function enables seamless communication between devices, optimizing video output settings. Audio formats such as PCM 7.1, Dolby True HD, and DTS-HD are supported for a premium multimedia experience. One-way PoC simplifies power requirements, and IR pass-through allows remote control of source equipment. Ideal for classrooms, conference rooms, signage, and control centers, this extender offers dependable performance in a compact and installer-friendly form factor.
[shortdes]
- HDMI over ethernet up to 230 feet
- Video resolutions up to 4K@30Hz up to 131 feet
- Supports Power over cable & IR functionality
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: |
INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
OUTPUT: |
1 × HDMI [Type A, 19-pin female] |
|
|
1 × CAT [RJ45, 8-pin female] |
|
CONTROL: |
1 × IR OUT [3.5mm Stereo Mini-jack] |
|
Receiver:
|
INPUT: |
1 × CAT [RJ45, 8-pin female] |
|
OUTPUT: |
1 × HDMI [Type A , 19-pin female] |
|
CONTROL: |
1 × IR IN [3.5mm Stereo Mini-jack] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster Cable |
| 1x IR Receiver Cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080P@60Hz: |
230 Feet |
| 4K@30Hz: |
131 Feet |
VIDEO OUTPUT
| Video Bandwidth: |
10.2Gbps |
| Video Resolutions: |
Up to 4K@30Hz |
ADDITIONAL FEATURES
| ARC/eARC: |
No / No |
| CEC: |
No |
| Transmission Technology: |
Ethernet |
| IR Control: |
Uni-directional |
| PoC (Power over Cable): |
Yes |
| RS-232: |
No |
| USB Standard: |
No |
| USB-C DP Alt Mode: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
No / No / No |
LOOP-OUT/LOCAL PORT
| Has loop out port: |
Yes |
| Number of Loop out ports: |
1 |
AUDIO SUPPORT
| HDMI Audio Formats: |
Up to 7.1CH HD audio |
COMPLIANCES
| HDMI Compliance |
HDMI 1.4 |
| HDCP Compliance |
HDCP 1.4 |
POWER
| Power Consumption: |
TX: 1.86W (Max) & RX: 0.87W (Max)
|
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/1A |
|
DIMENSIONS & WEIGHT
| Transmitter: |
Length: |
79.6mm / 3.13in |
|
Width: |
69mm / 2.72in |
|
Height: |
16.5mm / 0.65in |
|
Weight: |
132g / 4.66oz |
| Receiver: |
Length: |
79.6mm / 3.13in |
|
Width: |
69mm / 2.72in |
|
Height: |
16.5mm / 0.65in |
|
Weight: |
130g / 4.62oz |
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operation Temperature: |
32 - 104°F / 0 - 40°C |
| Storage Temperature: |
-4 - 140°F / -20 - 60°C |
| Operating Humidity: |
20 - 90% RH (no condensation) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
