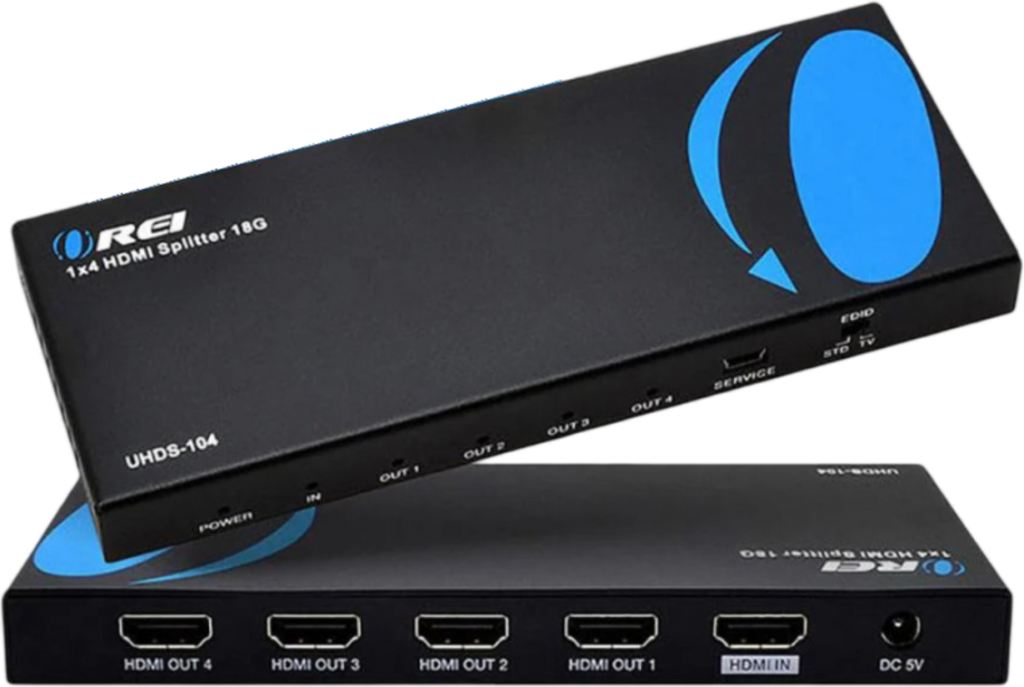

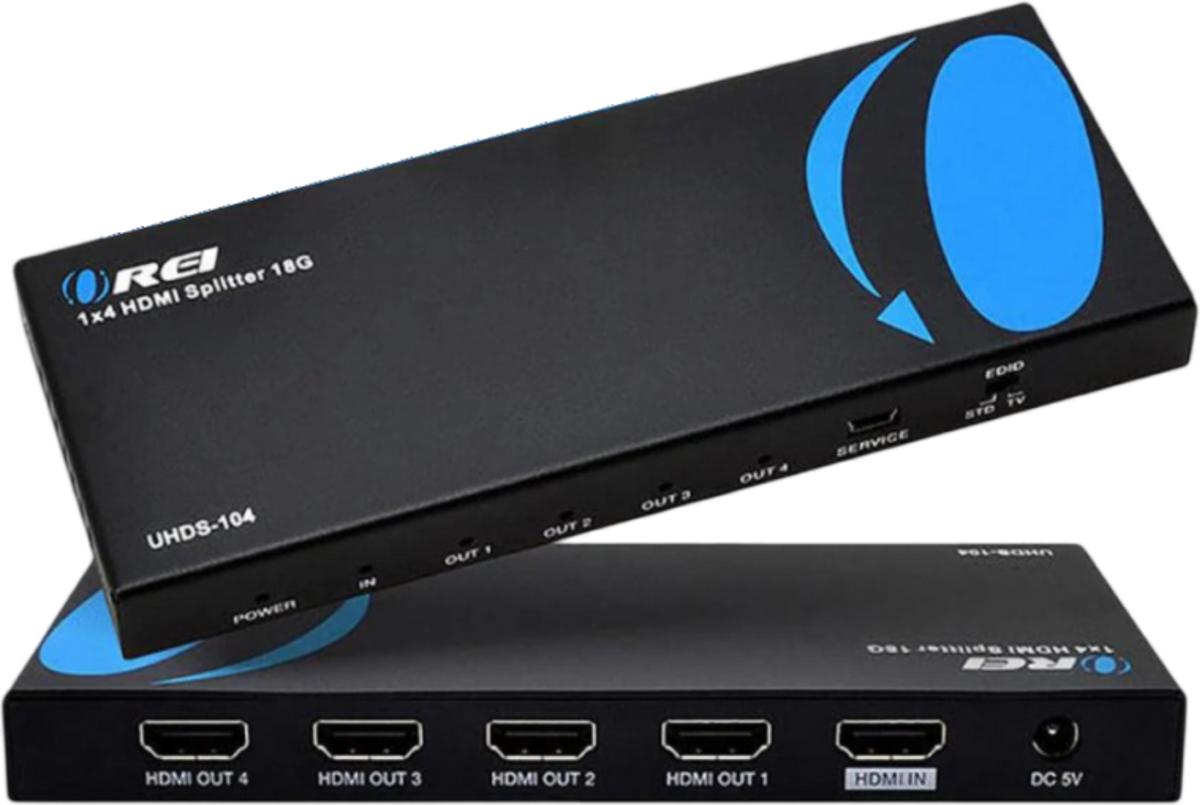

OREI UHDS-104: 1x4 18Gbps 4K HDMI Splitter
Key Features:
-
HDMI 2.0b and HDCP 2.2 Compliant – Supports modern video standards and protected content.
-
Resolutions up to 4K@60Hz – Delivers ultra-HD video across four displays.
-
18Gbps Video Bandwidth – Ensures smooth signal transmission without degradation.
-
High-Definition Audio Support – Compatible with LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master audio formats.
-
EDID Management – Offers selectable STD and TV modes for display compatibility.
-
3D Support – Enables full 3D video playback for compatible displays.
-
Compact Design for Easy and Flexible Installation – Ideal for plug-and-play setups in any environment.

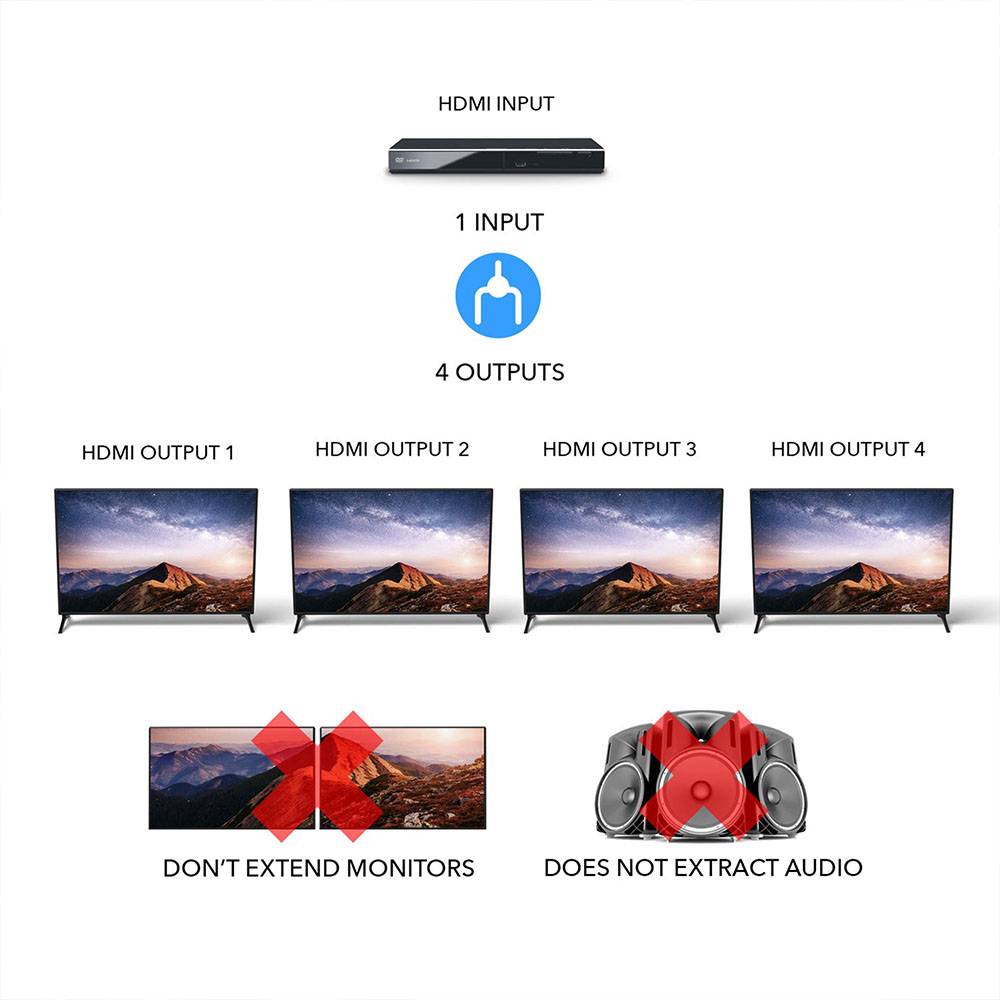

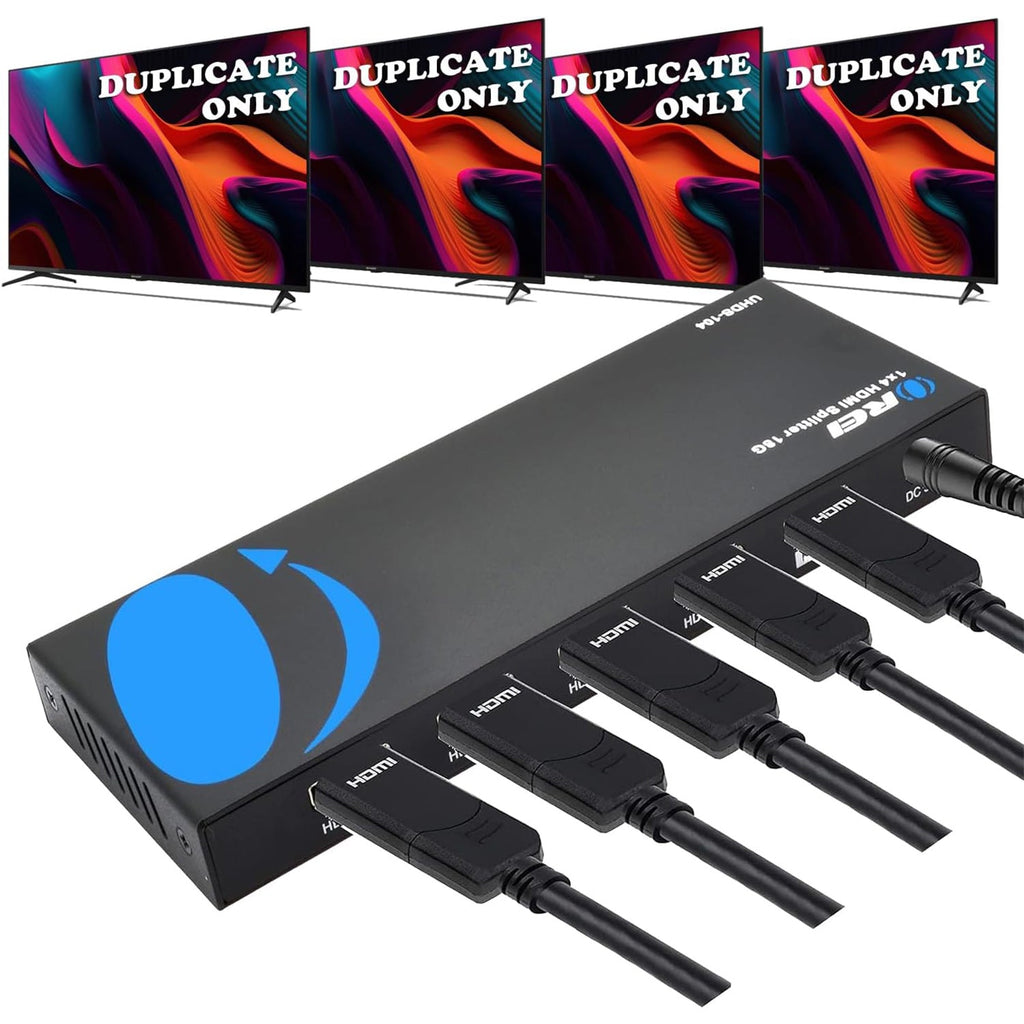

The UHDS-104 is a 1x4 HDMI splitter designed to distribute one HDMI input to four HDMI outputs simultaneously, delivering consistent video and audio quality across all connected displays. It is HDMI 2.0b and HDCP 2.2 compliant, supporting resolutions up to 4K@60Hz and a maximum video bandwidth of 18Gbps.
This splitter supports high-definition audio formats including LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master, ensuring an immersive audio-visual experience.
It also includes 3D support and EDID management with selectable STD and TV modes for display compatibility. With a compact, plug-and-play design, the UHDS-104 is ideal for both commercial installations and personal home entertainment systems.
[tab]
CONNECTIVITY
| INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
| OUTPUT: |
4 × HDMI [Type A, 19-pin female] |
|
| CONTROL: |
1× SERVICE [Mini-USB B, Update port] |
|
PACKAGE CONTENTS
| 1x UHDS-104 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K@60Hz and 2k@60Hz |
ADDITIONAL FEATURES
| EDID Management: |
Yes |
| Video Downscaling: |
No |
| Audio Extraction: |
No |
| CEC: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
No / No / No |
| MST Support (Extended Display): |
No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
2W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/1A |
|
DIMENSIONS & WEIGHT
| Length:
|
163mm / 6.12in |
|
| Width: |
63mm / 2.48in |
|
| Height:
|
16mm / 0.63in |
|
| Weight:
|
260g / 9.17oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operation Temperature: |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: |
-20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: |
20 ~ 90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHDS-104
[/tab1]
[shortdes]
- 1x4 4K HDMI splitter
- Resolutions up to 4K@60Hz and 2k@60Hz
-
EDID management
