Description

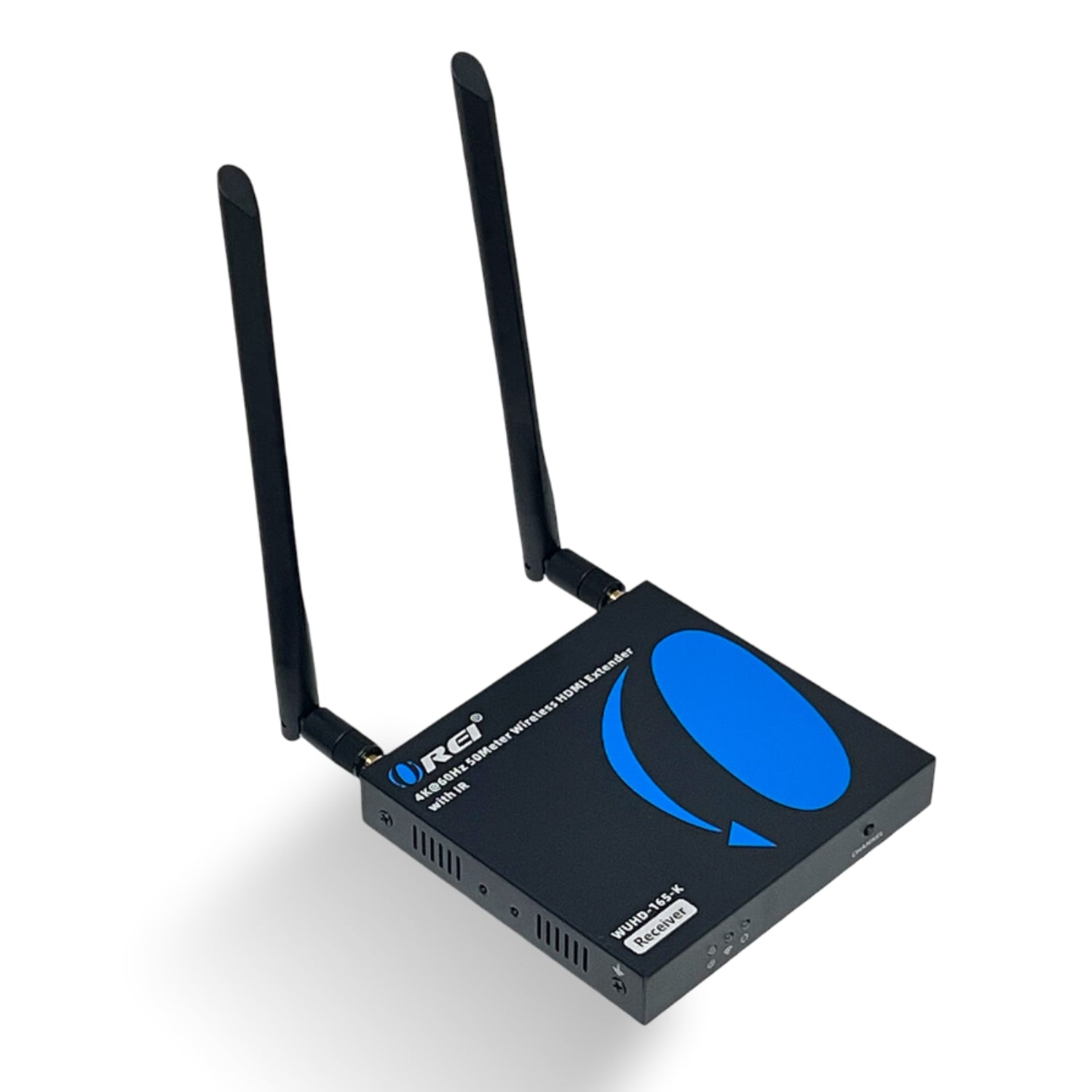

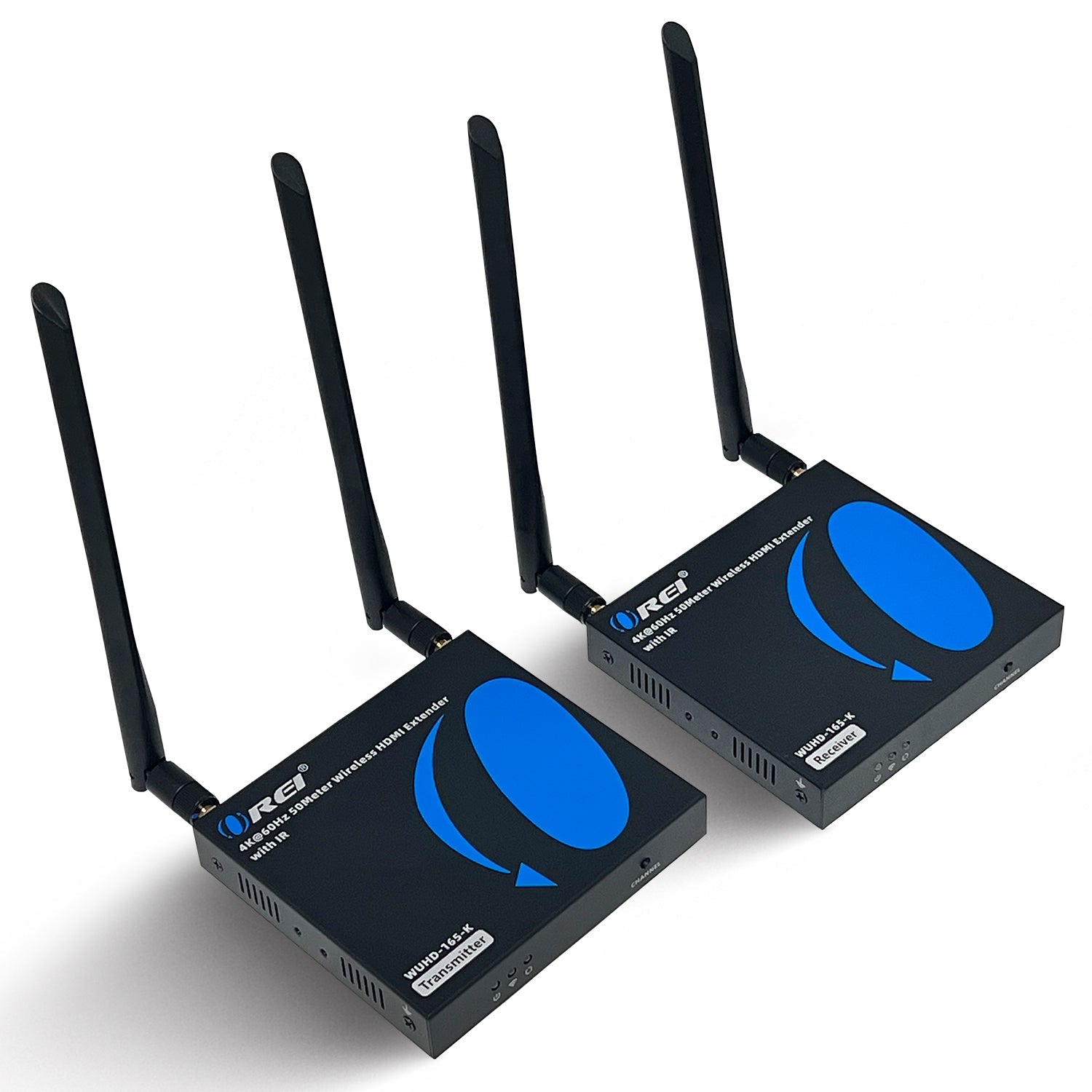

WUHD-165-K: 4K@60Hz Wireless HDMI Extender up to 165 feet with IR
- HDMI 2.0 & HDCP 1.1/2.2 Compliant – Ensures compatibility with a wide range of modern HDMI sources and displays, including protected content.
- Supports Resolutions up to 4K@60Hz – Delivers ultra-high-definition video quality for movies, presentations, and more.
- Wireless Transmission up to 165ft (50m) – Transmits HDMI signals wirelessly with line-of-sight for flexible installation without long cables.
- HDMI Loop-Out on Transmitter – Connect a local display near the source device without disrupting the wireless transmission.
- SSID Pairing & Channel Switching – Avoid wireless interference by manually pairing SSID and switching channels, ideal for environments with multiple wireless devices.
- One-Way IR Control (Receiver to Transmitter) – Control source equipment remotely using IR signals from the receiver location.
- 5G Wireless Frequency Bands – Leverages 5G technology to offer strong anti-interference, stable connectivity, and low latency.
- Plug & Play Setup – No software or drivers required. Installs quickly and easily in any setup.
he WUHD-165-K is a Wireless HDMI Extender Kit designed to deliver ultra-high-definition video up to 4K@60Hz over distances of up to 165ft (50m) in line-of-sight conditions. Featuring ipcolor STREAM technology, it provides smooth, low-latency video performance with excellent clarity. Ideal for wire-free AV installations in home theaters, video conferencing, digital signage, and educational setups.
The Transmitter includes an HDMI loop-out, allowing a local monitor connection near the
source. Advanced 5G wireless frequency bands minimize interference and maximize
transmission stability. The device also supports one-way IR pass-through, enabling remote control of the source device from the receiver end.
With SSID pairing and channel-switching capabilities, the WUHD-165-K avoids interference from other wireless devices, ensuring uninterrupted performance. The plug-and-play design means no drivers or configuration are required—simply connect and start transmitting.
Whether you're streaming presentations in a boardroom, sharing video content in classrooms, or building a clutter-free home entertainment setup, the WUHD-165-K offers a reliable, high-performance, and easy-to-deploy wireless HDMI solution.
[shortdes]
-
5g Wireless HDMI extender
-
Extends 4K@60Hz up to 165 feet line of sight
-
One-way IR control
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin Male] |
| 1 x DC 5V [Micro-USB Power Input] | ||
| Receiver: | INPUT: | 1 x DC 5V [Power Input] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin Male] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster Cable |
| 1x IR Receiver Cable |
| 4x Antenna |
| 4x Mounting Ear |
| 10x Screw |
| 2x Grounding Screw |
| 2x Power Adapter |
| 1x User Manual |
EXTENDING DISTANCE
| 4K@60HZ: | 165 feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
ADDITIONAL FEATURES
| IR Control: | ❌ |
| USB KVM: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | ❌ |
| SSID Pairing: | ✅ |
| Channel Switching: | ✅ |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | Transmitter 4.5W (Max) & Receiver 3.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Transmitter: | Length: | 230mm / 9.06in |
| Width: | 40.2mm / 1.58in | |
| Height: | 15mm / 0.59in | |
| Weight: | 58g / 2.05oz | |
| Receiver: | Length: | 230mm / 9.06in |
| Width: | 40.2mm / 1.58in | |
| Height: | 15mm / 0.59in | |
| Weight: | 54g / 1.91oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Storage Temperature: | -30~70℃ / -22°F ~ 158°F |
| Operating Humidity: | 0~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: WUHD-165-K
[/tab1]
