OREI 4x4 4k HDMI Matrix Extender Up To 400 Feet- With Audio Extraction, Bi-directional IR & Power Over Cable Functionality
Key Features:
-
HDMI 2.0b and HDCP 2.2 compliant
-
Video resolutions up to 4K@60Hz and 2K@60Hz
-
18Gbps video bandwidth
-
6 HDMI inputs, 2 HDMI outputs, and 4 HDBaseT outputs
-
Extension of HDMI signals up to 132 feet at 4K@60Hz & 230 Feet at 1080P@60Hz
-
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
-
Audio matrixing with 2x L/R, Coaxial & Optical Inputs and 6x L/R & coaxial outputs
-
Bi-directional IR support for controlling the source device from the receiver’s location and vice versa
-

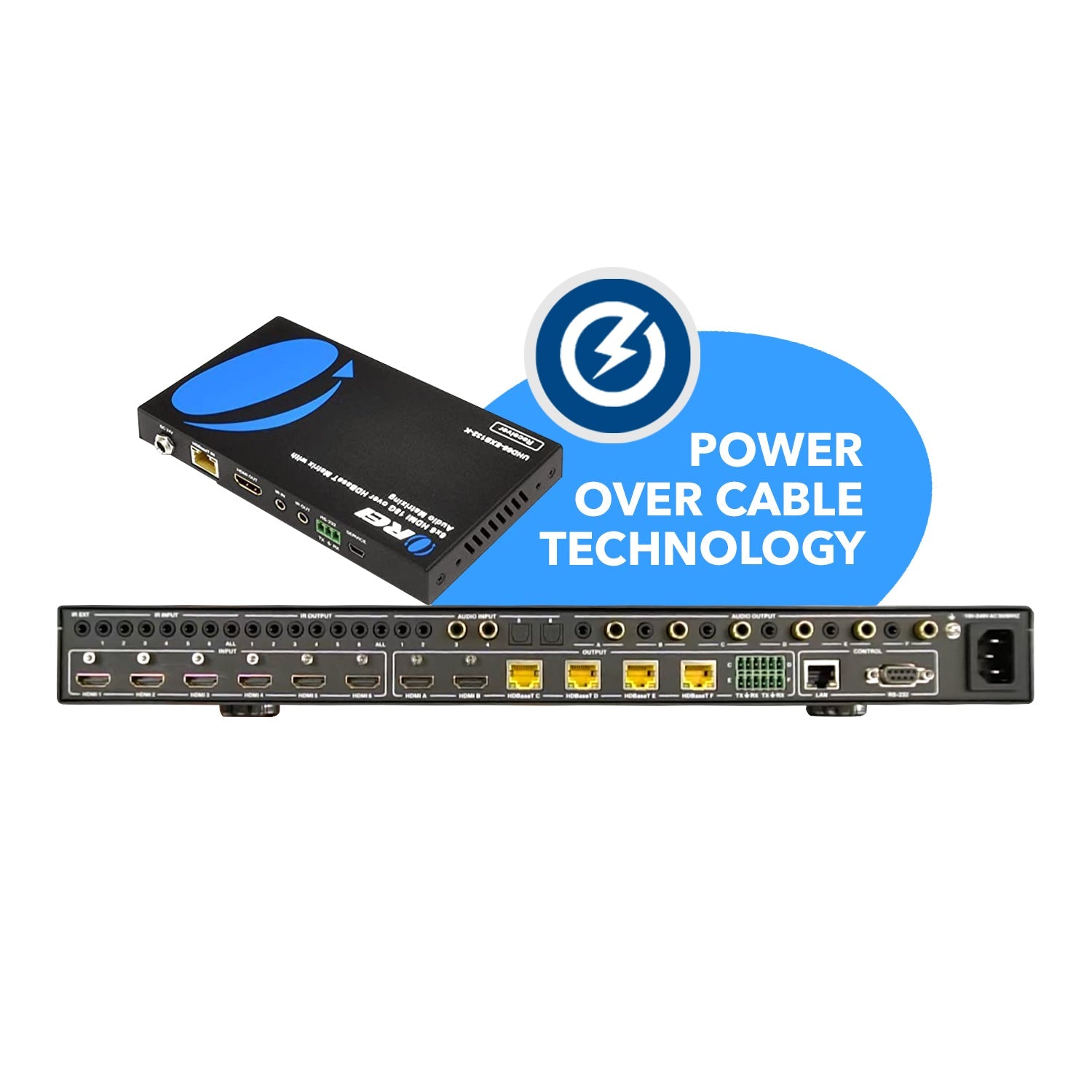

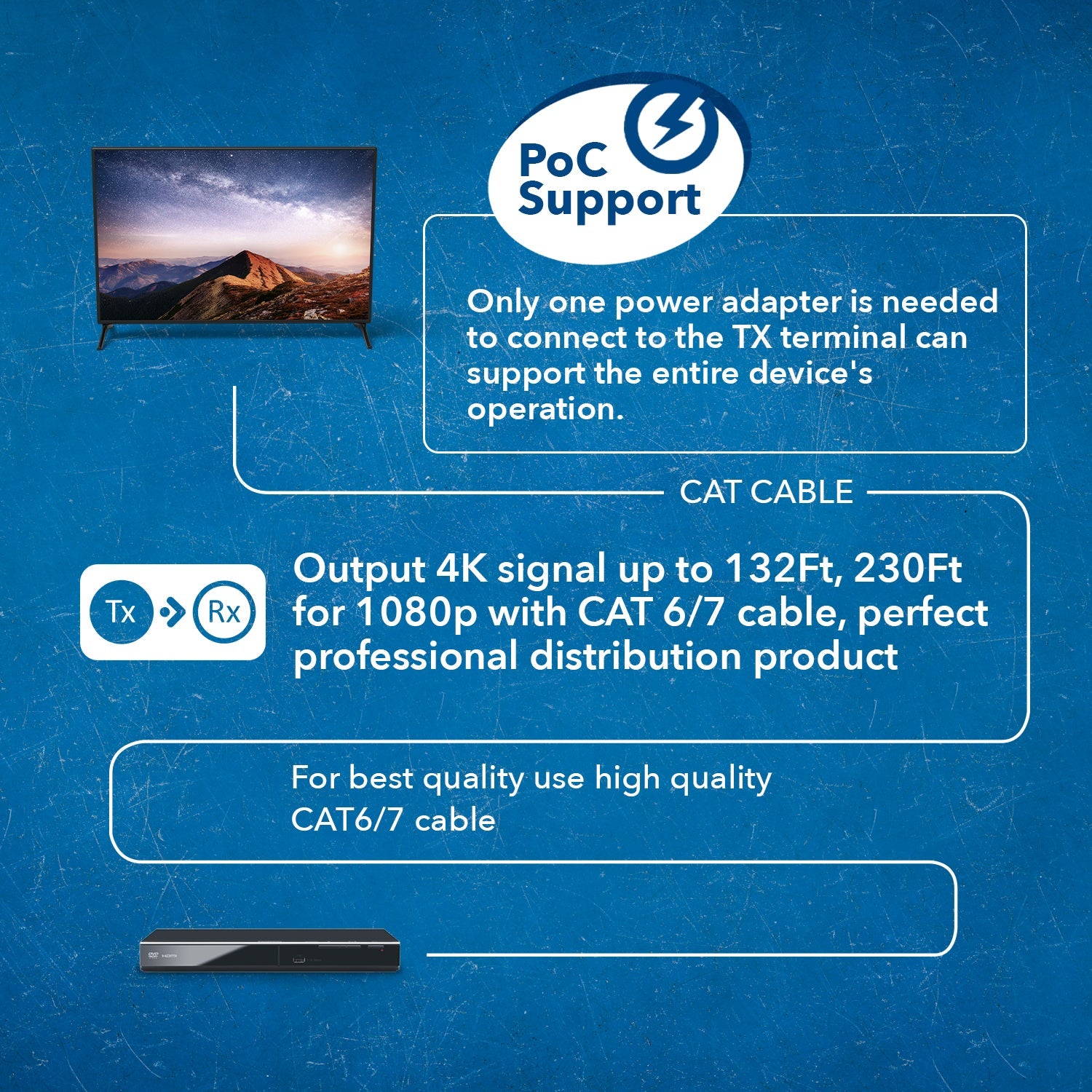

Power over cable on all HDBaseT outputs to power up the receiver units
-
Control via front panel buttons, IR remote, RS-232, LAN & WebGUI
-
1U Rack-mounted design for flexible installation
-
Perfect for commercial and personal setups

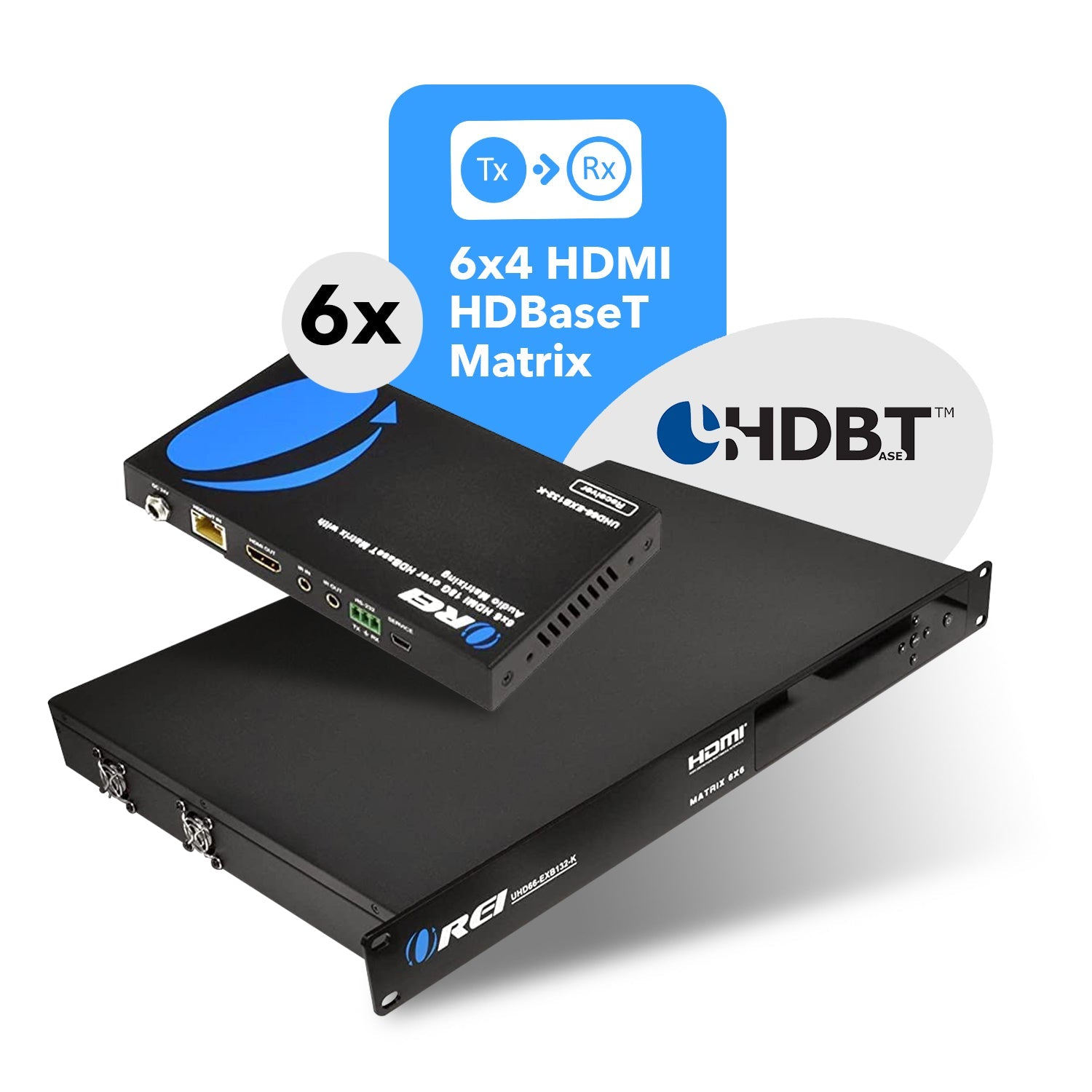

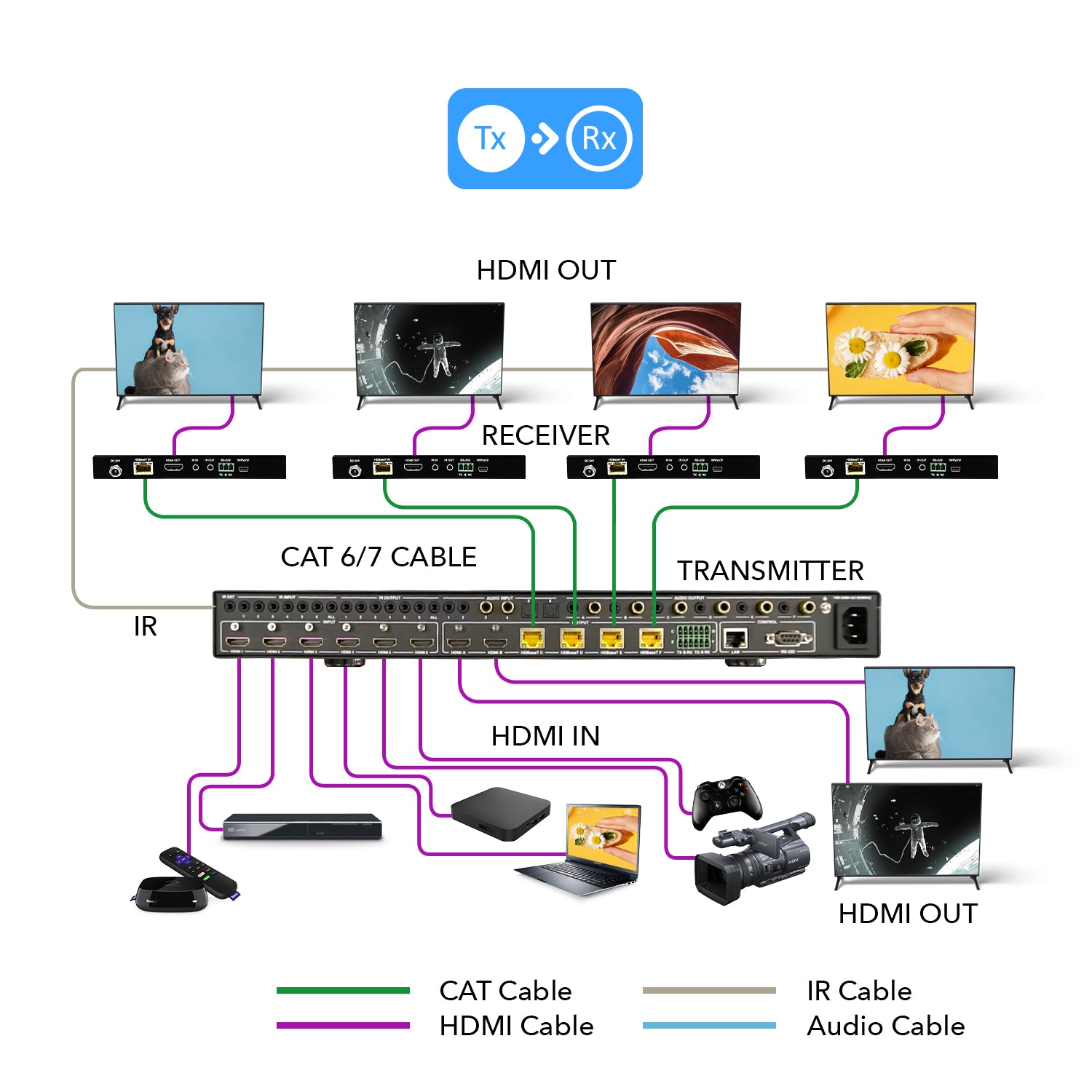

The UHD66-EXB132-K is a Matrix extender with 6 HDMI inputs, 2 HDMI outputs, and 4 HDBaseT outputs extending HDMI signals up to 130 feet at 4K@60Hz 4:4:4, and 230 feet at 1080p@60Hz. Compliant with HDMI 2.0b and HDCP 2.2, it offers a video bandwidth of up to 18Gbps and supports resolutions up to 4K@60Hz 4:4:4 with HDR10 & Dolby Vision pass-through. It features bi-directional IR for control from either location. Featuring audio matrixing with 2 L/R, 2 coaxial, 2 optical inputs, and 6 L/R & 6 coaxial outputs. Control options include RS-232, TCP/IP (RJ-45), IR remote and front panel buttons. It supports 24V power over cable for all HDBaseT ports. Robust build with easy installation, ideal for commercial and personal setups.
[shortdes]
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: |
INPUT: |
6 × HDMI [Type A, 19-pin female] |
|
OUTPUT: |
2 x S/PDIF (Optical) |
|
|
2 × Coaxial [3.5mm Stereo Mini-jack] |
|
CONTROL: |
2 × L/R [3.5mm Stereo Mini-jack] |
|
|
2 × HDMI [Type A, 19-pin female] |
|
|
4 × HDBaseT [RJ45, 8-pin female] |
|
|
6 × Coaxial [3.5mm Stereo Mini-jack] |
|
|
6 × L/R [3.5mm Stereo Mini-jack] |
|
|
7 × IR IN [3.5mm Stereo Mini-jack] |
|
|
7 × IR OUT [3.5mm Stereo Mini-jack] |
|
|
1 × IR EXT [3.5mm Stereo Mini-jack] |
|
|
1 × TCP/IP [RJ45] |
|
|
1 × RS-232 [DB-9 Connector] |
|
|
4 × RS-232 [3-Pin Phoenix Connector] |
| Receiver: |
INPUT: |
1 × HDBaseT [RJ45, 8-pin female] |
|
OUTPUT: |
1 × HDMI [Type A, 19-pin female] |
|
CONTROL: |
1 × IR IN [3.5mm Stereo Mini-jack] |
|
|
1 × IR OUT [3.5mm Stereo Mini-jack] |
|
|
1 × RS-232 [3-Pin Phoenix Connector] |
|
|
1 × SERVICE [USB-B Mini] |
PACKAGE CONTENTS
| 1x Transmitter |
| 4x Receiver |
| 1x IR Remote Control |
| 1x RS-232 Serial Cable |
| 4x 3-pin Phoenix Connectors |
| 4x 5-pin Phoenix Connectors |
| 7x IR Blaster cable |
| 8x IR Receiver cable |
| 8x Mounting Ears |
| 6x RS-232 Blocks |
| 1x Power Cable |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: |
132 Feet |
| 1080P@60Hz: |
230 Feet |
VIDEO OUTPUT
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| ARC/eARC: |
✅/ ❌
|
| CEC : |
✅ |
| Transmission Technology : |
HDBaseT,Ethernet |
| IR Control: |
Yes, Bi-directional |
| PoC (Power over Cable): |
✅ |
| RS-232: |
✅ |
| USB Standard: |
❌ |
| USB-C DP Alt Mode: |
❌ |
| HDR10 / HDR10+ / Dolby Vision: |
✅/ ❌/ ✅
|
LOOP-OUT/LOCAL PORT
| Has loop out port: |
No |
| Number of Loop out ports: |
0 |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X |
| Coaxial Audio Formats: |
PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| L/R Audio Formats: |
PCM 2.0CH |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
60W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|

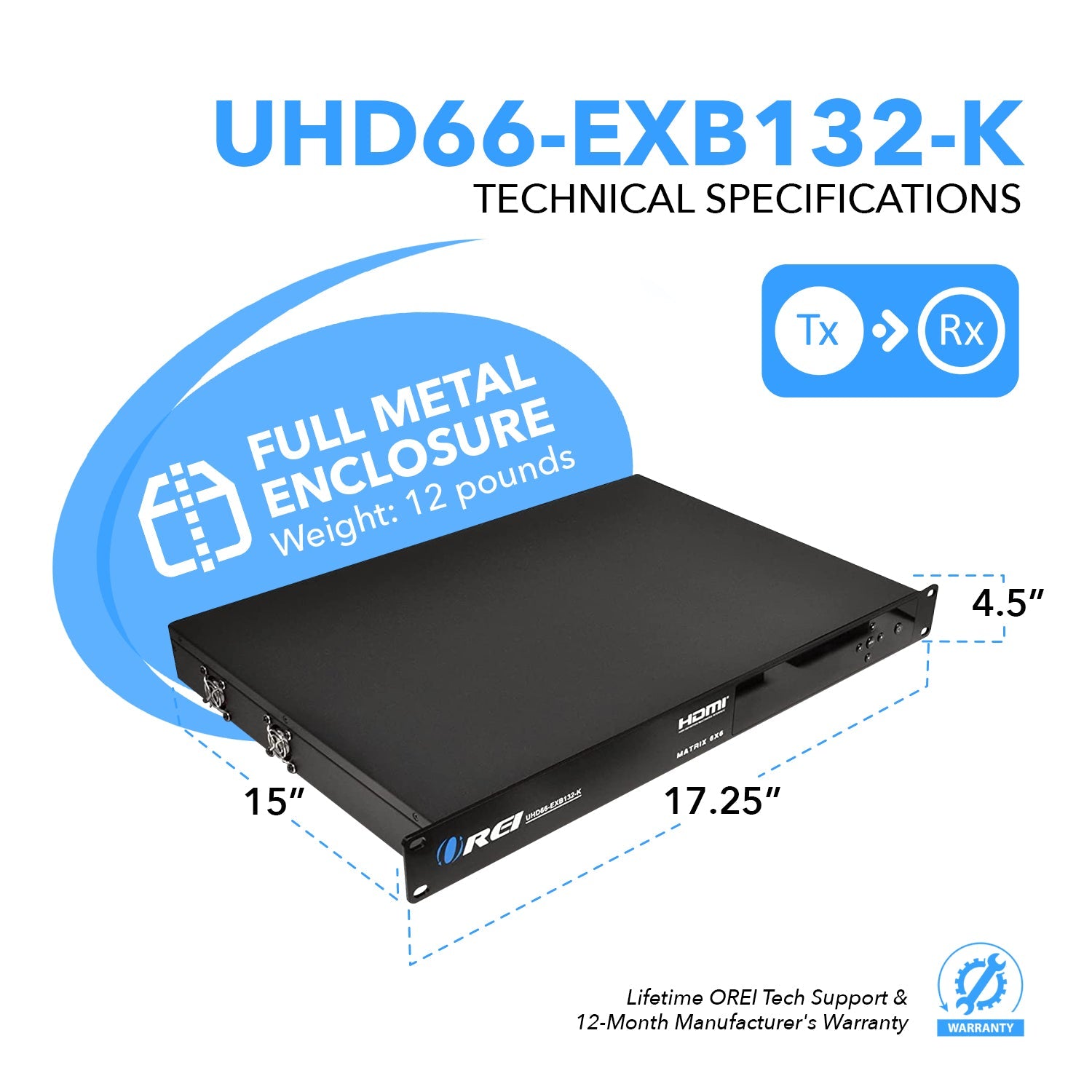

DIMENSIONS & WEIGHT
| Transmitter: |
Length: |
483mm / 17.32in |
|
Width: |
303mm / 7.87in |
|
Height: |
44.5mm / 1.75in |
|
Weight: |
2.11kg / 6.83lb |
| Receiver: |
Length: |
157mm / 6.18in |
|
Width: |
90mm / 3.54in |
|
Height: |
20mm / 0.79in |
|
Weight: |
330g / 11.64oz |
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operation Temperature: |
32~104°F / 0~40°C |
| Storage Temperature: |
-4~140°F / -20~60°C |
| Operating Humidity: |
20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
