Description
OREI 4K HDMI ARC/eARC Audio Extractor
-
HDMI 2.0b and HDCP 2.3 Compliant – Ensures full compatibility with modern content and display devices.
-
18Gbps Video Bandwidth – Supports uncompressed high-quality audio and video transmission.
-
4K@60Hz 4:4:4 Support – Delivers ultra HD video with deep color and clarity.
-

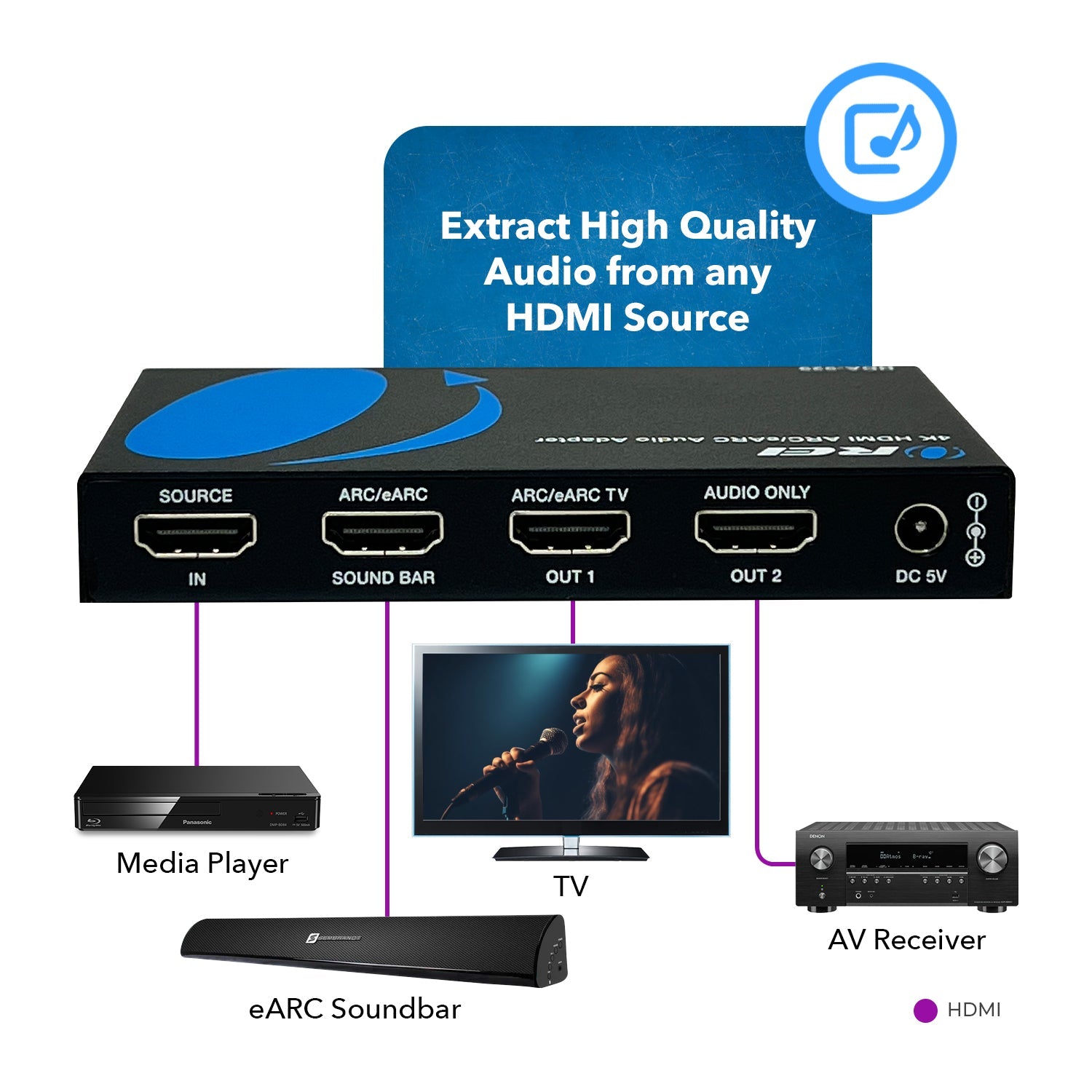

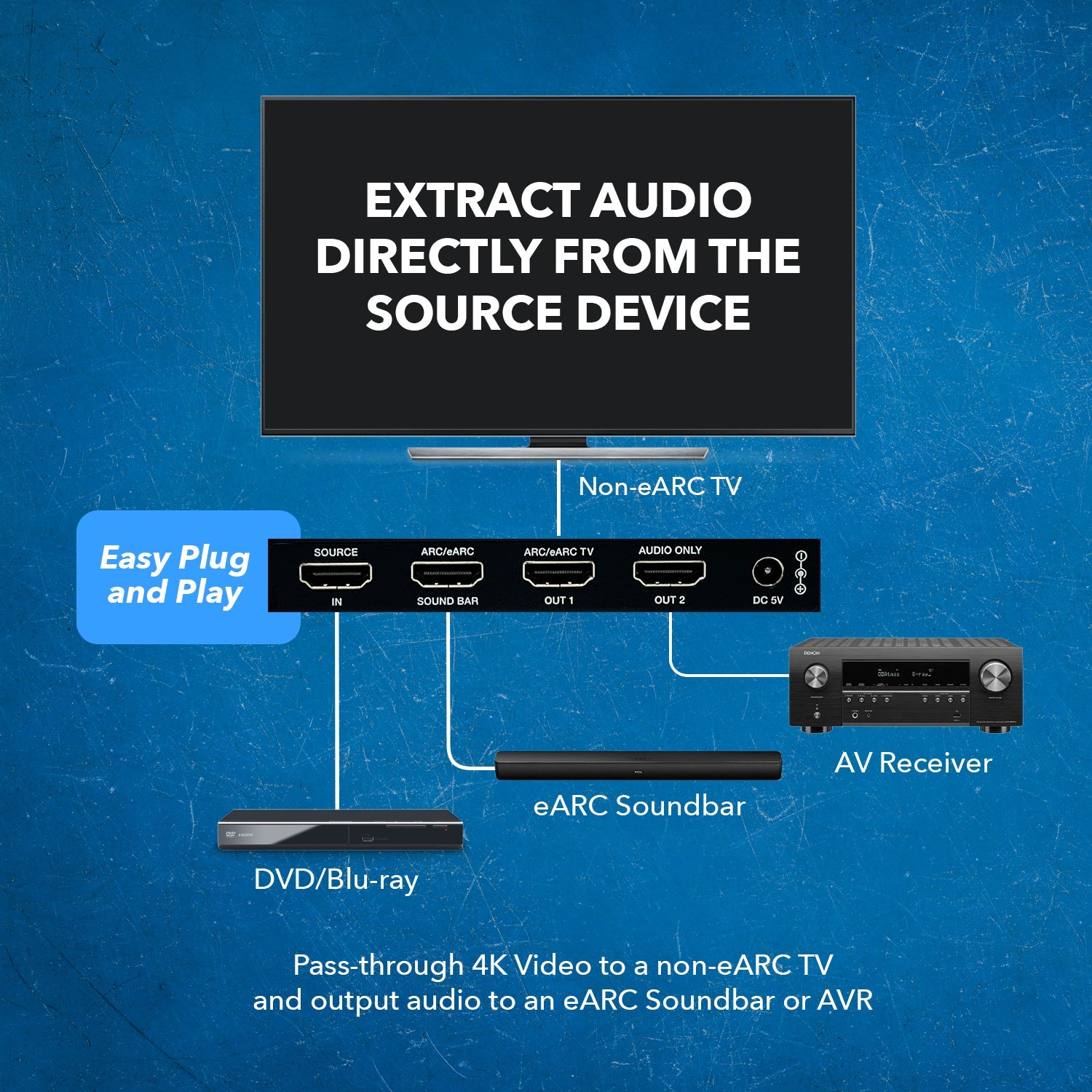

Flexible Audio Extraction – Extracts audio from either a media source or an ARC/eARC-enabled TV.
-
Audio Format Support – Compatible with Dolby Atmos, Dolby Digital/Plus, Dolby TrueHD, DTS, DTS-HD MA, DSD, and more.
-
ARC/eARC to Non-ARC Output – HDMI audio-only output allows connection to AVRs lacking ARC/eARC.
-
HDR Support – Pass-through for HDR10+, Dolby Vision, and HLG for enhanced visual fidelity.
-
Ideal for ARC/eARC Soundbars – Seamless compatibility with Sonos, Bose, and similar systems.
-
Compact & Robust Design – Durable and space-efficient for flexible installations.

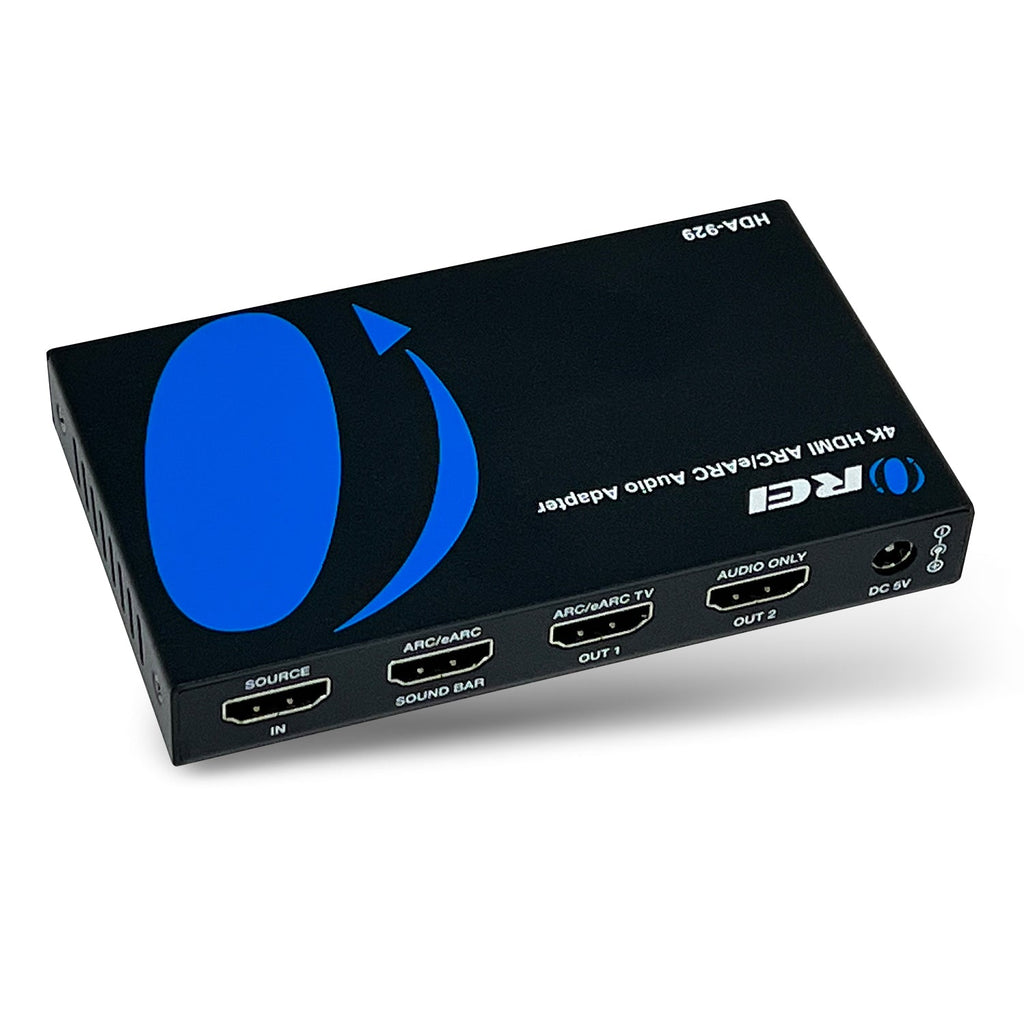

HDA-929 is a versatile HDMI audio extractor designed to separate high-quality audio from HDMI sources or ARC/eARC-enabled TVs and route it to soundbars or AVRs.
Ideal for systems using Sonos, Bose, or any ARC/eARC audio setup, this extractor supports a wide range of audio formats including Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and more.
It’s HDMI 2.0b and HDCP 2.3 compliant, offering video resolutions up to 4K@60Hz (4:4:4) and 18Gbps bandwidth. HDR10+, Dolby Vision, and HLG pass-through ensure pristine video quality, while the compact design enables flexible installation in both residential and commercial AV systems.
Surge protection device
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is
highly recommended in order to protect and extend the service life of your equipment.
For any technical issues, please refer to page 3 of the manual for detailed guidance.
[shortdes]
- Video resolution up to 4K2K@60Hz
- HDMI 2.0b and HDCP 2.3 compliant
- HDR Support
[/shortdes]
[tab]
CONNECTIVITY
| INPUT : | 1 × HDMI IN [Type A, 19-pin female] |
| OUTPUT : | 1 × HDMI SOUND BAR [Type A, 19-pin female] |
| 2 × HDMI OUT [Type A, 19-pin female] | |
| Control | 1 × SERVICE [Micro USB, Update port] |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 |
AUDIO AND VIDEO
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K2K@60 with 24-bit RGB/YCbCr 4:4:4 |
| Color Space: | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Color Depth: | 8-bit,10-bit,12-bit |
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby Atmos Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
ADDITIONAL FEATURES
| CEC: | ❌ |
| ARC: | ✅ |
| eARC: | ✅ |
| Dolby Atmos / DTS: | ✅ |
| EDID Management: | ✅ |
| Downmix/ Decoding: | ❌ |
SWITCHES

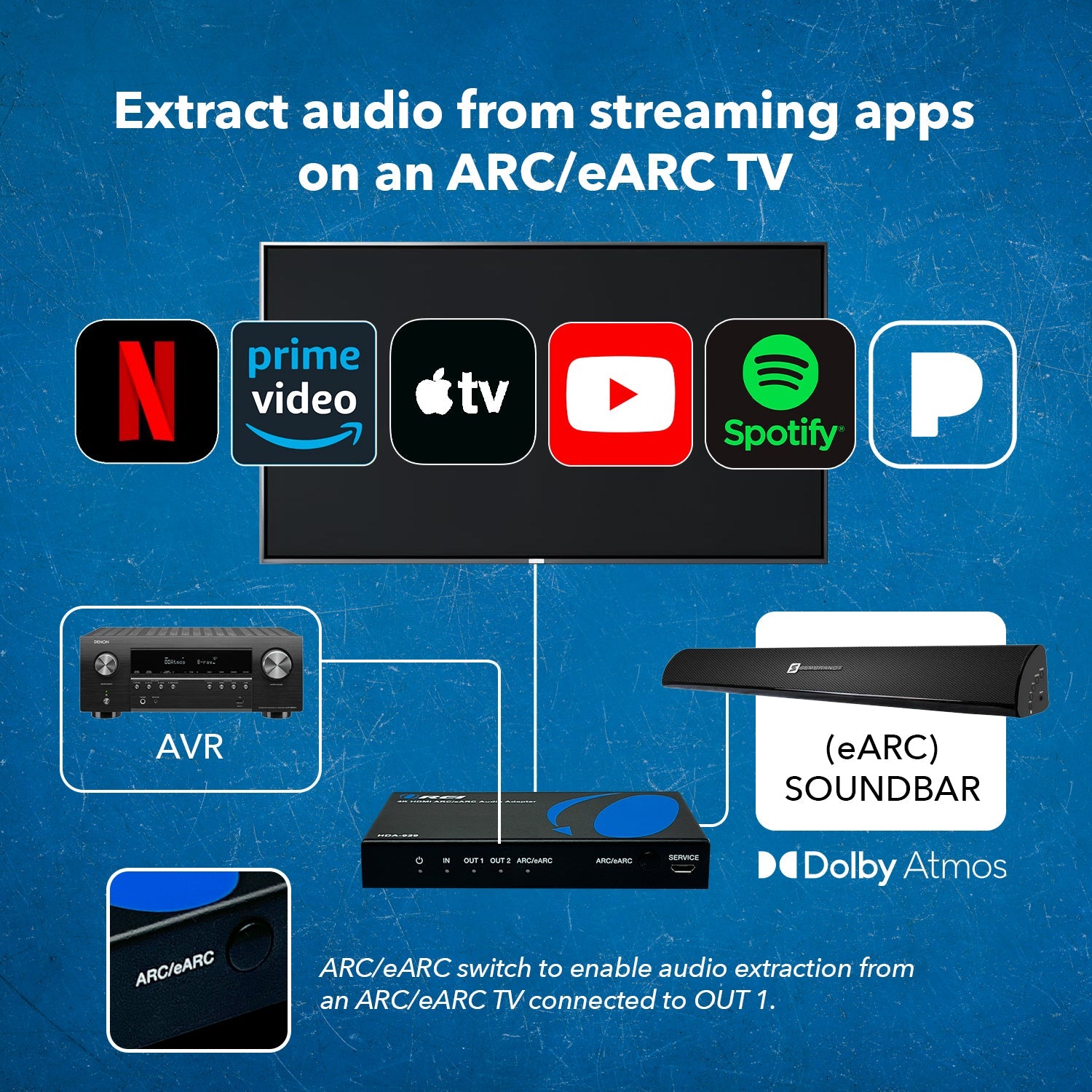

| eARC/ARC: | ARC/eARC Switch to select if the audio is extracted from an ARC/eARC TV or through the Source |

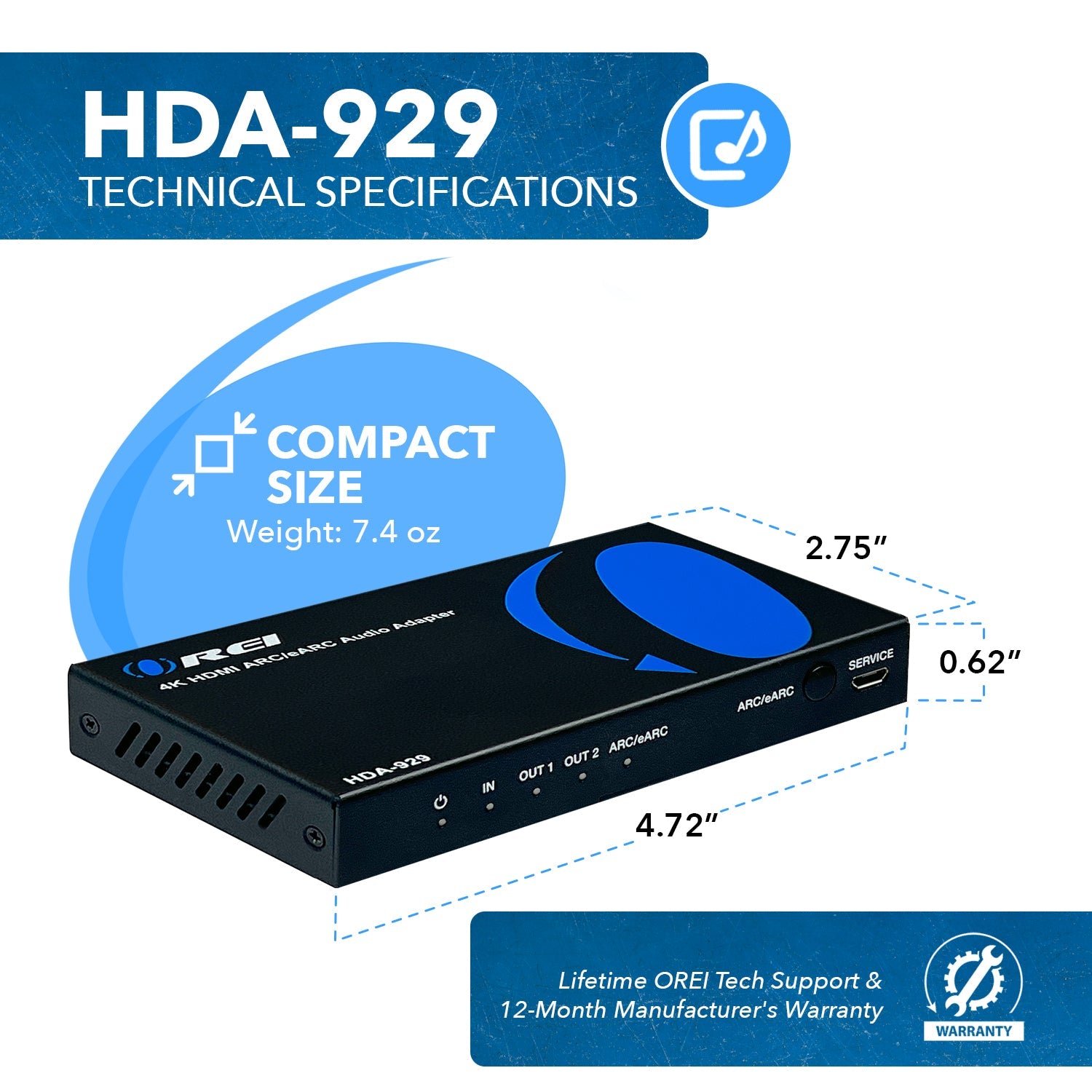

DIMENSIONS & WEIGHT
| Length: | 120mm/4.73in |
| Width: | 70mm/2.76in |
| Height: | 116mm/0.63in |
| Weight: | 210g/7.41oz |
PROTECTION
| Operation Temperature: | 32 - 104°F / 0 - 40°C |
| Storage temperature: | -4 - 140°F / -20 - 60°C |
| Operating Humidity: | 20 ~ 90% RH (Non-condensing) |
POWER
| Power Consumption (Max): | 2.28W (Max) |
| Power Supply: | DC 5V/1A |
PROPERTIES
| Color: | Black |

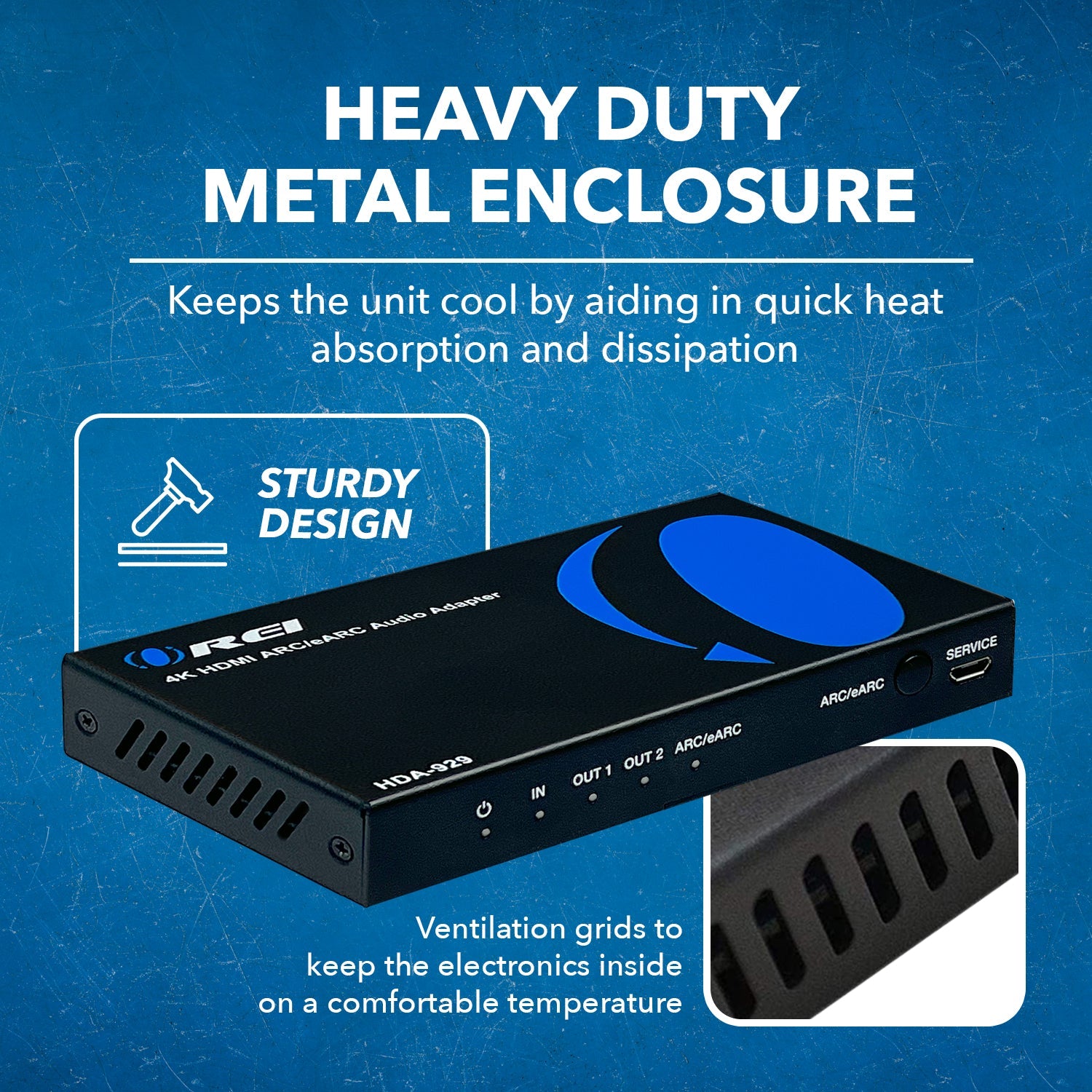

| Housing: | Metal Enclosure |

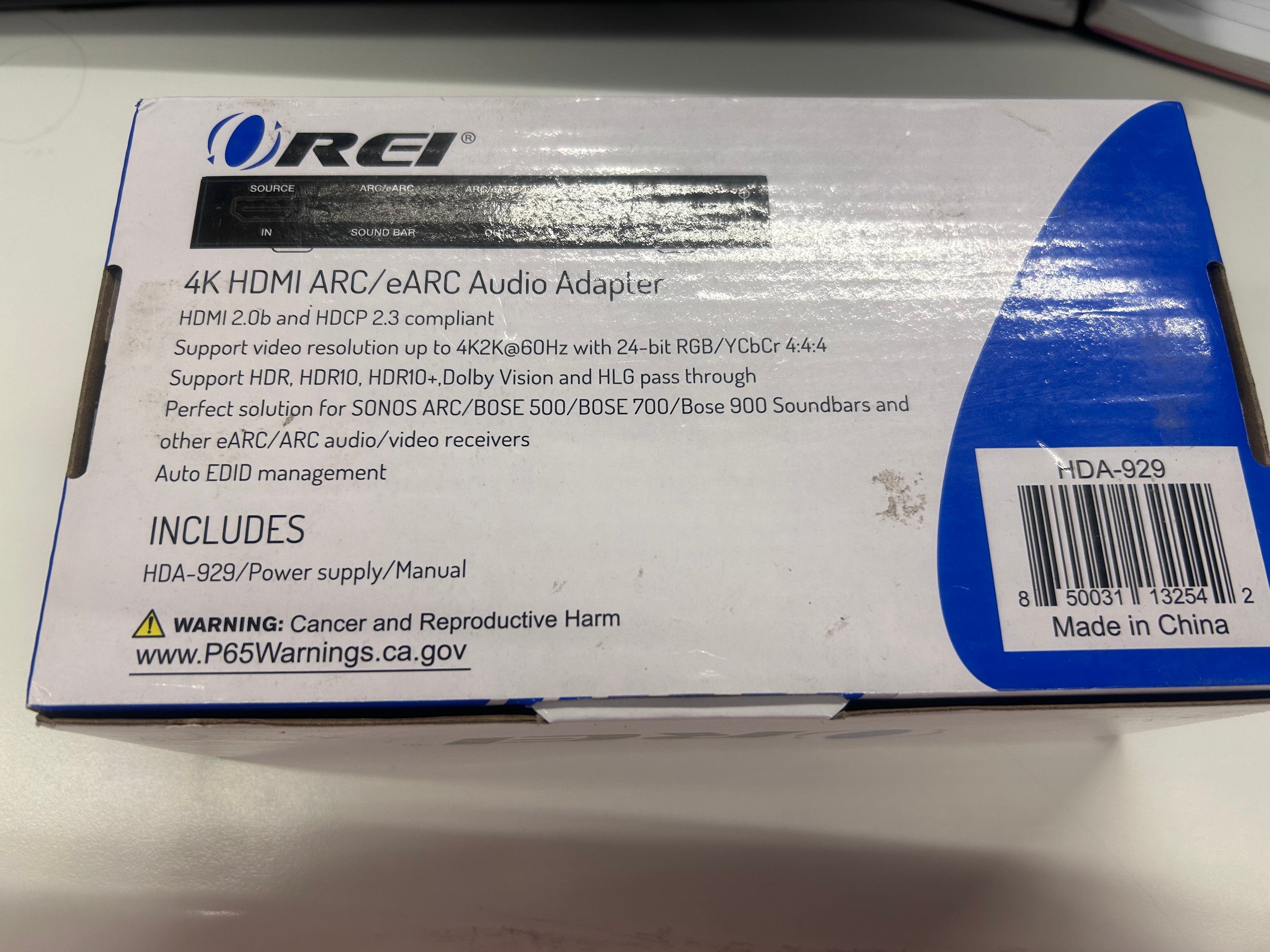

PACKAGE CONTENTS

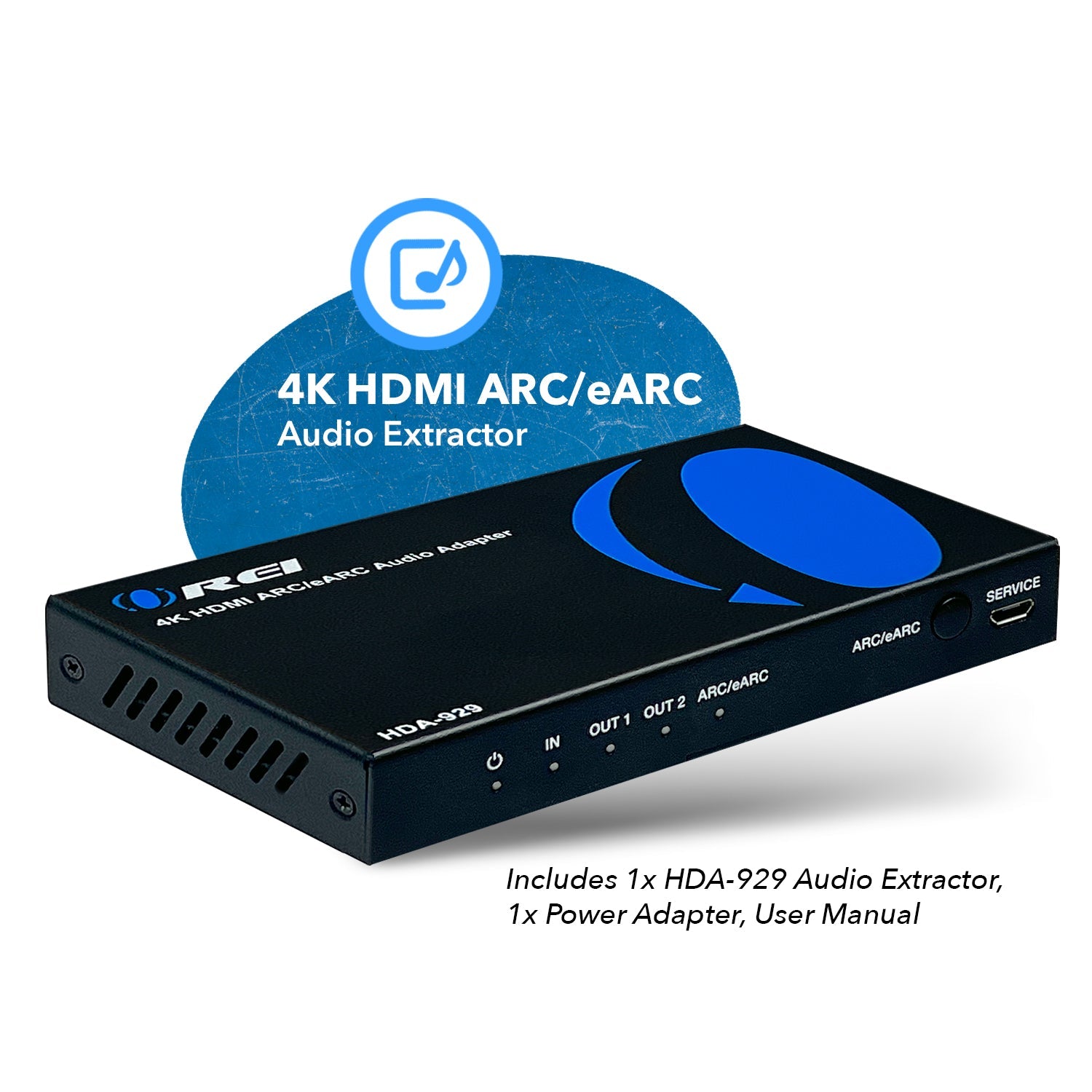

| 1x 4K HDMI ARC/eARC Audio Adapter |
| 1x 5V/1A American Standard Power Adapter |
| User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: HDA-929
[/tab1]
