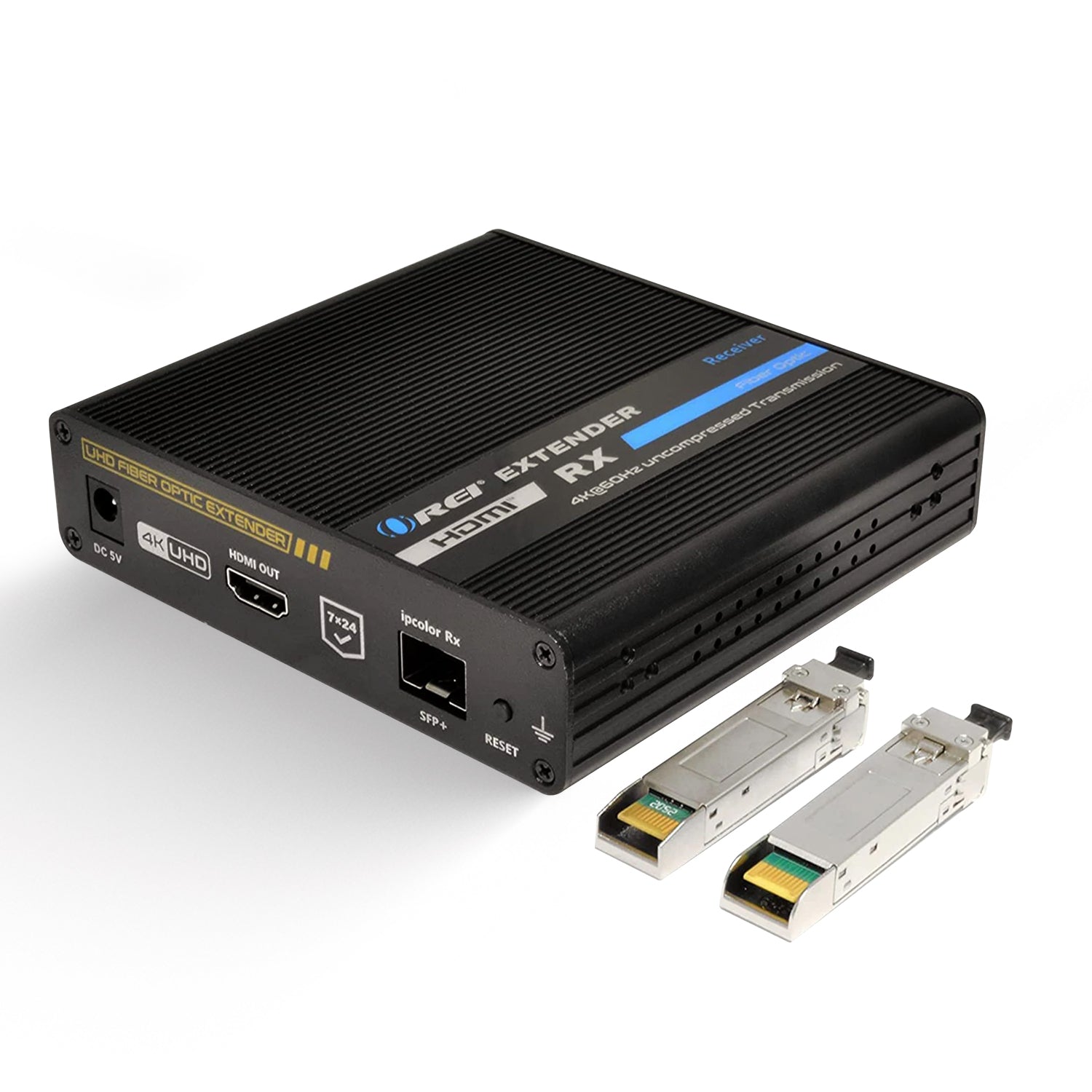

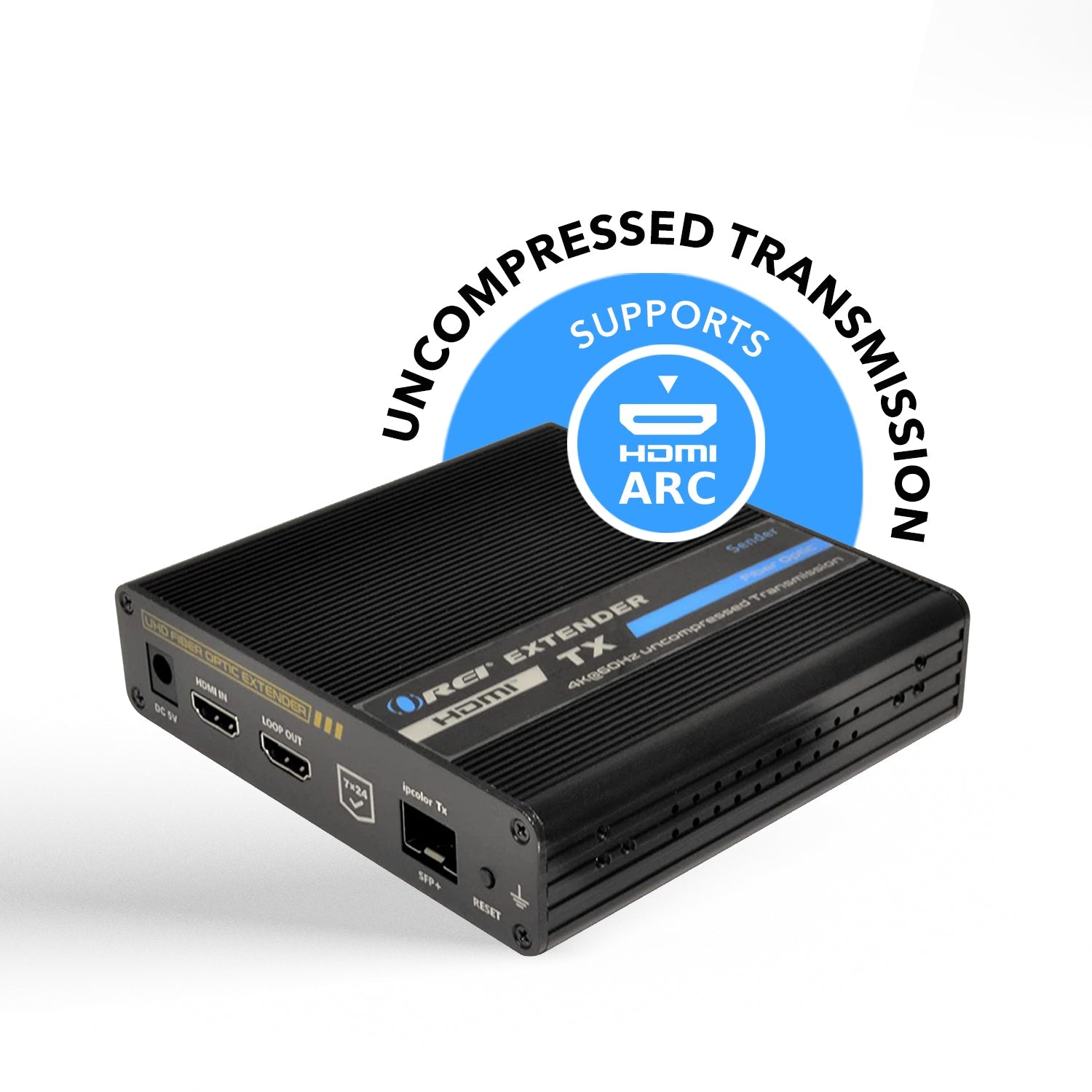

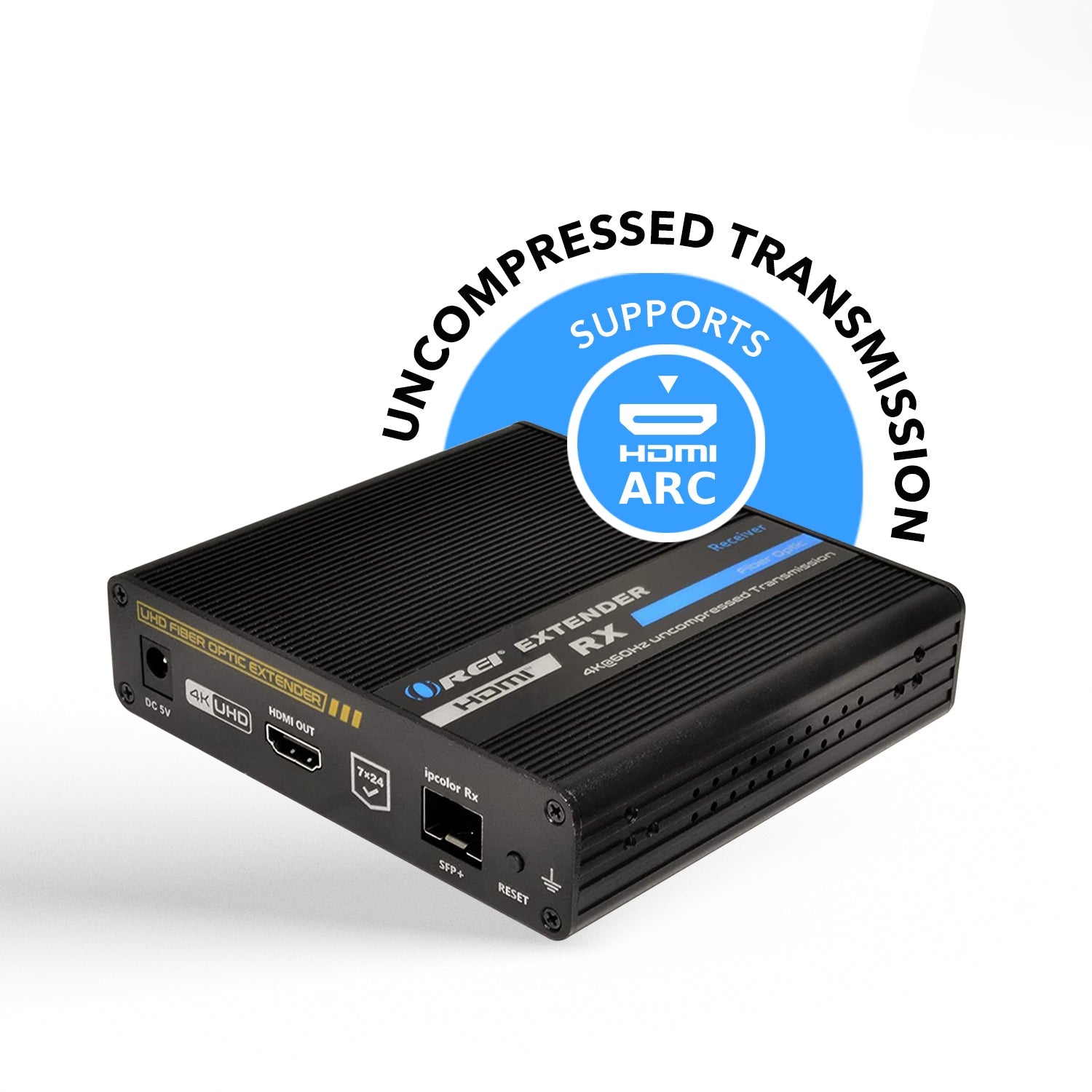

UHD-F040 is an HDMI optical fiber extender which adopts a new transmission technology that supports zero-latency & uncompressed transmission of the video signals. The HDMI 4K@60Hz signals can be extended to 40kms through the single mode fiber cable.

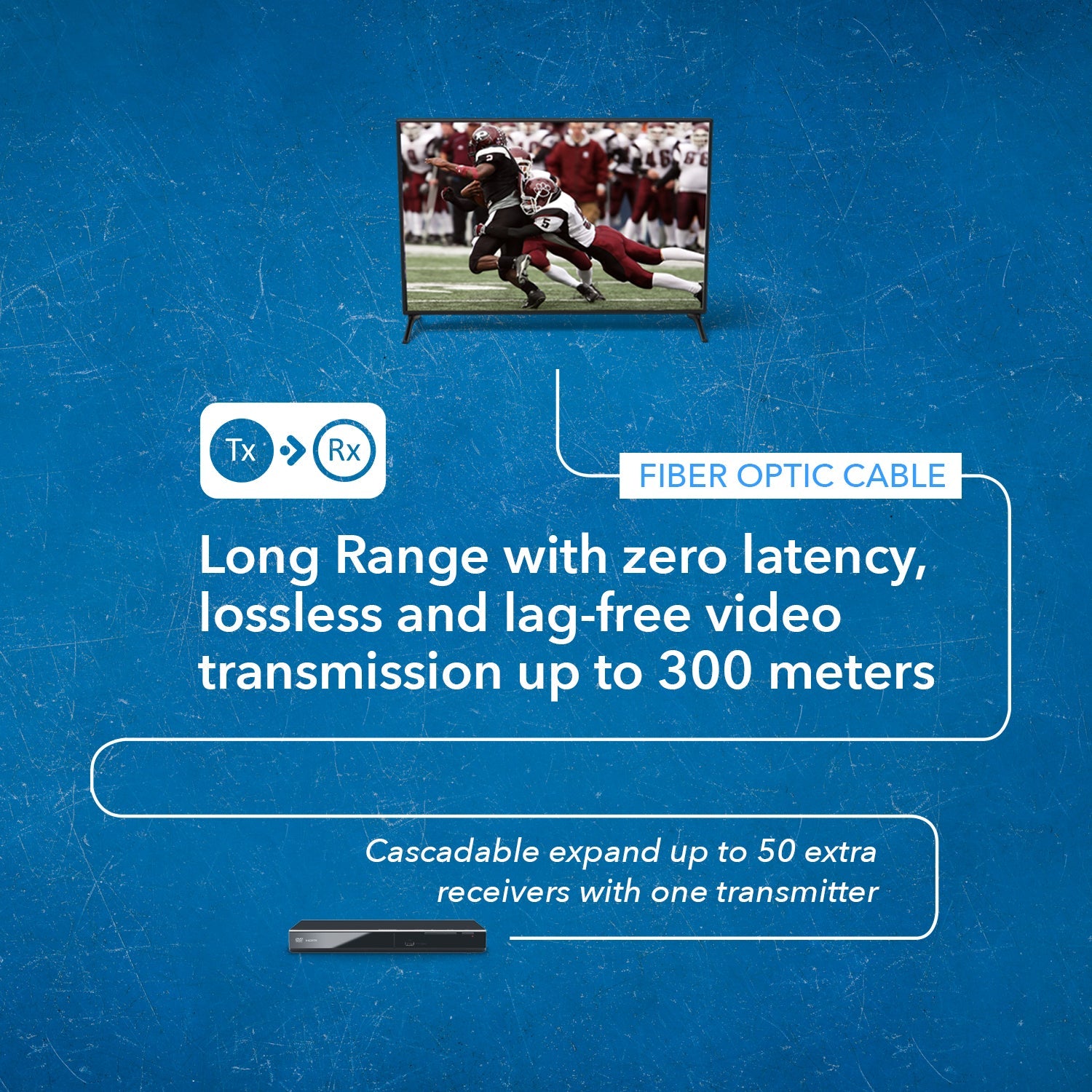

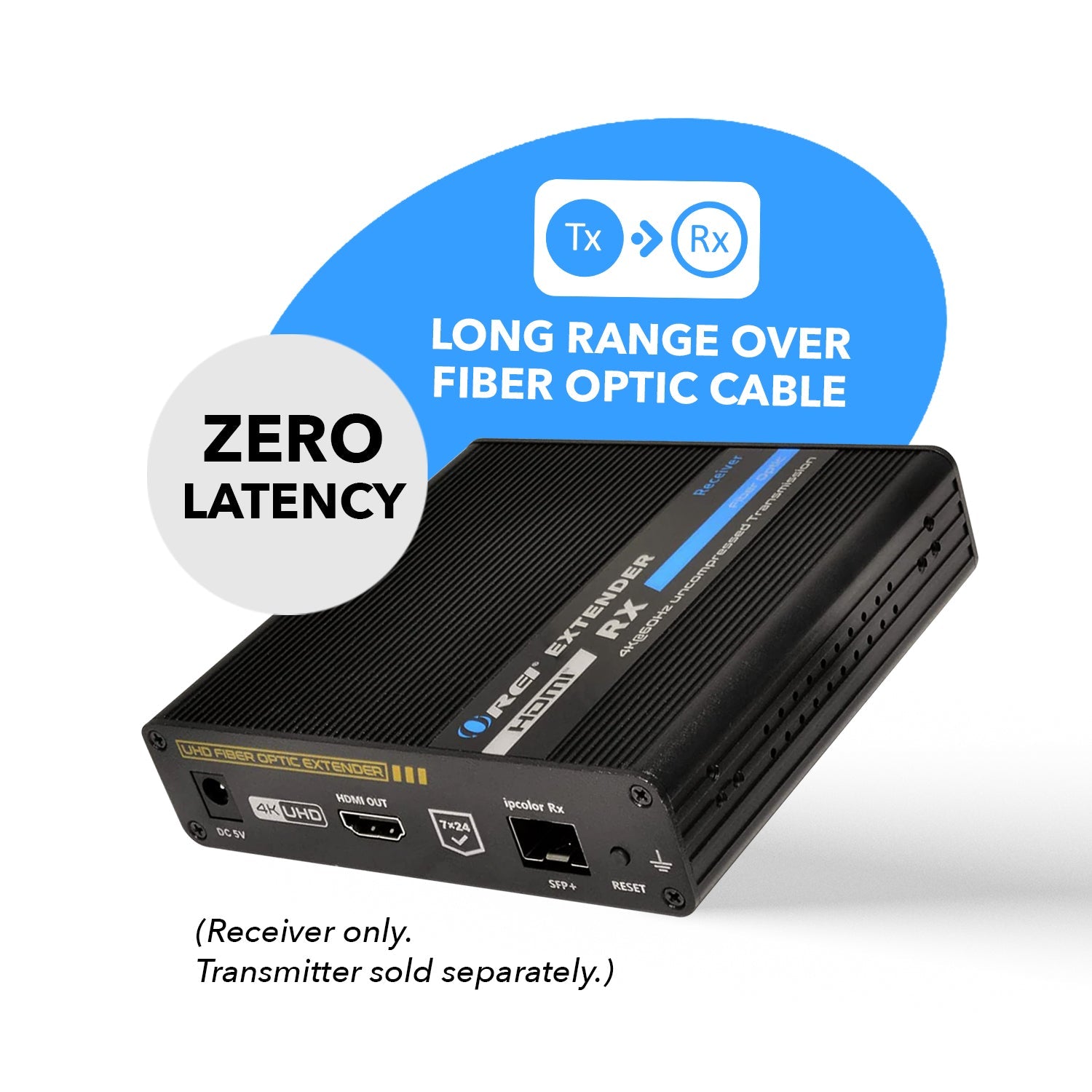

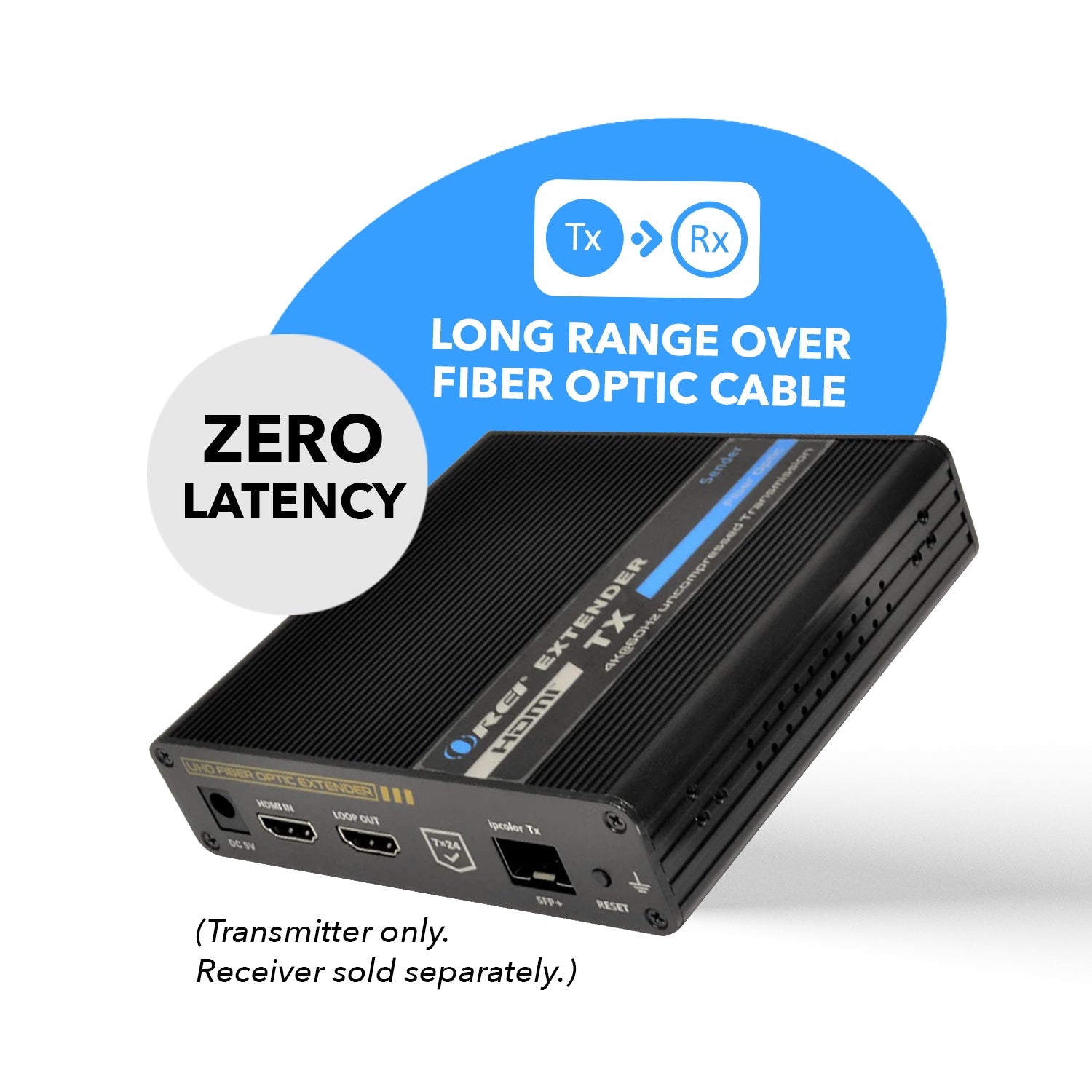

Provides Long Range Over Fiber Optic Cable with Zero Latency, lossless and lag-free video transmission. Supports switch cascading.

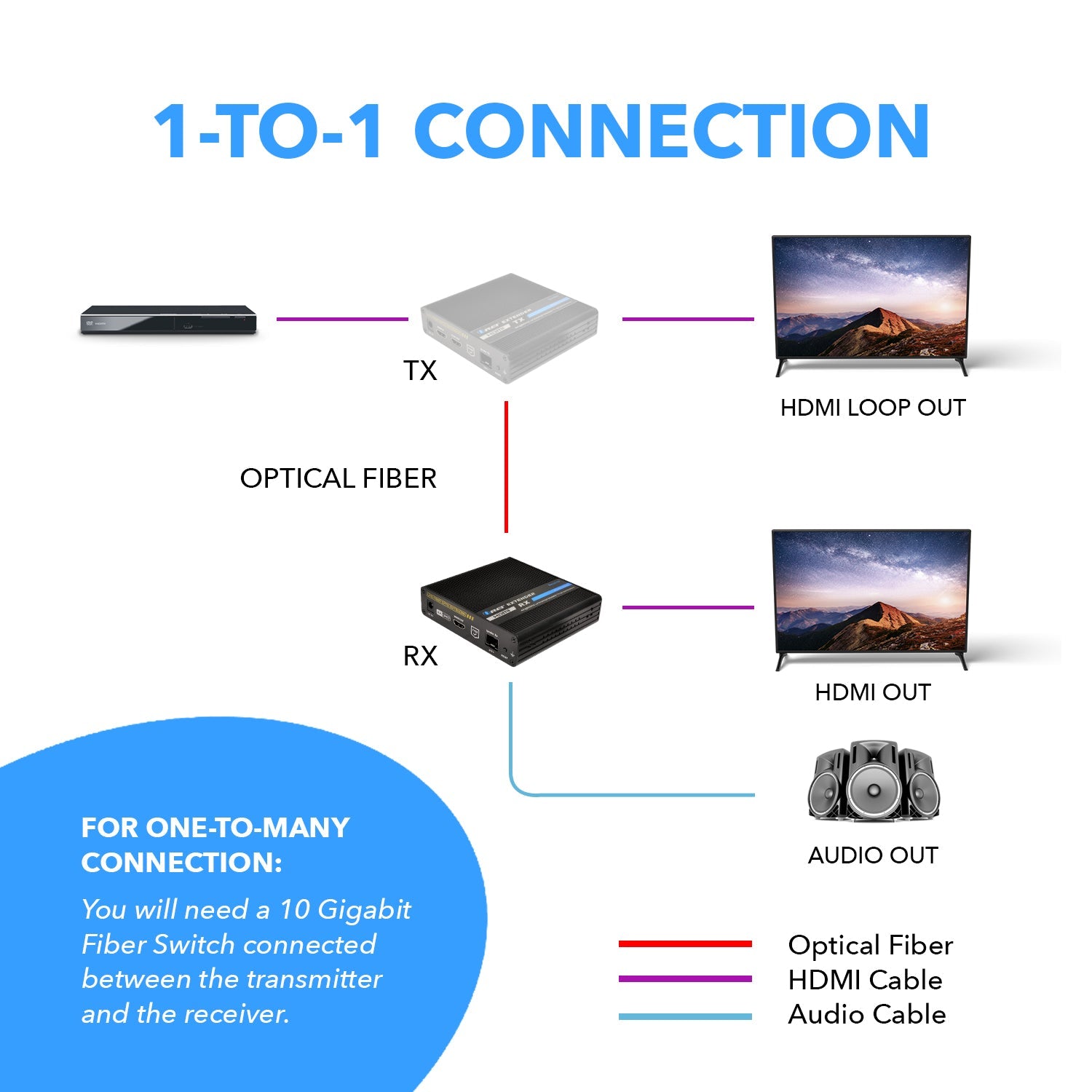

The transmitter supports HDMI loop out, bi-directional IR, RS-232, HDMI ARC, CEC and other functions. It also supports one to one connection, one to many connections through the switch and switch cascading. It is widely used in security monitoring, rail transit, broadcasting & is a Perfect professional Commercial distribution solution.
[shortdes]
Maximum transmission distance is 40km while using single mode fiber cable
Supports Bi-Directional IR, HDMI ARC, CEC, RS-232 (Transmitter & Receivers sold separately)
Single mode fiber (Use with the default optical modules)
SFP+ optical fiber module wavelength:
1270nm/1330nm
EXTENDING DISTANCE
4K@60Hz:
Up to 40 Km
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@60Hz
ADDITIONAL FEATURES
ARC/eARC:
✅/❌
CEC :
✅
Transmission Technology :
Over IP
IR Control:
✅, Bi-directional
PoC (Power over Cable):
❌
RS-232:
✅
USB Standard:
USB 2.0
USB-C DP Alt Mode:
❌
HDR10 / HDR10+ / Dolby Vision:
✅/❌/❌
AUDIO OUTPUT
HDMI Audio Formats:
LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital plus /Dolby TrueHD/Dolby Digital/Dolby Atmos

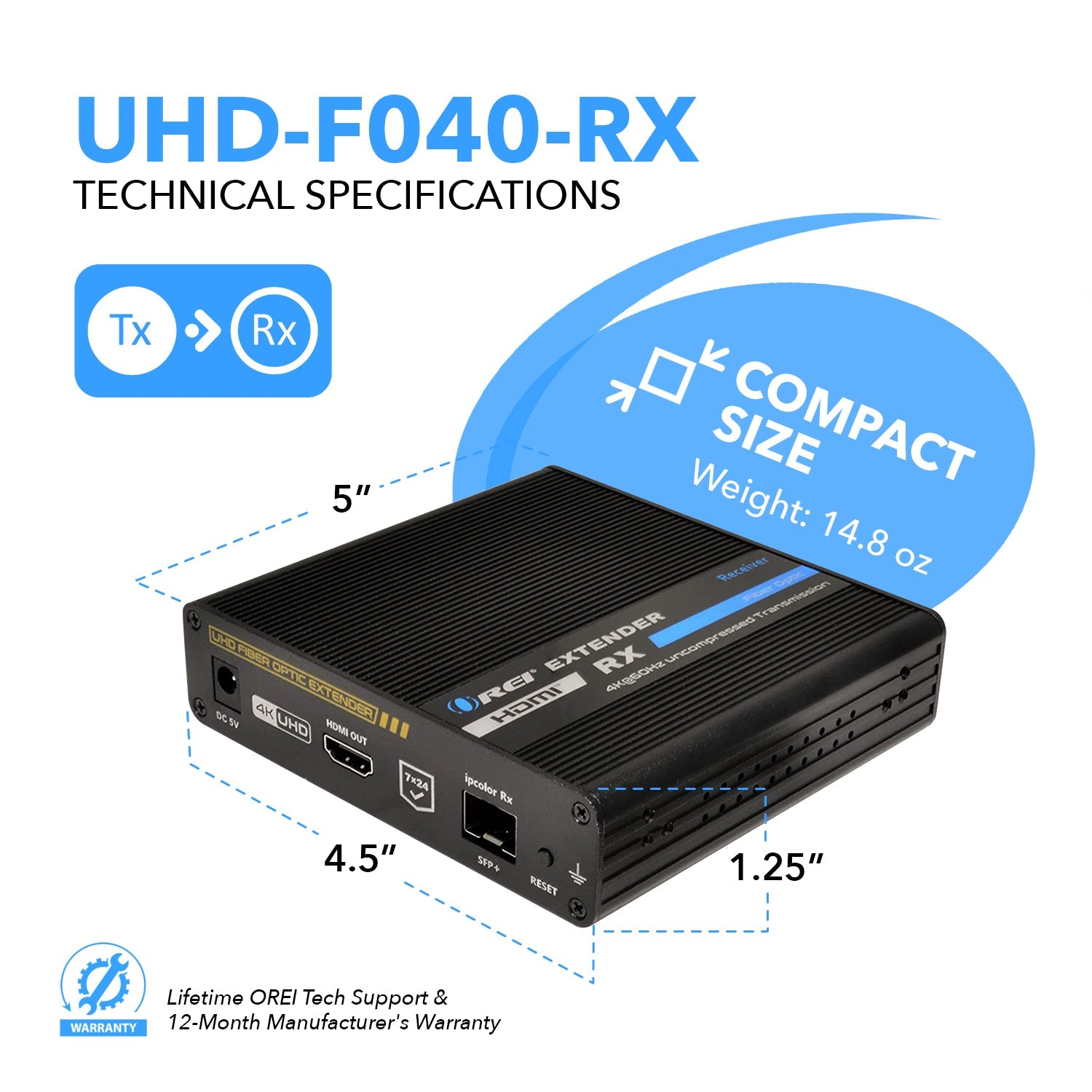

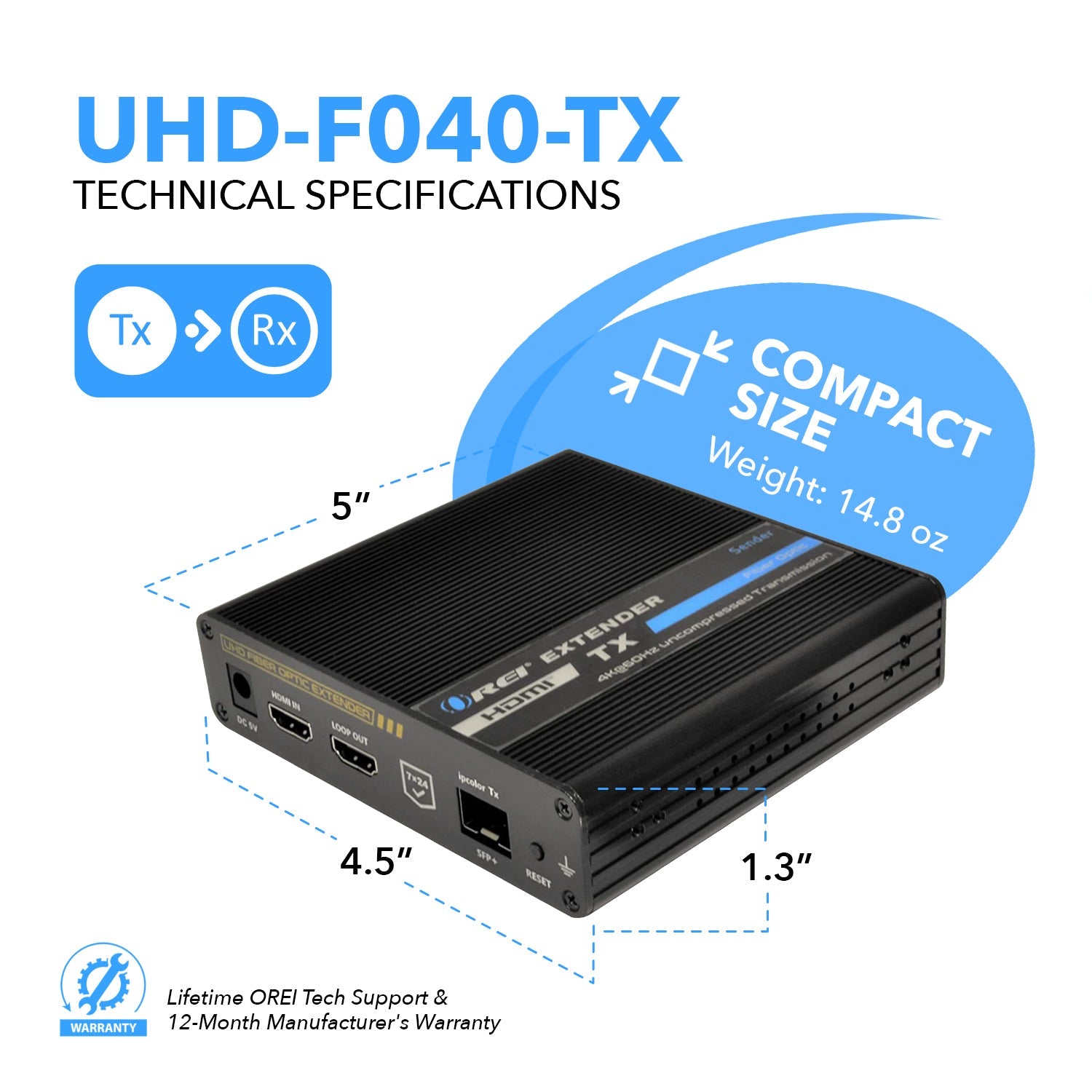

DIMENSIONS & WEIGHT
Transmitter:
Height:
30mm
Width:
115.20mm
Depth:
123.95mm
Weight:
420g
Receiver:
Height:
30mm
Width:
115.20mm
Depth:
123.95mm
Weight:
420g
PROTECTION
Operation Temperature:
-20 ~ 60°C
Storage temperature:
-30 ~ 70°C
Relative Humidity:
0 ~ 90% RH
ESD Protection:
1a Contact discharge level 3 1b Air discharge level3 Implementation of the standard: IEC61000-4-2
Light Protection:
Yes
Surge Protection:
Yes
POWER
Power Consumption (Max):
DC 5V/2A
Power Supply (Max):
7W
PHYSICAL PROPERTIES
Color:
Black
Material:
Aluminium Alloy Material + Crystal Panel
PACKAGE CONTENTS (Transmitter Only)
1x Transmitter
1x DC5V/2A Power Adapter
1x IR Blaster Extension Cable
8x Mounting brackets
1x SFP+ single mode optical module/ 1270nm LC
1x SFP+ multi-mode optical module/ 850nm LC
9x Screw
1x Earthing screw
1x User Manual
PACKAGE CONTENTS (Receiver Only)
1x Receiver
1x DC5V/2A Power Adapter
1x IR Receiver Extension Cable
8x Mounting brackets
1x SFP+ single mode optical module/ 1330nm LC
1x SFP+ multi-mode optical module/ 850nm LC
9x Screw
1x Earthing screw
1x User Manual
WARRANTY
1 - Year Manufacturer's Warranty
