Description

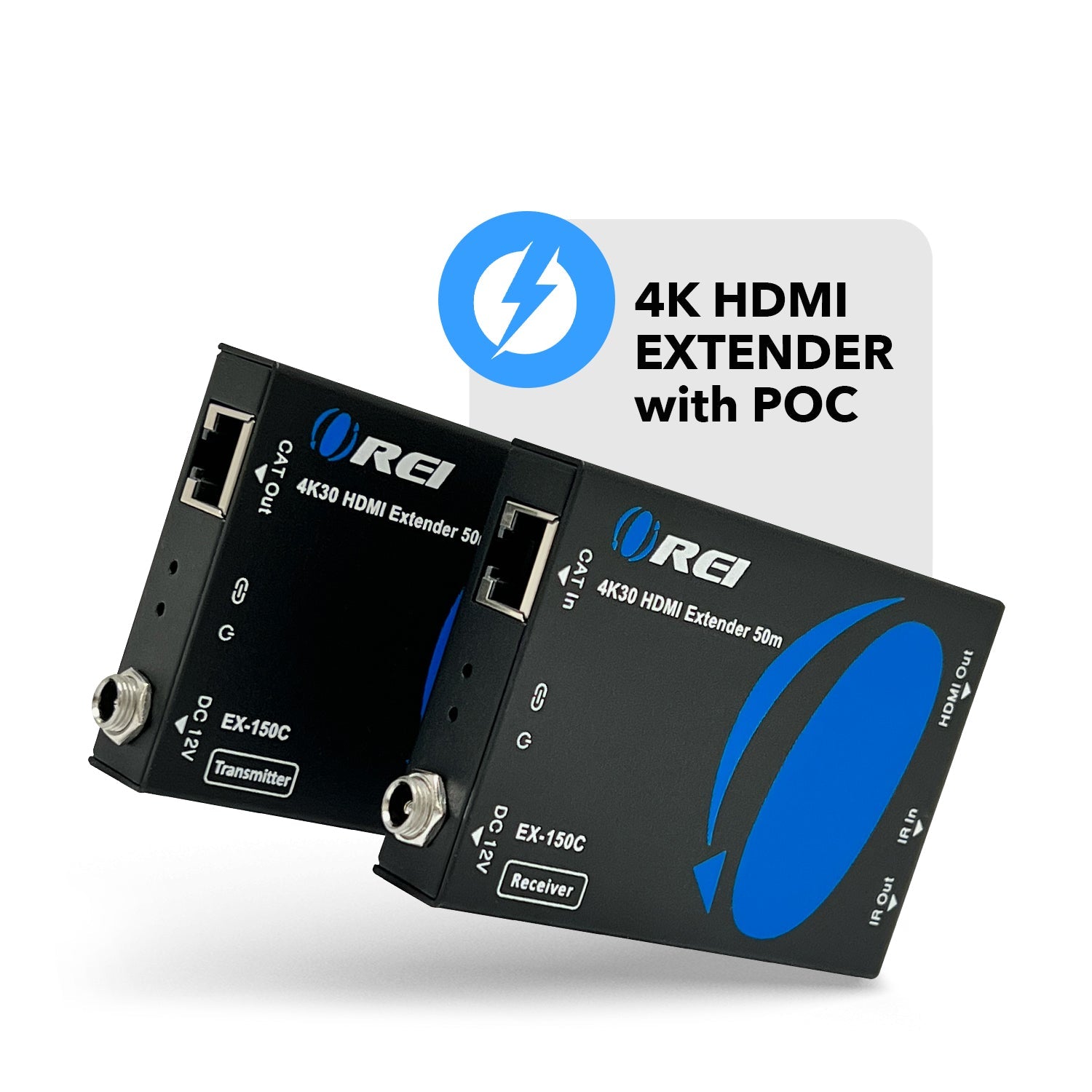

OREI EX-150C 4K HDMI Extender up to 165 Ft
- Supports copy EDID from receiver display
- Extends 4K@30Hz up to 165 ft over CAT6 cable
- Extends 1080p@60Hz up to 196 ft over CAT6 cable
- Works with HDMI & HDCP compliant devices
- Supports bi-directional IR
- Supports DTS-HD or Dolby True-HD (Your sound system should have an HDMI input port)

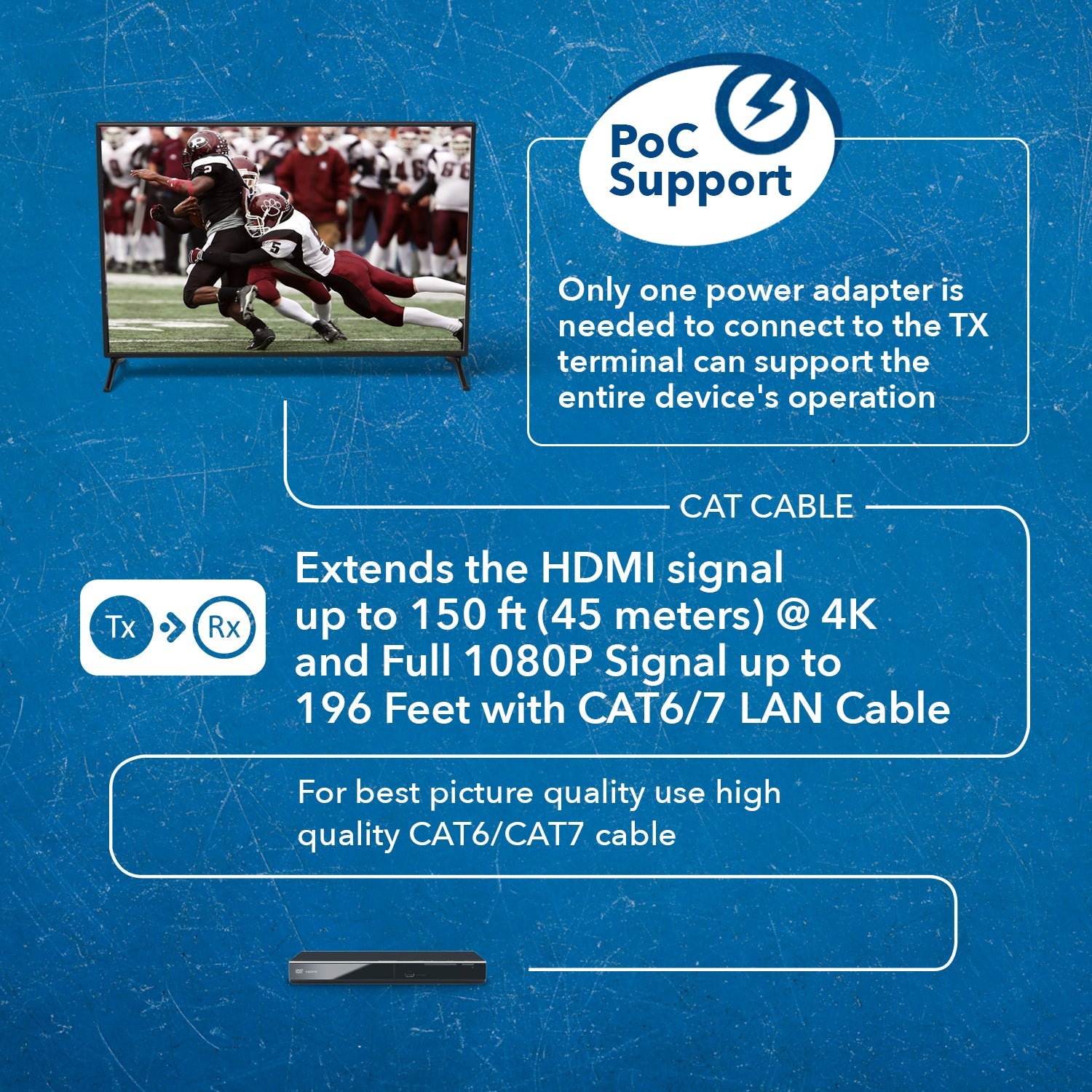

- Supports Power Over Cable function
- Compact design for an easy & flexible installation
- This unit requires only one power adapter to work

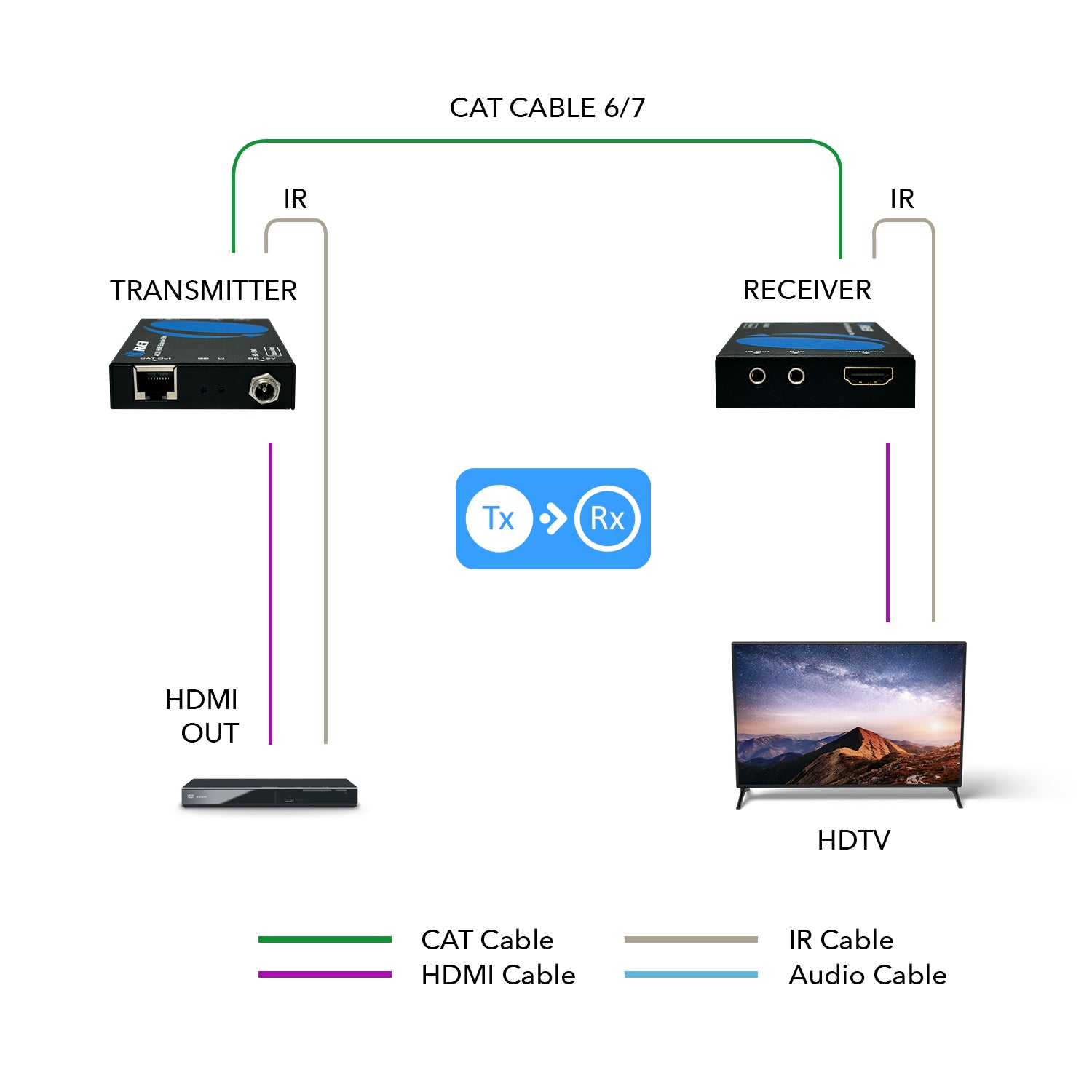

EX-150C is HDMI Extender over single CAT6 with bi-directional IR extends high-definition audio, video and IR up to 164 feet over single CAT6 cable. This HDMI extender supports DTS-HD & Dolby True-HD audio.
EX-150C offers the most convenient solution for HDMI extension over single CAT6 with long distance capability and is the perfect solution for any application. EX-150C has compact design for an easy & flexible installation
[shortdes]
- Supports bi-directional IR & PoC
- Extends 4K@30Hz up to 165 ft over CAT6 cable
- Compact design for an easy & flexible installation

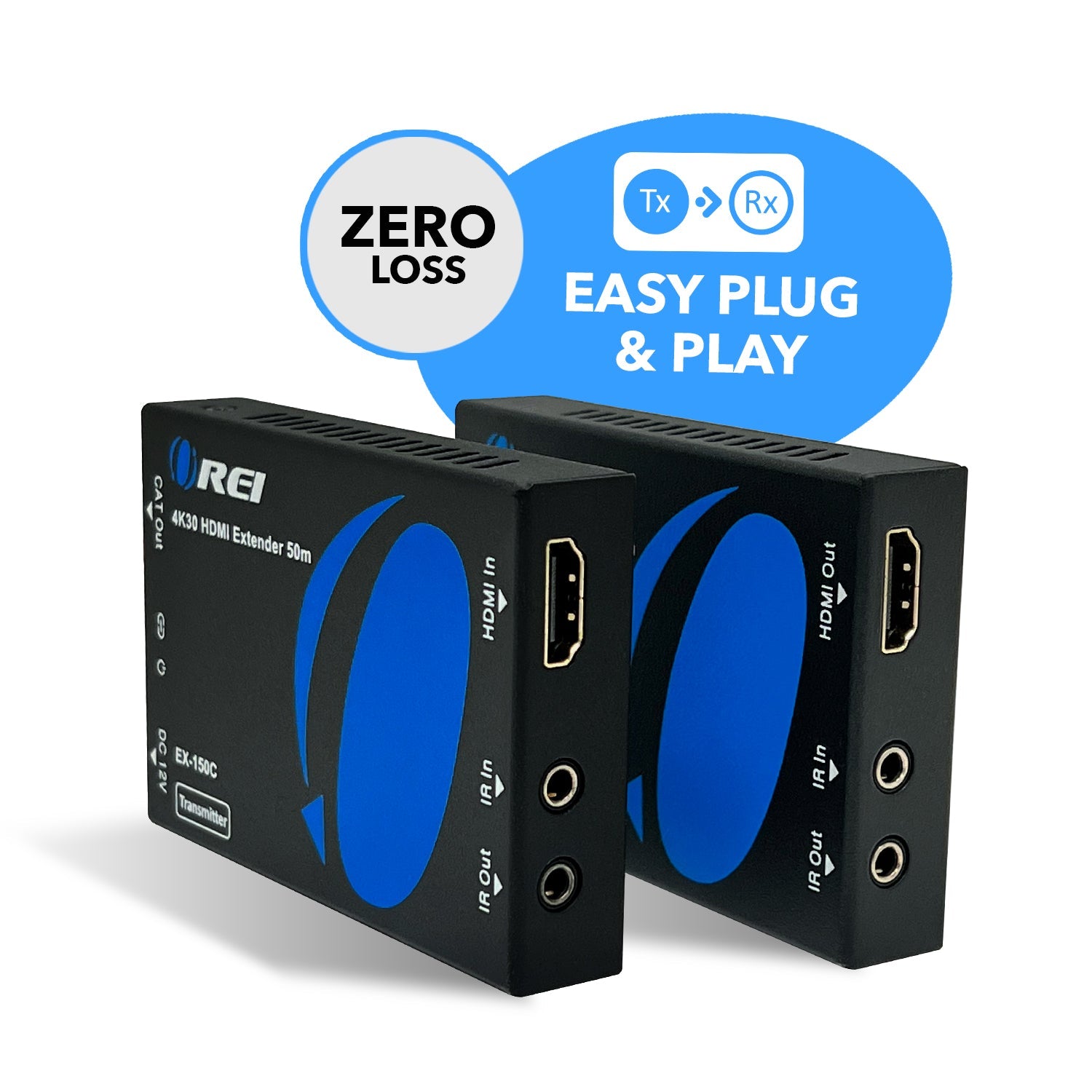

AUDIO AND VIDEO
| Transmitter: | INPUT PORTS: | 1x HDMI Type A [19-pin female] |
| OUTPUT PORTS: | 1x RJ45 | |
| 2x 3.5mm mini jack | ||
| Receiver: | INPUT PORTS: | 1x RJ45 |
| 2x 3.5mm mini jack | ||
| OUTPUT PORTS: | 1x HDMI Type A [19-pin female] |
COMPLIANCES
| HDMI Compliance: | HDMI 1.4 |
| HDCP Compliance: | HDCP 2.2 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 164 Feet |
| 1080p@60Hz: | 196 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2 Gbps |
| Video Resolutions: | Up to 4K@30Hz |
| Color Space: | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth: | 8-bit |
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| CEC Function: | No |
| ARC Function: | No |
| USB KVM Function: | No |
| PoC/PoE Function: | Yes |
| IR Controller: | Bi-Directional IR |
| Downscaler Function: | No |
| Over Network/IP Function: | No |
| HDBaseT Function: | No |
| RS-232 Function: | No |
AUDIO OUTPUT
| HDMI Audio Formats: | LPCM 2/5.1/7.1Ch, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos, DTS:X |
SIGNALS
| TMDS Signals: |
3.3V |
| DDC Signals: |
5V |

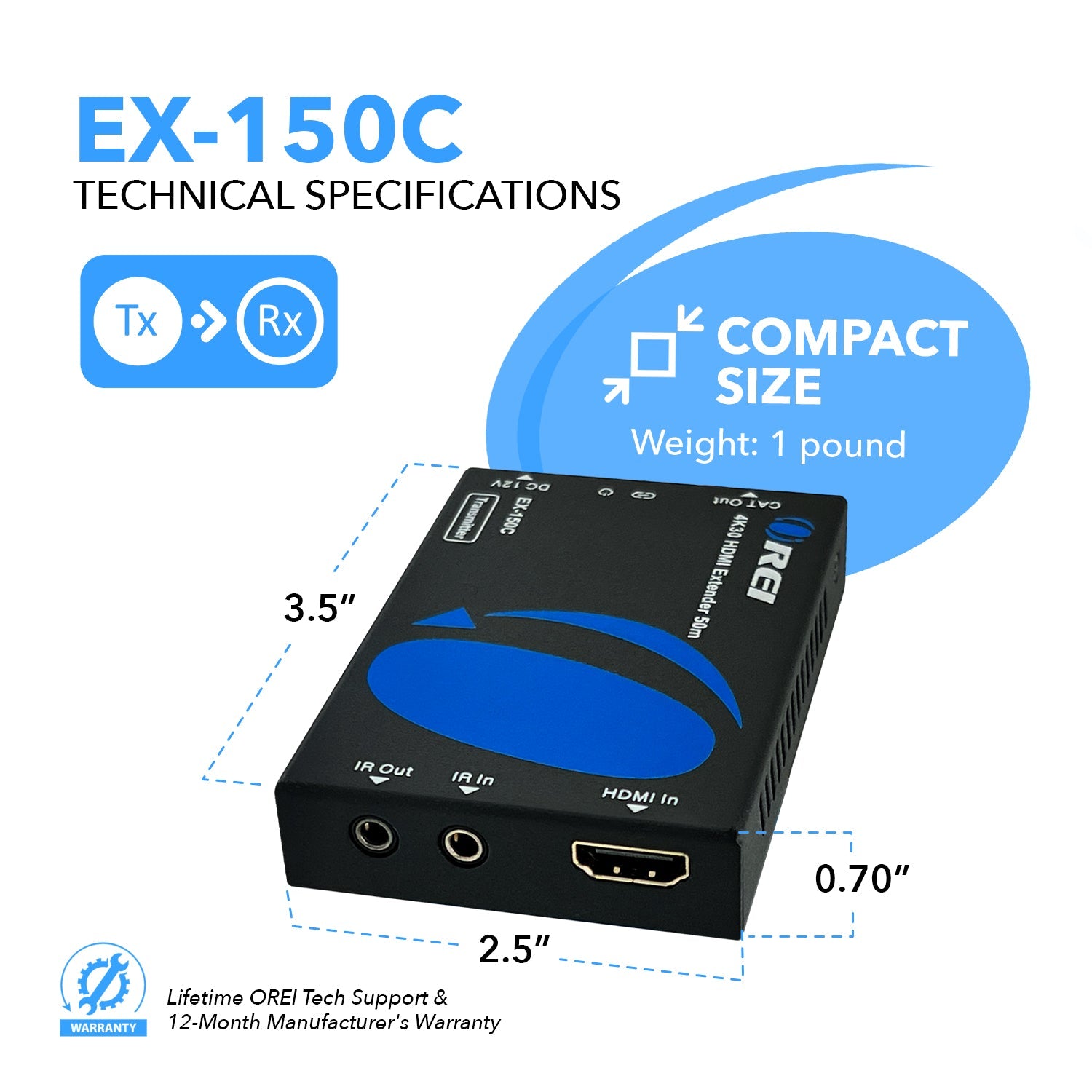

DIMENSIONS & WEIGHT
| Transmitter: | Height: | 17mm |
| Width: | 88mm | |
| Depth: | 61mm | |
| Weight: | 144g | |
| Receiver: | Height: | 17mm |
| Width: | 88mm | |
| Depth: | 61mm | |
| Weight: | 144g |
PROTECTION
| Operation Temperature: | 32 - 104°F / 0 - 40°C |
| Storage temperature: | 4 - 140°F / -20 - 60°C |
| Relative Humidity: | 20 - 90% RH (no condensation) |
| ESD Protection: | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
RJ-45 CONNECTOR Type
| WE/SS 8P8C |
POWER
| Power Consumption (Max) | Transmitter: | 1W | |||
| Receiver: | 1.5W | ||||
| Power Supply | DC 12V/1A Adaptor (US/EU standards, CE/FCC/UL certified) |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Metal |
PACKAGE CONTENTS
| 1x HDMI Transmitter |
| 1x HDMI Receiver |
| 2x Windband IR TX cable |
| 2x Windband IR RX cable |
| 1x 12V/1A DC Power Supply Adaptor |
| 1x User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 165 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
