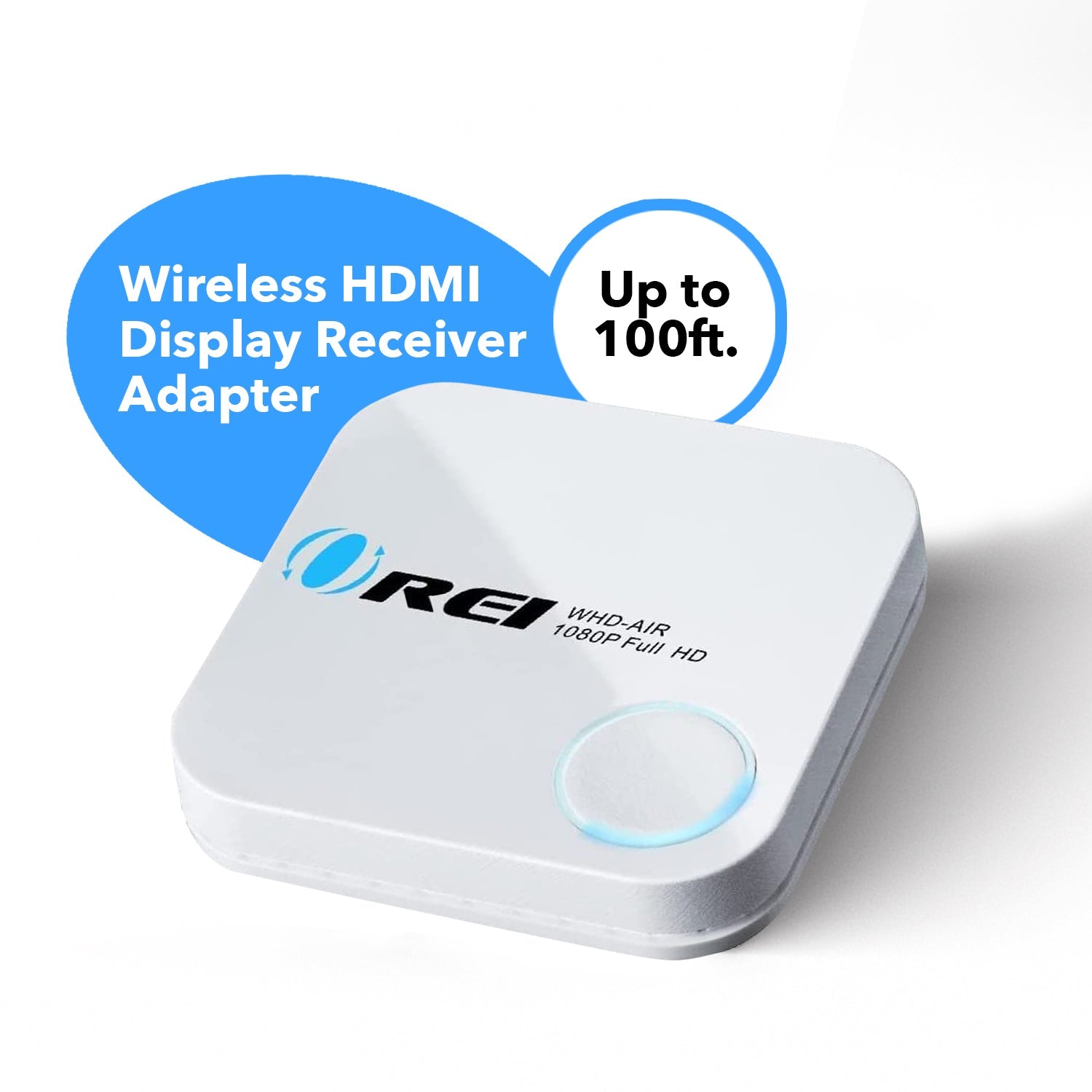

OREI WHD-AIR Wireless HDMI Display Receiver Adapter

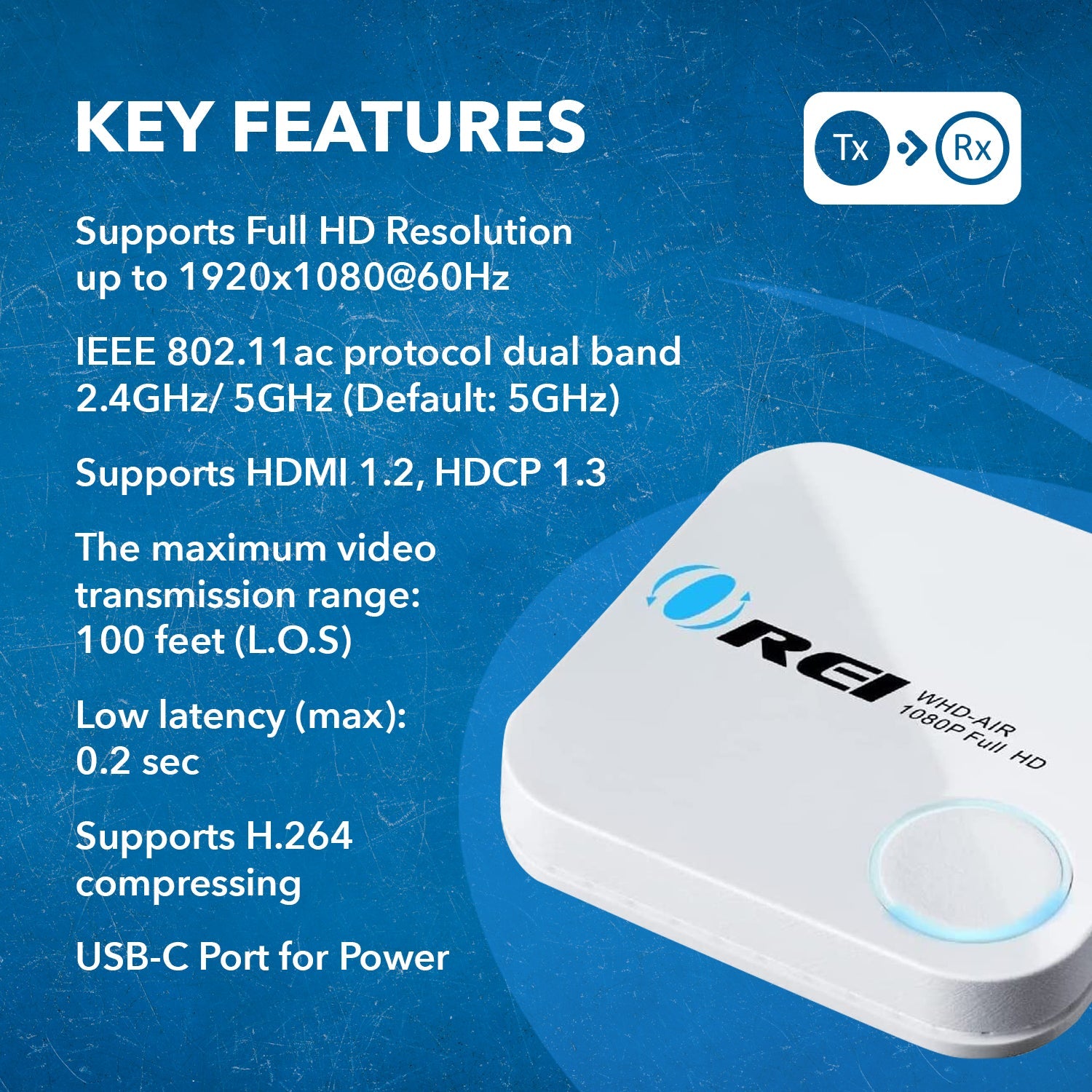

Key Features:
- Supports Full-HD Resolution up to 1920x1080@60Hz
- IEEE 802.11ac protocol dual band 2.4GHz/ 5GHz (Default: 5GHz)
- Supports HDMI 1.2, HDCP 1.3
- The maximum video transmission range: 100 feet (L.O.S)
- Low latency (max): 0.2 sec
- Supports H.264 compressing
- Type C port for powering
- Multi-compatibility:
- Supports Windows, macOS, Apple iOS and Android operating systems
- Supports Miracast / Airplay / DLNA

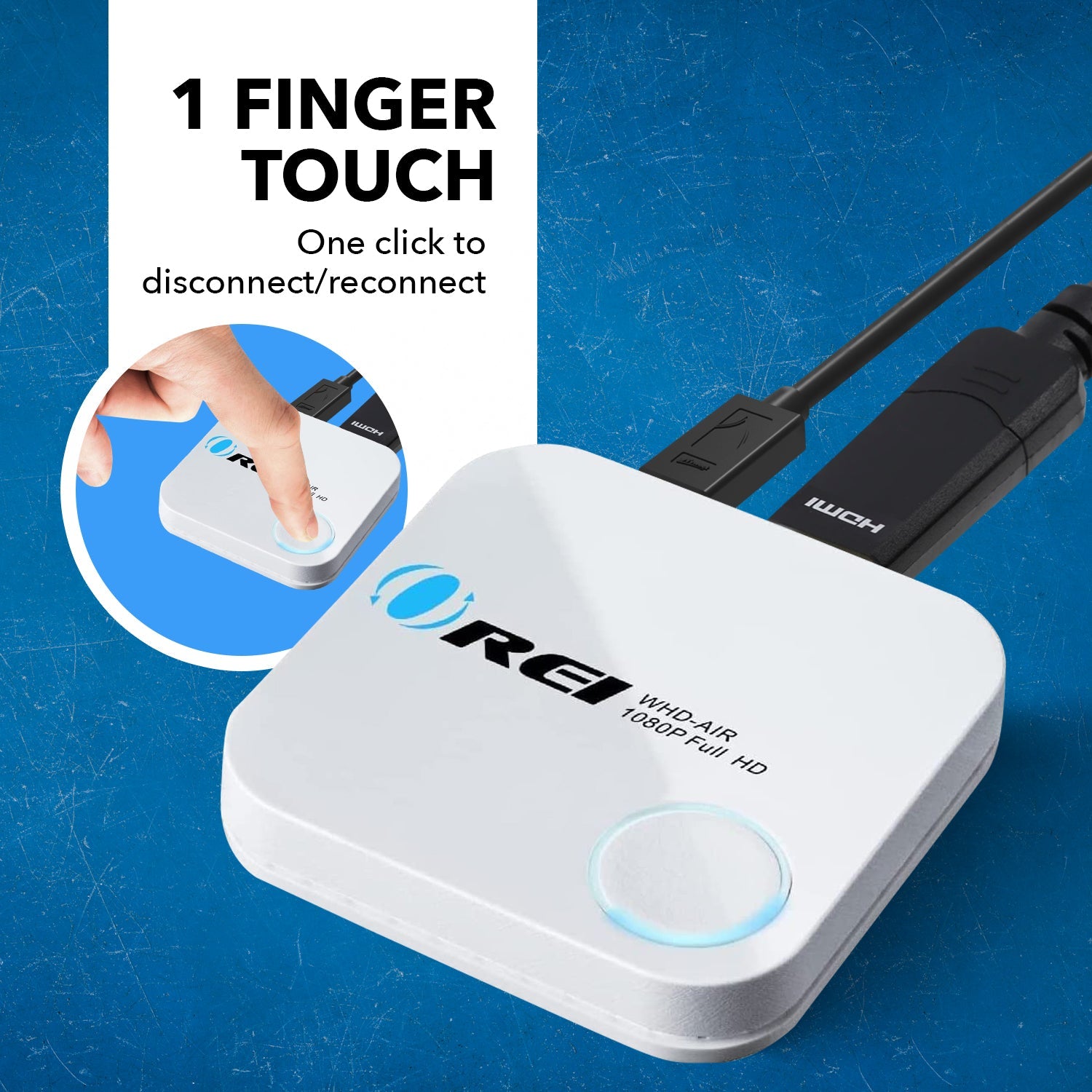

- Click button to stop, pause, and resume projection
- Plug and play, no APP required

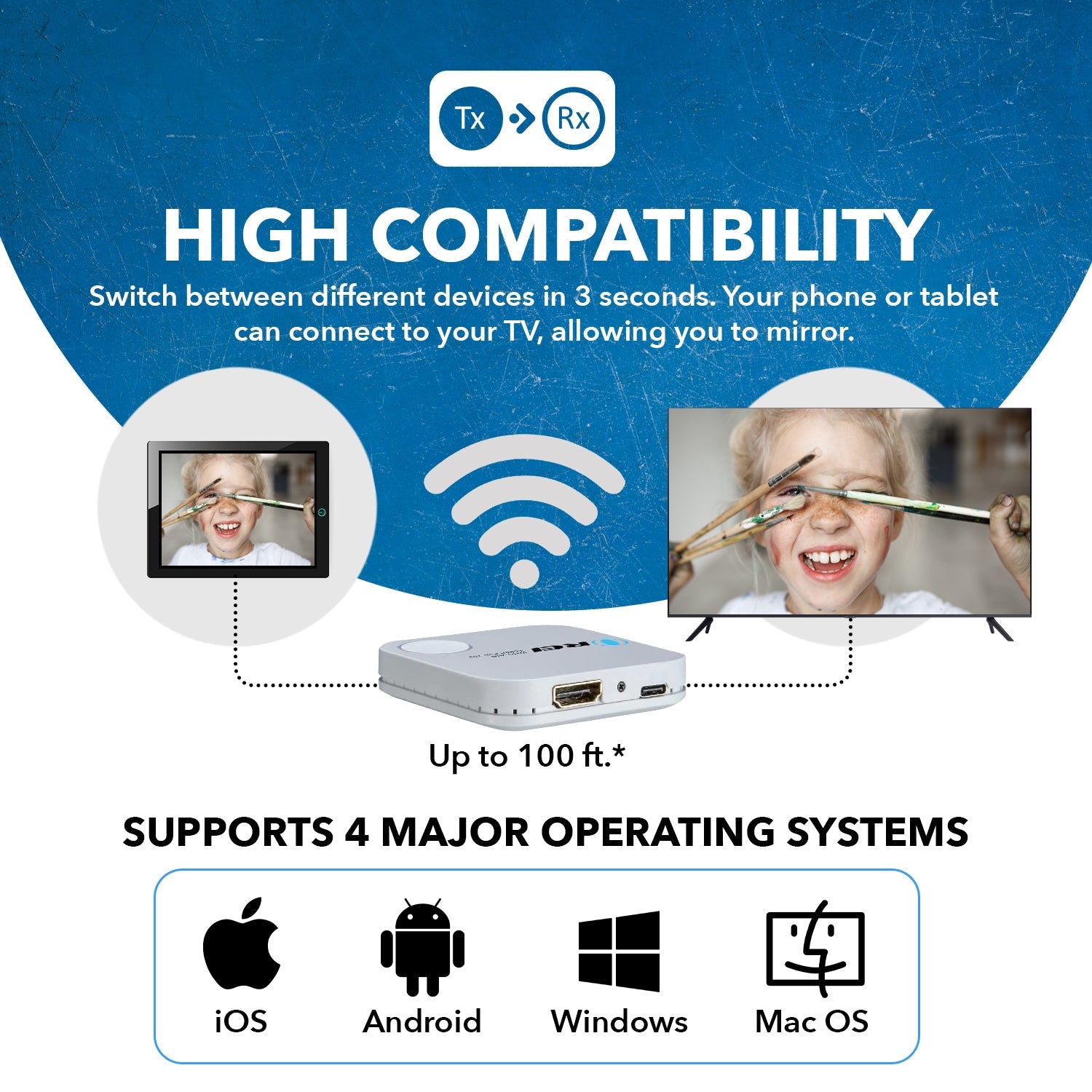

WHD-AIR enables you to mirror or cast HD videos/ games/ music/ photos/ files from phone, pad, and laptop to TV/ projectors/ monitors. Suitable for business conference / education/ training and home entertainment. It supports multiple platforms including iOS, Android, Mac, and Windows operating systems for productive and flexible presentations and collaboration from individual devices.

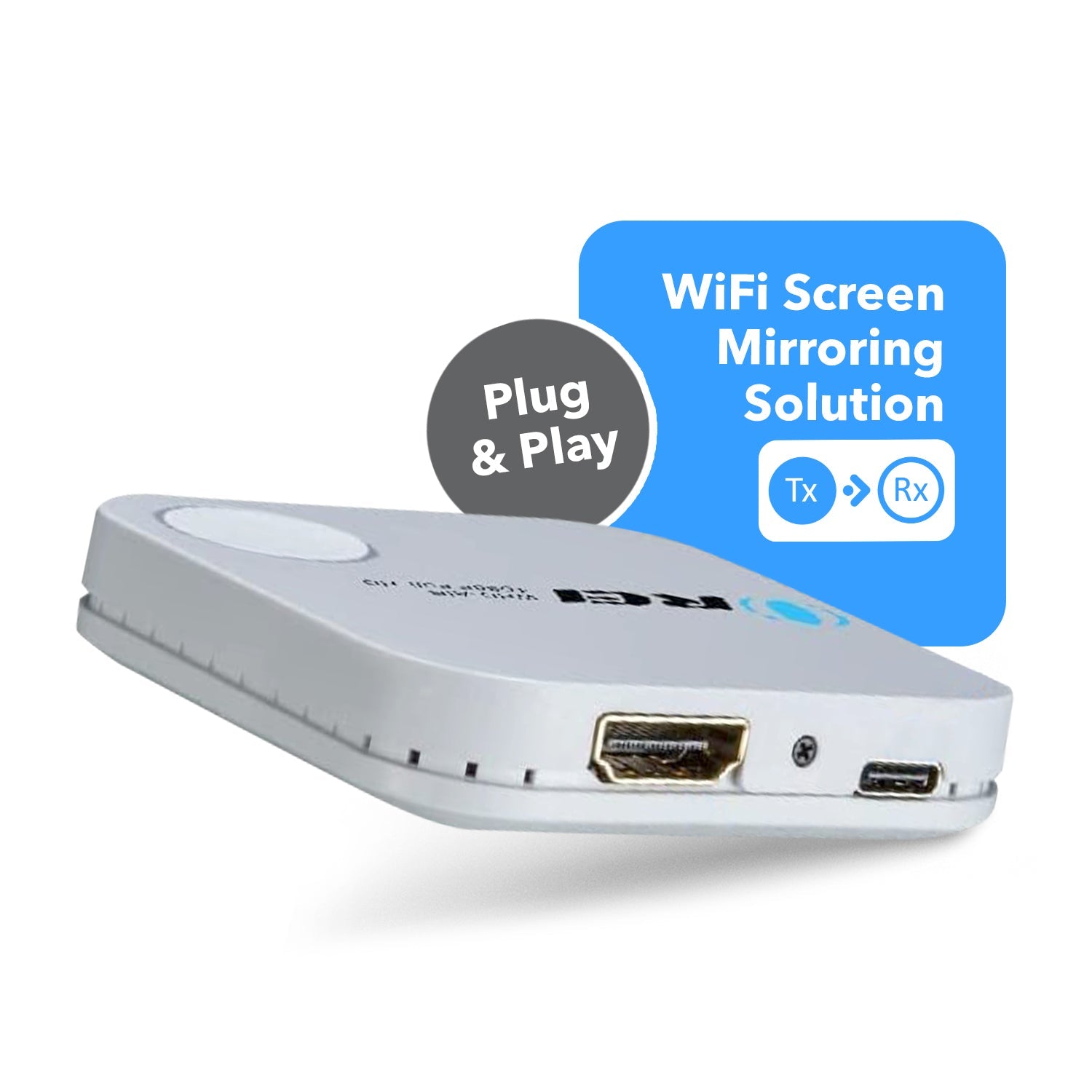

Plug and play without apps and wires. A useful click button control design can mirror, start or stop the screen sharing anytime. It also supports 1080p full HD with ultra-low delay for best wireless display experience
Please Note: NOT Compatible with Netflix, Hulu, Spotify, Sky Go, etc.
[shortdes]
- Supports H.264 compressing
- Low latency (max): 0.2 sec
- Plug and play, no app required
[/shortdes]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
[/tab1]
[tab]
AUDIO/VIDEO
| Input: |
USB-C (Power input) |
| Output: |
HDMI |
COMMUNICATION CONTROL
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
ADDITIONAL FEATURES
| IR Control: |
❌ |
| USB KVM: |
❌ |
| HDR10 / HDR10+ / Dolby Vision: |
❌ |
| SSID Pairing: |
✅ |
| Channel Switching: |
❌ |
AUDIO OUTPUT
| HDMI Audio Formats: |
PCM 2CH |
VIDEO OUTPUT
| Video Bandwidth: |
165MHz |
| Color Depth: |
8bit |
| Color Space: |
YCbCr 4:2:0 |
EXTENDING DISTANCE
SIGNALS
| TMDS Signals: |
HDMI Standard |
| DDC Signals: |
HDMI Standard |
ENVIRONMENTAL
| ESD Protection: |
4KV/8KV |
| Electrostatic Protection of the Whole Machine: |
OVP/OCP |
DIMENSIONS & WEIGHT
| Height: |
65 mm |
| Width: |
65 mm |
| Depth: |
15 mm |
| Weight: |
38 g |
WIRELESS PERFORMANCE & INTERFACE
| Transmission Type: |
WiFi Protocol |
| Transfer Method: |
802.11A/N/AC |
| Latency: |
0.2 Sec |
| Transmission Distance: |
100 feet (L.O.S) |
| Maximum Pixel Clock: |
12MHz(H.264) |
PHYSICAL PROPERTIES
| Color: |
White |
| Housing: |
Plastic |
| Processing Technology: |
Wireless Display Codec |
| Finishing: |
Gloss Finish |
| Operation Temperature: |
0~45℃ |
| Storage Temperature: |
-10~60℃ |
| Operating Humidity: |
10~80% |
|
PACKAGE CONTENTS
| 1 x WHD-AIR |
| 1 x USB-A to USB-C Cable |
| 1 x User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
