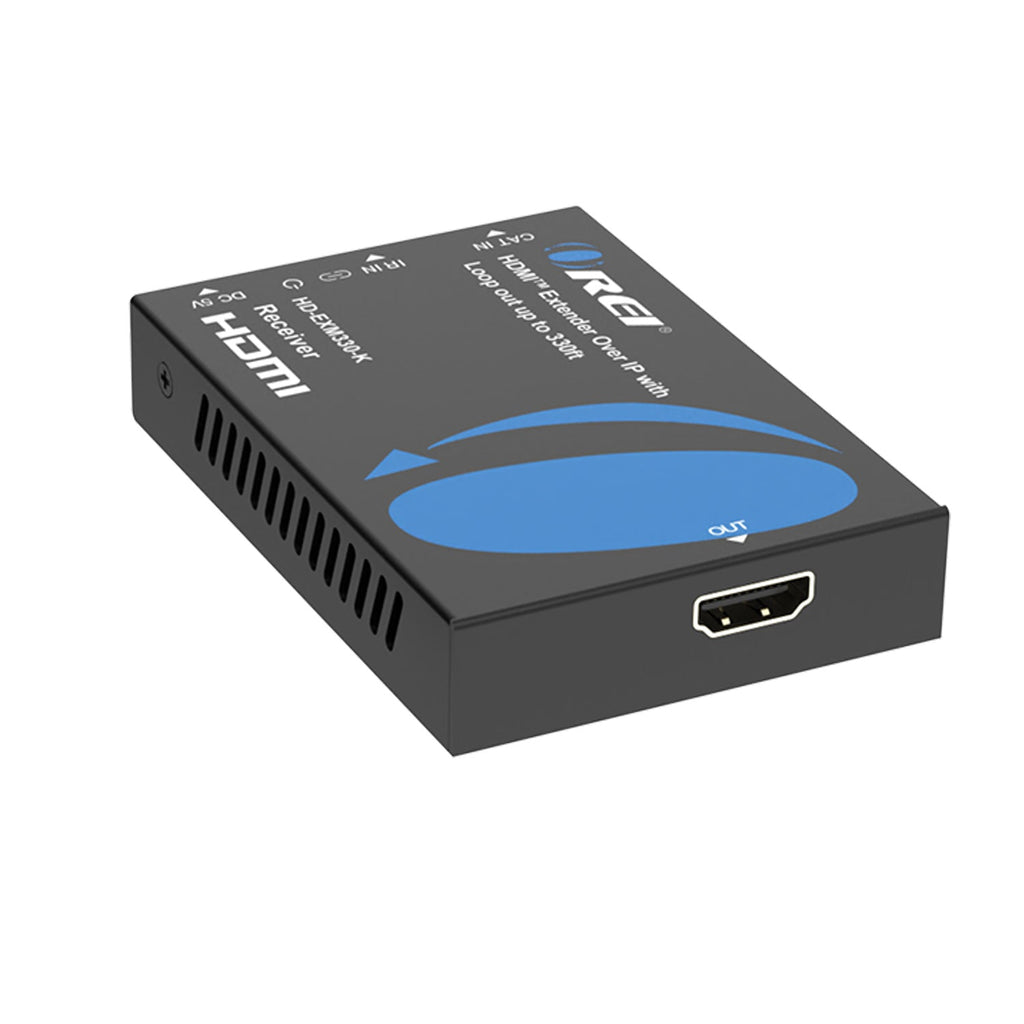

OREI HD-EXM330-RX (Receiver Only): HDMI over IP extender upto 330ft
Key Features:
-
Extend video up to 330 feet – Transmits 1080p HDMI signals up to 100 meters via Cat5e/6 cable.
-
Supports point-to-point and one-to-many connections – Allows distribution to multiple receivers (sold separately).
-
HDMI loop-out for local display – Connect a monitor near the source to view content in real time.
-
IR control extension – 38 kHz IR passback lets you control the source device remotely.
-
High-quality compression – M-JPEG technique minimizes image quality loss during transmission.
-
Zero configuration required – Plug-and-play setup—no driver installation needed.
The HD-EXM330-RX HDMI Extender offers a reliable long-distance solution for extending Full HD video and IR signals up to 330 feet over a single Cat5e/6 cable. Designed for ease of installation and dependable performance, this extender enables point-to-point and one-to-many transmission (splitters sold separately). Whether for residential AV setups, conference rooms, or remote monitoring systems, it provides high-quality signal distribution with zero latency.
With an HDMI loop-out for local display monitoring and IR extension at 38kHz, users can manage media devices from a distance with ease. It uses M-JPEG compression technology to maintain minimal loss in image quality while transmitting over extended distances.
[tab]
AUDIO AND VIDEO
| Receiver: |
INPUT PORTS: |
1×IR IN [3.5mm Stereo Mini-jack] |
|
OUTPUT PORTS: |
1×CAT IN [RJ45 connector] |
|
|
1×HDMI Type A [19-pin female] |
COMPLIANCES & PROTOCOLS
| HDMI Compliance |
HDMI 1.4b |
| HDCP Compliance |
HDCP 1.4 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
10.2Gbps |
| Video Resolutions: |
Up to 1920x1200@60Hz |
| Color Space: |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth: |
8-bit |
ADDITIONAL FEATURES
| ARC/eARC: |
❌ |
| CEC: |
❌ |
| Transmission Technology: |
Over IP, Ethernet |
| IR Control: |
Uni-directional |
| PoC (Power over Cable): |
❌ |
| RS-232: |
❌ |
| USB Standard: |
❌ |
| USB-C DP Alt Mode: |
❌ |
| HDR10 / HDR10+ / Dolby Vision: |
❌ |
Buttons
| Reset Button: |
It will reset the product including IP address, encoding information and EDID. The EDID will recover default status for 1920x1080p@60Hz |
AUDIO OUTPUT
| HDMI Audio Formats: |
LPCM 2.0CH,48KHz |
SIGNALS
| TMDS Signals: |
3.3V |
| DDC Signals: |
5V |
DIMENSIONS & WEIGHT
| Height: |
16.5 mm |
| Width: |
88 mm |
| Depth: |
61.2 mm |
| Weight: |
Receiver: |
150g |
PROTECTION
| Operation Temperature: |
-10°C ~ 50°C / 14°F ~ 122°F |
| Storage temperature: |
-20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: |
20~90% RH (non-condensing) |
| ESD Protection: |
Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Electrostatic Protection of the whole Machine: |
Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
RJ-45 CONNECTOR Type
POWER
| Power Consumption (Max): |
Receiver: |
1.25W |
| Power Supply: |
Input: |
AC100 - 240V 50/60Hz |
|
Output: |
DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|
|
PHYSICAL PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
PACKAGE CONTENTS
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
- Supports 1080p@60Hz up to 330 feet
- Supports Over IP function
- Supports IR Remote Control
[/shortdes]
