Description

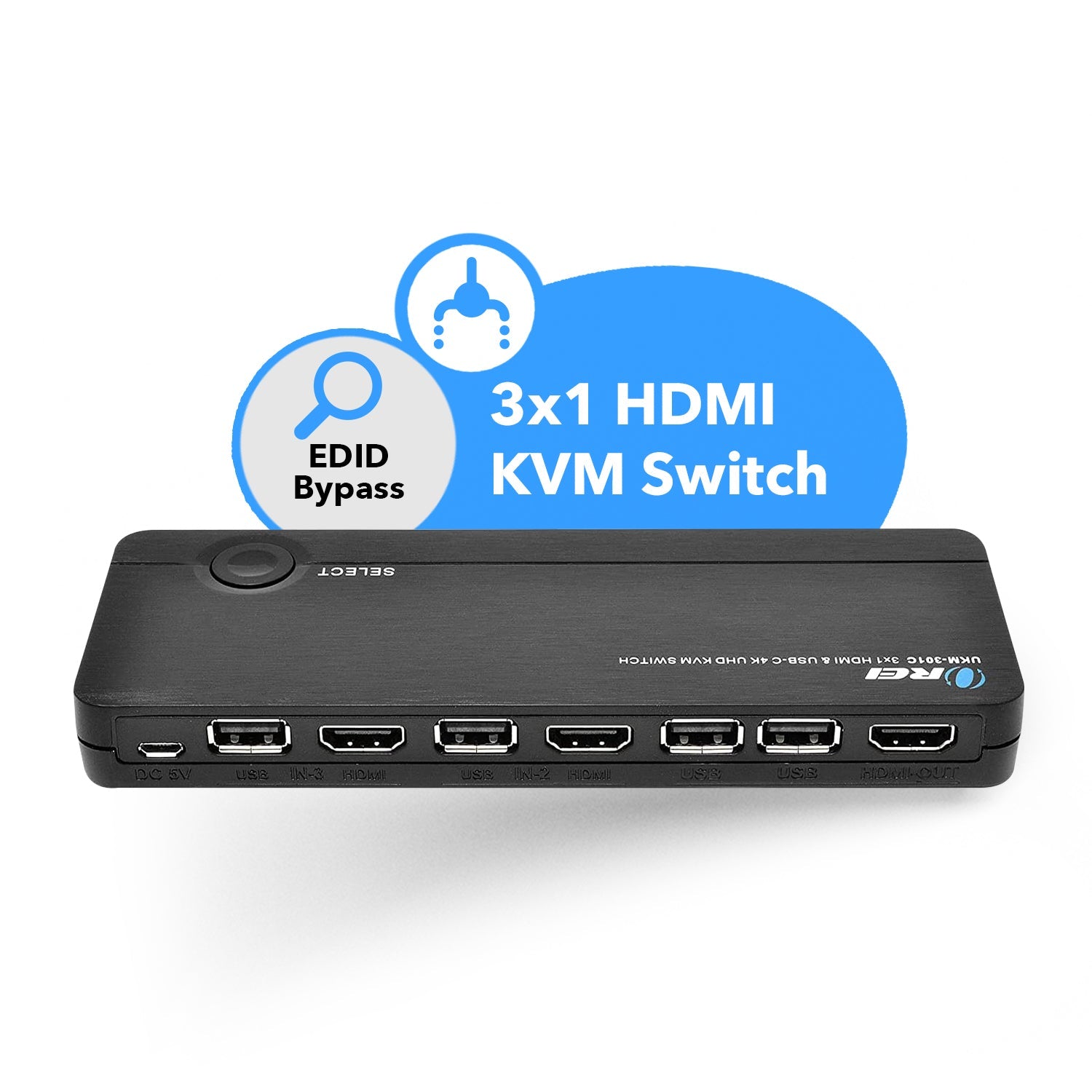

UKM-301C HDMI KVM Switch with USB-C
- HDMI 2.0 & HDCP 2.2 Compliant – Ensures reliable compatibility with modern 4K AV equipment and content protection standards.
- Supports USB-C to HDMI Video Signal (DP Alt Mode Required) – Delivers seamless video output from laptops or PCs that support DisplayPort Alternate Mode.
- 4K@60Hz Video Resolution – Delivers crystal-clear visuals with support for up to 4K resolution at a smooth 60Hz refresh rate.

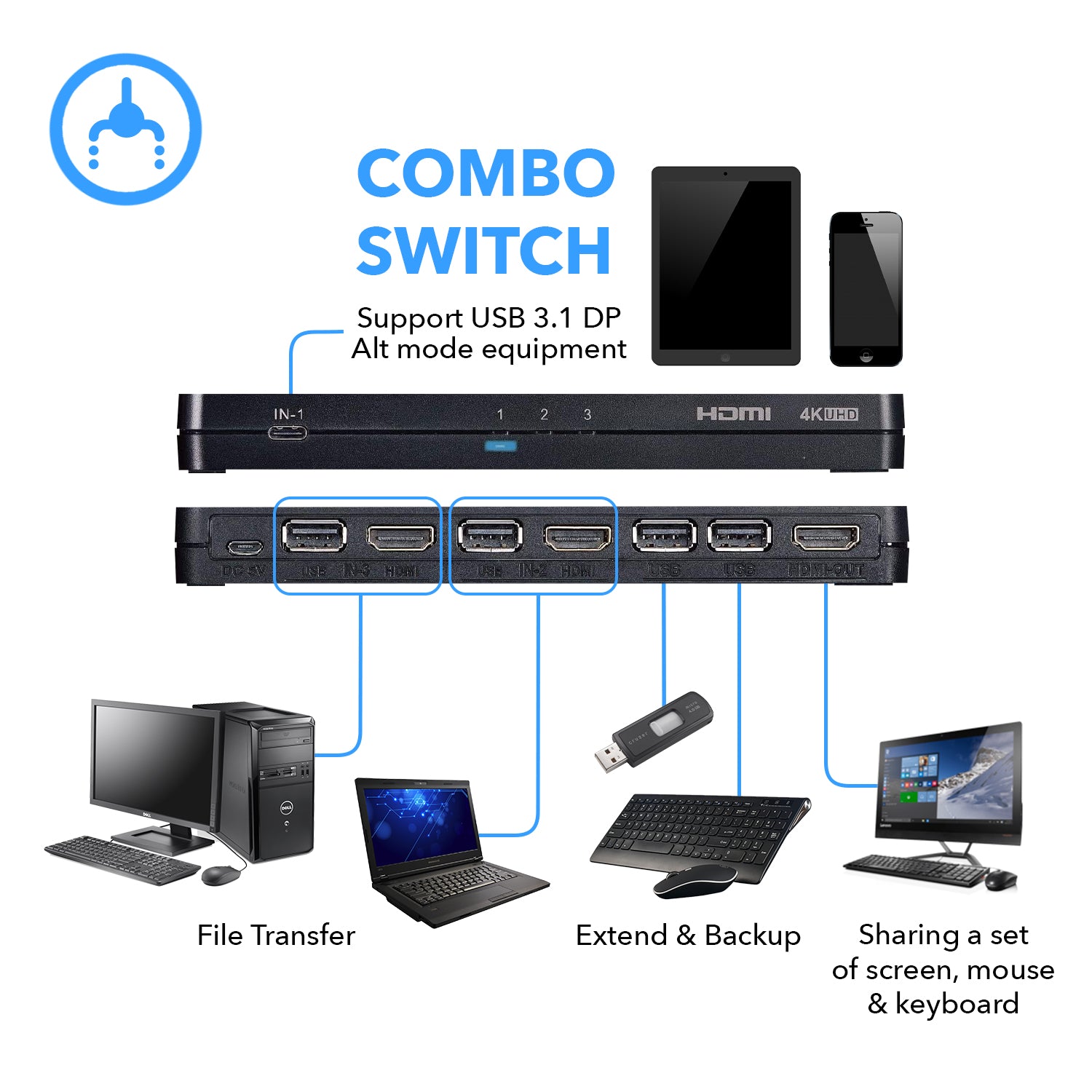

- Integrated USB-C & HDMI KVM Switch (3 Inputs / 1 Output) – Share a single monitor, keyboard, and mouse across one USB-C and two HDMI source devices.
- Supports USB 3.1 Gen1 Type-C Input – Compatible with MacBooks, and Windows laptops with display support through USB-C.
- USB-C Port with 1.5A Power Delivery – Keeps your connected device powered during extended use.
- DTS-HD & Dolby TrueHD Audio Pass-Through – Supports high-definition multichannel audio formats for immersive AV experiences.
- Samsung DeX® & Huawei MUEI Desktop Mode Support – Instantly transform compatible smartphones into full desktop workstations.
-
Compact All-in-One Design – Perfect for saving space on workstations, desktops, or remote setups.

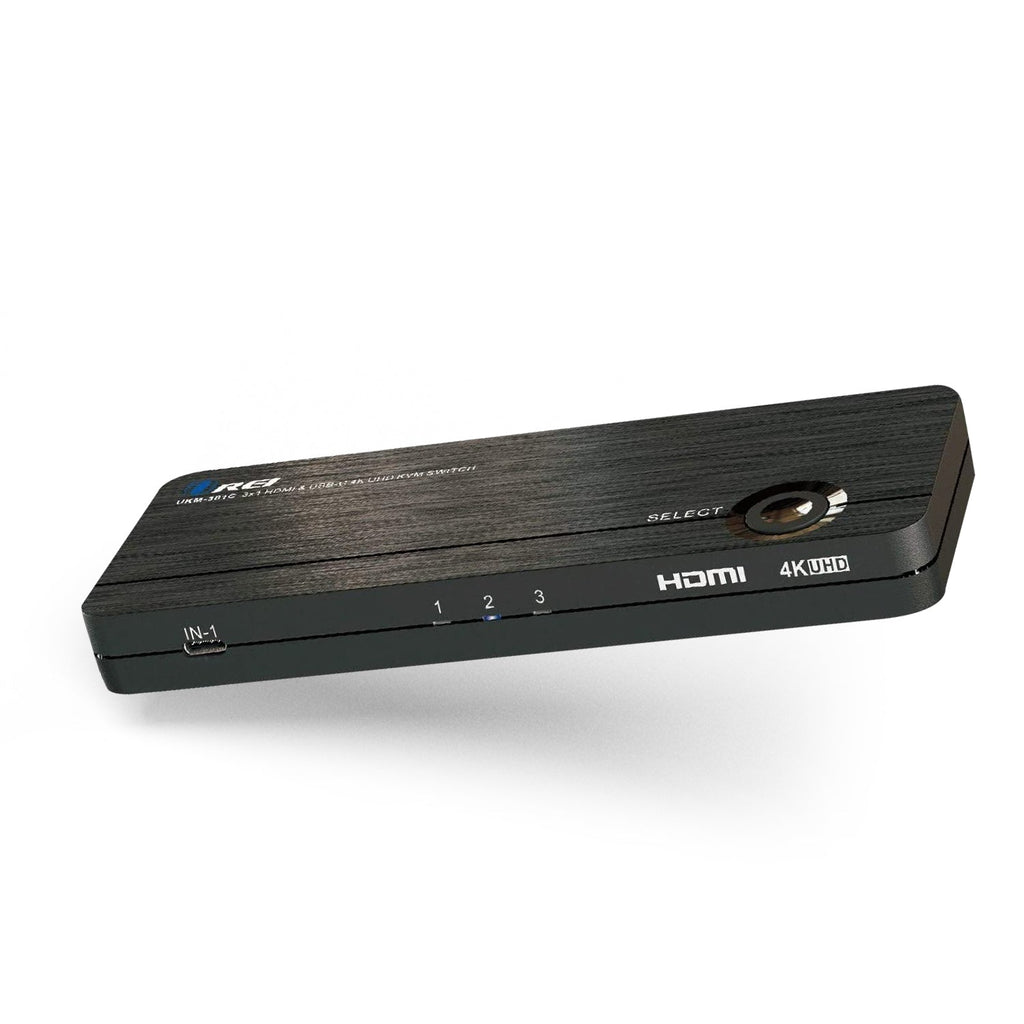

The OREI UKM-301C is a compact USB-C & HDMI KVM switch that combines video, USB, and charging capabilities into one streamlined device. With support for up to 4K@60Hz resolution, it enables seamless multitasking across one USB-C and two HDMI sources, all from a single keyboard, mouse, and display setup.
Equipped with HDMI 2.0 and HDCP 2.2 compliance, it guarantees compatibility with modern video sources and display hardware. The USB-C port supports DP Alt Mode for video output and delivers up to 1.5A charging, making it ideal for keeping your smartphone or laptop powered while in use.
Designed for both home and professional environments, this switch supports Samsung DeX® and Huawei MUEI modes, allowing users to turn compatible smartphones into desktop-like workstations. With Dolby TrueHD and DTS-HD audio support and wide signal frequency handling, it’s built to deliver reliable AV performance.
Whether you're switching between a gaming console, laptop, and smartphone—or just streamlining your desk—the UKM-301C offers a powerful, space-saving solution for true plug-and-play productivity.
[summary]
- 2 HDMI input + Dual USB and 1 USB-C into 2 output Matrix Switcher

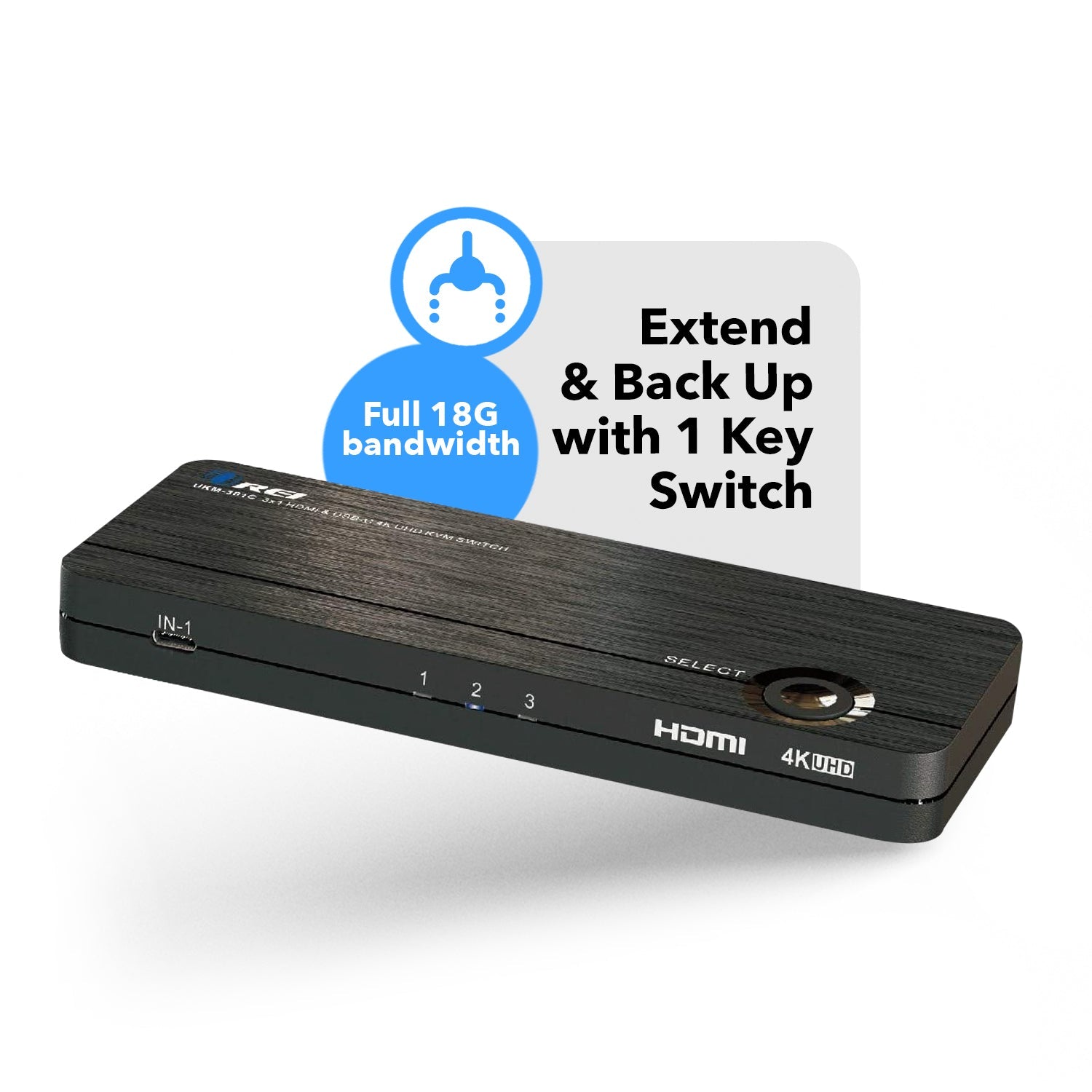

- Full 18G bandwidthbr>
- USB 3.1 GEN1 Type C input supports Android Phones for Video Output through USB-C Port
[/summary]
[tab]
AUDIO AND VIDEO
| Inputs Ports | USB–C DP Alt mode (Type C 24-pin female) |
| HDMI Receiver (Type A 19-pin female) | USB-A Transmitter (USB 2.0 TYPE A) | |
| HDMI Receiver (Type A 19-pin female) | USB-A Transmitter (USB 2.0 TYPE A) | |
| Output Ports | HDMI Transmitter (Type A 19-pin female) | USB-A Transmitter (USB 2.0 TYPE A) | USB-A Transmitter (USB 2.0 TYPE A) |
| Video Bandwidth | 18Gbps |
| Video Resolution: | 4K@60Hz(4096x2160), 1080P@60Hz(1920x1080) |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| HDMI Audio Formats | PCM 2ch / PCM5.1 /PCM7.1, DTS /DTS-HD, Dolby 5.1 /Dolby 7.1/ Dolby TrueHD |
COMMUNICATION AND CONTROL
| HDMI and USB Compliance | HDMI and USB 2.0 |
| HDCP Compliance | HDCP 2.2 |
ADDITIONAL FEATURES
| USB KVM: | Yes |
| USB-C: | Yes |
| Power Delivery: | Yes |
| EDID Management: | Yes |
| CEC: | No |
| ARC/eARC: | No |
| IR Control: | No |
| RS-232: | No |
| HDR: | Yes |
| Audio Extraction: | No |
| Over IP: | No |
POWER
| Power Supply: | DC INPUT 5V / 3A / Micro USB |
| Power Consumption | Main unit power consumption 0.3A, USB-C charging 1.5A, USB-A charging 0.5A, 2.3A(Max./Charger) |
PROPERTIES
| Operating Temperature: | 0°C to 43°C (32°F to 109.4°F) |
| Storage Temperature: | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 10~80 % RH |
DIMENSIONS & WEIGHT
| Height | 18.6 mm |
| Width | 170mm |
| Depth | 62 mm |
| Weight | 114g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |

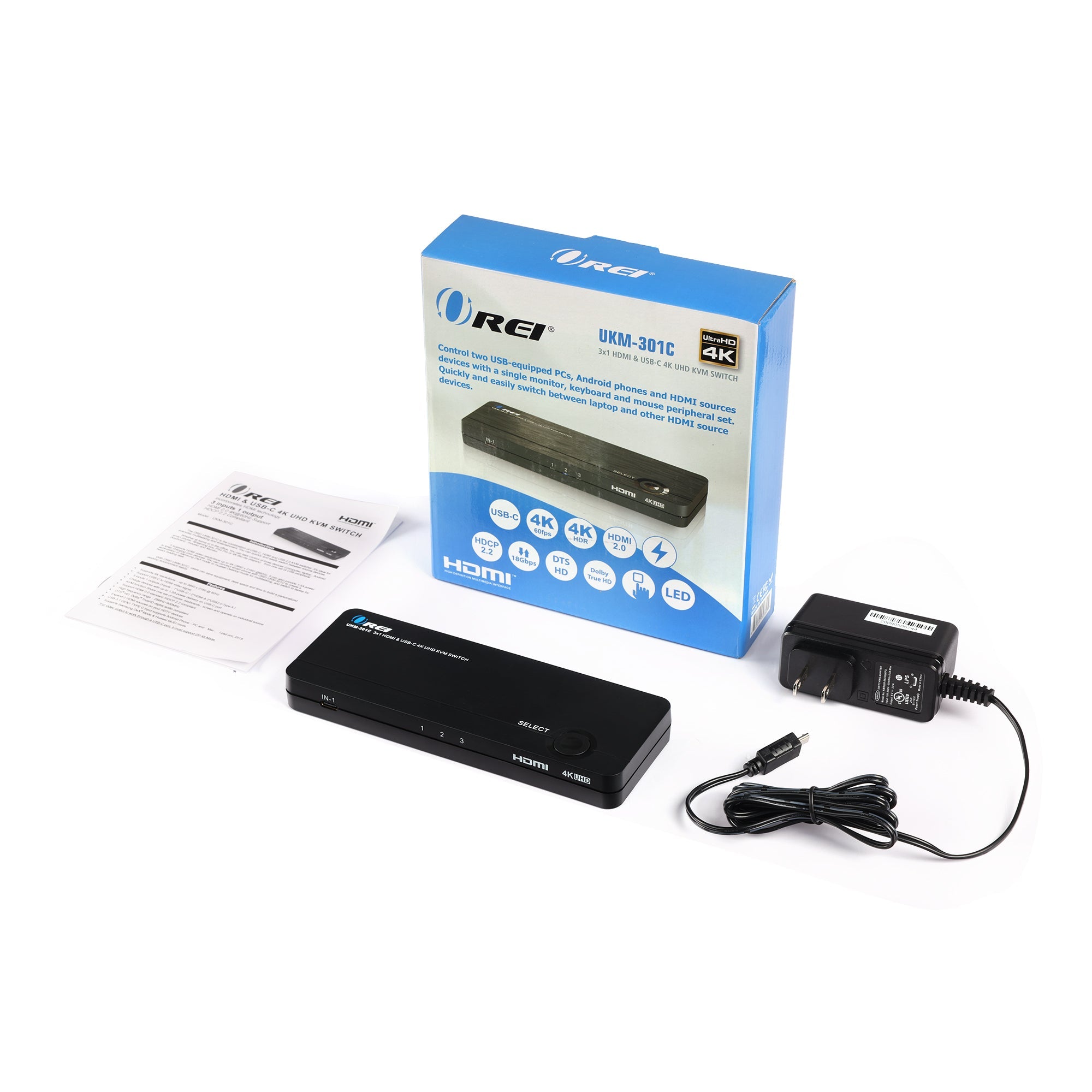

PACKAGE CONTENTS
| 1 × UKM-301C 3x1 HDMI KVM Switch |
| 1 × Power Adapter |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UKM-301C
[/tab1]
[shortdes]
- 3 Inputs - 1 output HDMI KVM switch
- Video resolution up to 4K@60Hz - HDR
- Supports KVM
- Compliance: HDMI 2.0 - HDCP 2.2
[/shortdes]
