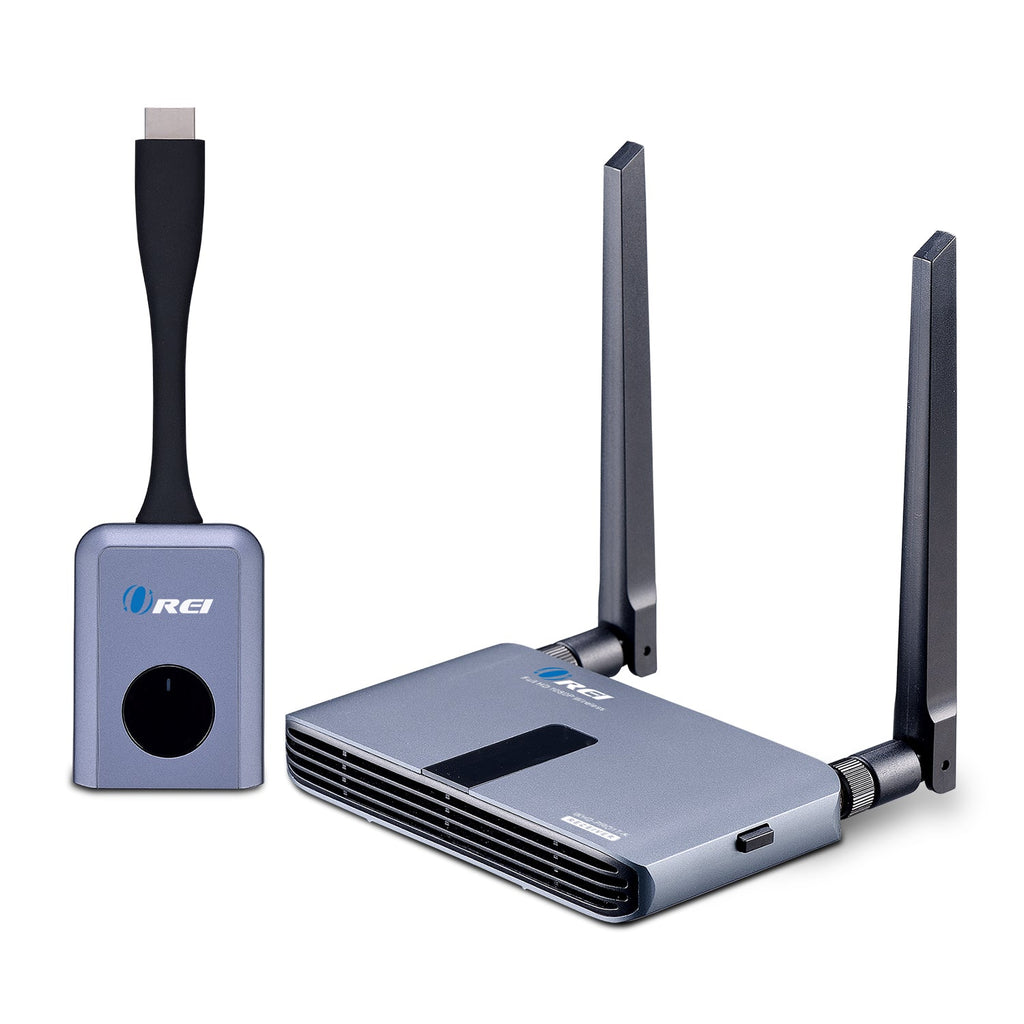

OREI WHD-PRO1T-K: 1X1 WIRELESS HDMI EXTENDER
- Supports up to 1080p Resolution – Delivers sharp and clear video quality for presentations.
- Dual-Band 2.4GHz/5GHz Wi-Fi – Ensures strong wireless performance with extended range.
- Transmission Range up to 100 ft – Supports stable screen casting in large rooms.
- Low-Latency Signal Transmission – Maintains smooth display with only 0.2-second delay.
- H.264 Video Compression – Provides high-quality video with efficient bandwidth usage.

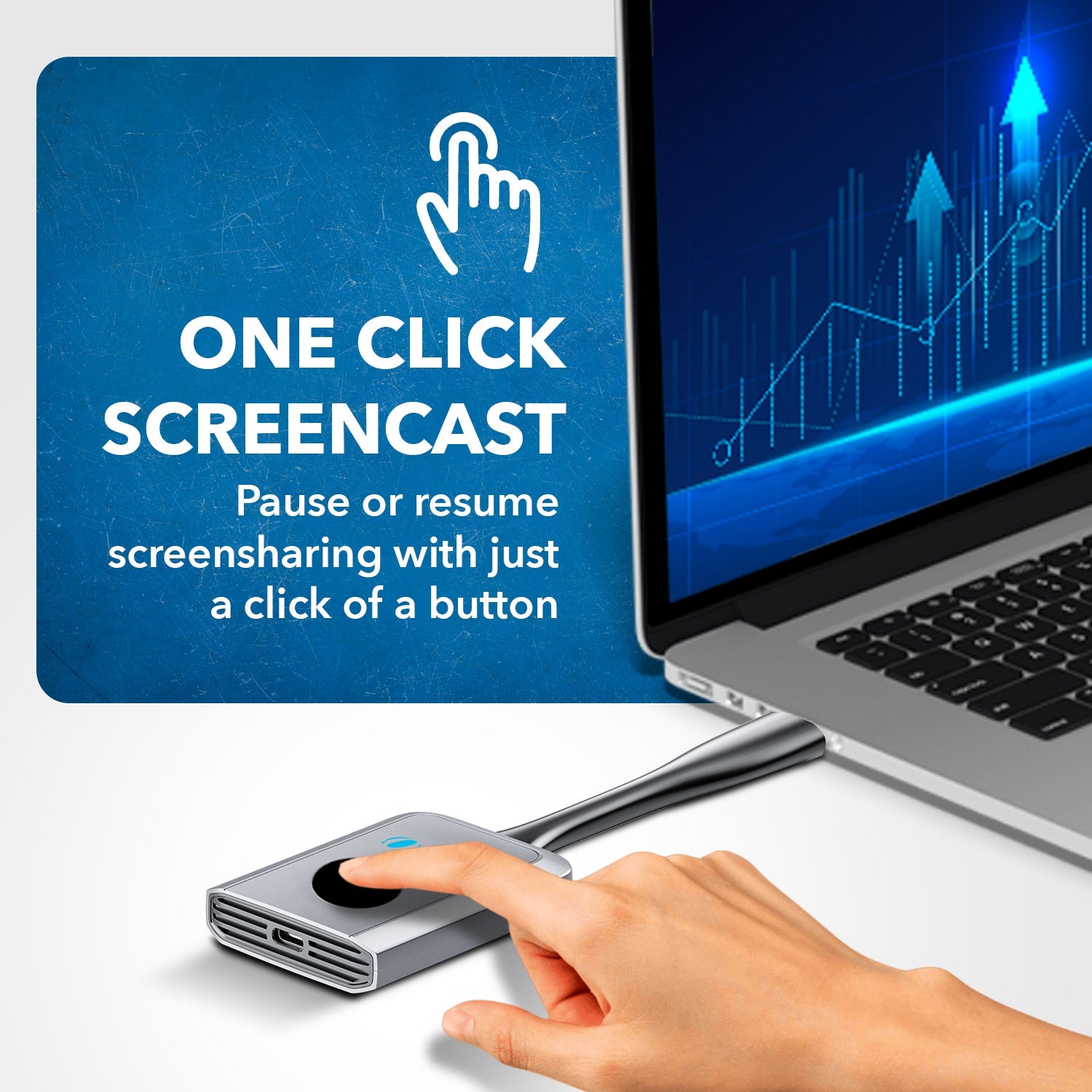

- One-Click Screen Sharing – Easily pause or resume screen sharing with the transmitter button.

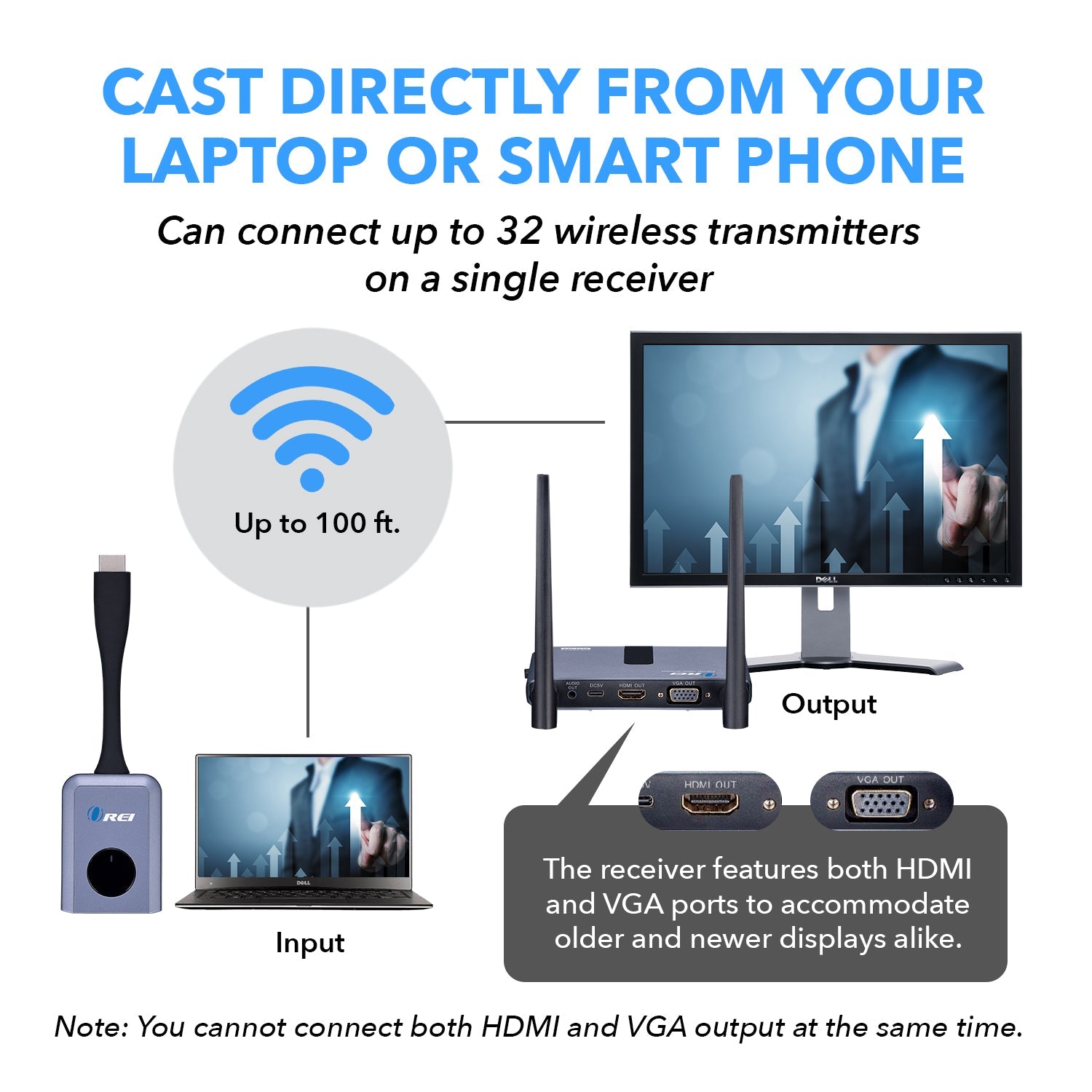

- HDMI and VGA Outputs on Receiver – Supports both modern and legacy display connections.

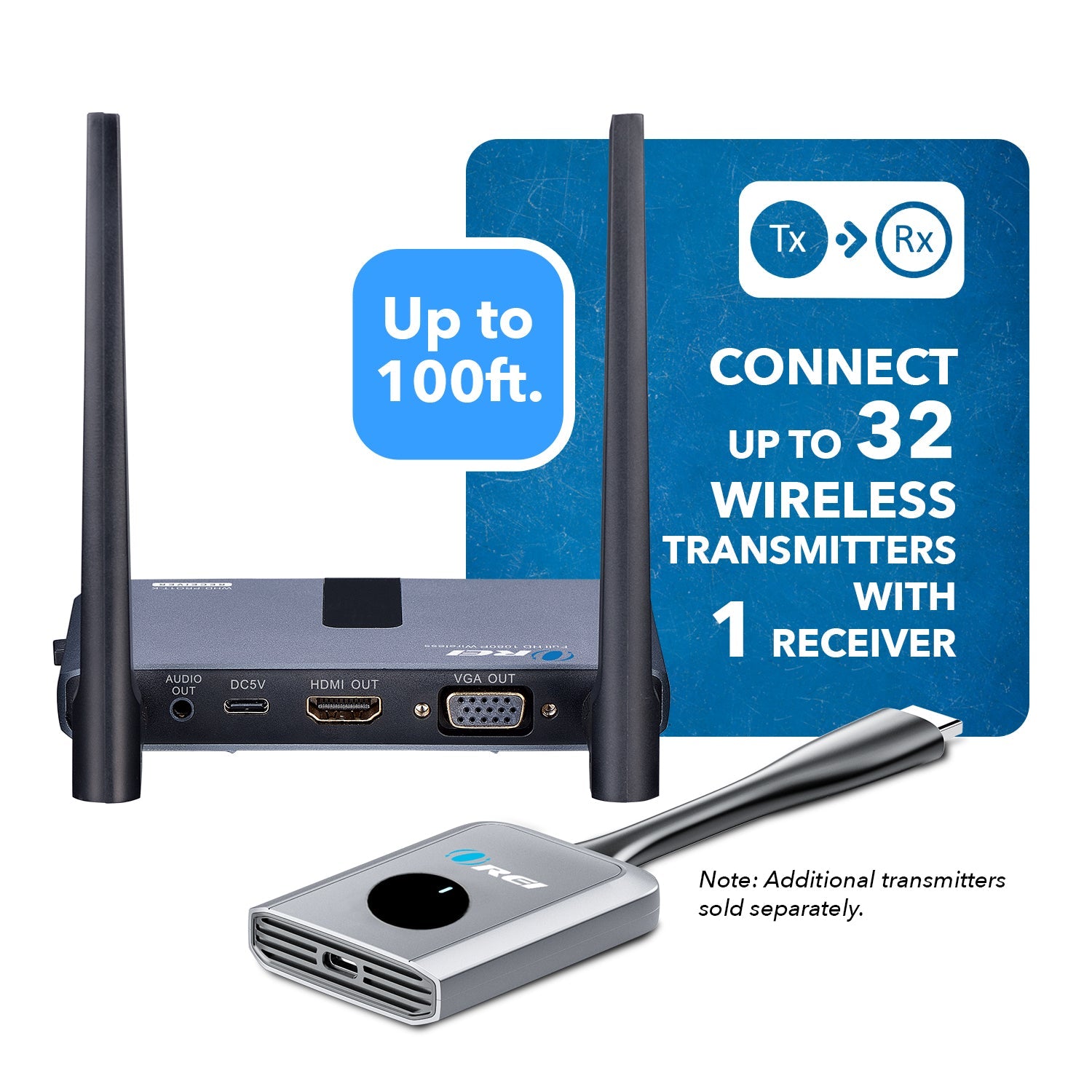

- Multi-Transmitter Support – Allows multiple users to connect to a single receiver.
- Screen Mirroring Support – Enables content casting from laptops and smartphones.
- No Driver or Software Needed – Offers a hassle-free plug-and-play user experience.
The WHD-PRO1T-K is a wireless presentation system designed for seamless screen sharing in conference rooms, classrooms, and collaborative spaces. It supports up to 1080p resolution and enables wireless transmission up to 100 feet using dual-band 2.4GHz/5GHz Wi-Fi.
The transmitter allows one-click control for pausing or resuming screen sharing, while the receiver features both HDMI and VGA outputs for compatibility with newer and legacy displays.
With low-latency H.264 video compression and support for multiple transmitters connected to a single receiver, it is an ideal solution for group presentations and BYOD (Bring Your Own Device) setups. No drivers or software installation is required—ensuring fast and easy deployment.
[shortdes]
- Video resolutions up to 1080p up to 100 feet
- Low latency signal transmission
- Screen Mirroring
[/shortdes]
[tab]

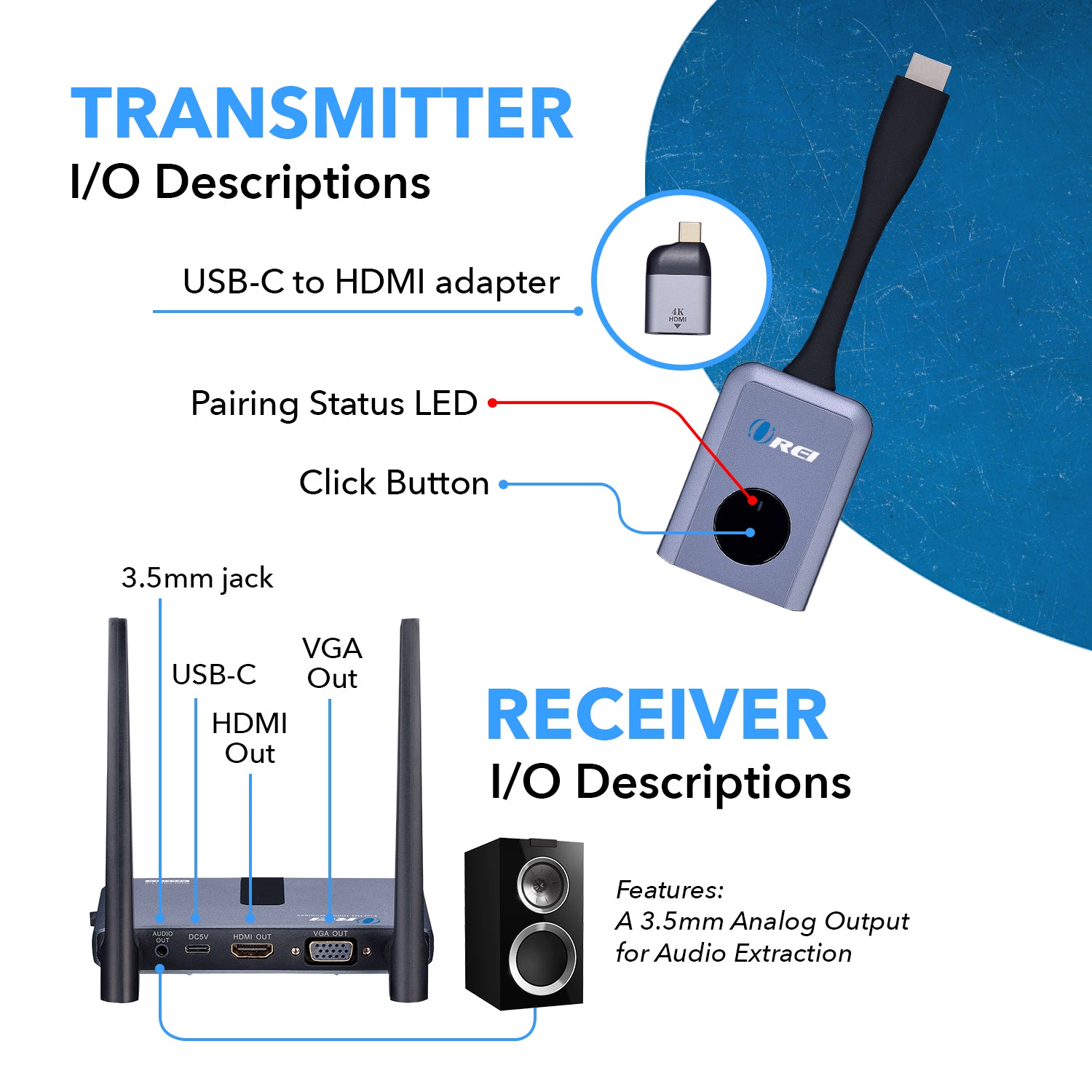

CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin male] |
| 1 × USB-C [Power Input] | ||
| Receiver: | INPUT: | 1 × USB-C [Power Input] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × VGA [D-Sub, 15-pin female] | ||
| 1 × Audio Out [3.5mm Stereo Mini-jack] |

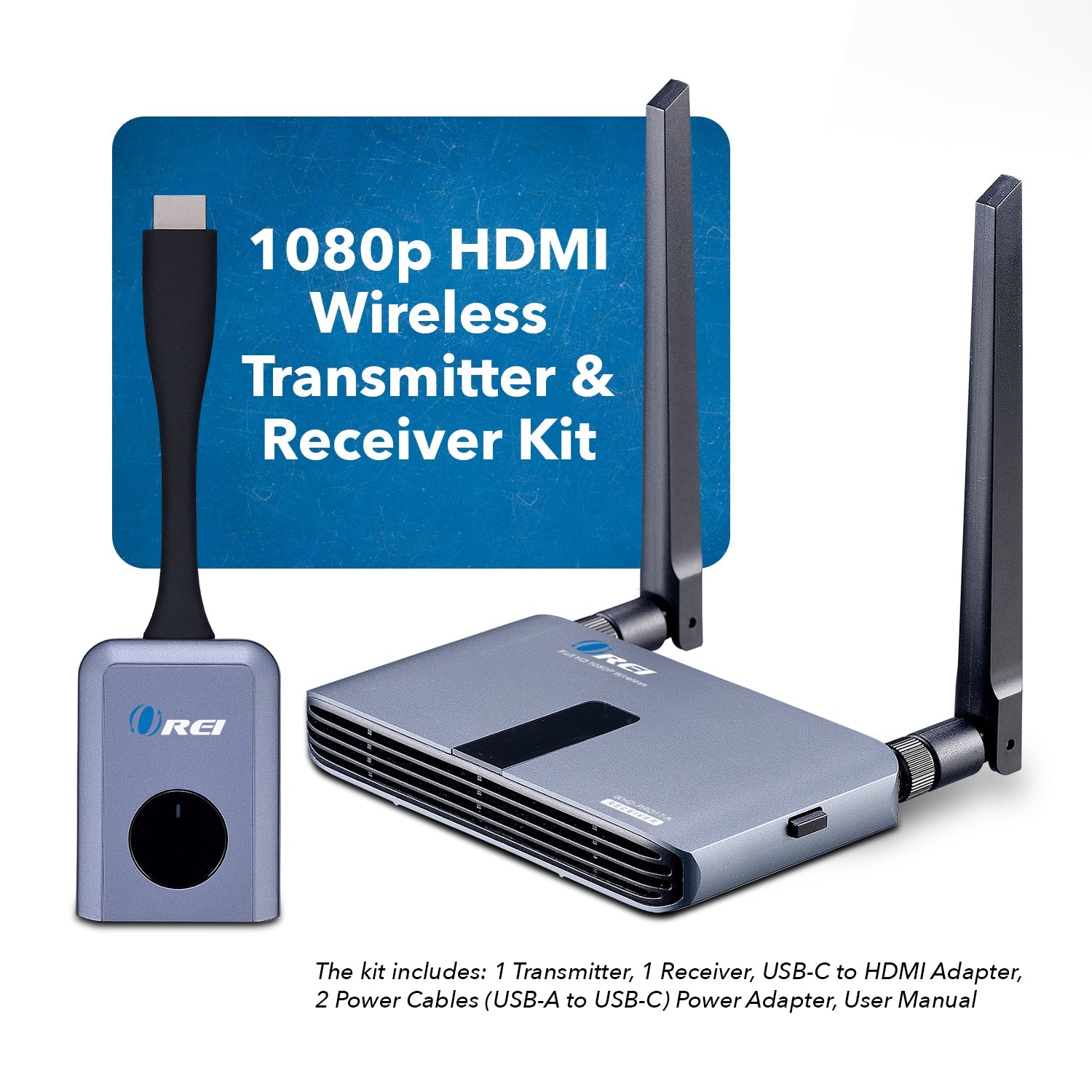

PACKAGE CONTENTS
| 1x WHD-PRO1T-K Transmitter |
| 1x WHD-PRO1T-K Receiver |
| 1x DC 5V/2A Power Adapter (for Receiver) |
| 2x USB-A to USB-C Power Cables |
| 1x USB-C to HDMI Adapter |
| User Manual |
EXTENDING DISTANCE
| 1080p@60Hz: | Up to 100 feet (Line-of-Sight) |
VIDEO OUTPUT
| Video Resolutions: | Up to 1080p@60Hz |
ADDITIONAL FEATURES
| IR Control: | ❌ |
| USB KVM: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | ❌ |
| SSID Pairing: | ✅ |
| Screen Mirroring: | ✅ |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
COMPLIANCES
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.3 |
POWER
| Power Consumption: | Transmitter 4.5W (Max); Receiver 10W (Max) |
| Power Supply: | Transmitter: DC 5V/0.9A; Receiver: DC 5V/2A |

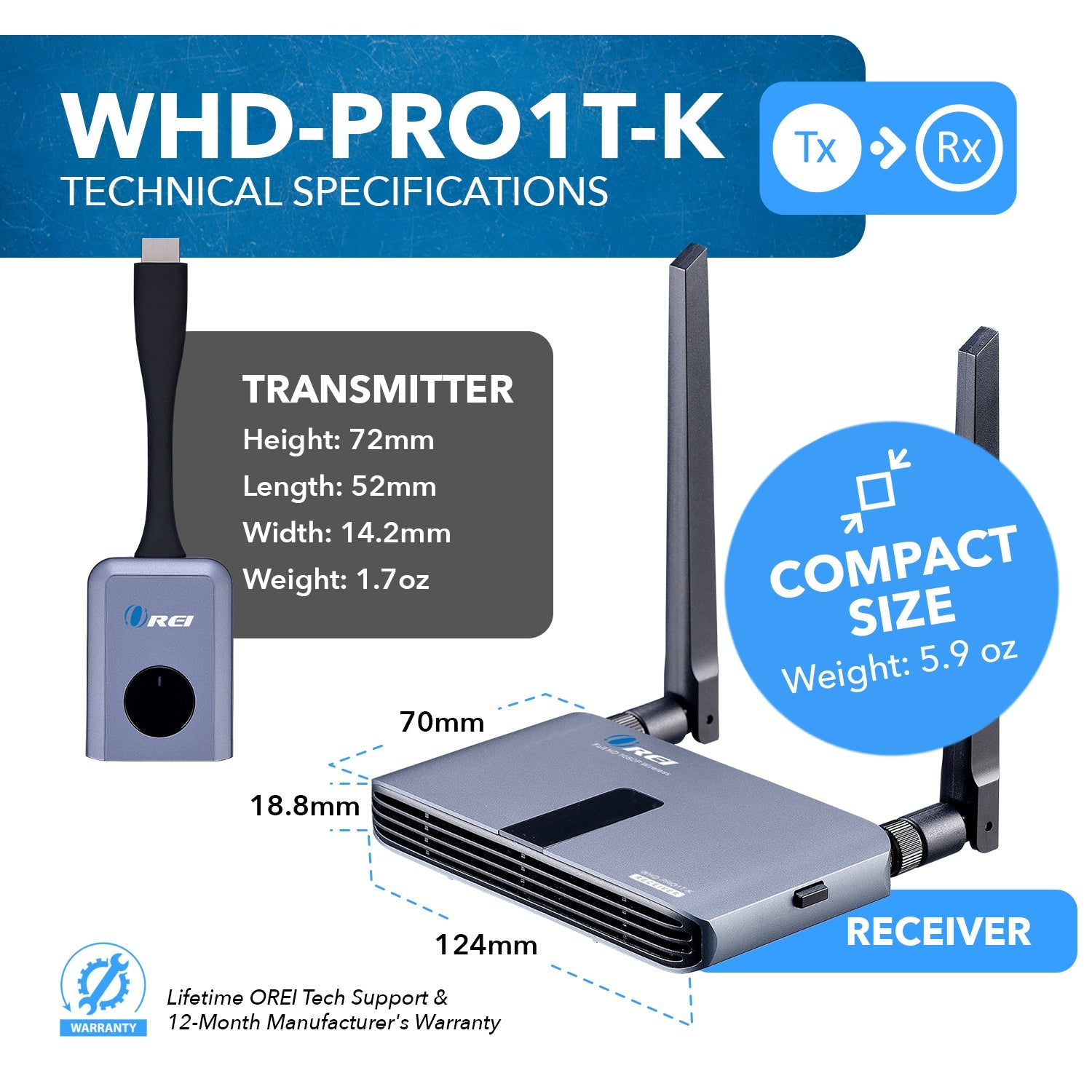

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 187.6mm / 7.39in |
| Width: | 52mm / 2.05in | |
| Height: | 14.2mm / 0.56in | |
| Weight: | 50g / 1.7oz | |
| Receiver: | Length: | 124mm / 4.88in |
| Width: | 70mm / 2.76in | |
| Height: | 18.8mm / 0.74in | |
| Weight: | 168g / 5.9oz |
PROPERTIES
| Color: | Gray |
| Housing: | Plastic & Aluminum Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
