Description

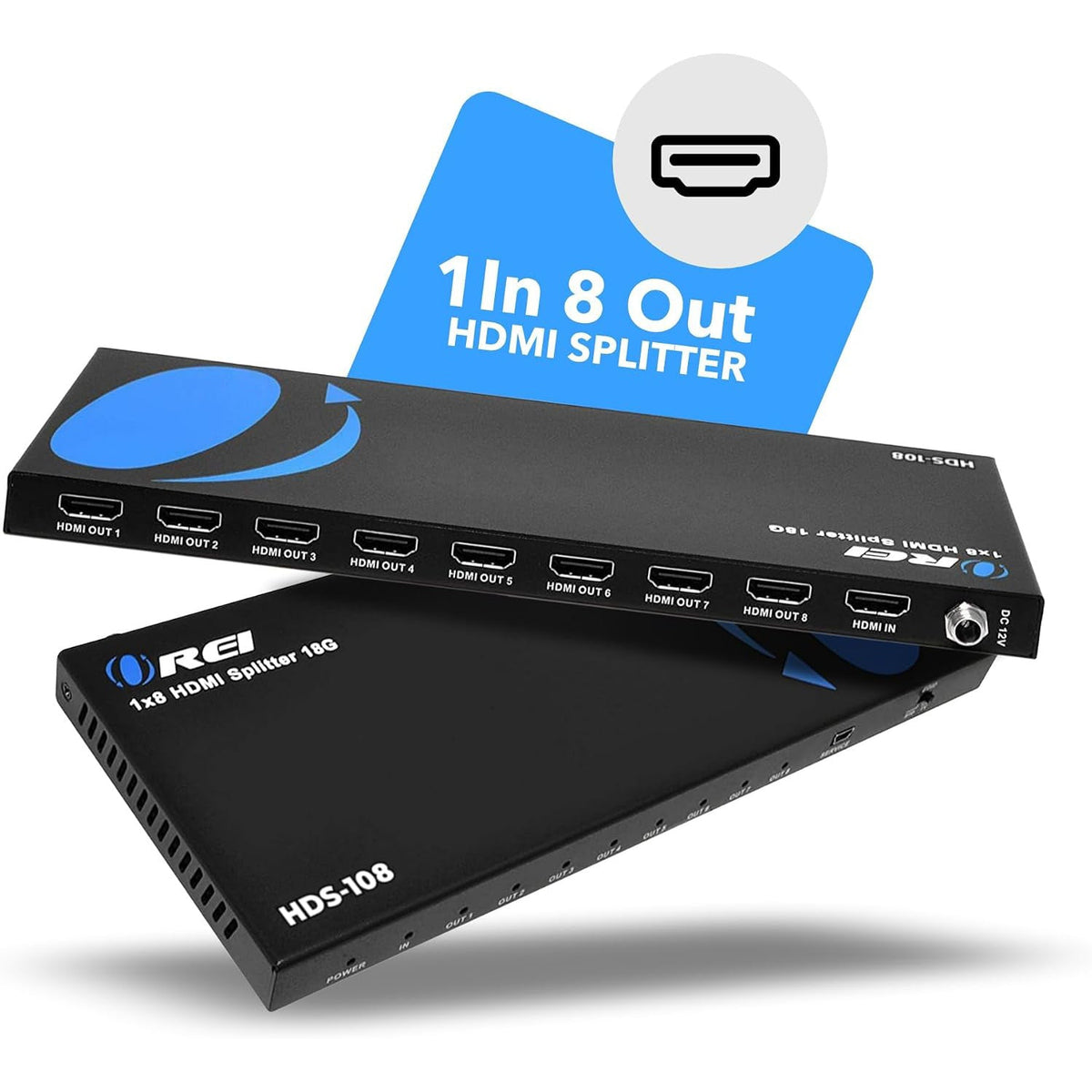

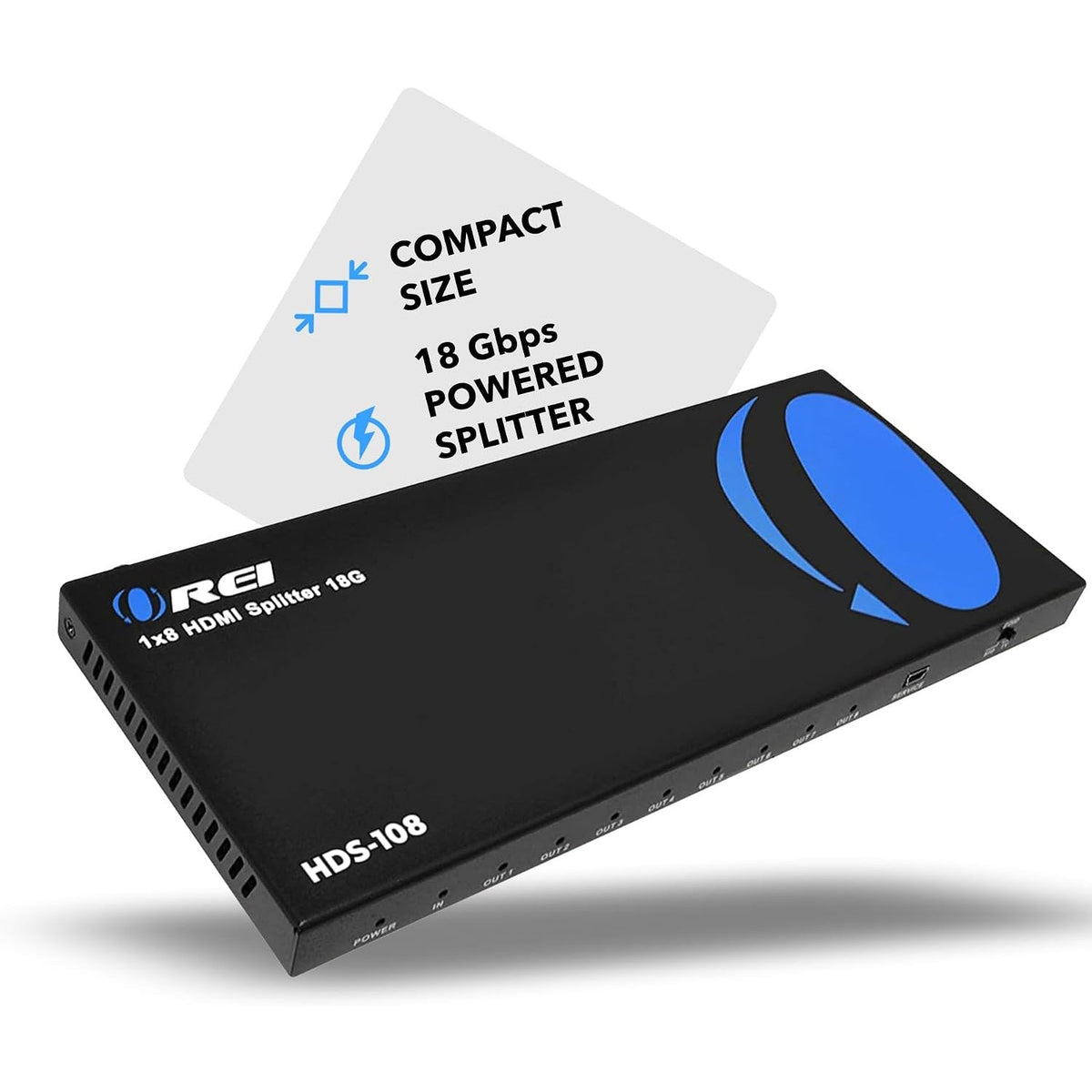

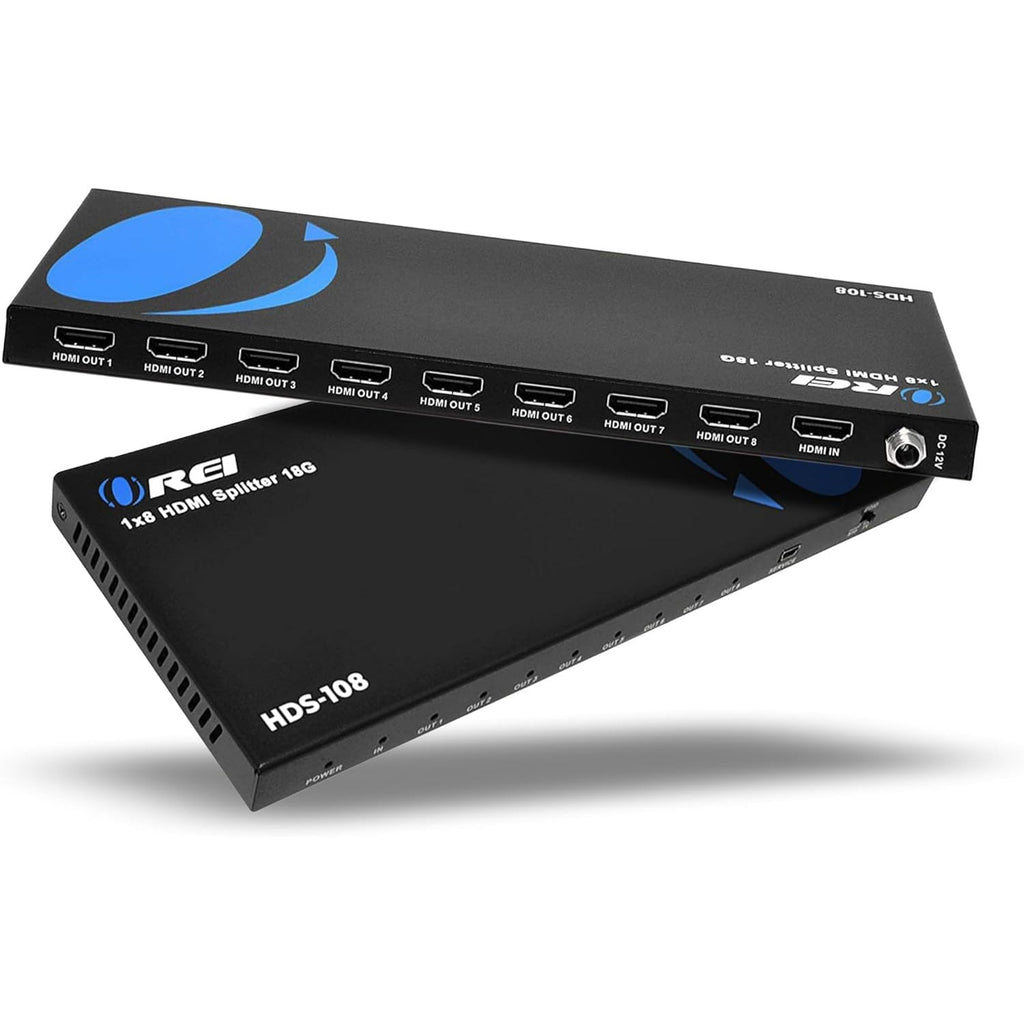

OREI HDS -108: 1x8 HDMI Splitter
- HDMI 2.0b & HDCP 2.2 Compliant – Ensures compatibility with modern video and content protection standards.
- Video Resolutions up to 4K@60Hz – Delivers crisp UHD visuals and supports 3D content up to 1080p@60Hz.
- 18Gbps Video Bandwidth – Provides stable, uncompressed signal distribution across all outputs.
- Multi-Channel Audio Pass-through – Compatible with LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and more.
- EDID Management – Enhances compatibility between source devices and connected displays.
- Durable Construction – Sturdy metal housing ensures reliability in both commercial and residential environments.
- Plug-and-Play Installation – Simple setup with no configuration required.
- Compact Design – Space-saving design ideal for seamless integration.
The HDS-108 is a high-performance 1x8 HDMI splitter engineered to distribute a single HDMI input across eight simultaneous outputs. Fully compliant with HDMI 2.0b and HDCP 2.2 standards, it supports video resolutions up to 4K@60Hz and 3D content at 1080p@60Hz. With a robust 18Gbps bandwidth, the HDS-108 ensures consistent, high-quality signal delivery across all connected displays.
This splitter also supports advanced audio pass-through for formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio, making it suitable for both professional AV setups and home entertainment systems.
Integrated EDID management optimizes compatibility between the source and connected displays, while the durable metal chassis and plug-and-play setup ensure long-term reliability and easy installation.
Ideal for retail displays, control rooms, and multi-screen environments, the HDS-108 delivers powerful HDMI distribution in a compact and rugged design.
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 8 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1× SERVICE [Mini-USB B, Update port] |
PACKAGE CONTENTS
| 1x UHDS-104 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | No |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / No / No |
| MST Support (Extended Display): | No |

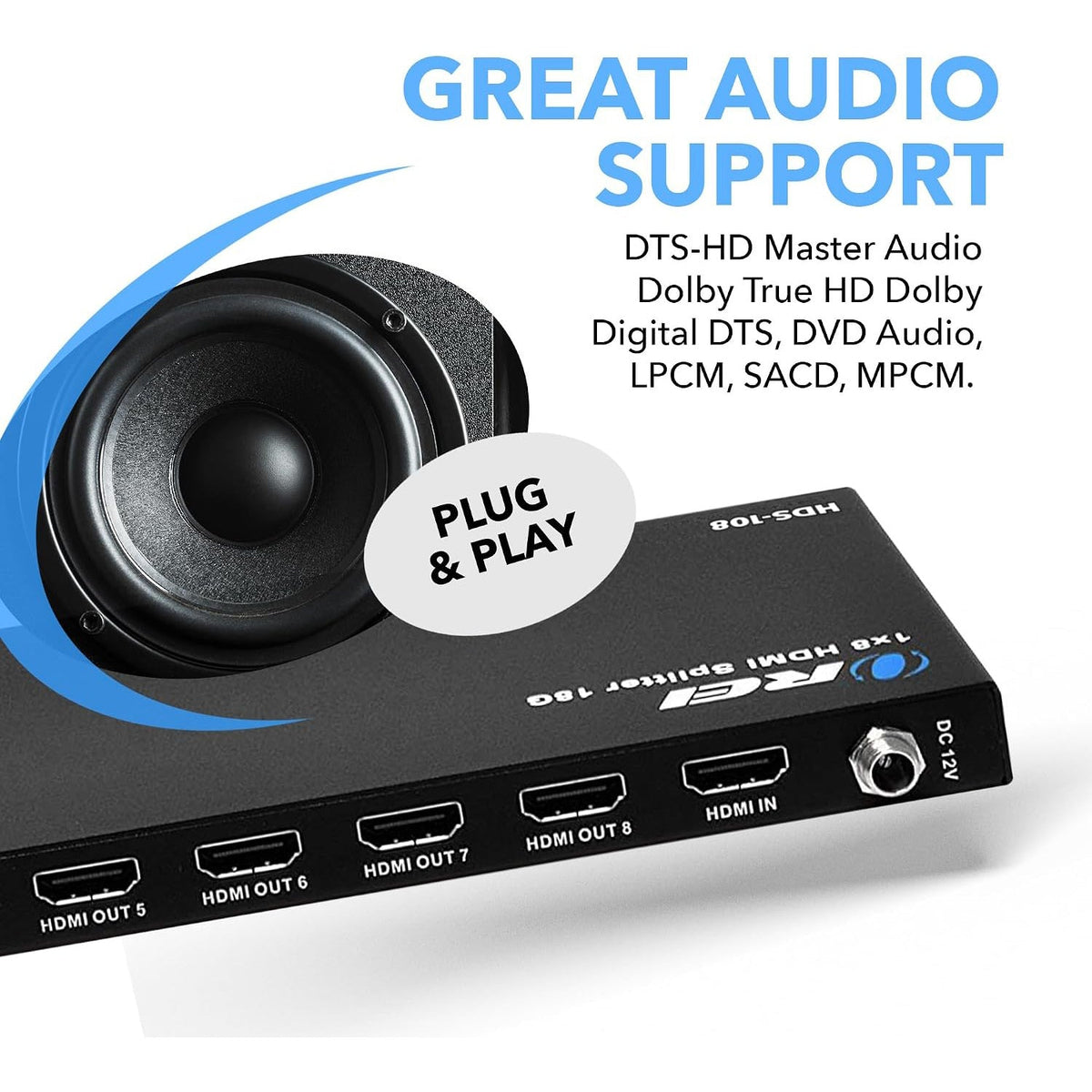

AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio
|
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 6.15W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |
DIMENSIONS & WEIGHT
| Length: | 243mm / 9.57in | |
| Width: | 102mm / 4.01in | |
| Height: | 16mm / 0.63in | |
| Weight: | 572g / 1.26lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
