Description
8K 1x4 HDMI Splitter With Audio Extraction, Downscaler & EDID management - BK-104A
-
HDMI 2.1 and HDCP 2.3 Compliant – Ensures compatibility with the latest content protection and devices.
-
48Gbps FRL and 18Gbps TMDS Bandwidth – Delivers smooth, high-quality video and audio.
-
8K@60Hz and 4K@120Hz Resolution – Provides stunning high-resolution visuals.
-
HDR10+, Dolby Vision, and HLG Pass-through – Enhances color and contrast for a superior viewing experience.
-
VRR, ALLM, QMS, QFT, SBTM Support – Optimizes performance and reduces latency.
-
Auto Downscaling and HDR to SDR Conversion – Adapts high-resolution content to lower-resolution displays.
-
Advanced EDID Management – Ensures seamless compatibility with connected devices.
-
Compact, Plug-and-Play Design – Quick setup with a compact design, ideal for any environment.

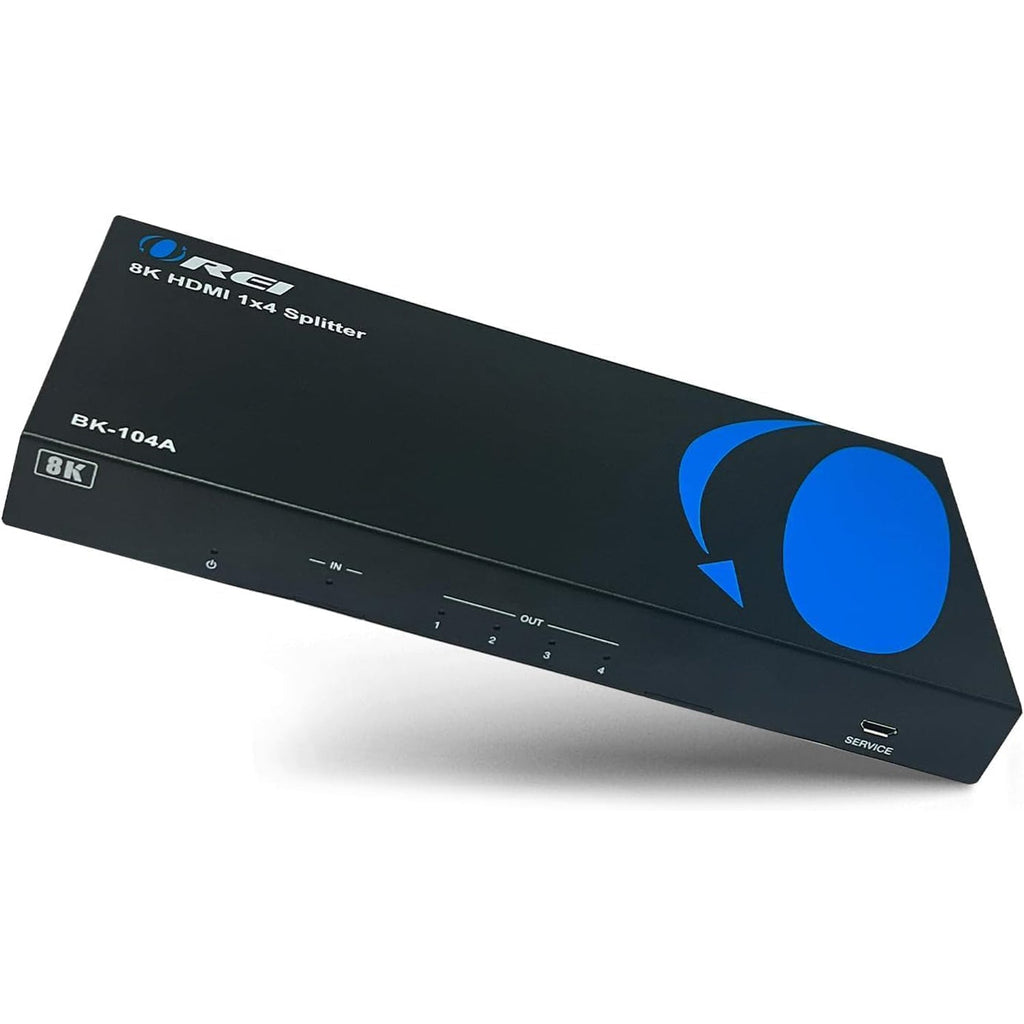

The BK-104A is a high-performance 1x4 HDMI splitter that distributes a single HDMI source to four displays with resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz.
It supports HDMI 2.1, HDCP 2.3, and a high capacity 48Gbps FRL bandwidth for flawless transmission. Advanced video features include HDR10+, Dolby Vision, HLG, and support for VRR, ALLM, QMS, QFT, and SBTM technologies.
Each output supports automatic downscaling from 8K to 4K or 1080p, plus HDR to SDR conversion for seamless integration with various displays. EDID management allows for optimal signal compatibility, while its compact, plug-and-play design ensures easy installation for both professional and residential setups.
[shortdes]
-
1 in 4 out 8K HDMI splitter With Audio Extraction
-
Resolutions up to 8K@60Hz 4:2:0
-
8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| 1 × Optical [S/PDIF] | ||
| CONTROL: | 1× SERVICE [USB-C, Update port] |
PACKAGE CONTENTS
| 1x BK-104A HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 | We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 10 Feet |
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps FRL & 18 Gbps TMDS |
| Video Resolutions: |
Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit & 4K@120Hz 4:4:4 10bit, 4K@60Hz, 2K@120Hz, 2K@60Hz
|
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | Yes |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| OPTICAL Audio Formats | LPCM/Dolby/DTS 5.1CH |
| 3.5mm Analog Audio Formats: |
LPCM 2.0
|
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 6W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |
DIMENSIONS & WEIGHT
| Length: | 176mm / 6.93in | |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 295g / 10.41oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: BK-104A
[/tab1]
