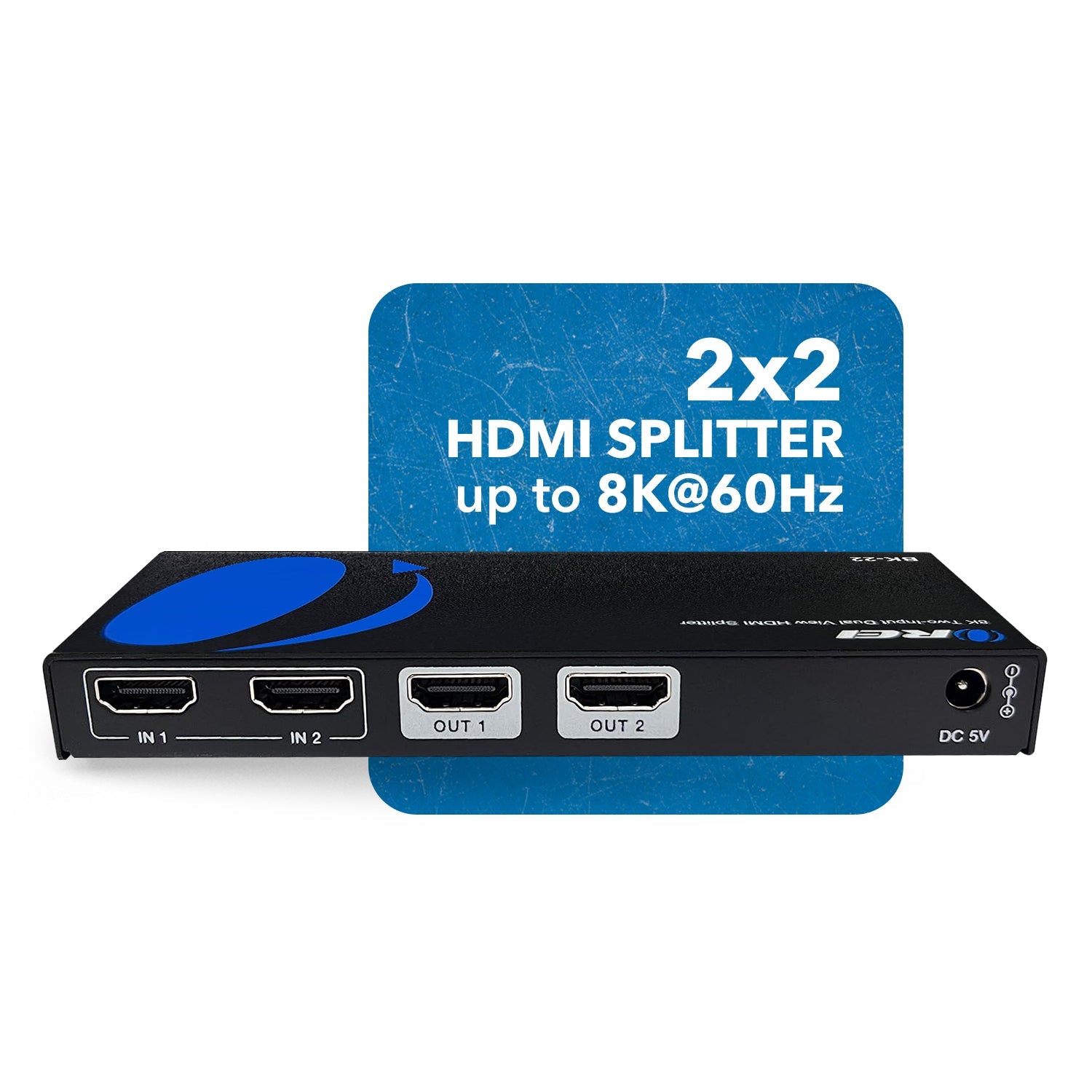

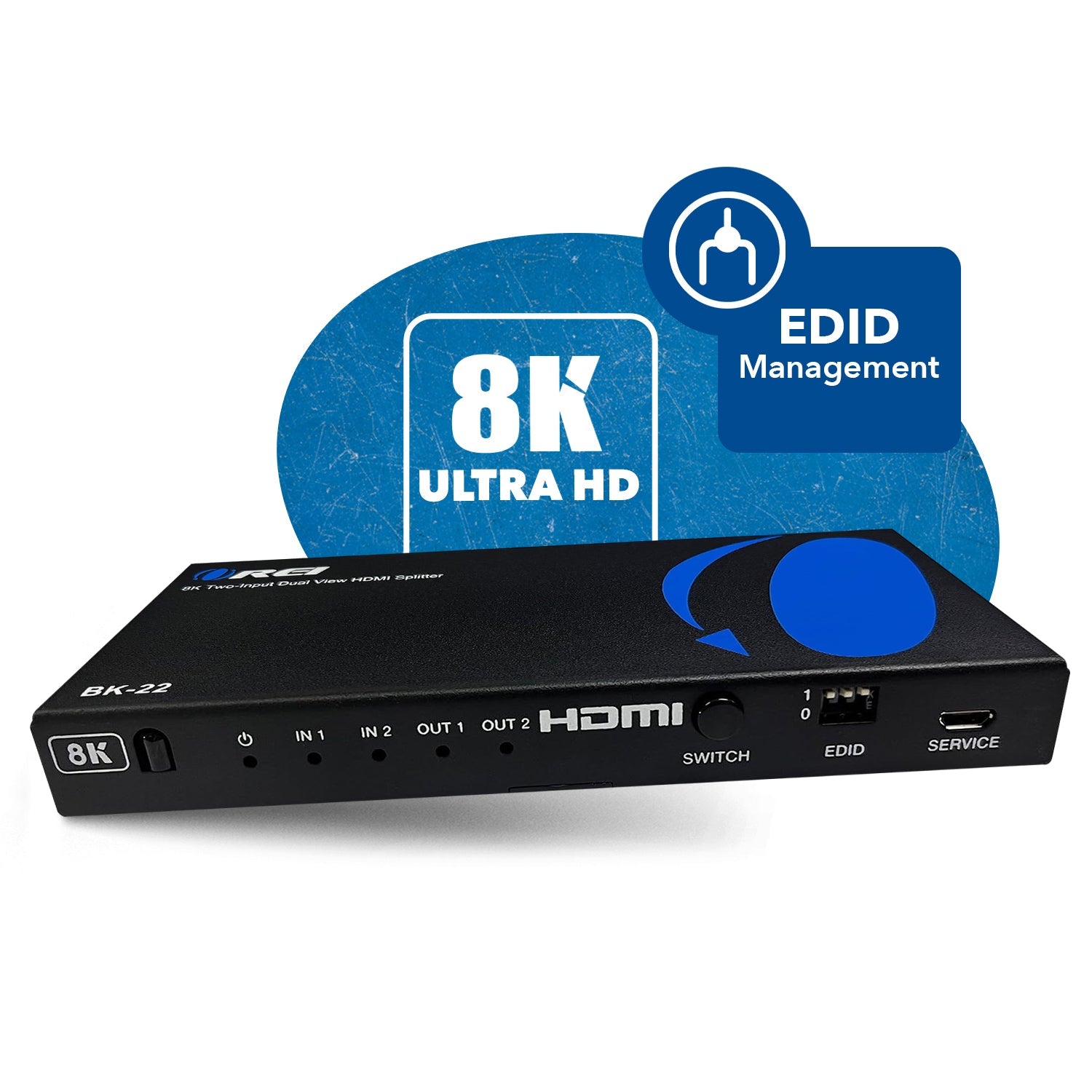

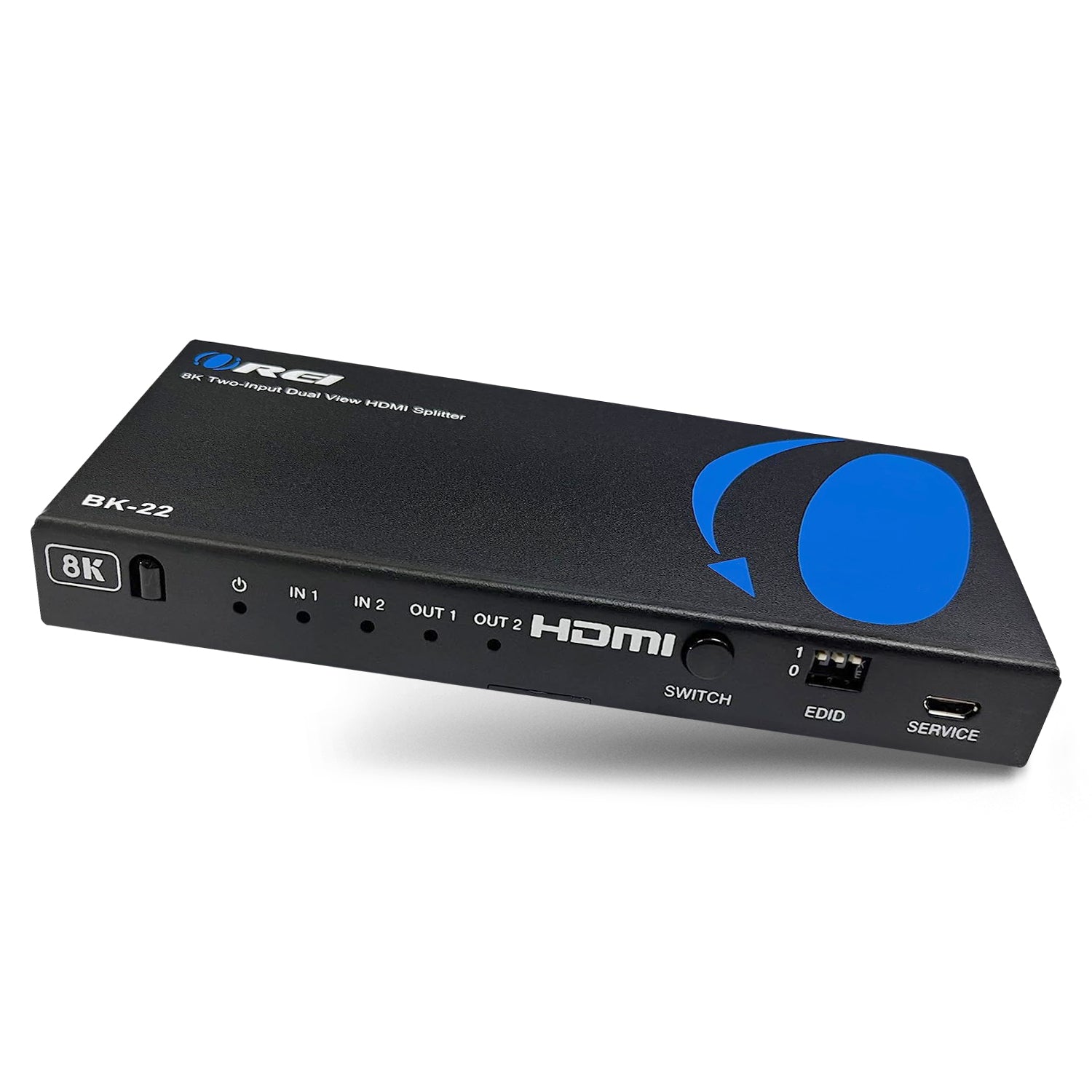

OREI BK-22: 2x2 8K HDMI Splitter
Key Features:
- HDMI 2.1 and HDCP 2.3 Compliant – Supports the latest standards for 8K and 4K video and protected content playback.
- Resolutions up to 8K@60Hz and 4K@120Hz – Ensures compatibility with ultra-high-definition displays and high-frame-rate content.
- 40Gbps Bandwidth – Enables uncompressed, high-speed audio and video transmission.
- Full HDR Format Pass-through – Compatible with HDR10+, Dolby Vision, and HLG for enhanced contrast and color performance.
- Gaming and Display Technologies – Supports VRR, FVA, and ALLM for smooth, low-latency performance in dynamic content scenarios.
- Comprehensive Audio Format Support – Works with LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD.

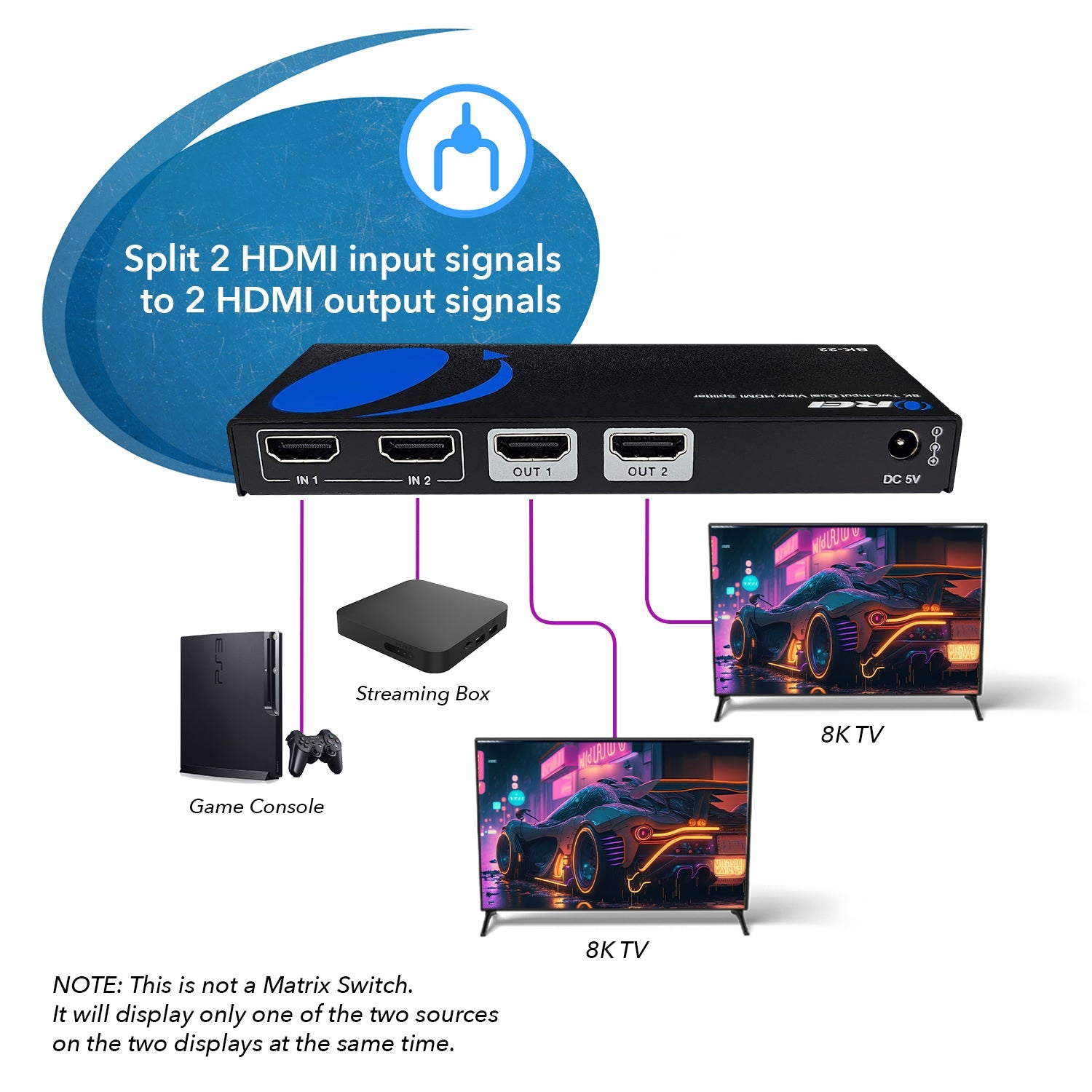

- 2 Input Splitter with Dual Output – Allows selection between two input sources and simultaneous output to two displays (one source at a time on two displays).
- Advanced EDID Management – Ensures optimal resolution and format negotiation across all connected devices.
- IR Remote and Front Panel Control – Offers convenient and flexible input switching.
- Compact Design – Ideal for any home or commercial setups.
The BK-22 is a high-performance 2 Input HDMI splitter switch designed to connect two HDMI sources and simultaneously mirror content to two displays, one source at a time. Fully compliant with HDMI 2.1 and HDCP 2.3, it supports the latest video resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz, delivering ultra-high-definition visuals with a video bandwidth of up to 40Gbps.
Engineered for premium AV experiences, the BK-22 features full HDR pass-through including HDR10+, Dolby Vision, and HLG. It also supports advanced gaming and display technologies such as Variable Refresh Rate (VRR), Fast Vactive (FVA), and Auto Low Latency Mode (ALLM).
Audio format support includes LPCM, Dolby Digital Plus, Dolby TrueHD, DTS High Res, DTS-HD MA, and DSD, ensuring full compatibility with a wide range of media sources.
Equipped with dual output, advanced EDID management, and intuitive switching control via IR remote or front panel buttons, the BK-22 is ideal for both commercial AV systems and high-end home entertainment setups. Its compact form factor enables easy, flexible installation in any environment.
[shortdes]
- 2 Input 8K HDMI splitter With IR control
- Video resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4
- Advanced EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 2 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 × SERVICE [Micro-USB, Update port] |
PACKAGE CONTENTS
| 1x BK-22 |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 | We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 6 Feet |
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 40Gbps |
| Video Resolutions: |
Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit & 4K@120Hz 4:4:4 10bit, 4K@60Hz, 2K@120Hz, 2K@60Hz
|
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | No |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
| IR Control: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 2.25W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 115mm / 4.53in | |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 220g / 7.76oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: | 20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
