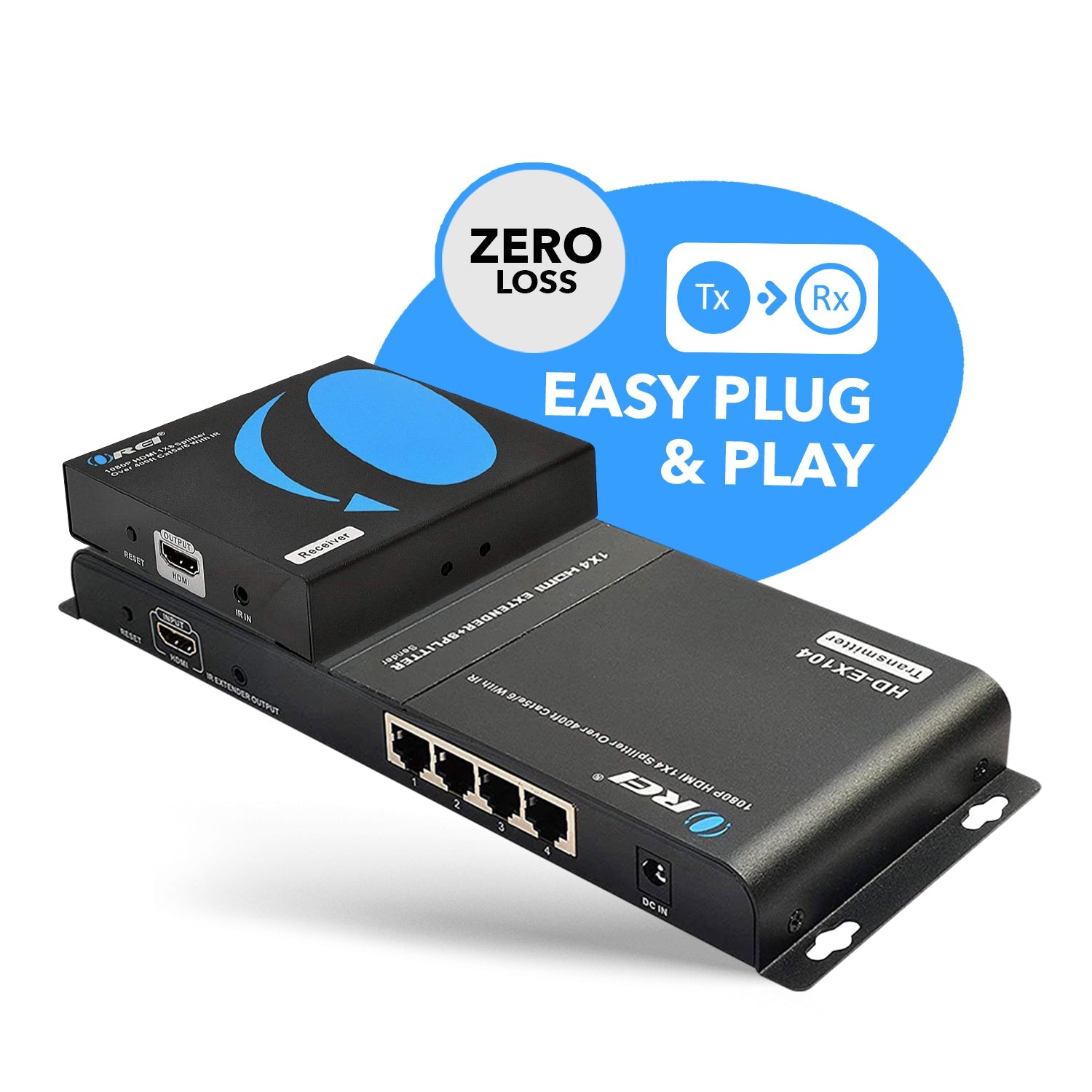

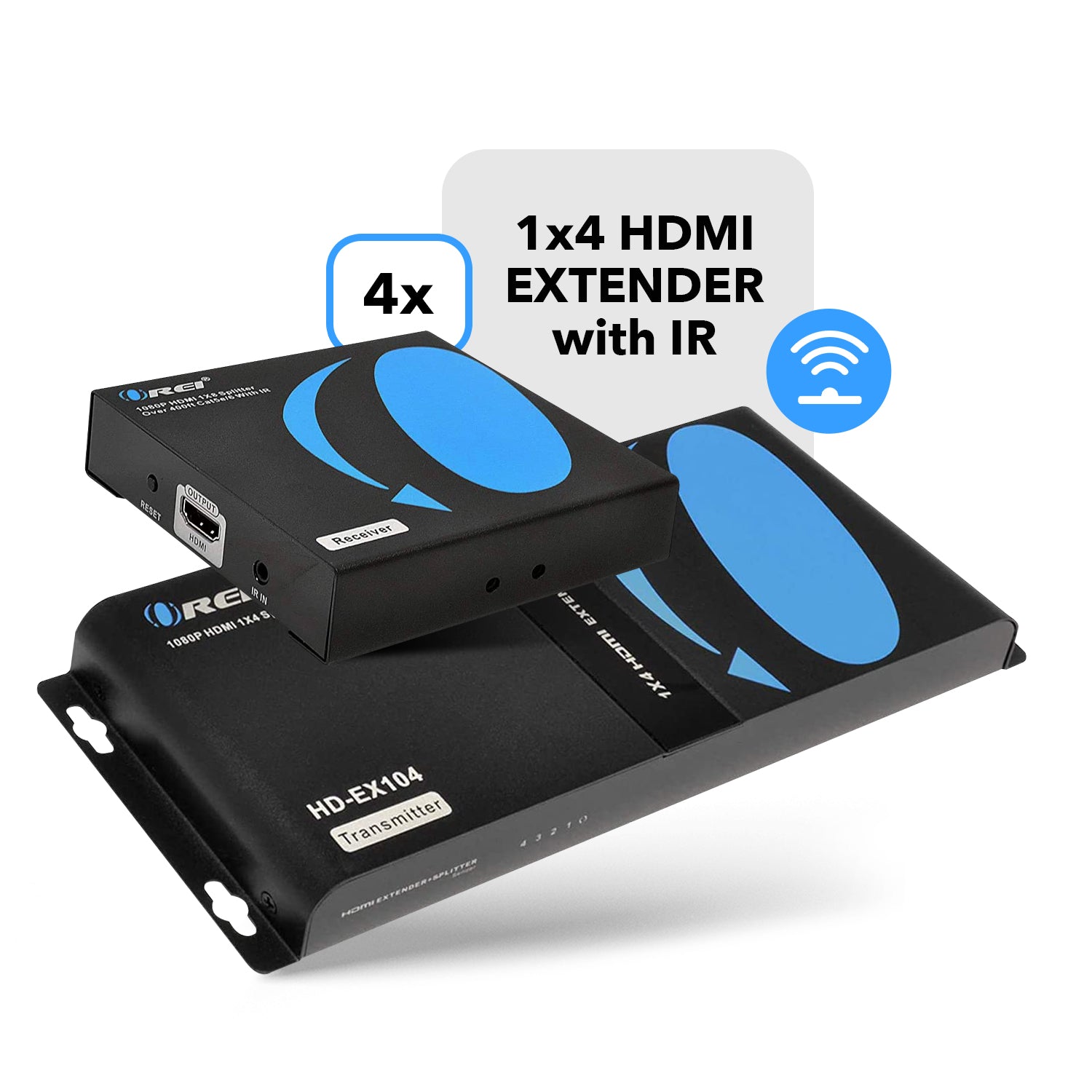

OREI HD-EX104-K: 1080p 1x4 HDMI Extender Splitter Upto 395 Feet
Key Features:
-
1 HDMI Input to 4 Outputs – Distributes one HDMI signal to four identical outputs simultaneously.
-

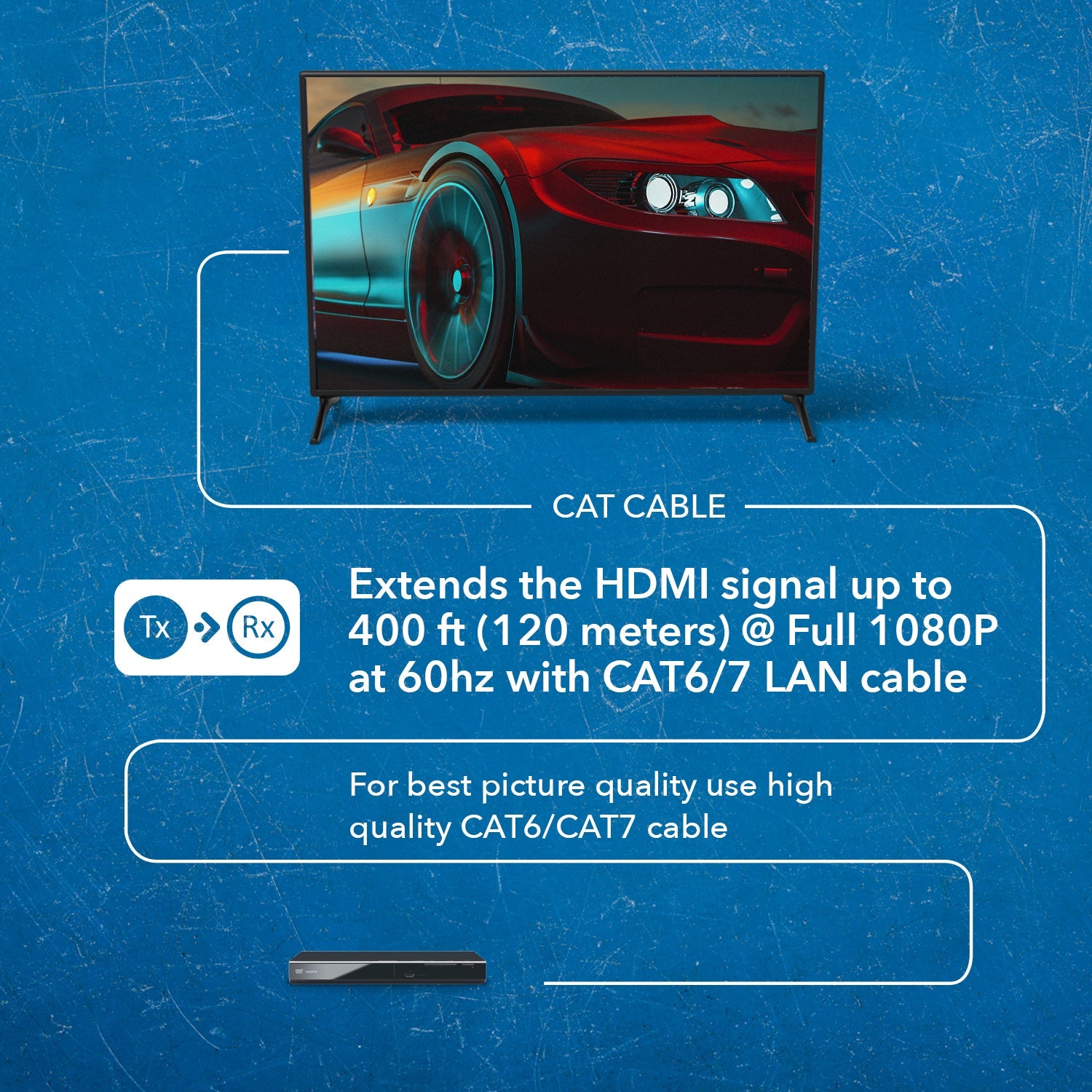

Long-Distance Extension – Supports HDMI transmission up to 400 ft (120 m) over a single CAT6 cable.
-
ProLNK Receiver Compatibility – Designed for seamless operation with ProLNK receiver devices.
-
HDCP Compliant – Ensures compatibility with protected content and HDMI standards.
-
Supports Full HD Resolution – Transmits up to 1080p@60Hz for clear, high-definition video.
-
Cascade via Network Switch or Router – Enables one-to-many or multi-room expansion using existing LAN infrastructure.
-
LAN Friendly – Works alongside internet traffic without disrupting existing network connections.
-
IR Signal Pass-through – Allows remote control of the HDMI source device from the receiver location.
-
Plug-and-Play Installation – Requires no drivers or configuration for immediate use.

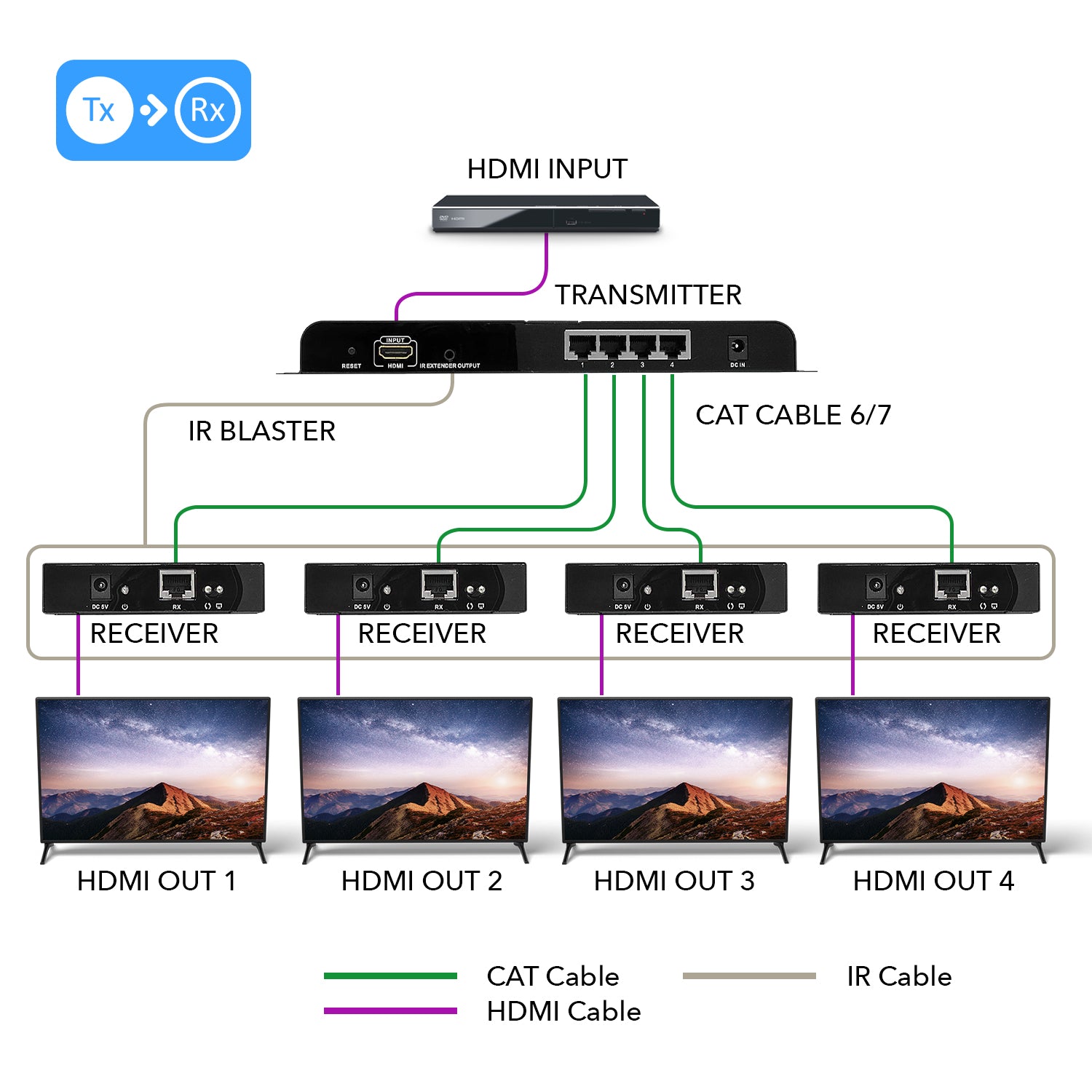

HD-EX104 is a high-performance AV distribution solution designed to transmit one HDMI source to up to four displays over long distances via CAT6 network cables.
When paired with compatible ProLNK receivers, it extends Full HD video signals up to 400 feet (120 meters) while maintaining signal integrity and synchronization.
Featuring IR signal transmission, users can control the source device remotely from the display location. The device also supports LAN-based cascading, allowing additional receivers to be added via standard network switches or routers.
This makes it ideal for use in commercial AV installations, exhibition centers, digital signage systems, control rooms, and home entertainment setups.
[tab]
AUDIO AND VIDEO
| Transmitter: |
INPUT PORTS: |
1 x HDMI |
|
OUTPUT PORTS: |
8 x RJ45 |
| Receiver: |
INPUT PORTS: |
1XRJ45 |
|
OUTPUT PORTS: |
1XHDMI |
COMPLIANCES
| HDMI Compliance: |
HDMI 1.3 |
| HDCP Compliance: |
HDCP 1.4 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080p@60Hz: |
Up to 120meters transmission distance for 1080p 60Hz full HD over single CAT6 |
VIDEO OUTPUT
| Video Bandwidth: |
4.95Gbps |
| Video Resolutions: |
1080P@60Hz |
| Color Space: |
24bit |
| Color Depth: |
8bit |
ADDITIONAL FEATURES
| ARC/eARC: |
No |
| CEC : |
No |
| Transmission Technology : |
Ethernet |
| IR Control: |
Yes, Uni-directional |
| PoC (Power over Cable): |
No |
| RS-232: |
No |
| USB Standard: |
No |
| USB-C DP Alt Mode: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
No |
LOOP-OUT/LOCAL PORT
SWITCHES
| EDID Management: |
No |
| EQ Dip Switches: |
No |
| ARC: |
No |
AUDIO OUTPUT
| HDMI Audio Formats: |
Stereo L/R audio |
| SPDIF/Optical Audio Formats: |
NO SPDIF/optical Audio output |
| L/R Audio Formats: |
NO L/R audio output |
SIGNALS
| TMDS Signals: |
3V |
| DDC Signals: |
5V |

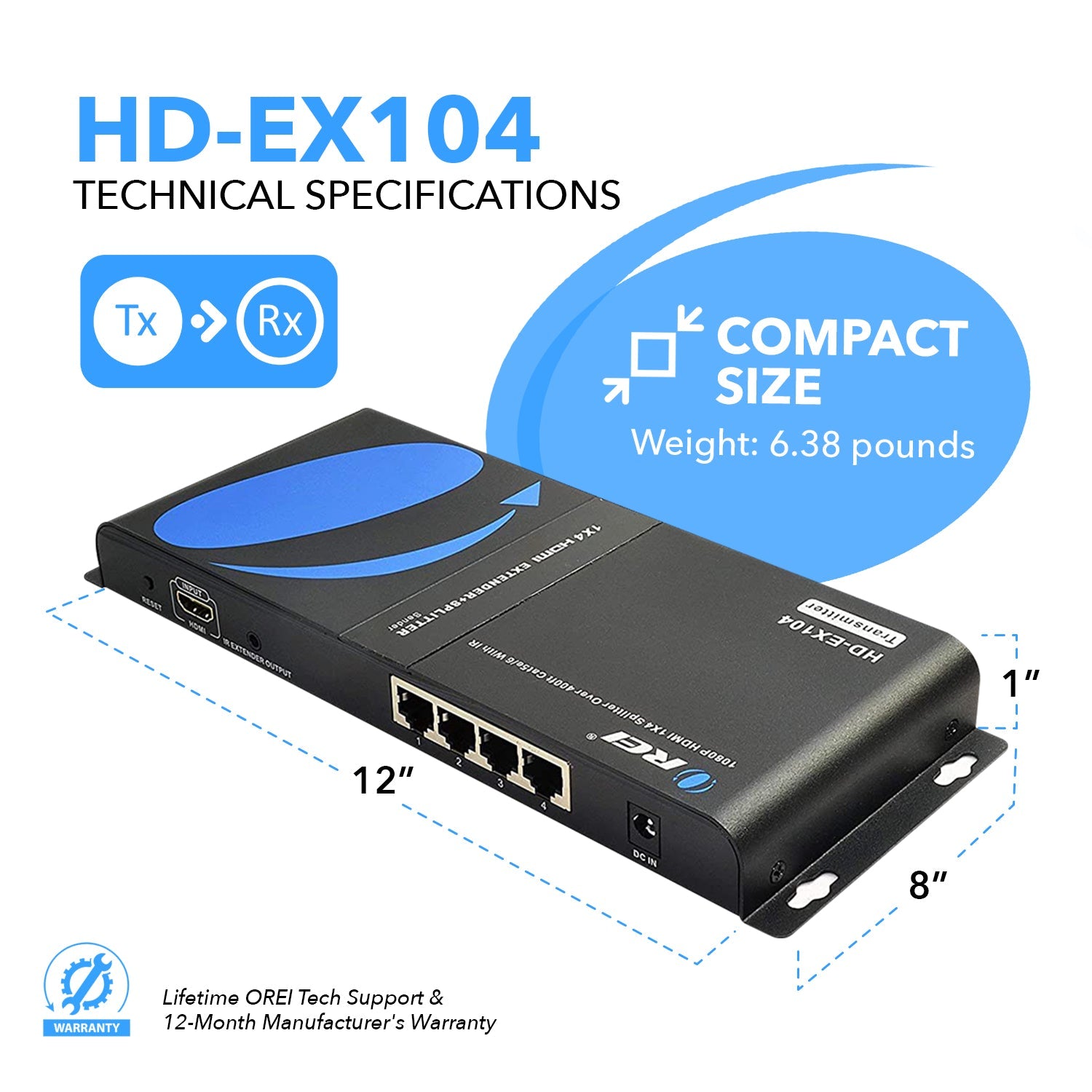

DIMENSIONS & WEIGHT
| Transmitter: |
Height: |
29.6mm |
|
Width: |
299mm |
|
Depth: |
110.7mm |
|
Weight: |
335g |
| Receiver: |
Height: |
23.2mm |
|
Width: |
130mm |
|
Depth: |
84mm |
|
Weight: |
200g |
| Weight: |
535g |
|
PROTECTION
| Operation Temperature: |
0～50℃ |
| Storage temperature: |
-30～70℃ |
| Relative Humidity: |
0～90%(no condensation) |
| ESD Protection: |
Contact discharge 4KV, Air Discharge 8KV |
RJ-45 CONNECTOR Type
POWER
| Power Consumption (Max): |
<10W |
|
| Power Supply: |
5V2A |
|
PHYSICAL PROPERTIES
| Color: |
Black |
| Housing: |
Metal |
| Processing Technology: |
HDbitT |
| Finishing: |
Grit blast |
PACKAGE CONTENTS
| 1 x HDMI Extender TX |
| 4 x HDMI Extender RX |
| 1 x 5V2A Power Adapter |
| 4 x DC5V/1A |
| 1 x IR Blaster Extension Cable |
| 4 x IR Receiver Extension Cable |
| 1 x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
[/tab1]
[shortdes]
- Supports 1080p@60Hz up to 400 feet
- Supports Over IP function
- Supports IR Remote Control
[/shortdes]
