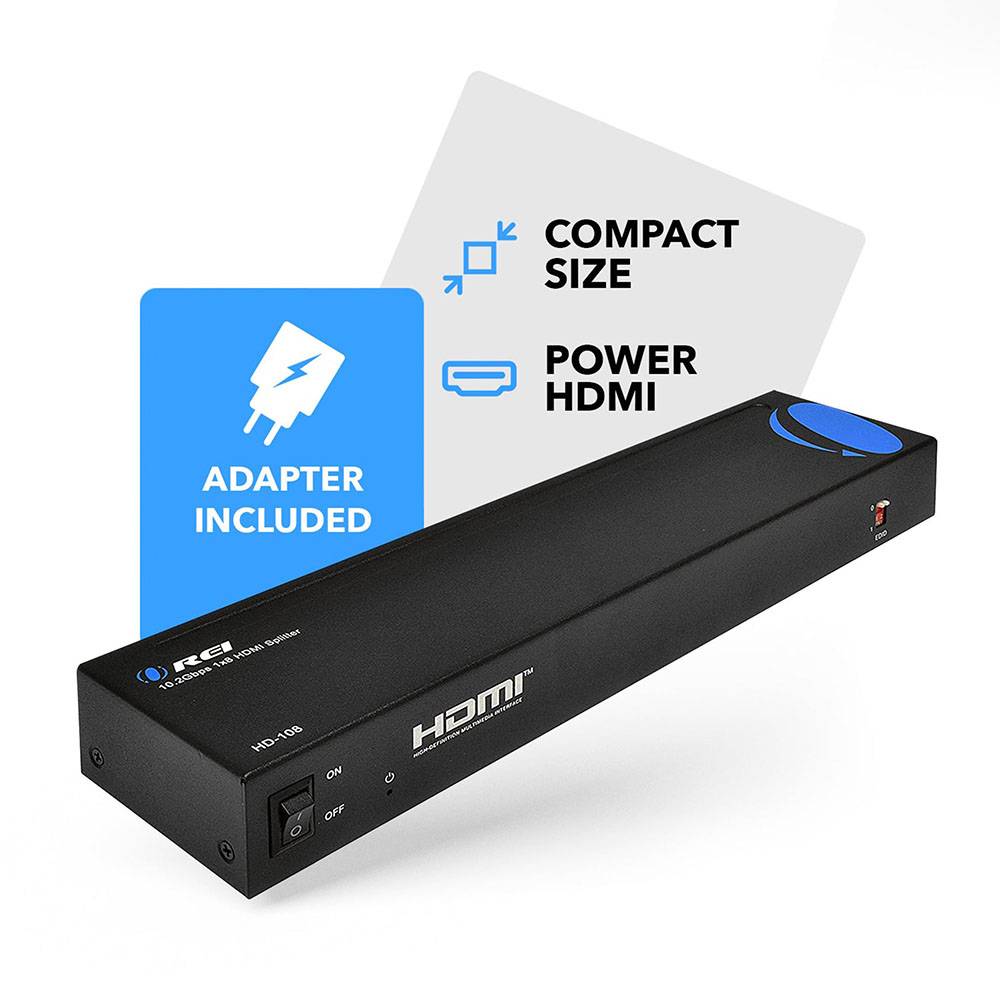

1080p 1x8 HDMI™ Splitter-HD-108

OREI.COMSKU: HD-108

Price:
Sale price$34.99

Shipping calculated at checkout

Stock:
In stock (650 units), ready to be shipped

Description

OREI 1 in 8 out HDMI Splitter 4K@30Hz with Advanced EDID Management, HDR & Dolby Vision

Key Features:
  • HDMI 1.4 & HDCP 1.4 compliant.
  • Video resolutions up to 4K@30Hz, including 1080P 3D@60Hz
  • 10.2Gbps video bandwidth
  • Digital audio formats such as DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby-AC3/DSD are supported.
  • HDR, HDR10+ & Dolby-Vision pass-through
  • Does NOT extend laptop or PC display to have different programs on all screens
  • Compact design and plug-and-play setup

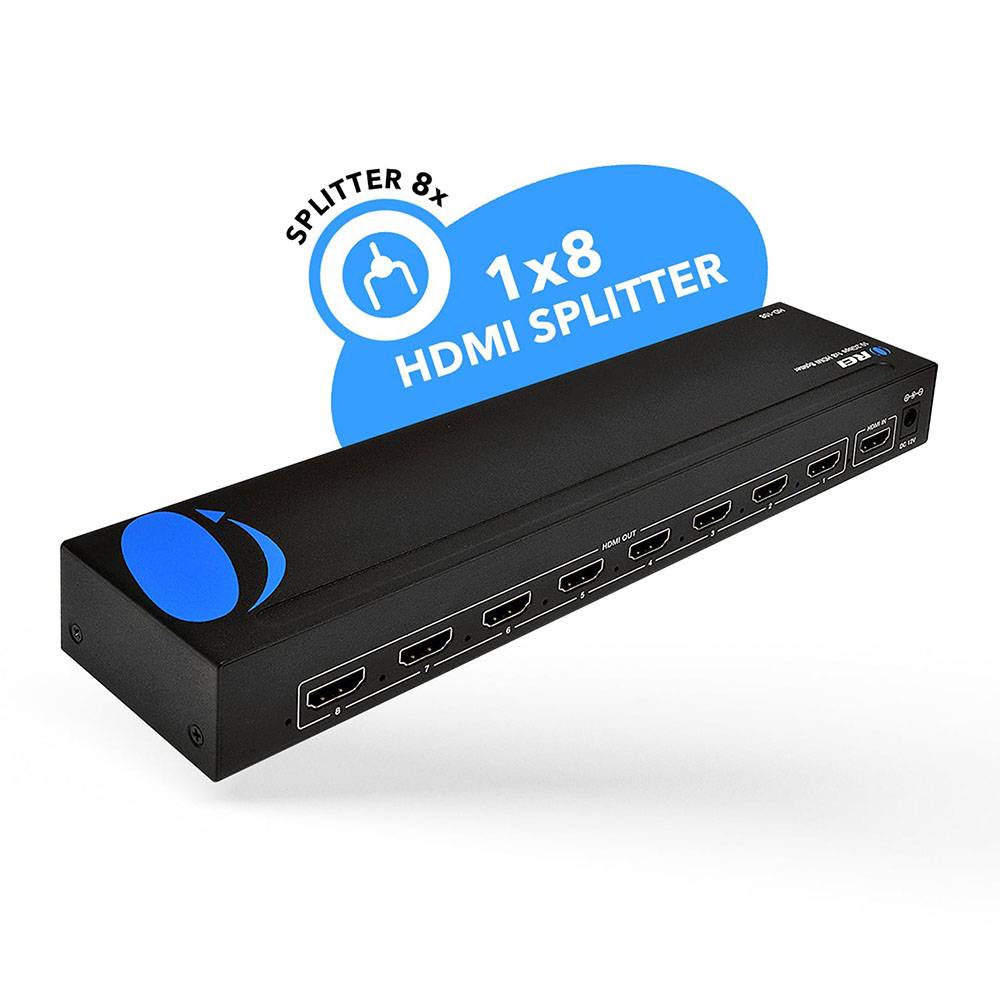

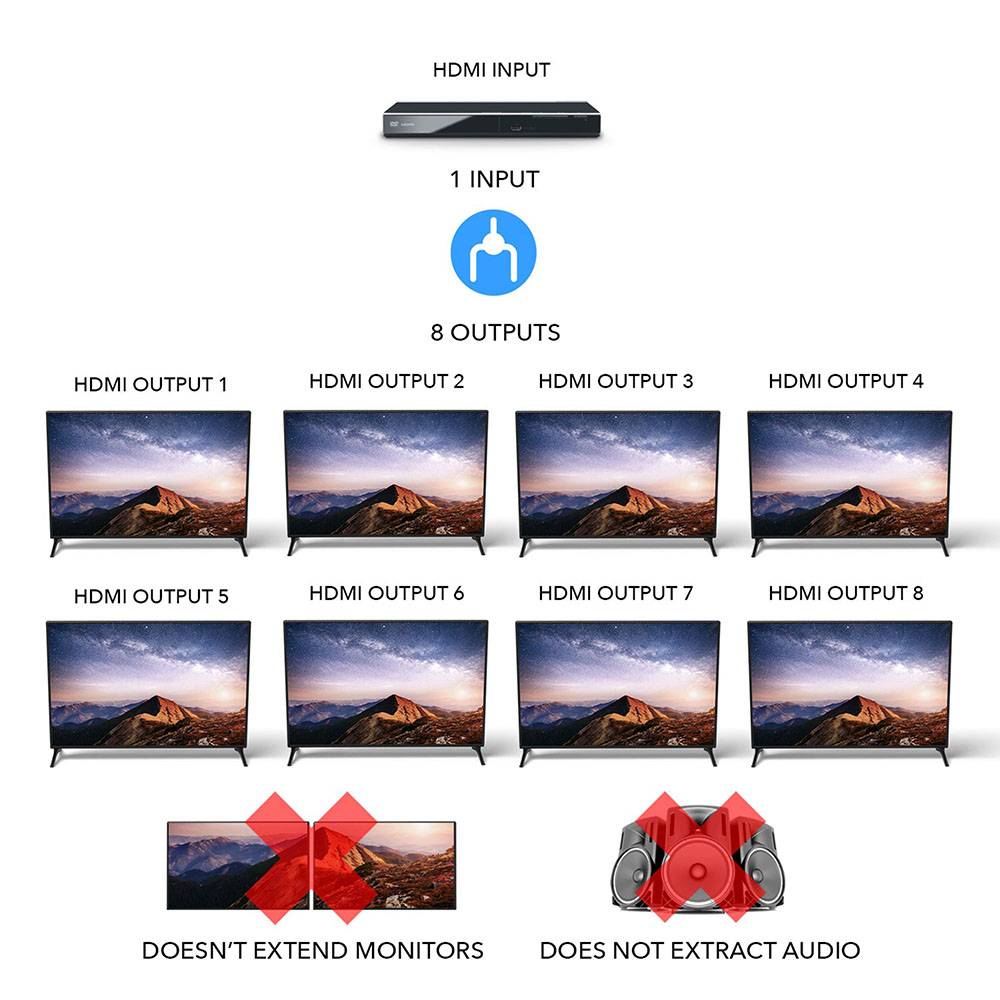

The OREI HD-108 HDMI Splitter 1 in 8 out allows you to distribute an HDMI signal to eight displays simultaneously. Supporting video resolutions up to 4K@30Hz, with HDR, Dolby Vision pass-through, and 3D support. It is compliant with HDMI 1.4 and HDCP 1.4 standards. You can connect various media devices such as cable boxes, laptops, Fire TV sticks, and Apple TVs, and duplicate their content across eight different displays at the same time. The splitter features advanced EDID management which can be accessed by a set of 2 switches. With no additional drivers required, it offers a straightforward plug-and-play installation process. Ideal for both commercial and personal home theater setups, this splitter is the perfect solution for distributing media content to multiple screens.

[shortdes]

  • 1 in 8 out HDMI Splitter
  • Video resolutions up to 4K@30Hz
  • Advanced EDID management, HDR10+ & Dolby vision support

[/shortdes]

[tab]

CONNECTIVITY

INPUT: 1 × HDMI [Type A, 19-pin female]
OUTPUT: 8 × HDMI [Type A, 19-pin female]

PACKAGE CONTENTS

1x HD-108
1x Power adapter
User Manual

SUPPORTED HDMI CABLES

HDMI 2.0/2.1 We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

1080p@60Hz: 30 Feet

VIDEO OUTPUT

Video Bandwidth: 10.2Gbps
Video Resolutions:
Up to 4K@30Hz

ADDITIONAL FEATURES

CEC: No
ARC: No
USB KVM: No
PoC/PoE: No
IR Control: No
Downmix: No
Downscale: No
Over IP: No
HDBaseT: No
RS-232: No

AUDIO SUPPORT

HDMI Audio Formats:
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

COMPLIANCES

HDMI Compliance HDMI 1.4
HDCP Compliance HDCP 1.4

POWER

Power Consumption: 3.36W (Max)
Power Supply: Input: AC 100-240V 50/60Hz
Output: DC 12V/1A

DIMENSIONS & WEIGHT

Length: 251mm / 9.88in
Width: 60mm / 2.36in
Height: 30mm / 1.18in
Weight: 350g / 12.35oz

PROPERTIES

Color: Black
Housing: Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Our splitters will not work with capture cards due to the HDCP encryption on the output

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture

Yes, the power adapter does support 220V

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.

[/tab1]
