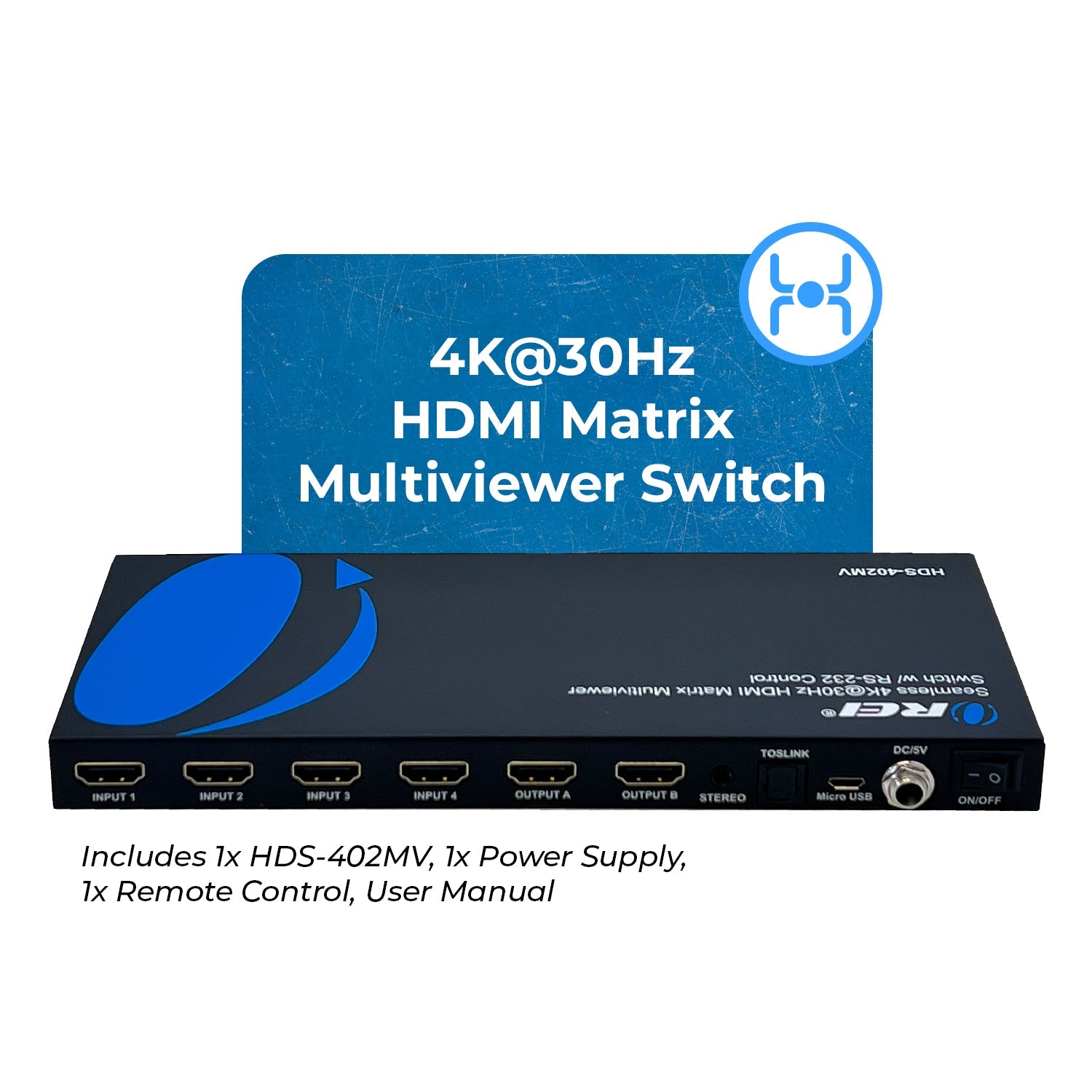

OREI HDS-402MV: 4K@30Hz HDMI Matrix Multiviewer Switch w/ RS-232 Control
Key Features:
-
Compliant with HDMI 1.4 and HDCP 1.4 – Ensures broad compatibility with standard HDMI source and display devices.
-
Video Bandwidth up to 10.2Gbps – Supports reliable transmission of high-quality video and audio signals.
-

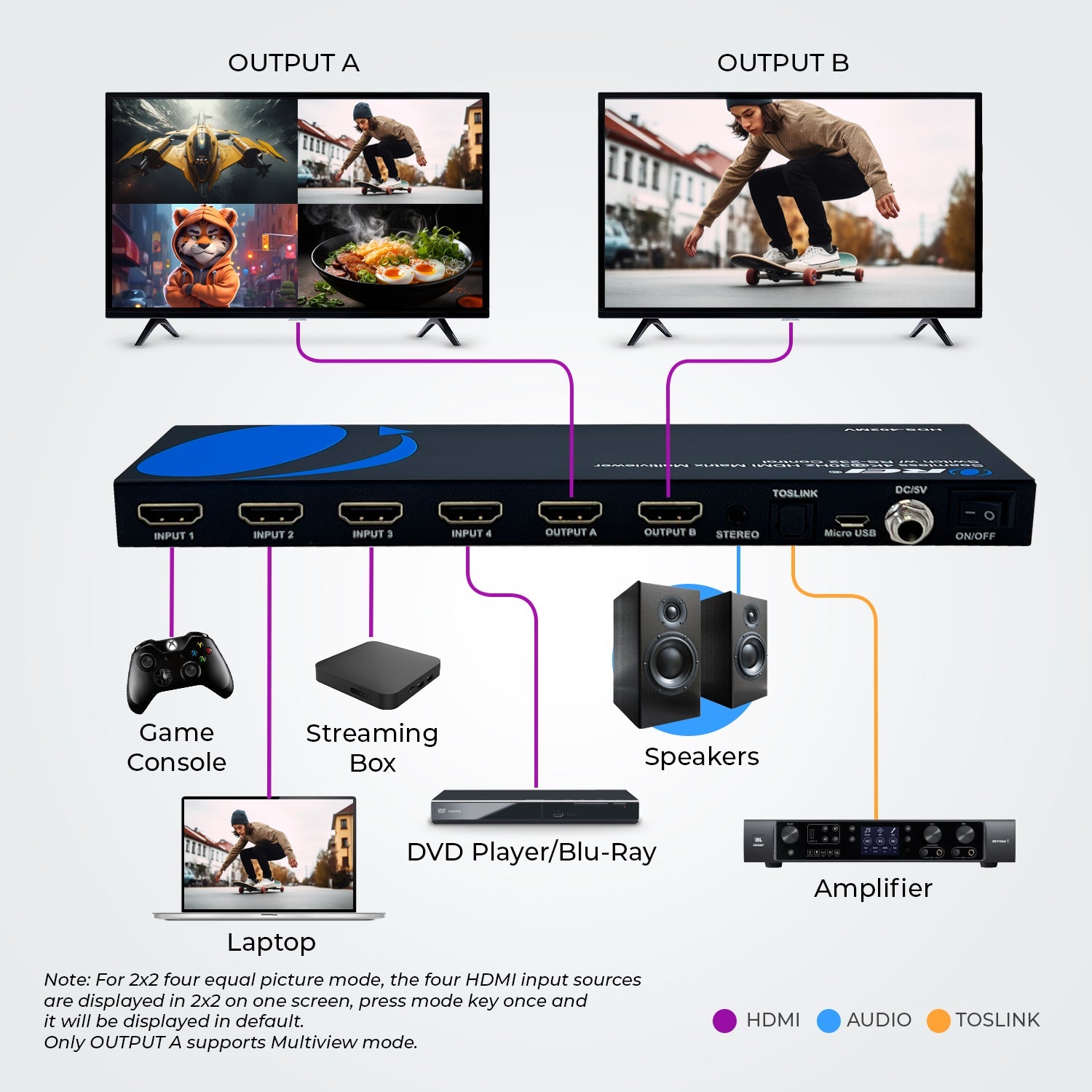

4 In 2 Out Matrix with Multiviewer Functionality – Enables flexible routing of any four HDMI input sources to two HDMI outputs, with multiview display capabilities.
-
Supports Resolutions up to 4K@30Hz – Delivers clear, high-definition video across all connected displays.
-
Seamless Switching – Provides instantaneous source switching without blank screens or signal loss.
-
Built-in Scaler for Upscaling and Downscaling – Automatically adjusts resolution to match output requirements, ideal for mixed-display setups.
-
Multi-Resolution Output and Aspect Ratio Adjustment – Offers flexibility in matching varied display capabilities and screen layouts.
-
Picture-in-Picture (PIP) and Multiview Modes – Display multiple sources simultaneously, with adjustable PIP window positioning in any corner.
-

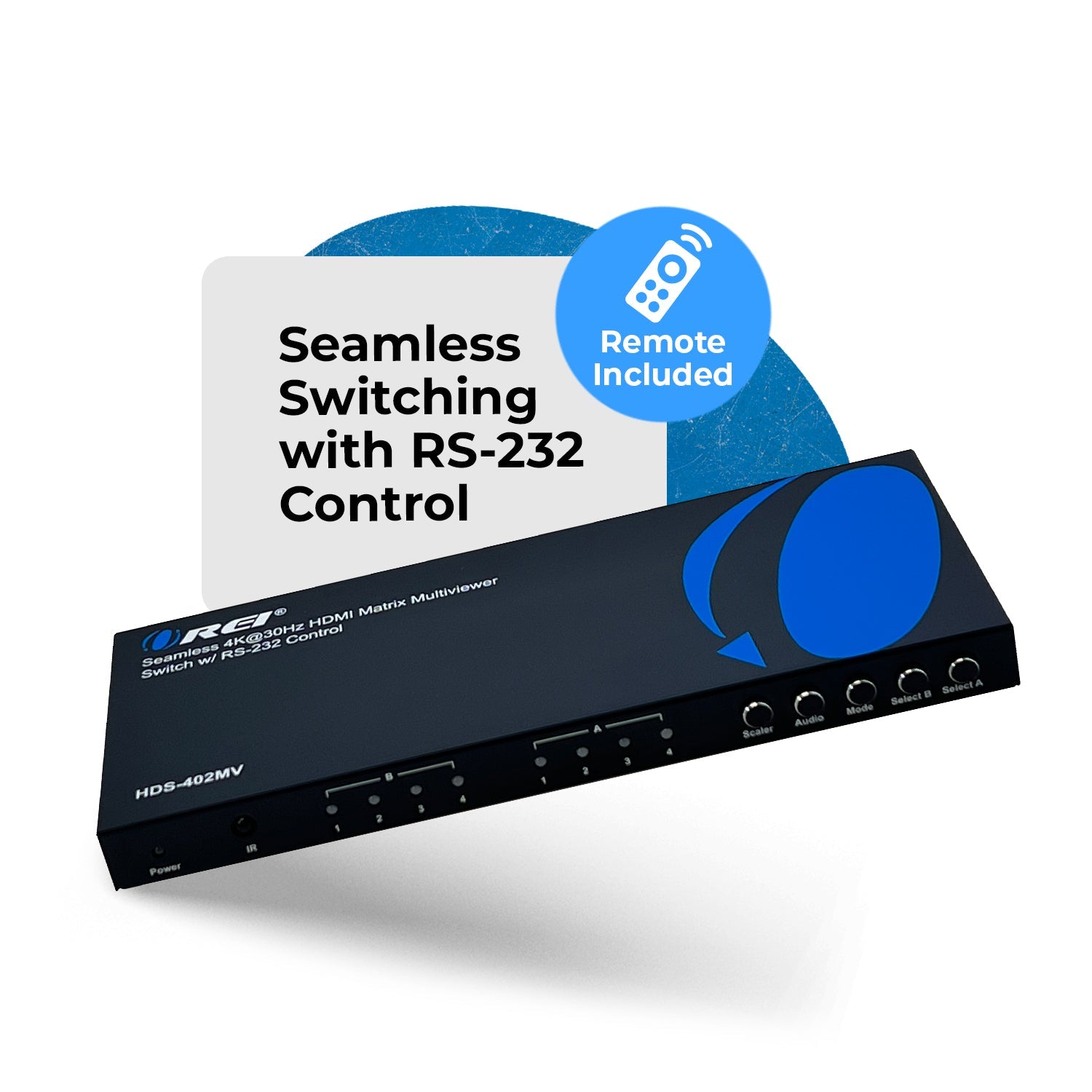

Multiple Control Options – Operate via front panel, IR remote, or RS-232 interface for versatile integration.
The HDS-402MV is a 4x2 HDMI Matrix Switcher featuring seamless switching and multiviewer functionality, engineered for high-performance video distribution and monitoring. It is HDMI 1.4 and HDCP 1.4 compliant, supporting resolutions up to 4K@30Hz and delivering a video bandwidth of 10.2Gbps for stable, high-quality signal transmission.

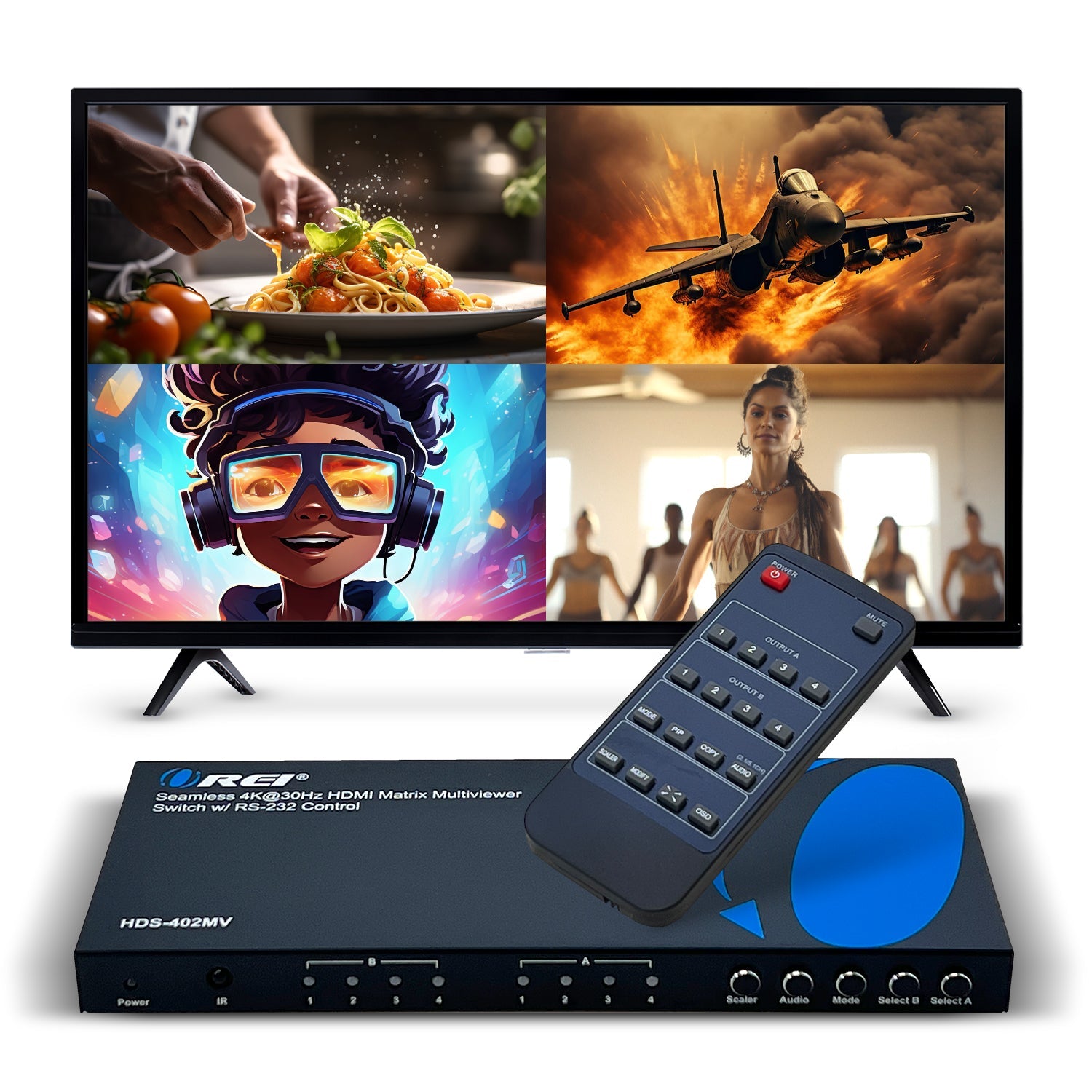

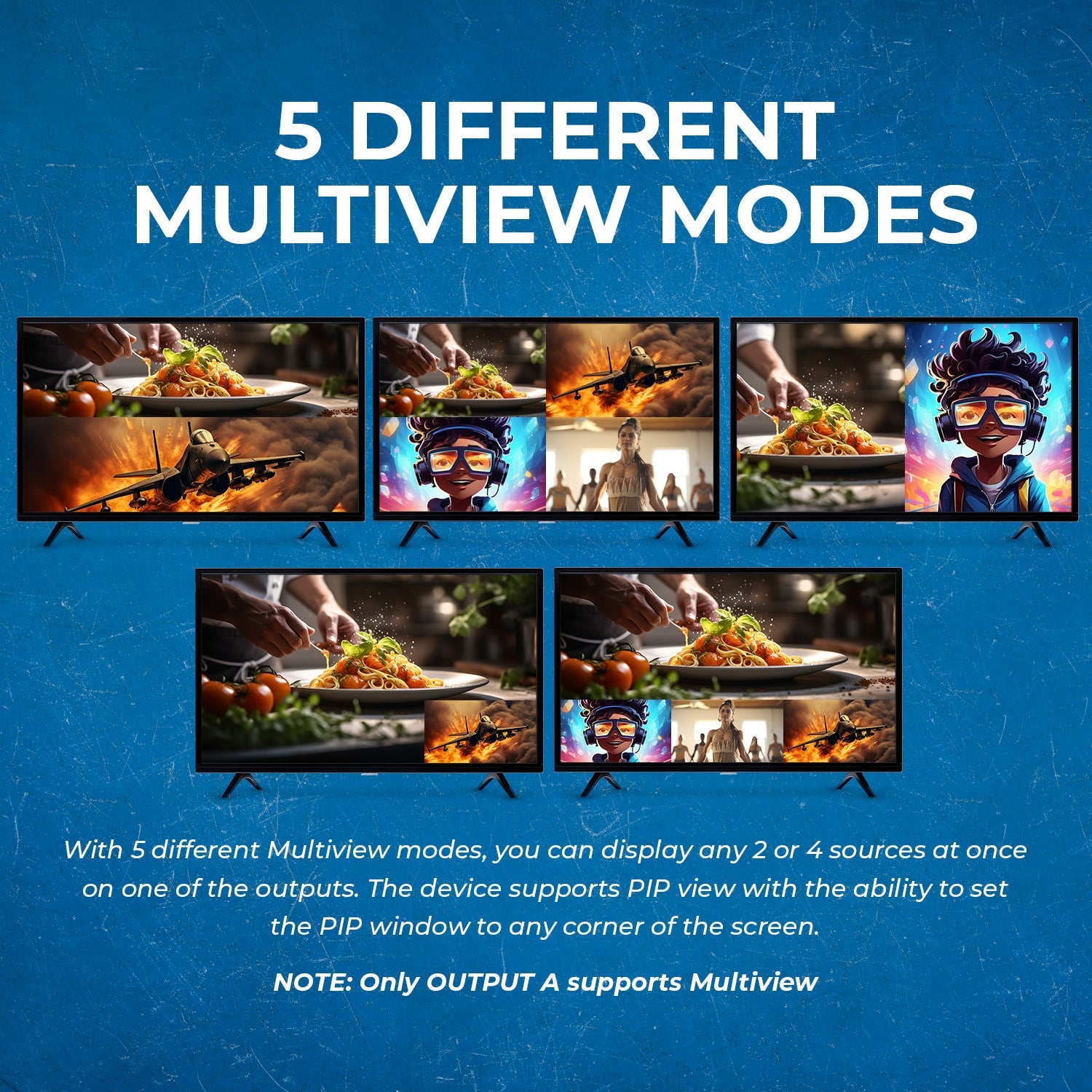

The device supports five distinct multiview modes, including PIP (Picture-in-Picture) and full quad-view options. A built-in scaler allows resolution matching for each output independently, with aspect ratio controls and multi-resolution support to adapt to varying display requirements.
Designed for control rooms, surveillance, education, and live production applications, the HDS-402MV can be operated using the front panel, IR remote, or RS-232 command, offering flexible control for a wide range of professional AV environments. The power-off memory retains the last configuration, ensuring seamless performance even after reboot
[shortdes]
- 4 In 2 Out Matrix w/ Multiviewer functionality
- Resolutions up to 4K@30Hz
- Features Aspect ratio change and PIP functions
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
|
|
1 × Stereo L/R [3.5mm Jack] | |
| 1 × TOSLINK [S/PDIF] | ||
| CONTROL: | 1 × Upgrade [Micro-USB] |
PACKAGE CONTENTS

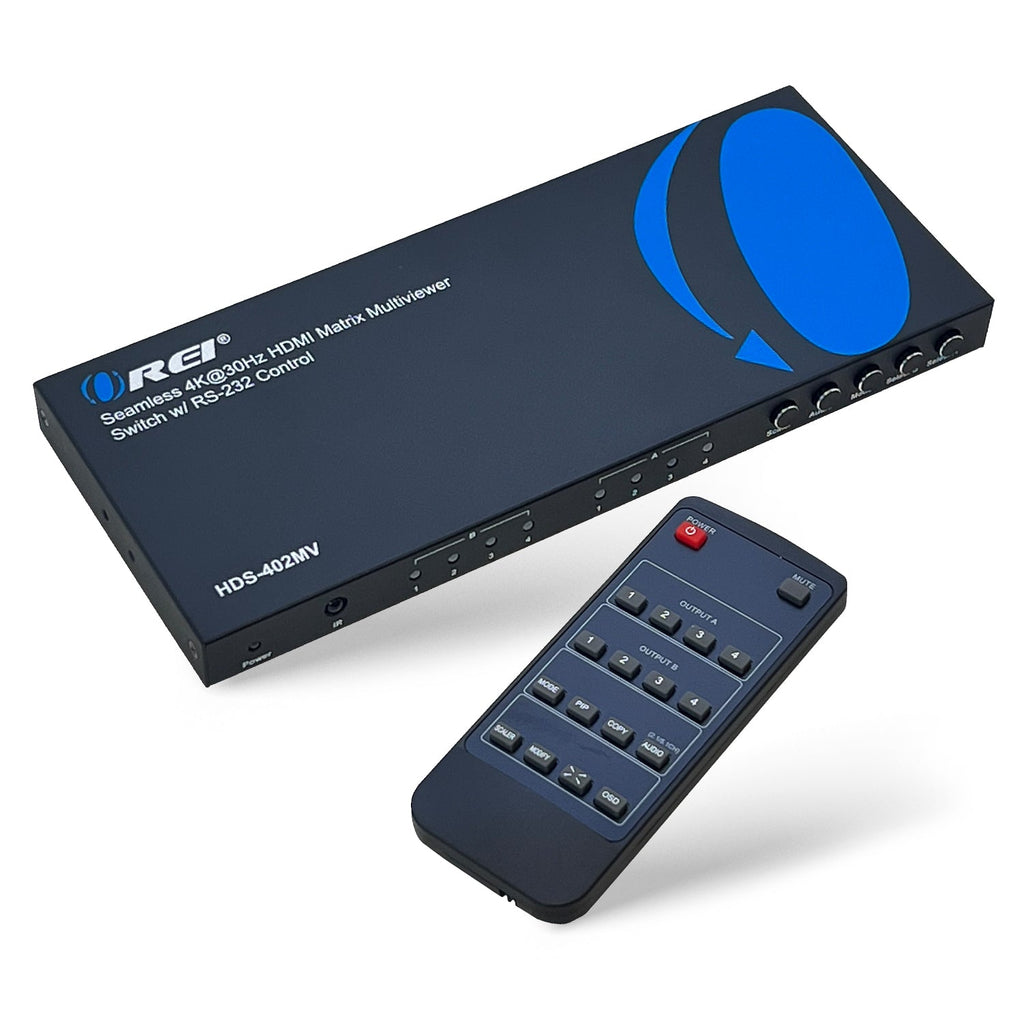

| 1x HDS-402MV |
| 1x Remote Control |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2 Gbps |
| Video Resolutions: | Up to 4K@30Hz |
ADDITIONAL FEATURES
| Downscale: | Yes |
| RS-232: | Yes |
| IR Remote Control: | Yes |
| Fast Seamless Switching: | Yes |
| Multiview / PIP Support: | Yes |
| EDID Management: | No |
| Audio Extraction: | 3.5mm / Analog / Line / Optical |
| HDMI Support: | 1.4 |
| HDCP Support: | 1.4 |
| OSD Menu Navigation: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM/AC3/DTS
|
| Optical Audio Formats: |
PCM 5.1CH
|
| Analog Audio Formats: |
PCM 2.0
|
COMPLIANCES
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |

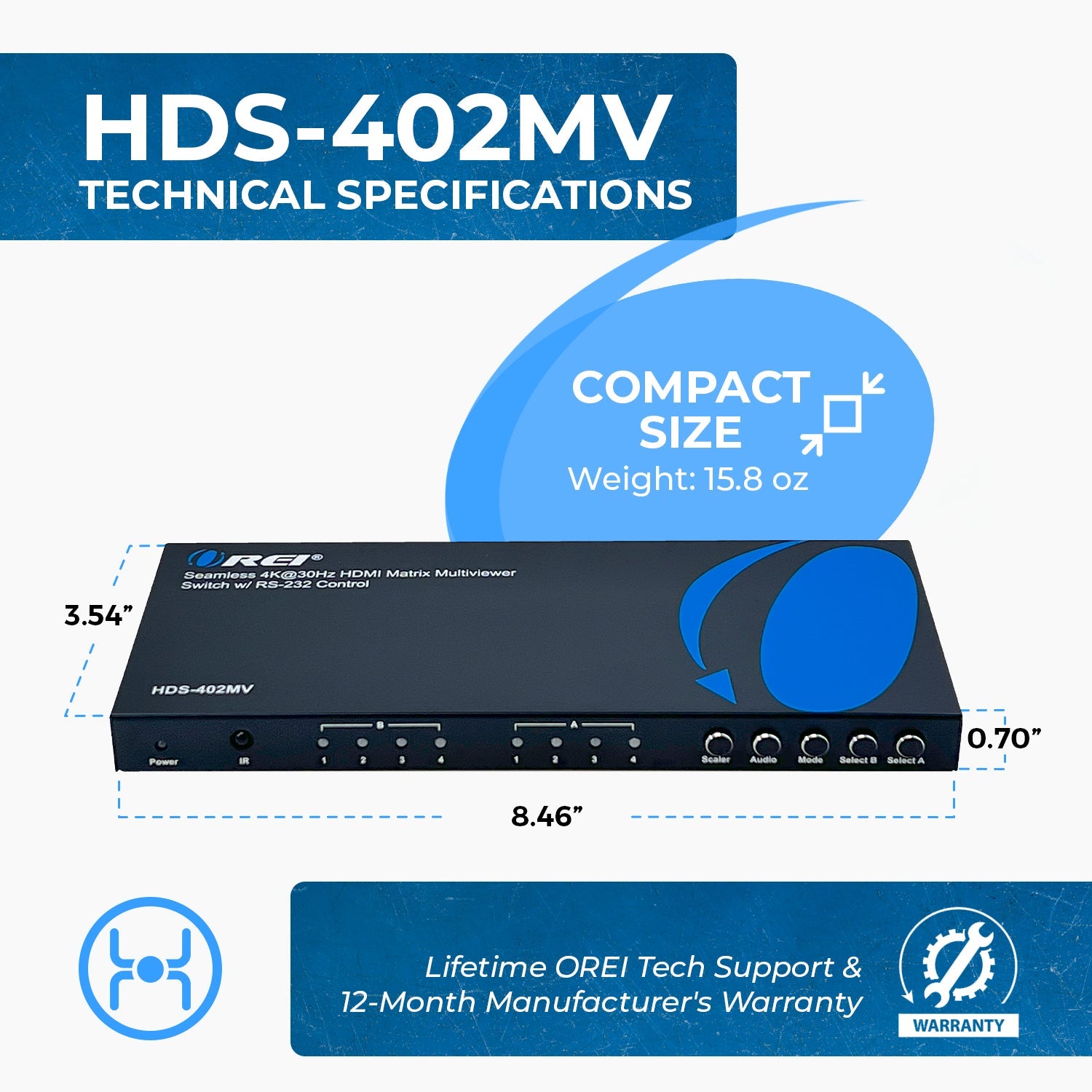

DIMENSIONS & WEIGHT
| Length: | 215mm / 8.47in | |
| Width: | 90mm / 3.54in | |
| Height: | 18mm / 0.71in | |
| Weight: | 450g / 15.87oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C to 70°C |
| Storage Temperature: | -10°C-80°C |
| Relative Humidity: | 5~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
