Description
OREI 4K HDMI Splitter 1 in 2 out with HDMI Male connector and Downscaler
Key Features:
-
HDMI 2.0 & HDCP 2.2 compliant
-
Video resolutions up to 4K@60Hz 4:4:4
-
18 Gbps video bandwidth
-
HDR pass-through with 12bit color depth
-

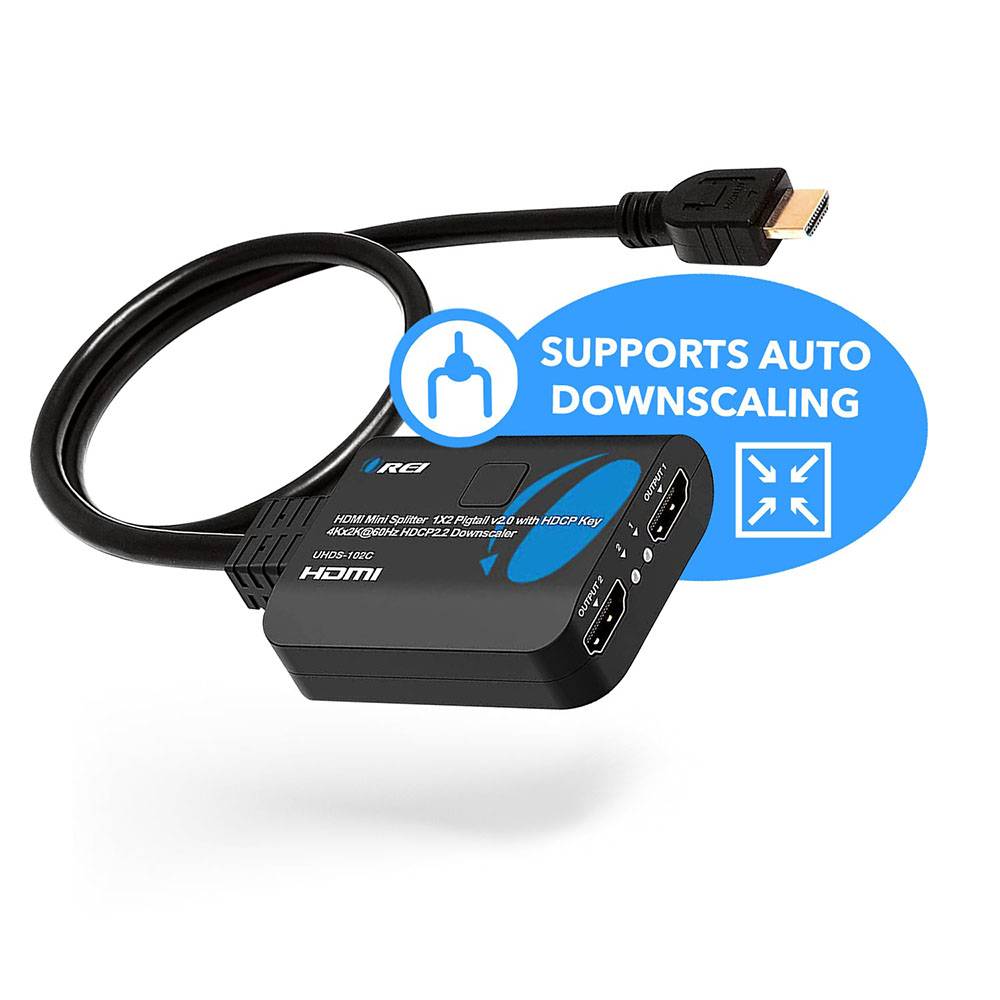

4K to 1080P downscale
-
Compact design and Plug-and-Play setup
- Perfect for commercial and personal setups

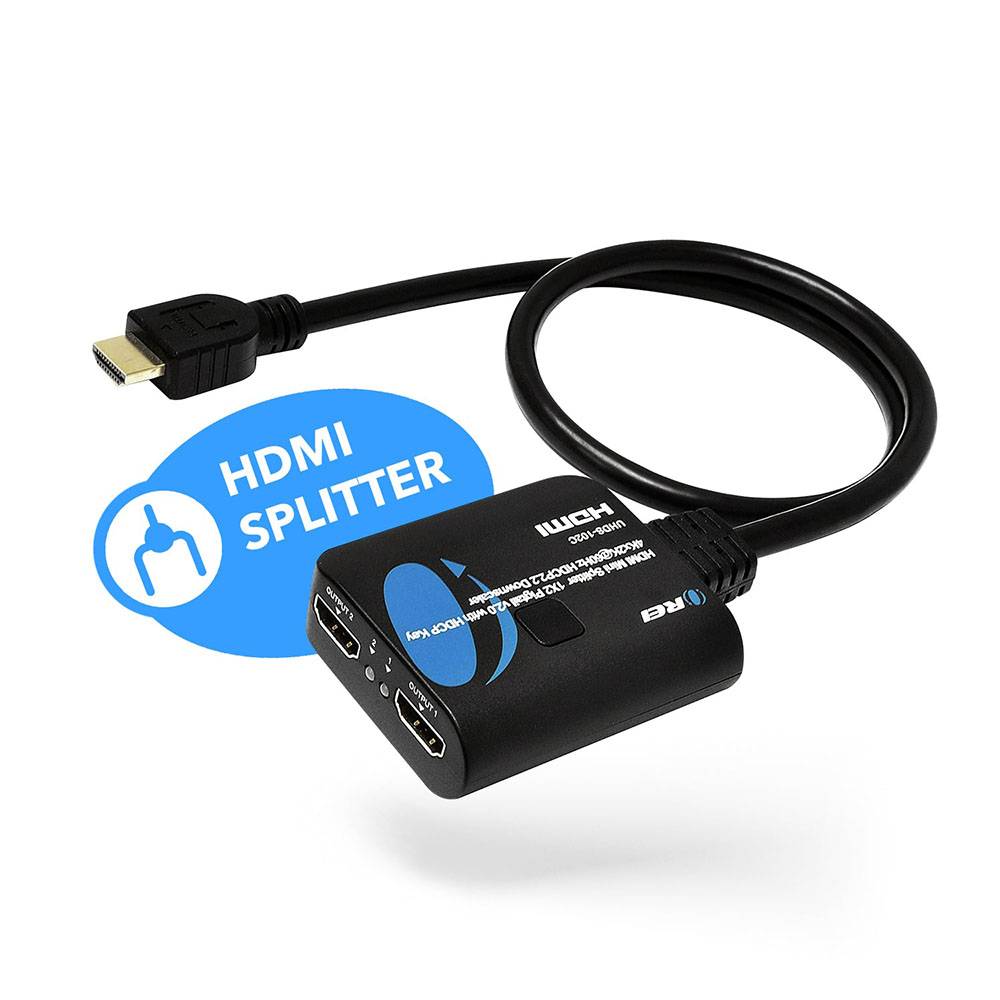

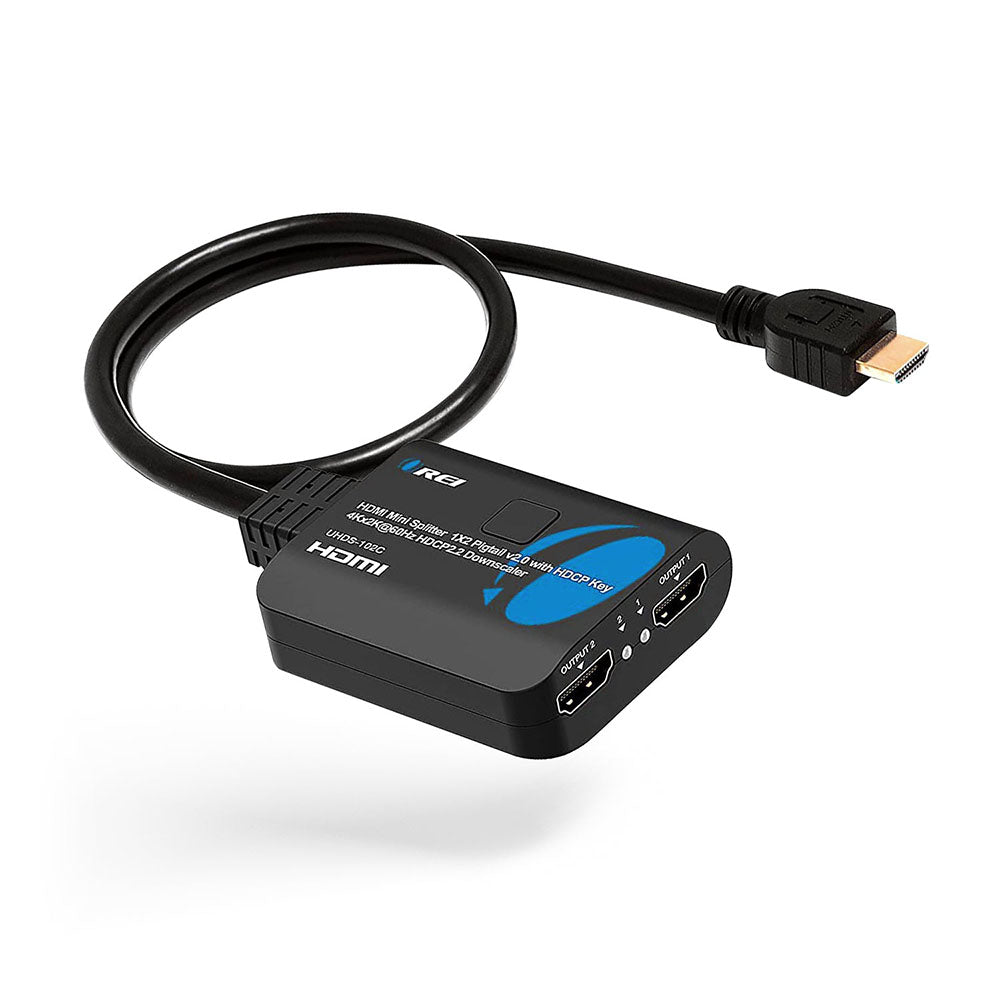

The UHDS-102C is a 1 in 2 out HDMI splitter with a 0.6-meter Male HDMI connector, eliminating the need for an additional HDMI cable. It is HDMI 2.0 and HDCP 2.2 compliant, supporting resolutions up to 4K@60Hz. Features a video bandwidth of 18 Gbps, along with HDR and 12-bit color depth. Additionally, it features full 3D video format support and can downscale 4K resolution to 1080p for displays that do not support 4K resolution. Compact design and plug-and-play setup. Perfect for both commercial and personal use.
[shortdes]
- 1 in 2 out HDMI splitter with Pigtail HDMI cable
- Resolutions up to 4K@60Hz
- 4K to 1080p Downscale Feature
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin Male] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] |
PACKAGE CONTENTS
| 1x UHDS-102A HDMI Splitter |
| 1x USB Cable |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | Yes |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby Digital, Dolby True HD, DTS, DTS-HD Master Audio
|
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 65mm / 2.56in | |
| Width: | 54.5mm / 2.15in | |
| Height: | 20.5mm / 0.71in | |
| Weight: | 92g / 3.25oz |
PROPERTIES
| Color: | Black |
| Housing: | Plastic Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output

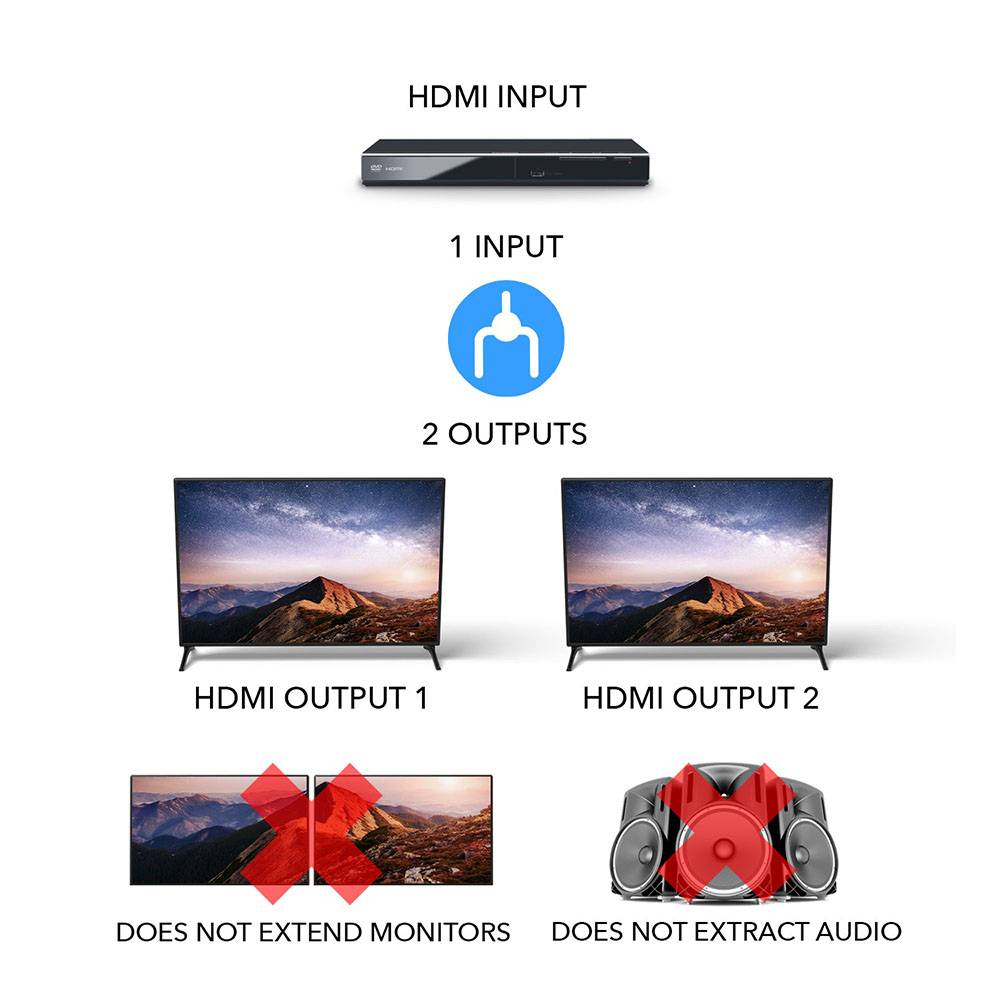

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
[/tab1]
