OREI 4K HDMI KVM Switch - EDID Passthrough
Key Features:
- HDMI 2.0 & HDCP 2.2 Compliant
- Video resolutions up to 4K@60Hz
- 4 HDMI Inputs and 1 Output with 4 USB Inputs and Outputs
- USB 2.0 Compliance
- Supports lossless audio formats such as Dolby Atmos, DTS:X, Dolby True-HD, PCM7.1 passthrough from HDMI
- Compact design for easy and flexible installation
- Lightweight and Durable Metal Enclosure
Description:

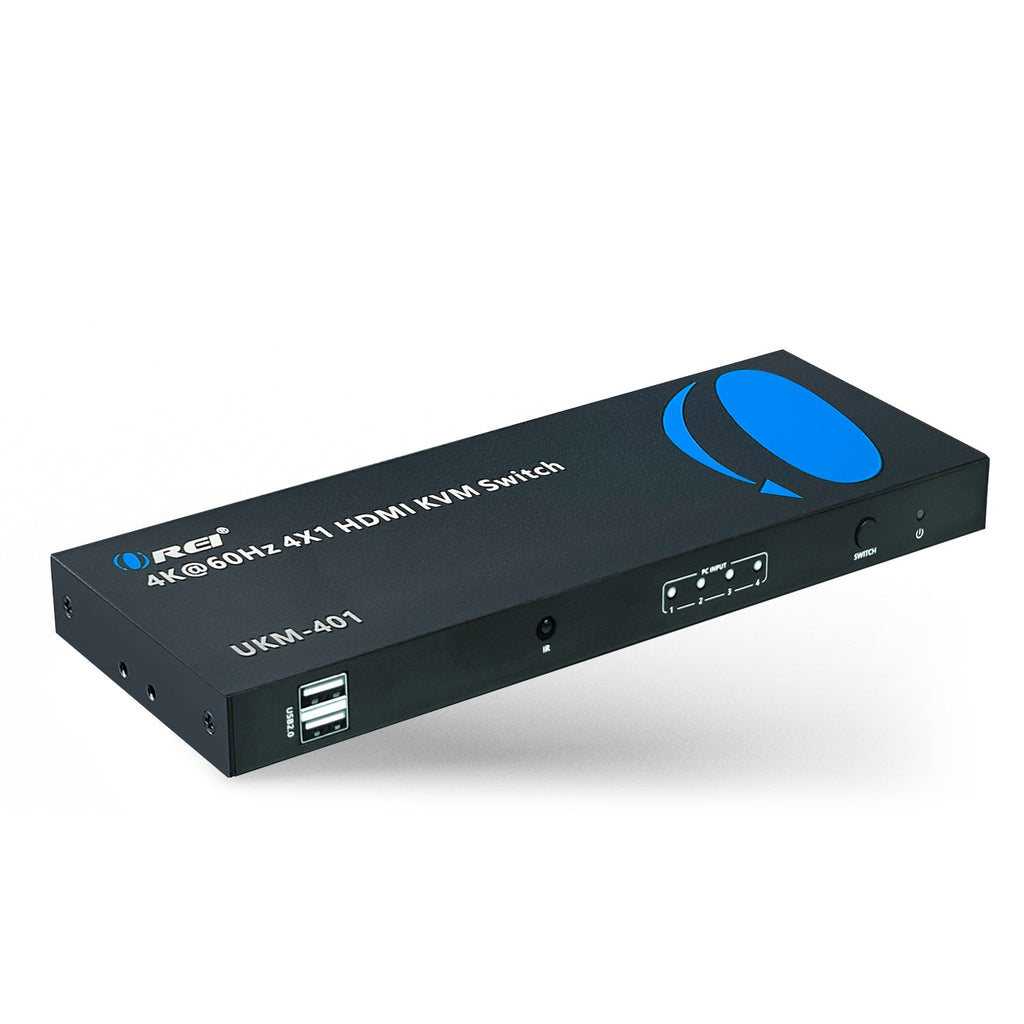

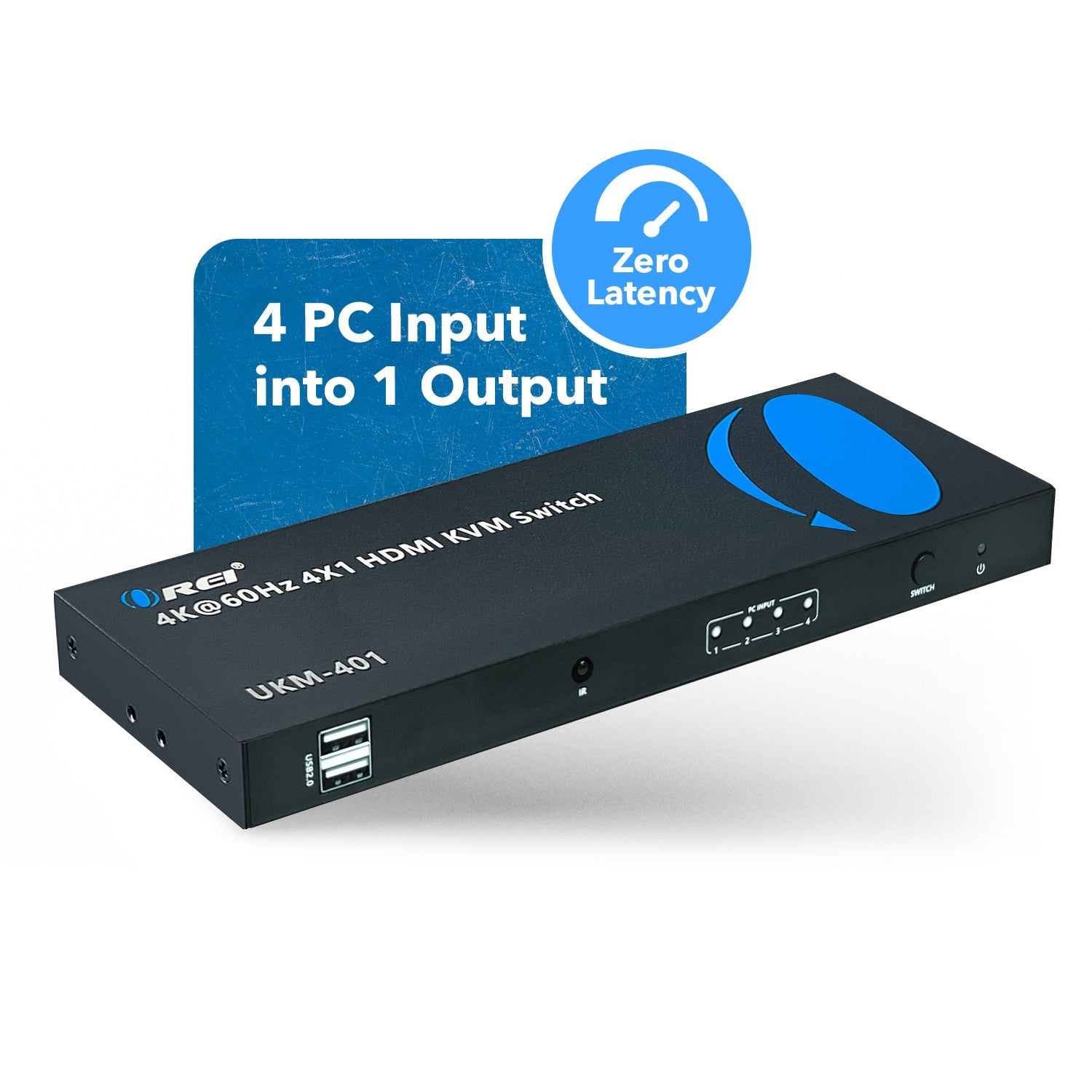

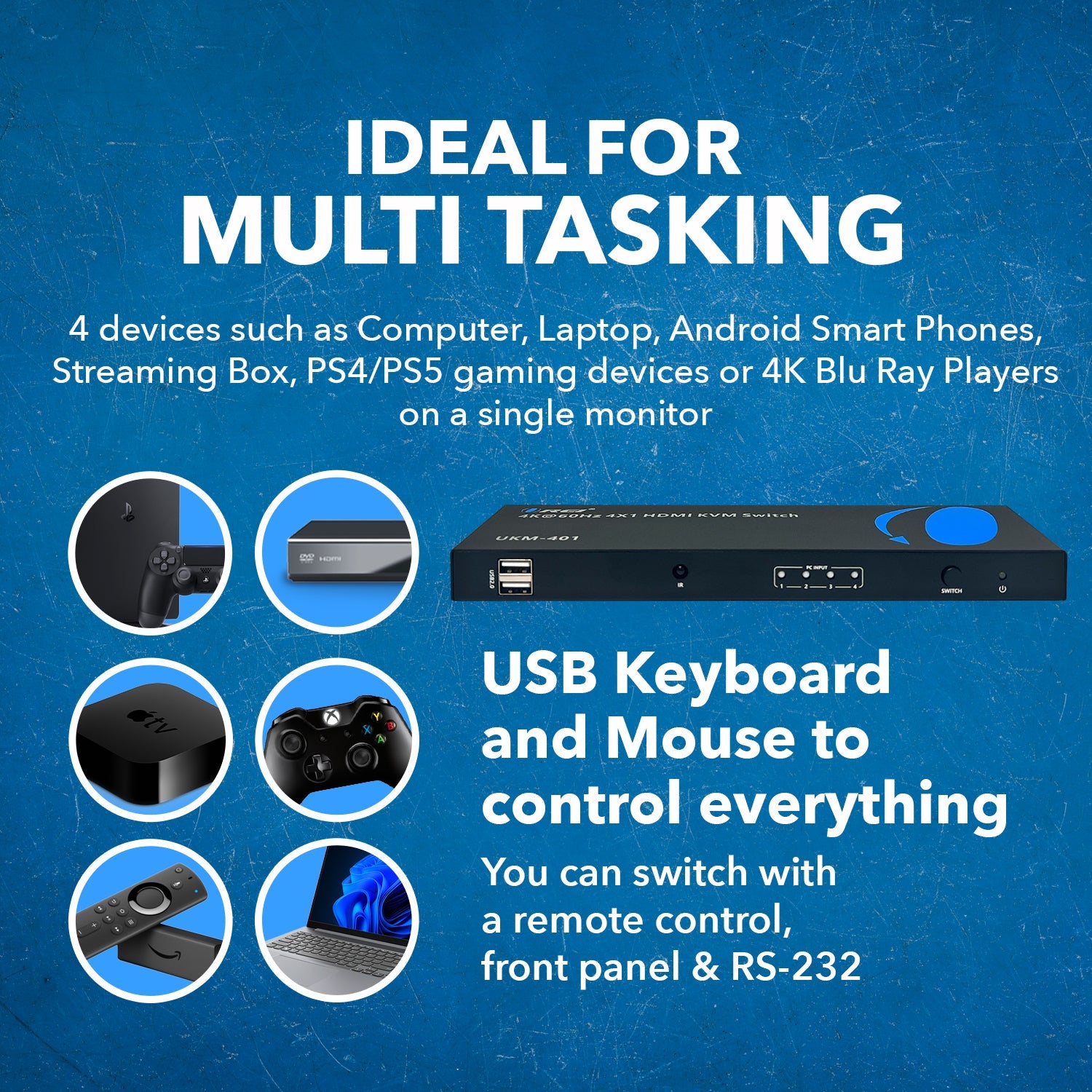

The UKM-401 is a 4K@60Hz 4X1 HDMI KVM Switch that features 4 HDMI inputs and 1 output. It features 4 USB-B and 4 USB-A ports to connect a PC or laptop and other computer peripherals such as keyboard or mouse. This versatile device allows you to connect 4 PCs and control & switch between them using only 1 set of Keyboard, mouse and Monitor
Users can easily control the KVM switch via the RS-232 port, the included remote control, and the front panel buttons. It is widely used in security monitoring, education and training, exhibitions and broadcasting, command centers, etc.
It has HDMI 2.0 and HDCP 2.2/1.4 compliant. Easy and flexible to install and simple to operate.

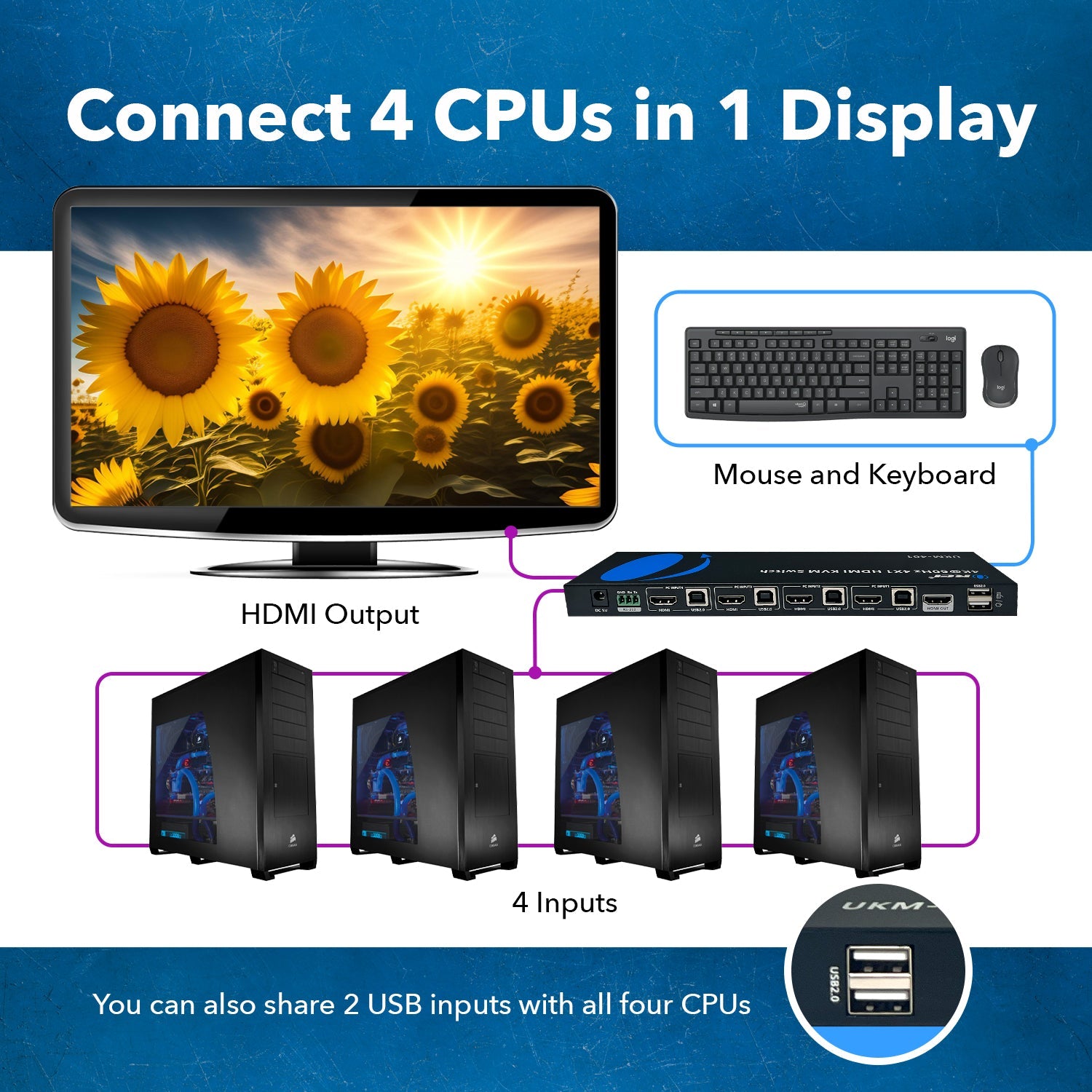

KVM - This feature allows you to control 4 PCs through a single set of Keyboard, Mouse and Display.
RS-232 Control - The device can be easily controlled through a PC using RS-232 protocol commands.
[shortdes]
- Video Resolution up to 4096×2160@60Hz
- HDMI 2.0 and HDCP 2.2/HDCP 1.4 compliant
- Features RS-232 Pass through
[/shortdes]
[tab]

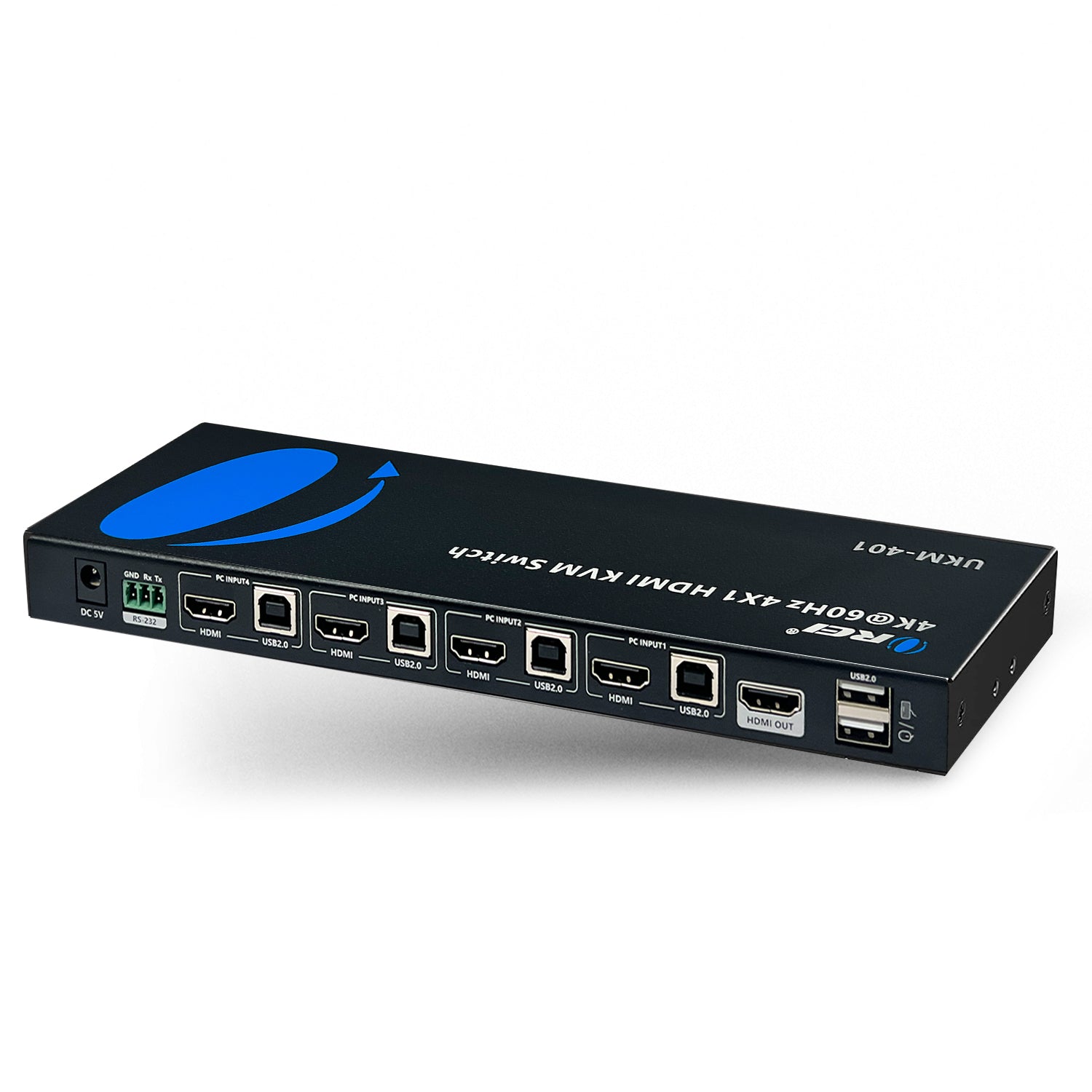

CONNECTIVITY
INPUT PORTS: |
4×HDMI Type A [19-pin female] |
OUTPUT PORTS: |
1×HDMI Type A [19-pin female] |
USB PORTS: |
4×USB Type A [USB 2.0] |
|
4×USB Type B [USB 2.0] |
AUDIO AND VIDEO
Video Bandwidth: |
600 MHz |
Video Resolution: |
4096x2160@24/25/30/50/60Hz |
HDMI Audio Formats: |
LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital Plus/Dolby TrueHD 7.1/Dolby Digital/Dolby Atmos |
POWER
PROTECTION
Operation Temperature: |
-20°C `60°C |
Storage temperature: |
-30°C `70°C |
Relative Humidity: |
0 `90%RH |

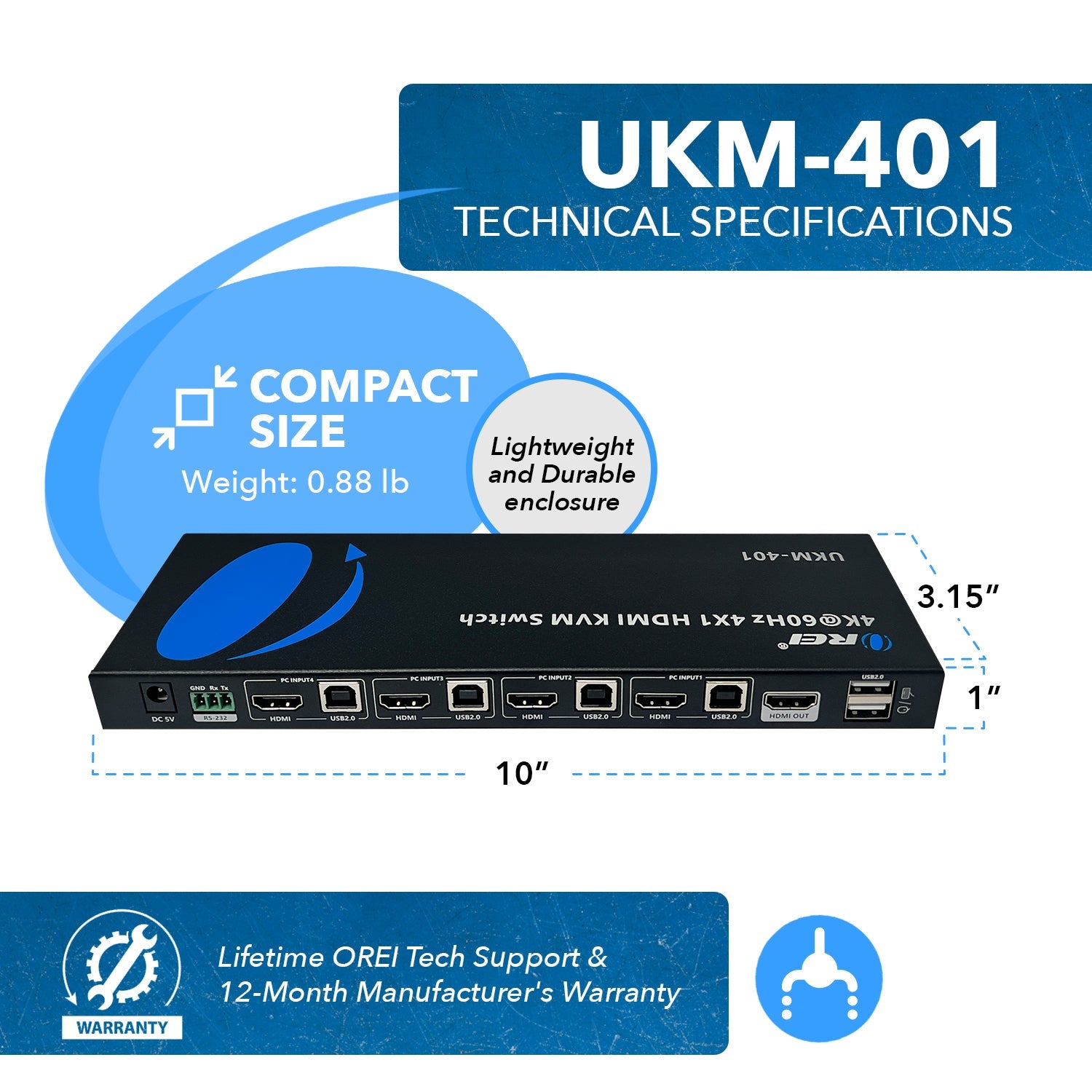

DIMENSIONS & WEIGHT
Height: |
21mm |
Width: |
80mm |
Depth: |
250mm |
Weight: |
510g |

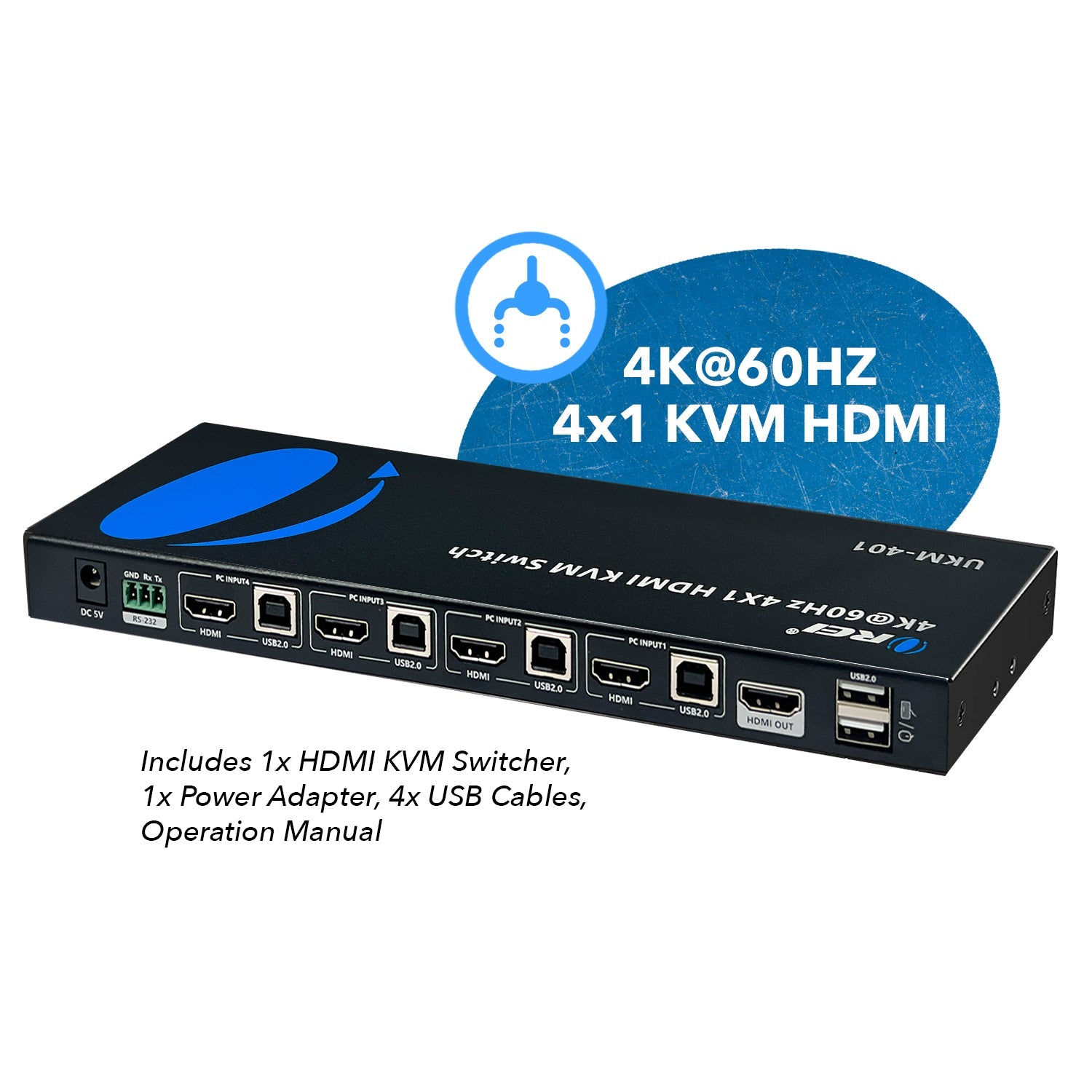

PACKAGE CONTENTS
1x UKM-401 KVM Switch |
1x Power Adapter 5V/1A |
1x Remote Control |
1x Mounting Ear |
6x Screw |
2x Grounding Screw |
1x Terminal Block |
6x USB 2.0 Type A to Type B Cable |
1x User Manual |
WARRANTY
1-Year Manufacturer's Warranty |
