Description

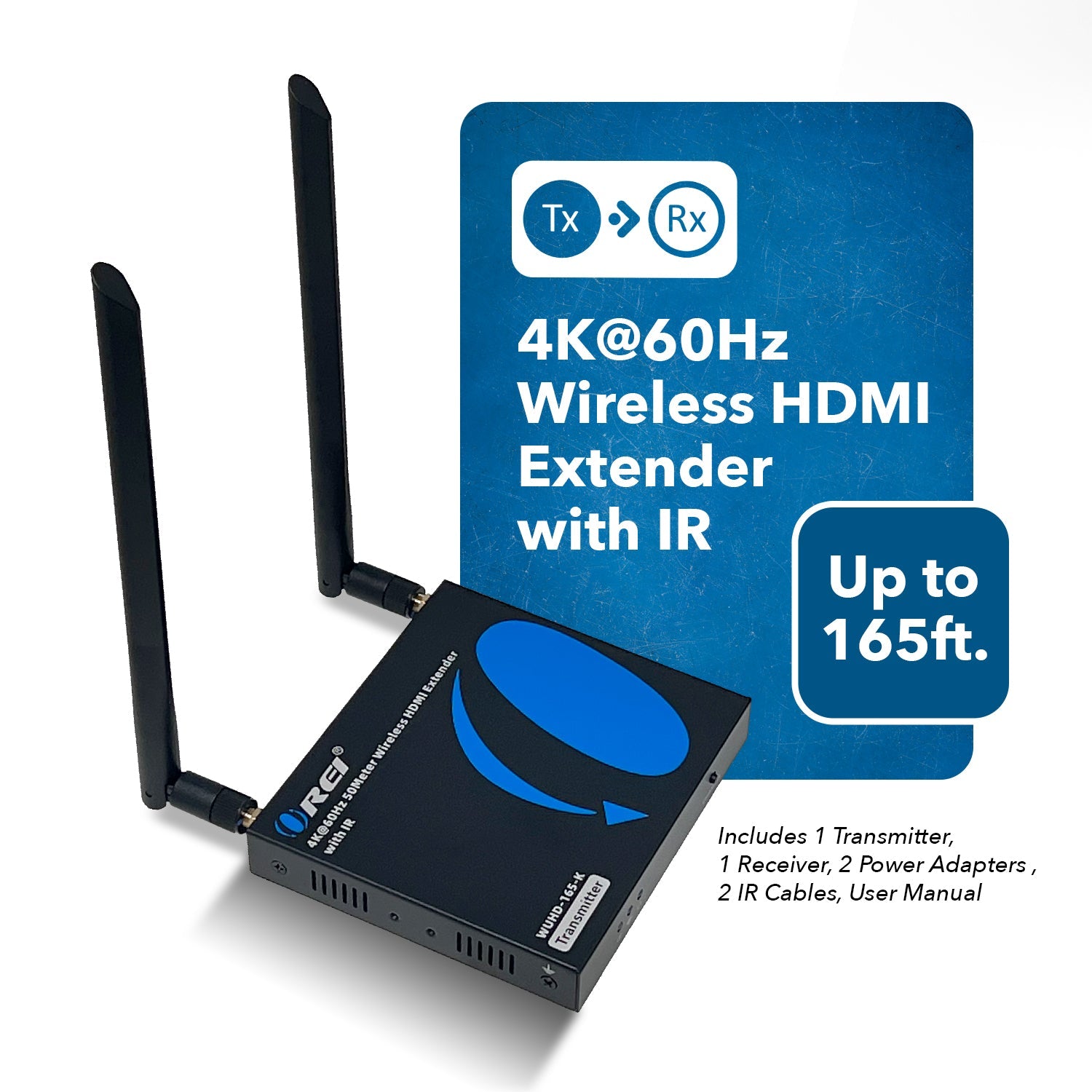

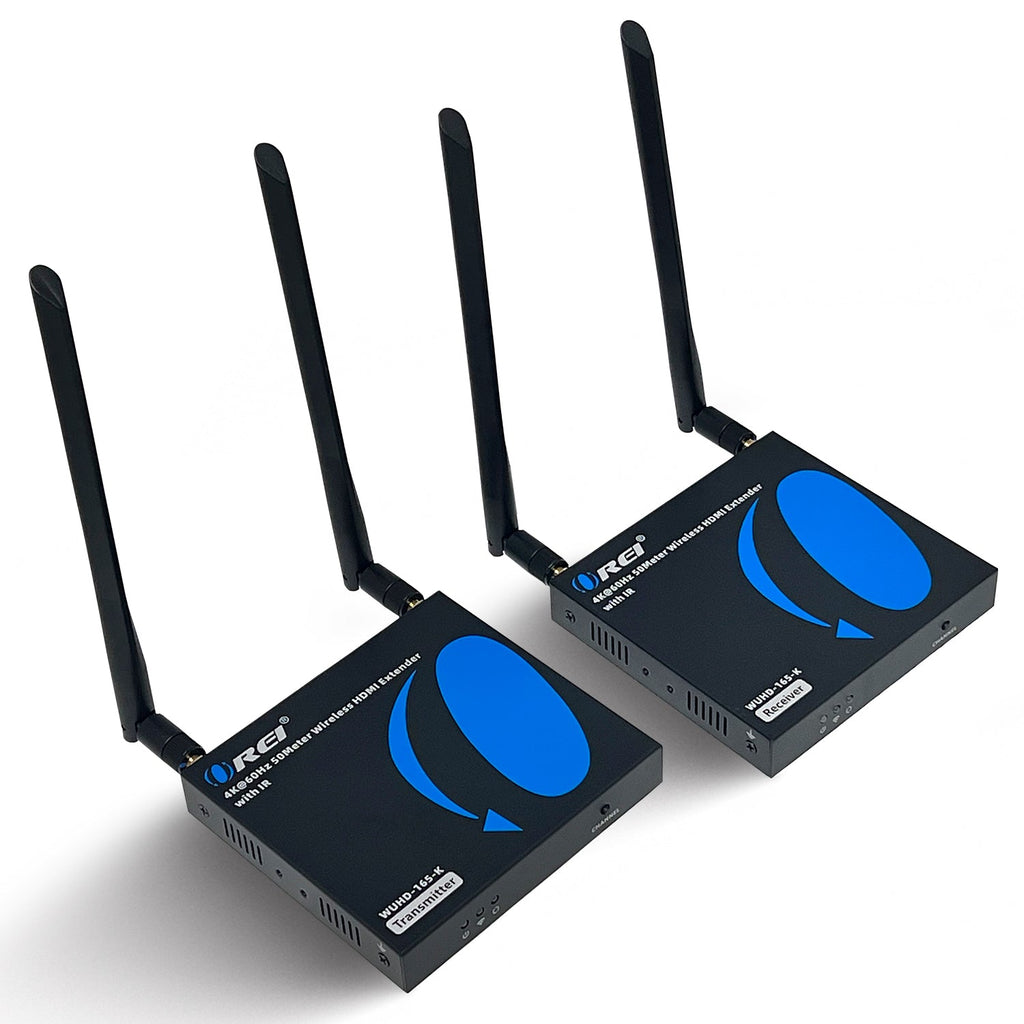

WUHD-165-K: 4K@60Hz Wireless HDMI Extender up to 165 feet with IR
-
HDMI 2.0 & HDCP1.1/2.2 Compliant
-
Video resolutions up to 4K@60Hz
-
Wireless transmission up to 50M/165Ft line of sight.
-
HDMI Loop out at the Transmitter to connect a display near the source.
-
SSID Pairing and Channel Switching to avoid interference with other nearby devices.
-

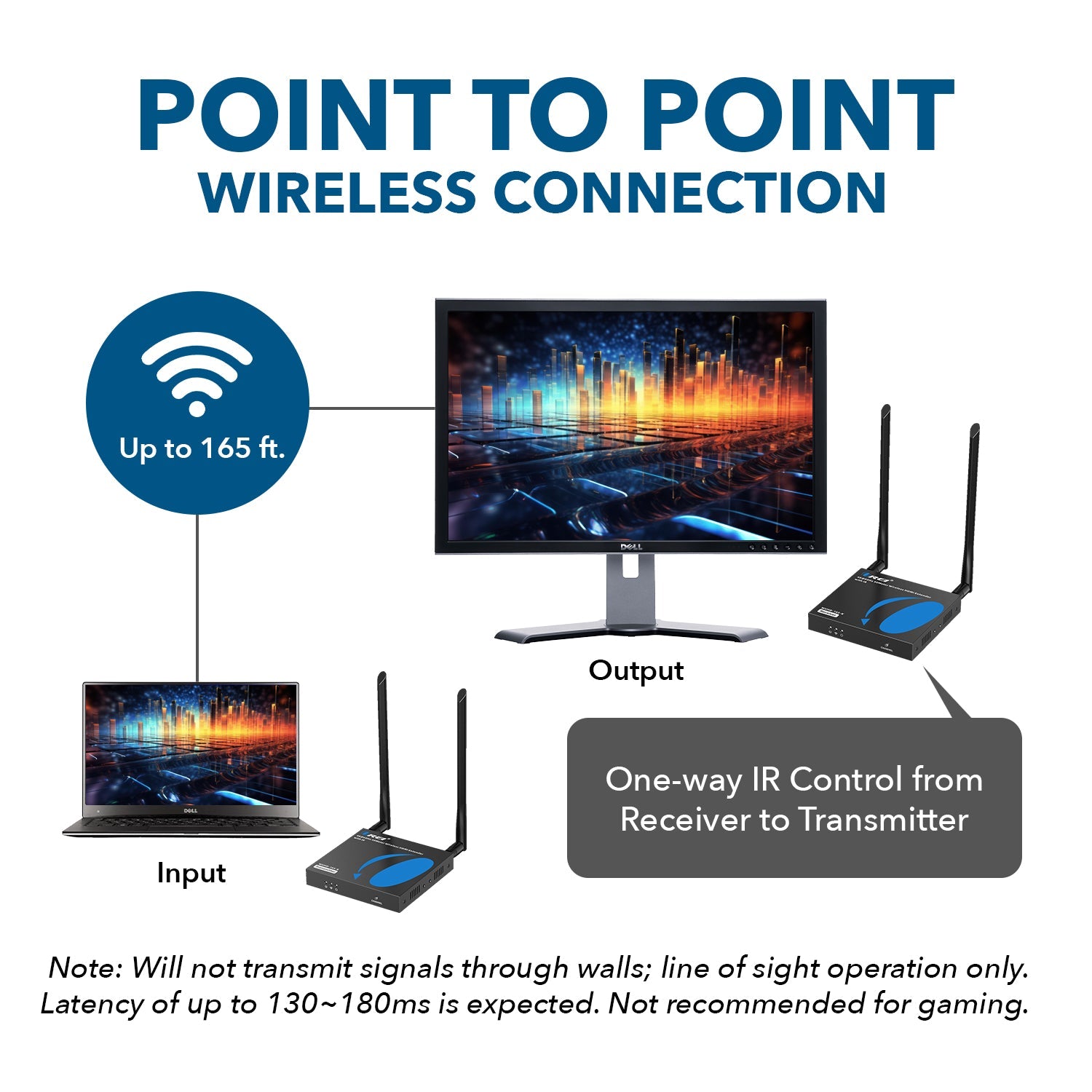

One-way IR Control from Receiver to Transmitter.
-

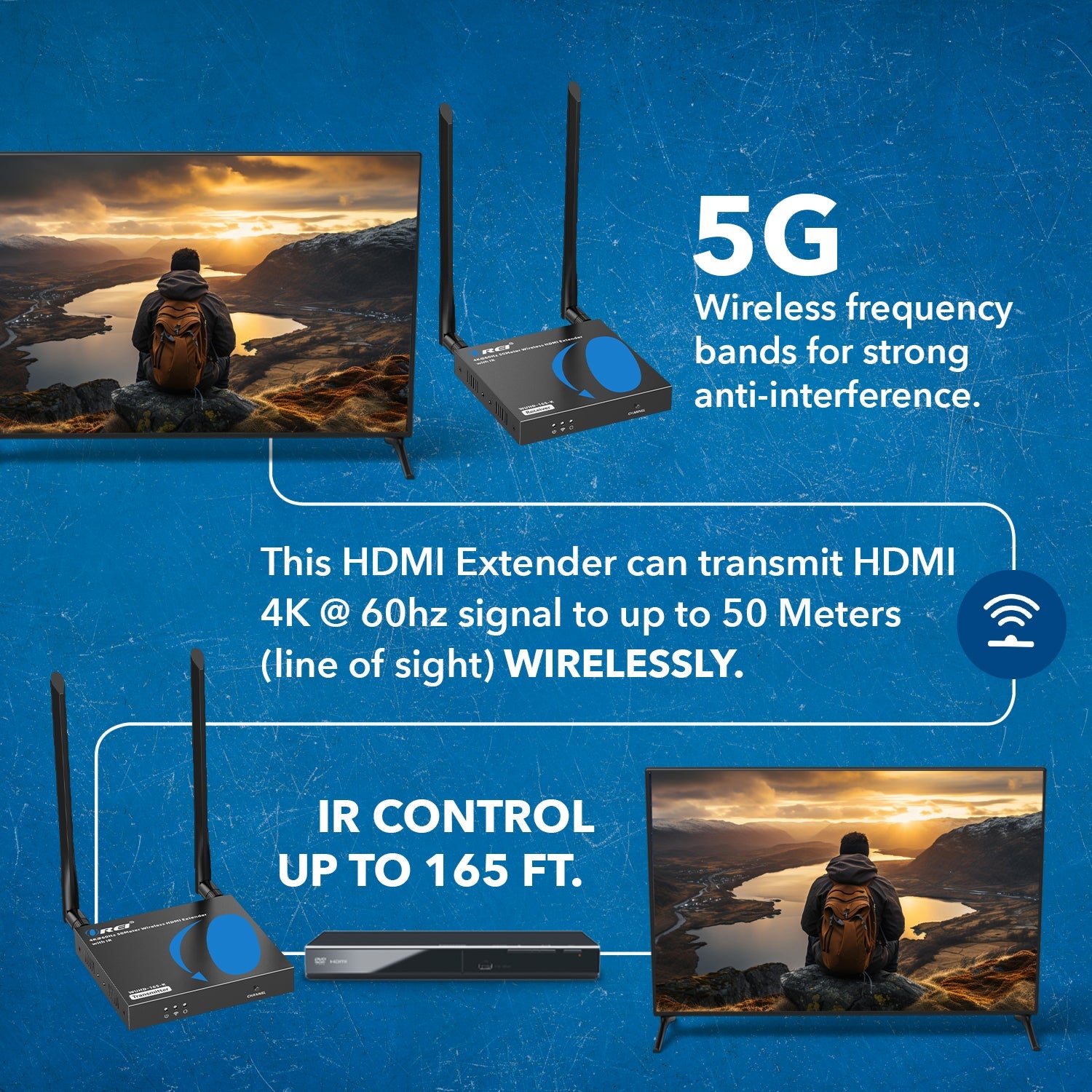

5G wireless frequency bands for strong anti-interference.
-

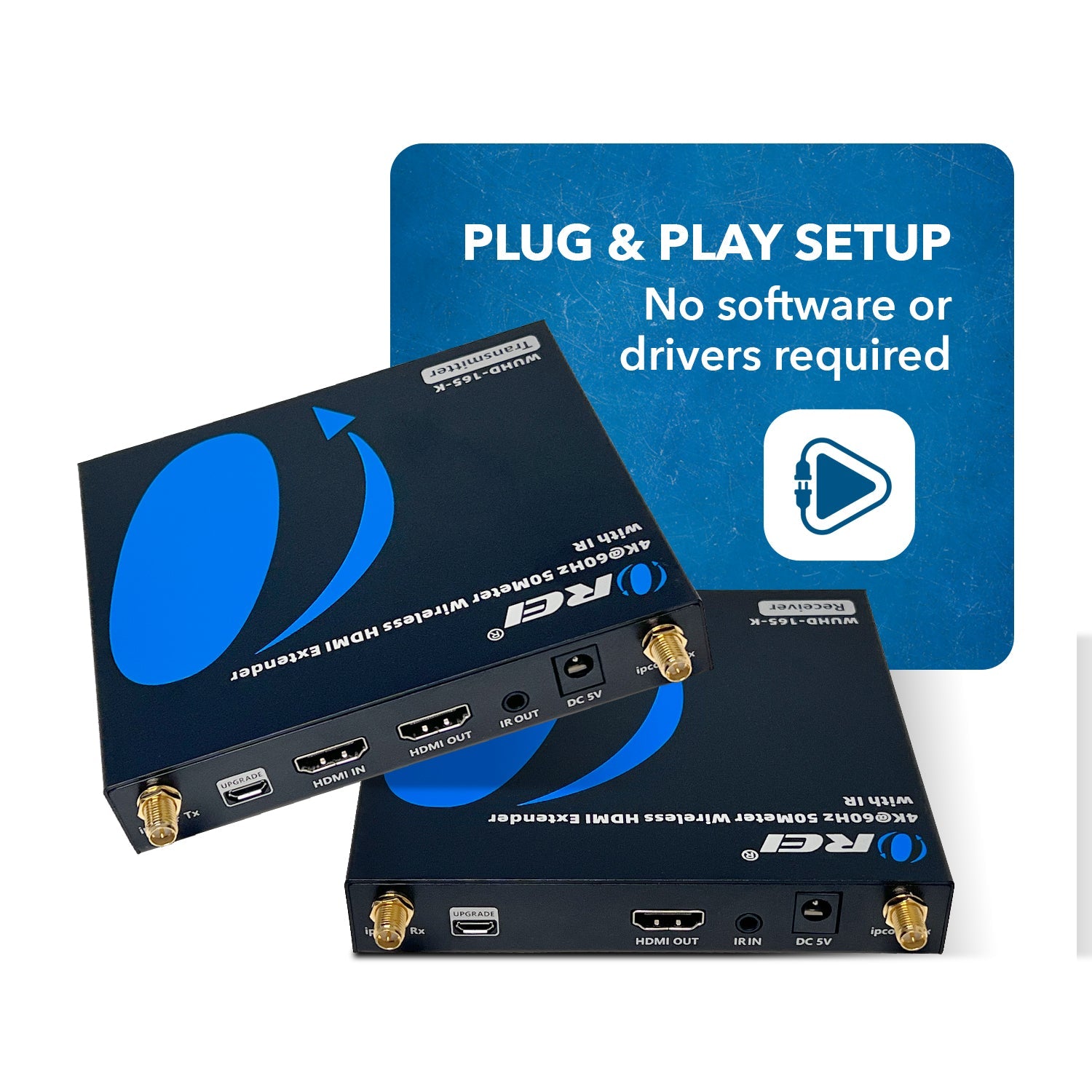

Plug & Play setup, no drivers or software required.
The WUHD-165-K Wireless HDMI Extender can extend an HDMI signal up to 165 feet(50m) with 4K@60Hz resolution. The device uses ipcolor STREAM Technology to deliver high-definition, low-latency video transmission. 5G wireless frequency bands provide several advantages over traditional 2.4GHz and 5GHz bands, including stability, speed, security, and anti-interference. The device features an HDMI loop output on the Transmitter to connect a display near the source. It supports 1-to-1 wireless transmission, effectively solving problems caused by complicated wiring. It's an ideal wireless video transmission solution for video conferences, home entertainment, multimedia education, etc.
[shortdes]
-
5g Wireless HDMI extender
-
Extends 4K@60Hz up to 165 feet line of sight
-
One-way IR control
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin Male] |
| 1 x DC 5V [Micro-USB Power Input] | ||
| Receiver: | INPUT: | Input: 1 x DC 5V [Power Input] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin Male] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 2x Micro USB cable |
| User Manual |
EXTENDING DISTANCE
| 4K@60HZ: | 165 feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | Transmitter 4.5W (Max) & Receiver 3.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Transmitter: | Length: | 230mm / 9.06in |
| Width: | 40.2mm / 1.58in | |
| Height: | 15mm / 0.59in | |
| Weight: | 58g / 2.05oz | |
| Receiver: | Length: | 230mm / 9.06in |
| Width: | 40.2mm / 1.58in | |
| Height: | 15mm / 0.59in | |
| Weight: | 54g / 1.91oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
Please try replacing your current HDMI cables with High-Quality HDMI cables.Please make sure that you dont have any other wireless devices such as wifi router nearby this extender.If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you can implement the daisy chain method.
We recommend you to use High-Quality HDMI cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[/tab1]
