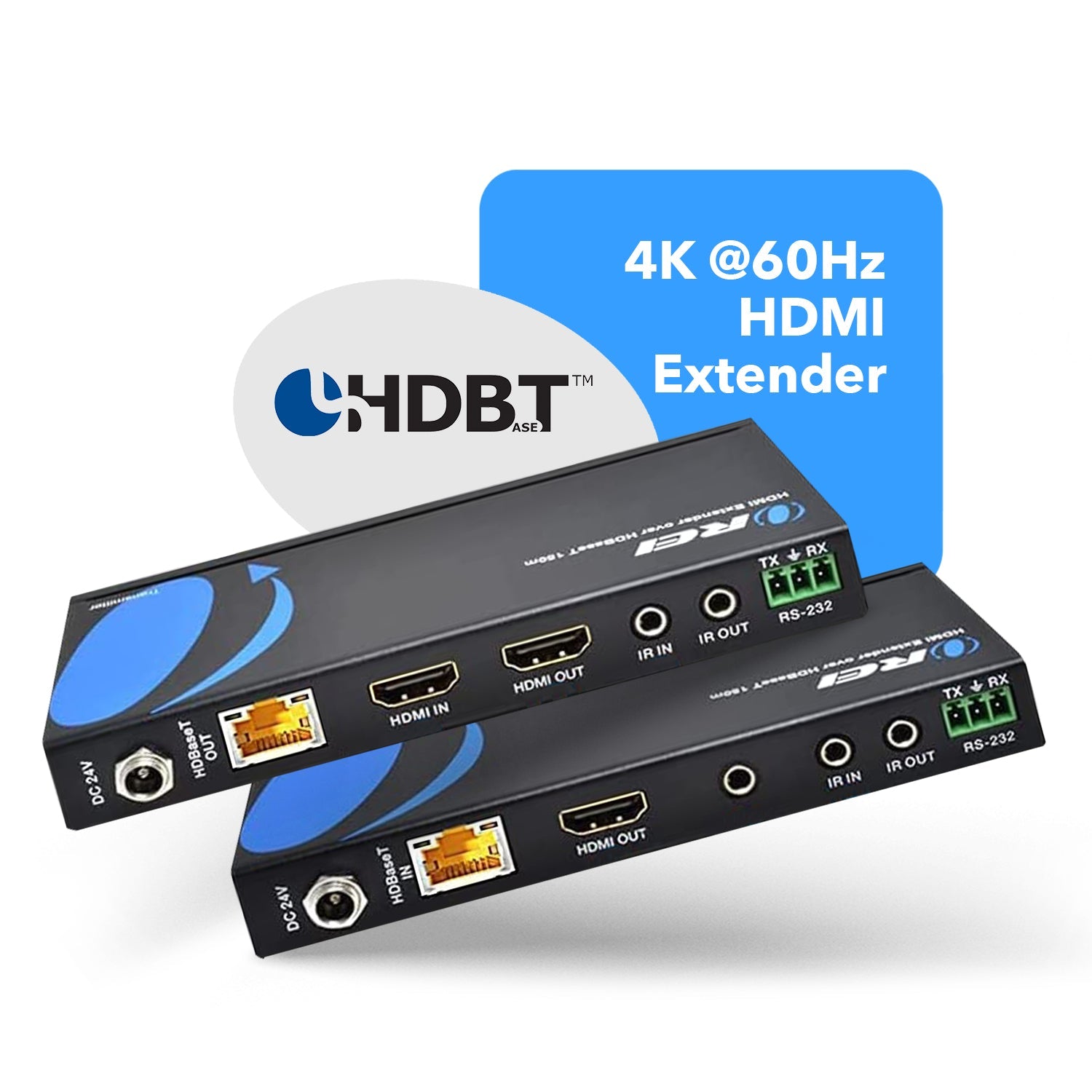

OREI 4K Extender over Ethernet up to 115 feet - With Audio Extraction, Power over Cable, IR Functionality, RS-232 & CEC Pass-through (EX-115UHD-K)

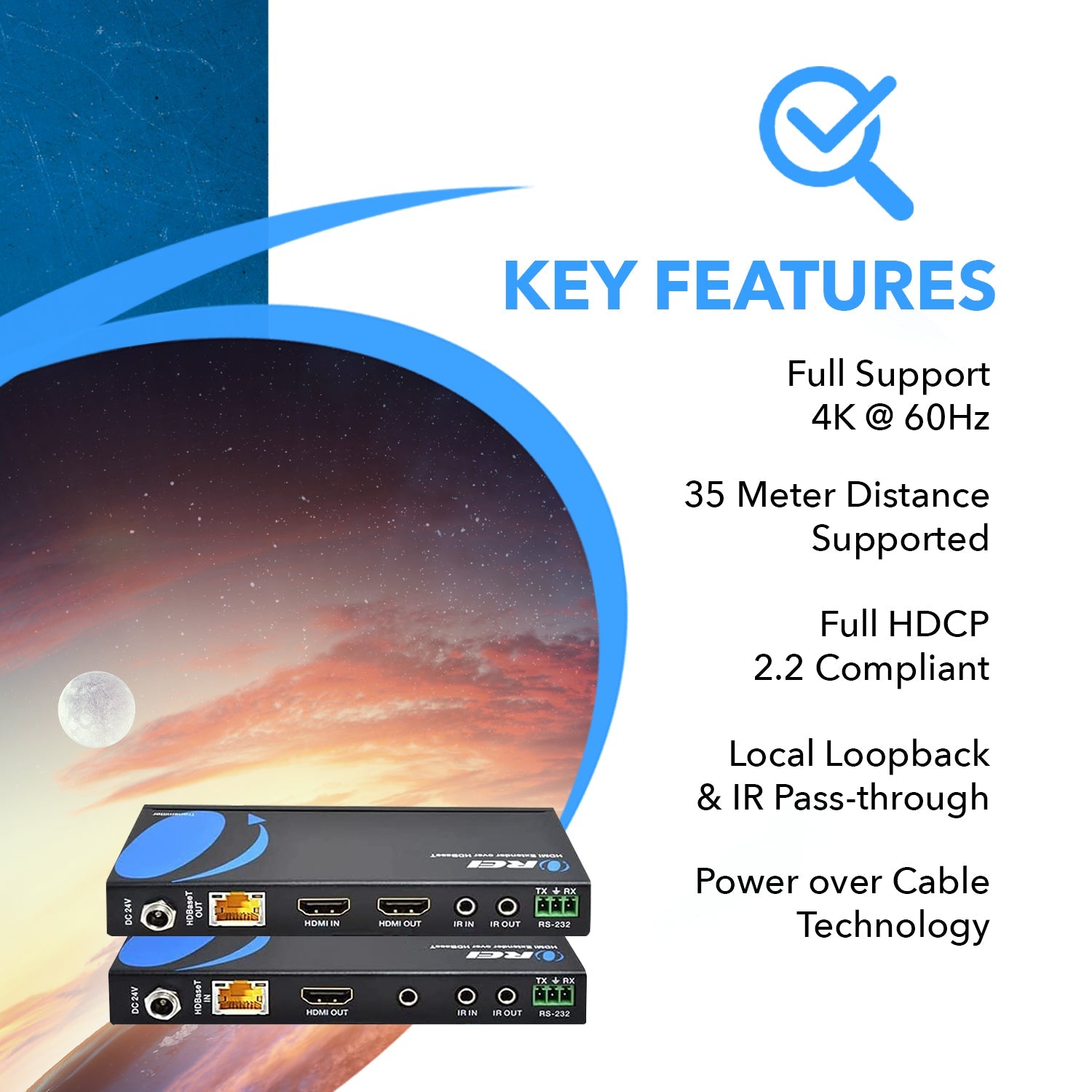

Key Features:
The EX-115UHD-K HDMI Extender delivers high-performance signal extension over long distances using a single CAT 6 cable. Supporting resolutions up to 4K@60Hz (4:4:4) and compliant with HDMI 2.0 and HDCP 2.2 standards, this extender offers superior video quality with full HDR support including HDR10+, Dolby Vision, and HLG.

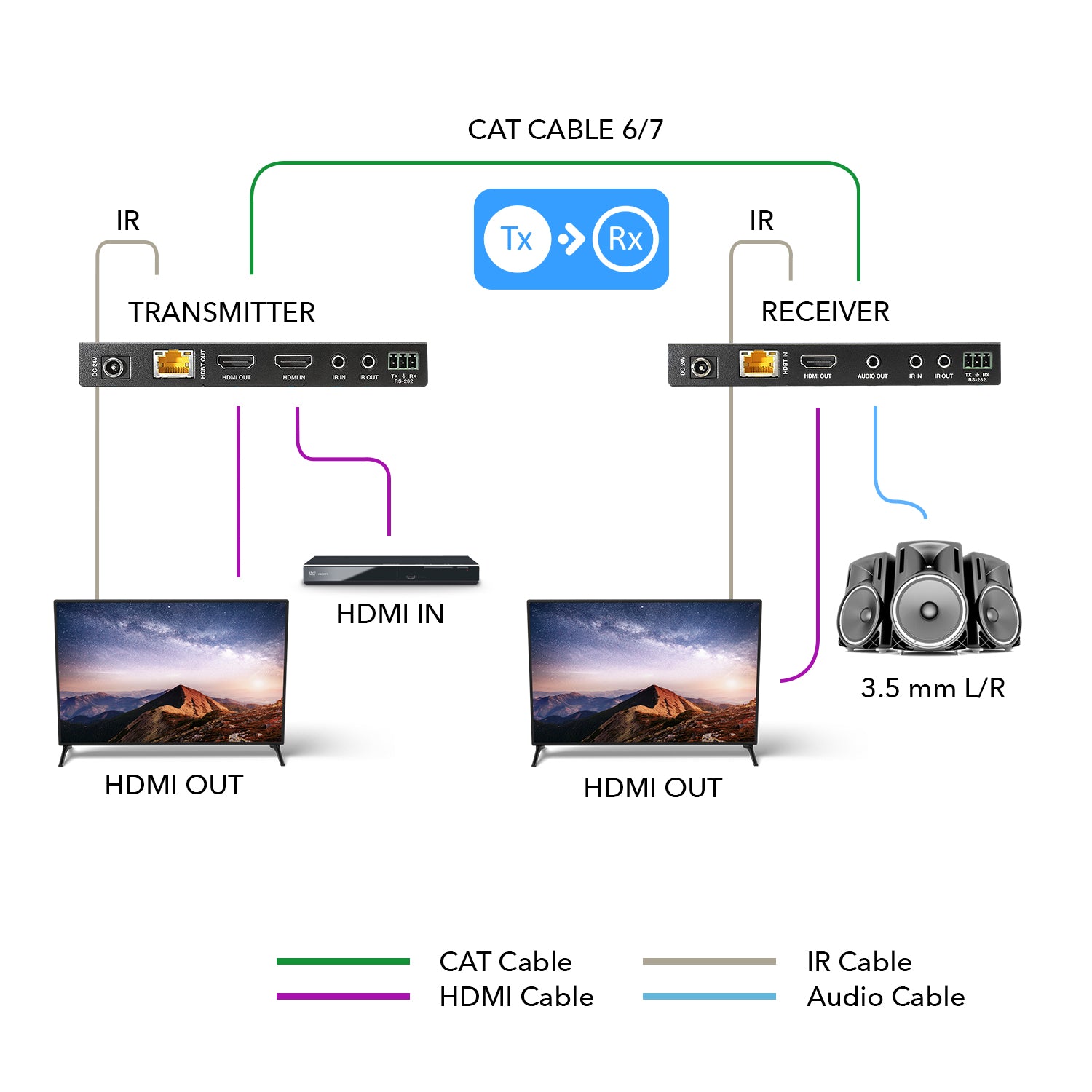

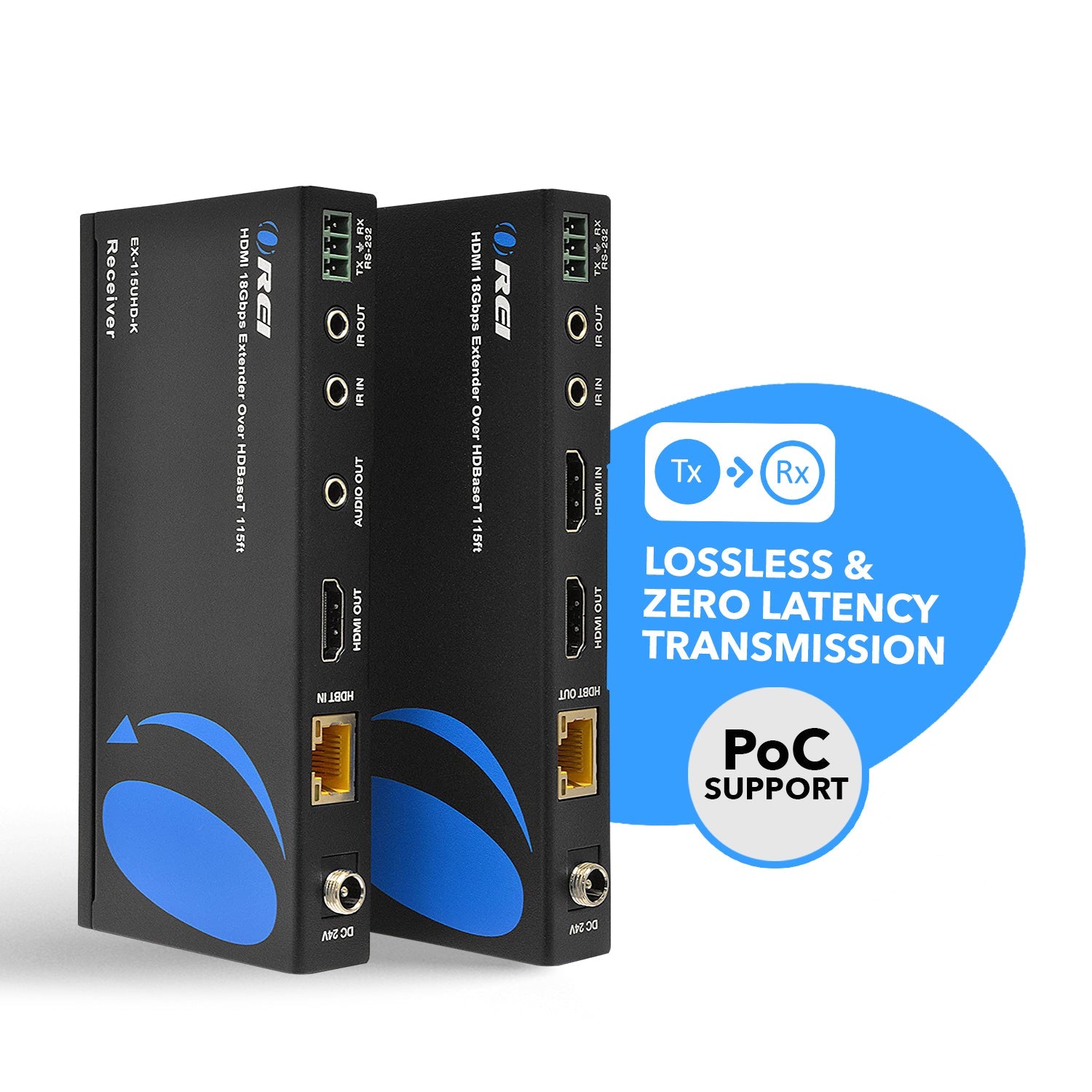

Ideal for home or commercial installations, it extends HDMI signals up to 115ft at 4K@60Hz and 230ft at 1080p@60Hz.This extender includes an HDMI loop-out on the transmitter for connecting a local display and supports audio de-embedding through the L/R output on the receiver. With bi-directional Power over Cable (PoC), only one power adapter is needed. It also enables full control flexibility with bi-directional IR, RS-232, and CEC pass-through.
Note: OREI HDBaseT models are designed to work only with their own matching transmitter and receiver. They are not interchangeable with other OREI HDBaseT models, nor compatible with HDBaseT devices from other brands, due to chipset differences.
For best results, always use the included or recommended pair from the same model.
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: EX-115UHD-K
[/tab1]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × HDBaseT [RJ45, 8-pin female] | ||
| CONTROL: | 1 × I/R IN [3.5mm Stereo Mini-jack] | |
| 1 × I/R OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin Phoenix connector] | ||
| 1 × SERVICE [Micro USB, Update port] | ||
| Receiver: | INPUT: | 1 × HDBaseT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × I/R IN [3.5mm Stereo Mini-jack] | |
| 1 × I/R OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin Phoenix connector] | ||
| 1 × SERVICE [Micro USB, Update port] |

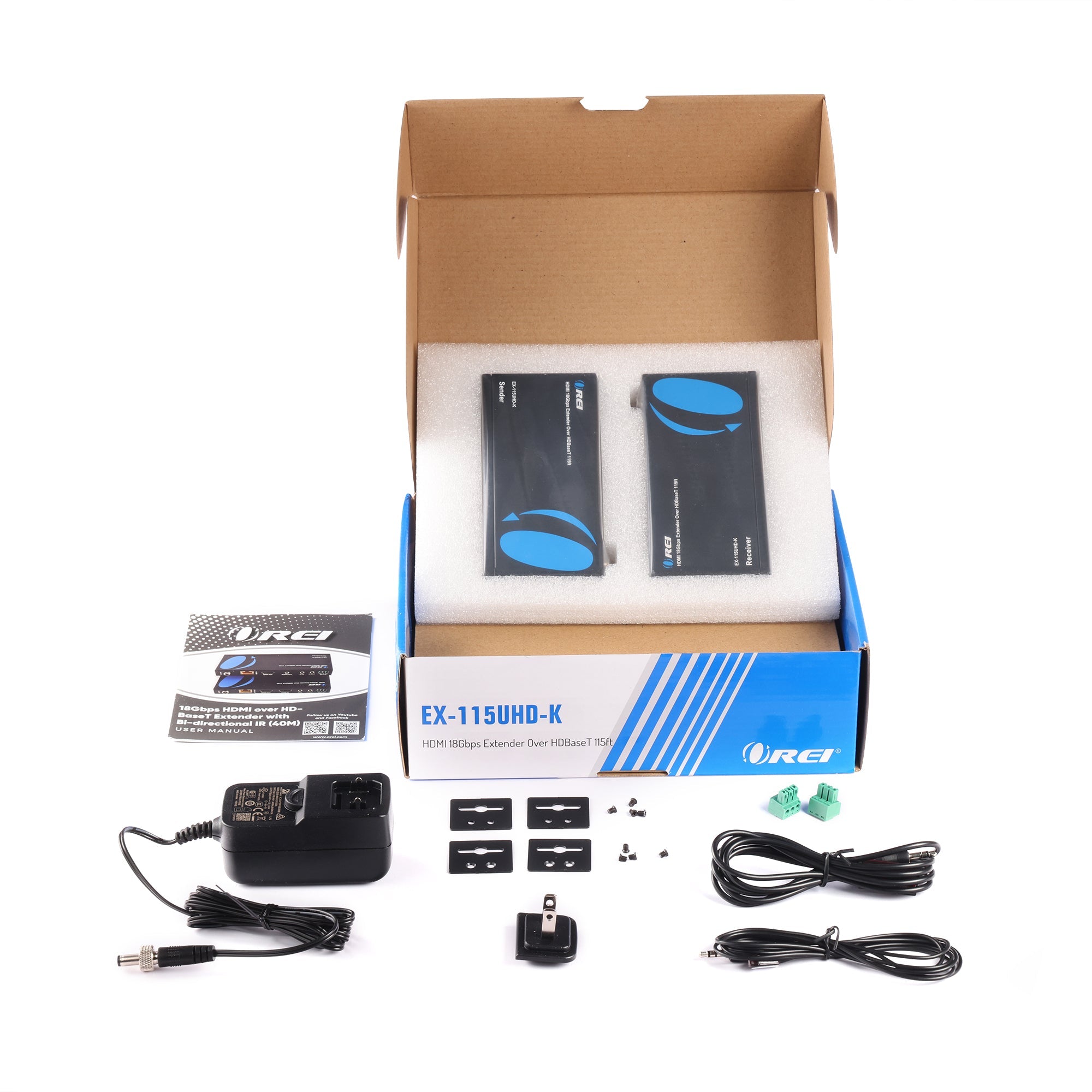

PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster cable |
| 1x IR Receiver cable |
| 4x Mounting ears |
| 2x 3-pin phoenix connector |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 115 Feet |
| 1080P@60Hz: | 230 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| ARC/eARC: | No / No |
| CEC: | Yes |
| Transmission Technology: | HDBaseT, Ethernet |
| IR Control: | Bi-directional |

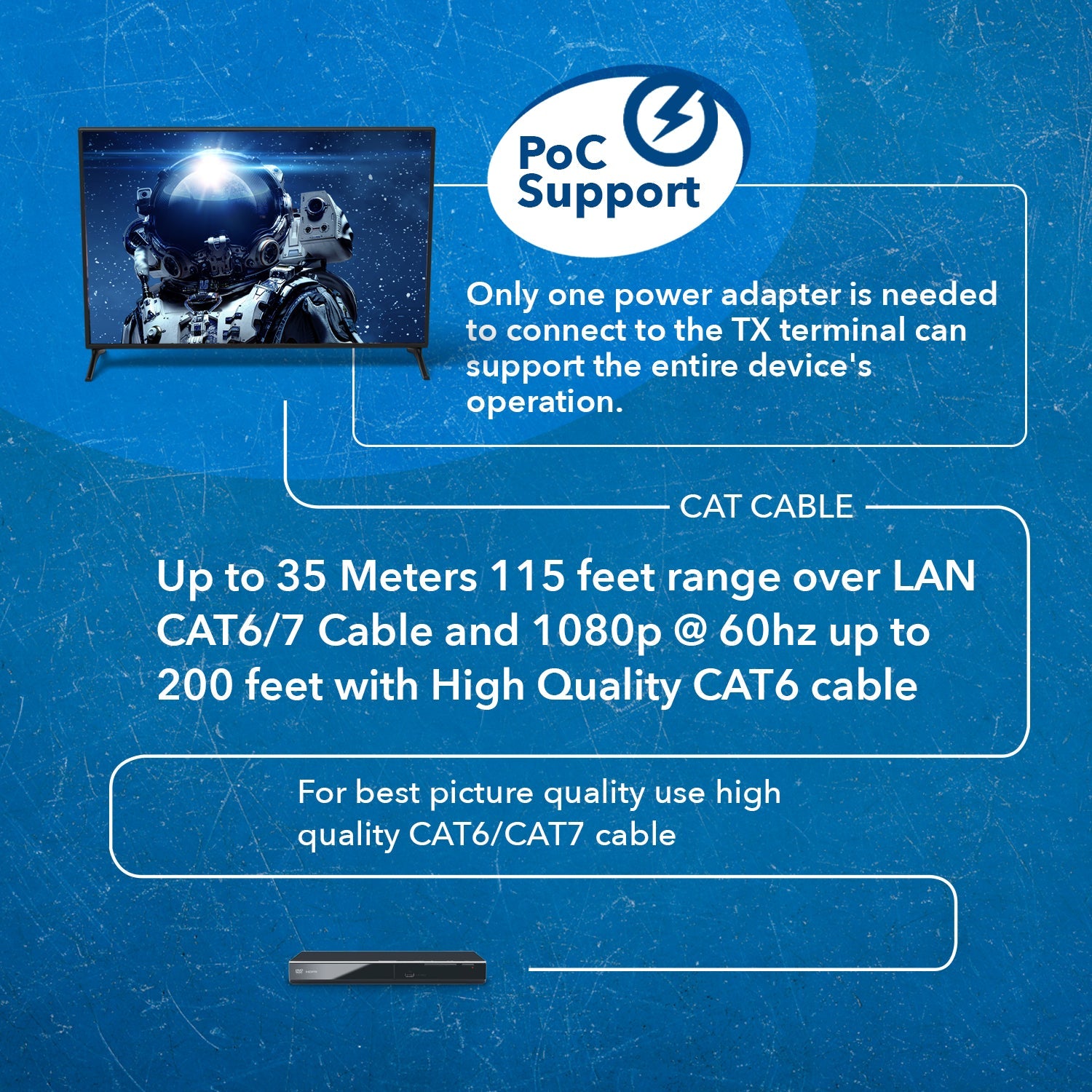

| PoC (Power over Cable): | Yes |
| RS-232: | Yes |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 9.36W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 24V/1A |

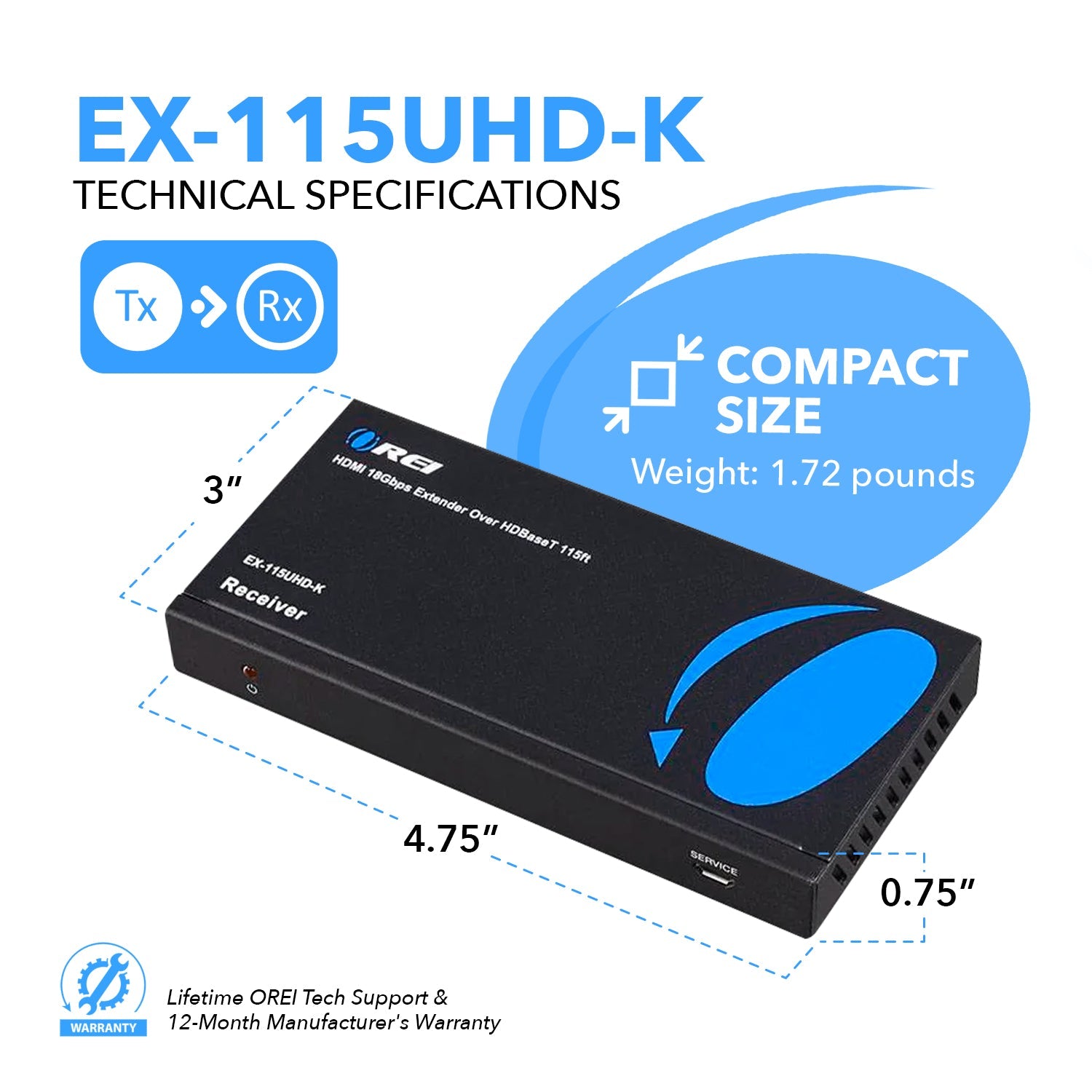

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 140mm / 5.51in |
| Width: | 65mm / 2.56in | |
| Height: | 18mm / 0.71in | |
| Weight: | 160g / 5.64oz | |
| Receiver: | Length: | 140mm / 5.51in |
| Width: | 65mm / 2.56in | |
| Height: | 18mm / 0.71in | |
| Weight: | 155g / 5.47oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
-
4K HDMI extender over ethernet up to 115 feet
-
Video resolutions up to 4K@60Hz 4:4:4
-
Audio extraction, Power over cable, IR pass-through, RS-232 & CEC
[/shortdes]
