Description

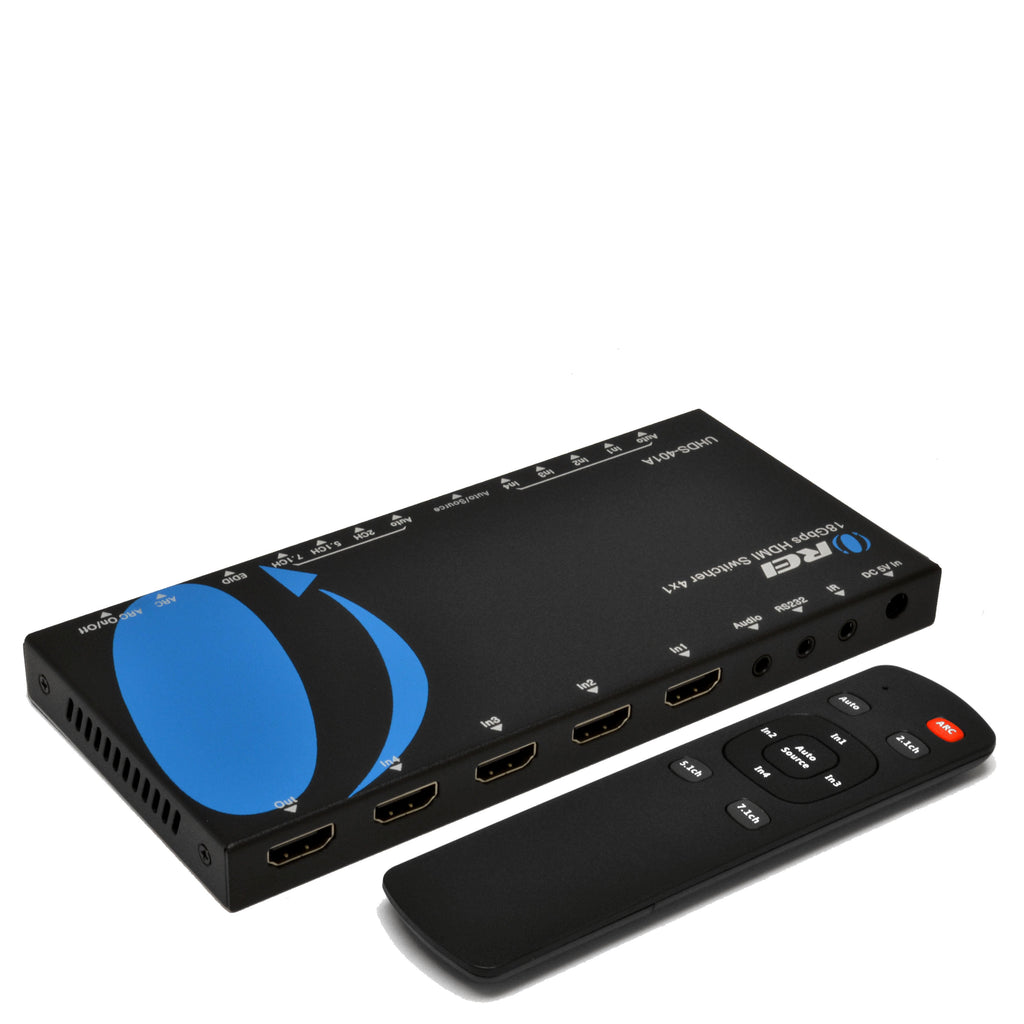

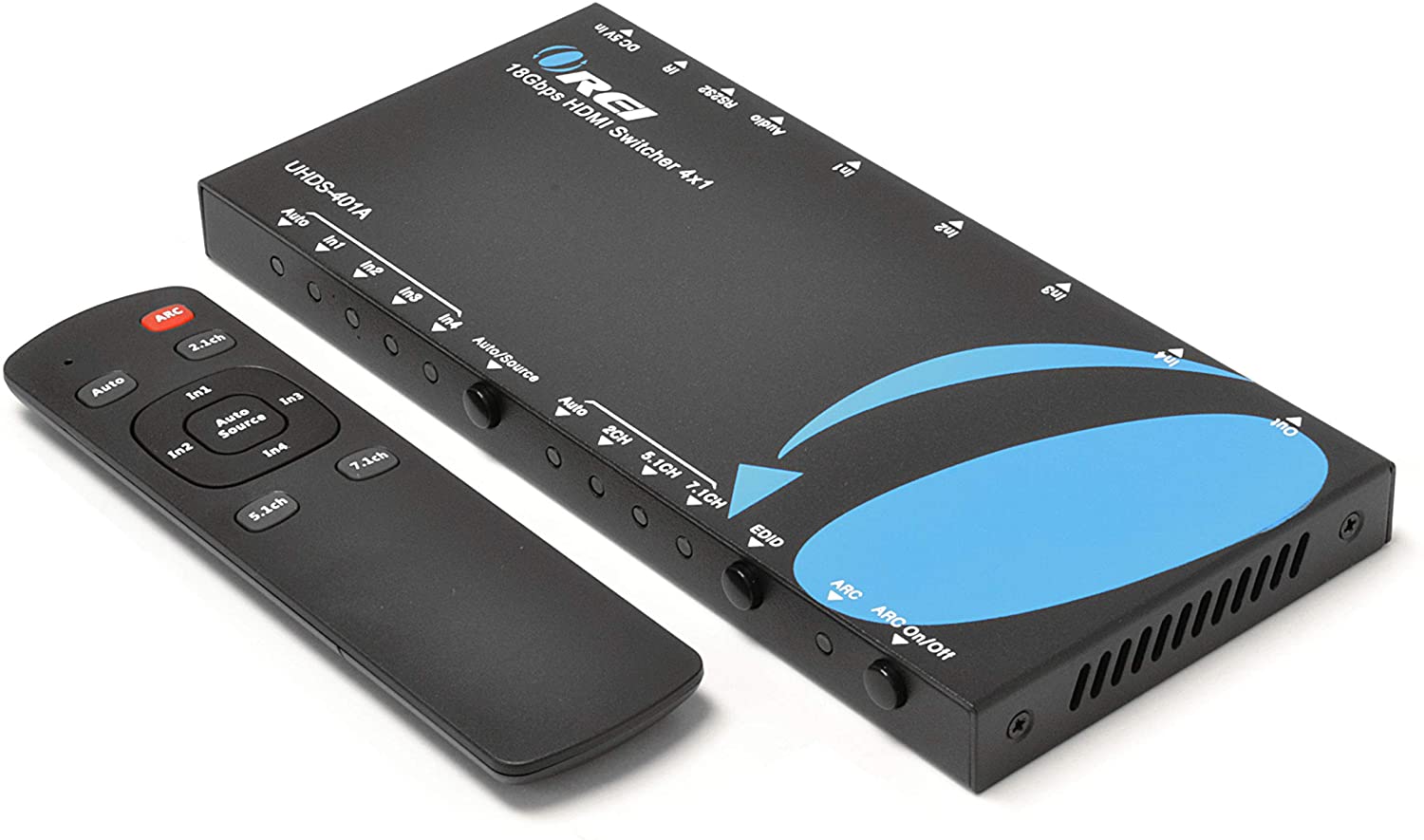

OREI UHDS-401A-O: 4x1 HDMI Switch
- HDMI 2.0a & DVI 1.0 Compliant – Ensures compatibility with the latest video standards.
- HDCP 2.2 / 1.4 Support – Meets modern content protection requirements.
- 4Kx2K@60Hz & HDMI 3D – Delivers ultra-HD resolution and full 3D video support.
- Advanced Audio Support – PCM, Dolby TrueHD, and DTS-HD Master Audio up to 7.1 channels.
- Digital & Analog Audio Outputs – Flexible audio integration with receivers or amplifiers.

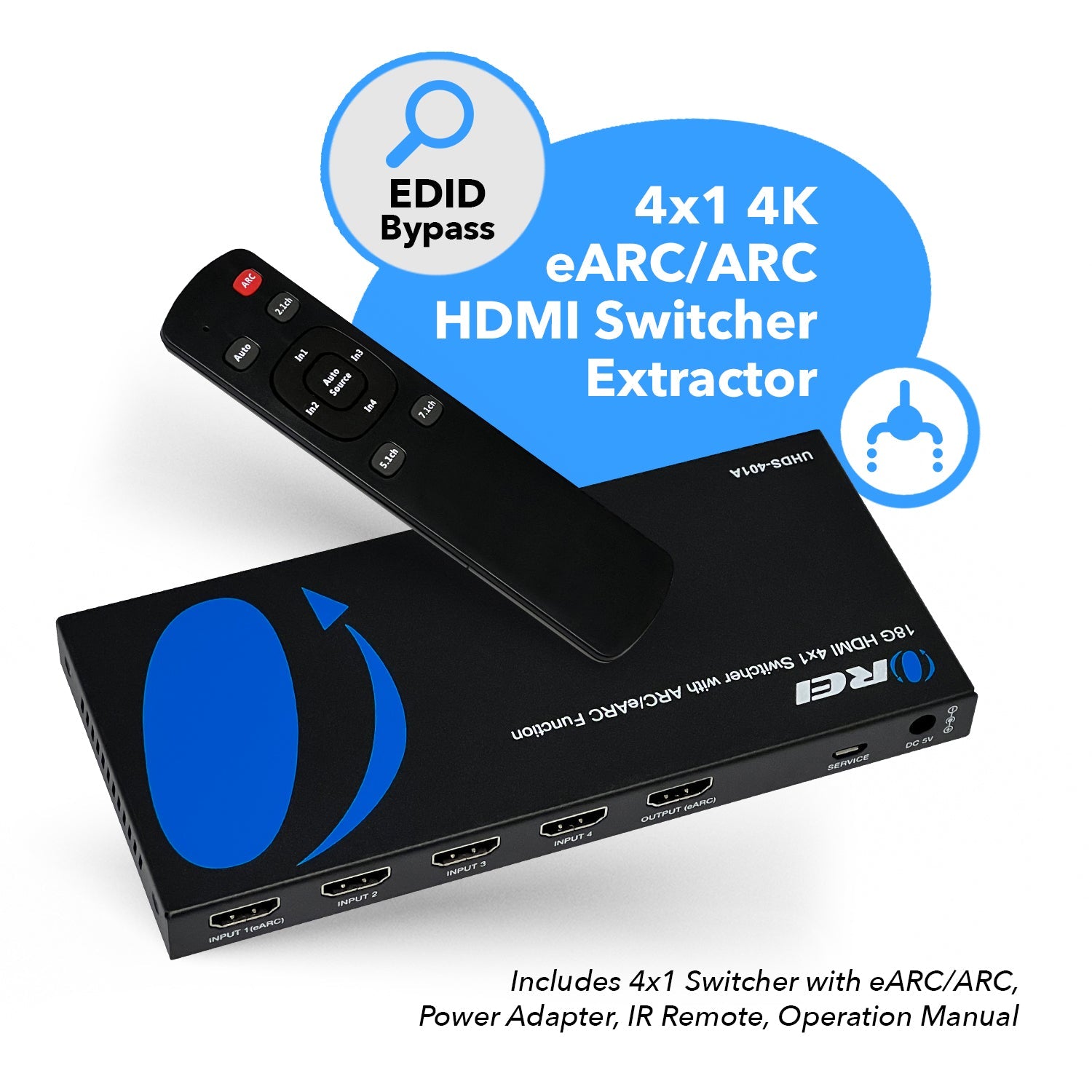

- Smart EDID Management – Auto/2CH/5.1CH/7.1CH selectable modes for system compatibility.
- ARC Functionality – Allows audio return from ARC-enabled TVs to external sound systems.
- Flexible Input Switching – Choose between auto-switching or manual control via panel button or IR remote.
- Front Panel LED Indicators – Provides clear status display for each input source.
- Compact & Reliable Design – Suitable for home, enterprise, and professional AV environments.
The UHDS-401-A-O is a high-performance solution designed to simplify multi-source AV integration while ensuring superior video and audio quality. Supporting HDMI 2.0a and DVI 1.0 standards, this switcher is fully compliant with HDCP 2.2 and HDCP 1.4, delivering reliable compatibility with modern content protection requirements.
It accommodates video resolutions up to 4Kx2K@60Hz and all HDMI 3D formats, providing crisp, ultra-high-definition visuals. Advanced audio capabilities include support for PCM, Dolby TrueHD, and DTS-HD Master Audio up to 7.1 channels, with both digital and analog audio outputs available.

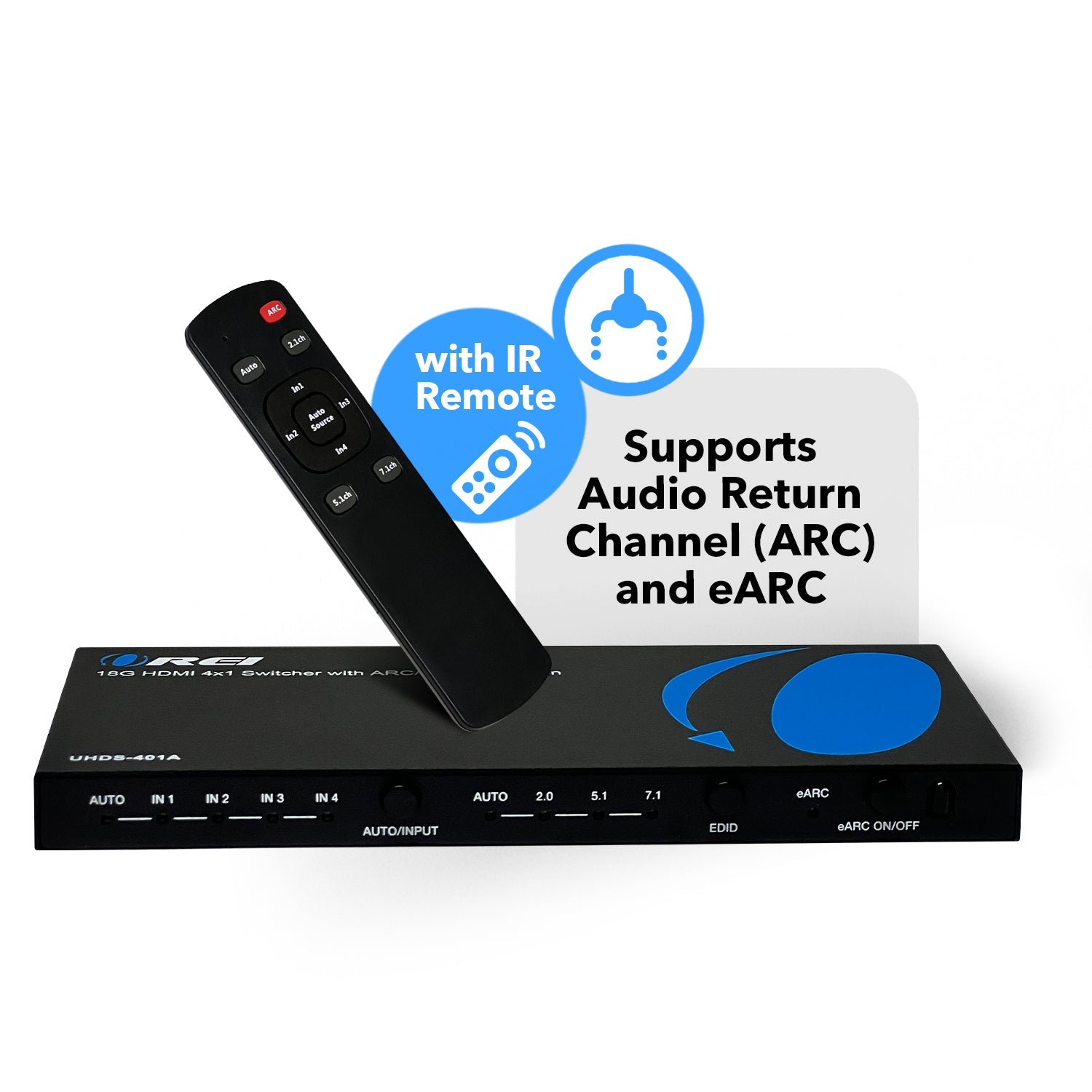

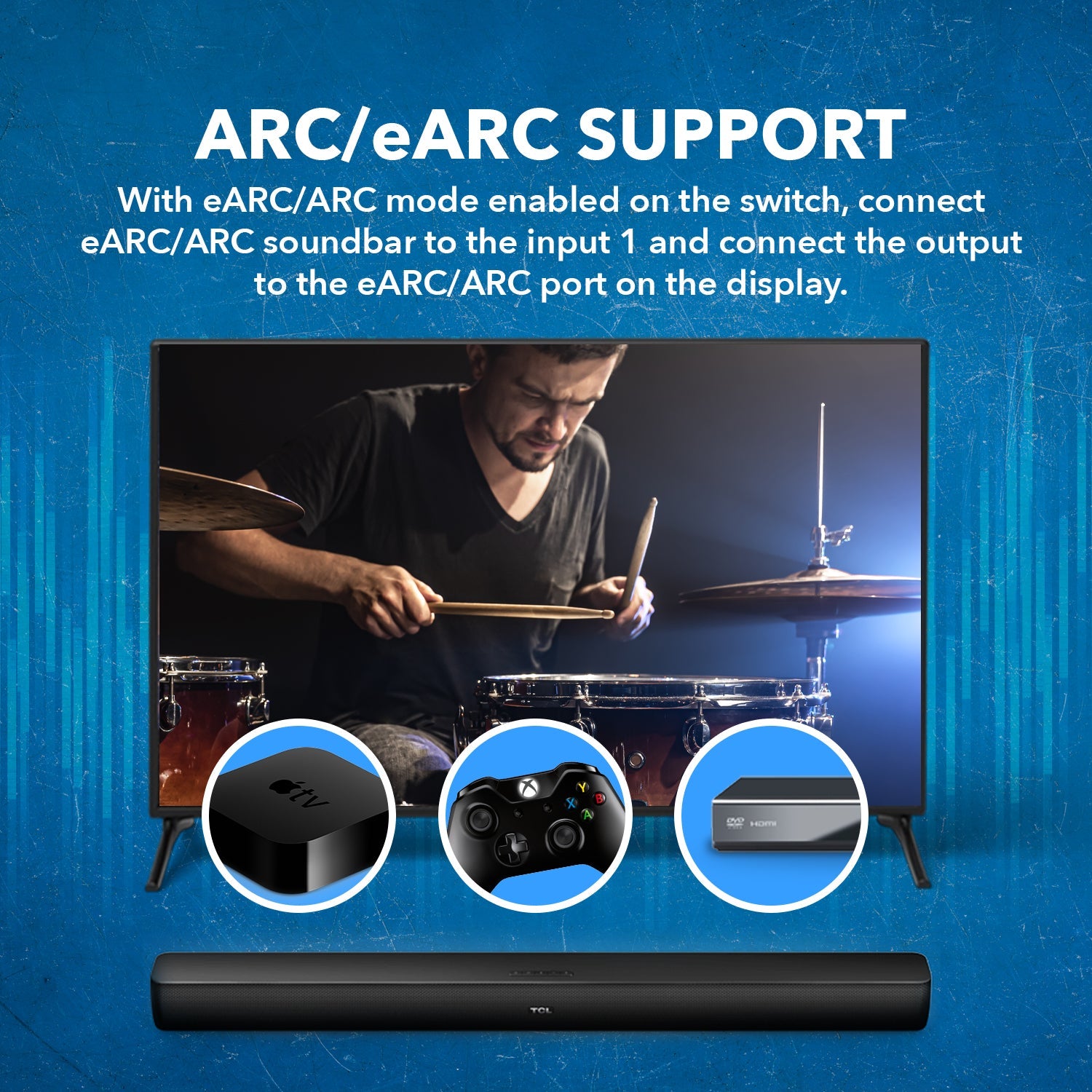

The switcher also integrates Audio Return Channel (ARC) functionality, allowing audio from an ARC-enabled TV to be routed back to an external receiver or amplifier. Smart EDID management (Auto/2CH/5.1CH/7.1CH selectable) ensures seamless system compatibility, while input sources can be switched automatically or manually via the front panel or IR remote control. Front panel indicator LEDs provide clear status feedback for ease of use.
Ideal for home theaters, conference rooms, and AV installations, the HDMI 4x1 Switcher combines versatility, reliability, and high-end performance in a compact design.
[shortdes]
- 4 Inputs - 1 output HDMI switch
- Video resolution up to 4K@60Hz and 2K@60Hz - EDID Management
- Support ARC
- Compliance: HDMI 2.0b - HDCP 2.2
[/shortdes]
[tab]
AUDIO AND VIDEO

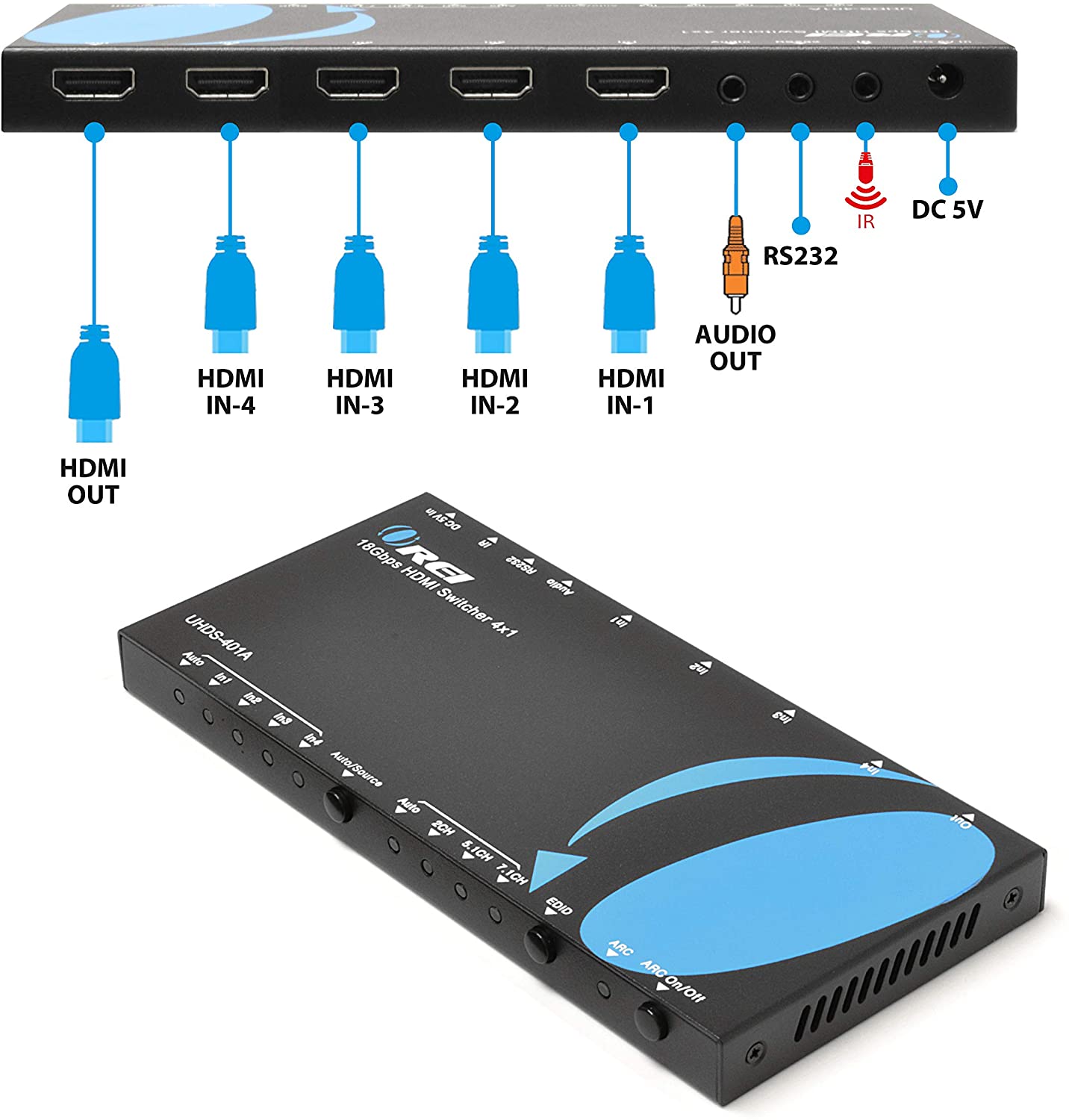

| Inputs Ports | 4×HDMI IN [Type A 19-pin female] |
| Output Ports | 1×HDMI OUT [Type A 19-pin female] |
| Control | 1×SERVICE [Micro USB port] |
| Video Bandwidth | 18Gbps |
| Video Resolution: | 4Kx2K@24/30Hz, 4K@60Hz, 2K@60Hz |
| Color Depth: | 8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| Color Space: | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
ADDITIONAL FEATURES
| CEC: | Yes |
| ARC/eARC : | Yes |
| 4K@60Hz: | Yes |
| USB KVM: | No |
| EDID Management: | Yes |
| IR Control: | Yes |
| Audio Extraction: | Yes |
| Downmix: | No |
| HDR: | Yes |
| VRR: | No |
| RS-232: | No |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / 1.x |
POWER
| Power Supply: | Input | AC100~240V 50/60Hz |
| Output | DC 5V/1A | |
| Power Consumption | Max 2 W |
CONTROL
| CEC | Pass through |
PROPERTIES
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

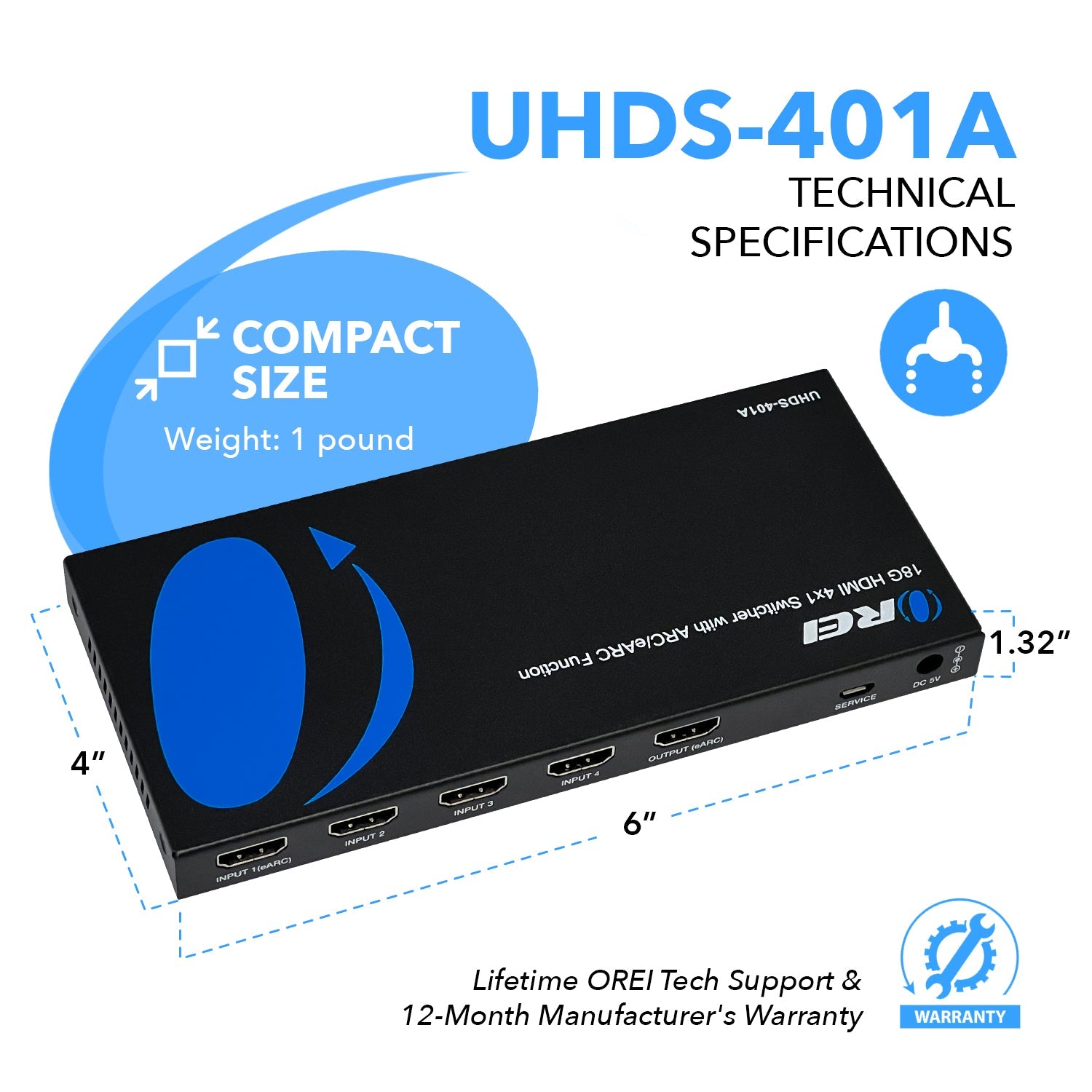

DIMENSIONS & WEIGHT
| Height | 15.5 mm |
| Width | 182mm |
| Depth | 84mm |
| Weight | 370g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × 18Gbps HDMI 4x1 Switcher |
| 1 × 5V/1A Power Adapter (USA Standard) |
| 1 × IR Remote |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
