OREI 8K HDMI Bi-direction 1x2 Splitter, 2x1 Switch
Key Features:

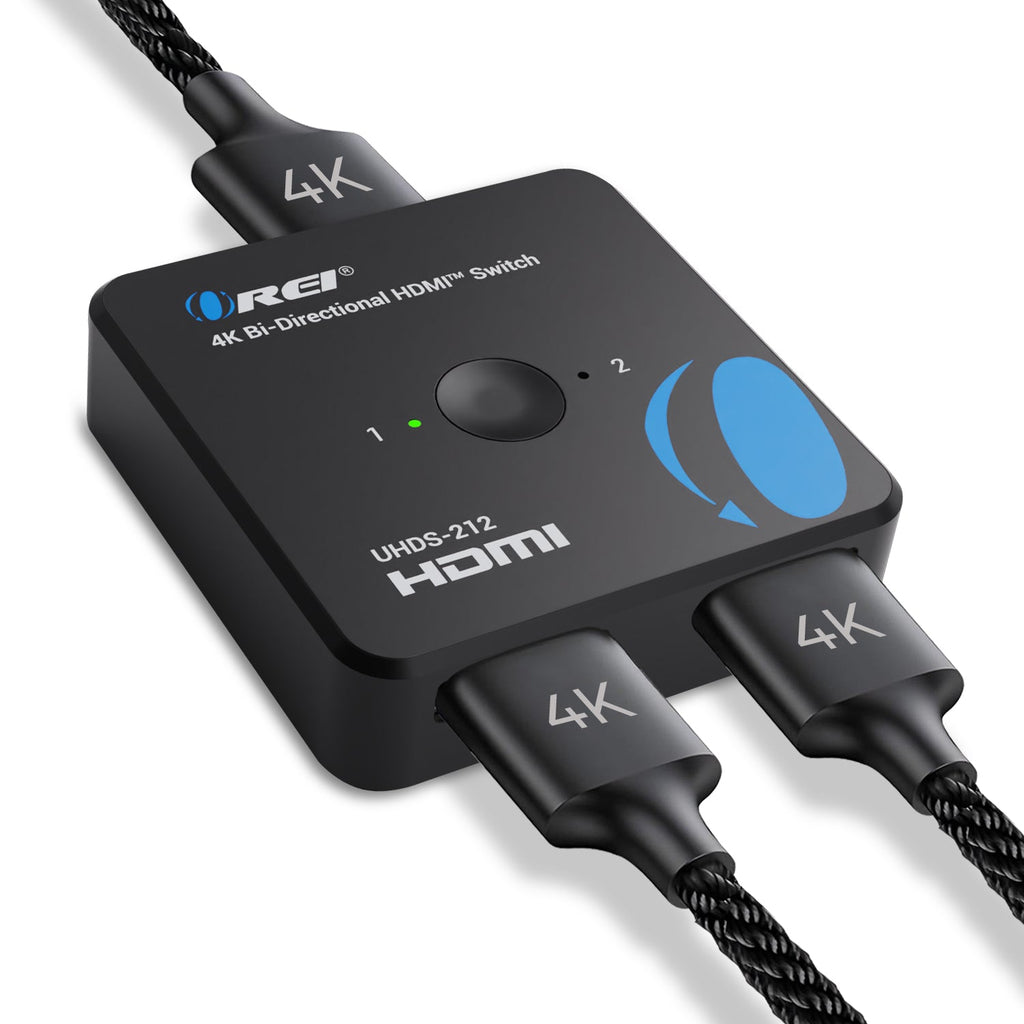

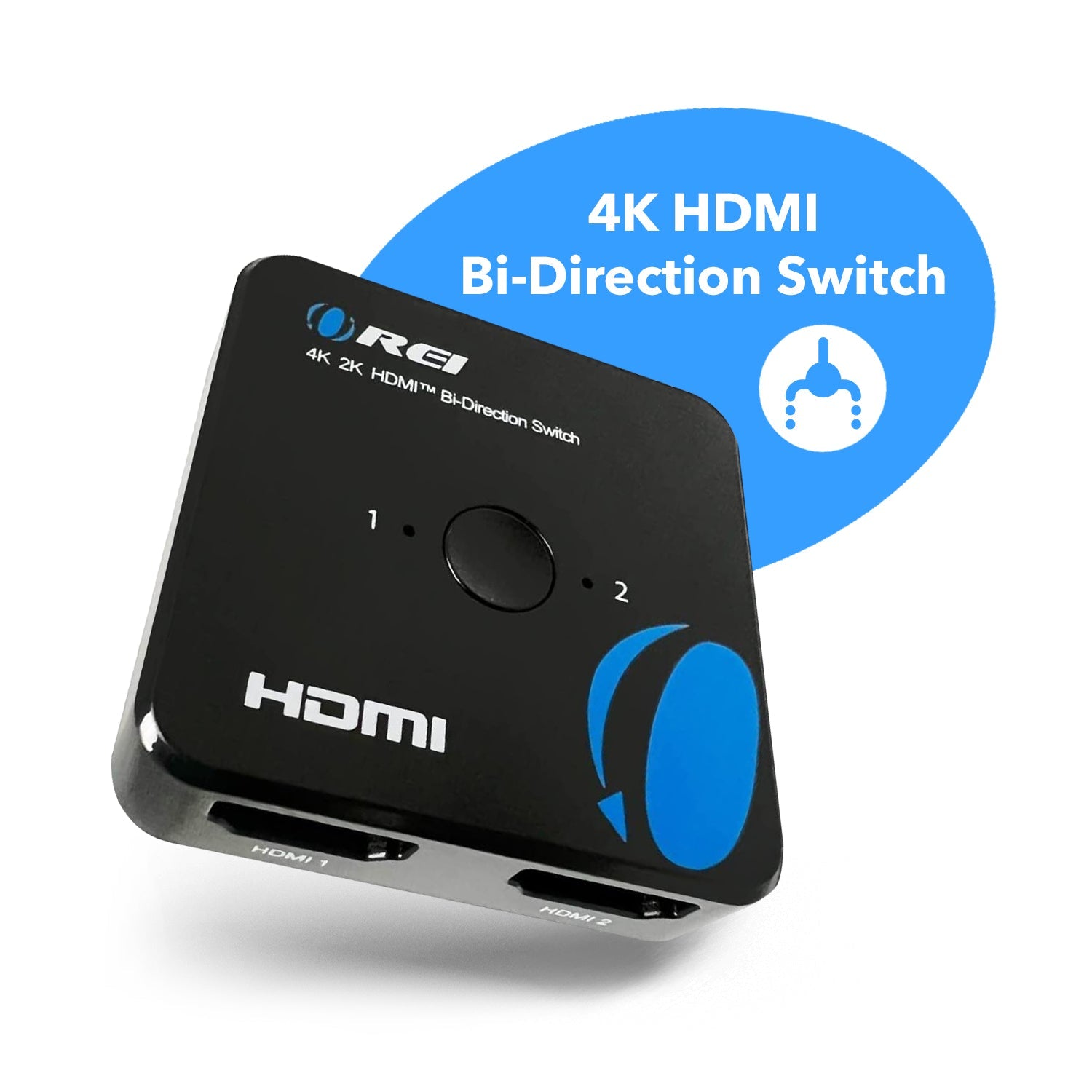

The UHDS-212 is a compact and flexible Bi-Directional HDMI switch and splitter, designed to deliver seamless 8K@60Hz signal management in both residential and commercial AV setups.

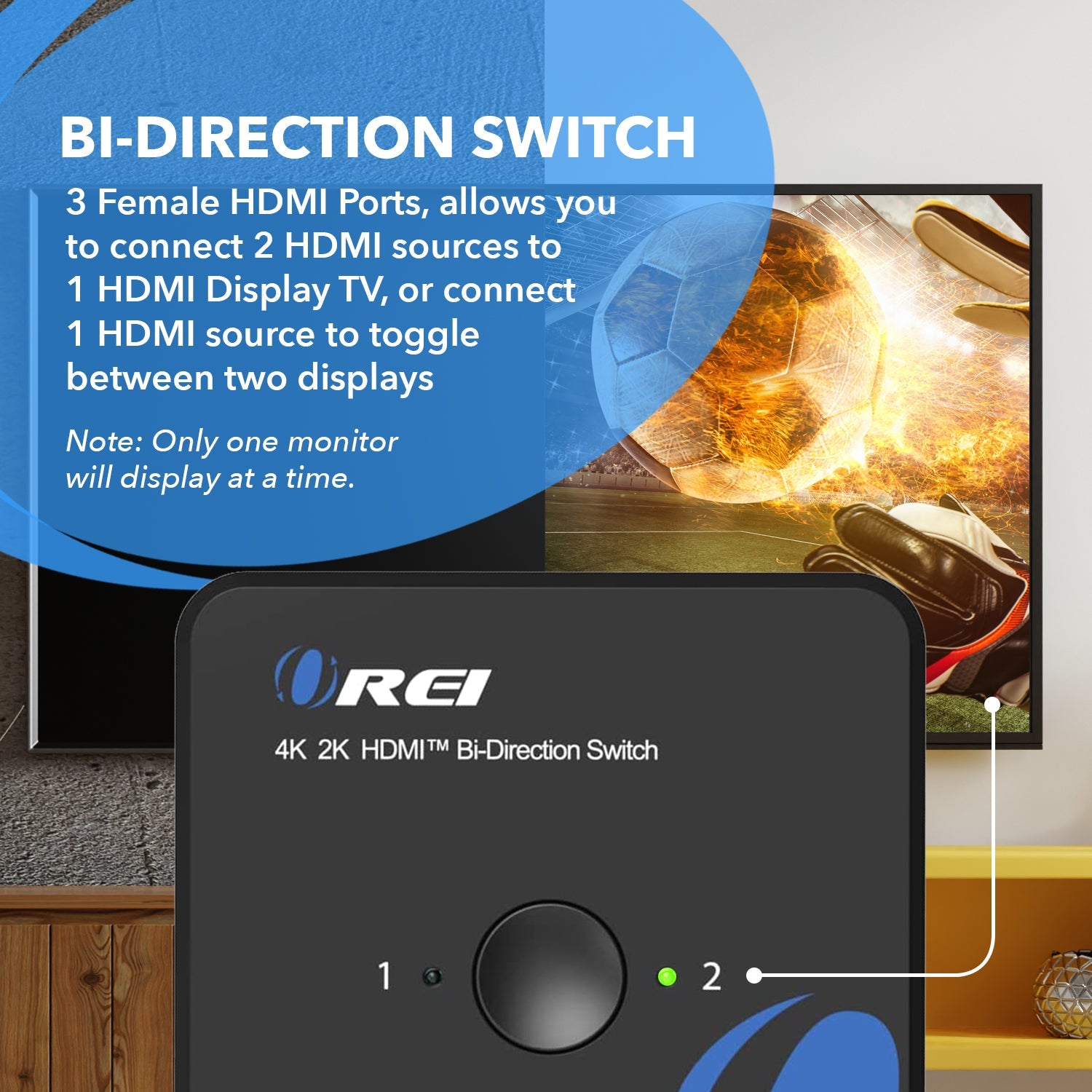

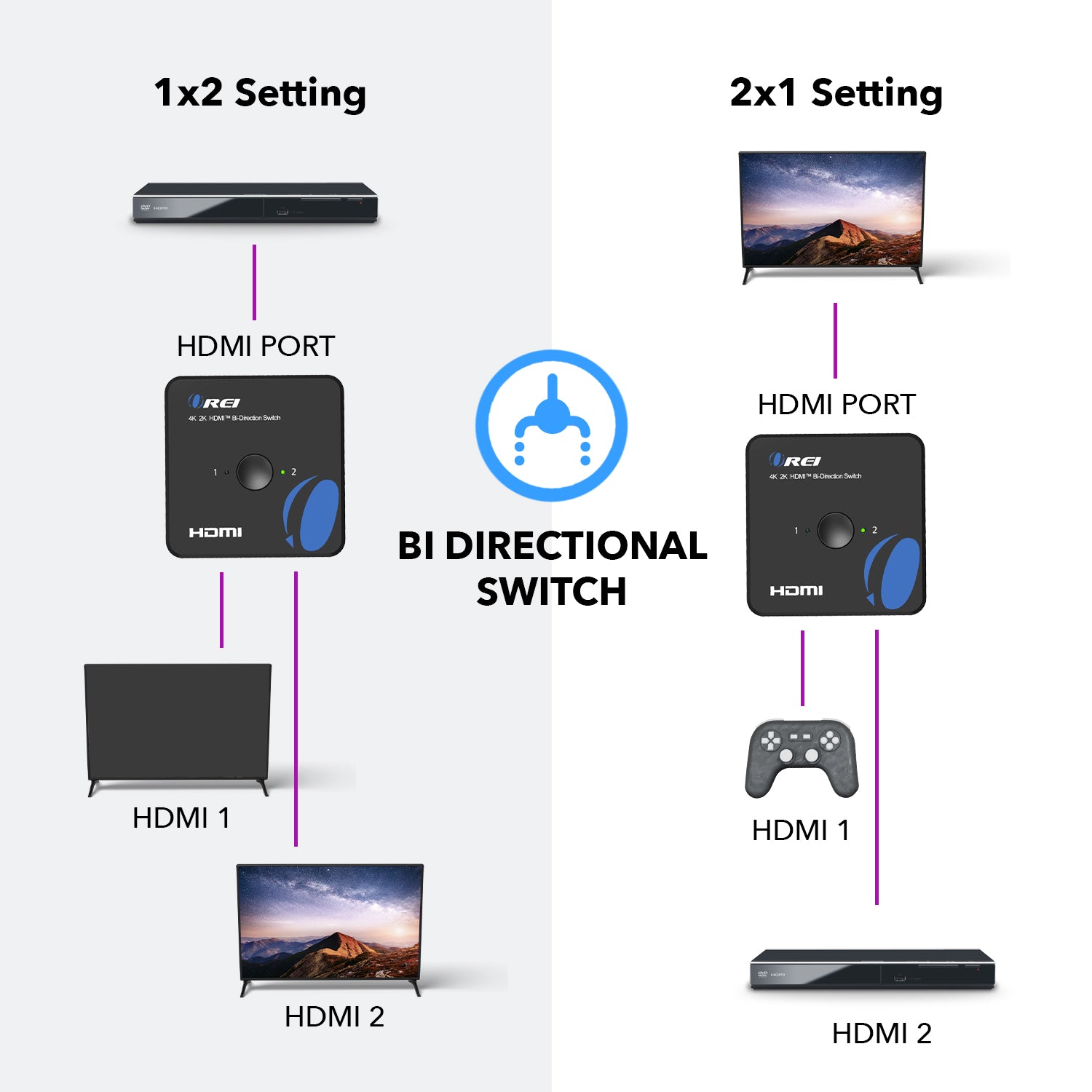

Compliant with HDMI 2.0 and HDCP 2.2 standards, this versatile device can function as a 2x1 switch—connecting two source devices to a single display—or as a 1x2 splitter—sending a single source to two displays (note: only one display will show content at a time in splitter mode).
With support for resolutions up to 8K@60Hz, 3D video formats, HDR, and CEC control, the UHDS-212 ensures compatibility with the latest video technologies.
Its high bandwidth of 18Gbps guarantees smooth signal transmission. The compact, plug-and-play design allows for fast setup and easy operation in any environment.
[shortdes]

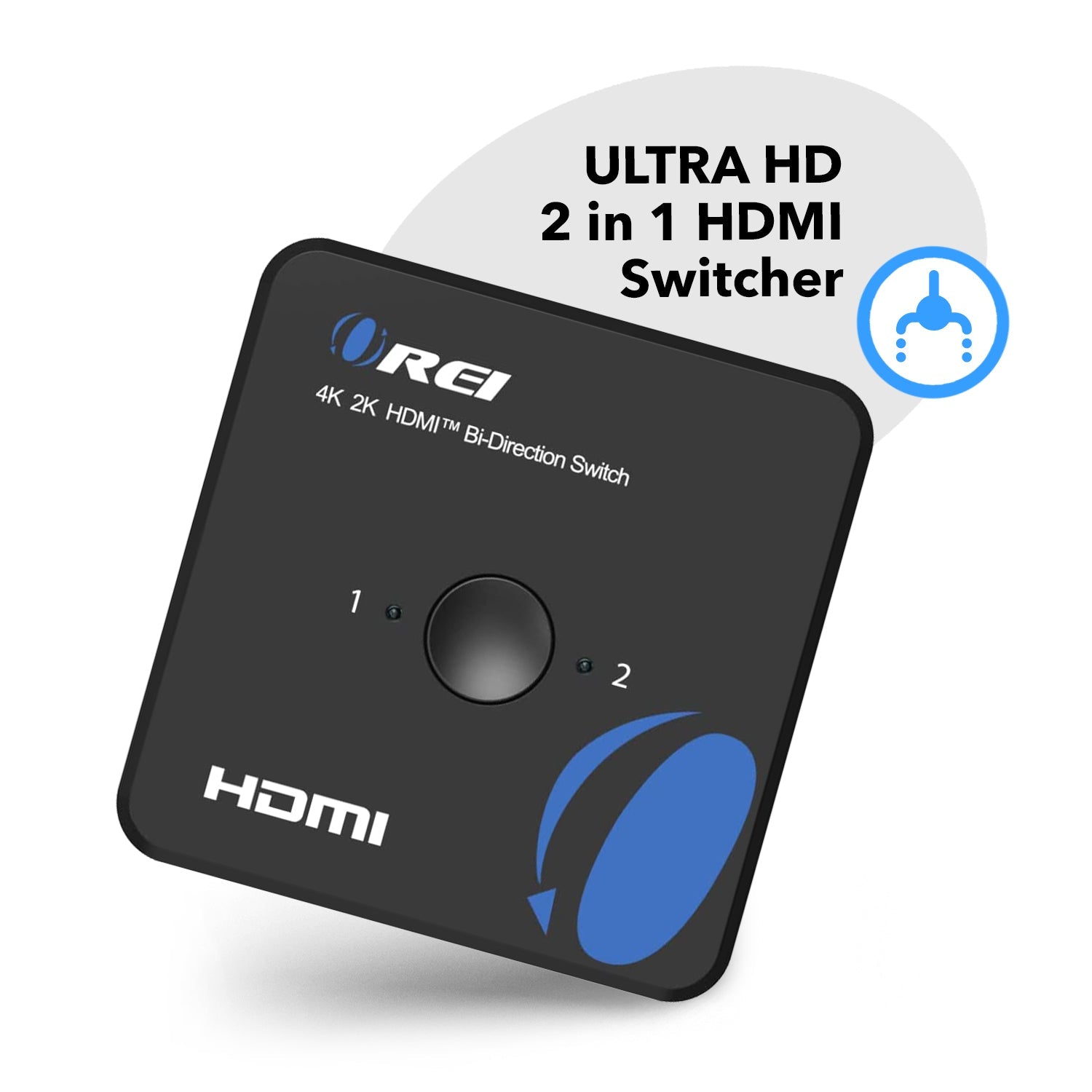

- 2 Inputs - 1 Output HDMI switch, 1 Input - 2 Outputs HDMI splitter
- Video resolution up to 8Kx2K@60Hz
- Supports HDMI signal retiming
- Compliance: HDMI 2.1 and HDCP 2.3
[/shortdes]
[tab1]
FAQs
You can use standard HDMI cables up to 10 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
[/tab1] [tab]
AUDIO AND VIDEO
| Input Ports: | HDMI x 1 (1 in 2 out) / HDMI x 2 (2 in 1 out)(Female type) |
| Output Ports: | HDMI x 2 (1 in 2 out)/ HDMI x 1 (2 in 1 out)(Female type) |
| Video Bandwidth: | 6.0 Gbps/600MHz per channel (18Gbps all channels) |
| Video Resolution: | Interlaced(50 & 60Hz): 480i, 576i, 1080i; Progressive(50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz |
| Color Space: | YUV 4:4:4 |
| Vertical Frequency Range: | 50/60Hz |
| Digital Audio Formats: | DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
ADDITIONAL FEATURES
| Auto Switching: | ❌ |
| CEC: | ✅ |
| Audio Extraction: | ❌ |
| EDID Management: | ❌ |
| 8K@60Hz: | ✅ |
| HDR: | Yes (HDR10+ and Dolby Vision) |
| IR Control: | ❌ |
| Plug & Play: | ✅ |
POWER
| Power Consumption: | 5W |
CONTROL
| CEC: | Pass through |
PROPERTIES
| Operating Temperature: | 0°C to 70°C |
| Storage Humidity: | 5% to 90% RH non-condensation |

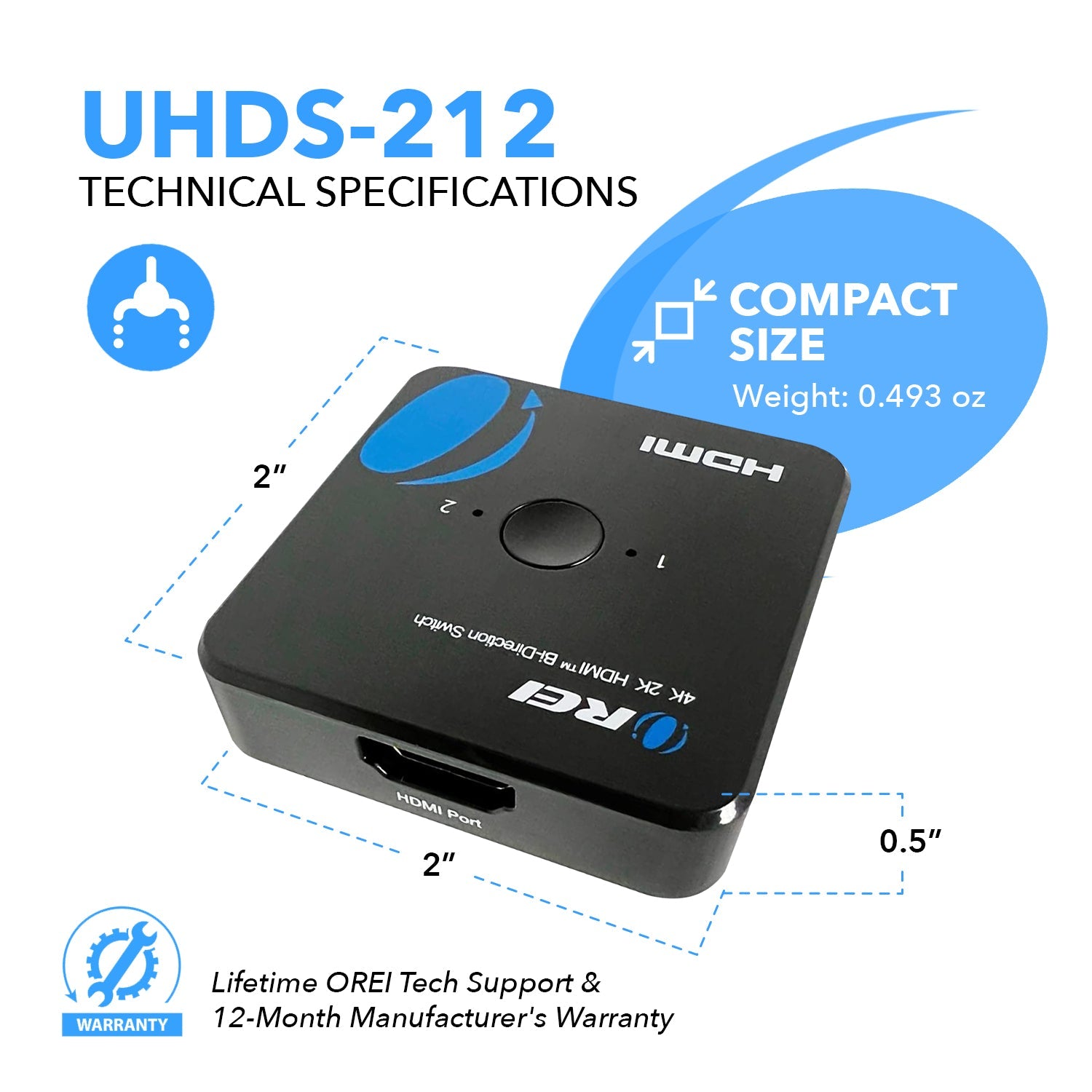

DIMENSIONS & WEIGHT
| Height: | 14 mm |
| Width: | 51.6 mm |
| Depth: | 52 mm |
| Weight: | 30g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × UHDS-212 Bi-directional switch |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
