8K 2x2 HDMI™ Matrix (Audio Extract)-BK-202A

Save 23%
OREI.COMSKU: BK-202A

Price:
Sale price$114.99 Regular price$149.99

Shipping calculated at checkout

Stock:
In stock (246 units), ready to be shipped

Description

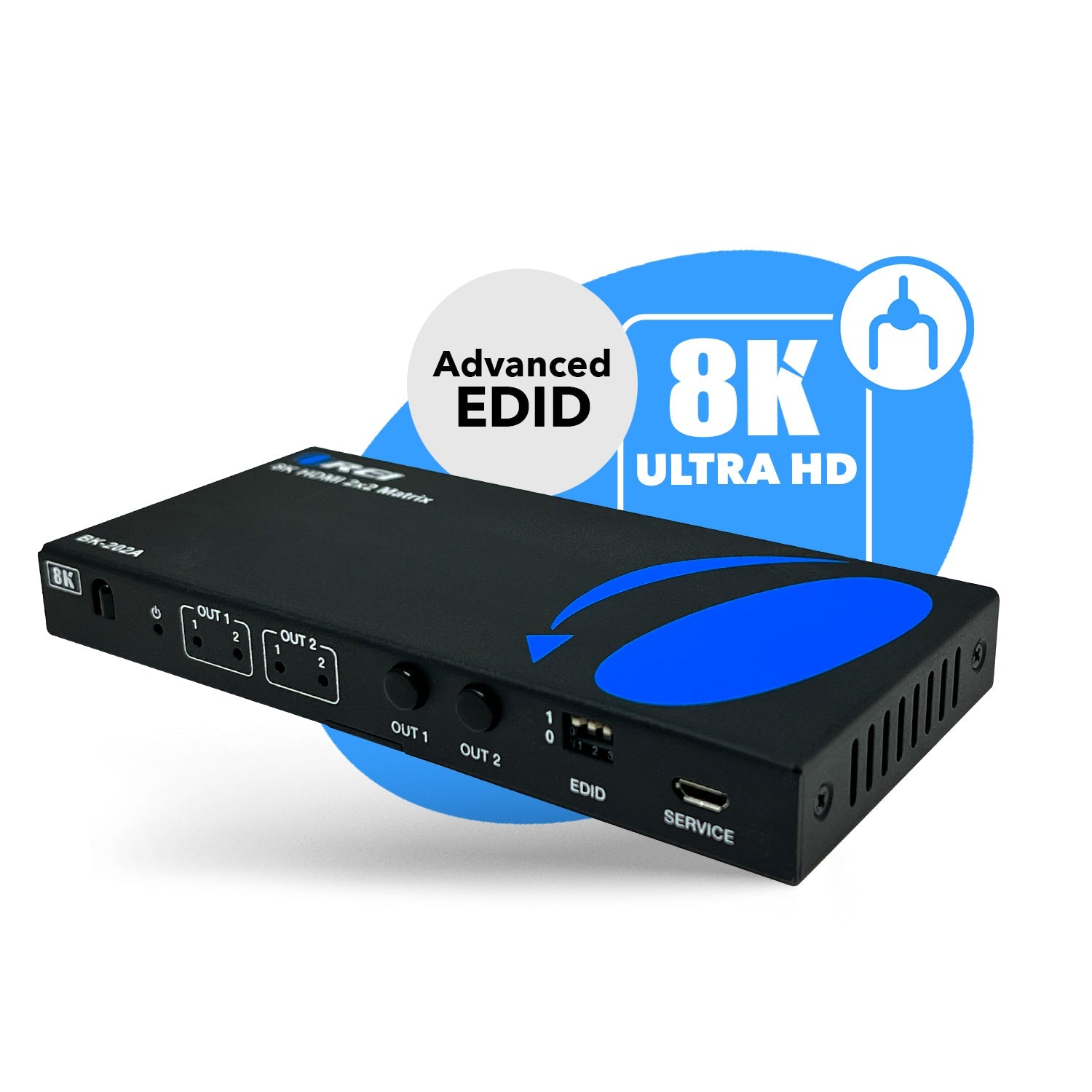

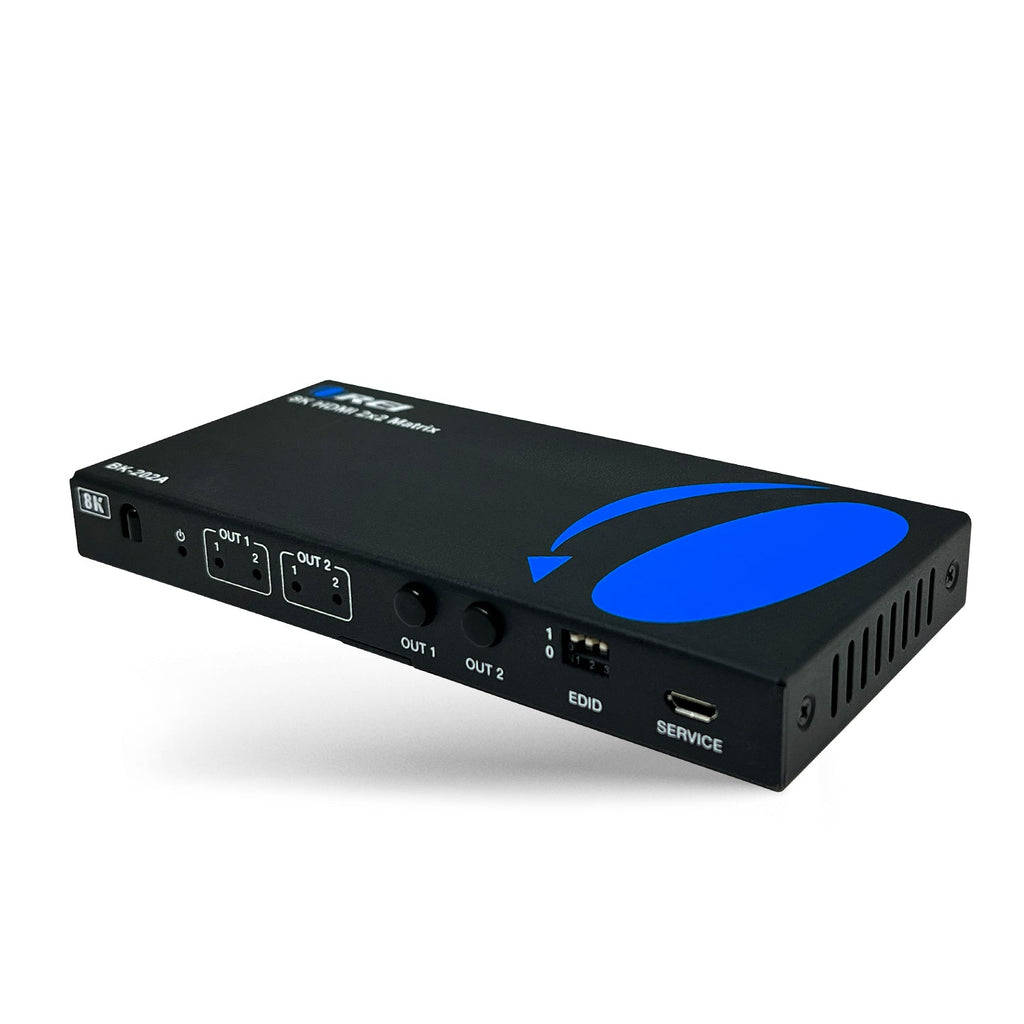

BK-202A: 8K HDMI 2x2 Matrix Switcher

Key Features:

  • HDMI 2.1, HDCP 2.3 compliant
  • Video resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz
  • 40Gbps video bandwidth
  • HDR10+ and Dolby Vision pass through
  • LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD support
  • VRR, ALLM and FVA support
  • Audio extraction through Optical and Analog outputs
  • Compact design and plug-and-play setup

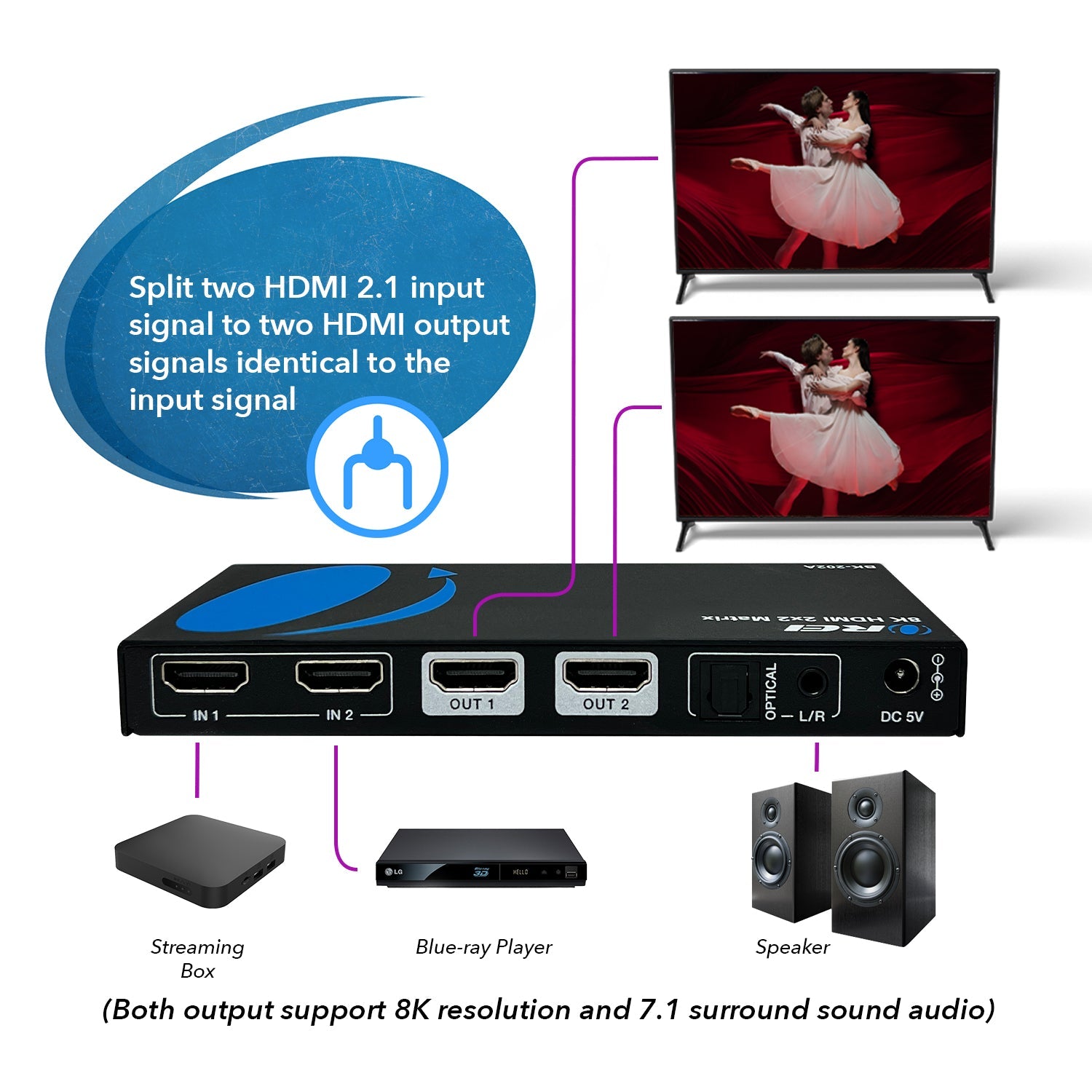

The BK-202A Matrix enables you to transmit media signals from two devices to two displays simultaneously. Supporting resolutions up to 8K@60Hz and 4K@120Hz, it complies with HDMI 2.1 and HDCP 2.3 standards. Boasting a 40Gbps video bandwidth, it also supports HDR10+. Audio can be extracted from any device and output through Optical or Analog Aux. The matrix supports protocols such as VRR, ALLM, and FVA. The BK-202A is ideal for any commercial or home theatre setup.

[shortdes]

  • HDR10+ & Dolby Vision pass through
  • Video resolutions up to 8K@60Hz
  • LPCM, Dolby Digital/Plus, Dolby True HD, DTS, DTS-EX, DTS-HD Master Audio, DSD support

[/shortdes]

[tab]

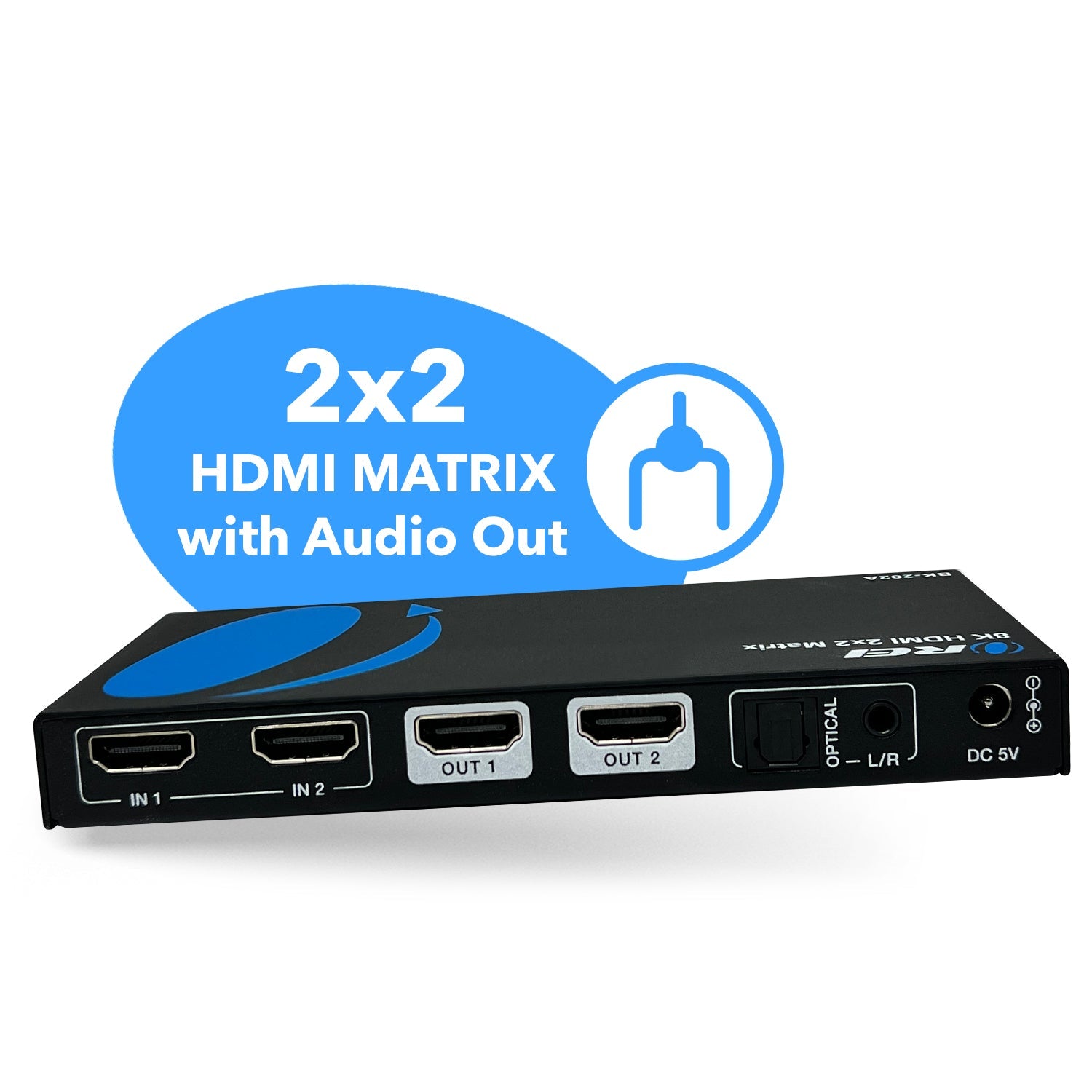

CONNECTIVITY

INPUT: 2 × HDMI [Type A, 19-pin female]
OUTPUT: 2 × HDMI [Type A, 19-pin female]
1 x OPTICAL [S/PDIF, female]
1 × L/R [3.5mm Stereo Mini-jack]
CONTROL: 1 × SERVICE [Micro USB, Update port]

PACKAGE CONTENTS

1x BK-202A
1x Remote
1x Power Adapter
User Manual

SUPPORTED HDMI CABLES

HDMI 2.1 We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

8K@60Hz 4:2:0: 10 Feet
4K@60Hz 4:4:4: 30 Feet

VIDEO OUTPUT

Video Bandwidth: 40 Gbps
Video Resolutions: Up to 8K@60Hz, 4K@60Hz, 2K@120Hz, 2K@60Hz

ADDITIONAL FEATURES

CEC: No
ARC: No
USB KVM: No
PoC/PoE: No
IR Control: Yes
Downmix: No
Downscale: No
Over IP: No
HDBaseT: No
RS-232: No

LOOP-OUT / LOCAL PORTS

Has loop out port: No
Number of Loop out ports: 0

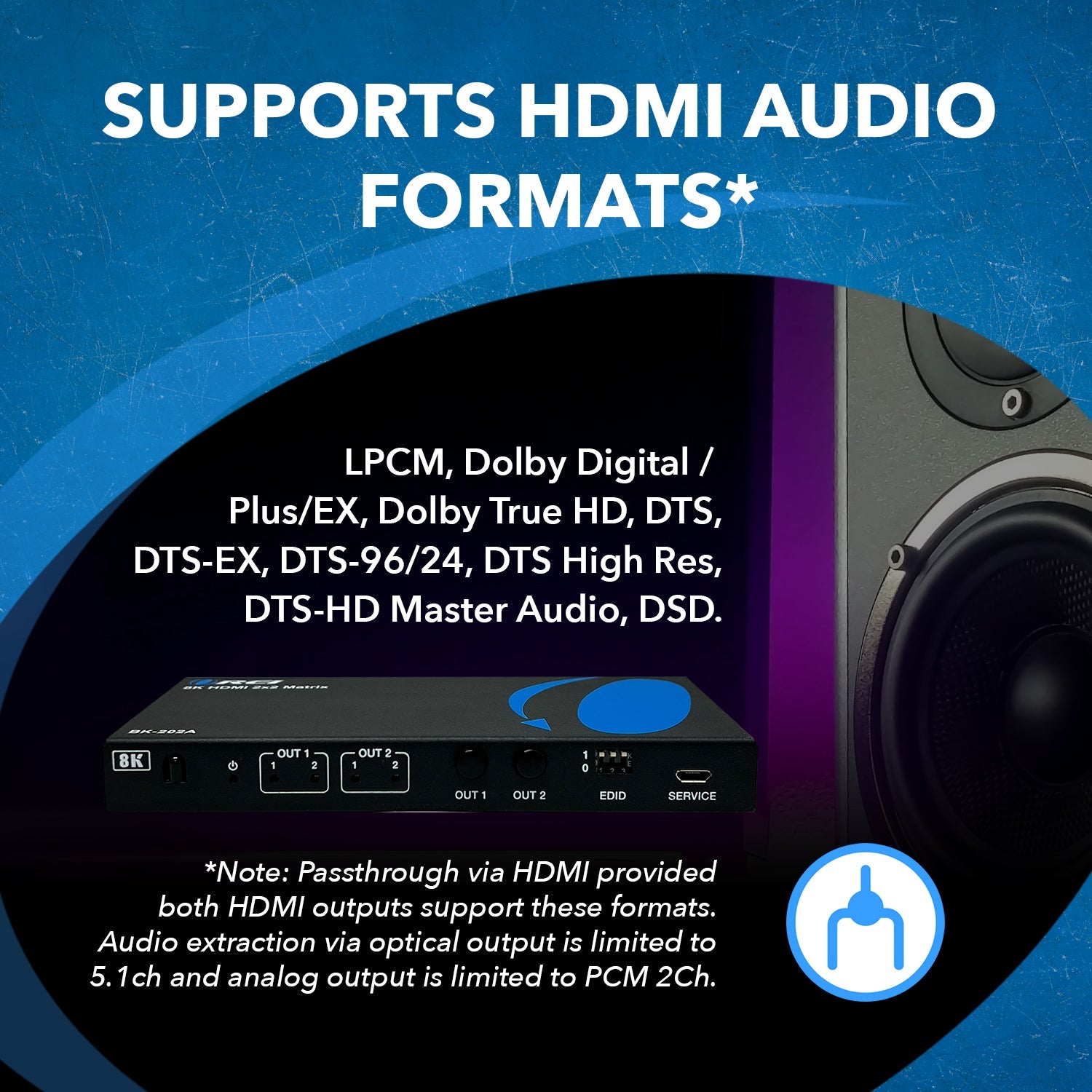

AUDIO SUPPORT

HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Optical Audio Formats: LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Analog Audio Formats: PCM 2.0

COMPLIANCES

HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3

POWER

Power Consumption: 6.2W (Max)
Power Supply: Input: AC 100-240V 50/60Hz

Output: DC 5V/2A

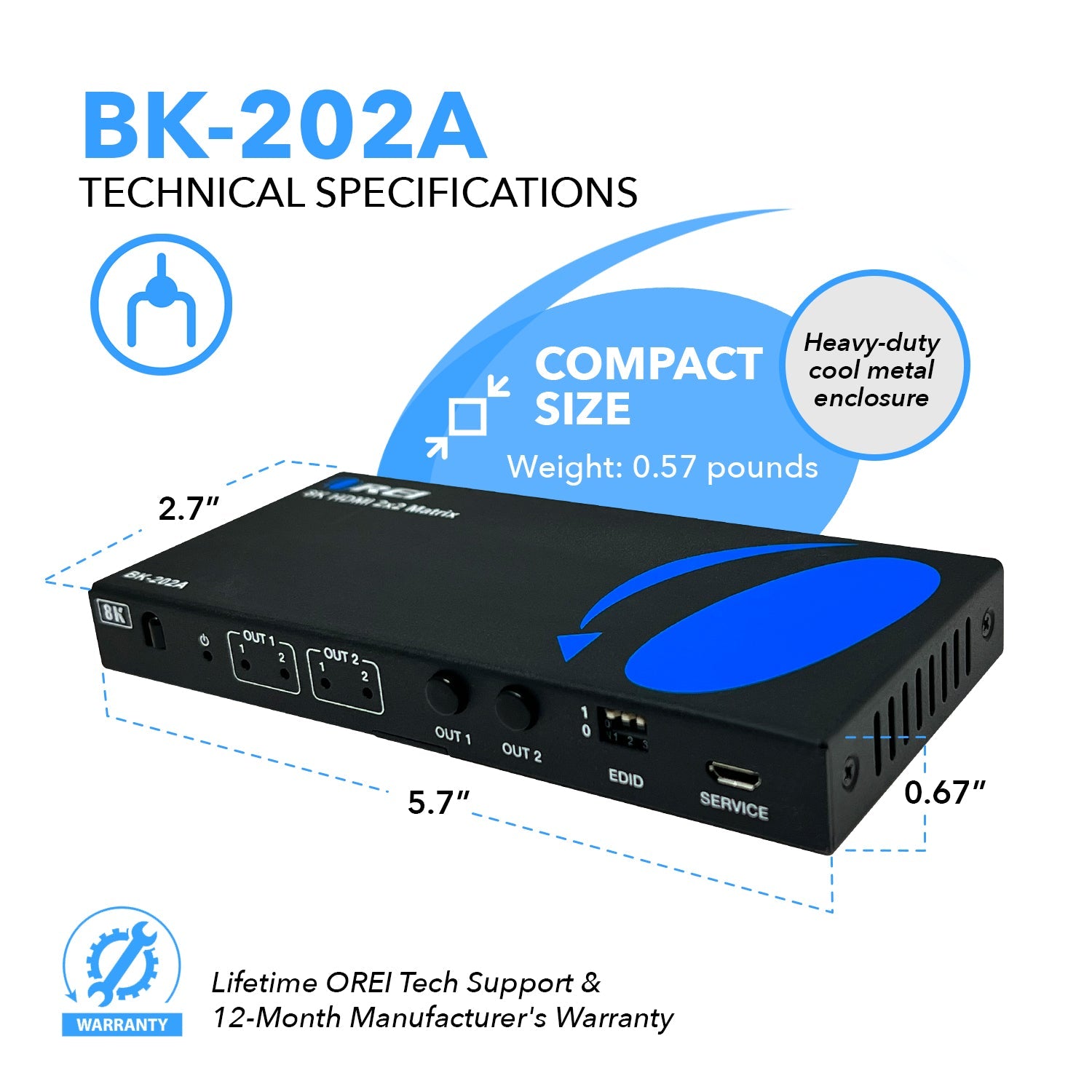

DIMENSIONS & WEIGHT

Length: 145mm / 5.71in
Width: 68mm / 2.68in
Height: 17mm / 0.67in
Weight: 268g / 9.45oz

PROPERTIES

Color: Black
Housing: Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]
