8K 4-port HDMI™ Switch-BK-401

Save 38%
OREI.COMSKU: BK-401

Price:
Sale price$49.99 Regular price$79.99

Shipping calculated at checkout

Stock:
In stock (202 units), ready to be shipped

Description

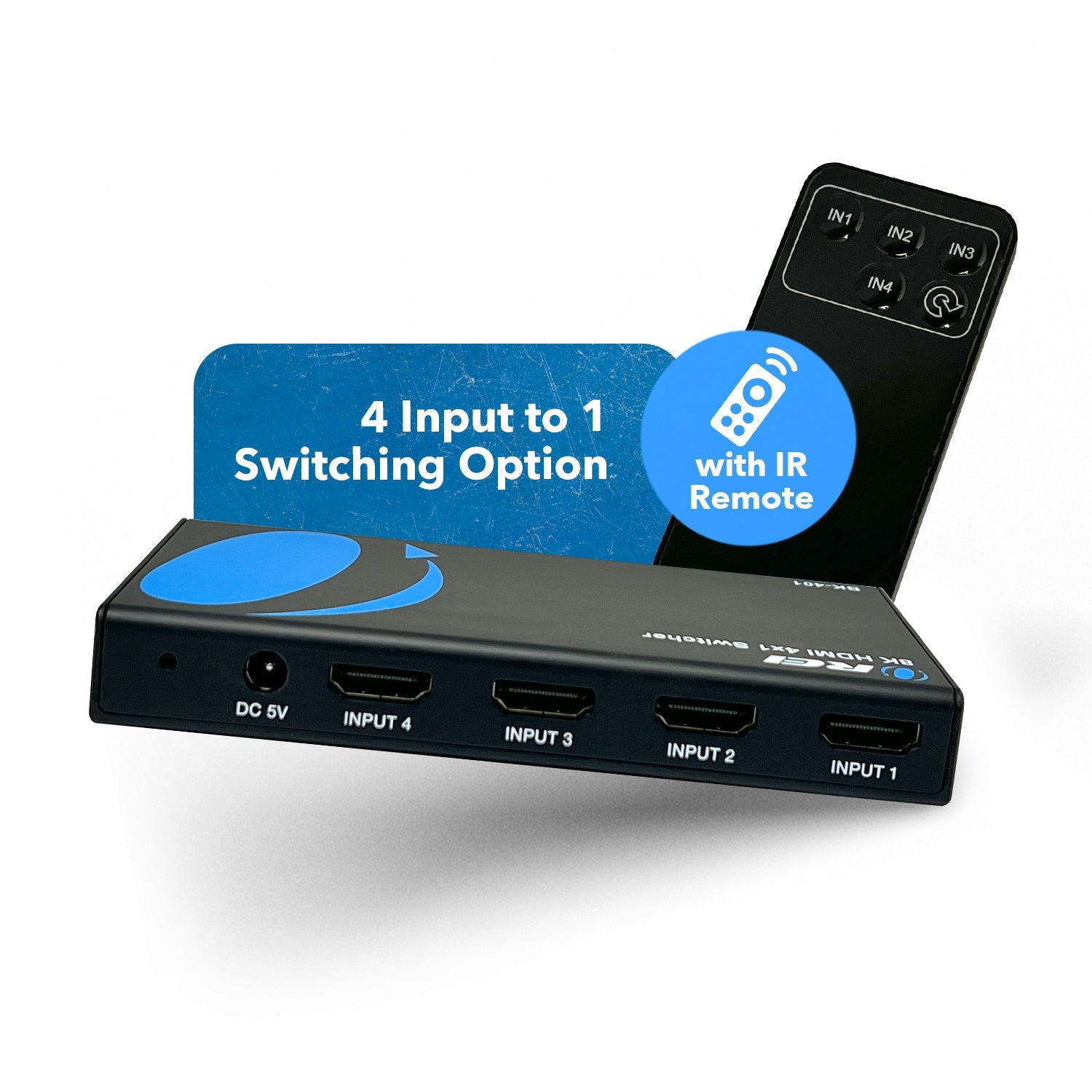

BK-401: 8K 4 Input 1 Output HDMI Switch

Key Features:

  • HDMI 2.1 and HDCP 2.3 compliant
  • 48Gbps video bandwidth
  • Video resolutions up to 8K@60Hz, 4K@120Hz
  • HDR/10+, Dolby Vision, HLG pass through
  • VRR (Variable Refresh Rate), FVA(Fast VActive), ALLM (Auto Low Latency Mode) support
  • Audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Supports automatic switching
  • Compact design

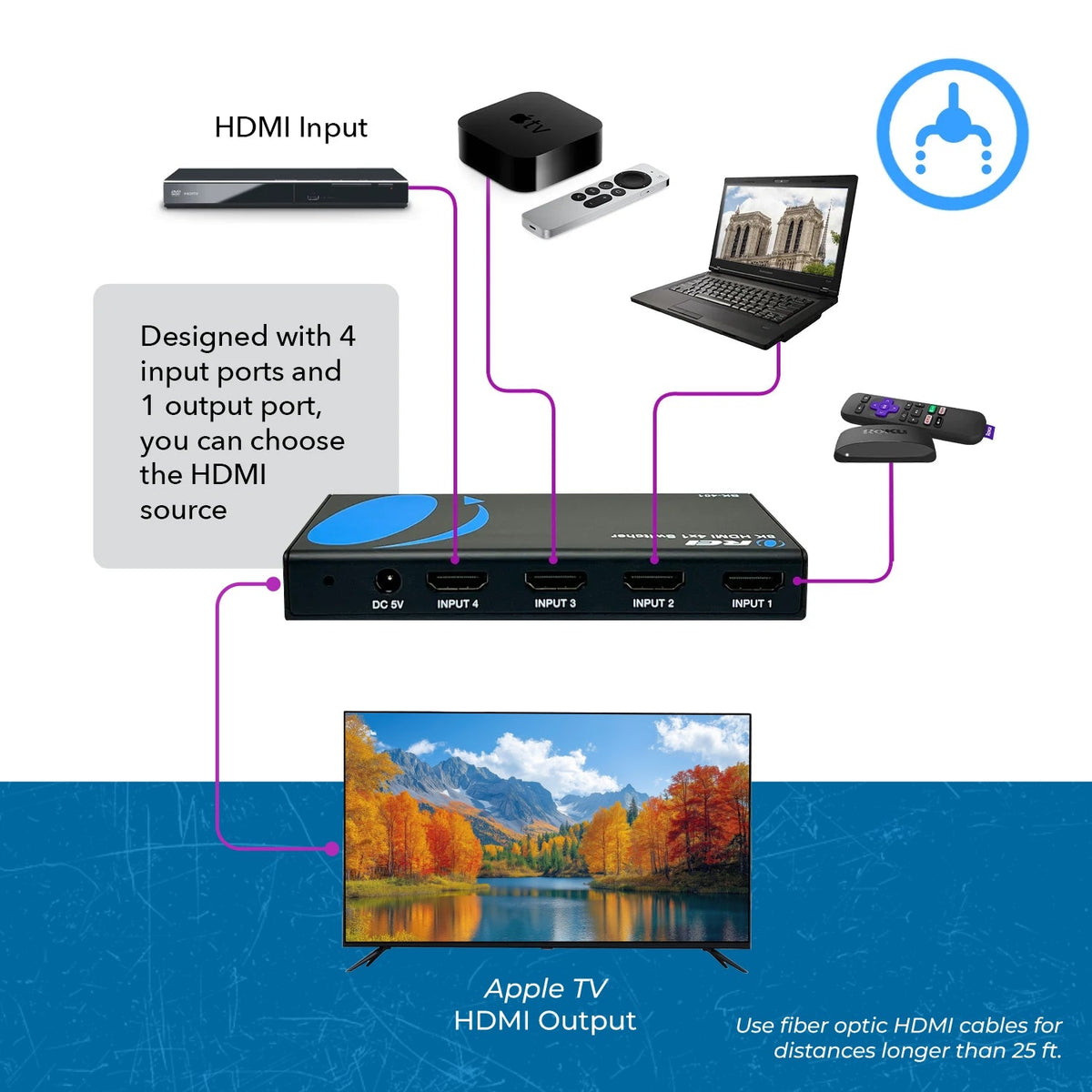

The BK-401 8K HDMI Switch is an impressive solution for connecting multiple media sources to a single display and switch between them as needed. This device accepts media signals from 4 sources and outputs it on a single display. It supports resolutions up to 8K@60Hz and 4K@120Hz with a video bandwidth of 48Gbps. It supports HDR10+ and Dolby Vision along with Variable Refresh Rate, Fast VActive and Auto Low Latency Mode. The device also features automatic switching which automatically switches to the next active input.

[shortdes]

  • 4 In 1 8K Switcher
  • Video Resolutions up to 8K@60Hz
  • Automatic switching

[/shortdes]

[tab]

CONNECTIVITY

INPUT: 4 × HDMI [Type A, 19-pin female]
OUTPUT: 1 × HDMI [Type A, 19-pin female]

PACKAGE CONTENTS

1x BK-401
1x Remote Control
1x Power Adapter
User Manual

SUPPORTED HDMI CABLES

HDMI 2.1 We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

8K@60Hz: 6 Feet
4K@120Hz: 6 Feet
1080p@240Hz: 16 Feet

VIDEO OUTPUT

Video Bandwidth: 48 Gbps
Video Resolutions: Up to 8K@60Hz, 4K@60Hz, 2K@120Hz, 2K@60Hz

ADDITIONAL FEATURES

CEC: No
ARC: No
USB KVM: No
PoC/PoE: No
IR Control: Yes
Downmix: No
Downscale: No
Over IP: No
HDBaseT: No
RS-232: No

AUDIO SUPPORT

HDMI Audio Formats:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

COMPLIANCES

HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3

POWER

Power Consumption: 3.4W (Max)
Power Supply: Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

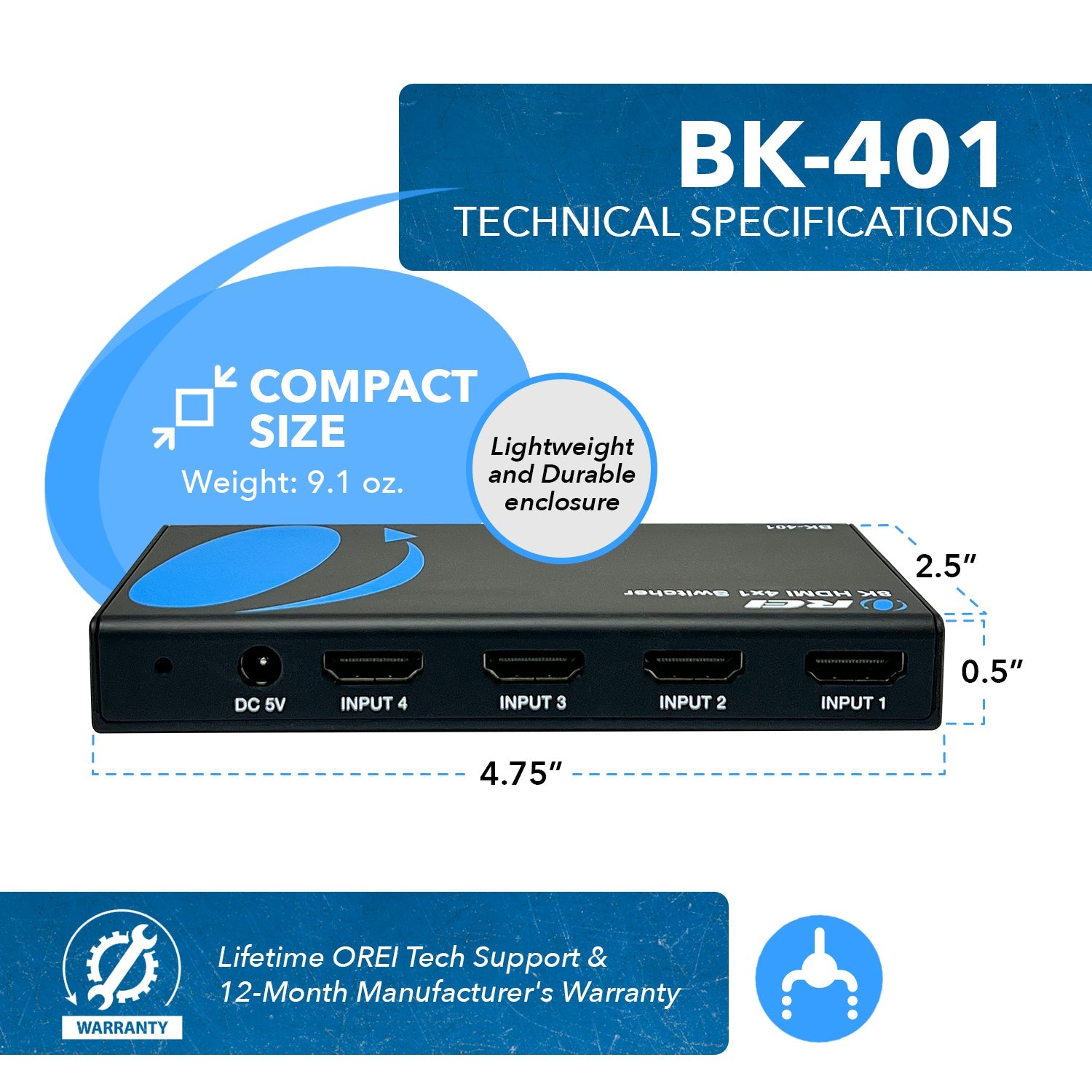

DIMENSIONS & WEIGHT

Length: 122mm / 4.8in
Width: 65mm / 2.56in
Height: 19mm / 0.75in
Weight: 88g / 3.10oz

PROPERTIES

Color: Black
Housing: Plastic Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]
