Description
Features:
[Color LCD Display]: Color LCD display greatly enhance the reading experience, very easy to read, even in bright sunlight or poor light.
[3 Results Display]: High resolution large screen can show 3 test results on the screen, such as voltage, frequency and analog bar.

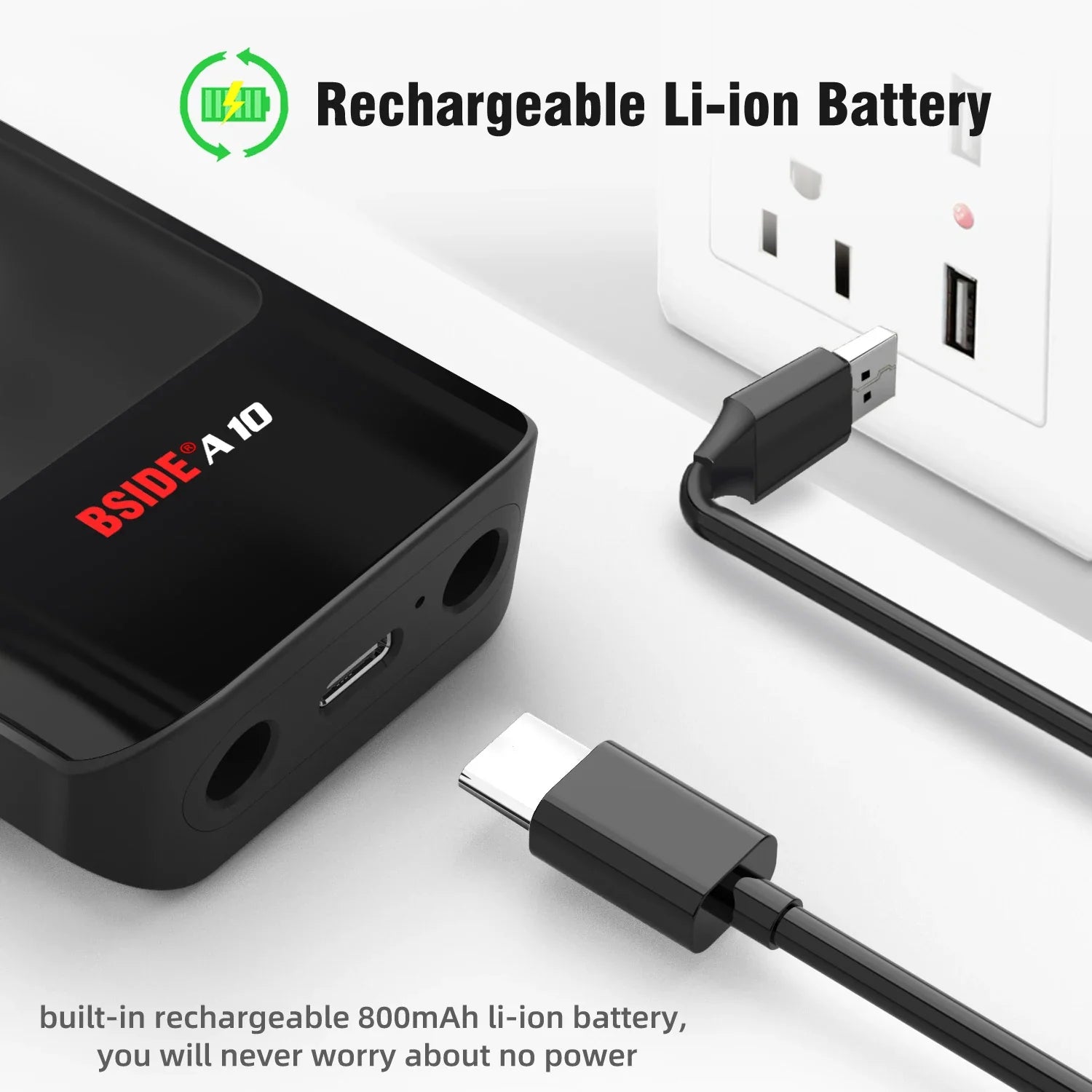

[Rechargeable]: Built-in a rechargeable li-ion battery, you will never worry about power problem.
[Smart Mode]: Smart mode greatly improves your test efficiency. This multimeter can automatically identifies the tested parameters and choose their required range.
[Carrying Case]: Comes with a high quality carrying case, perfect for use while you're on the go.
[Portable Size]: 11.3cm x 5.4cm ultra small size, with a large 3.2-inch screen, exquisite and portable
Specifications:
- Maximum display: 9999 count
- Screen type: color screen
- Screen: 3.2 inches
- DC voltage: 0V-600V±(0.8%+3); resolution: 0.001V
- AC voltage: 0V-600V±(1.2%+5); resolution: 0.001V
- Resistance: 0.1Ω-10MΩ±(1.2%+3), 10MΩ-60MΩ±(2.0%+10); resolution: 0.1Ω.
- Capacitance: 1nF-1.00mF±(3.5%+8), 1mf-60.00mf±(4.5%+10); resolution: 0.001nF
- Frequency: 10Hz-10MHz ± (2.0% + 10) (ACV: 3V-600V); Resolution: 0.1Hz Duty Cycle: 0.1% -99.9% ± (1.5% + 5); Resolution: 0.1%
- Diode: automatically recognize the diode when it is lower than 3.0V
- V-alert (non-contact voltage detection): alarm signal sound, striped liquid crystal display
- On-site inspection: alarm signal sound, striped liquid crystal display guide
- Continuity: 50Ω is less than the resistance, the buzzer sounds.
- Power supply: 3.7V *1 rechargeable battery (built-in)
- Size: 113.3x54.2x22mm
- Weight: 102g

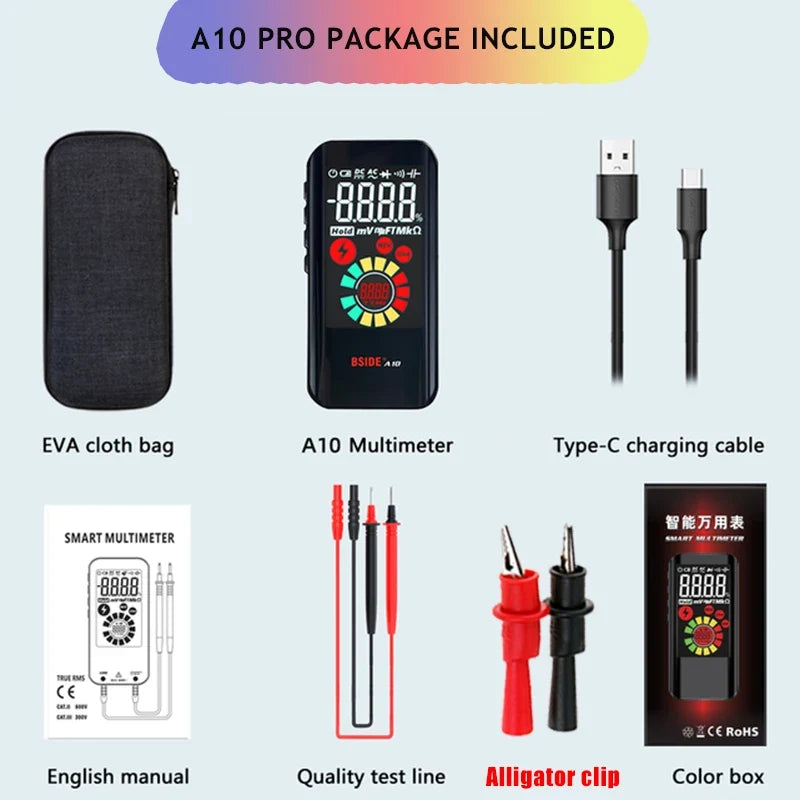

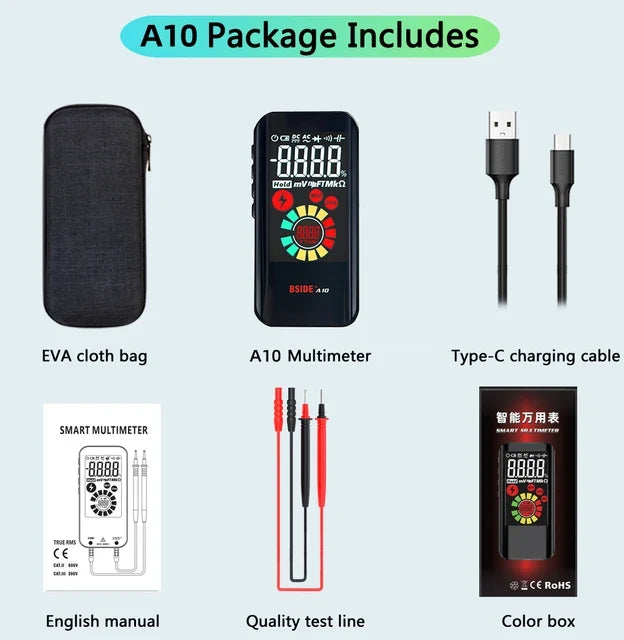

Package Included:
1 x Multimeter
1 x Test lead
1 x Carrying case
1 x Rechargeable battery
1 x Charging cable
1 x User manual
