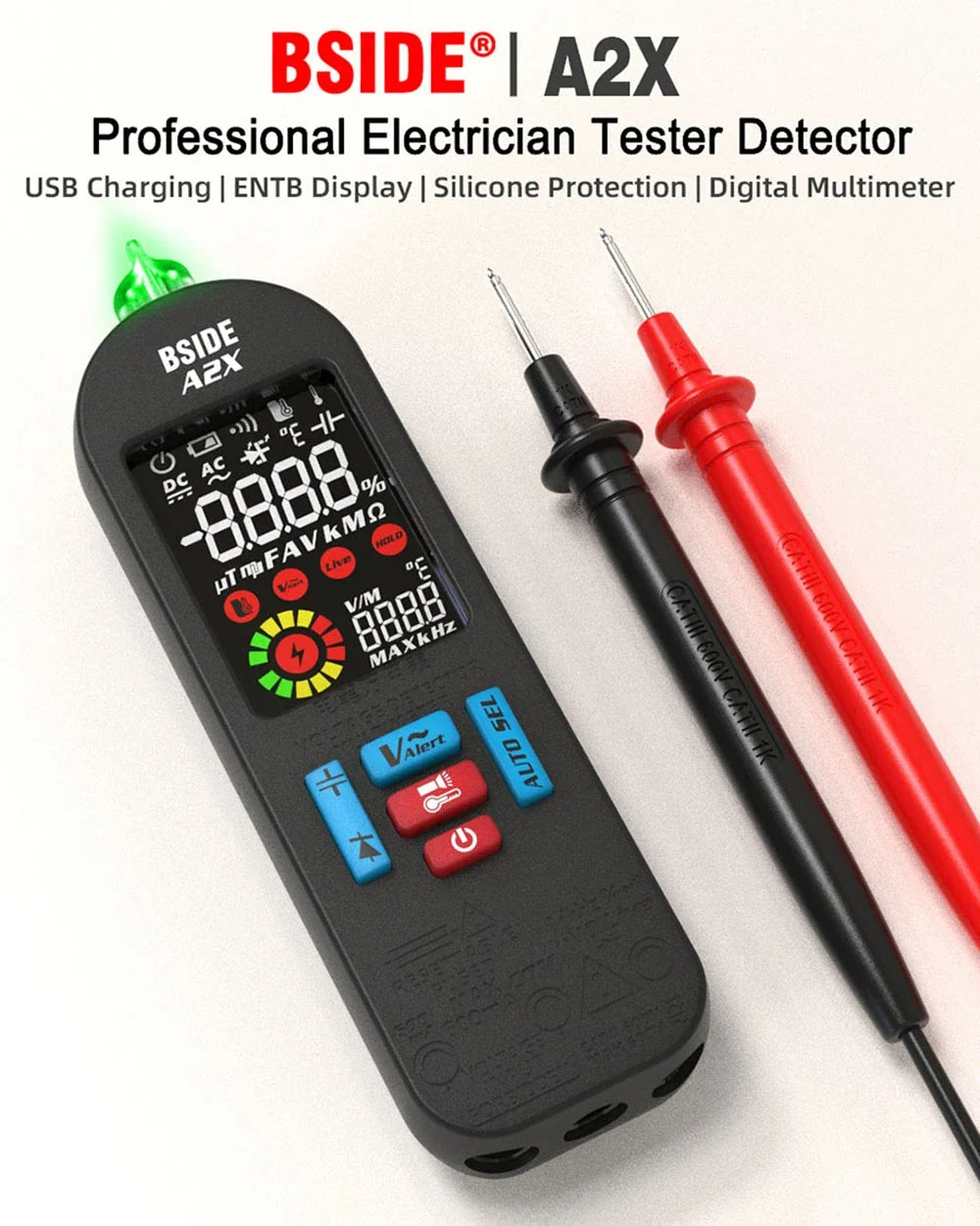

BSIDE A2X USB Rechargeable Multimeter

Highlights

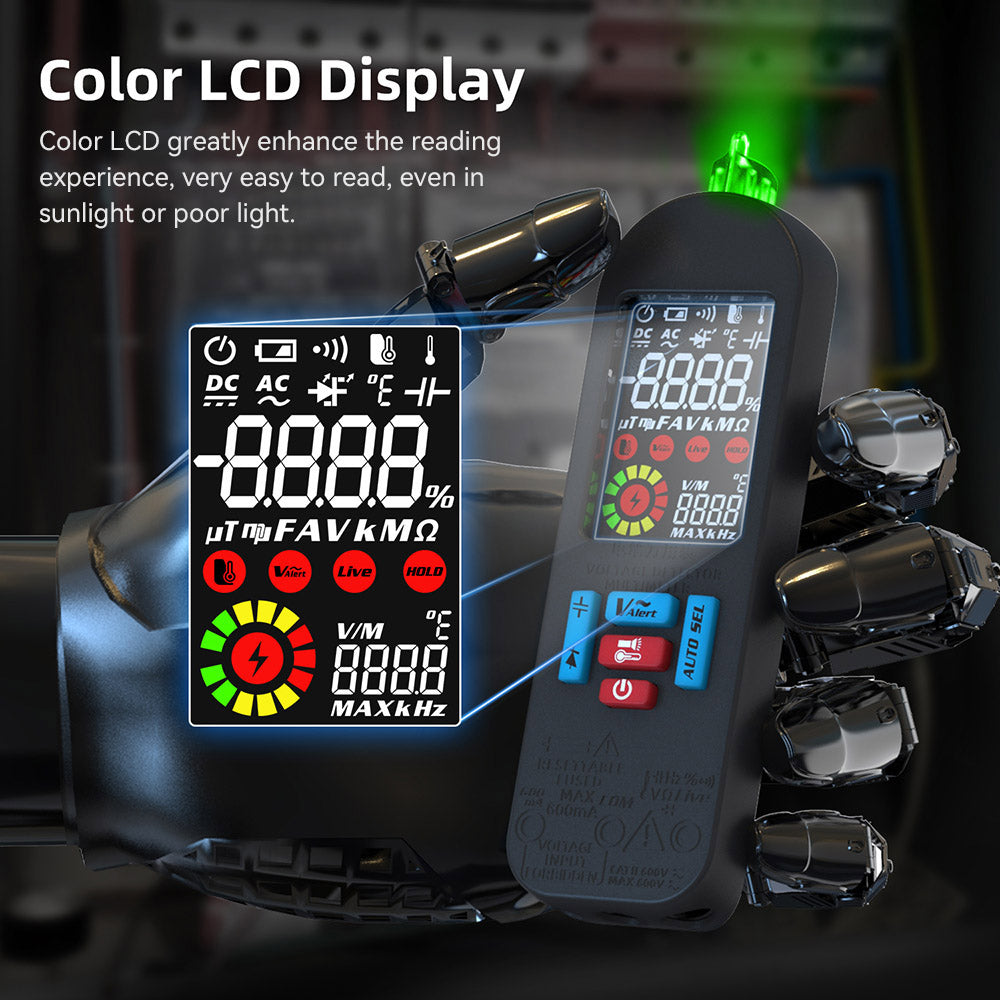

Color LCD Display

Color LCD greatly enhances the reading experience, very easy to read, even in sunlight or poor light.

Multifunctional Function

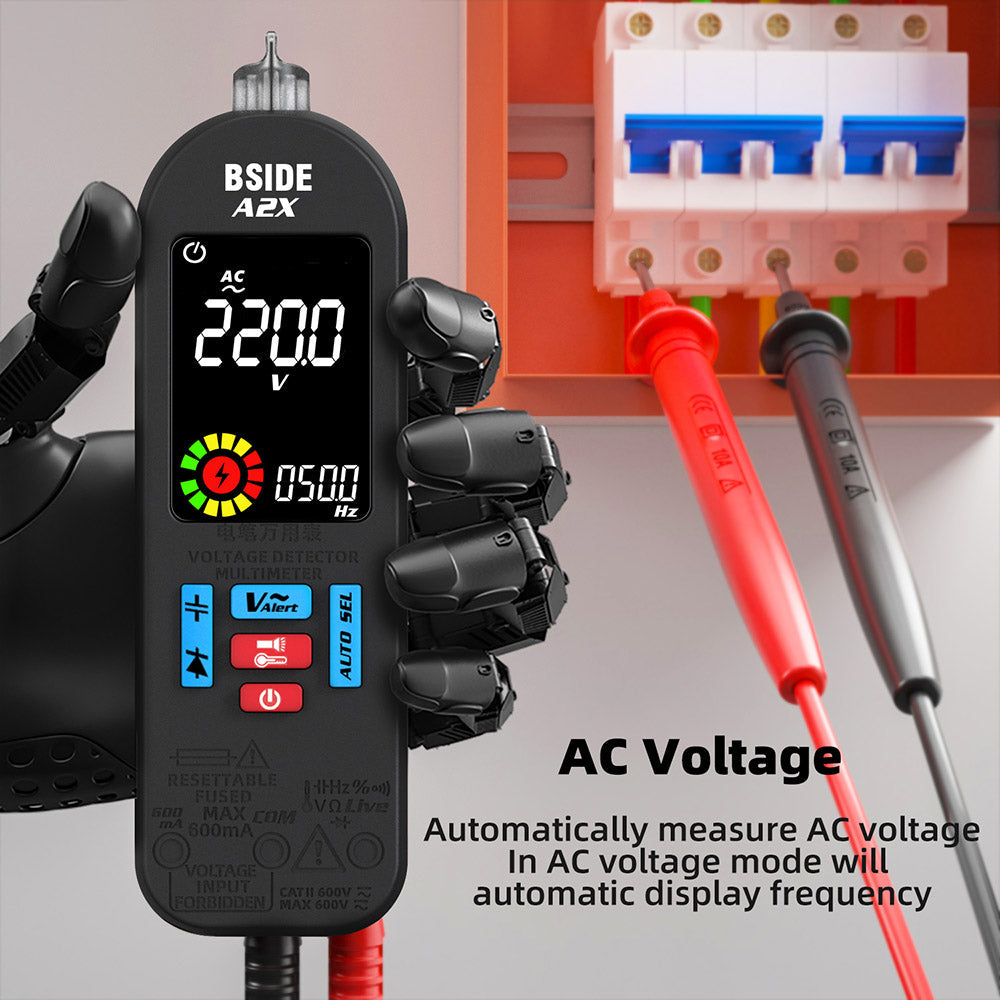

Support line breakpoint detection, it can measure AC voltage and DC voltage, resistance, on/off, frequency, diode, etc. And automatic shutdown after 15 minutes of no operation.

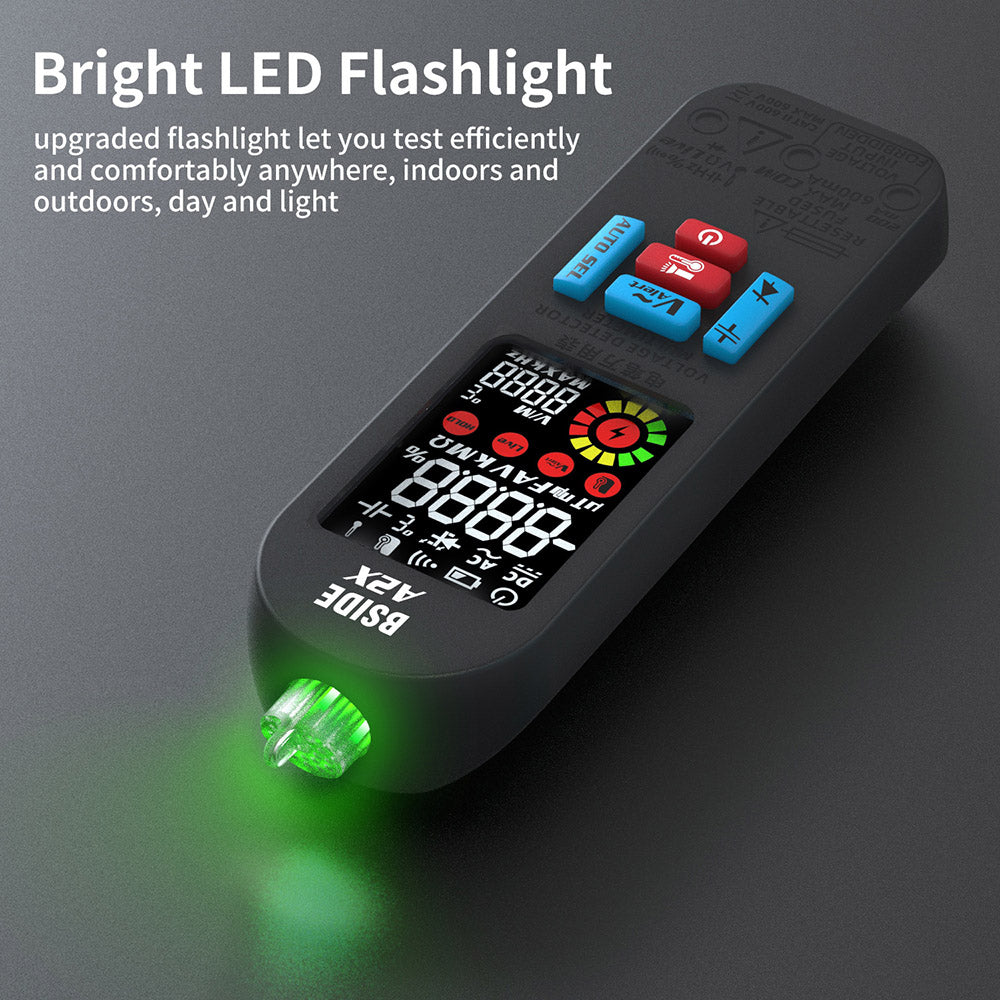

Bright LED Flashlight

With a flashlight for easy illumination and use when measuring in dark environments.

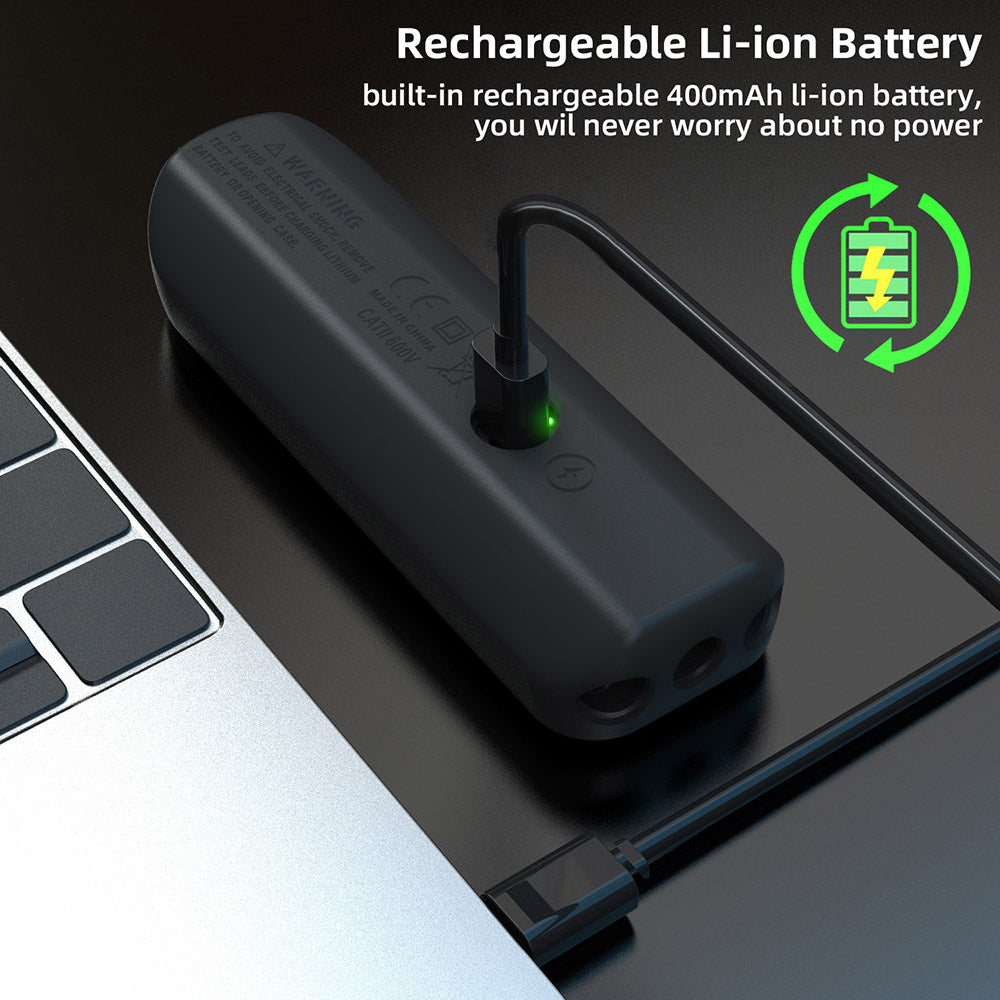

Rechargeable Li-ion Battery

Built-in rechargeable 400mAh li-ion battery, you will never worry about no power.

Concise Appearance

Compact size, easy to carry, and does not occupy an area, the portable pen type makes it can be easily carried, and say goodbye to the traditional heavy and difficult to carry.

Wide Applications

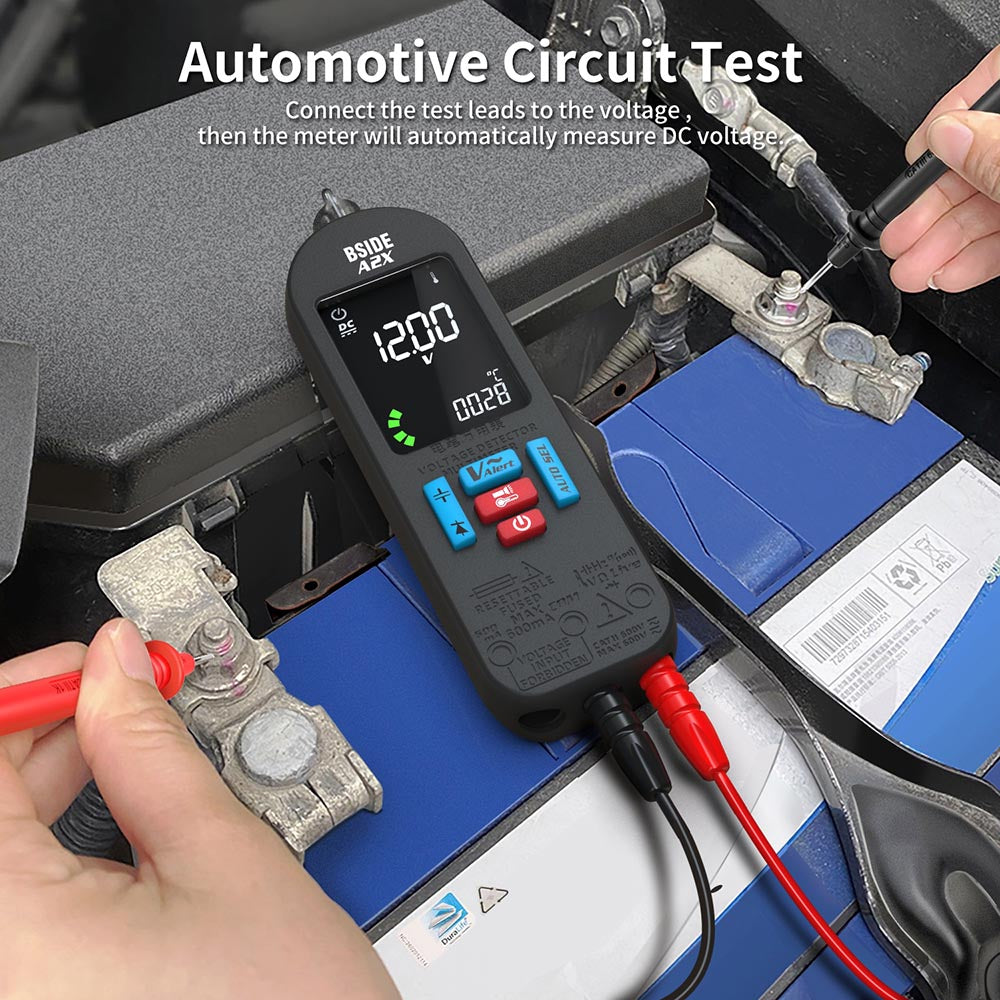

It can be widely used in electrical testing, automotive repairing, household improvements, industrial electrical maintenance, etc.

Specification

General	Brand: BSIDE Type: Intelligent Digital Multimeter Model: A2X Color: Black

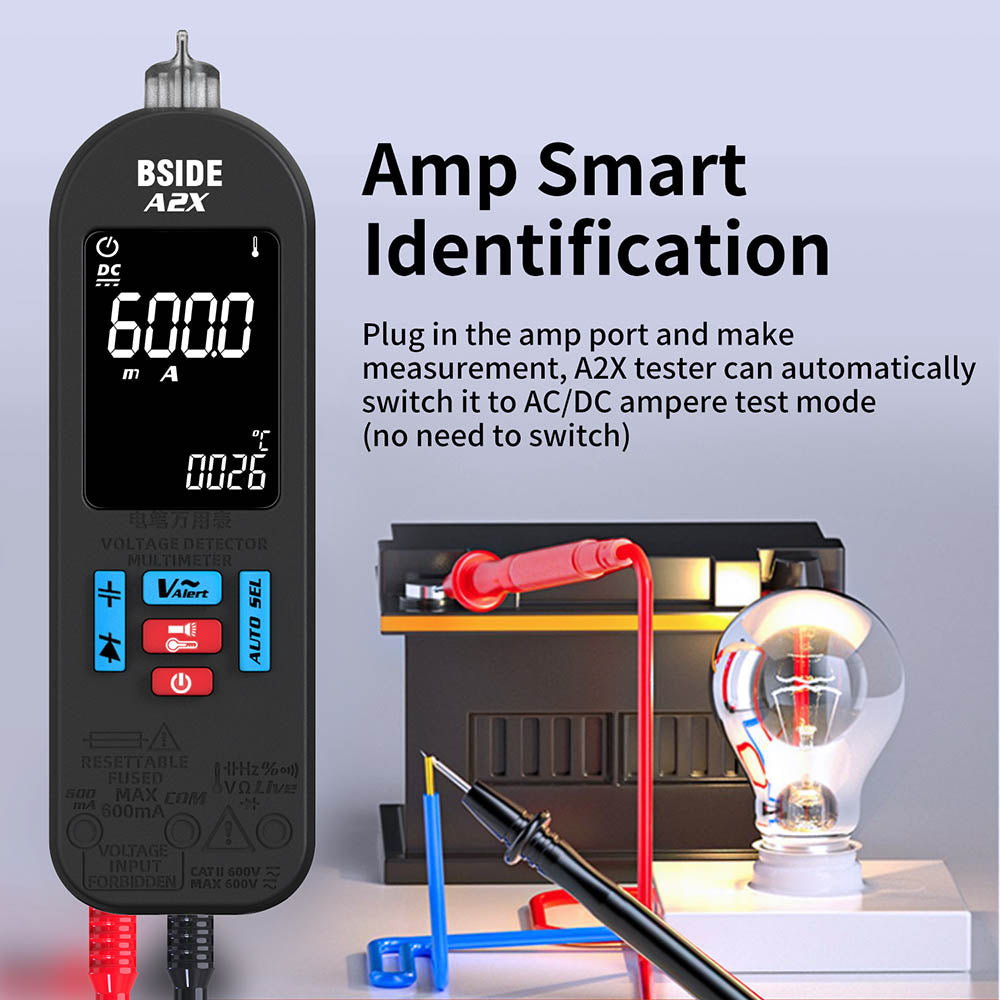

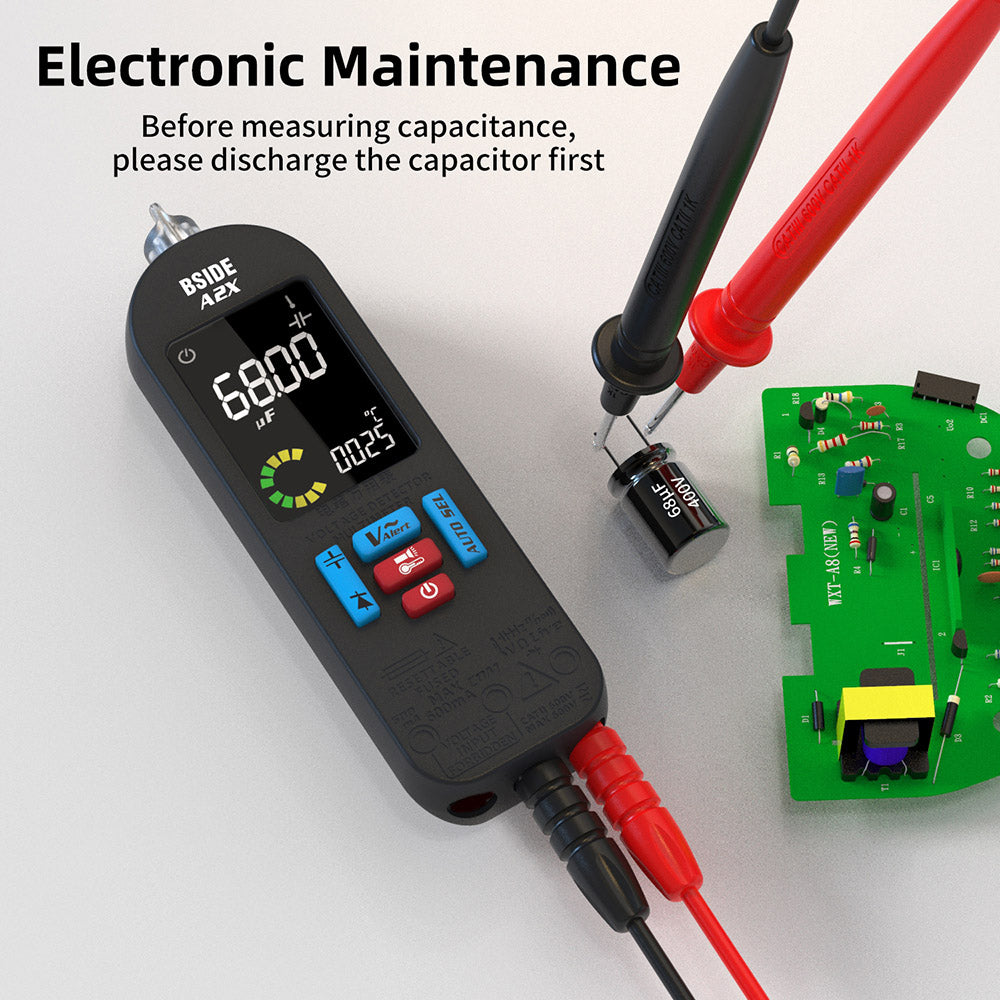

Specification	Screen: LCD display with red and green backlight DC Voltage: 0-620V (DC Mode), 0.8-620V(Auto Mode), 0.01V ±(0.8%+3) AC Voltage: 0-620V (AC Mode), 0.8-620V(Auto Mode), 0.01V ±(1.2%+5) Resistance: 0Ω-6.000MΩ, 6.000MΩ-60.00MΩ, 0.1Ω, ±(1.2%+3), ±(2.0%+10) Capacitance: 0.5μF-6000μF, 6000μF-60000μF, 0.001μF, ±(3.5%+8), (±4.5%+10) DC Current: 1.0-610mA, 0.1mA, ±(1.5%+3) AC Current: 1.0-610mA(40-1000Hz), 0.1mA, ±(1.5%+3) VFC Mode: 10V-620V, 1V, ±(4.0%+3) Temperature K-type thermocouple: 0°C-50°C, 50°C-1000°C, 1°C, ±(1.5%+2), (±2.0%+3) Frequency: 0Hz-9999Hz, 0.001Hz, (±2.0%+10) Diode: Measurement diodes within 3.0V V~Alert: Yes Ambient Temperature: Yes Auto Power Off: 15 minutes Flashlight: Yes Continuity: If the resistance <50Ω, the buzzer sounds and red blacklight on Display Type: 6000 Live Wire Check: Yes Power: 3.7V Li-ion battery inside Fused: 630mA

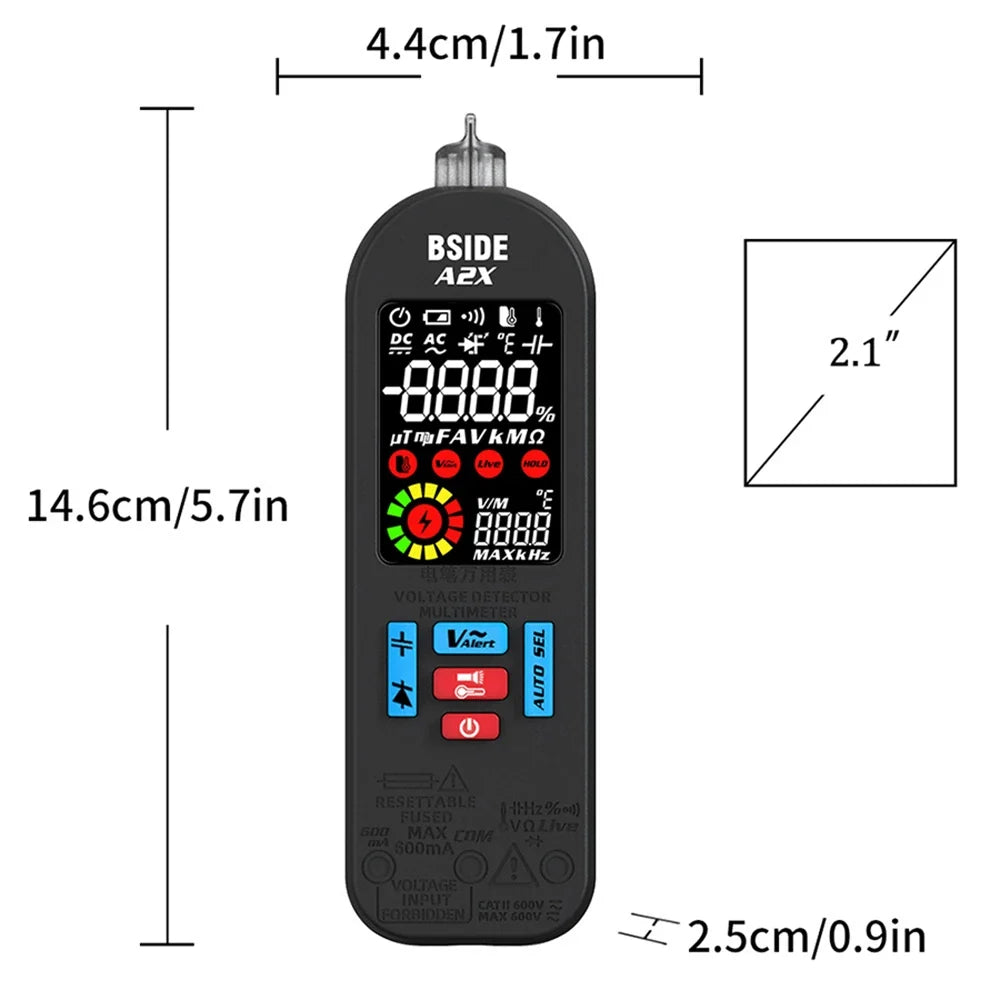

Weight & Size	Product Weight: 95g Package Weight: 259g Package Size(L x W x H): 175*85*45mm

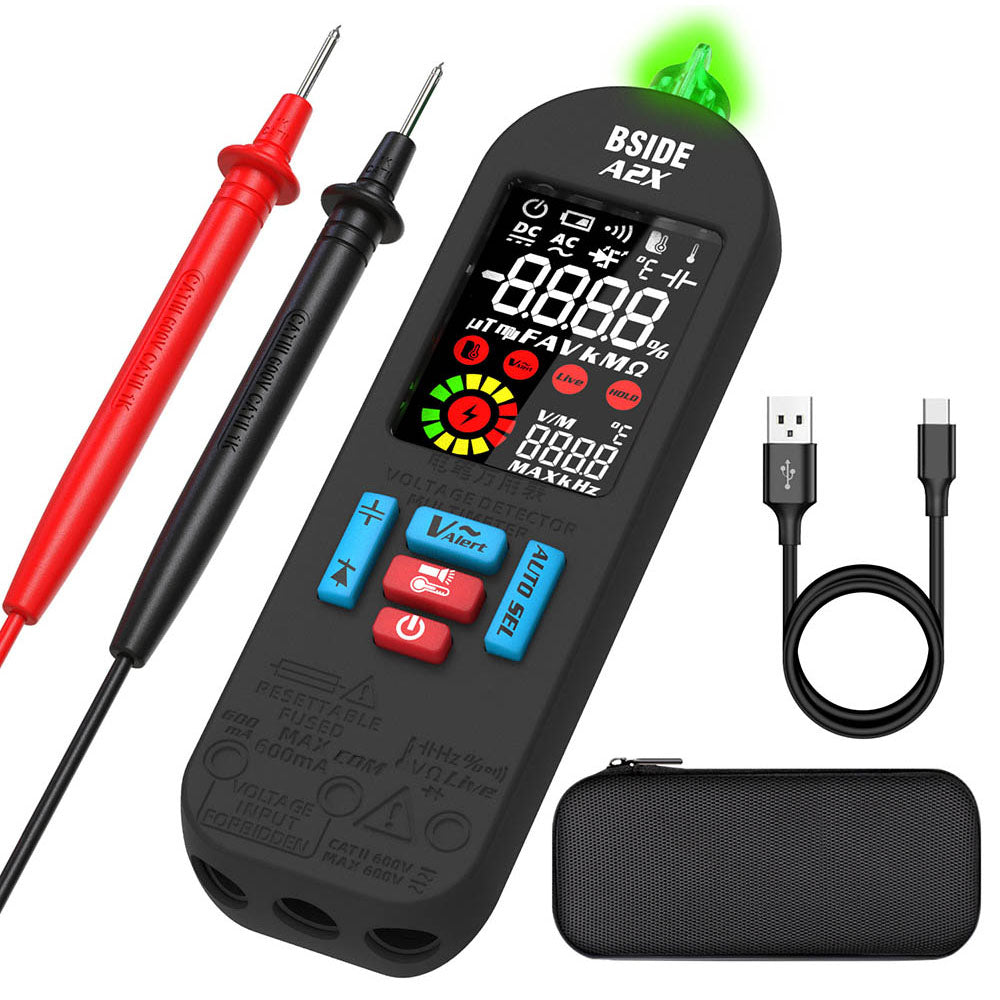

Package Contents	1 x Intelligent Digital Multimeter 1 x User Manual
