Description










Specifications:
MAX Display: 6000 counts

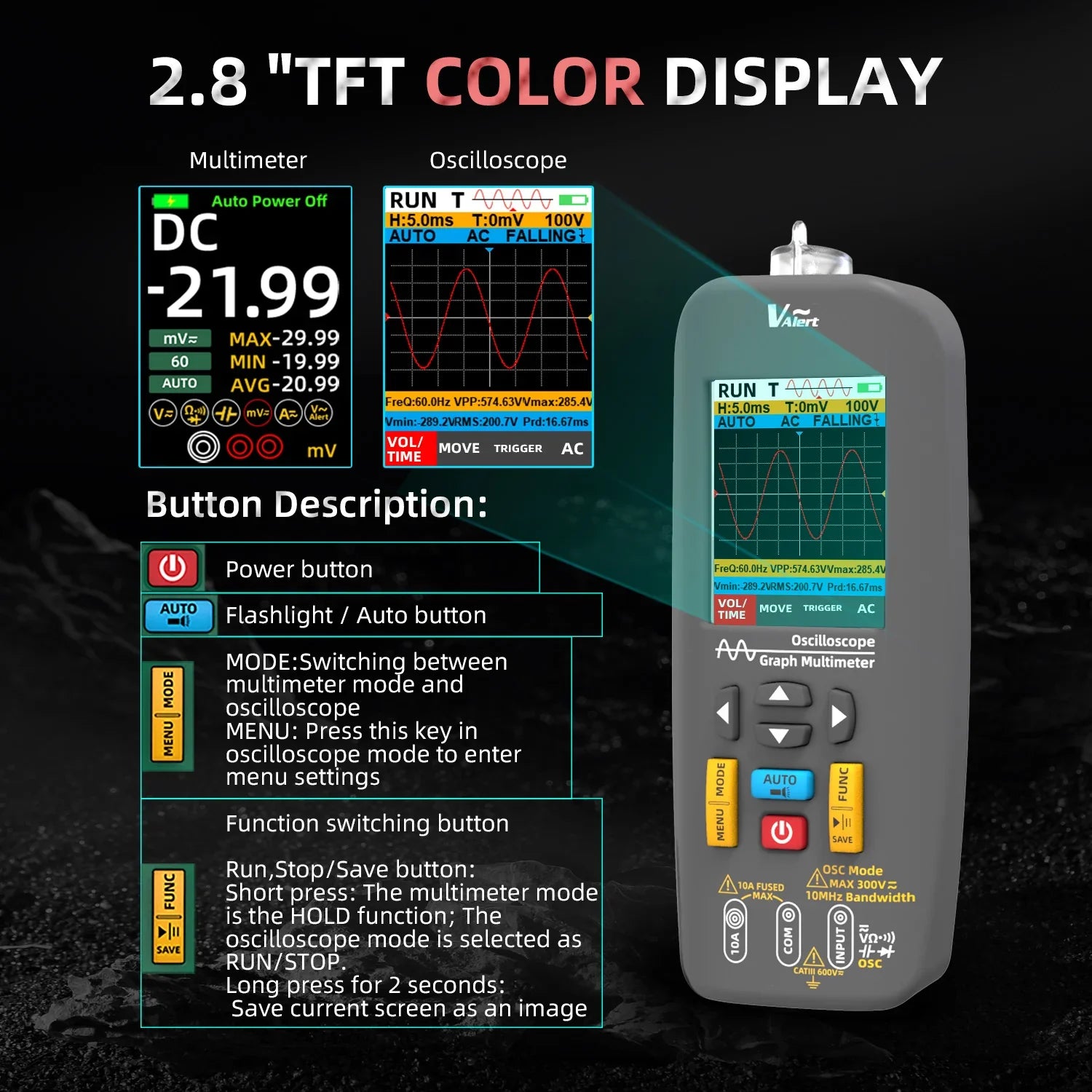

Screen Size: 2.8 inch

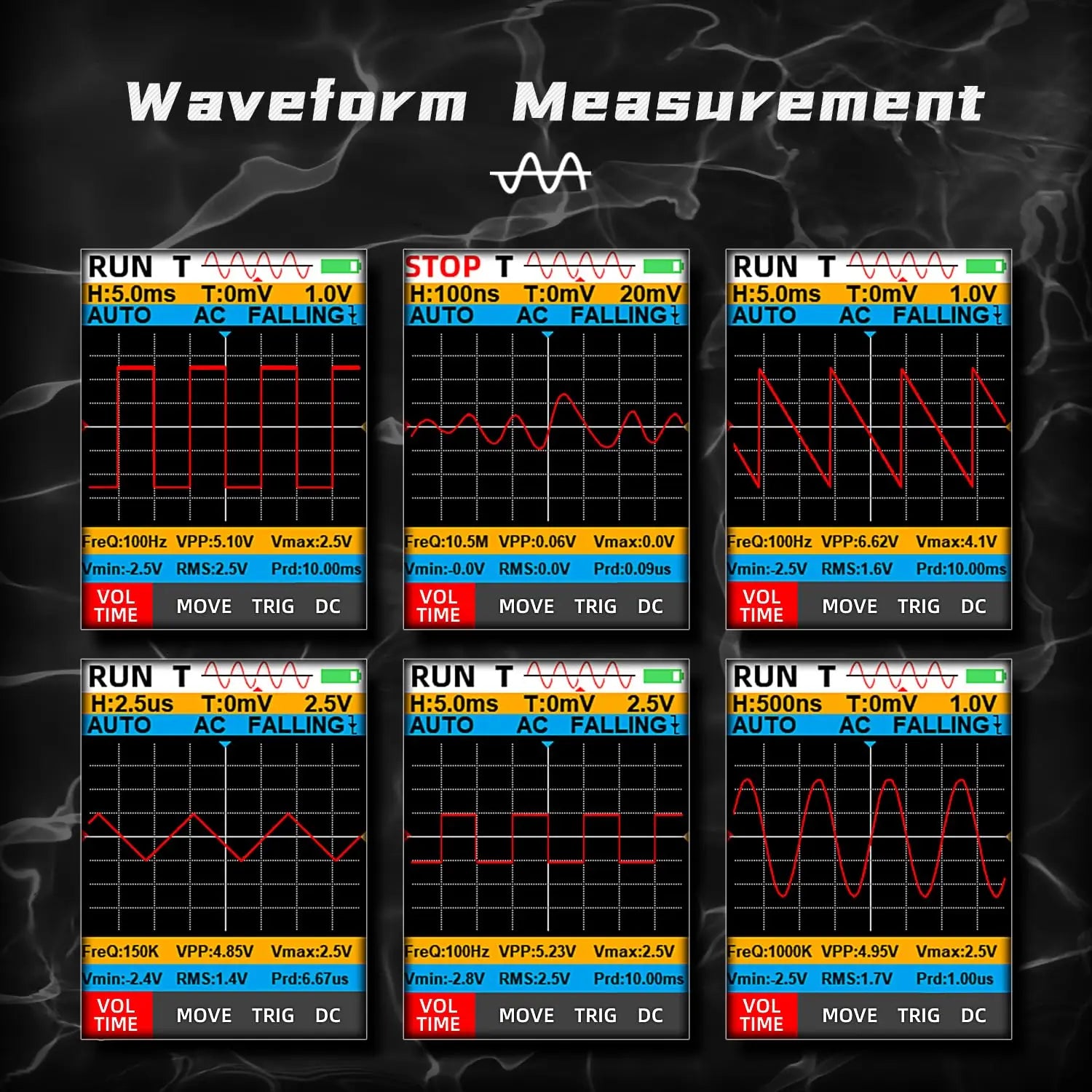

Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 300V (DC+AC peak)
Horizontal SEC range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -100V/div
DC voltage:
60mV 0.01mV ±(1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V 0.1V ±(1%+5)
AC voltage:
60mV 0.01mV ±(1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5)
DC current: 6A/10A 0.001A/0.01A ±(1.2%+3)
AC current: 6A/10A 0.001A/0.01A ±(1.2%+3)
Resistance:
600Ω 0.1Ω ±(1.2%+5); 6kΩ/60KΩ/600KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(1.0%+3);
6MΩ 0.001MΩ ±(1.2%+5); 60MΩ 0.01MΩ ±(1.5%+5)
Capacitance: 99.99nF 0.01nF ±(5.0%+20);
999.9nF/9.999µF/99.99µF/999.9µF 0.1nF/0.001µF/0.01µF/0.1µF ±(4.5%+5);
9.999mF/99.99mF 0.001mF/0.01mF ±(5.0%+10)
Diode: Measures diodes within 3V
Continuity: Yes
V-Alert(non-contact voltage detection): Yes
Power: 2000mA battery (rechargeable)
Size: 187 x 74 x 40.5 mm
Weight: 269g

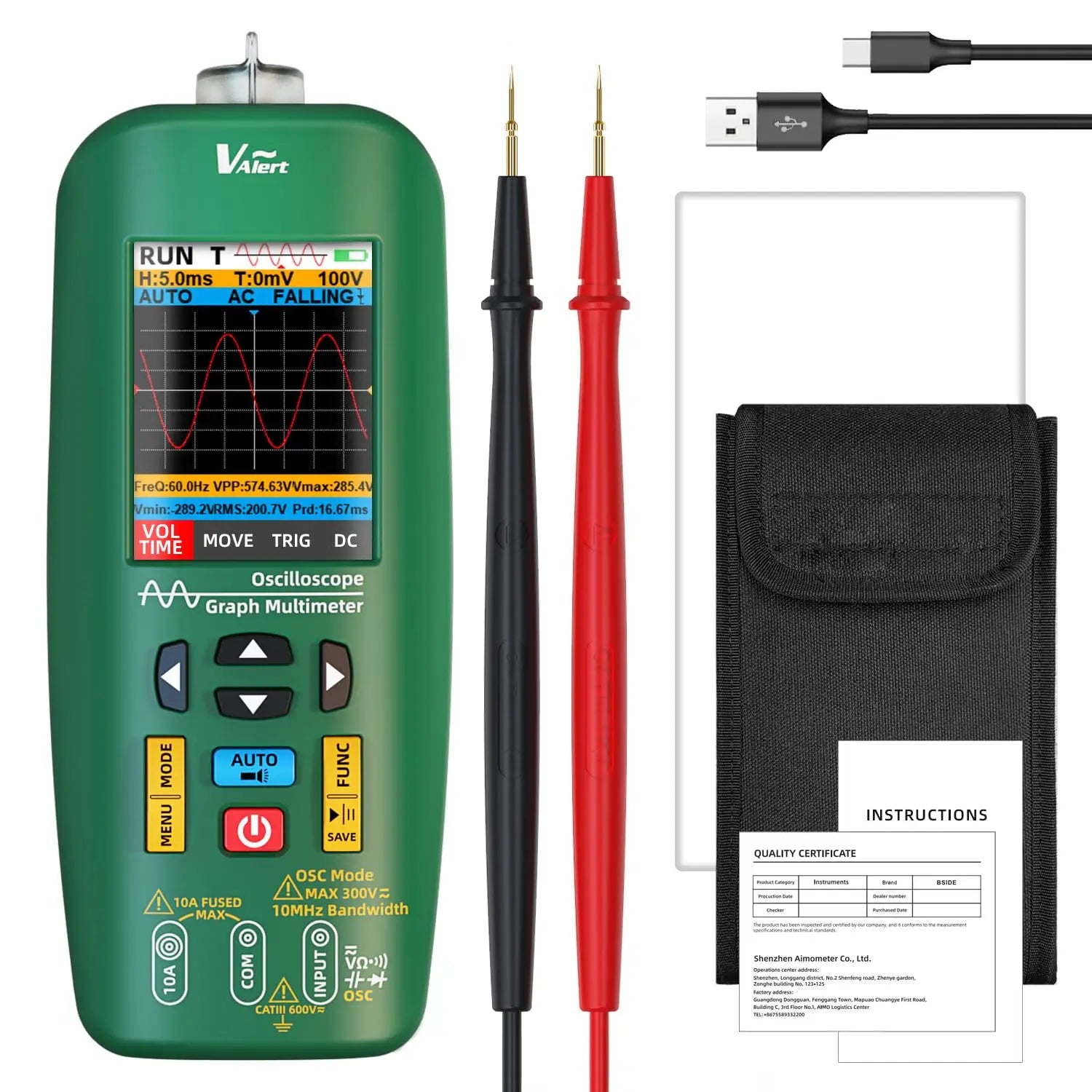

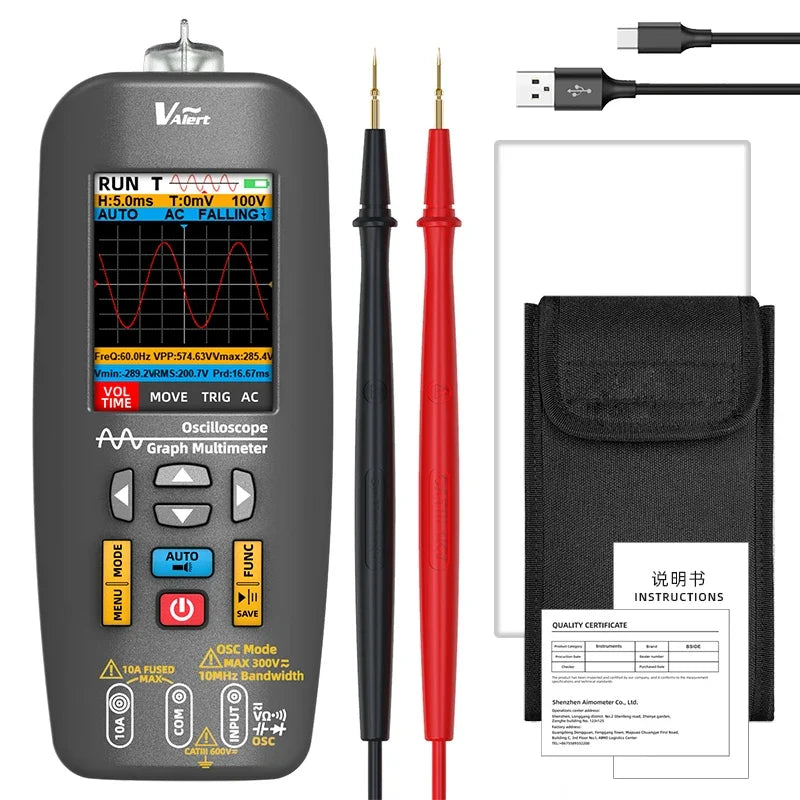

Package Includes:
1 x Handheld Oscilloscope Multimeter
1 x Test Leads
1 x Carrying Case
1 x Charging Cable
1 x User Manual
1 x (Built-in Rechargeable 2000mA Lithium Battery)
