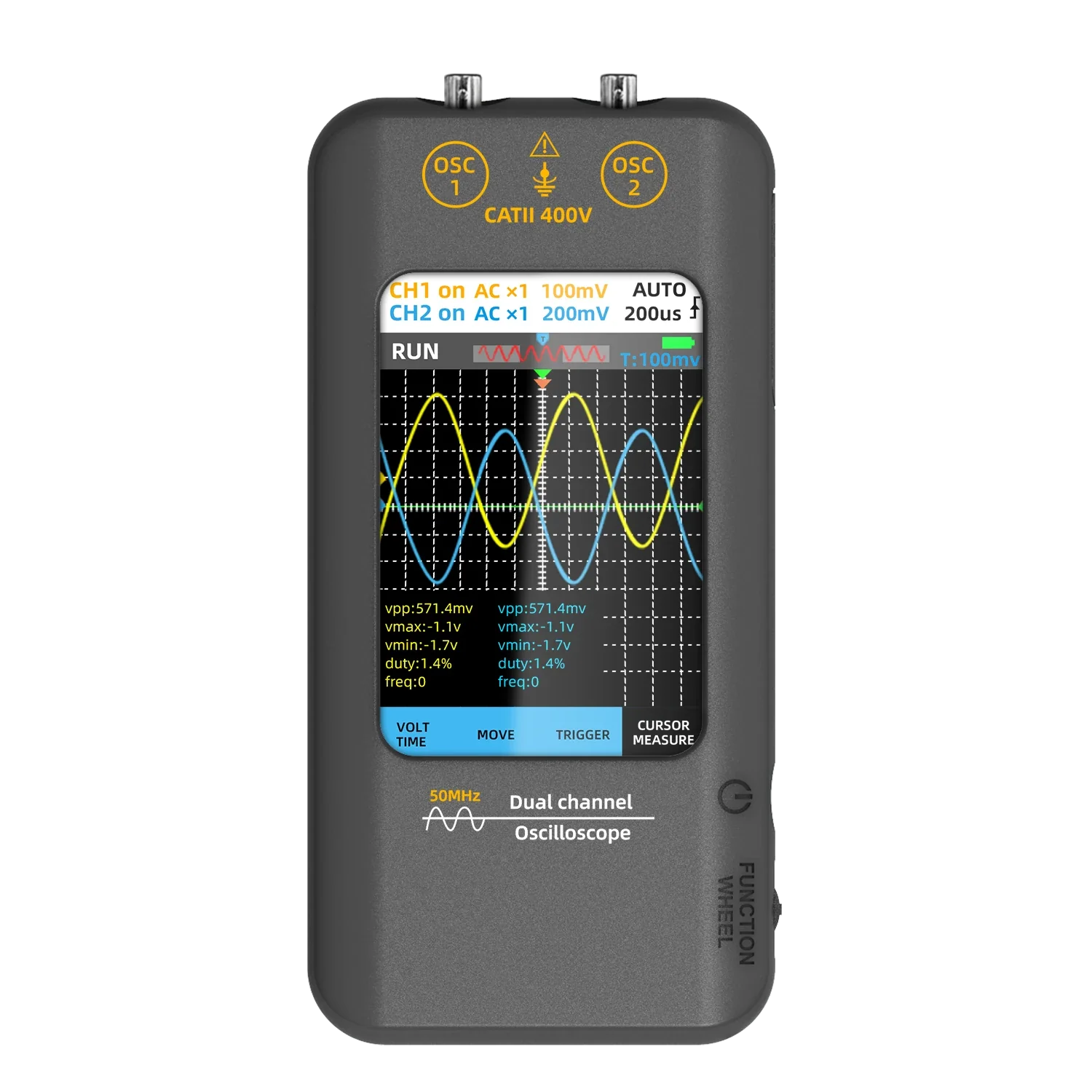

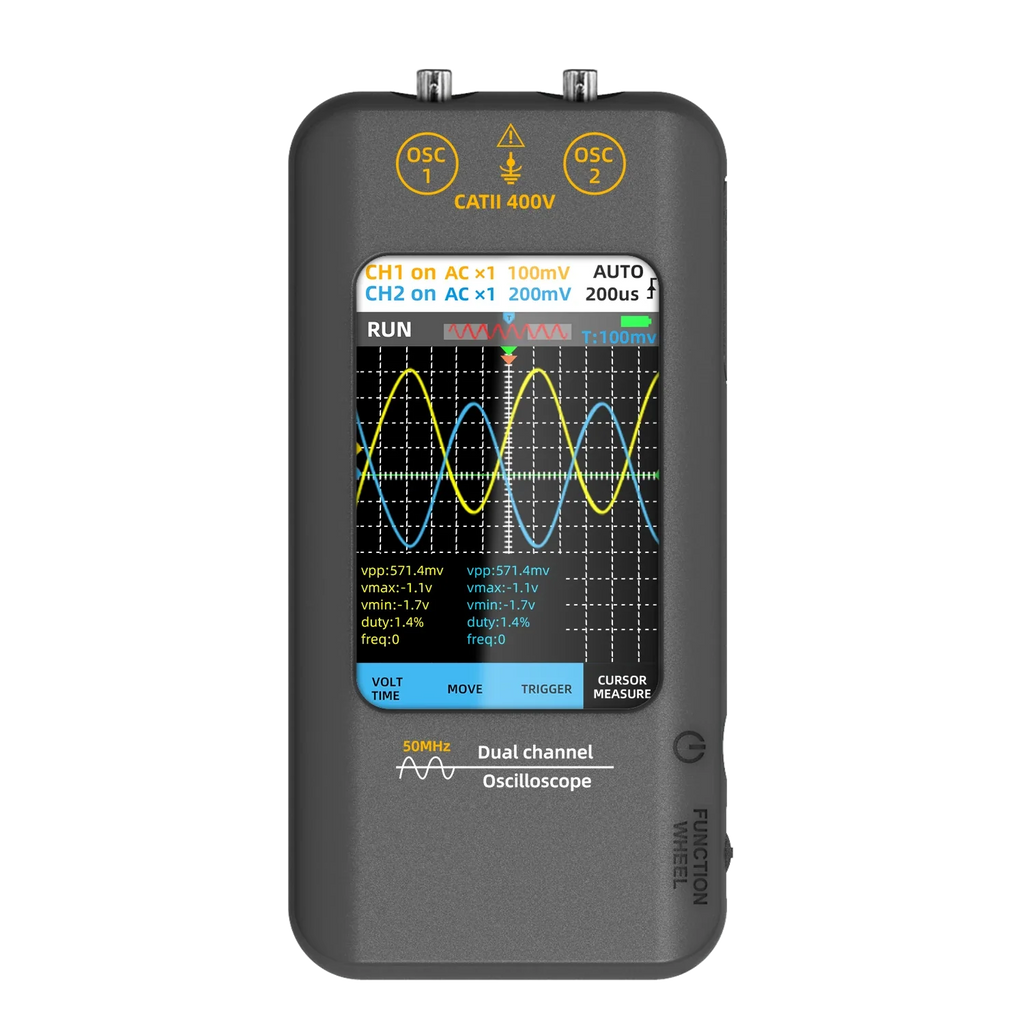

Description

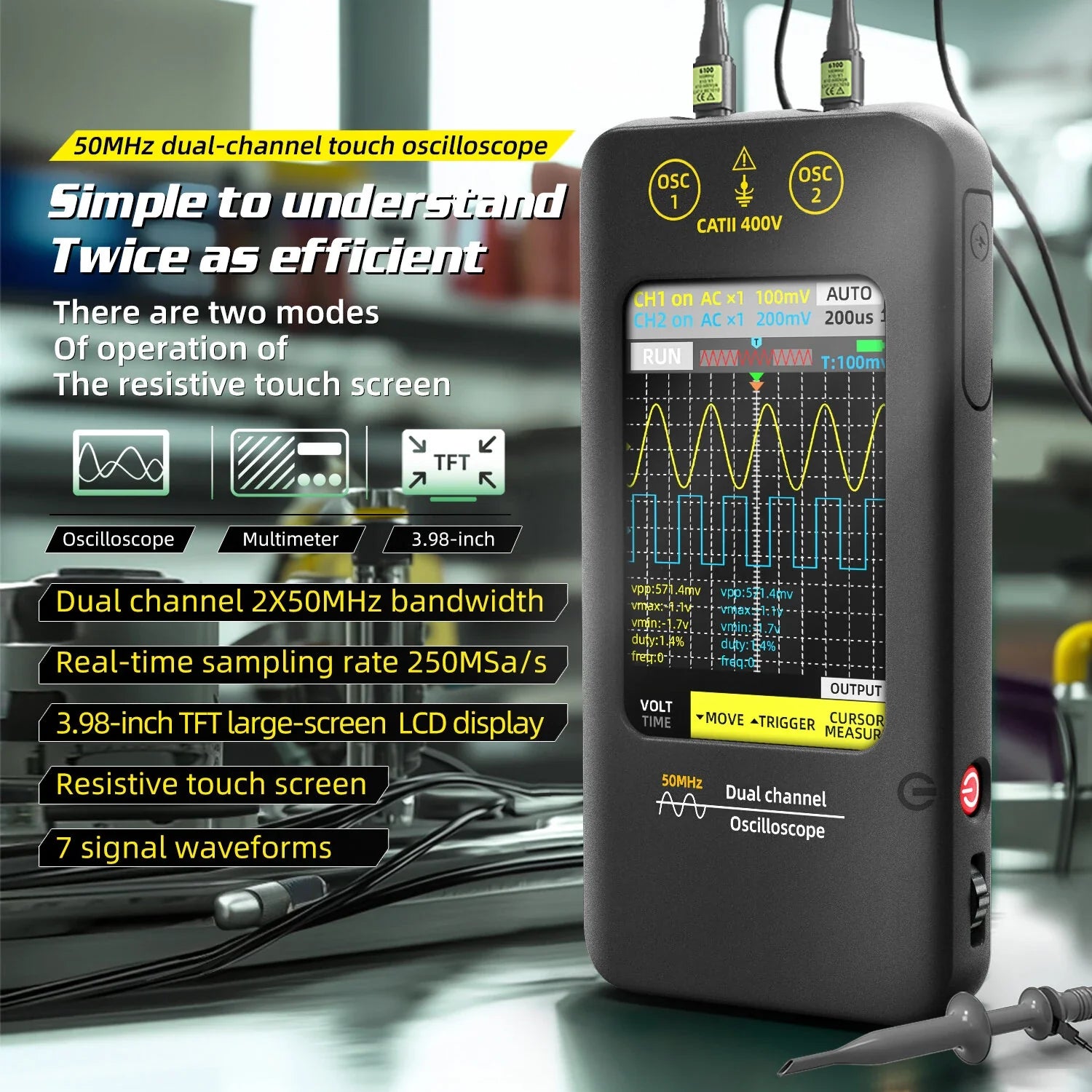

Features:
Dual-Channel Real-Time Sampling: Supports dual-channel DC and AC real-time sampling with a bandwidth of 50MHz and a sampling rate of 250MSa/s.

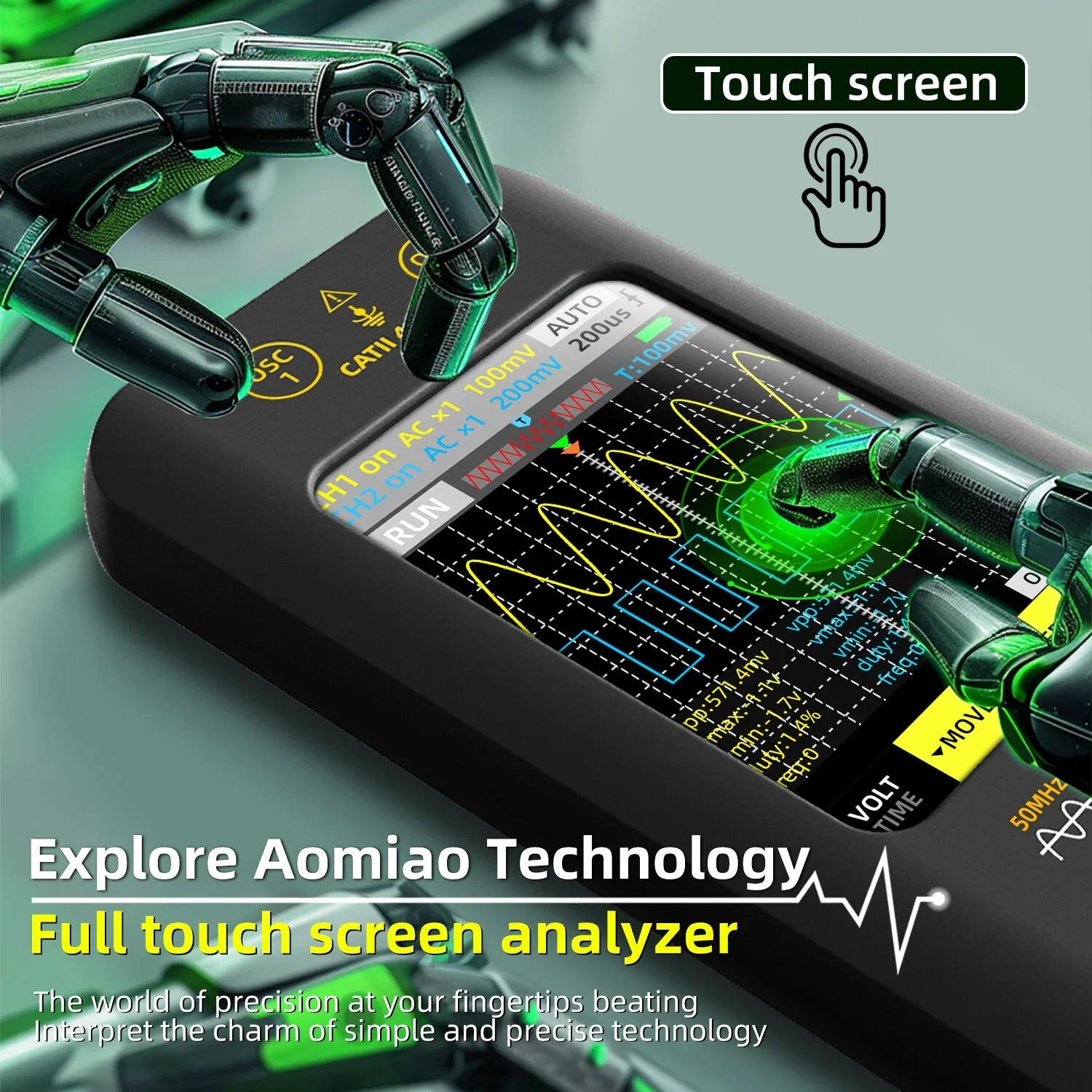

Touch Screen Convenience: Equipped with a 3.98-inch TFT LCD touch screen, providing a user-friendly interface for easy navigation and operation.
Versatile Waveform Generator: Built-in signal generator supporting sine, square, triangular, and sawtooth waves, with a frequency range of 0Hz to 2MHz.
Data Retention and Low Battery Alert: Includes data retention functionality, low battery alert, automatic power-off, and screen backlight for enhanced usability.
Compact and Portable Design: Lightweight (268g with battery) and compact (170.0x80.9x23.9mm), powered by a 3000mAh lithium battery for convenience and portability.
Specifications:
Display Screen: 3.98-inch TFT LCD with Resistive Touch
Sampling Rate: 250MSa/s
Bandwidth: 50MHz
Channels: 2 (DC/AC)
Battery: 3000mAh lithium battery
Size: 170.080.923.9mm
Weight: 268g (with battery)
Waveform Types: Sine, Square, Triangular, Sawtooth, DC
Frequency Range: 0Hz ~ 2MHz

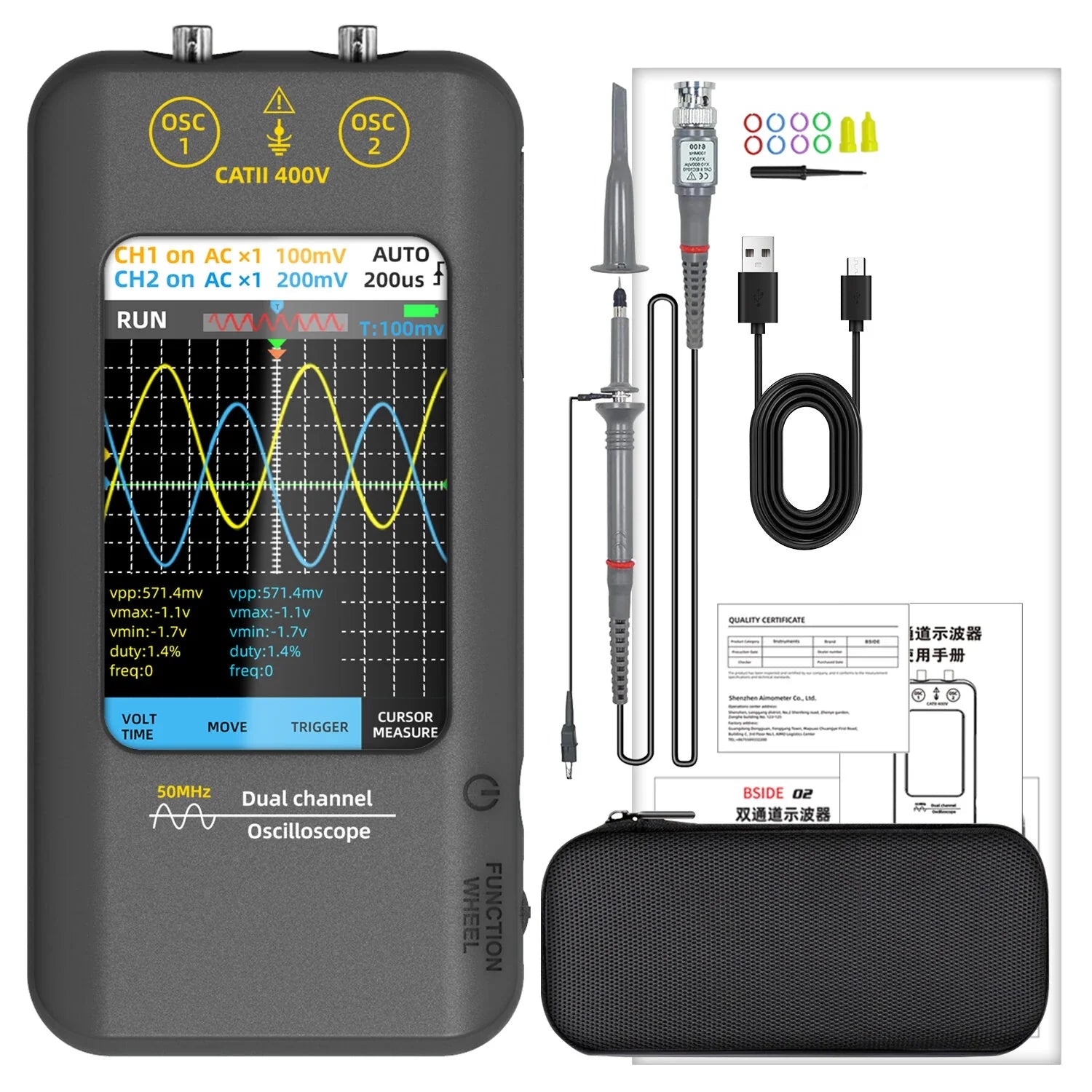

Package Included:
1 x Dual-channel oscilloscope-O2 host
1 x 10X oscilloscope probe
1 x USB Type-C cable
1 x EVA storage bag
1 x Oscilloscope manual
1 x Product Certificate
