BSIDE O7 Handheld Oscilloscope 50MHz Dual Channel 4-in-1 Digital Multimeter with Function Generator & Current Tester

Basic Parameter
Battery: 2 * built-in 6000mAh battery (included)
Screen size & resolution: 3.98 Inch (480*272 pixels) IPS display
True RMS measurement: 6000 count
Data hold: √
Screen backlight: √
Low battery reminder: √
Automatic shutdown: √
Working environment: 0-40℃, ＜75%RH
Storage environment: -20℃ to 60℃, ＜80%RH
Item size: 216.6 * 84.5 * 36mm / 8.53 * 3.33 * 1.42in
Item weight: 477g / 1.05lb
Package size: 240 * 128 * 73mm / 9.45 * 5.04 * 2.87in
Package weight: 945g / 2.08lb

Multimeter
DCvoltage: 6.000V/60.00V/600.0V/1000V, ±(0.8%+3); 60.00mV/600.0mV, ±(1.0%+5)
ACvoltage: 6.000V/60.00V, ±(1.0%+3); 600.0V/750V, ±(1.2%+5); 60.00mV, ±(1.2%+5); 600.0mV, ±(1.0%+3)
AC voltage frequency response: 40Hz-1kHz
DCcurrent: 60.00mA/600.0mA, ±(1.0%+3)
ACcurrent: 60.00mA/600.0mA, ±(1.2%+5)
Flexible current clamp/AC Current(A): 600.0A/6000A, ±(1.0%+5)
Resistance: 600.0Ω, ±(1.2%+5); 6.000KΩ/60.00KΩ/600.0KΩ, ±(1.0%+3); 6.000MΩ/60.00MΩ, ±(1.5%+5)
Capacitance: 999.9n, ±(5.0%+20); 9.999uF/999.9uF, ±(4.5%+5); 99.99mF, ±(5.0%+10)
Temperature: (-20~1000℃)/(-4~1832℉), ±(2.5%+5)
Diode: √
Connectivity: √

Signal Generator
Channel: Single channel
Frequency: 0-2MHz
Channel: 1
Amplitude: 0.1V-3.0V
Squarewav duty cycle: 1-99%
Signal type: sinewave, squarewav, sawtoothwave, halfwave, fullwave, direct current signals, direct current

Oscilloscope
Channel: Dual channel
Analogue bandwidth: 50MHz
Real-time sample rate: 208MSa/s
Input coupling: Direct Current/Alternating Current
Storage depth: max 64kByte
Input impedance: 1MΩ,@16pf
Probe attenuation: 1x/10x
Maximum input voltage: X1 <150V, X10 <300V
Sampling rate ranges: 1.5Sa/s-208MSa/s
Waveform interpolation: (sinx)x
Sweeprange: 100ns/div-20s/div
Displacement ranges: 4 frames (positive and negative)
Analogue bandwidth: 25MHZ
Low frequency response: ＞ 10HZ
Rise time: ＜ 10ns
Direct current gain accuracy: ±3%
Automatic measurement: period, frequency, peaktopeak, maximum value, minimum value, duty cycle, root meansquare
Trigger mode: automatic/normal/single
Trigger edges: rising/falling edges
Signal generator output: squarewav, sawtoothwave, halfwave, fullwave
Afterglow time: Min, 500ms, 1s,10s, Unlimited

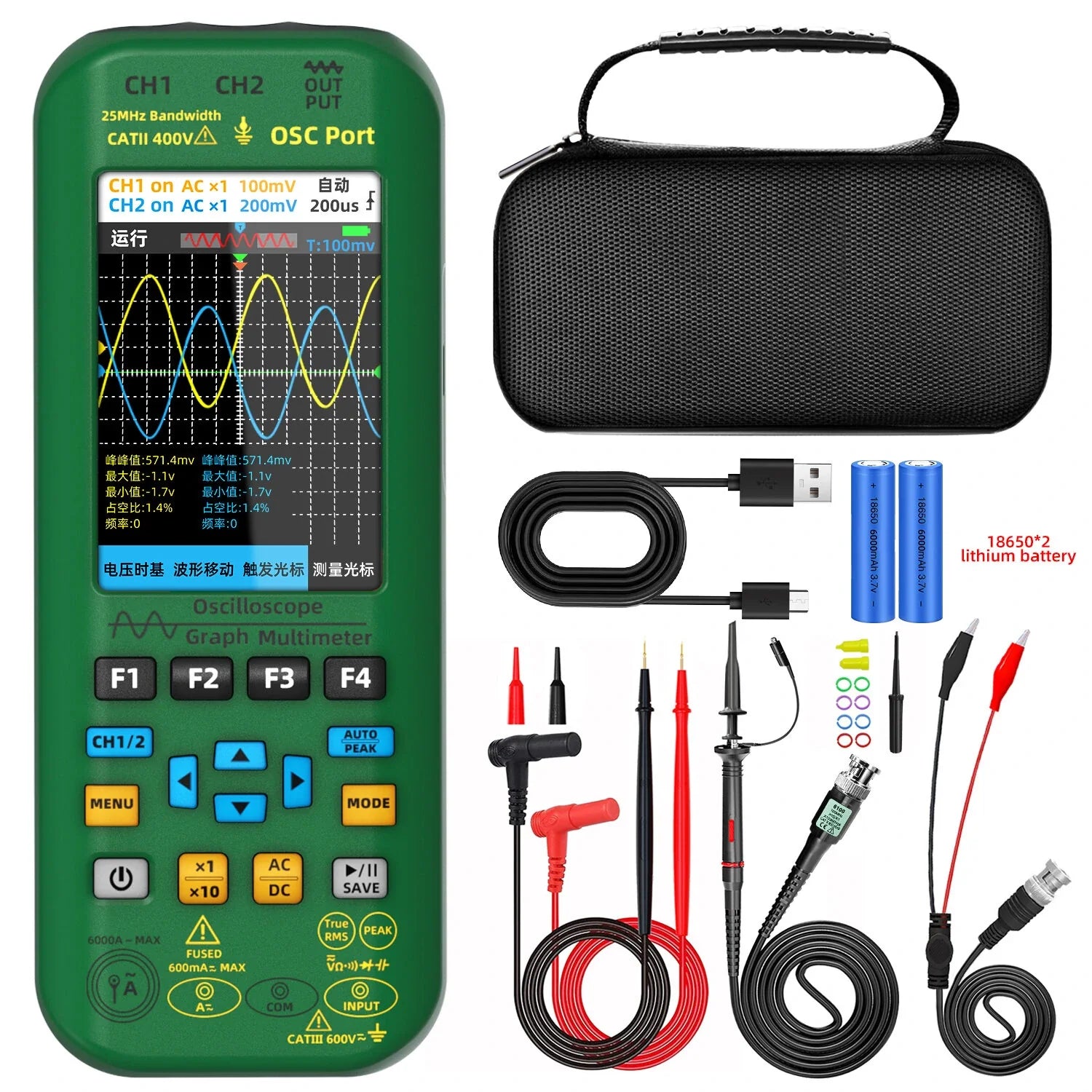

Packing List:
1 * 3in1 Meter
1 * Probe
1 * Multimeter Pen
1 * Clip Probe
1 * Cable
1 * EVA Bag
