Description
Specifications:
Display: 6000 counts
Screen: 1.9 inch
DC Voltage: 0.1V-600V 0.001V ±(0.8%+3)
AC Voltage: 0.1V-600V 0.001V ±(1.2%+5)

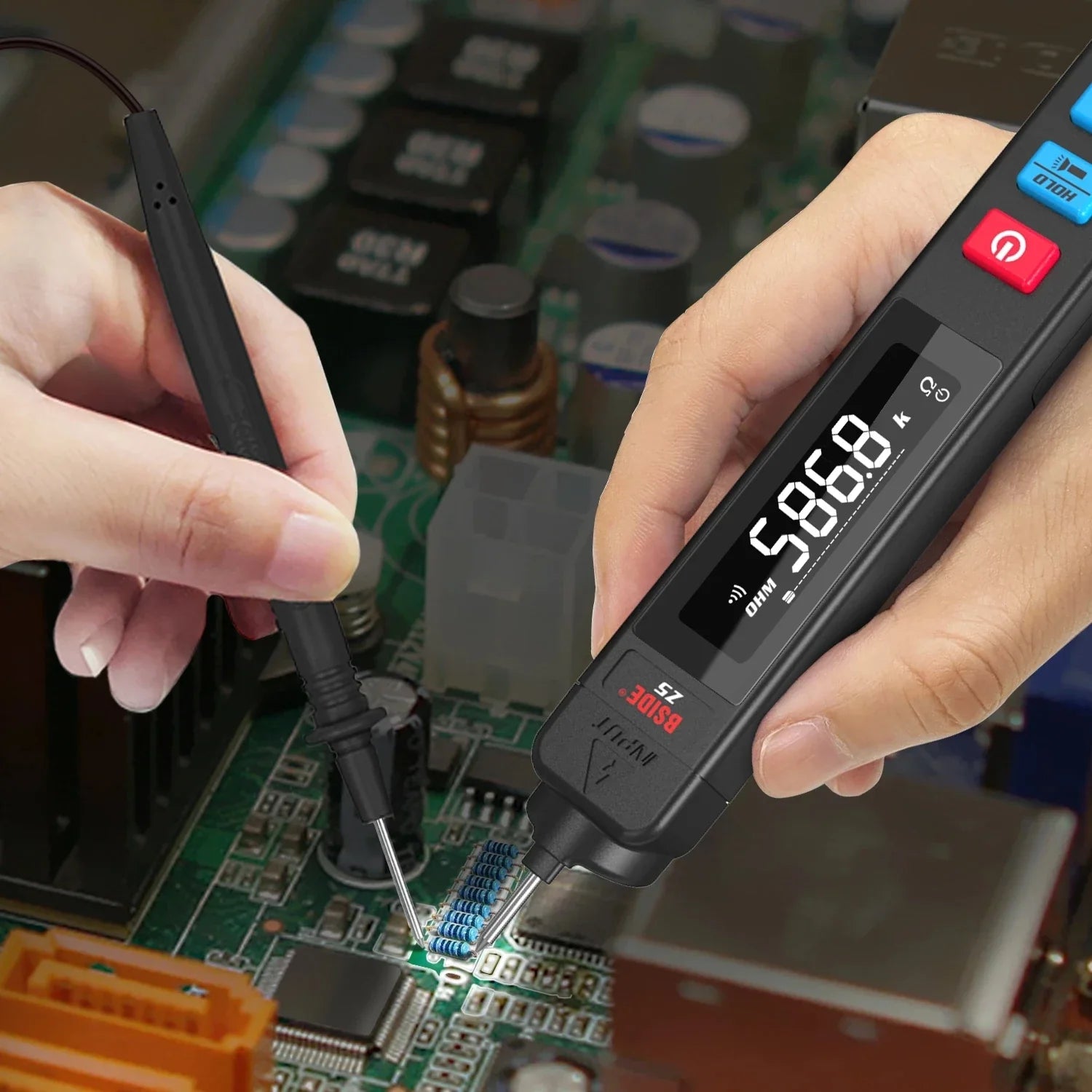

Resistance: 0.1Ω-10MΩ 0.1Ω ±(1.2%+3); 10MΩ-60MΩ 0.1Ω ±(2.0%+10)
Capacitance:
1nF-1mF 0.001nF ±(3.5%+8); 1mF-60mF 0.001nF ±(4.5%+10)
Frequency: 10Hz-10MHz 0.1Hz ±(2.0%+10)
Diode: Measure diodes within 3V

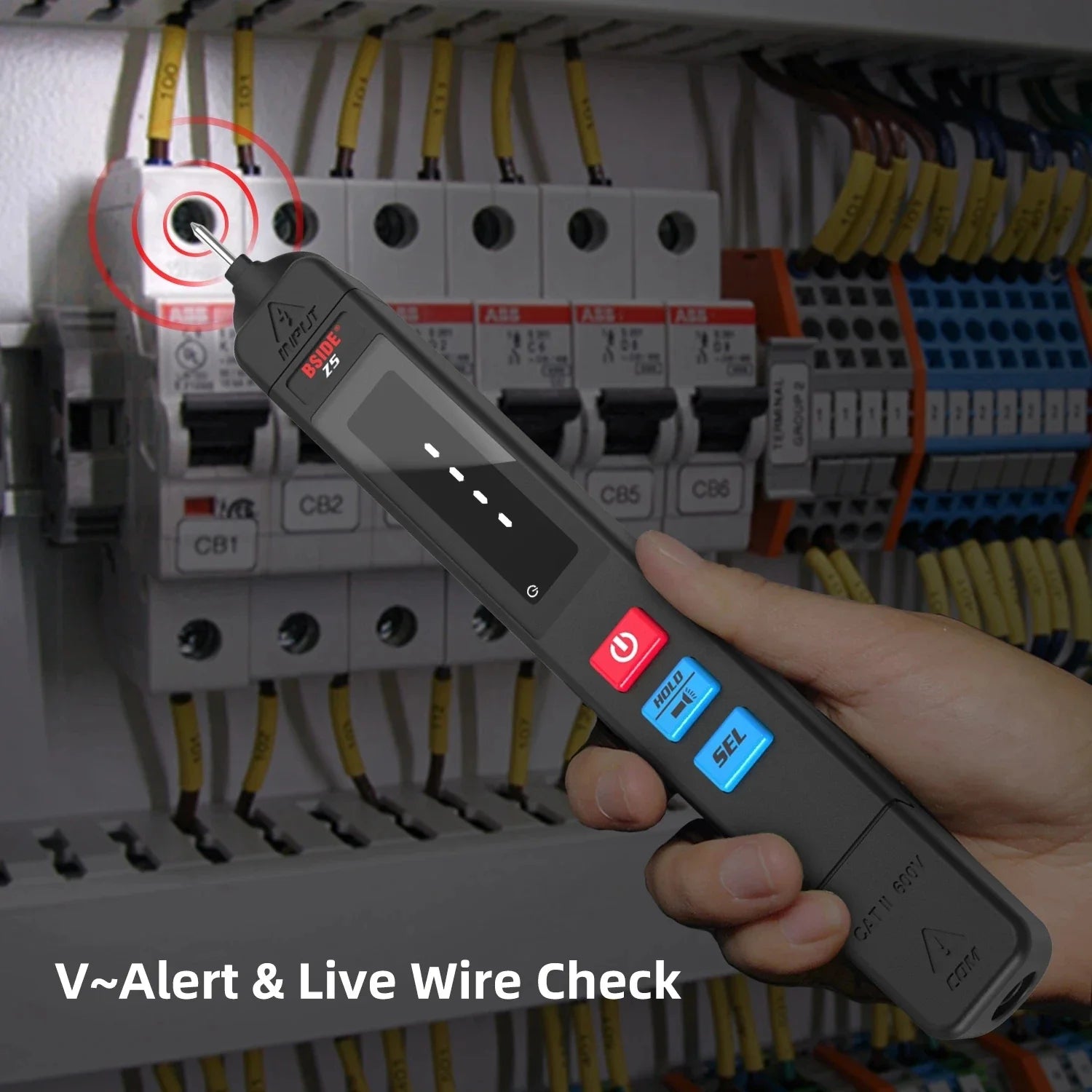

Continuity: If the resistance less than 50Ω, the beeper soundsV-Alert (Non-contact Voltage Detection): Yes

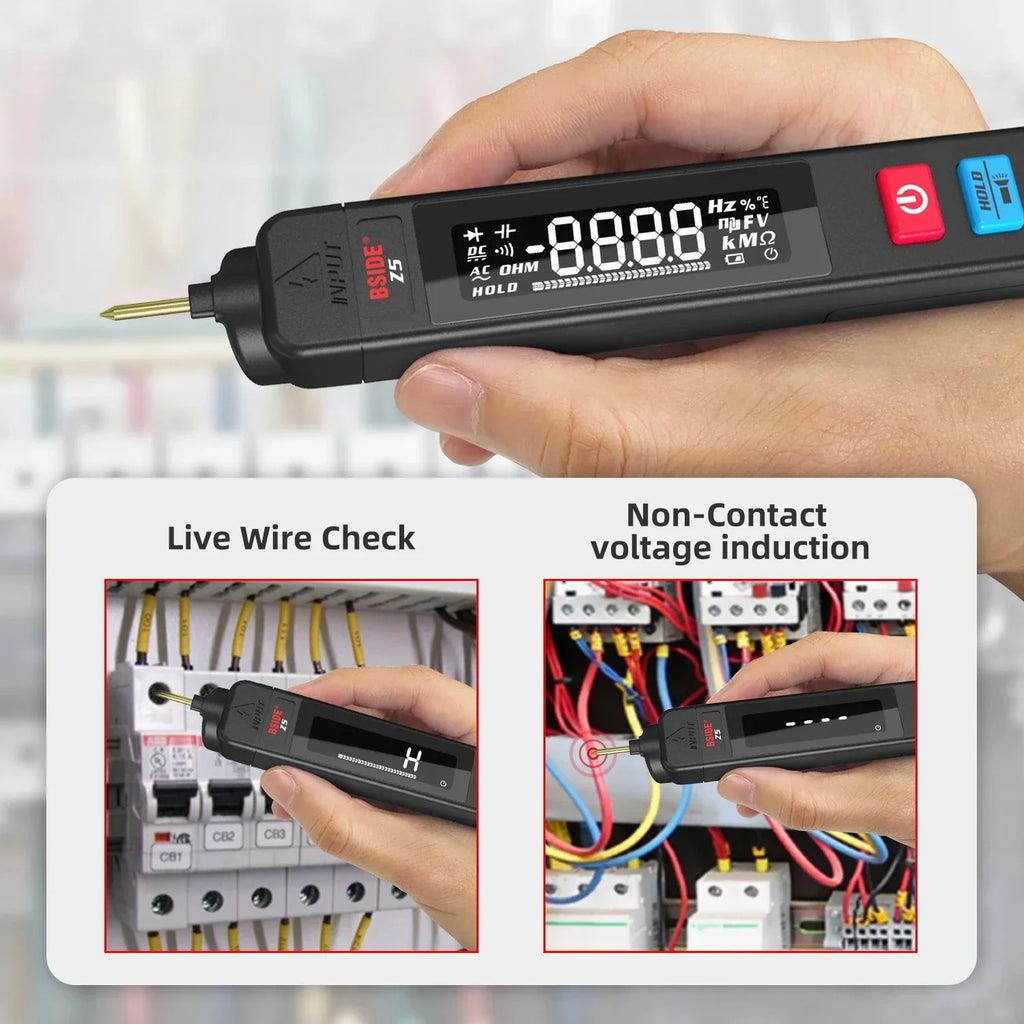

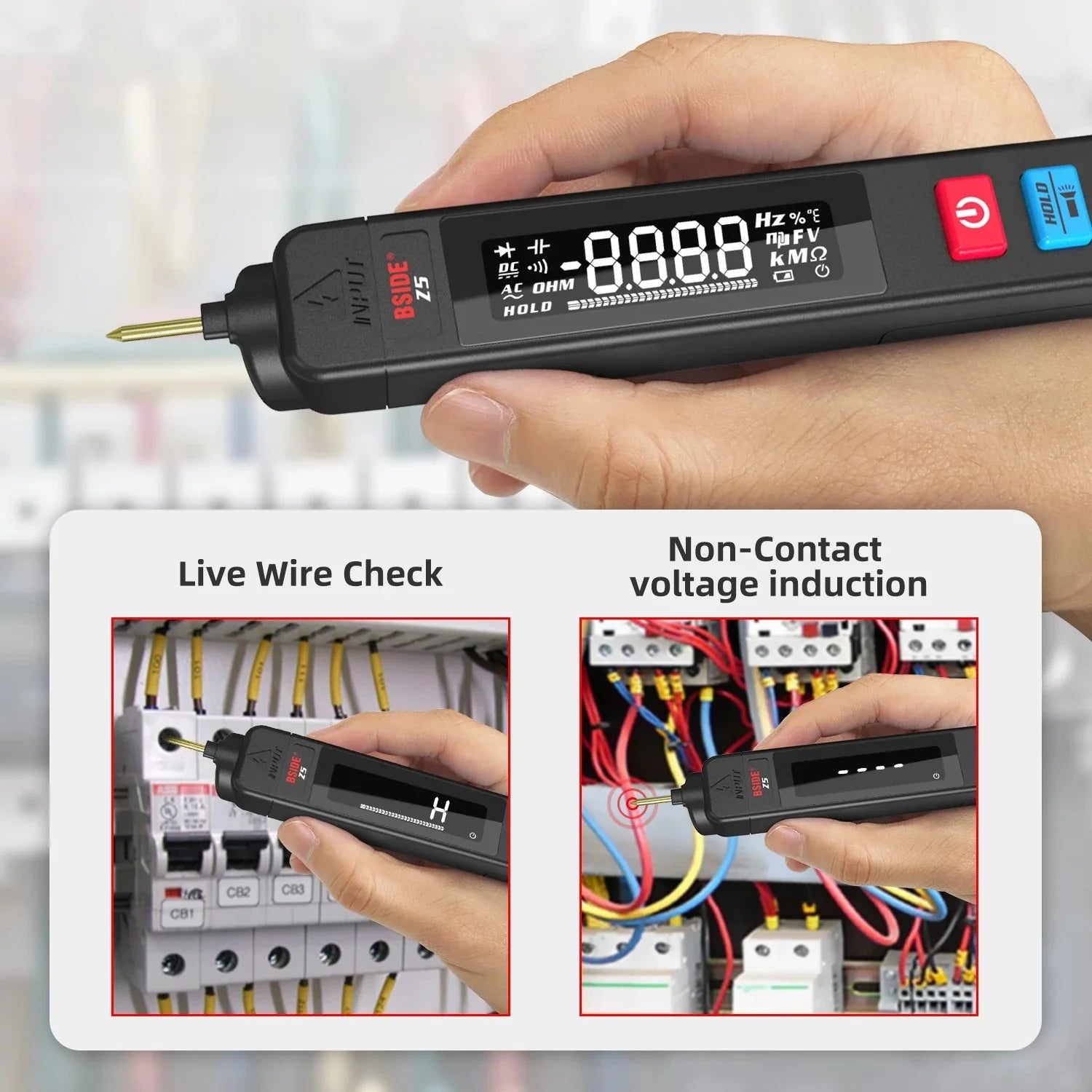

Live Wire Check: Yes
Power: 1.5V (AAA) x 2
Size: 185*22*22mm
Weight: 63g

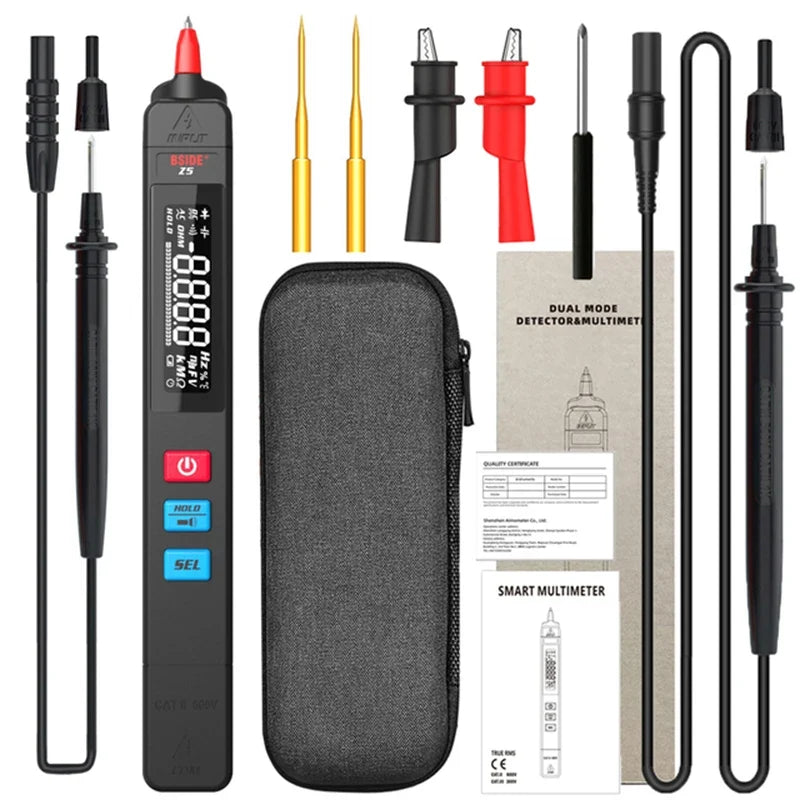

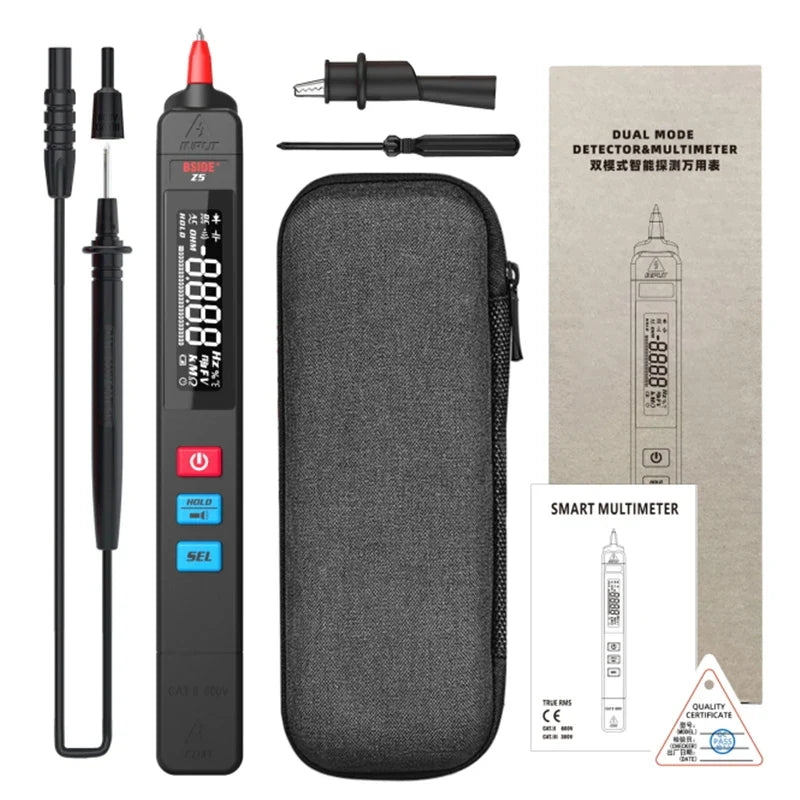

Package Includes:

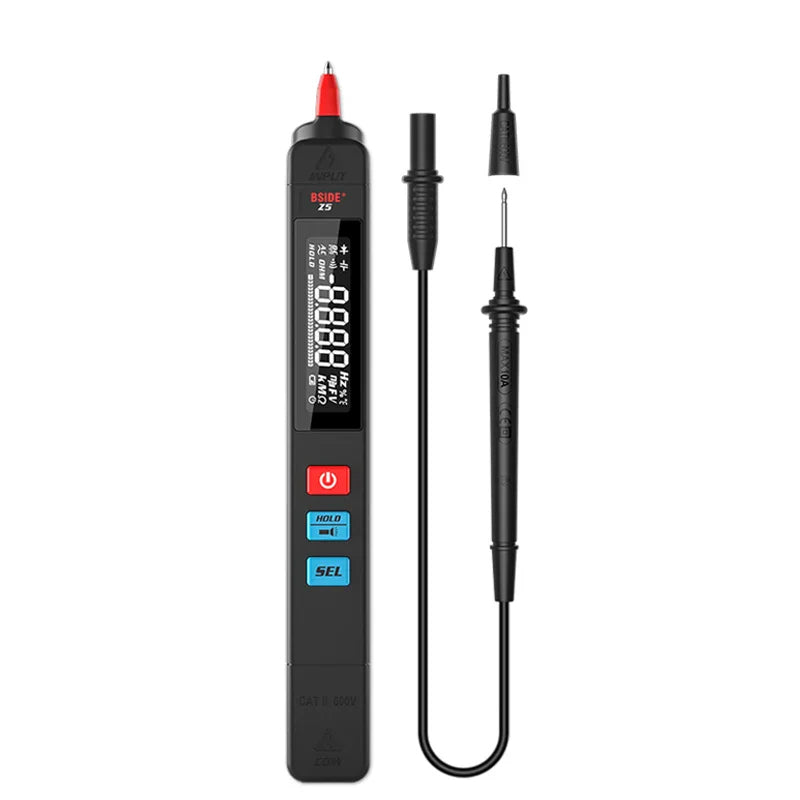

1 x Pen Type Multimeter
1 x Test Lead
1 x Case
1 x Screwdriver
2 x AAA Batteries
1 x User Manual
