Description
Specifications
Hign-concerned Chemical:None
Is Smart Device:YES
Operating Mode:Auto Mode
Operating Temperature:0 - 50 ℃
DIY Supplies:ELECTRICAL
Certification:CE
Model Number:ZT-5B
Brand Name:BSIDE
Dimensions:120mm*61mm*28mm
Display Type:Digital display
Frequency:6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1%+2)
Temperature:-20~1000℃ / -4~1832℉ ±(3%+5)
NCV (Non-contact Voltage Detection):Yes
Diode Test:Yes
Continuity:Yes
Power:1.5V AAA * 2
Size:120mm*61mm*28mm
Weight:117g
Display:6000 Counts

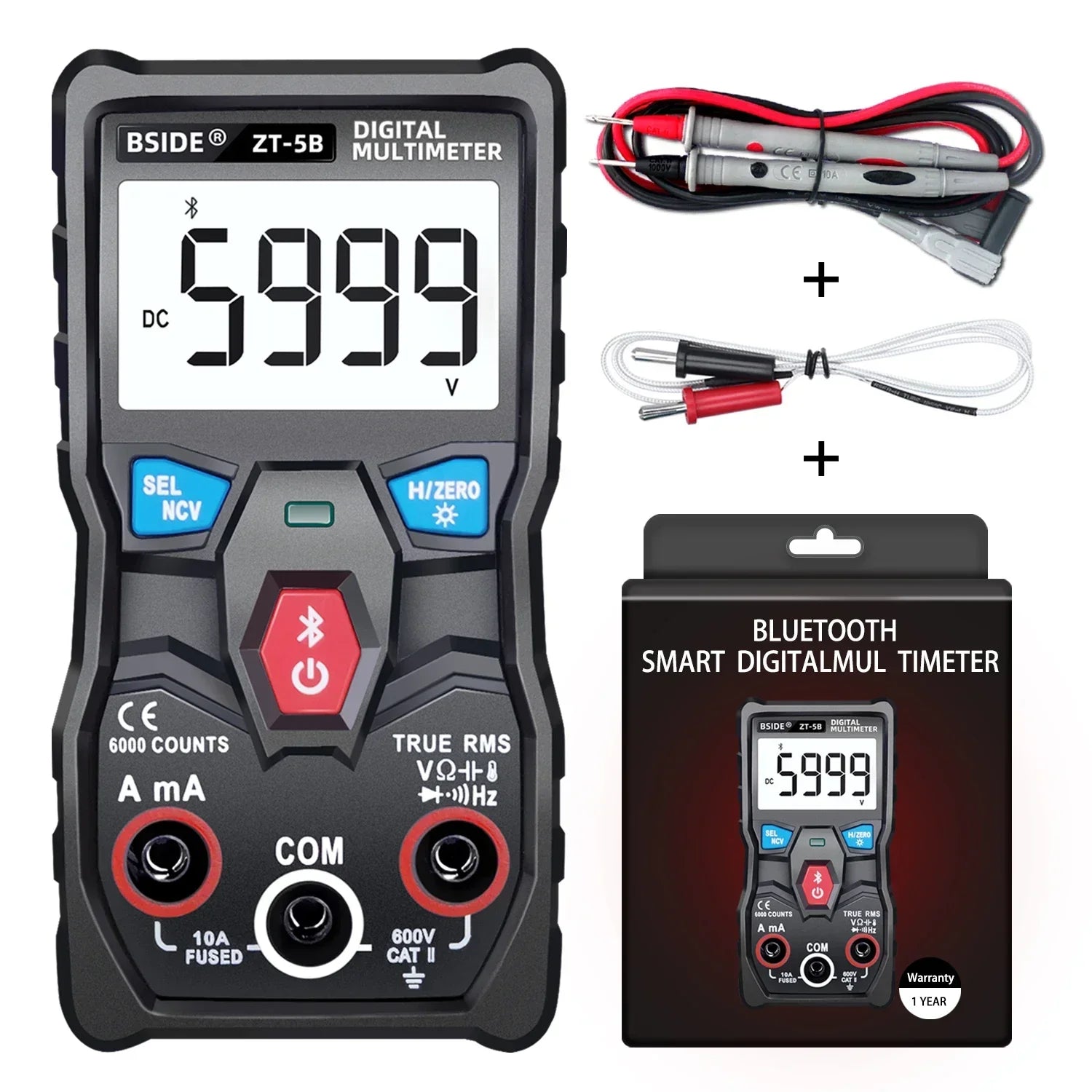

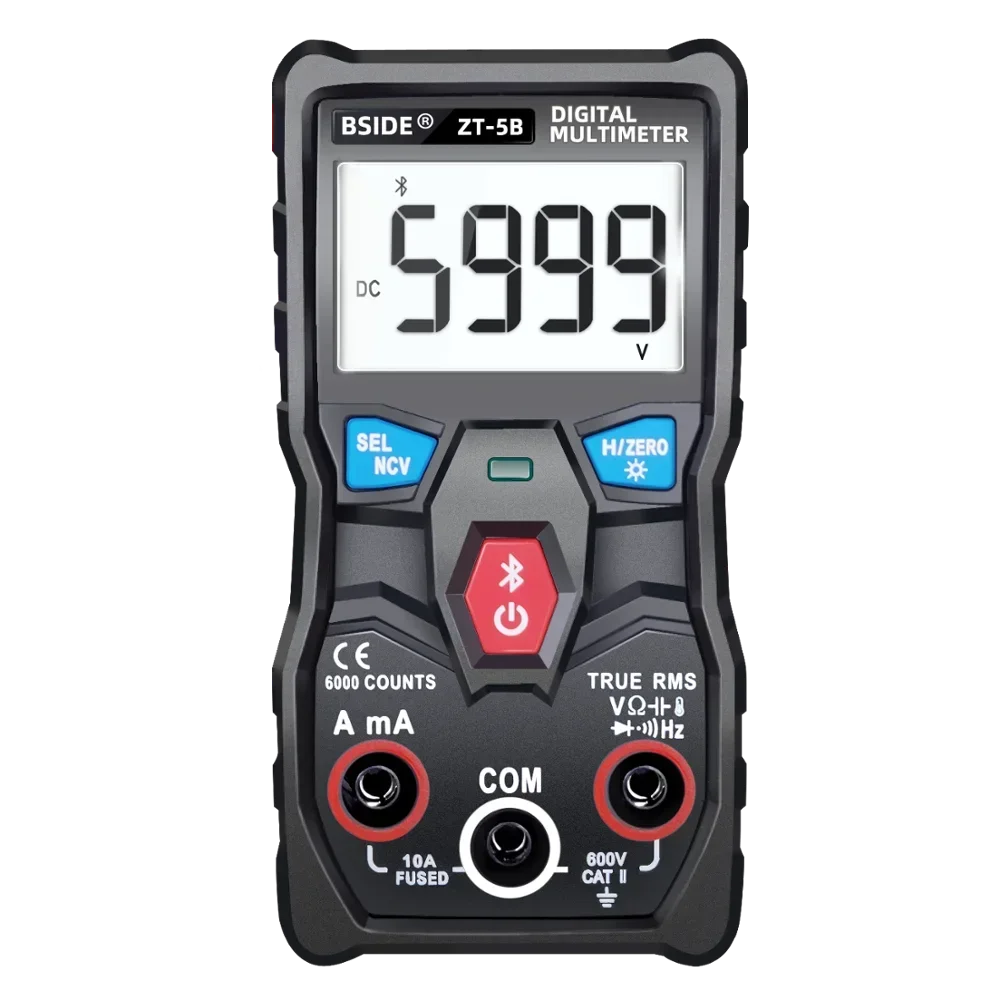

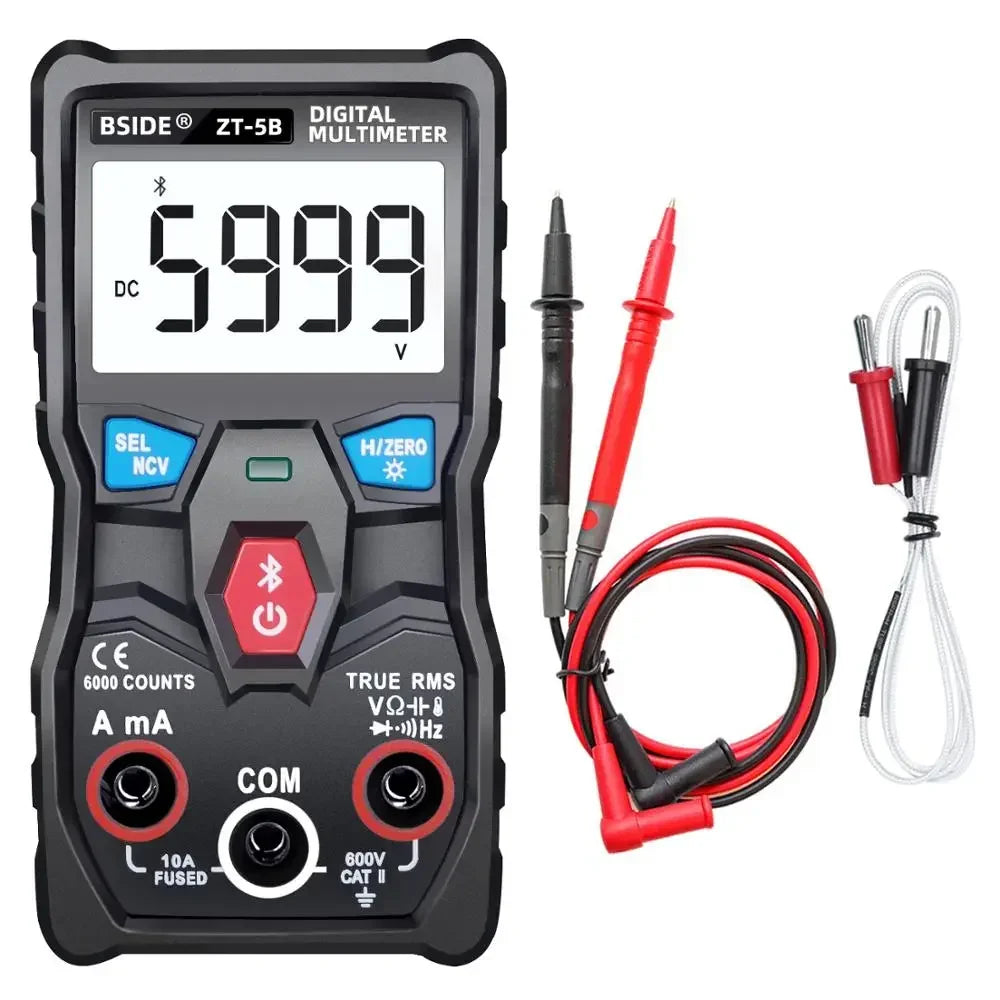

BSIDE ZT-5B Wireless Digital Multimeter Fully Auto-Ranging True RMS 6000 Counts Voltmeter Voltage Amp Ohm Hz NCV Diode Capacitance Temperature Tester with Flashlight
[Wireless Connection]: Connect this meter to your phone with wireless technology.
[Remote Monitoring]: Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks.
[Real-Time Data]: Real-time data can be recorded, analyzed and processed by the mobile APP, with timing and curve graph.
[Automatic Identification]: Automatic identification design design greatly improve test efficiency.
[Flashlight]: Flashlight makes measurement more convenient.
Features:
Wireless connection Smart/Fully auto-ranging Flashlight design Capacitance, temperature, diode test True RMS, Auto power off, low battery indication
Specifications:
Display: 6000 counts DC voltage: 6V/60V/600V ±(0.5%+3) AC voltage: 6V/60V/600V ± (1.0%+3) DC current: 999.9mA/9.999A ±(1.0%+4) AC current: 999.9mA/9.999A ±(2.0%+3) Resistance: 6KΩ ±(1.5%+3); 60KΩ/600KΩ/6MΩ ±(1.0%+3); 60MΩ ±(1.5%+3) Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1%+2) Capacitance: 6nF±(5.0%+20); 60nF/600nF/6uF/60uF/600uF ±(3.5%+4); 6mF ±(5.0%+5) Temperature: -20~1000℃ / -4~1832℉ ±(3%+5) NCV (Non-contact Voltage Detection): Yes Diode Test: Yes Continuity: Yes Power: 1.5V AAA * 2 Size:120mm*61mm*28mm Weight: 117g
Package Includes:
1 * Wireless Multimeter 1 * Probes 1 * Thermocouple 1 * User Manual
APP Download Link:
http://firm.yykjwalkfit.com/tr8q
Note:
The batteries are not included in the package due to Aviation Security Check
