Description

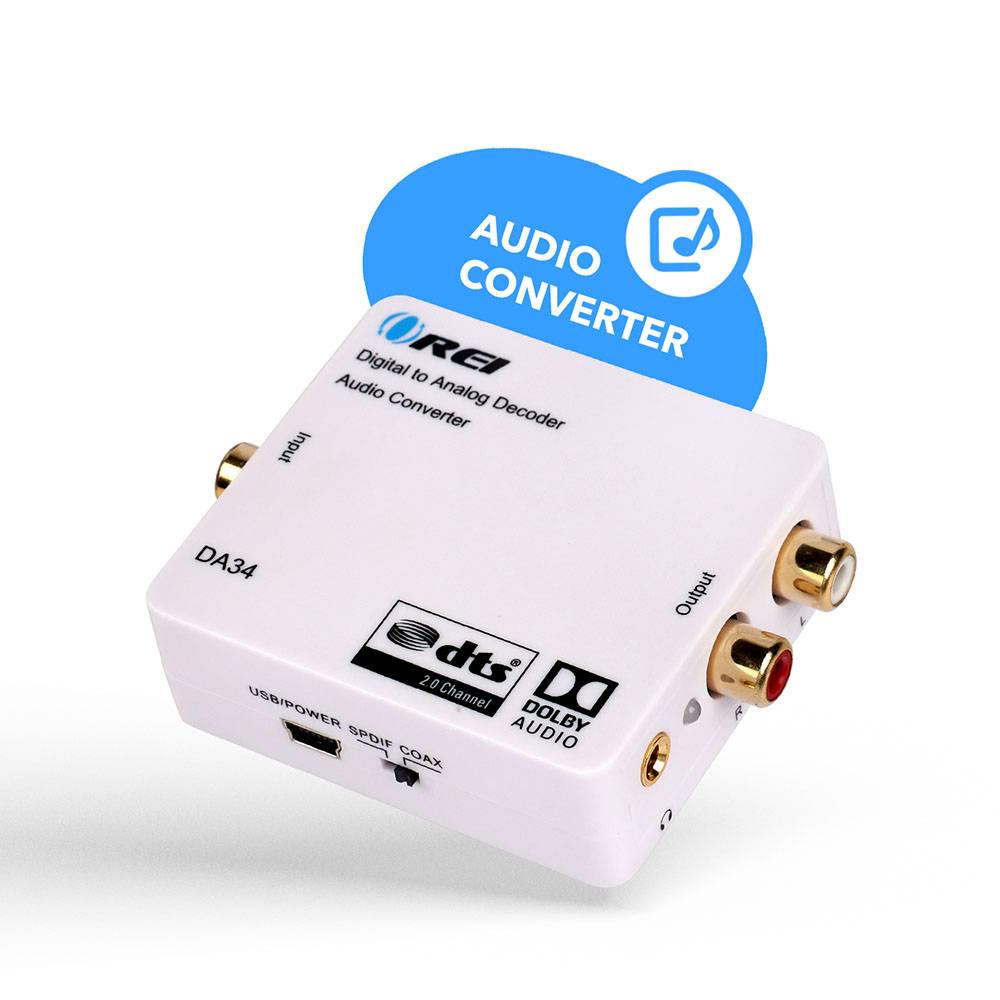

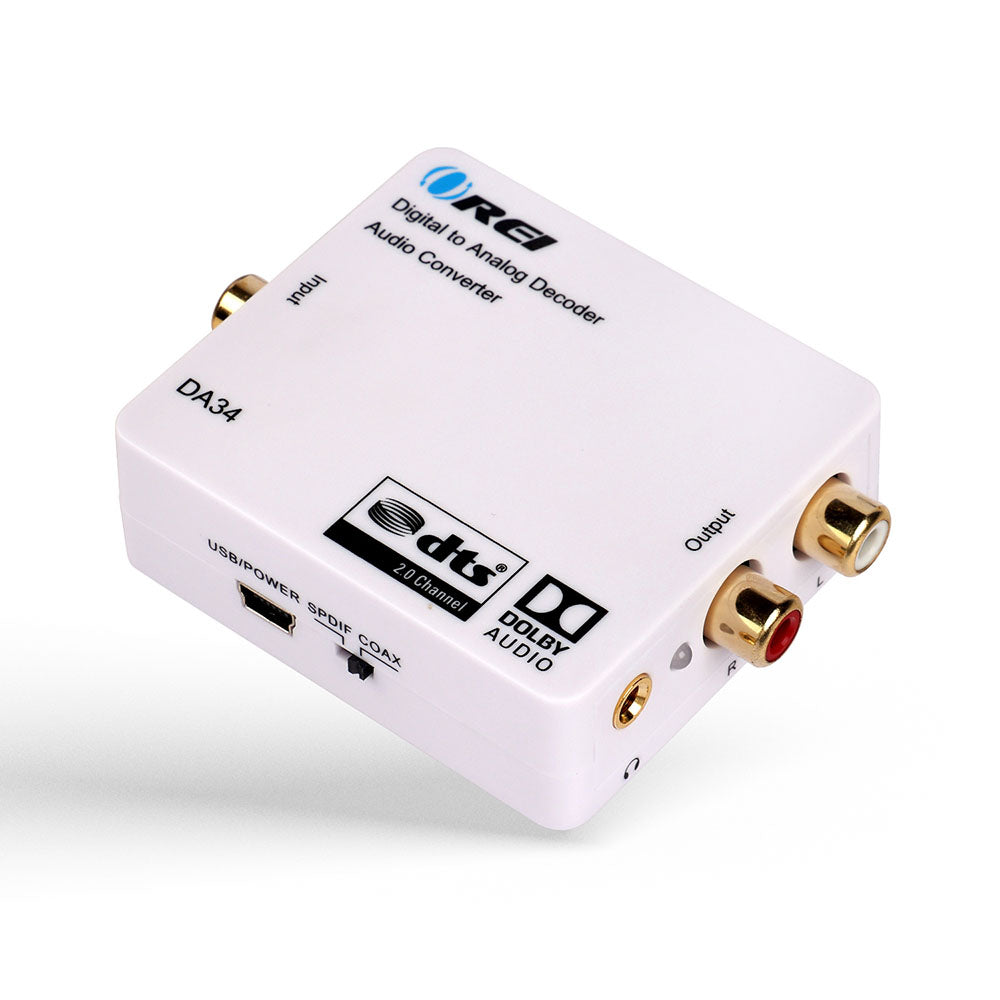

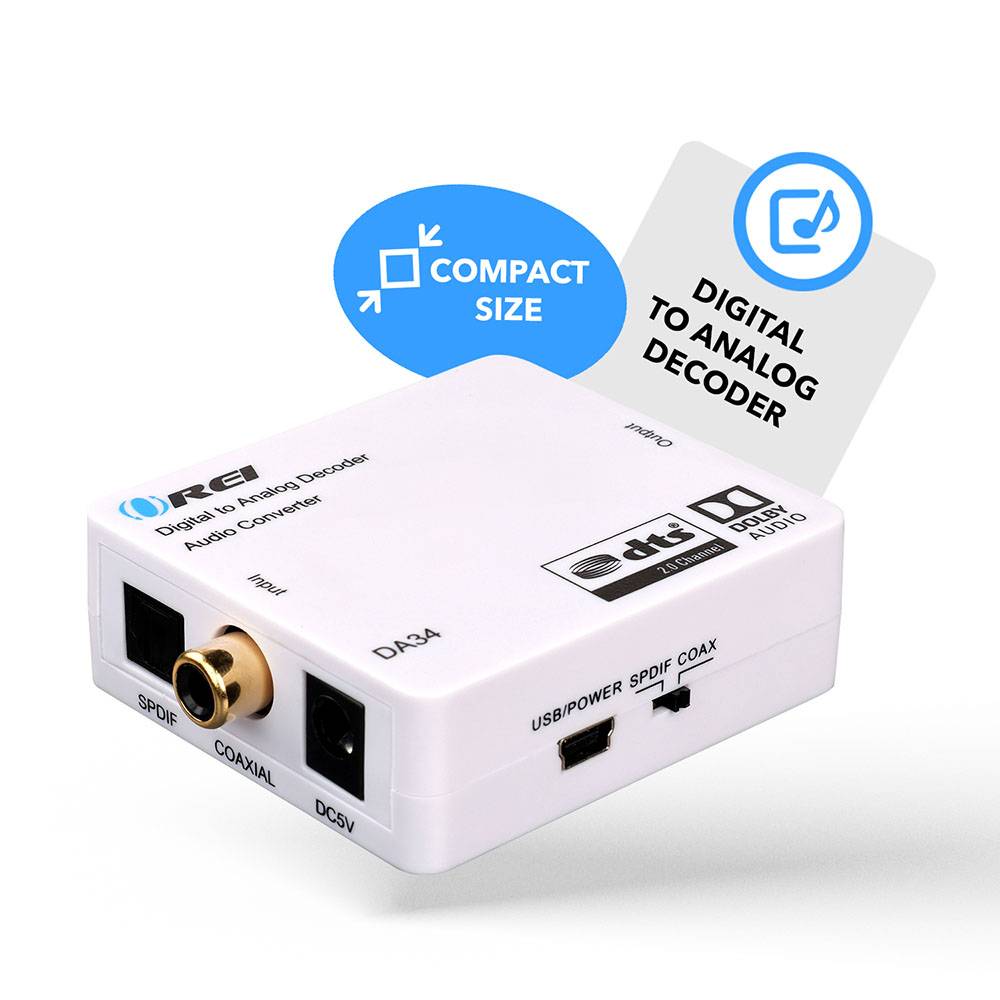

Dolby Digital to Analog Audio Converter Decoder
Key Features:

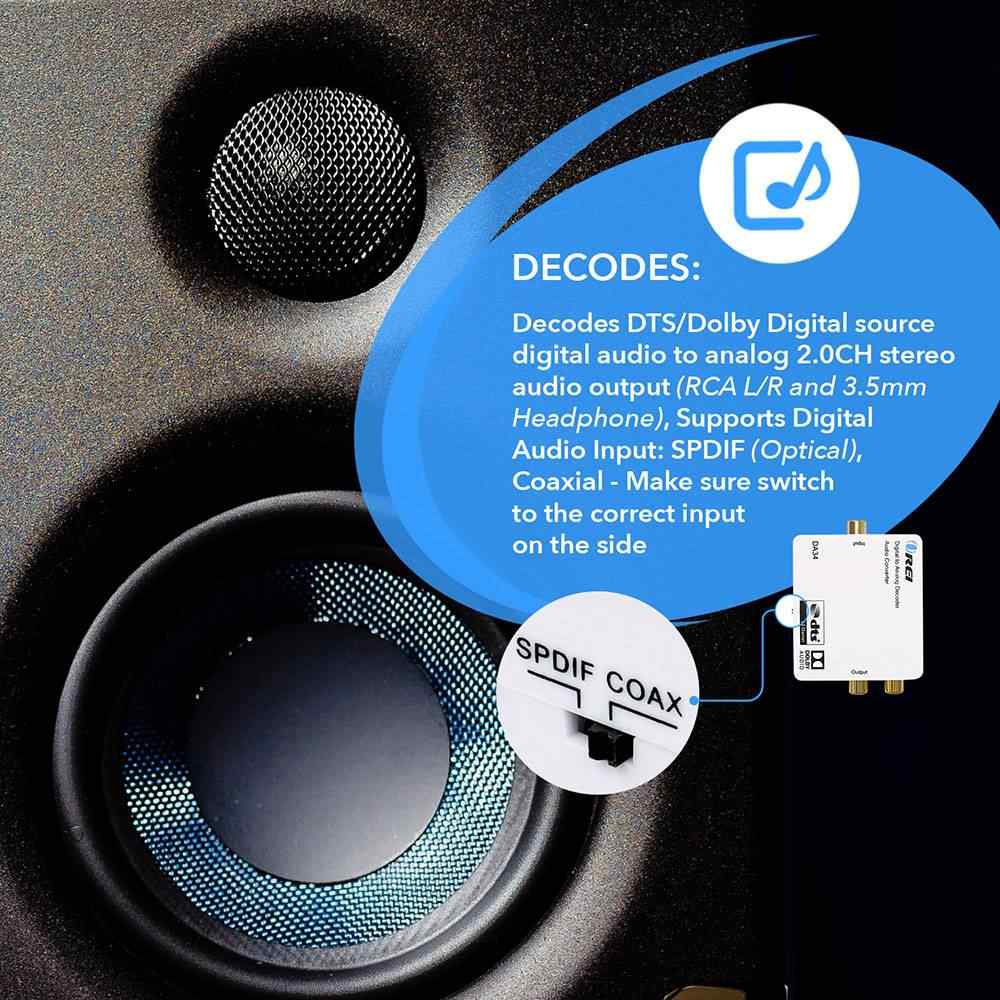

Decode Dolby Digital (AC3), DTS or PCM digital audio to stereo audio output
Support PCM 32KHz.44.1KHz,48KHz,96KHz sample frequency audio decode
Support Dolby Digital 5.1 samples, DTS-ES6.1 samples audio decode
No need to install drivers
Portable, flexible, plug and Play
This Advanced Digital to Analog Audio Decoder uses 24bit audio DSP, 96KHz digital receivers, 192KHz/24bit ADC & DAC chips. Decode and convert SPDIF or Coaxial input Dolby Digital (AC-3), Dolby Pro Logic, PCM (up to 5.1CH) to 2.0CH L/R analog audio and 3.5mm stereo headphone outputs. An ideal audio converter for your cable/satellite/DVD/Blu-ray boxes with Dolby Digital 5.1CH (AC-3) audio outputs.
[shortdes]
Decode Dolby Digital to stereo audio output
Supports PCM audio
Simple Plug & Play Setup
[/shortdes]
[tab]
AUDIO AND VIDEO

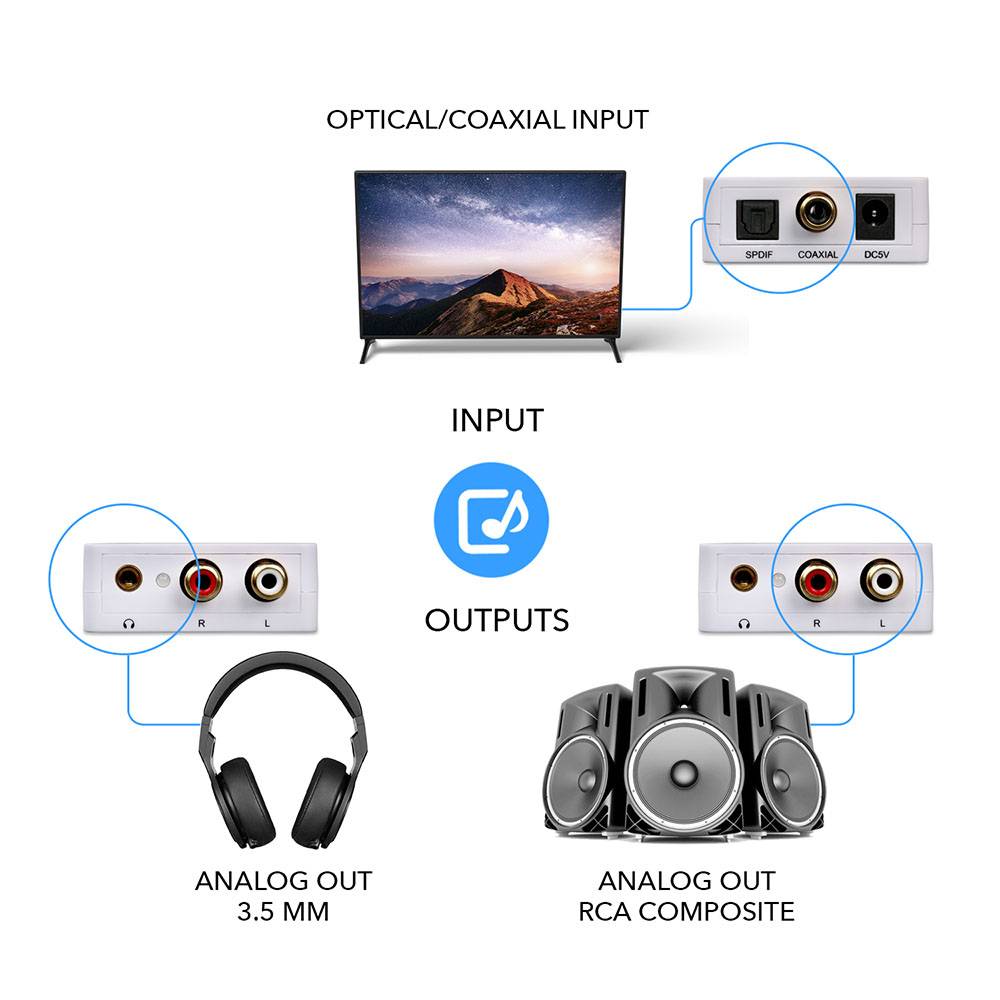

INPUT PORTS:
1x Optical (Toslink)
1x Digital Coaxial
OUTPUT PORTS:
1x RCA (L/R)
1x 3.5mm (Headphone)
AUDIO OUTPUT
L/R Audio Formats:
PCM2.0
Signal to Noise Ratio:
120db
Degree of Separation:
85db
Frequency Response:
(20Hz ~ 20KHz) +/- 0.5db

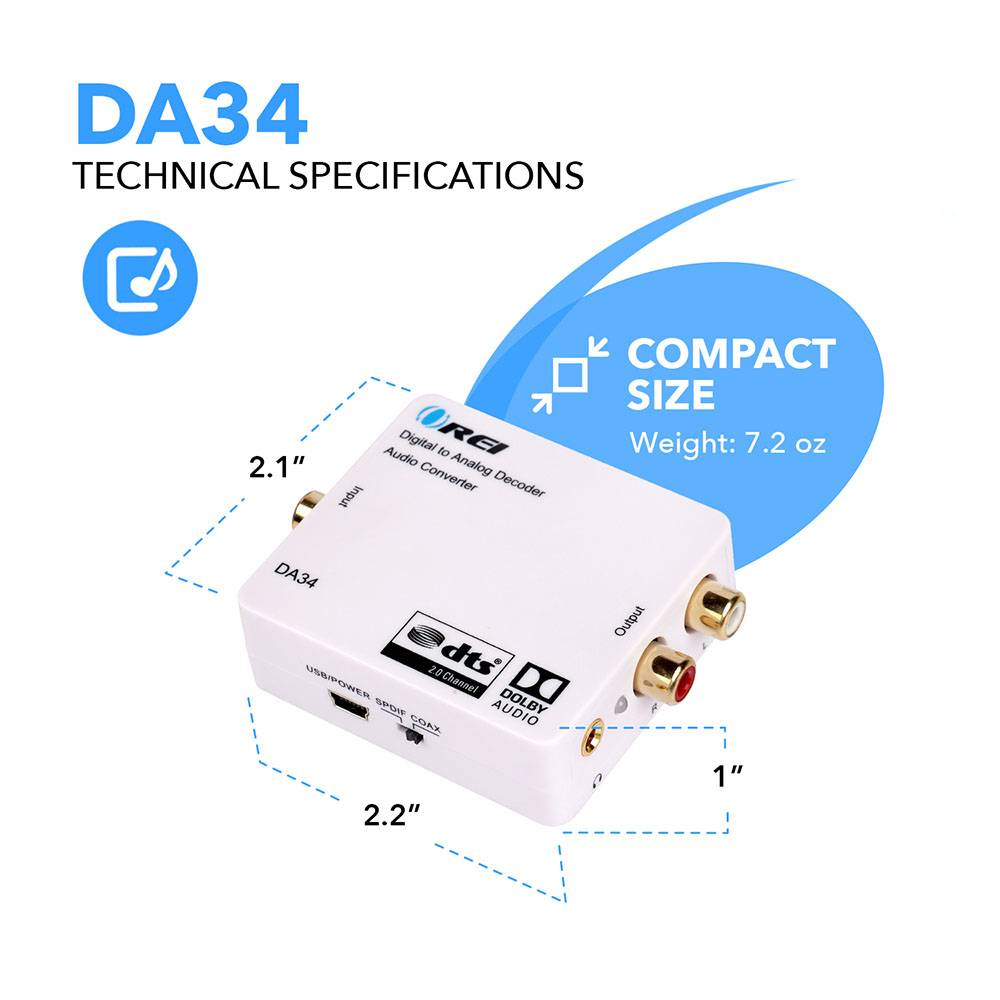

DIMENSIONS & WEIGHT
Height:
20mm
Width:
55mm
Depth:
72mm
Weight:
40g
PROTECTION
Operation Temperature:
32 - 104°F / 0 - 40°C
Storage temperature:
-4 - 140°F / -20 - 60°C
Relative Humidity:
20~90% RH (non-condensing)
ESD Protection:
Human body model:+/-8 kV (air-gap discharge) +/- 4 kV (contact discharge)
POWER
Power Consumption (Max):
1.5W
Power Supply
5V/1A
PHYSICAL PROPERTIES
Color:
White
Housing:
Plastic

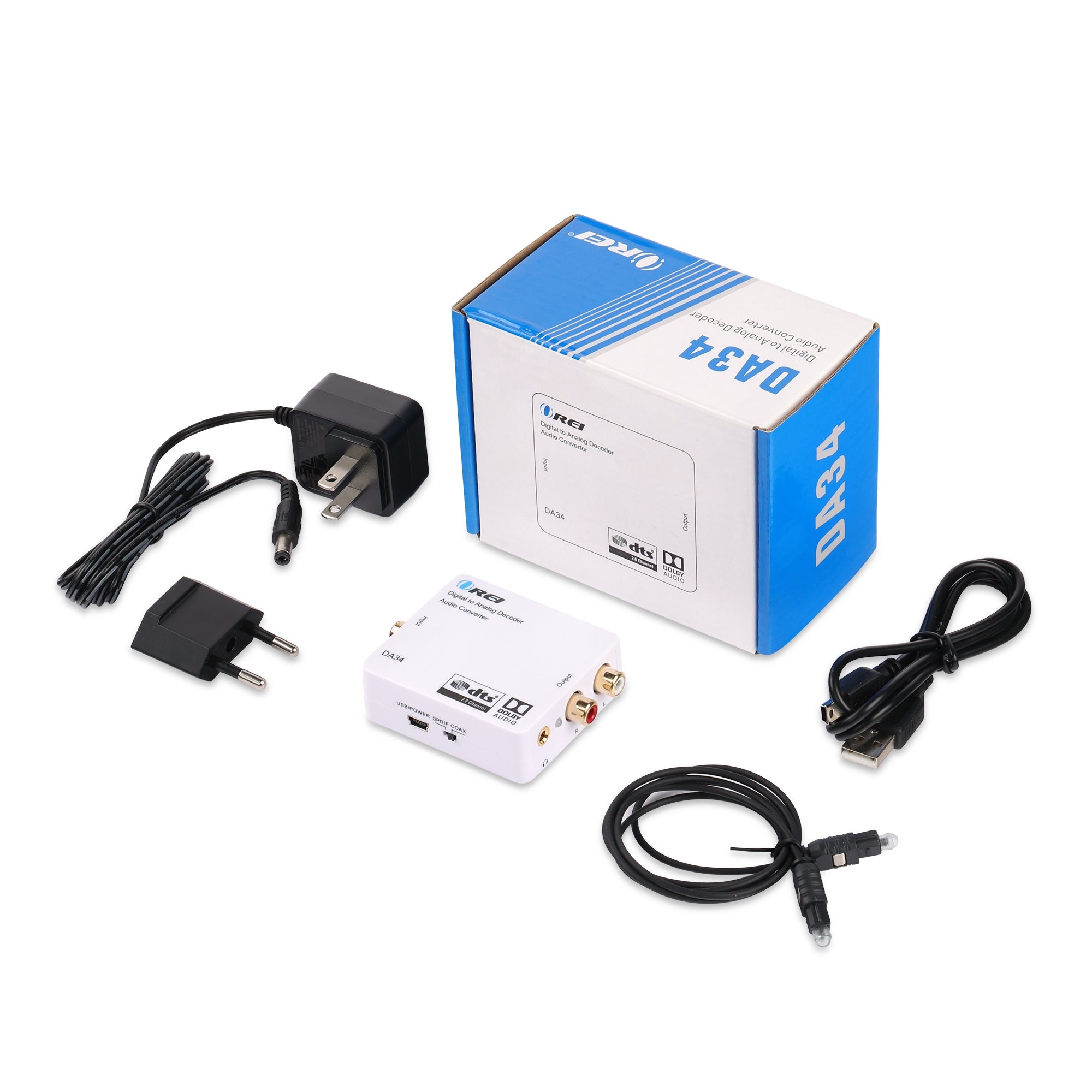

PACKAGE CONTENTS
1x Audio Decoder
1x 5V/1A DC Adapter
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, DA34 will downscale the audio.
[/tab1]
