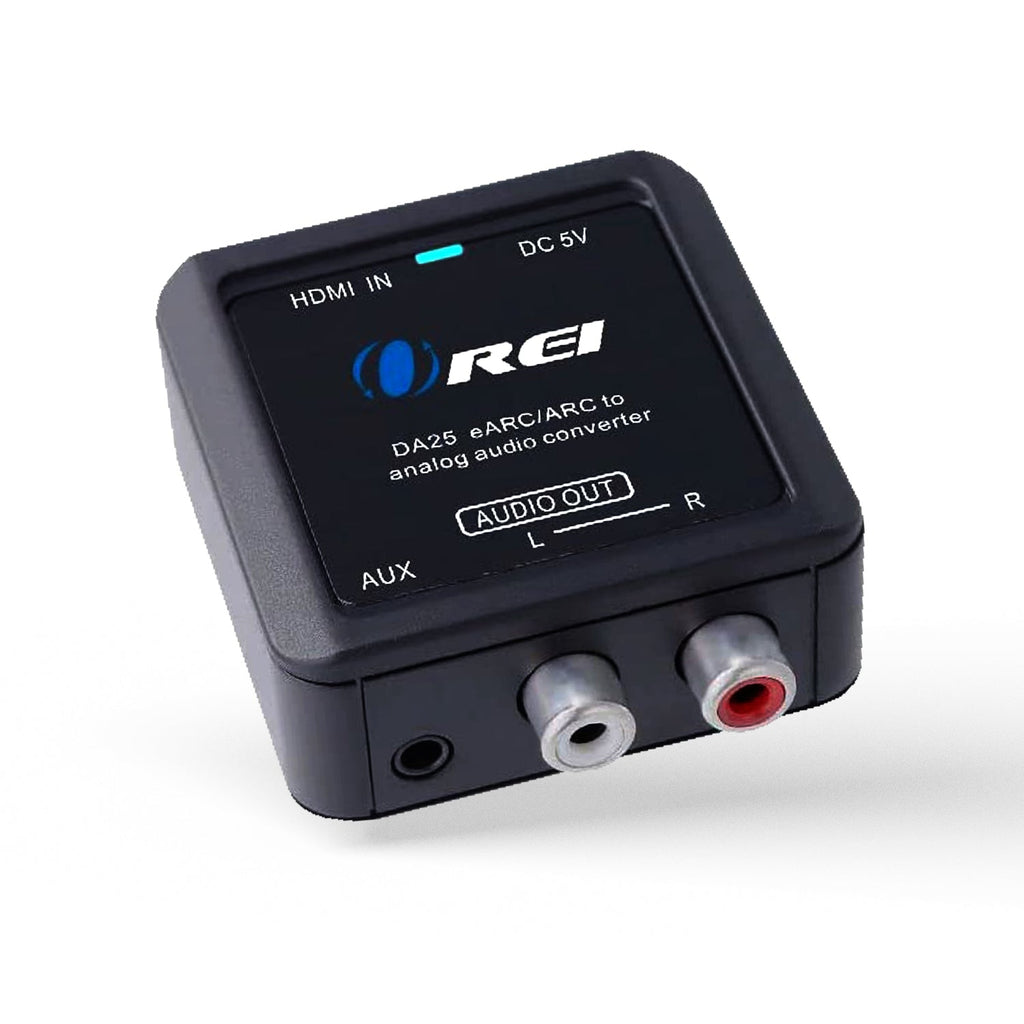

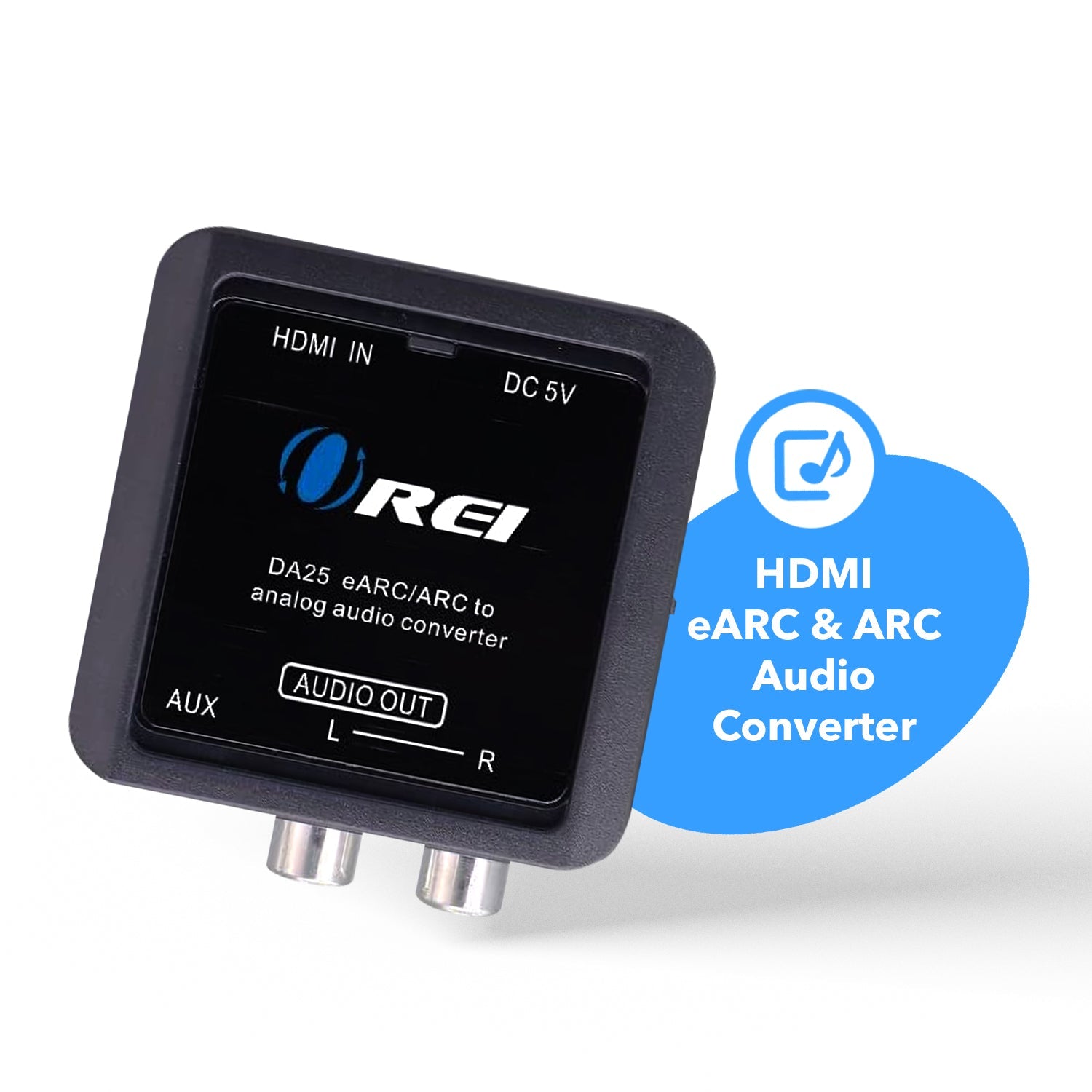

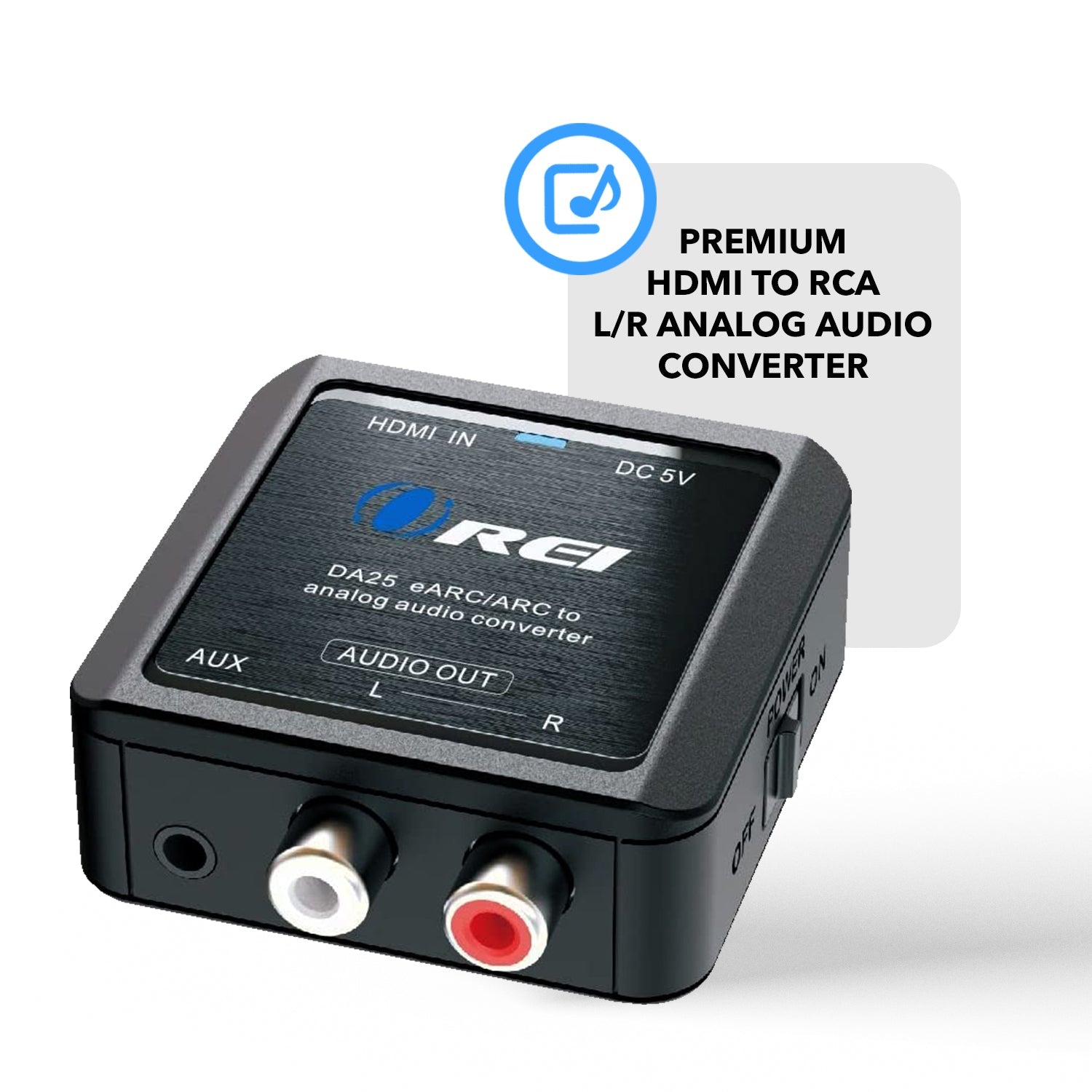

OREI DA25: HDMI ARC/eARC to Analog Audio Converter
Key Features:
- Convert the ARC/eARC signal from your TV into 3.5mm AUX and RCA L/R output simultaneously
- Supports stereo PCM / LPCM 2.0 Channel 192KHz
- Input: HDMI ARC/eARC, Output: 3.5mm AUX and RCA L/R
- Easy to install and simple to operate.

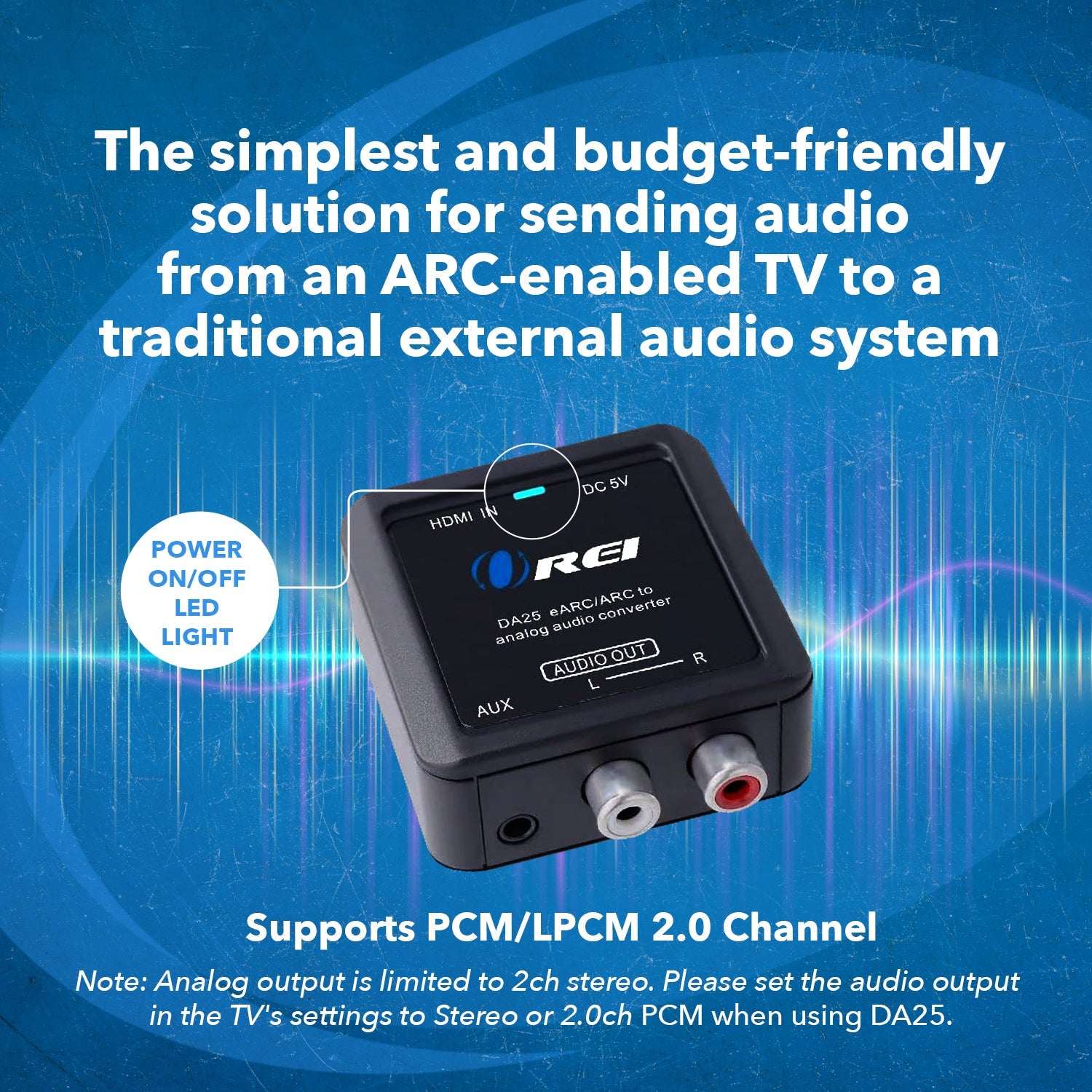

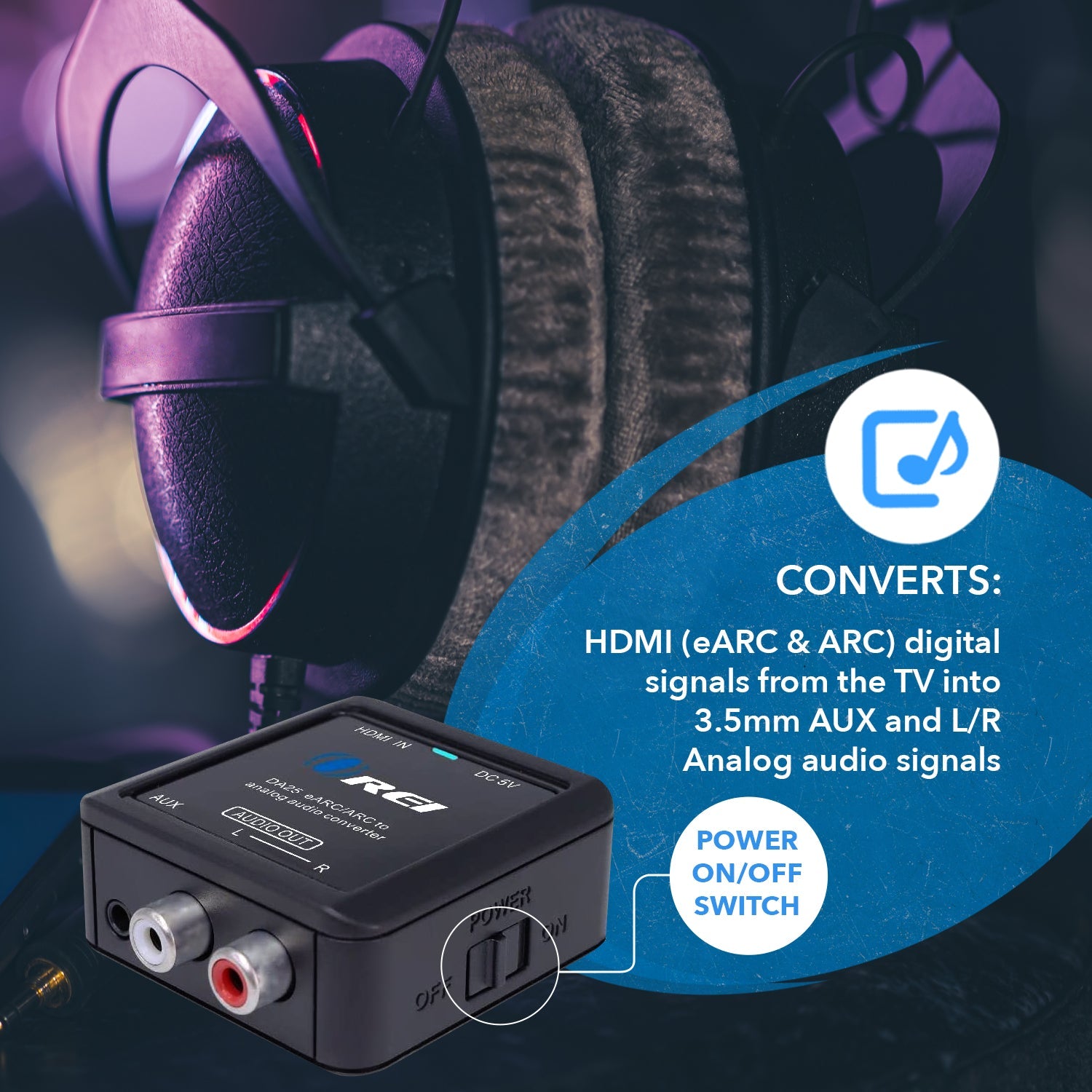

- Power on/off switch, and LED indicator.
- Use HDMI 2.1 cable for eARC support.
- Doesn’t Support CEC: The volume of the audio devices connected to the outputs cannot be controlled by the TV Remote.

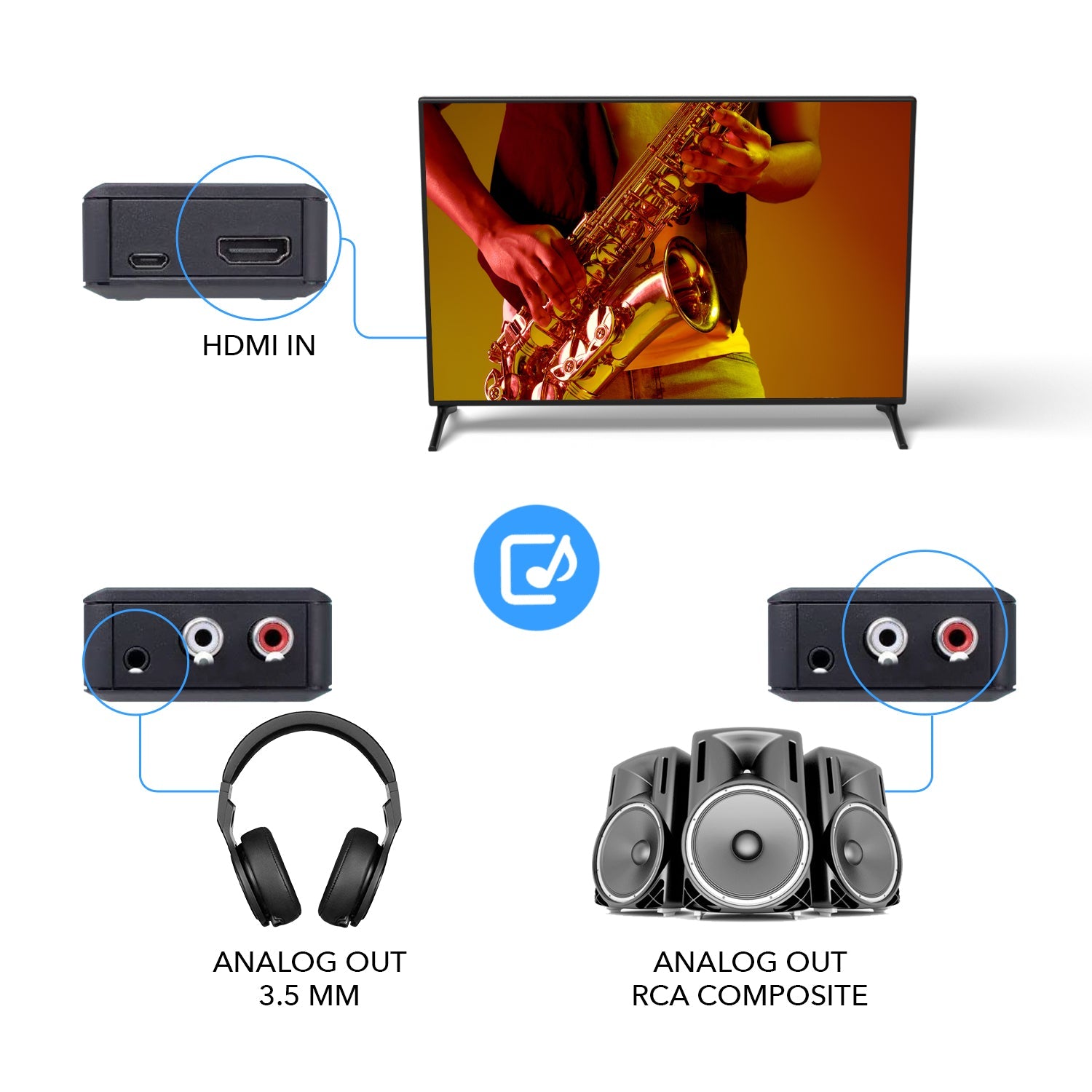

The DA25 audio converter allows you to convert audio signals from your TV’s ARC/eARC port to a 3.5mm aux or RCA audio signal (analog). The converter is the perfect solution if you have a brand-new TV but have older audio gear that does not support HDMI ARC/eARC. You can connect the DA25 between your ARC/eARC TV and speaker system and enjoy audio from the content playing on the TV. The device supports stereo PCM / LPCM 2.0 Channel 192KHz / 24-bit max support (depending on the max audio output support of the source). Please note that you will need to activate ARC/eARC from the TV settings and set the audio format to PCM 2.0. Perfect for home theater setups.
[shortdes]
-
Convert the ARC/eARC signal from your TV into 3.5mm AUX and RCA R/L output simultaneously
-
Supports stereo PCM / LPCM 2.0 Channel 192KHz.
-
Doesn’t Support CEC: The volume of the audio devices connected to the outputs can not be controlled by the TV Remote
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
1 × HDMI IN [Type A, 19-pin female] |
|
|
1 x DC 5V [For Power] |
|
| OUTPUT:
|
1 × RCA L/R [Analog] |
|
|
1 × 3.5mm AUX [Analog] |
|
PACKAGE CONTENTS
| 1x DA25 |
| 1x RCA TO RCA cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
Yes |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
No |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
No |
AUDIO SUPPORT
| Analog Audio Formats: |
PCM / LPCM 44 KHz, 48KHz, 96KHz,
192KHz
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.0/2.1 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
0.5W (Max) |
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/0.6A |
|

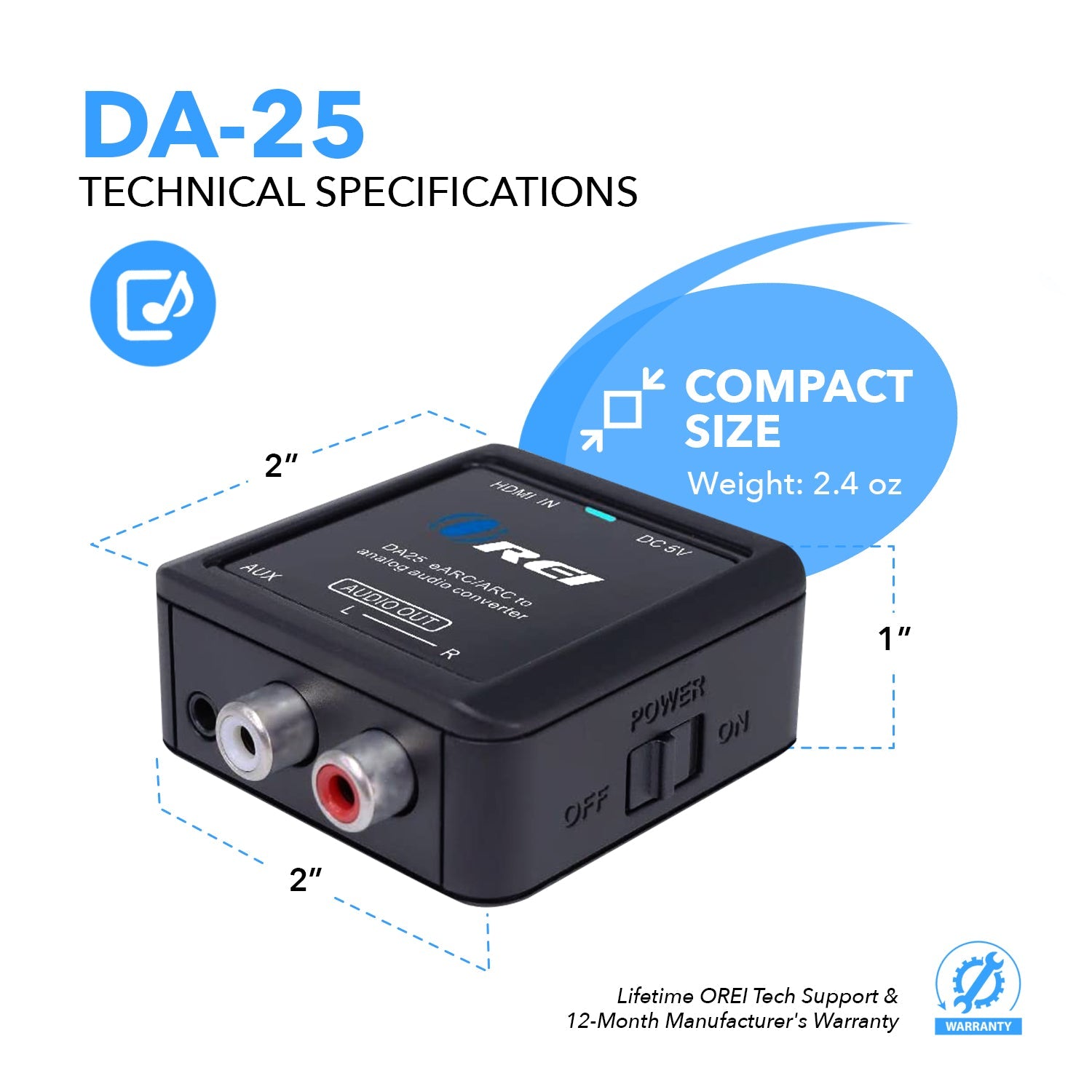

DIMENSIONS & WEIGHT
| Length:
|
25mm / 0.98in |
|
| Width: |
52mm / 2.04in |
|
| Height:
|
52mm / 2.04in |
|
| Weight:
|
34g / 1.1oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Plastic + Metal (Aluminum) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
