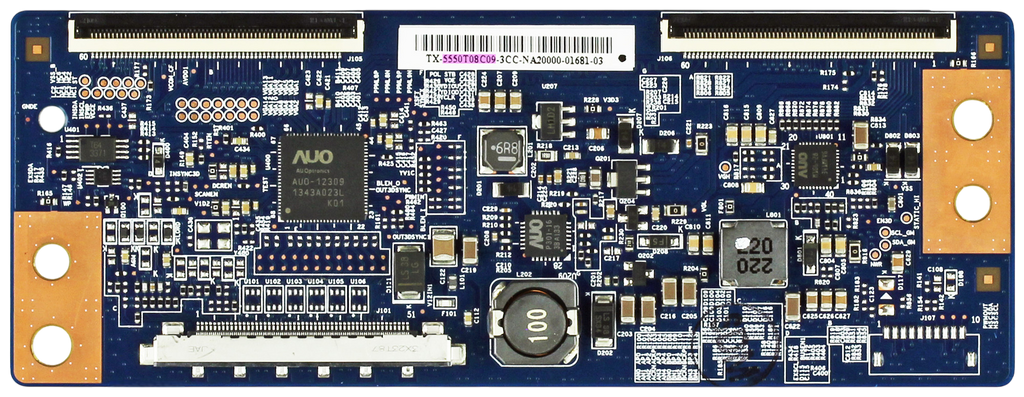

Sanyo 55.50T08.C09 (50T10-C02 / T500HVD02.0) T-Con Board for DP50E84 / P50E84-00

Sanyo 55.50T08.C09 / 50T10-C02 / T500HVD02.0 T-Con Board

Location: 1J3

This replacement T-Con (timing-control) board is designed for Sanyo LED TVs using model DP50E84 (P50E84-00) and part number 55.50T08.C09. The T-Con board converts the video signal from the main board and sends it to the display panel — critical for proper picture output on LED/LCD TVs.

---

Part & Board Numbers

• Part Number: 55.50T08.C09
• Board / Printed Numbers:
  • 50T10-C02
  • T500HVD02.0

Important: Always match the part number printed on your original T-Con board. Identical TV models can use different panel/board revisions — ordering by board number ensures correct compatibility.

---

Compatible TV Model(s)

• Sanyo DP50E84 (P50E84-00)

Other sets using the same board number may also be compatible. However, always verify your board number before ordering.

---

Common Symptoms of a Bad T-Con Board

• No video / blank screen while TV powers on
• Partial picture: half-screen, stripes, missing sections, distorted video
• Flickering screen, intermittent video output, or unstable image
• Sound may still work or standby LED may light — but no proper picture output

Please note: Horizontal lines or static patterns often indicate a faulty LCD panel rather than a T-Con board. If your TV shows panel artifacts (lines, shading, dead pixels), replacement of the board alone may not resolve the issue.

---

Installation & Handling Instructions

• Unplug the TV and wait several minutes to allow internal capacitors to discharge before servicing.
• Use anti-static (ESD-safe) precautions when working on internal electronics.
• Carefully disconnect and reconnect all ribbon cables and panel harnesses — ensure they are fully seated and aligned correctly.
• Avoid bending the board or applying force; T-Con ribbon connectors are delicate and easily damaged.

---

Condition & Testing

• Professionally inspected and tested for proper functionality.
• Guaranteed to work when installed correctly and matched with the correct board number.

---

Warranty & Returns

• Warranty: 180-Day Warranty.
• Returns accepted if the board is unmodified, undamaged, and correctly installed.
• Retain your original board until your repair is confirmed successful.

---

Shipping

• Ships from Brighton, TN (your standard facility).
• Securely packaged to protect the board during transit.
• Expedited shipping options available at checkout.

---

If you are unsure whether this is the correct T-Con board for your TV — or if you’d like assistance verifying compatibility — feel free to contact us before ordering. We’re happy to help ensure you receive the correct part.
