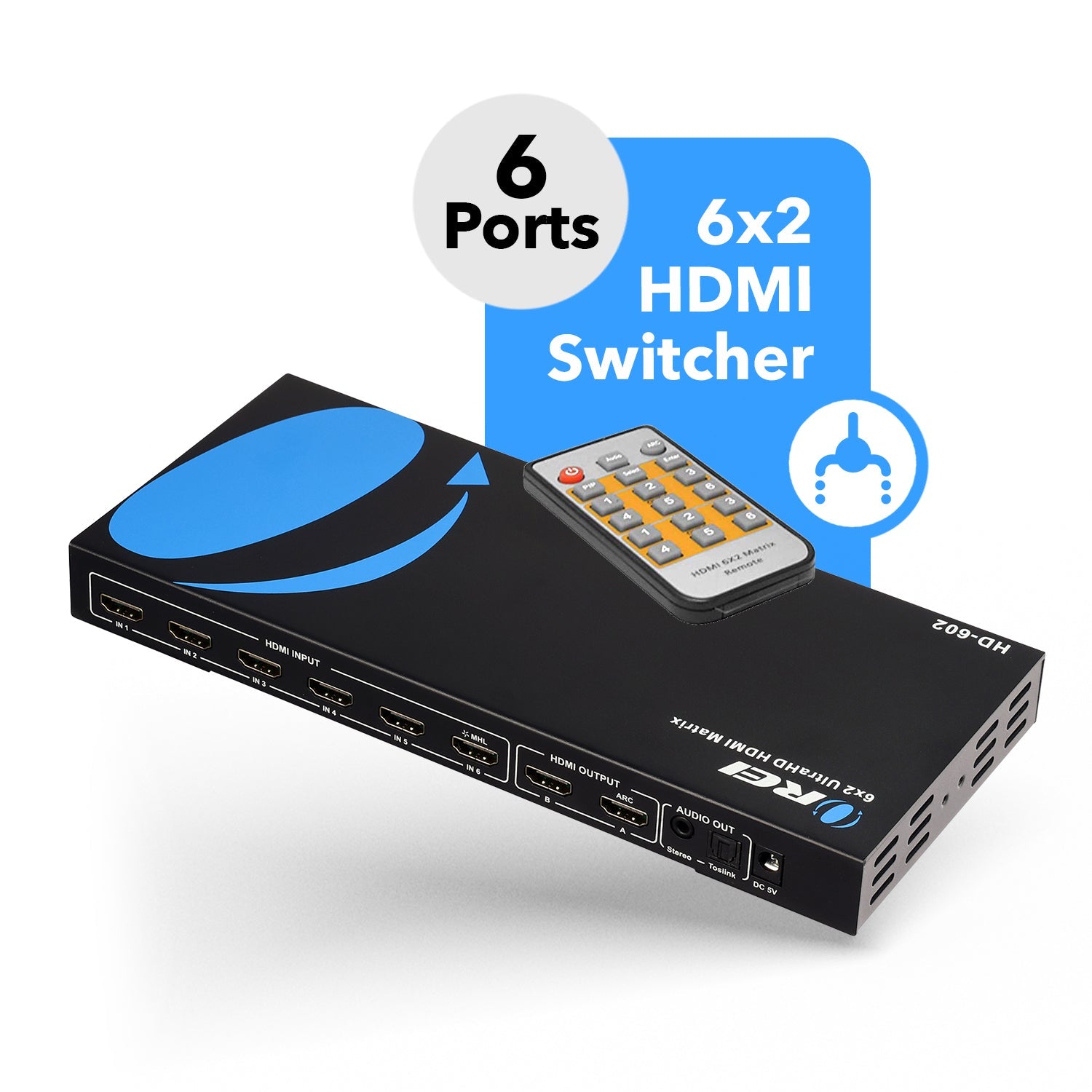

OREI HD-602: 6-In-2-Out HDMI Matrix Switch with ARC
Key Features:
- HDMI 2.0, HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz
- 2.9Gbps video bandwidth
- Audio extraction through Optical and Analog
- Output A support ARC function

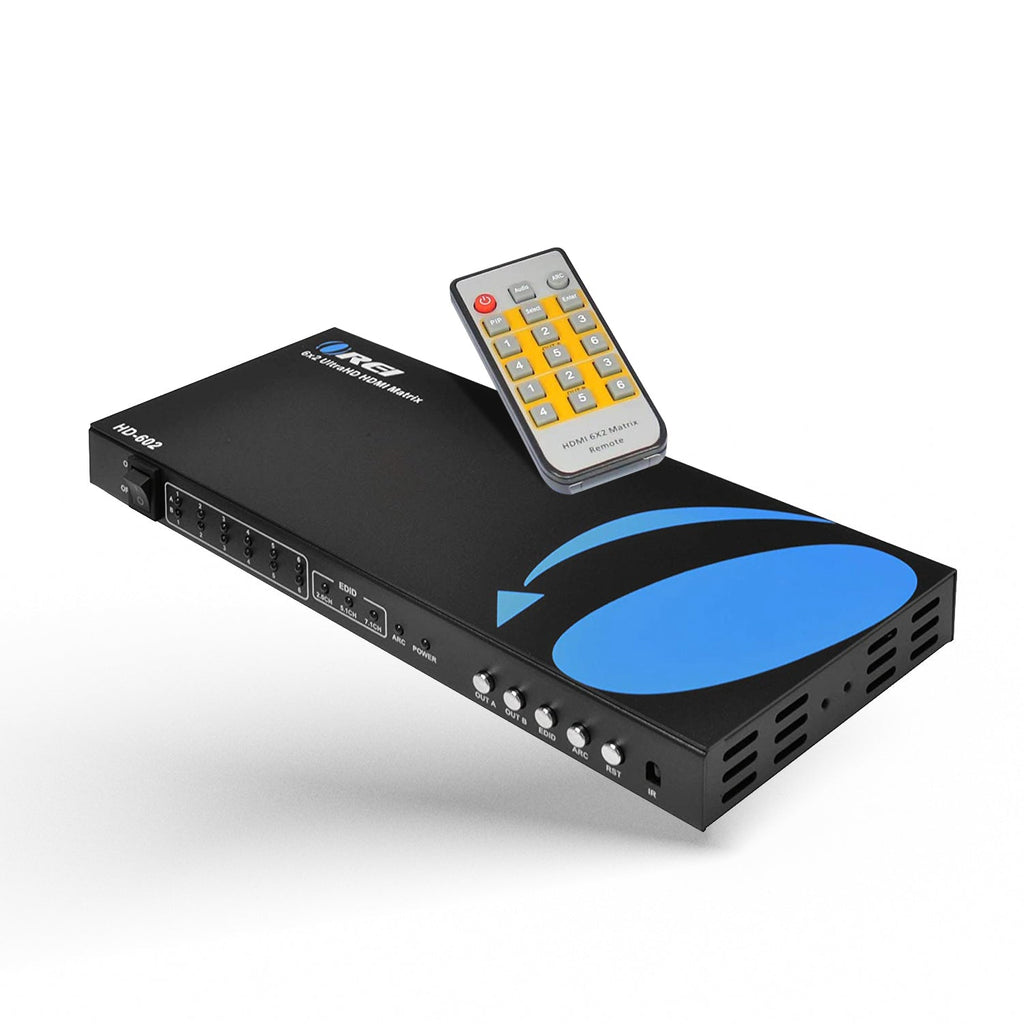

- Control through the included remote or the buttons on the device
- Strong build
- Plug-and-play setup

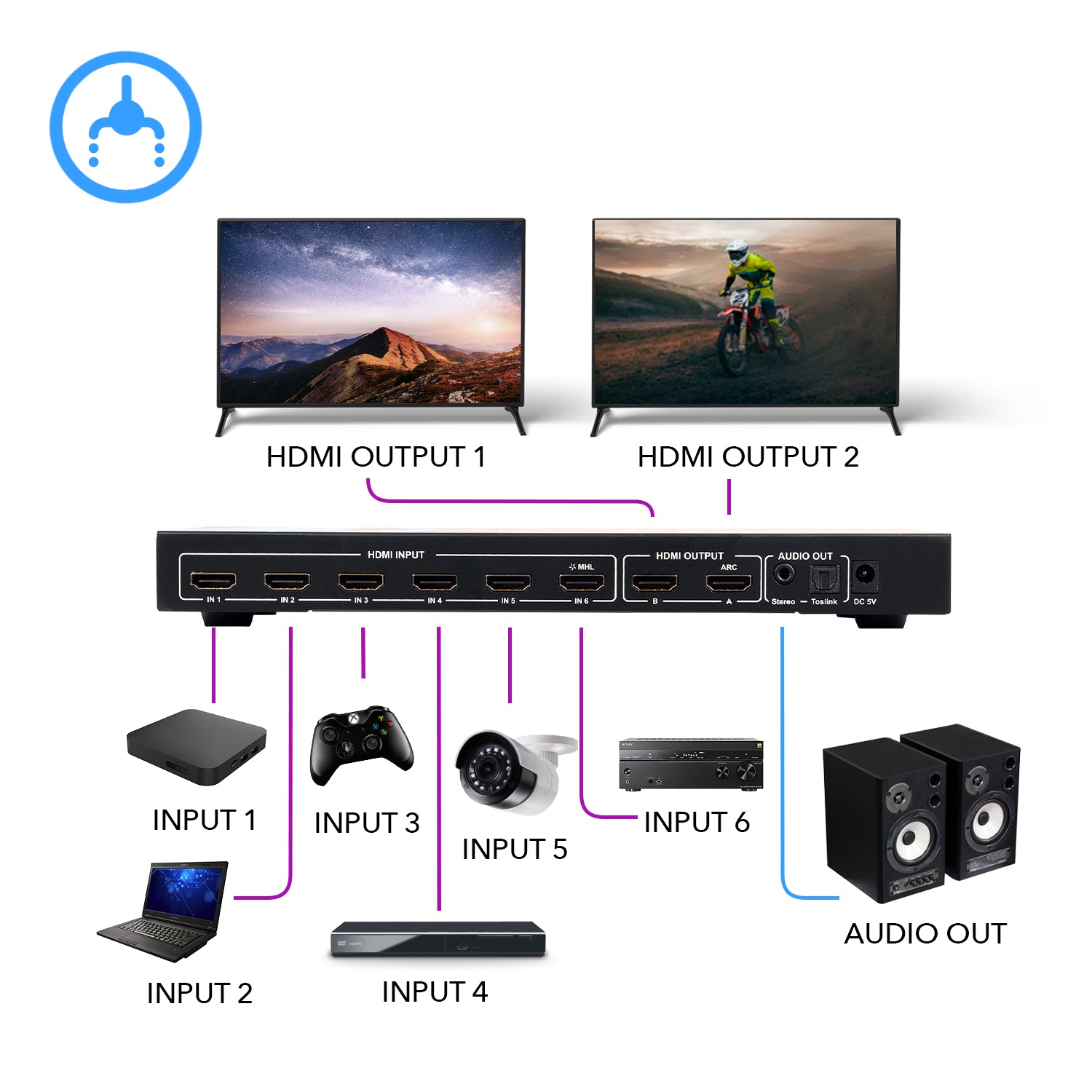

The HD-602 Matrix switch lets you connect up to 6 media devices and distribute them to 2 displays. It supports video resolutions up to 4K@60Hz 4:2:0 and 4K@30Hz 4:4:4, compliant with HDMI 2.0 and HDCP 2.2 standards, featuring a 2.9Gbps video bandwidth. It supports audio extraction via Optical and Analog, with Output A supporting ARC functionality. Audio format changes are possible using the EDID button. Control is simple with the included remote or the buttons on the device. The HD-602 is ideal for any home theater or commercial setup.
[shortdes]
- 2.9Gbps video bandwidth
- Video resolutions up to 4K@60Hz
- Output A support ARC
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
6 × HDMI [Type A, 19-pin female] |
|
| OUTPUT: |
2 × HDMI [Type A, 19-pin female] |
|
|
1 x OPTICAL [S/PDIF, female] |
|
|
1 × L/R [3.5mm Stereo Mini-jack] |
|

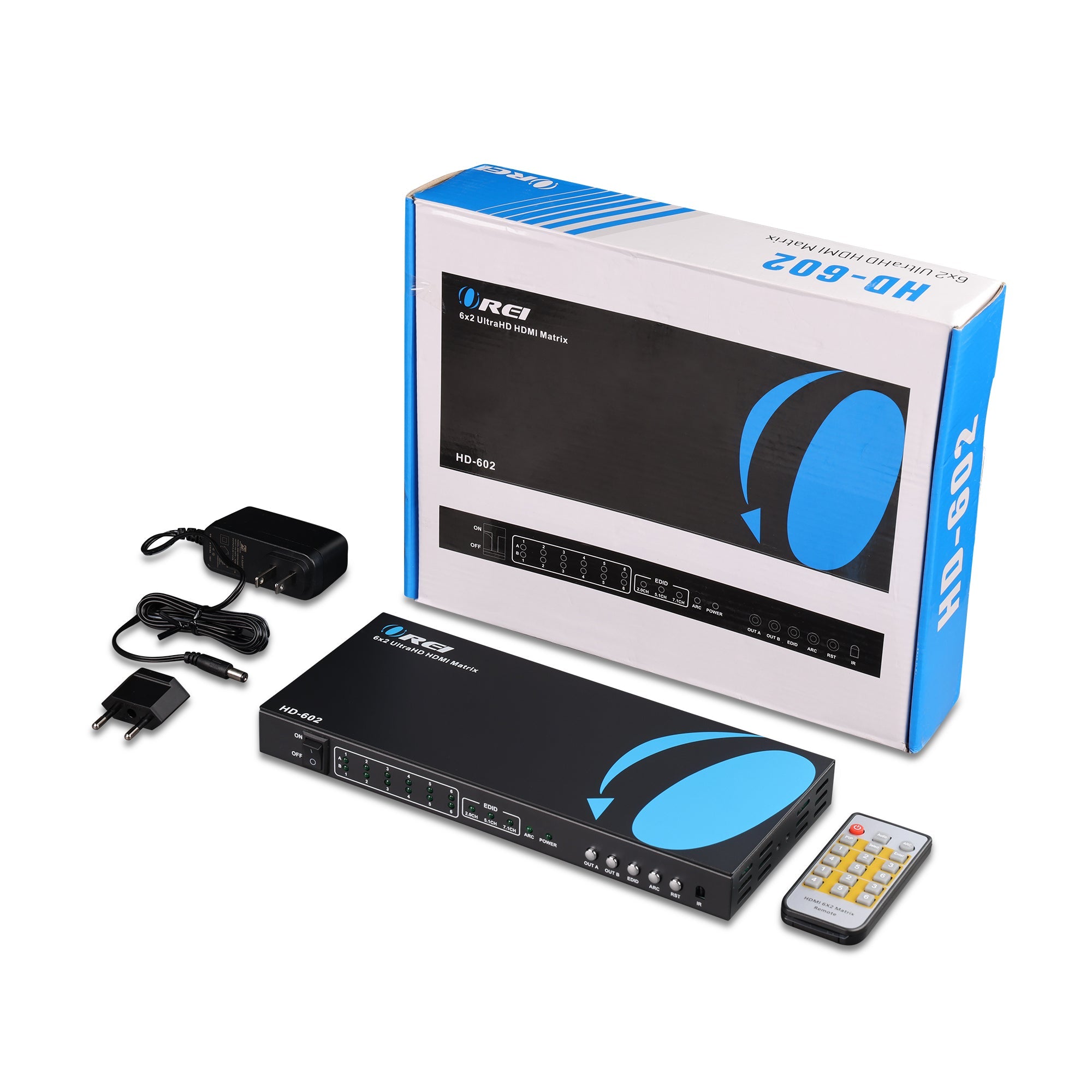

PACKAGE CONTENTS
| 1x HD-602 |
| 1x Remote |
| 2x Mounting ears |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0 / 2.1 |
We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
2.97 Gbps |
| Video Resolutions: |
Up to 4K@30Hz |
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
Yes |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
Yes |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
No |
AUDIO SUPPORT
| HDMI Audio Formats: |
PCM 2.0, 5.1, 7.1, Dolby 5.1, DTS5.1, Dolby TrueHD, DTS-HD |
| Optical Audio Formats: |
PCM 2.0, 5.1, Dolby 5.1, DTS5.1 |
| Analog Audio Formats: |
PCM 2.0 |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
10W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/2A |
|

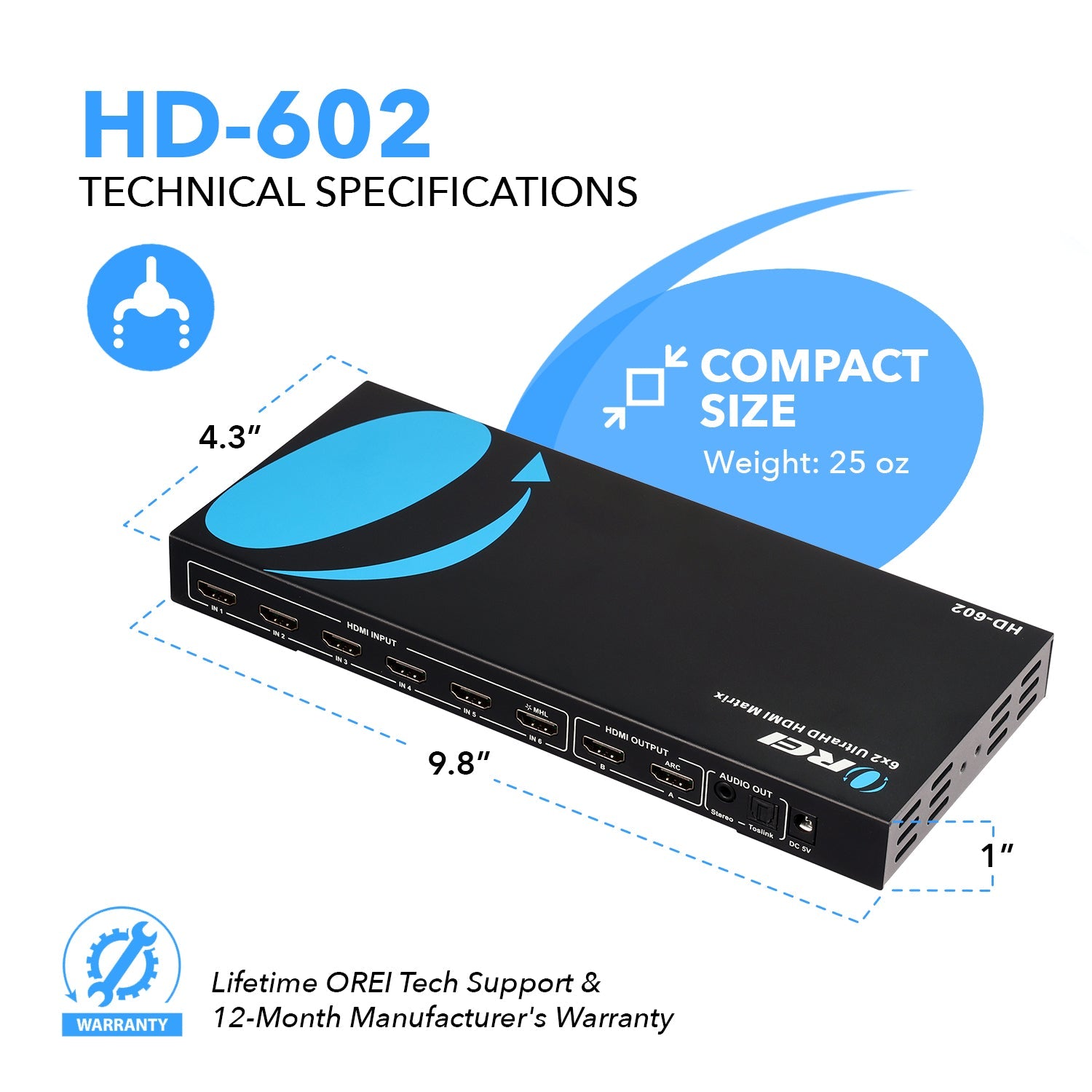

DIMENSIONS & WEIGHT
| Length:
|
250mm / 9.84in |
|
| Width: |
110mm / 4.33in |
|
| Height:
|
26mm / 1.02in |
|
| Weight:
|
720g / 1.58lbs
|
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
