OREI EX-500IR: 1080p HDBaseT HDMI Extender up to 500 feet with POC, Bi- directional IR, RS-232
- HDMI 1.4 & HDCP 1.4 compliant. Supports 1080p media sources and ensures secure content transmission.
- Video resolutions up to 1080p@60Hz. Delivers smooth, high-definition video performance.
- Extended range up to 492 feet. Transmit video over long distances using a single CAT 6/7 cable.
- Audio format support. Pass-through for LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby True HD, and DTS-HD Master Audio.
- HDMI loop-out. Allows you to connect a display near the source for real-time monitoring.
- Bi-directional IR control. Enables control of the media source from the receiver’s location and vice versa.
- Power over Cable (PoC). Only one power adapter is needed for the entire system.
- RS-232 pass-through. Allows integration with advanced control systems.
- Robust build. Durable design for long-term residential or commercial use.
-
Simple installation. Plug-and-play setup ensures quick deployment.

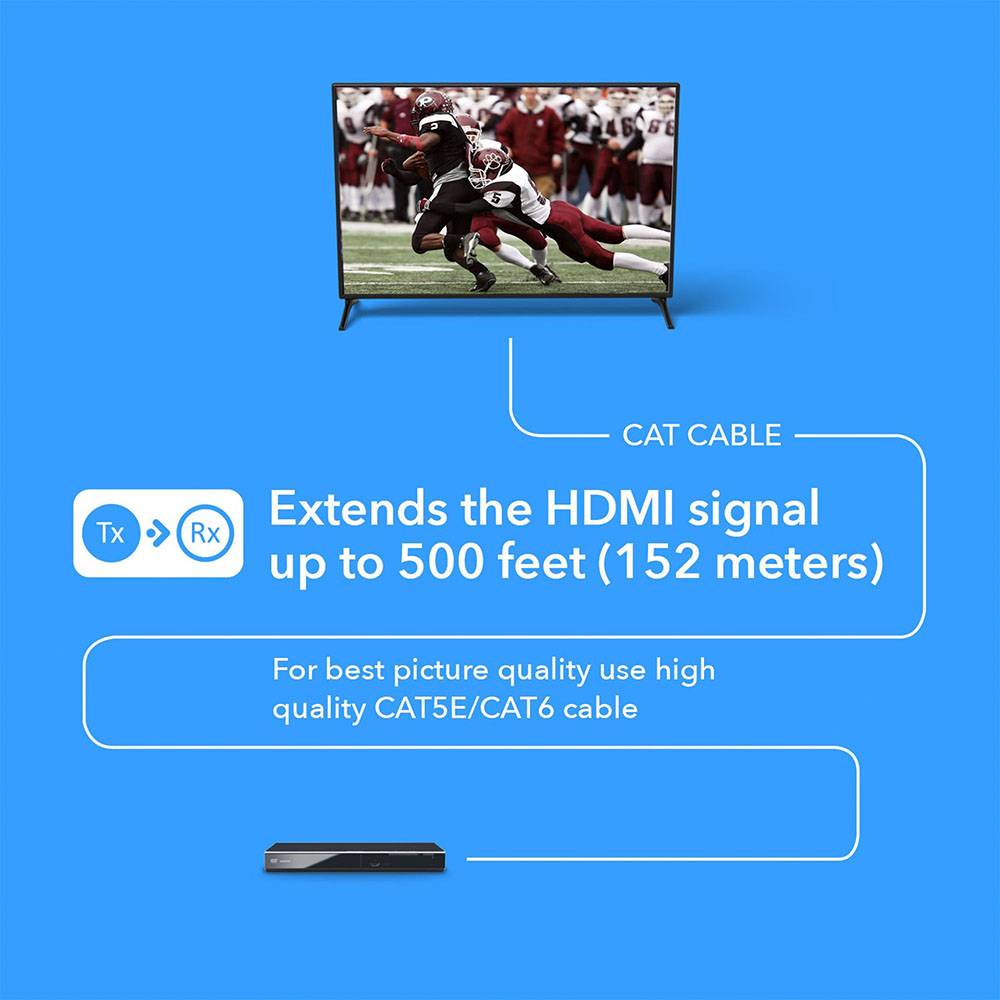

The EX-500IR HDMI Extender enables reliable long-distance transmission of high-definition media signals over a single CAT 6/7 cable. Supporting resolutions up to 1080p@60Hz, this extender is HDMI 1.4 and HDCP 1.4 compliant. It extends video and audio signals up to 492 feet while maintaining superior quality and stability.
Designed for both residential and commercial applications, the EX-500IR is built for ease of use and dependable performance. With audio pass-through for popular formats like Dolby Digital, DTS-HD, and LPCM 7.1CH, this extender ensures immersive sound along with crisp visuals.
An HDMI loop-out on the transmitter allows a local monitor connection, and PoC functionality requires just one power adapter. It also includes bi-directional IR and RS-232 pass-through for complete control flexibility.
Note: OREI HDBaseT models are designed to work only with their own matching transmitter and receiver. They are not interchangeable with other OREI HDBaseT models, nor compatible with HDBaseT devices from other brands, due to chipset differences.
For best results, always use the included or recommended pair from the same model.
[shortdes]
- Bi-directional IR control
- Video resolutions up to 1080p@60Hz
- Loop output
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × CAT [RJ45, 8-pin female] | ||
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin phoenix connector] | ||
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin phoenix connector] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster cable |
| 1x IR Receiver cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080P@60Hz: | 492 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| ARC/eARC: | No / No |
| CEC: | No |
| Transmission Technology: | HDBaseT, Ethernet |
| IR Control: | Bi-directional |
| PoC (Power over Cable): | Yes |
| RS-232: | Yes |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | No / No / No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby True HD, DTS-HD Master Audio |
COMPLIANCES
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 6W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 24V/1A |

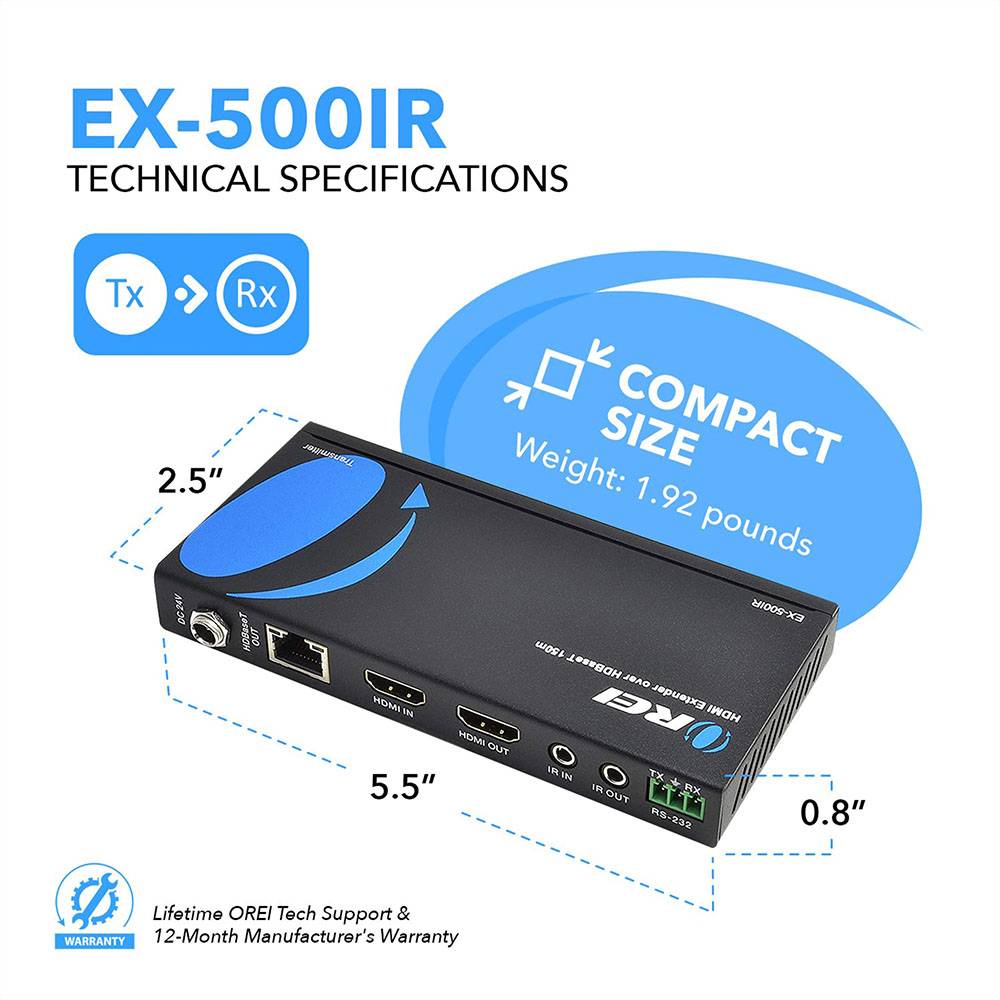

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 140mm / 5.51in |
| Width: | 65mm / 2.56in | |
| Height: | 18mm / 0.71in | |
| Weight: | 481g / 1.06lbs | |
| Receiver: | Length: | 140mm / 5.51in |
| Width: | 65mm / 2.56in | |
| Height: | 18mm / 0.71in | |
| Weight: | 481g / 1.06lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 32 - 104°F / 0 - 40°C |
| Storage temperature: | -4 - 140°F / -20 - 60°C |
| Relative Humidity: | 20 - 90% RH (no condensation) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
