Description

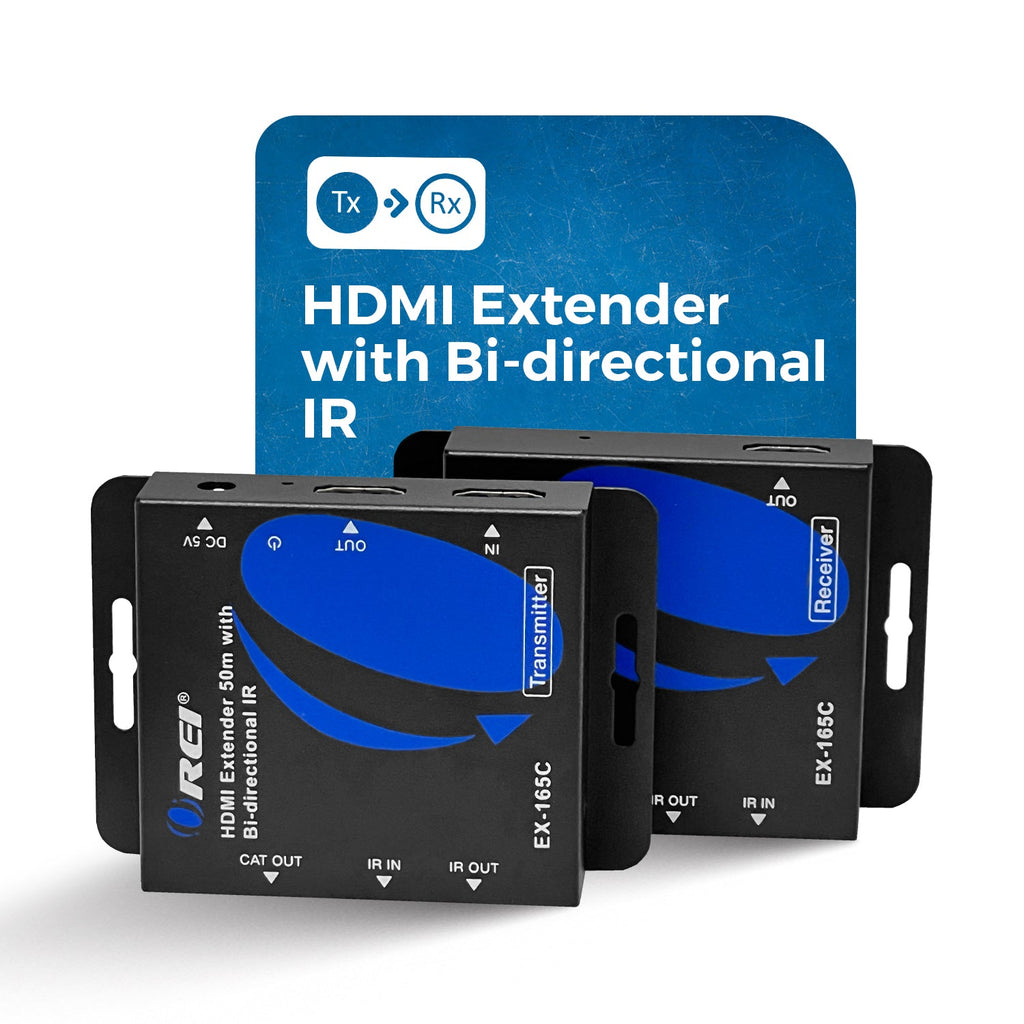

OREI EX-165C: HDMI Extender over Ethernet (50m) with One way IR & PoC
- HDMI 1.3 & HDCP 1.4 Compliant – Supports secure transmission of Full HD content.
- Supports Video Resolutions up to 1080p@60Hz – Delivers crisp, high-definition visuals.
- 4.95Gbps Video Bandwidth – Ensures stable, reliable AV performance.
- Signal Extension up to 165 ft (50 m) – Uses a single CAT6/7 cable for long-distance transmission.
- HDMI Loop-Out – Allows for a local display connection at the transmitter end.
- Bi-directional IR Control – Enables control of devices from either end of the setup.
- Advanced Audio Format Support – Supports PCM 7.1, Dolby TrueHD, and DTS-HD Master Audio.
- Power over Cable (PoC) – Requires just one power adapter at the transmitter for both units.
- Compact Design – Built for durability and easy integration in any environment.
- Plug and Play – No drivers or software installation required.
The EX-165C is a durable HDMI extender designed for high-definition signal transmission over medium distances. Supporting resolutions up to 1080p@60Hz with a 4.95Gbps bandwidth, it transmits HDMI signals up to 165 feet (50 meters) via a single CAT6/7 cable.
Fully compliant with HDMI 1.3 and HDCP 1.4 standards, it ensures compatibility with a wide range of Full HD devices.
Equipped with an HDMI loop-out at the transmitter, users can connect a local display near the source device for added flexibility. Bi-directional IR control allows operation of the source device from the display location and vice versa.
Power over Cable (PoC) functionality further simplifies installation by requiring only one power adapter at the transmitter end. The EX-165C’s rugged, compact form makes it ideal for both residential and commercial AV setups.
[shortdes]
- Bi-directional IR control
- Video resolutions up to 1080p@60Hz
- Power over Cable technology
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × CAT [RJ45, 8-pin female] | ||
| CONTROL: | 1 × IR OUT [3.5mm Stereo Mini-jack] | |
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A , 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster Cable |
| 1x IR Receiver Cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080P@60Hz: | 165 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2Gbps |
| Video Resolutions: | Up to 1080p@60Hz |
ADDITIONAL FEATURES
| ARC/eARC: | No / No |
| CEC: | No |
| Transmission Technology: | Ethernet |
| IR Control: | Bi-directional |
| PoC (Power over Cable): | Yes |
| RS-232: | No |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | No / No / No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM7.1, Dolby True HD, DTS HD |
COMPLIANCES
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | TX: 1.8W (Max) & RX: 0.87W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |
DIMENSIONS & WEIGHT
| Transmitter: | Length: | 79.5mm / 3.13in |
| Width: | 69mm / 2.72in | |
| Height: | 16.5mm / 0.65in | |
| Weight: | 132g / 4.66oz | |
| Receiver: | Length: | 79.5mm / 3.13in |
| Width: | 69mm / 2.72in | |
| Height: | 16.5mm / 0.65in | |
| Weight: | 130g / 4.56oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
