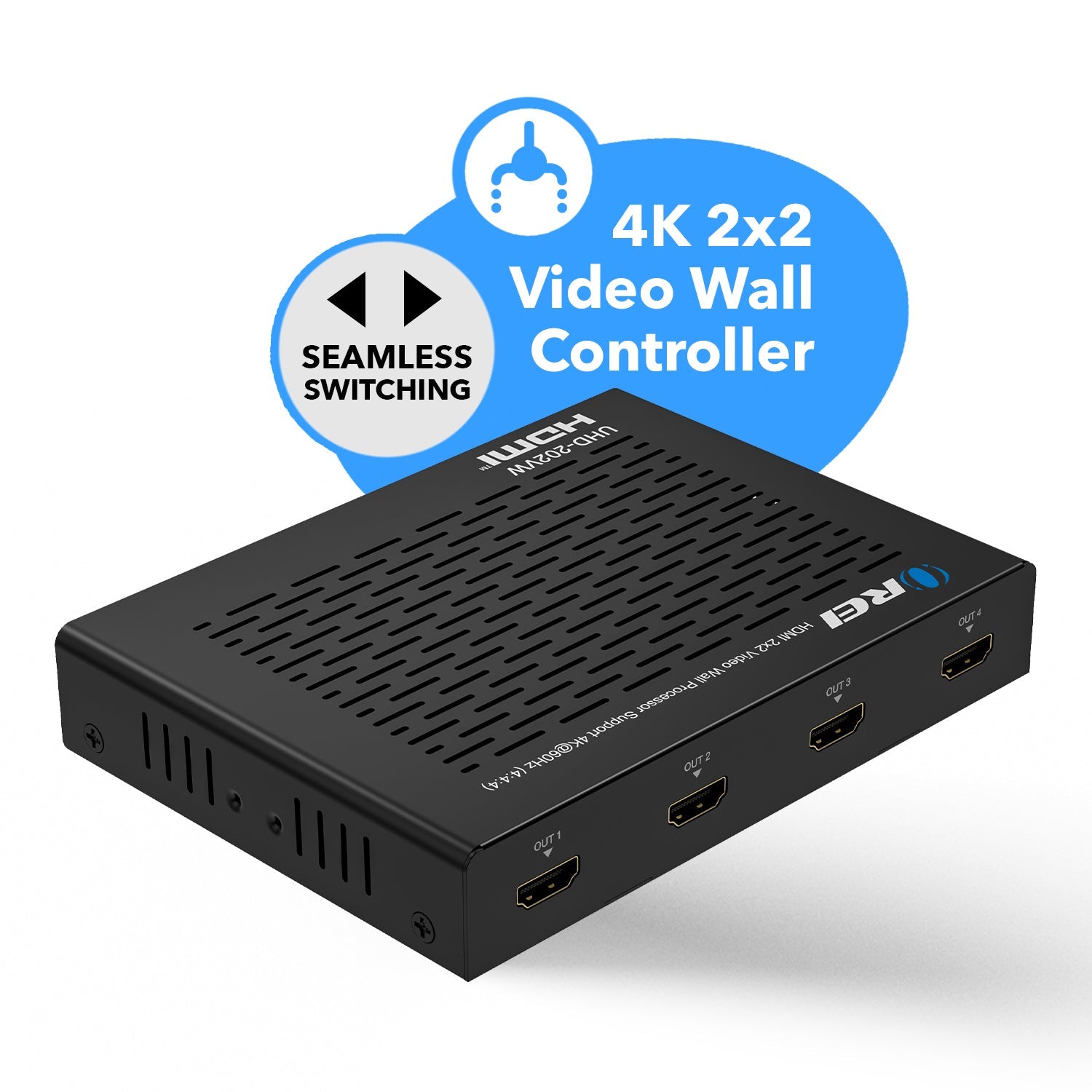

UHD-202VW: HDMI 2x2 Video Wall Controller 4K@60Hz
Key Features:
-
Supports 4K@60Hz HDMI Input – Delivers ultra-clear resolution for stunning source quality.
-
Fixed 1080p@60Hz Output on All Displays – Ensures synchronized Full HD playback across connected screens.
-

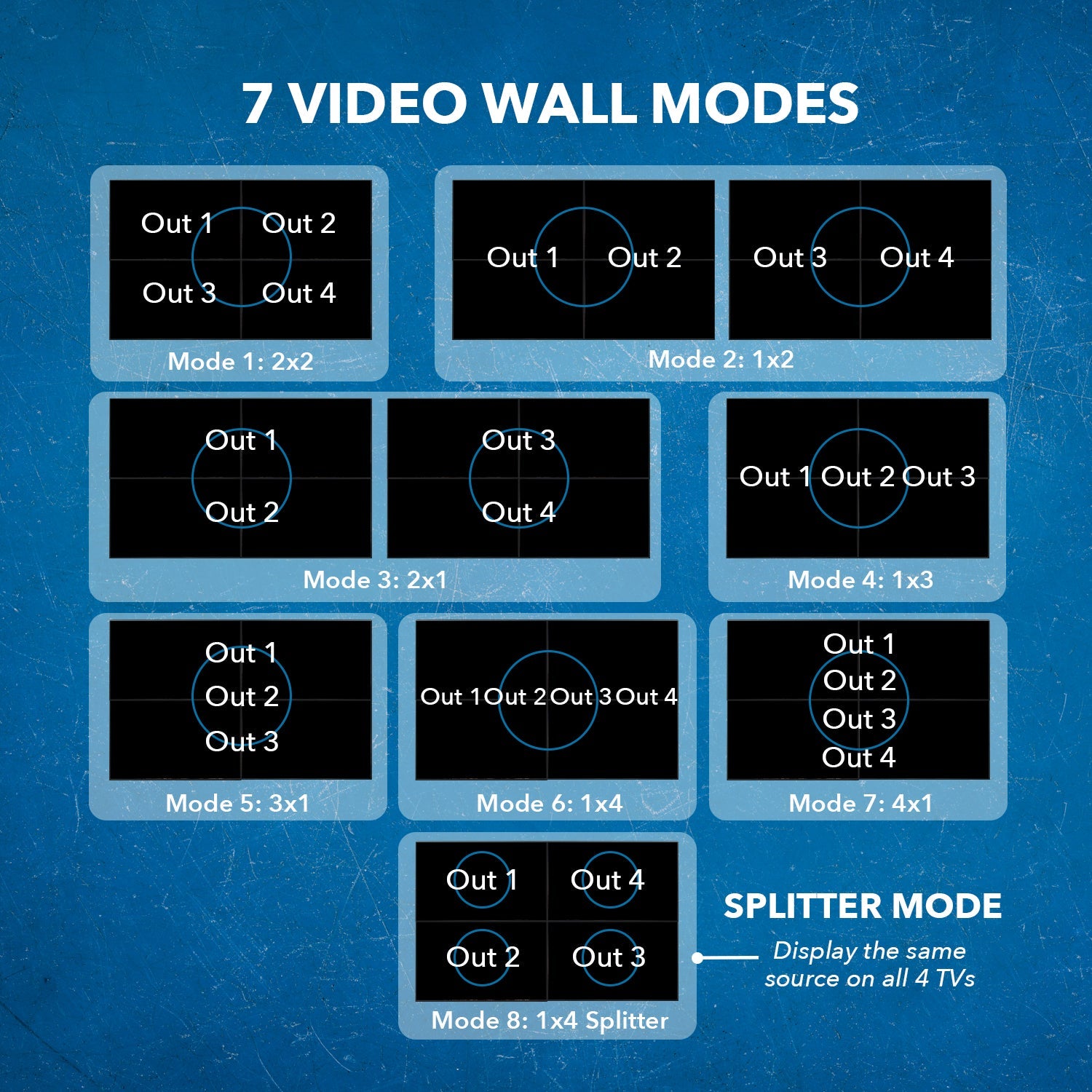

Multiple Display Modes – Combine up to 4 TVs into one large screen with selectable layouts (2x2, 1x2, 1x3, 1x4).
-

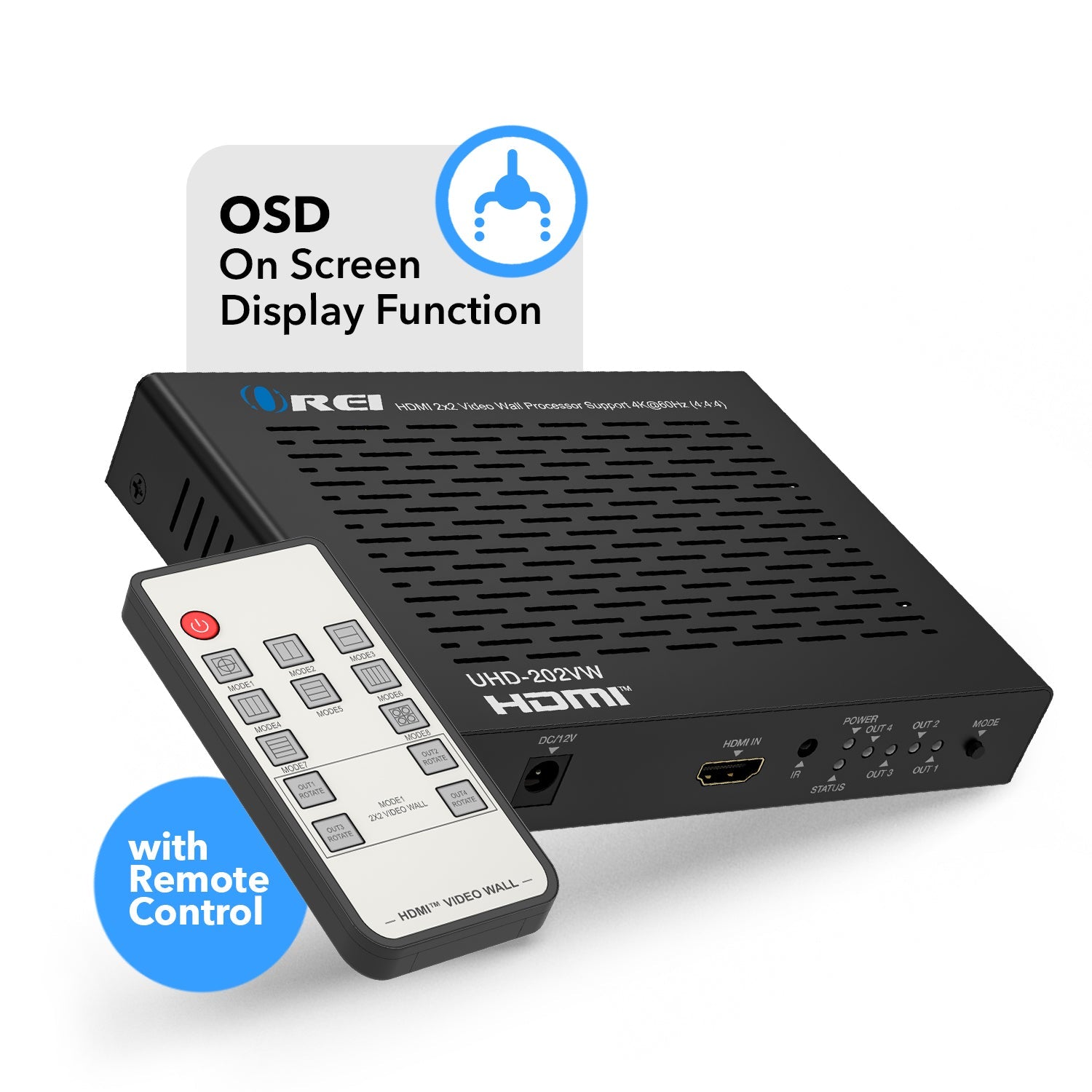

On-Screen Display (OSD) Functionality – Clearly view active modes and input/output info right on your display.
-
Power-Off Memory Function – Automatically recalls last used settings upon power-up for seamless reboots.

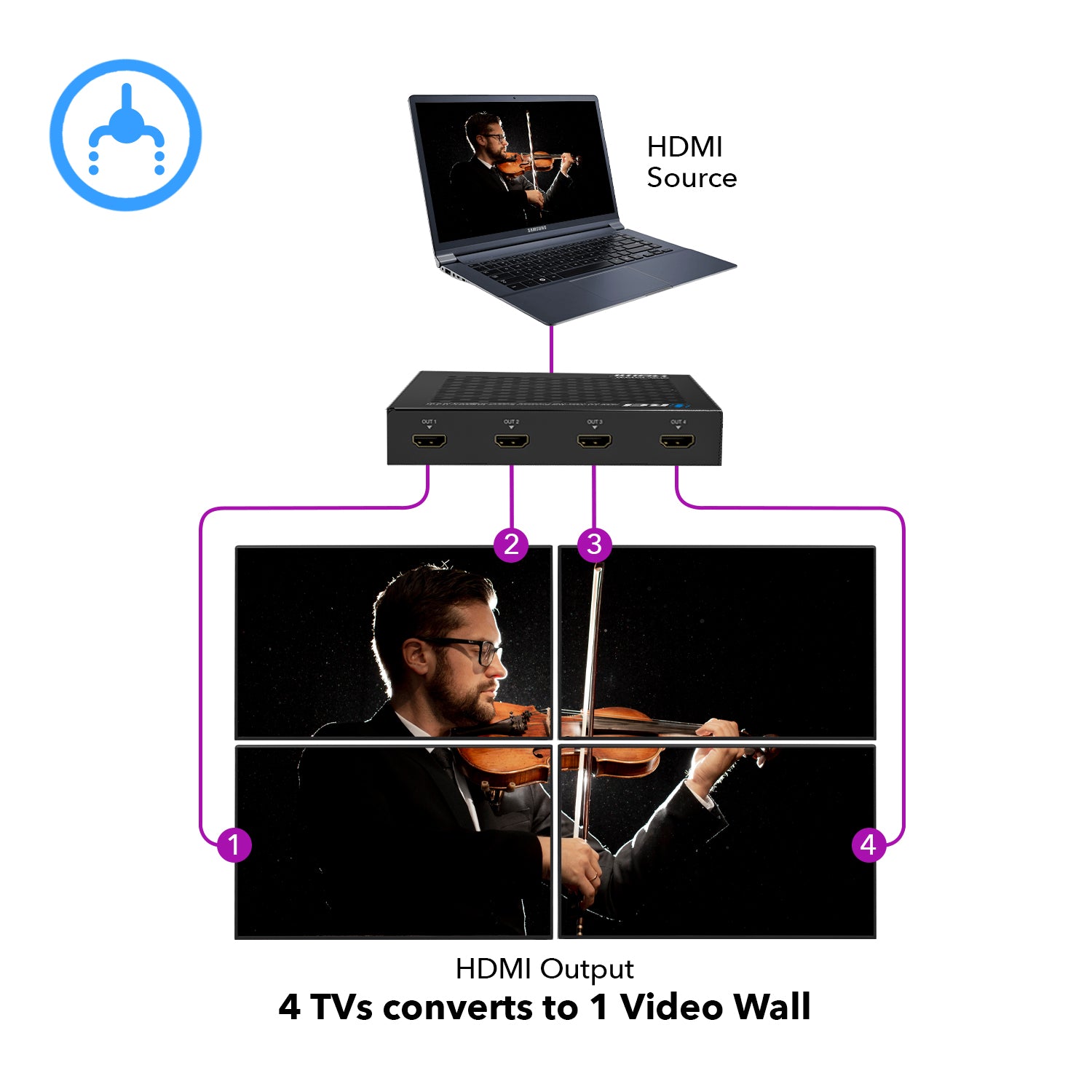

The HDMITM 2x2 Video Wall Processor allows you to split a single HDMI source across four displays, forming a dynamic 2x2 video wall or alternate layouts such as 1x2, 1x3, or 1x4. Supporting up to 4K@60Hz input resolution and downscaling it to 1080p@60Hz on all outputs, this processor ensures crisp, synchronized visuals across your display setup.

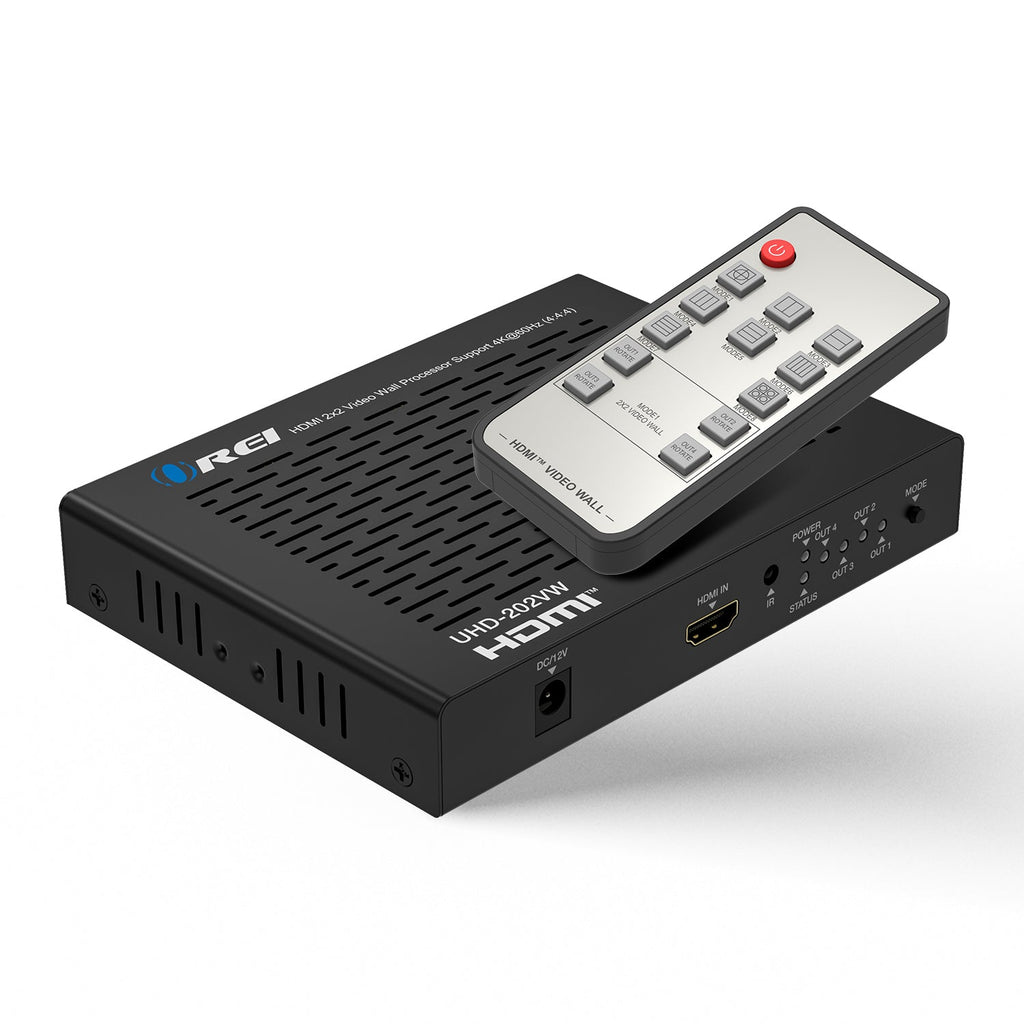

It offers user-friendly features like on-screen display (OSD) for clear mode indicators, bezel compensation for seamless visual alignment, and power-off memory to retain your last configuration. The included IR remote and front-panel controls make switching display modes effortless.
Ideal for retail displays, control rooms, digital signage, or live event broadcasting, this processor transforms multiple screens into one large-format viewing experience—bold, unified, and unforgettable.
[shortdes]
- HDMI Video wall controller
- Video resolutions up to 4K@60Hz
- Features 180-degree rotation, bezel management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
| OUTPUT: |
4 × HDMI [Type A, 19-pin female] |
|
PACKAGE CONTENTS
| 1x UHD-202VW |
| 1x Remote control |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/ 2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
Up to 1080P@60Hz |
ADDITIONAL FEATURES
|
CEC:
|
❌ |
|
IR Control:
|
✅ |
|
RS-232:
|
❌ |
|
Fast Seamless Switching:
|
❌ |
|
Video Wall Scene Save/Recall:
|
❌ |
|
PIP with Video Wall:
|
❌ |
|
Audio Extraction:
|
❌ |
|
USB-C Input:
|
❌ |
|
EDID Management:
|
❌ |
|
Web GUI Interface:
|
❌ |
|
TCP/IP Control:
|
❌ |
AUDIO SUPPORT
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
12W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/2A |
|
DIMENSIONS & WEIGHT
| Length:
|
151mm / 5.95in |
|
| Width: |
111mm / 4.37in |
|
| Height:
|
26.5mm / 1.04in |
|
| Weight:
|
395g / 13.93Oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operating Temperature: |
0℃ to 70℃ |
| Storage Humidity: |
5% to 90% RH non-condensation |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-202VW
